Машина для резки труб и автоматическая машина холодной нержавеющей стали с ЧПУ цена круглая или квадратная медная сталь
- Категория: >>>
- Поставщик: Zhangjiagang Heima Machinery Co. Ltd.
Сохранить в закладки 1601264583593:
Описание и отзывы
Характеристики
Product Overview
425CNC Cross cutting Pipe and tube Cutting Machine for stainless steel iron copper pipe and tube
1.Simple operation，High work efficiency, multiple cuts can be made at once
2..This machine can feed 1500mm at once (the feeding
length can be customized according to the customer's actual usage requirements);
length can be customized according to the customer's actual usage requirements);
3. Can cut single or multiple pipe fittings
(depending on the size of the fittings); According to customer pipe requirements
(depending on the size of the fittings); According to customer pipe requirements
4. Can be repeatedly fed multiple times;

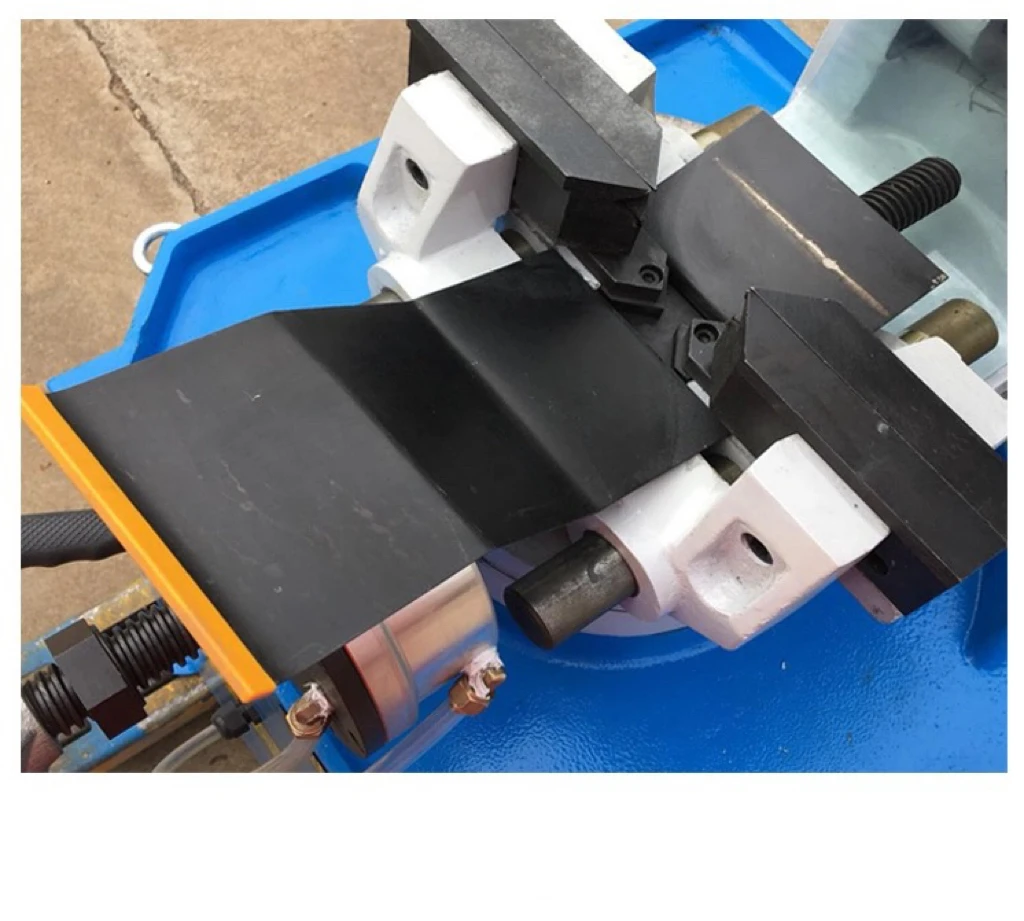

5. Thisdevice can cut steel pipes of different diameters (Φ 6mm~100mm) by changing the jaws.
This parameter is for reference only forsingle machine automatic operation, and can be customized with automatic feeding according to customer requirements;
6. Feedingmechanism: adopts servo motor+ball screw form, and the feeding guide rail adopts self-lubricating linear guide rail;
7. Pipecutting: using a vertical slide form, the track adopts a self-lubricating linear guide rail;
8. Structure and action instructions:
The pipe fittings are placed on the machine, automatically clamped, fed, cut, and operated in a cyclic manner.
The pipe fittings are placed on the machine, automatically clamped, fed, cut, and operated in a cyclic manner.
FEATURES AT A GLANCE
MC425CNC Cross cutting Pipe and tube Cutting Machine for stainless steel iron copper pipe and tube1.Simple operation，High work efficiency, multiple cuts can be made at once
PRODUCT SPECIFICATIONS
No | type | 425CNC | 350CNC | |
1 | Saw blade drives motor | 3.0/4.0KW380V/50HZ | 3.0/4.0KW380V/50HZ | |
2 | Servo motor power | 1KW | 1KW | |
3 | Hydraulic motor power | 2.2KW | 2.2KW | |
4 | Oil pressure working pressure | 10-50KG | 10-50KG | |
5 | sawing capacity | 120MM | 100MM | |
6 | Feed stroke | 1500MM | 1500MM | |
7 | machine weight | 1350KG | 1200KG | |
8 | warranty | 1 year | 1 year |
PRODUCT CONFIGURATION

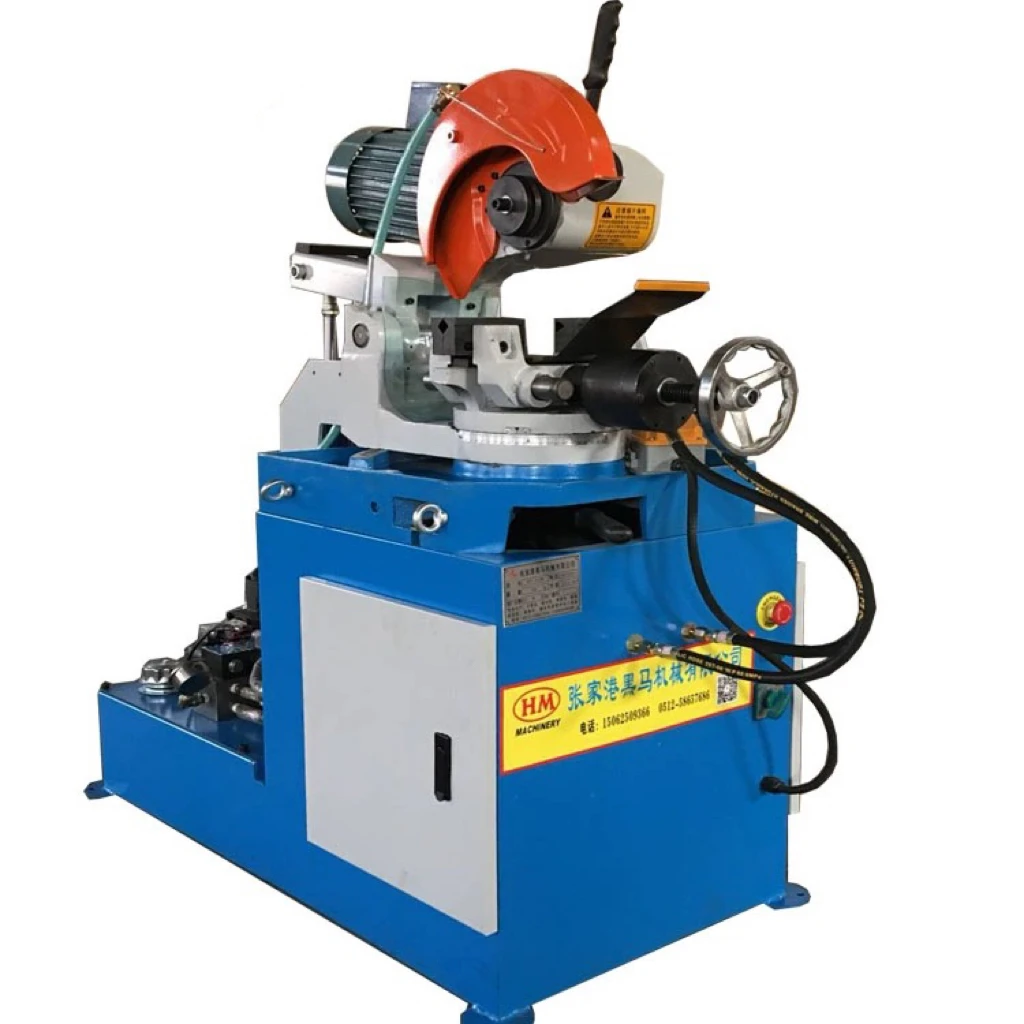

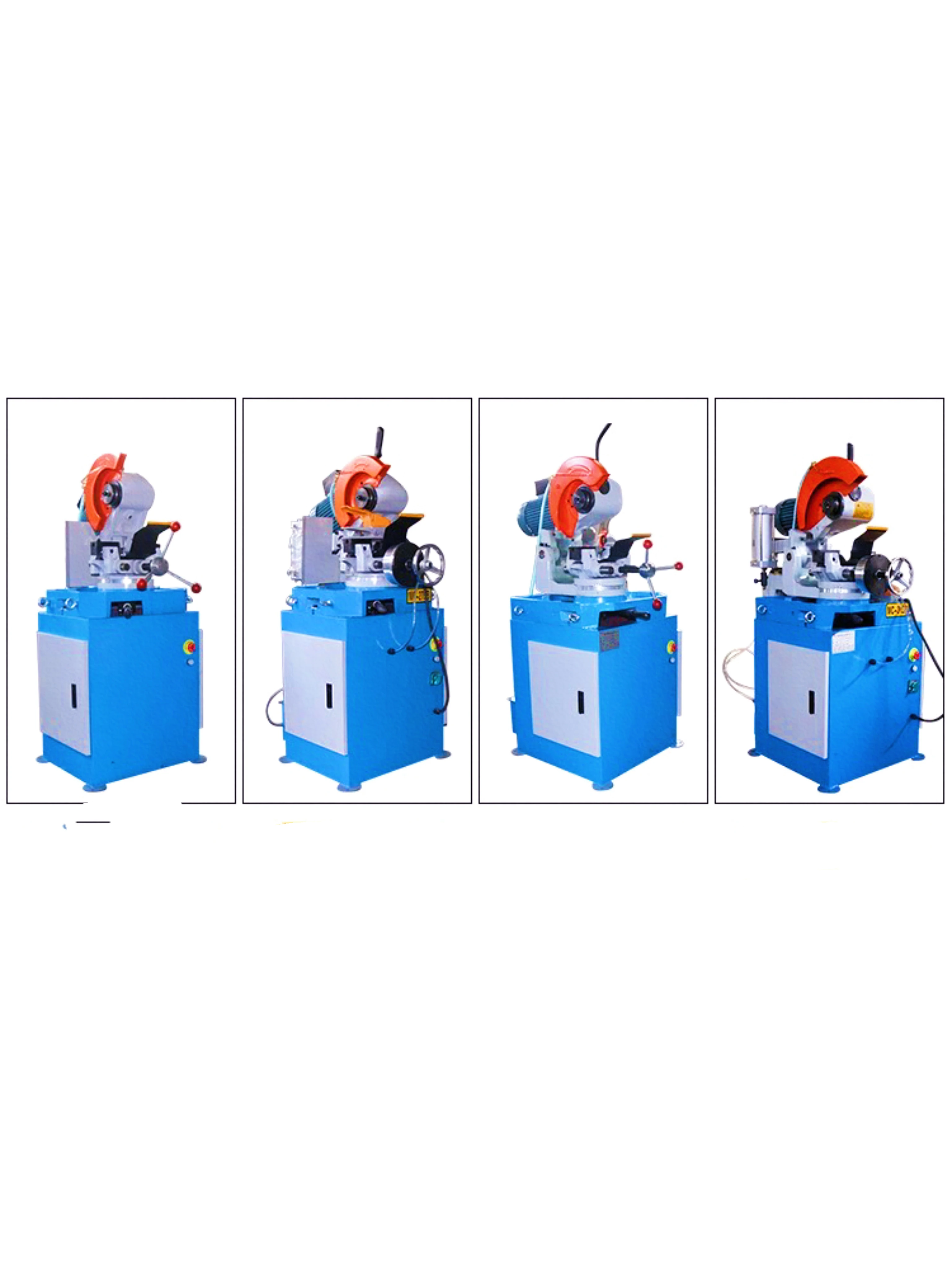

425 Semi-automatic pipe cutting machine
350Semi-automatic pipe cutting machine
425 automatic crosscutting machine
SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
FAQ
1.Are you a manufacturer or trading company? Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machinery.The main products include pipe and tube bending machines, pipe and tube cutting machines, and pipe and tube chamfering machines
2.How to choose the pipe and tube cutting machine
1.outside diameter
2.thickness
3.cutting length
4.material
2.thickness
3.cutting length
4.material
3.Do you provide any training to make sure our user can operate the machine very well? 1)We will provide detailed video and
instruction book for this machine; 2)We also offer training in our factory to all the clients,and we will arrange everything for
you during these days in our city,to make sure every client will be the expert in using our machine!
you during these days in our city,to make sure every client will be the expert in using our machine!
4.What about your machine
warranty? Our machine warranty is one year,and we use all the stable compoenents with long working life! And we can also send our
technician to do the after-sale service in client's factory!
5.What kind of solution you can offer to make sure your pipe bending machine can do our job? 1)We will help you confirm the modelof our machine according to your offered pipe information.
warranty? Our machine warranty is one year,and we use all the stable compoenents with long working life! And we can also send our
technician to do the after-sale service in client's factory!
5.What kind of solution you can offer to make sure your pipe bending machine can do our job? 1)We will help you confirm the modelof our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer
your workpiece drawing to us. We can designing the tooling to make your products in our workshop.
your workpiece drawing to us. We can designing the tooling to make your products in our workshop.
3)You can visit us to check how
to bend your product before you start the order.During this period,you can also learn how to use this machine well!
6.What certificate do you have?We have both ISO and CE certificate.
7.Where is your factory located?Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car.
You can fly to Shanghai Hongqiao or PVG airport directly..
to bend your product before you start the order.During this period,you can also learn how to use this machine well!
6.What certificate do you have?We have both ISO and CE certificate.
7.Where is your factory located?Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car.
You can fly to Shanghai Hongqiao or PVG airport directly..
Похожие товары

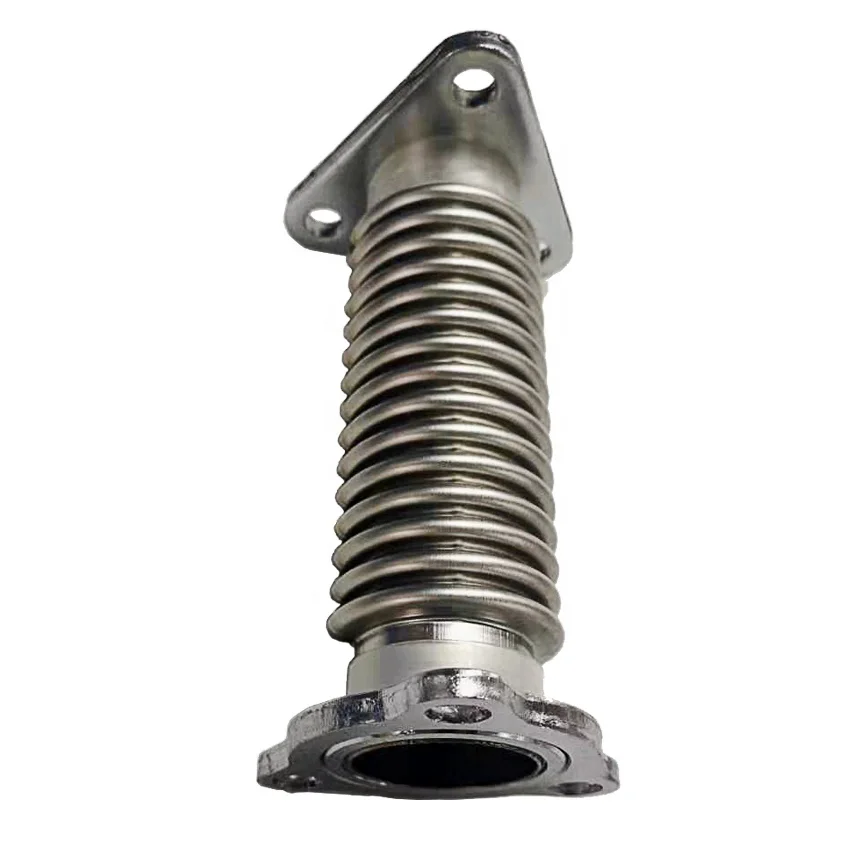

Bernet гибкая труба из нержавеющей стали с фланцем для дозатора топлива
601,67 ₽ - 711,06 ₽

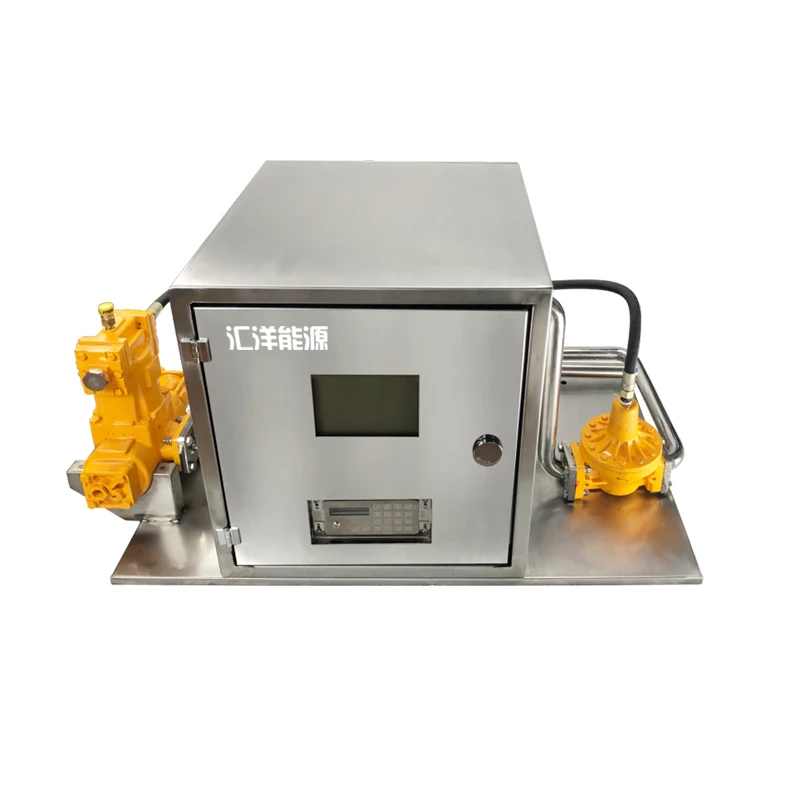

Оптовая продажа, голубое небо, другое сервисное оборудование, односопловый насос, бензиновый диспенсер для заправки
114 863,07 ₽ - 131 272,08 ₽
1000L 2000L 3000L 3-насадки Высокая точность оборудование для обслуживания и ремонта топливного насоса машина распределитель дизельного топлива

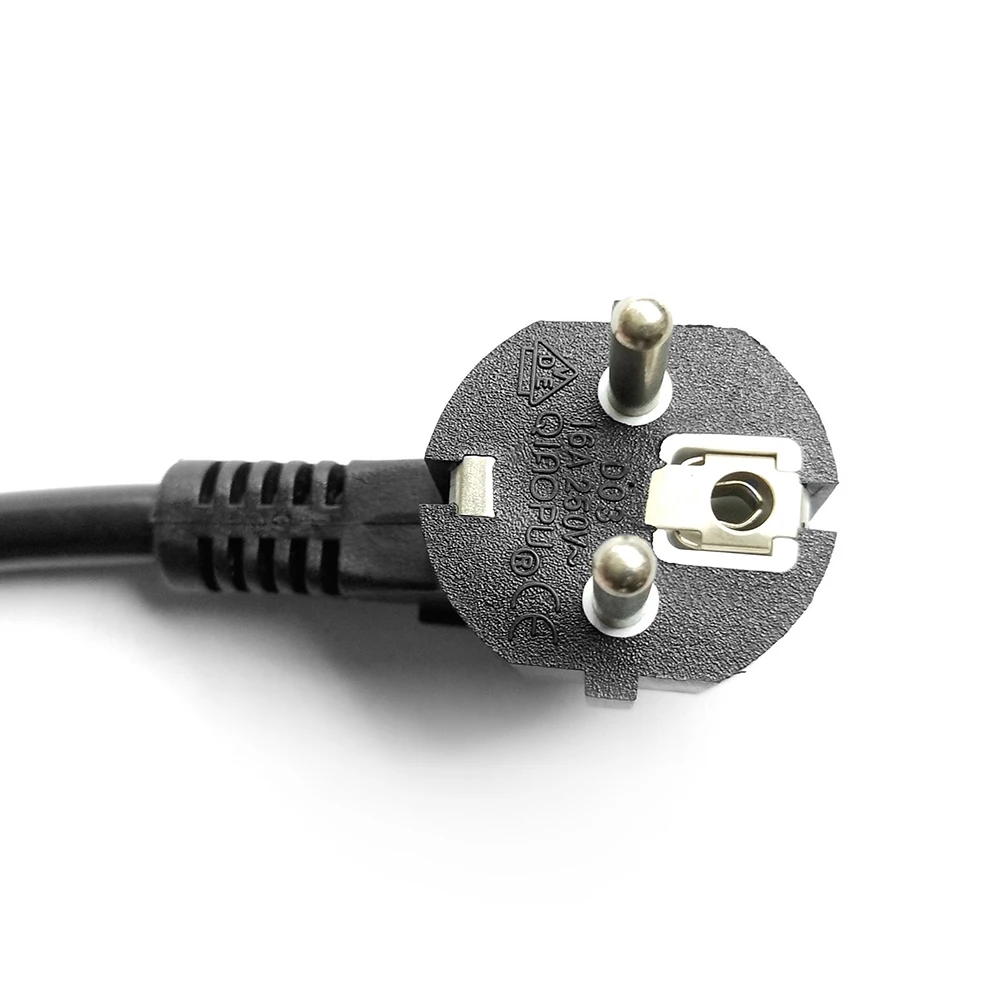

Прямая Продажа с завода, европейские штепсельные вилки ЕС, шнуры питания для промышленности

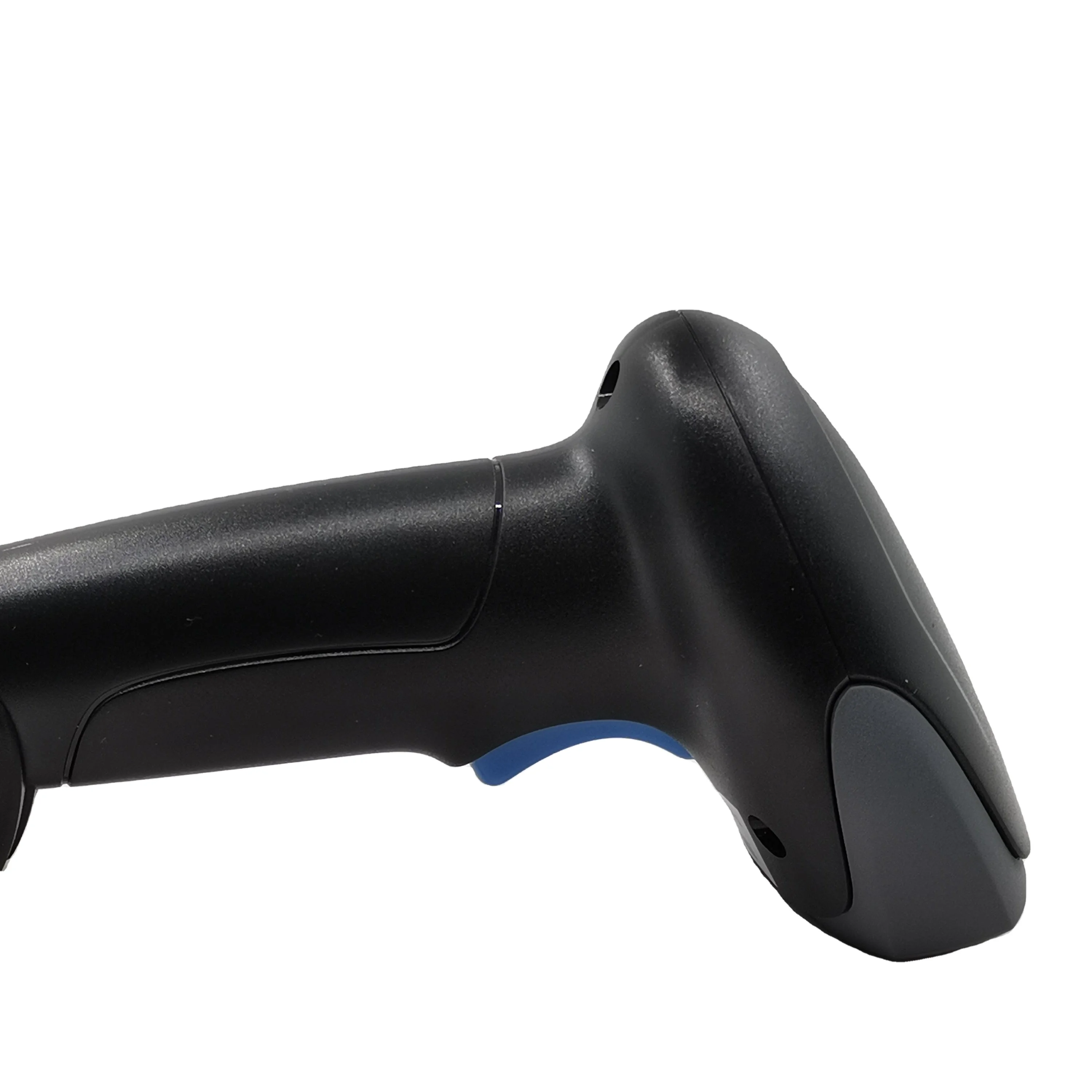

Проводной 2D сканер штрих-кода может считывать 1D штрих-код на экране senstively
2 187,87 ₽ - 3 281,81 ₽

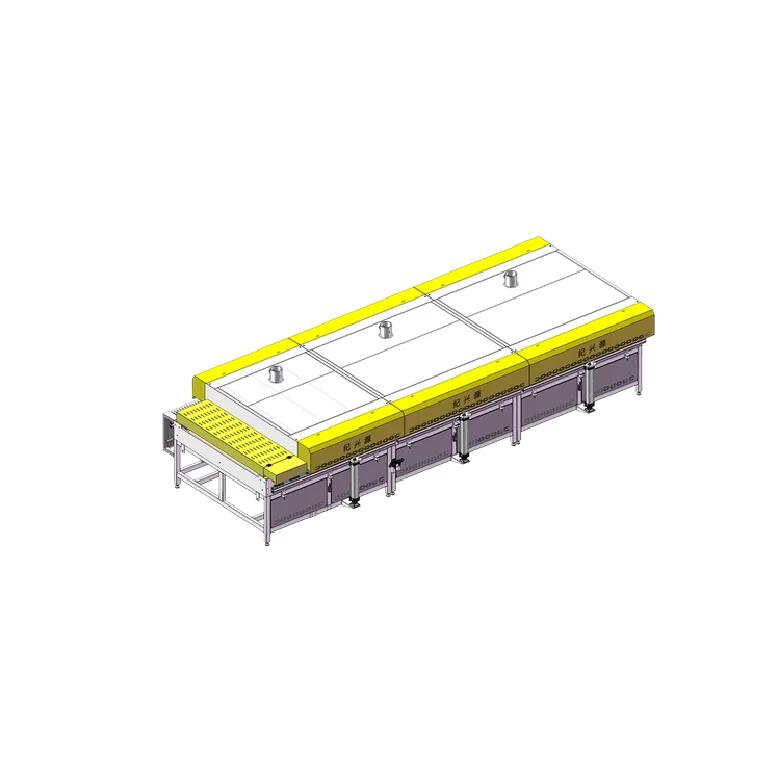

Термосушильная печь для сушки, сушилка для горячего расплава, 300 ℃, высокотемпературный контроль, высокая атмосфера, нагревание, сушилка, отверждение
