Вращающаяся сушилка для угля/шлака/глины
- Категория: >>>
- Поставщик: Ganzhou Eastman Technology Co. LtdGanzhou Ltd
Сохранить в закладки 1601264585969:
Описание и отзывы
Характеристики
Product Introduction
Product Introduction

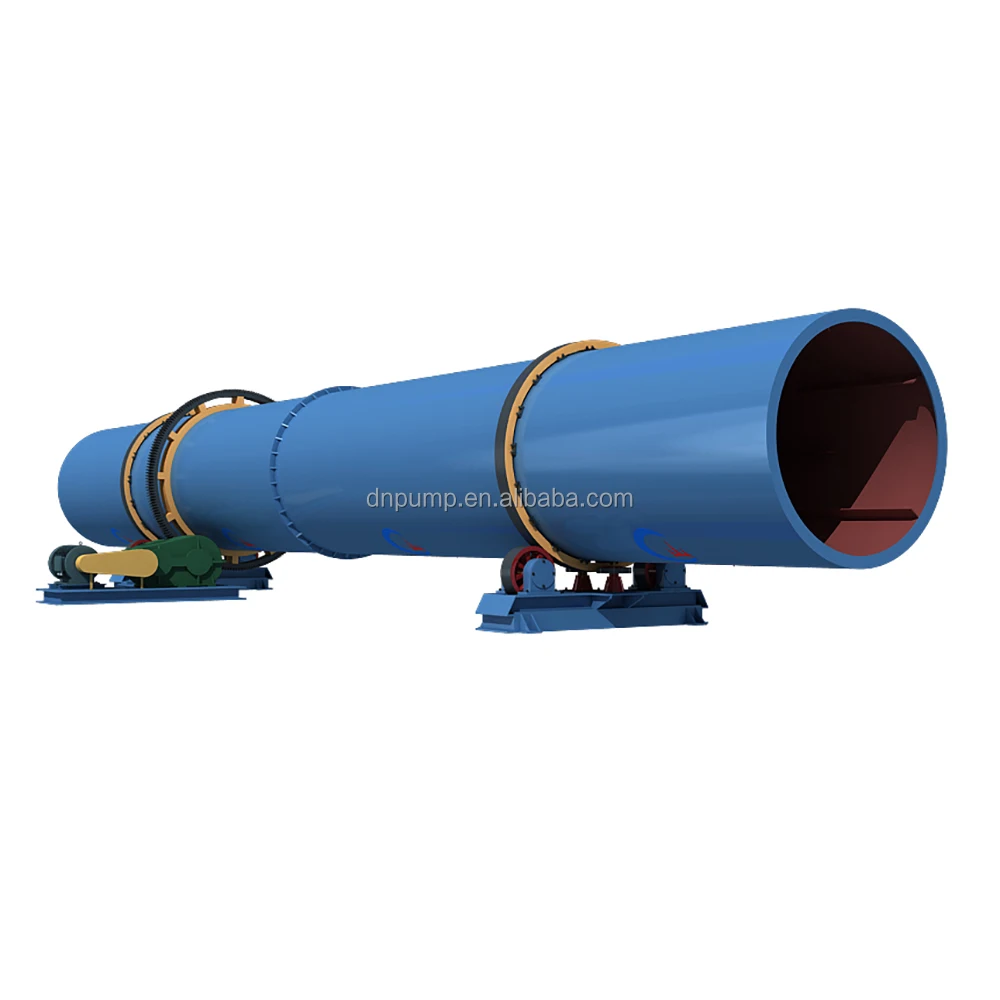

Rotary Dryer can be used for drying materials with certain humidity or granularity, widely used in building materials, metallurgy, chemical industry, cement industry drying slag limestone, sludge, slag, clay and other materials. The rotary drum dryer is mainly composed of rotary body, lifting plate, transmission device, supporting device and sealing ring and other parts. The industrial dryer has the advantages of reasonable structure, fine production, high yield, low energy consumption, convenient operation and the like. Drum dryer has strong adaptability to materials, can dry all kinds of materials, and equipment operation is simple and reliable, so it has been widely used.
Working Principle

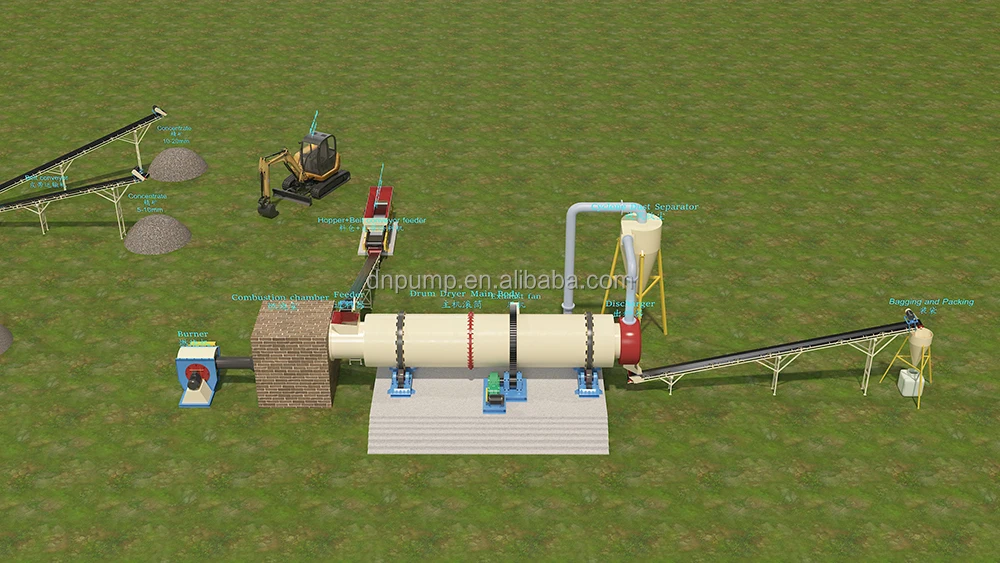

1. The mineral material is transported to the hopper by a belt conveyor or bucket elevator, and then the hopper feeder enters the feeding end through the feeding pipe.
2. The inclination of the feeding pipe should be greater than the natural inclination angle of the material, so that the material can flow smoothly into the mine dryer.
3. The dryer cylinder is a rotating cylinder tilted slightly to the horizontal line. The material is added from the higher end, and the heat-carrying body enters from the lower end. The heat-carrying body is in contact with the material in a countercurrent way.
4. As the cylinder rotates, the material is moved to the lower end by gravity. In the process of moving forward in the cylinder, the wet material is directly or indirectly given the heat carrier, which makes the wet material dry, and then is sent out through the belt conveyor or the screw conveyor at the discharging end.
5. The inside wall of the slag dryer is equipped with a copy board, which can copy and scatter the material, so as to increase the contact surface between the material and the airflow, so as to increase the drying rate and promote the advancement of the material.
6. after the heat carrier Dryer, the general need for the cyclone dust collector gas with the material captured down.
2. The inclination of the feeding pipe should be greater than the natural inclination angle of the material, so that the material can flow smoothly into the mine dryer.
3. The dryer cylinder is a rotating cylinder tilted slightly to the horizontal line. The material is added from the higher end, and the heat-carrying body enters from the lower end. The heat-carrying body is in contact with the material in a countercurrent way.
4. As the cylinder rotates, the material is moved to the lower end by gravity. In the process of moving forward in the cylinder, the wet material is directly or indirectly given the heat carrier, which makes the wet material dry, and then is sent out through the belt conveyor or the screw conveyor at the discharging end.
5. The inside wall of the slag dryer is equipped with a copy board, which can copy and scatter the material, so as to increase the contact surface between the material and the airflow, so as to increase the drying rate and promote the advancement of the material.
6. after the heat carrier Dryer, the general need for the cyclone dust collector gas with the material captured down.

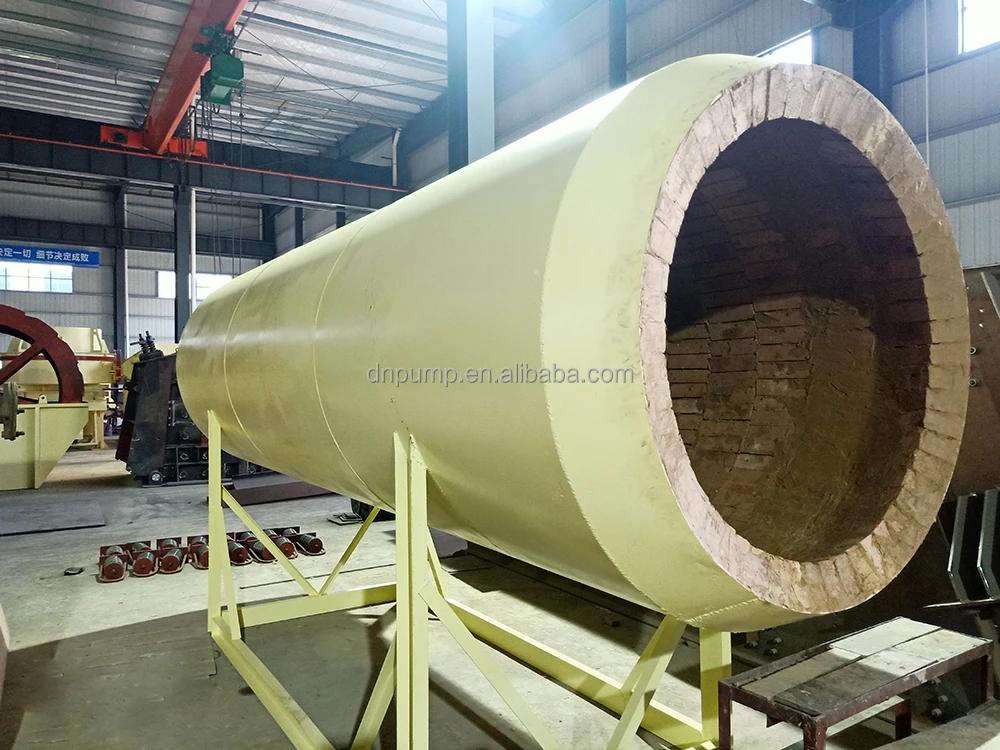

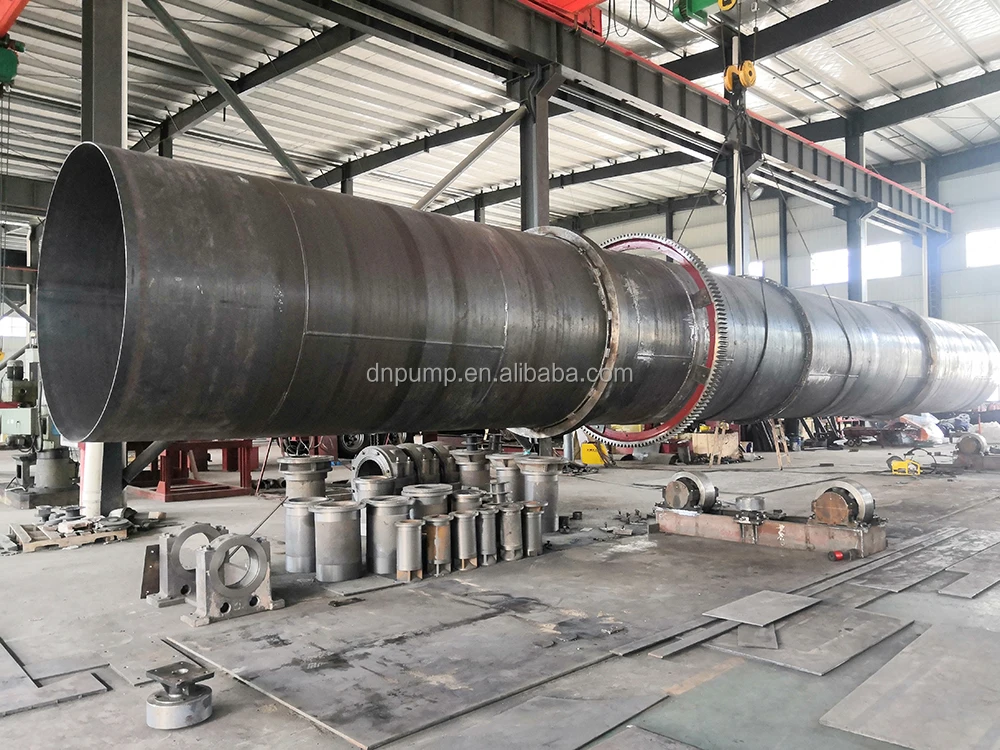

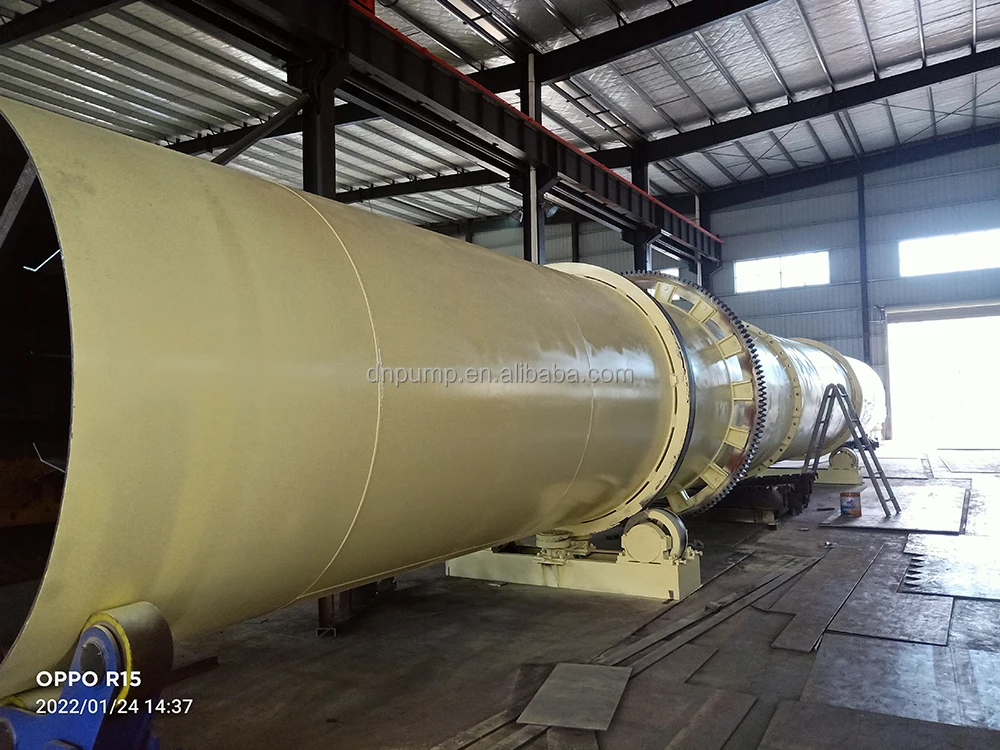

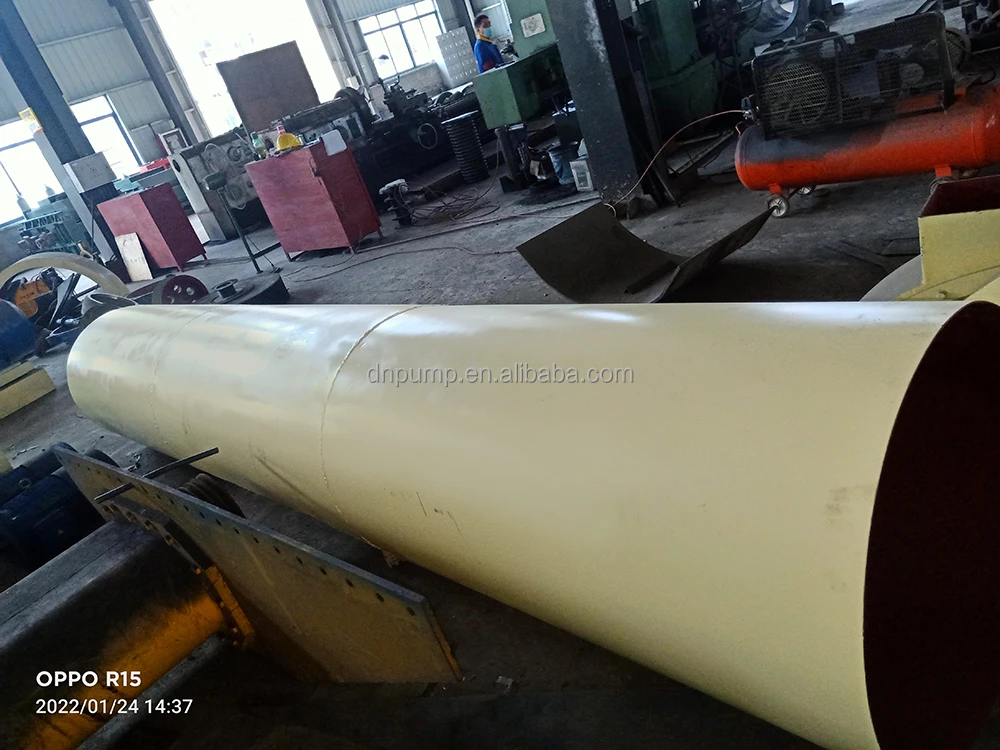

Product display
Advantages and Features
The Rotary Dryer is characterized by compact structure, less floor area, reliable operation, low energy consumption, high heat efficiency, good drying effect, easy automatic control and fewer operators. Can Be equipped with ancillary equipment: electromagnetic vibration feeder or disk feeder, bucket elevator, hot stove, transmission system, dust removal devices, vibration screen, belt conveyor, etc. The burners for hot-blast stoves come in many forms, including oil, gas, coke and coal.
JXSC rotary dryer for sale! Provide rotary dryer design, rotary kiln, industrial dewatering system, sand dryer and different types of rotary dryers.
JXSC rotary dryer for sale! Provide rotary dryer design, rotary kiln, industrial dewatering system, sand dryer and different types of rotary dryers.
Technical Data
3～5T/H new complete set rotary dryer 3~5 | ||||
equipment list | description | motor power | ||
1 Hopper | 3～5m3 | |||
2 Disc feeder | φ800 | 1.5kw | ||
3 Belt conveyor（for feeding） | 500×9000mm | 1.5kw | ||
4 Rotary drum dryer | inlet drum diaφ960×3000+outlet drum diaφ1280×1500 | 3kw | ||
stainless steel drum thickness 5mm | ||||
5 Dust collector | air exhauster，cyclone φ500 | 2.2kw | ||
6 Smoke shaft | smoke bin | |||
7 Heating system | firewood（gas, coal, or coke as customized） | |||
8 Belt conveyor（for discharge） | 500×9000mm | 1.5kw | ||
More Model Please Contact Us,the Model Also Can Be Customized！

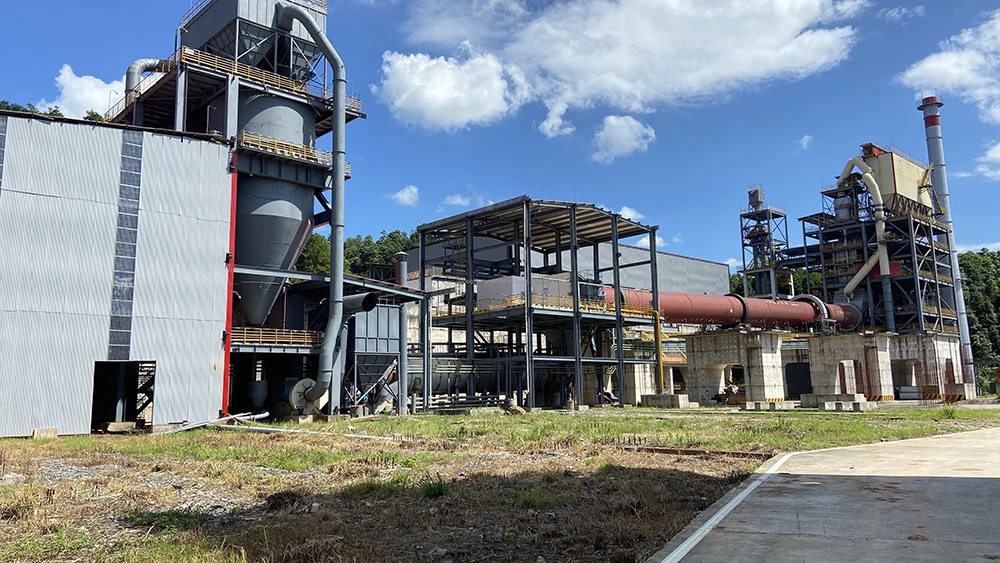

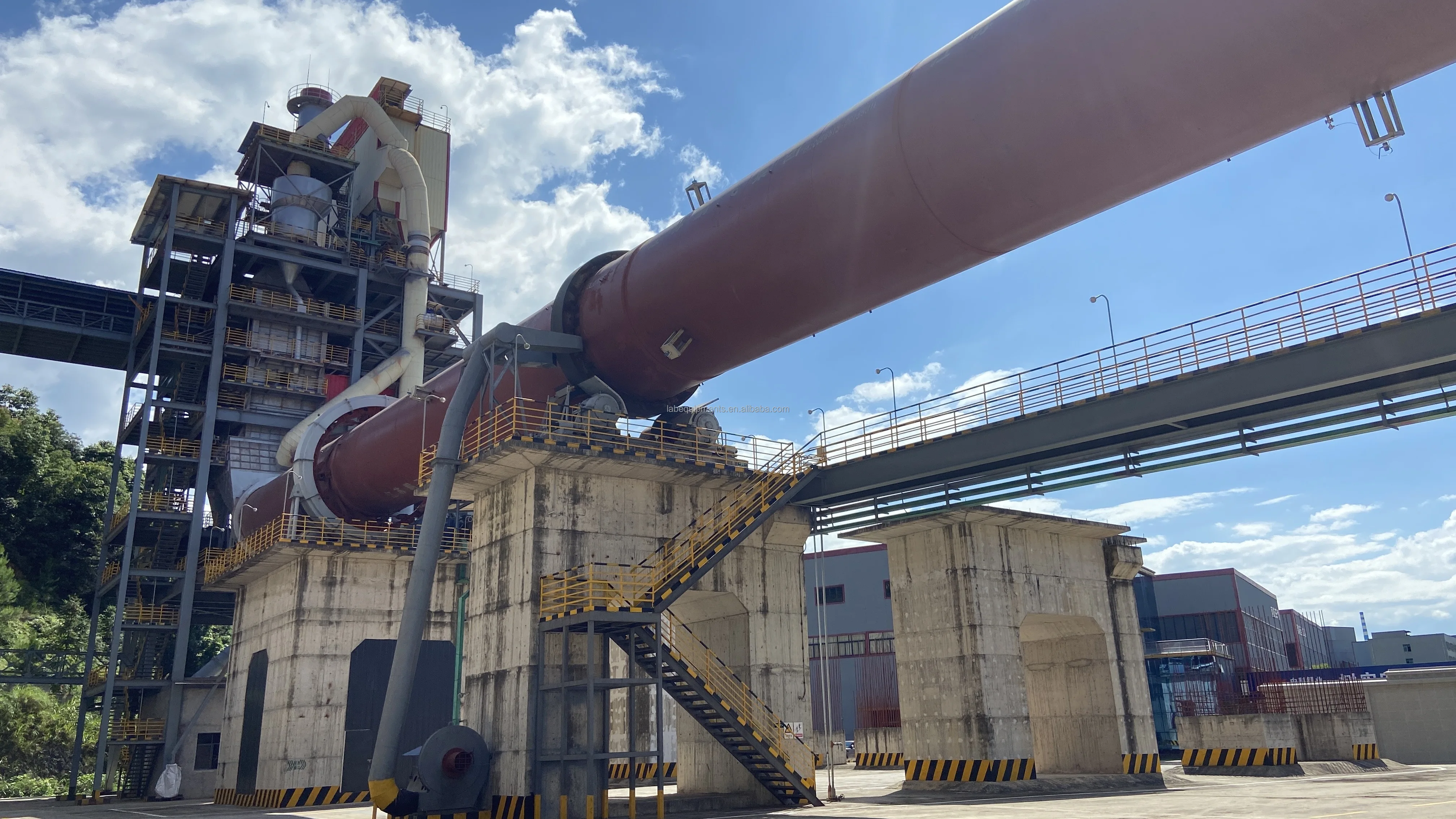

Successful Cases
We have more than 35 years of experience in mining equipment production and can provide a full range of mining equipment from crushing to beneficiation. We have professional engineers who can design the process for you and can provide field guidance for installation services. Here are some of our success stories. Welcome to inquire!

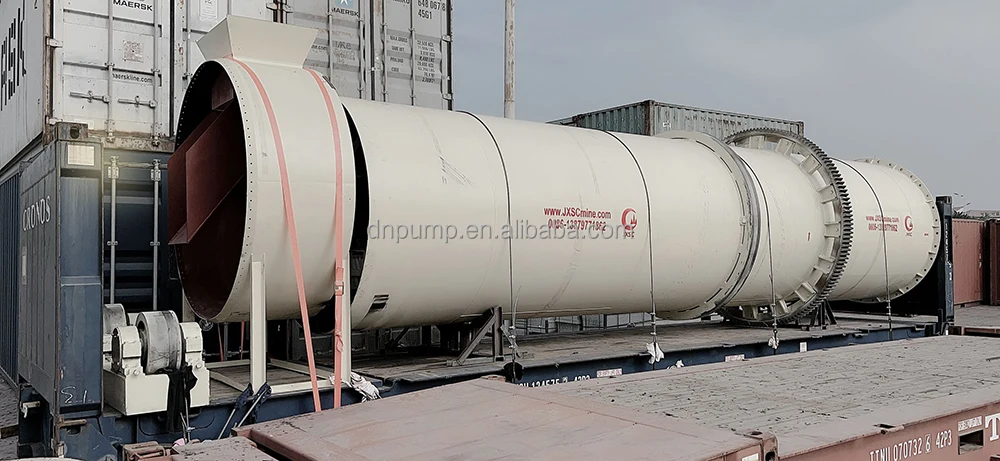

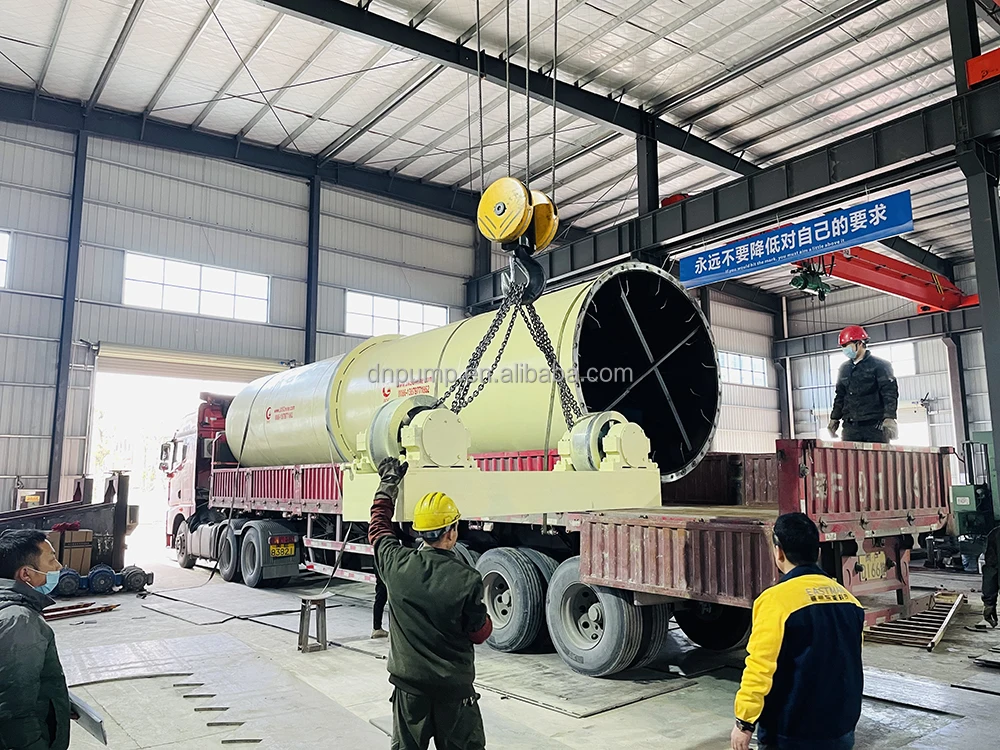

Product packaging
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Our Company
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
