Современная яркая Встраиваемая поверхность 10 Вт 20 30 магнитная лампа
- Категория: >>>
- Поставщик: Guangzhou Keou Lighting Co. Ltd.
Сохранить в закладки 1601264724916:
Описание и отзывы
Характеристики

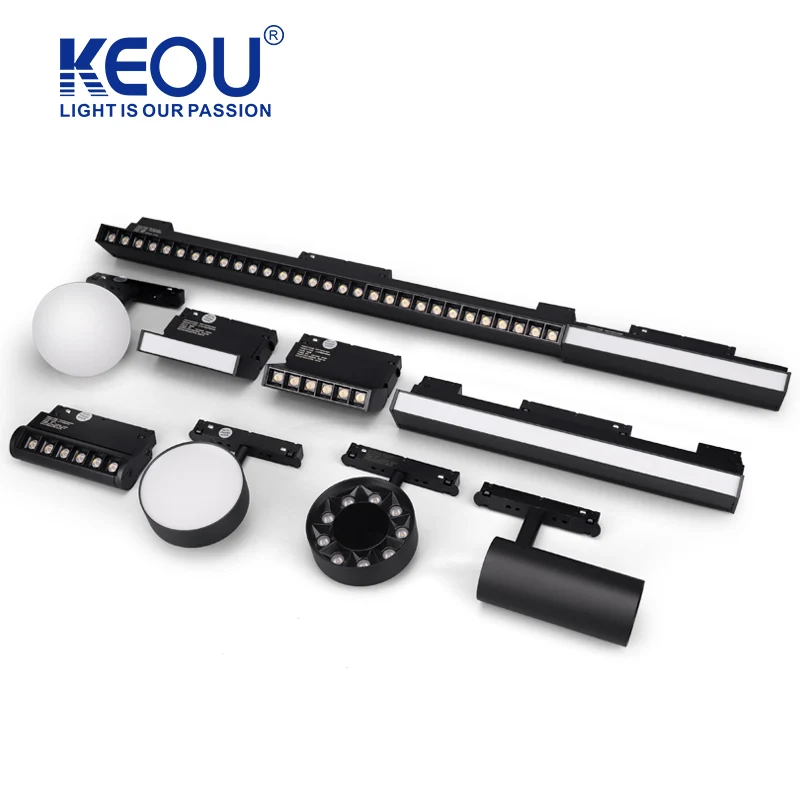

More Magnetic Track Light styles are displayed in the video above↑↑

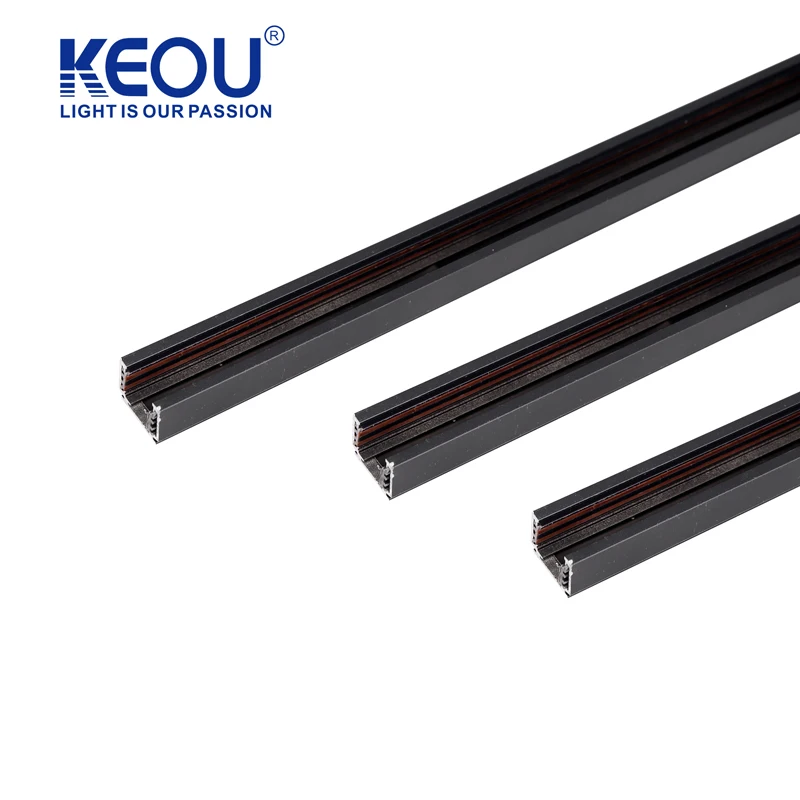

What is a 48V magnetic track light? There are three parts, the first part is the magnetic track, the other part is the lamp. There is also another part, which is the power supply. It depends on whether the magnetic track has its own driving power supply. The track system of the magnetic track light usually contains an electrical rail, which can transmit electricity. The bottom of the lamp is equipped with a magnet that can be adsorbed on the track and contact the conductive part in the track through specially designed contact points to provide power for the lamp. The conductive part on one side of the track is connected to the power supply, usually 48V DC. Through the transmission of current, the LED lights and other chips inside the lamp are driven. |
Feature of KEOU magnetic track light 1,48V safety voltage, lamps can be moved freely. 2,It can be used with any combination to meet the lighting needs of different scenes. 3,Adjustable lighting Angle, adjust the lighting effect at any time. |

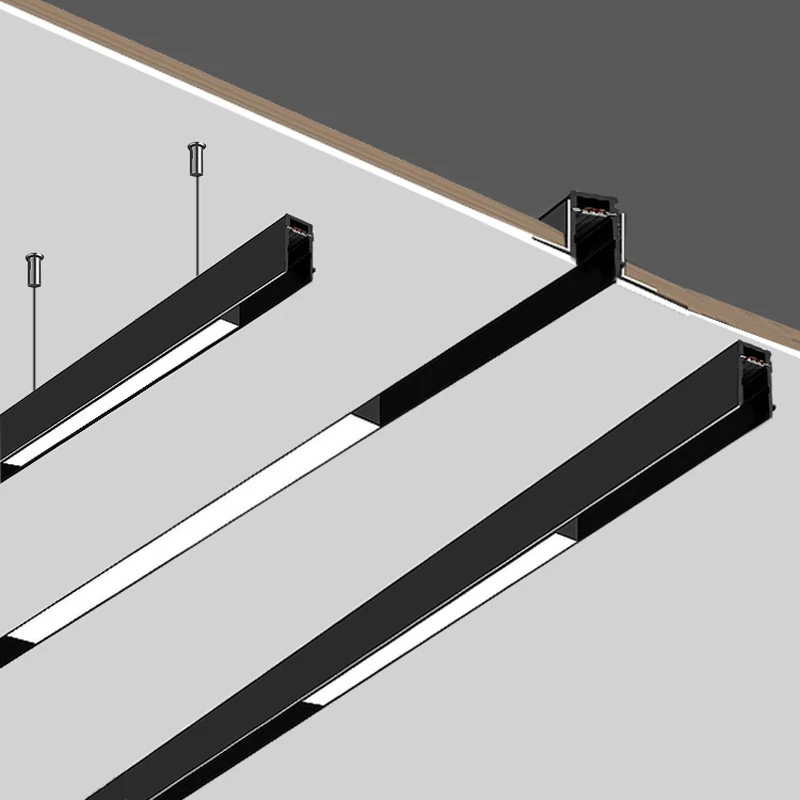

| The difference between embedded installation and surface installation of magnetic track lights | ||
| Embedded installation | Surface mounted installation | |
Installation | Track lights are usually embedded in the ceiling, with only the outer frame of the light fixture exposed. | Surface mounted magnetic track lights are directly installed on the ceiling or wall, usually fixed by brackets or pendants |
| Lighting Effects | Recessed lamps can achieve more uniform light distribution, less prone to shadows, and are suitable for applications that require uniform lighting. | The surface-mounted design also makes it more suitable for spaces that require prominent lighting or specific decorative effects. |
| Design | The lamps are embedded in the ceiling, which can keep the space simple and beautiful, and it is not easy to see the wires and other installation structures. | The design style of surface mounted lamps can be more diverse, with different colors, shapes and material options, suitable for environments that emphasize the design of the lamp itself. |
How to install magnetic track lights?
1,Fix the track bracket with screws.
2,Align the left and right copper needles at the top of the lamp body with the copper bars at the bottom of the track.
3,Allow the lamp body to adsorb onto the track.
4,Check if the safety buckle is securely fastened.
| Specifications and types of magnetic track lights | ||
 | Model number | Size |
| KEOU-20X8SA-10W | 300mm | |
| KEOU-20X8SA-20W | 600mm | |
| KEOU-20X8SA-30W | 900mm | |
 | Model number | Size |
| KEOU-XX723-6W | ∅100mm |
 | Model number | Size |
| KEOU-XX723-6W | ∅100mm |
 | Model number | Size |
| KEOU-X702-12W | ∅30x300mm |
 | Model number | Size |
| KEOU-X701B-6W | ∅30x300mm | |
| KEOU-X701B-12W | ∅40x300mm |
 | Model number | Size |
| KEOU-2002YXZDJGD-6W | 115x22x25mm | |
| KEOU-2002YXZDJGD-12W | 223x22x25mm | |
| KEOU-2002YXZDJGD-18W | 331x22x25mm | |
| KEOU-2002YXZDJGD-24W | 439x22x25mm | |
| KEOU-2002YXZDJGD-30W | 547x22x25mm |
 | Model number | Size |
| KEOU-20X501SD-3W | ∅35x80mm | |
| KEOU-20X501SD-6W | ∅42x100mm |
 | Model number | Size |
| KEOU-20X601SD-10W | ∅48x105mm | |
| KEOU-20X601SD-20W | ∅58x130mm | |
| KEOU-20X601SD-30W | ∅68x155mm |
 | Model number | Size |
| KEOU-2002ZDFGD-6W | 270x270x235mm | |
| KEOU-2002ZDFGD-12W | 490x270x235mm | |
| KEOU-2002ZDFGD-18W | 380x270x235mm | |
| KEOU-2002ZDFGD-24W | 480x270x235mm | |
| KEOU-2002ZDFGD-30W | 580x270x235mm |
 | Model number | Size |
| KEOU-2002ZDJGD-6W | 115x22x82mm | |
| KEOU-2002ZDJGD-12W | 223x22x82mm | |
| KEOU-2002ZDJGD-18W | 331x22x82mm | |
| KEOU-2002ZDJGD-24W | 439x22x82mm | |
| KEOU-2002ZDJGD-30W | 547x22x82mm |
 | Model number | Size |
| KEOU-XX9GSD-9W | ∅95mm |
 | Model number | Size |
| KEOU-2002FGD-10W | 320x250x260mm | |
| KEOU-2002FGD-20W | 620x260x210mm | |
| KEOU-2002FGD-30W | 920x260x110mm | |
| KEOU-2002FGD-40W | 1240x180x205mm |
 | Model number | Size |
| KEOU-2002FGDL-20W | (327x307)x22x25mm | |
| KEOU-2002FGDL-40W | (627x607)x22x25mm |
 | Model number | Size |
| KEOU-2002ZJJGD-6W | 115x22x25mm | |
| KEOU-2002ZJJGD-12W | 223x22x25mm | |
| KEOU-2002ZJJGD-18W | 331x22x25mm | |
| KEOU-2002ZJJGD-24W | 439x22x25mm | |
| KEOU-2002ZJJGD-30W | 547x22x25mm |
 | Model number | Size |
| KEOU-X9BGD-10W | ∅75mm | |
| KEOU-X9BGD-20W | ∅95mm | |
| KEOU-X9BGD-30W | ∅145mm |
 | Model number | Size |
| KEOU-2001RGD-12W | 500mm | |
| KEOU-2001RGD-22W | 1000mm | |
| KEOU-2001RGD-40W | 2000mm | |
| KEOU-2001RGD-57W | 3000mm | |
| KEOU-2001RGD-68W | 4000mm | |
| KEOU-2001RGD-78W | 5000mm |
