Промышленный производитель скоростные затворные двери 110 В 220 раздвижные
- Категория: >>>
- Поставщик: Dongguan Amber Purification Engineering LimitedDongguan Limited
Сохранить в закладки 1601264775789:
Описание и отзывы
Характеристики
Product Description

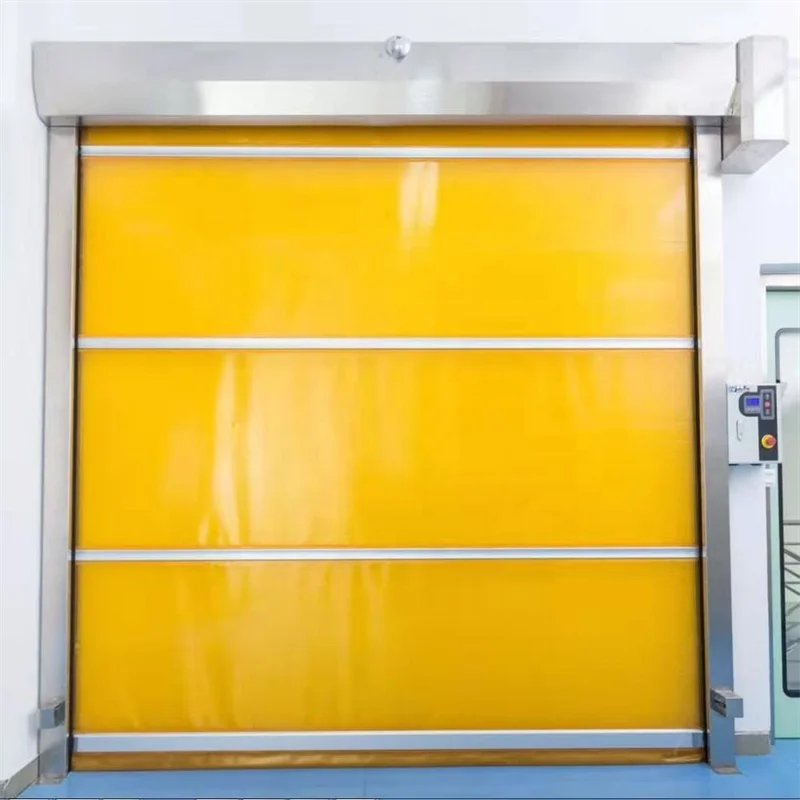

Clean Room Door High Speed PVC Door Fast Rolling Door For Warehouse
1.Applied to: Reservation,insect-proof,insect-proof,windproof,sound insulation,fire proof,anti odour,day lighting and so on.
2.Safety:It adopts infrared protection and airbag protection device.
2.Safety:It adopts infrared protection and airbag protection device.
3.Various designs:its size can be adjusted according to the size of the installation site, and windows can be added to increase indoor lighting and transparency.
4. Color: Ivory white, grey white, blue. others are required.
5. Operating system: button, remote control, manual when power off.
6. Wall panel thickness: 50mm
4. Color: Ivory white, grey white, blue. others are required.
5. Operating system: button, remote control, manual when power off.
6. Wall panel thickness: 50mm
Name | High Speed Rolling Up Door | ||||||
System | Power system, integration control system. 电力系统、集成控制系统。 | ||||||
Accessories | Imported motor, high quality aluminum alloy frame, door curtain, door post, buzzer,anti-collision post, wireless switch, pull switch, indoor signal lamp, infrared electronic eye, alarm lamp. 进口电机，优质铝合金框架，门帘，门柱，蜂鸣器，防撞柱，无线开关，拉动开关，室内信号灯，红外电子眼，报警灯。 | ||||||
Material | Mainly material: PVC , frame material: aluminum alloy. 主要材质：PVC，框架材质：铝合金。 | ||||||
Cross bar(Guide Rail) | 1. Aluminum Lath 2. Steel (Standard) | ||||||
Transparent window | 1.Location: Accordingly to custom's design.Middle section/Bottom Section evern full transparent. 1.位置：根据定制设计。中间部分/底部部分永久透明。 2.The windows can be Rectangle or Ellipse. As well as the size. 2.窗口可以是矩形或椭圆形。以及大小。 3. Thickness: 0.8mm/1.5mm Curtain. 3. 厚度： 0.8mm/1.5mm 窗帘. | ||||||
Regualr size | 2000*2500mm, 1800*2500mm, 2200*2500mm | ||||||
Remark | Any customized size is available. 任何定制尺寸均可提供。 | ||||||
Details Images

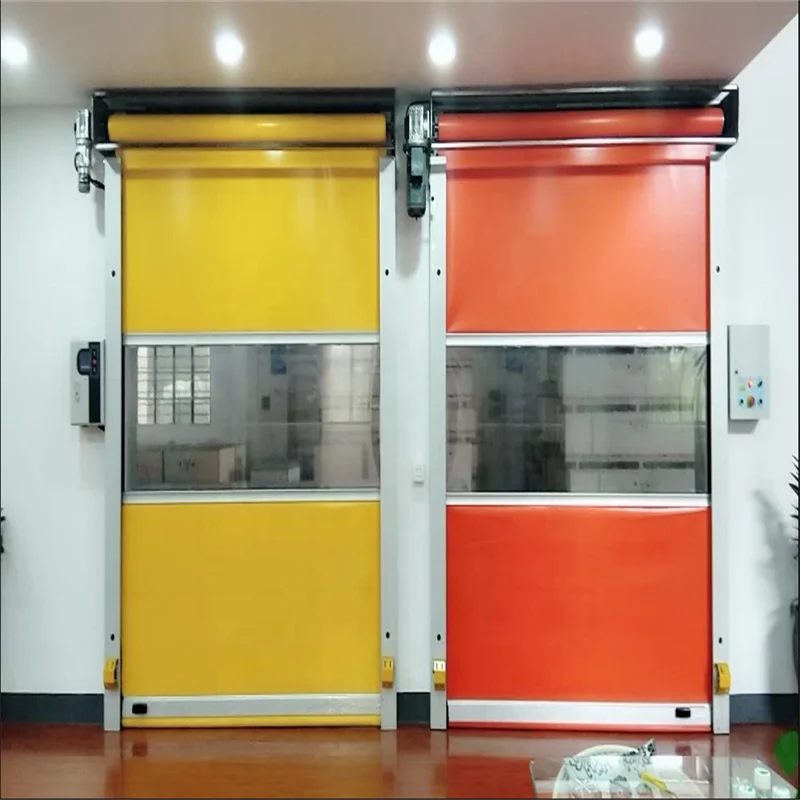

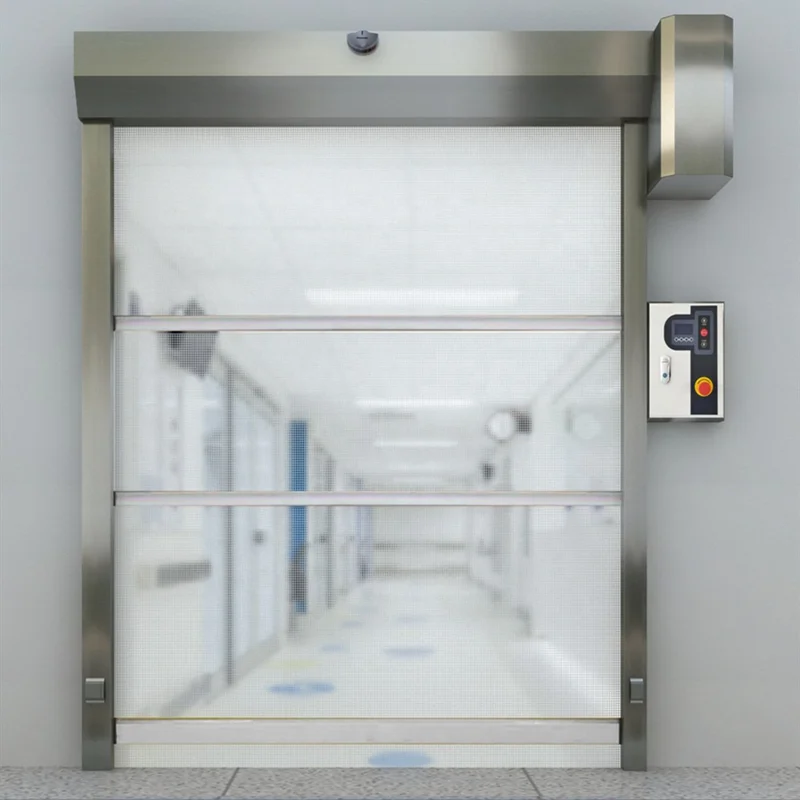

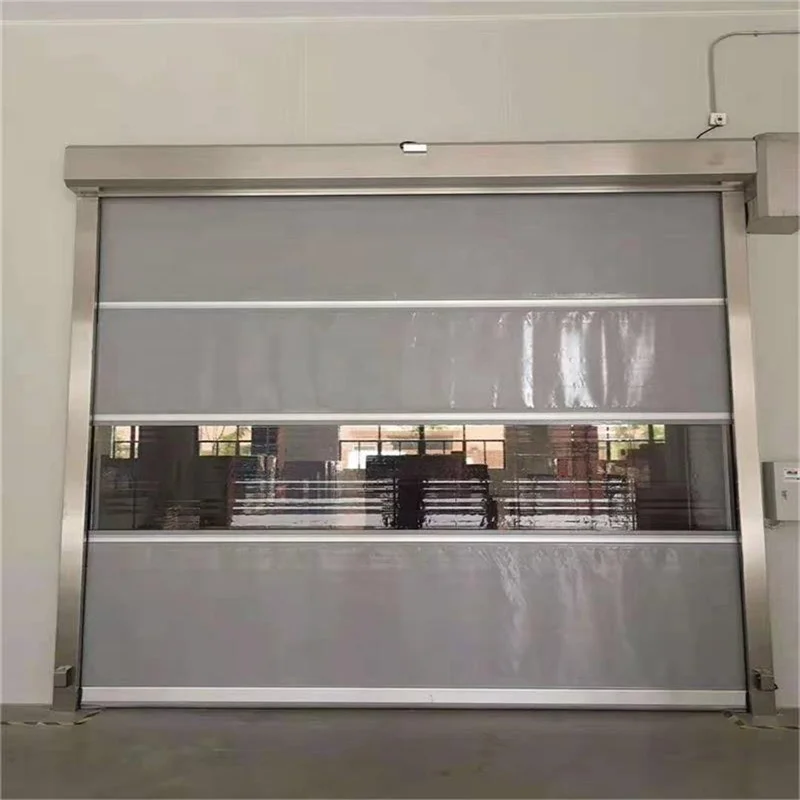

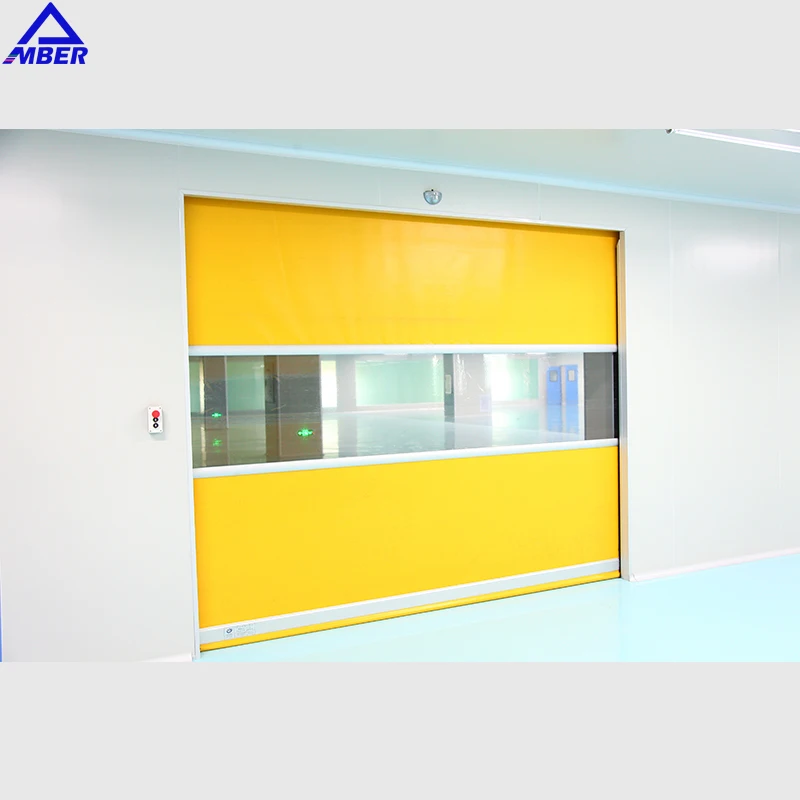

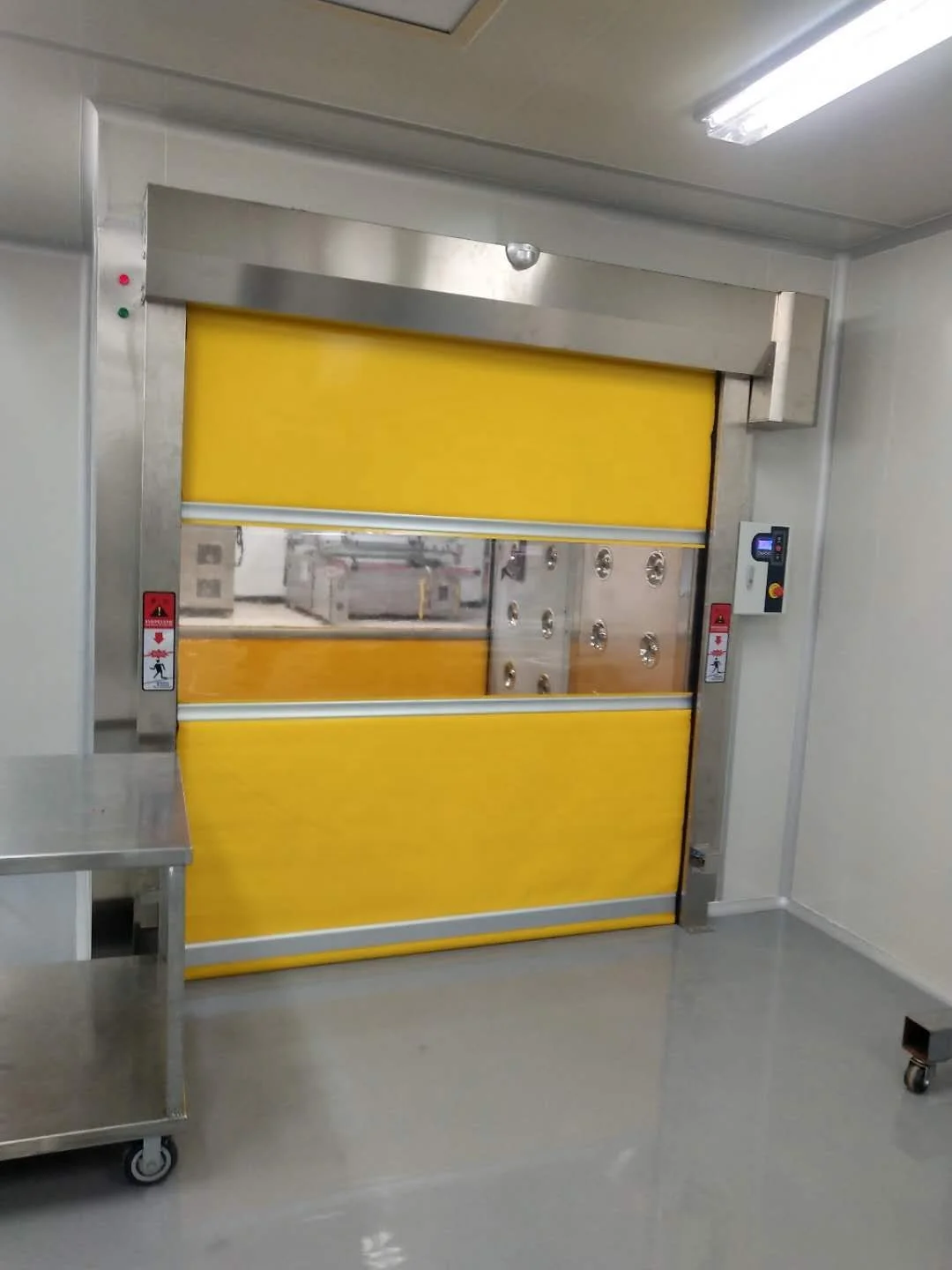

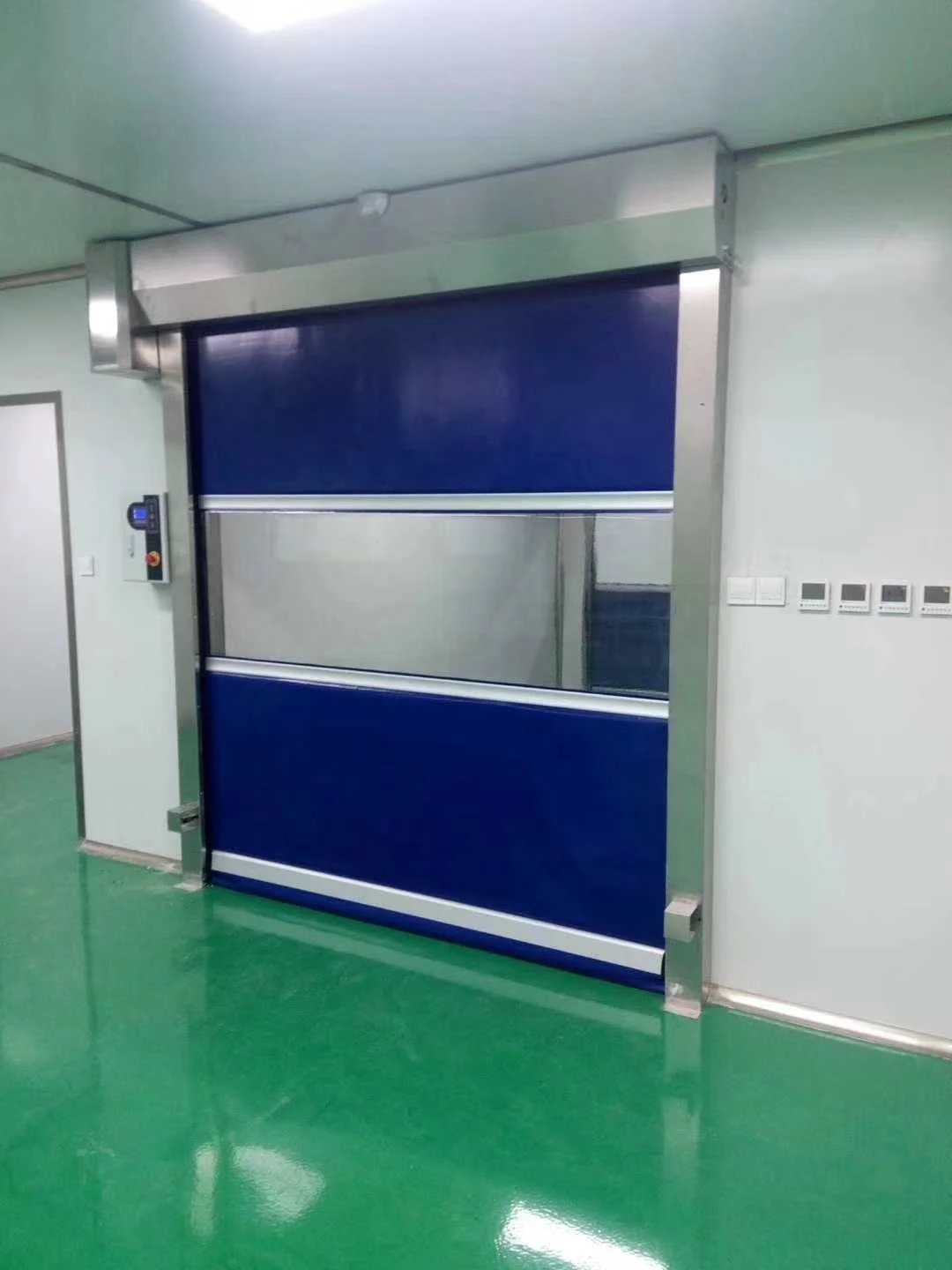

1.PVC Fast rolling door
Material: curtain 1.0mm high-strength PVC for door curtain, 1.2MM PVC for transparent window
Door frame: 1.5MM SS304 or cold plate paint, door head cover 1.0MM SS304 or cold plate paint
Wind resistance rod: aluminum alloy
Wind resistance: below 7
Maximum available wall to wall size: W5.5m*H6.5mSide width: 400mm
Installed space: 450mm
Speed of up and down: 0.6-1.5m/s
Window transparency: 96%
Noise reduction: 60dB

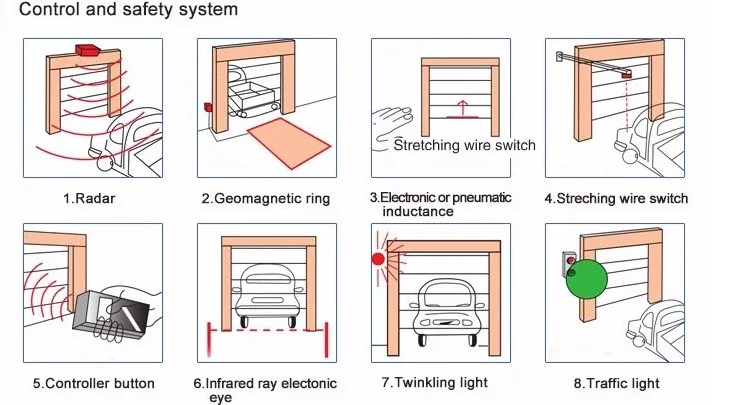

Optional: induction, remote control, button, geomagnetic,Manual control,zipper automatic rebound.
Advantages: can also be opened under power failure
Voltage: 380V
Motor power: 0.75-3.0KW
Voltage: 380V
Motor power: 0.75-3.0KW
size: customizable

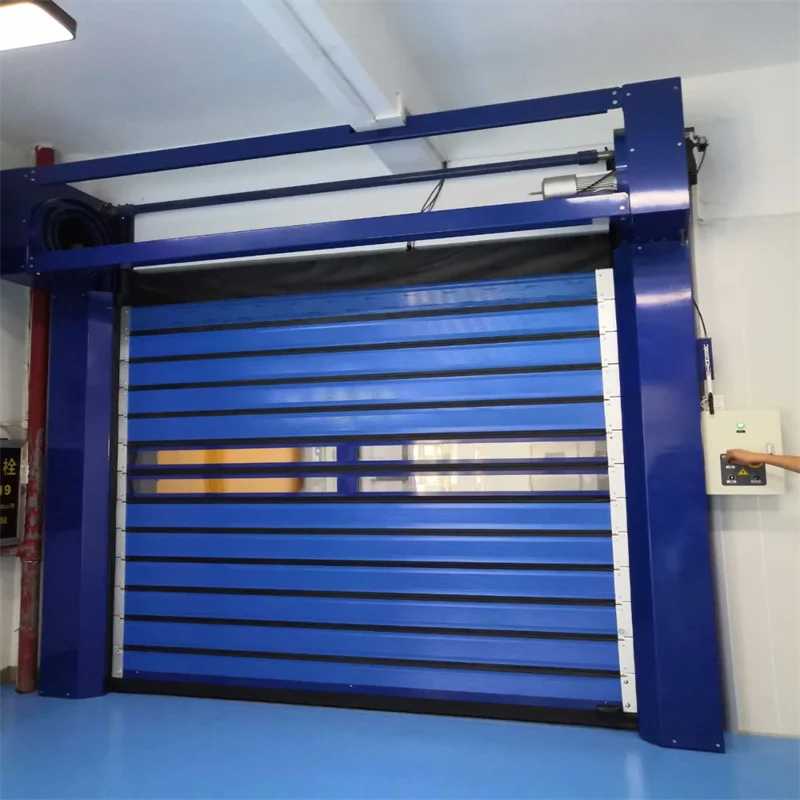

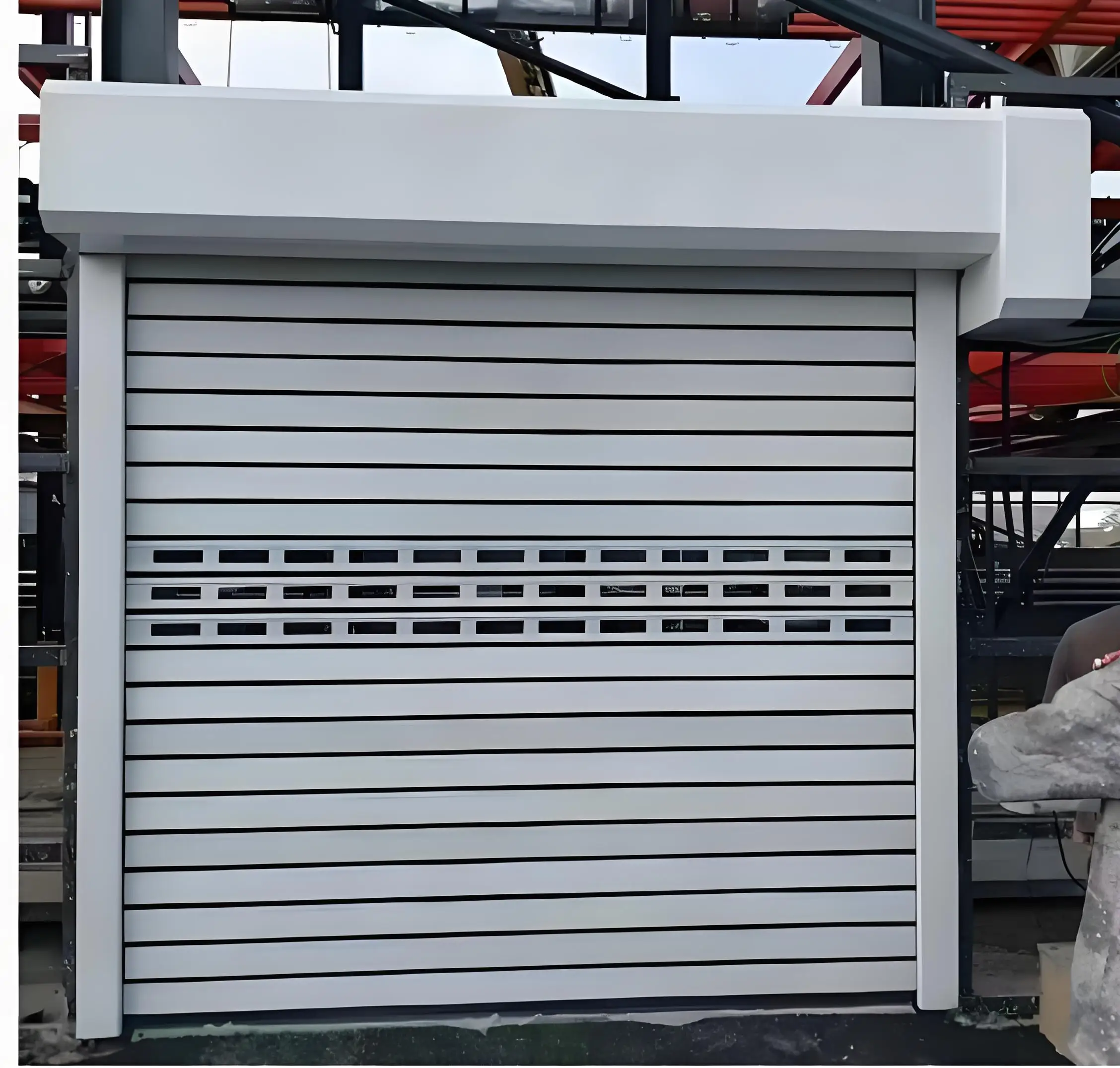

2.Turbocharged hard fast roller shutters
Material: double curtain 0.8MM aluminum alloy, PU foam filling(heat preservation function),40MM thickness.
Door frame: 2.0MM SS304 or cold plate paint.
Wind resistance: below 12 levels.
Switching speed: 0.5-2.8M/S adjustable, conventional 1-1.5m/s.
Control box: Chinese and English switch
Door opening method: induction, remote control, button, geomagnetic,Manual control
Safety function: obstacles will automatically rebound
Advantages: can also be opened under power failure
Flame retardant grade: B1
Features: The motor can open the door at high frequency and high speed
size: customizable
3.Industrial lift doors
Material: double curtain 0.5mm steel paint, PU foam filling, 40MM thickness.
Door frame: 2.0 galvanized sheet.
Wind resistance: below 12 levels.
Switching speed: 0.3M/S
Cord fabric: high density industrial woven fabric.
Door opening method: induction, remote control, button, geomagnetic,Manual control
Safety function: obstacles will automatically rebound
Safety function: obstacles will automatically rebound
Advantages: can also be opened under power failure
Flame retardant grade: B1
Features: The motor can open the door at high frequency and high speed
Flame retardant grade: B1
Features: The motor can open the door at high frequency and high speed
size: customizable

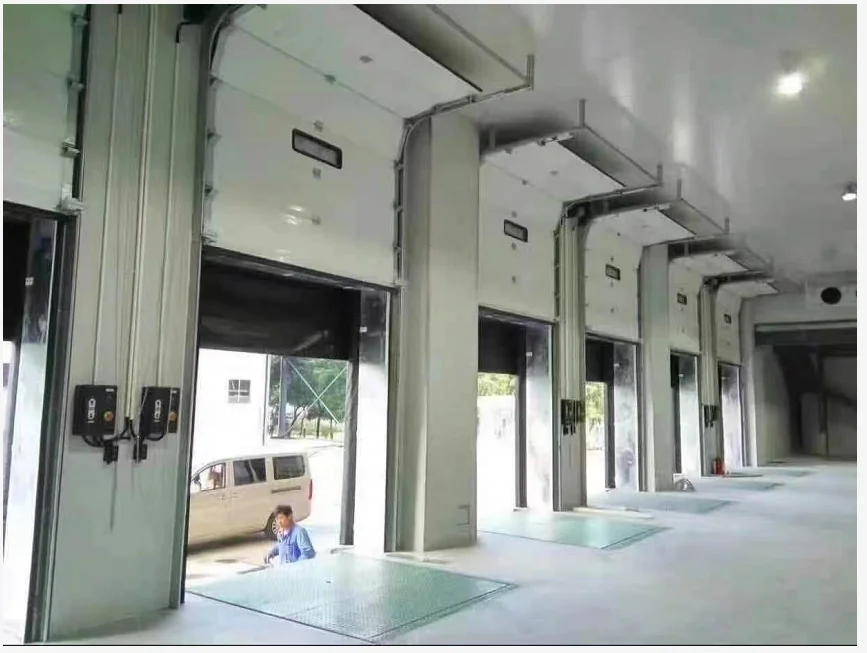

4.Stacking roll-up door
Door Panel Size: Max 12000MM
Door Opening Size: Max 8000MM
Door Panel Thickness: 40-80MM
Heat transfer：K=0.4-0.5W/㎡K
Sound Proof：Rw=26.5dba
Track：2.0-2.5mm
Balance System：External torsion spring balance system, the working life of the torsion spring
reaches 400000-800000s working cycle
Seal：Bottom U-shaped vinyl sealing strip, anti-freeze, moisture-proof and waterproof infiltration, side and top grooved sealing strip seal, joint between door panels, sealed by concave-convex groove
Drive Voltage：220V 50HZ
Operating Speed：about 130mm/S
Door Opening Size: Max 8000MM
Door Panel Thickness: 40-80MM
Heat transfer：K=0.4-0.5W/㎡K
Sound Proof：Rw=26.5dba
Track：2.0-2.5mm
Balance System：External torsion spring balance system, the working life of the torsion spring
reaches 400000-800000s working cycle
Seal：Bottom U-shaped vinyl sealing strip, anti-freeze, moisture-proof and waterproof infiltration, side and top grooved sealing strip seal, joint between door panels, sealed by concave-convex groove
Drive Voltage：220V 50HZ
Operating Speed：about 130mm/S

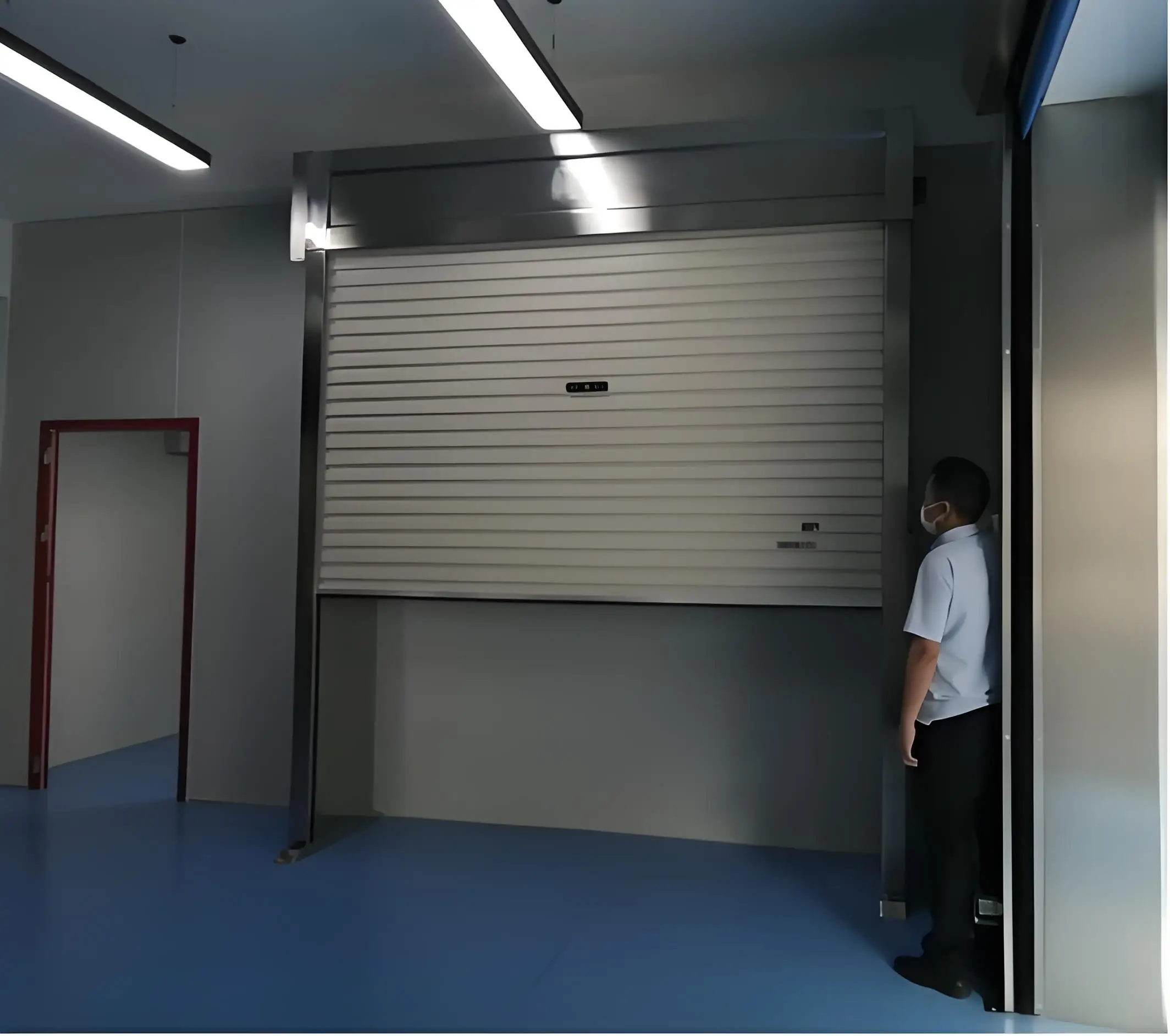

5. Hard roller shutters
1, motor brand: domestic motor, bearing 600KG.
2. Door material: door sheet material is a coated steel plate with a thickness of 0.8MM.
3, the width of the guide rail is 100MM, and the material is steel paint. thickness of 1.2 mm.
4, sealing cover material for steel paint/stainless steel, thickness 0.8MM.
5. Usage Scenario: Suitable for shop, workshop, and garage door.
2. Door material: door sheet material is a coated steel plate with a thickness of 0.8MM.
3, the width of the guide rail is 100MM, and the material is steel paint. thickness of 1.2 mm.
4, sealing cover material for steel paint/stainless steel, thickness 0.8MM.
5. Usage Scenario: Suitable for shop, workshop, and garage door.

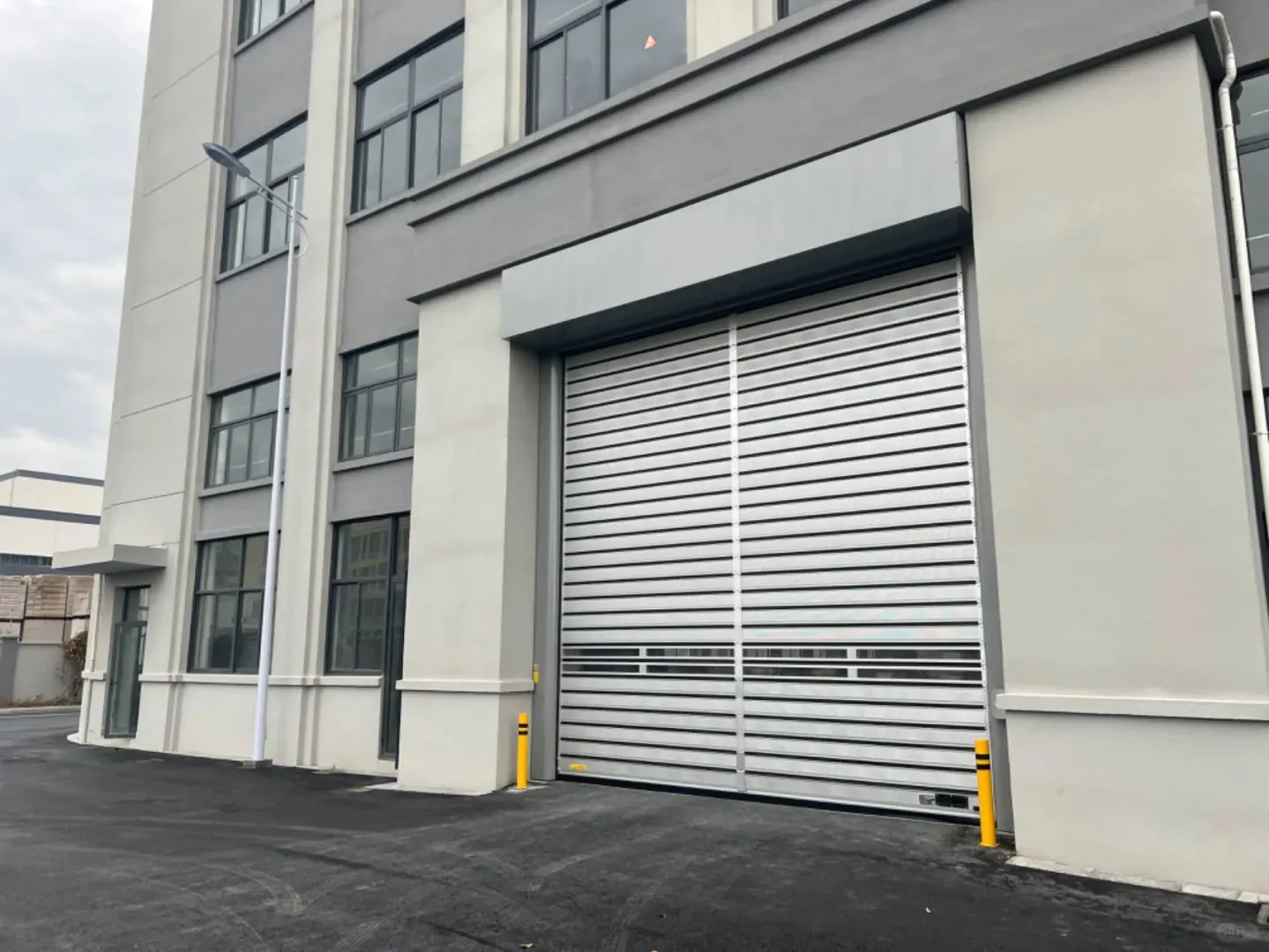

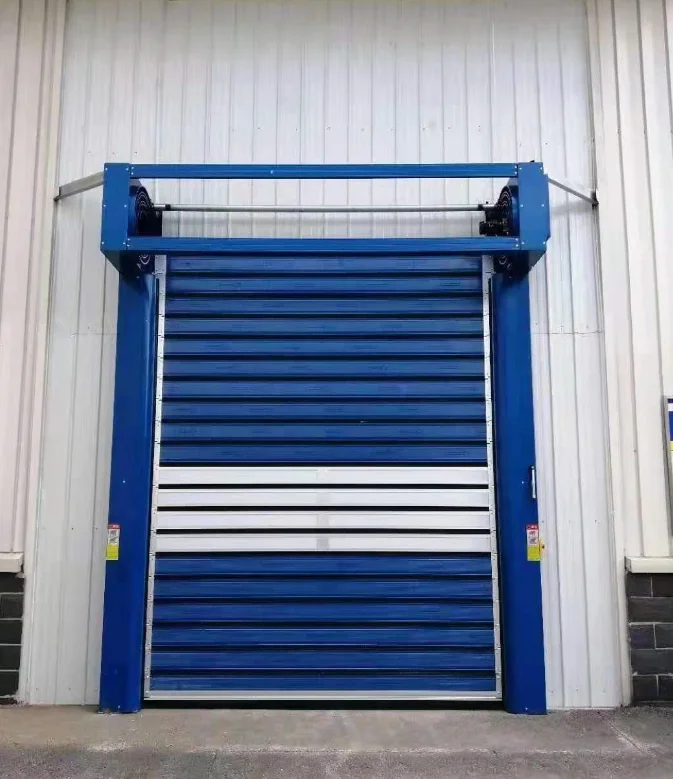

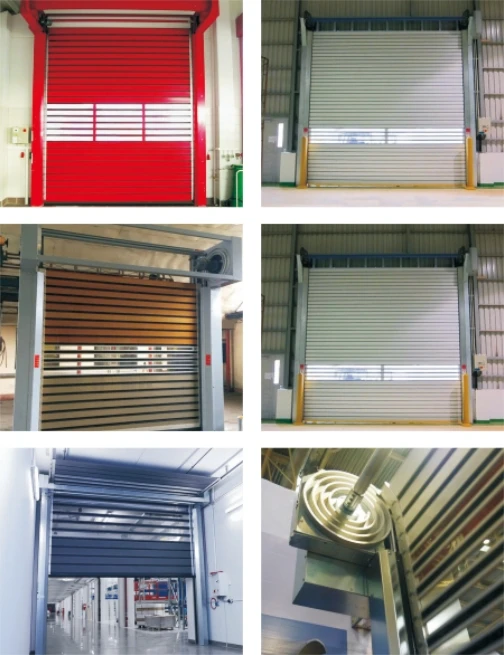

6. Hard quick shutter door(This kind of door can only be made about 12 squares).
Door material: double layer 0.7MM aluminum alloy or 0.5MM aluminized zinc color plate, polyurethane foam in the middle.
Door frame: color-coated plate or stainless steel, optional according to your requirements.
Motor: Servo motors with less noise, smoother operation, and faster speed are adopted(Maximum speed up to 2500 rpm)
Power supply: 220V, Motor power :0.75kw/75N. M.
Wind resistance: level 12.
Selective color: According to the international color chart standard color.
9.5 cm stainless composite guide rail, 0.65mm guide trough.
Control system: A server controller was adopted(Excellent EMI/EMC EMC design).
Safety devices: A pair of photoelectric protection switches are installed at the lower part of the door frame.
Control panel: with the emergency stop button.
Opening and closing speed:0.6m per second opening speed (adjustable).
Aluminum bottom beam: sealed with dustproof rubber strip.
Applicable scenarios: shopping malls, logistics warehouses, garages, workshop gates.
Door frame: color-coated plate or stainless steel, optional according to your requirements.
Motor: Servo motors with less noise, smoother operation, and faster speed are adopted(Maximum speed up to 2500 rpm)
Power supply: 220V, Motor power :0.75kw/75N. M.
Wind resistance: level 12.
Selective color: According to the international color chart standard color.
9.5 cm stainless composite guide rail, 0.65mm guide trough.
Control system: A server controller was adopted(Excellent EMI/EMC EMC design).
Safety devices: A pair of photoelectric protection switches are installed at the lower part of the door frame.
Control panel: with the emergency stop button.
Opening and closing speed:0.6m per second opening speed (adjustable).
Aluminum bottom beam: sealed with dustproof rubber strip.
Applicable scenarios: shopping malls, logistics warehouses, garages, workshop gates.
Success case show
Recommend Products
Company Profile
Packing & Delivery
FAQ
1.How can I get the price?
'-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). -If you are
very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples before placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples before placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Похожие товары

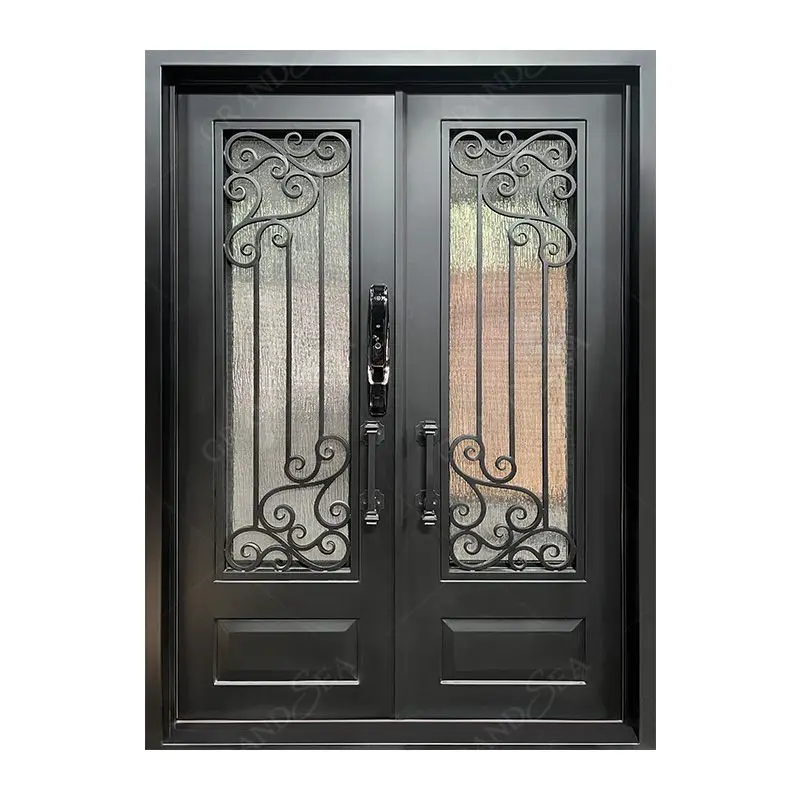

Классический дизайн двойная защитная дверь кованая Передняя Смарт-замок наружная Водонепроницаемая железная для дома
280,00-360,00 $
Умный дом дизайн современная дверь теплоизоляция панорамные двери створчатая
75,00-90,00 $
Звукоизолированные деревянные двери для туалета
46,90-69,90 $

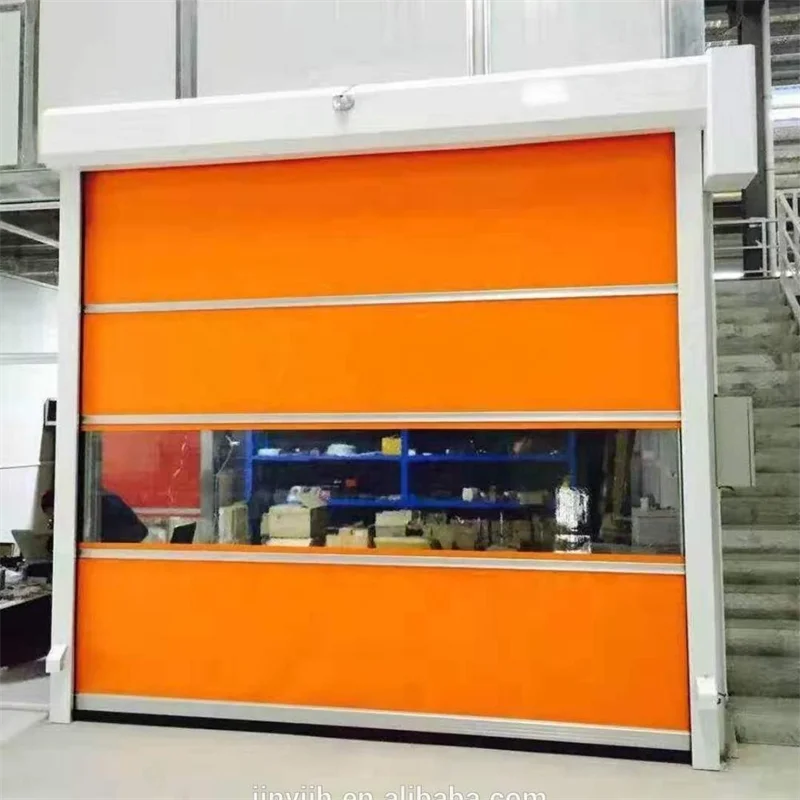

Лидер продаж 2024 промышленные автоматические гибкие голубые тканевые занавески из ПВХ закатные высокоскоростные двери для фабрики
1 100,00-1 400,00 $

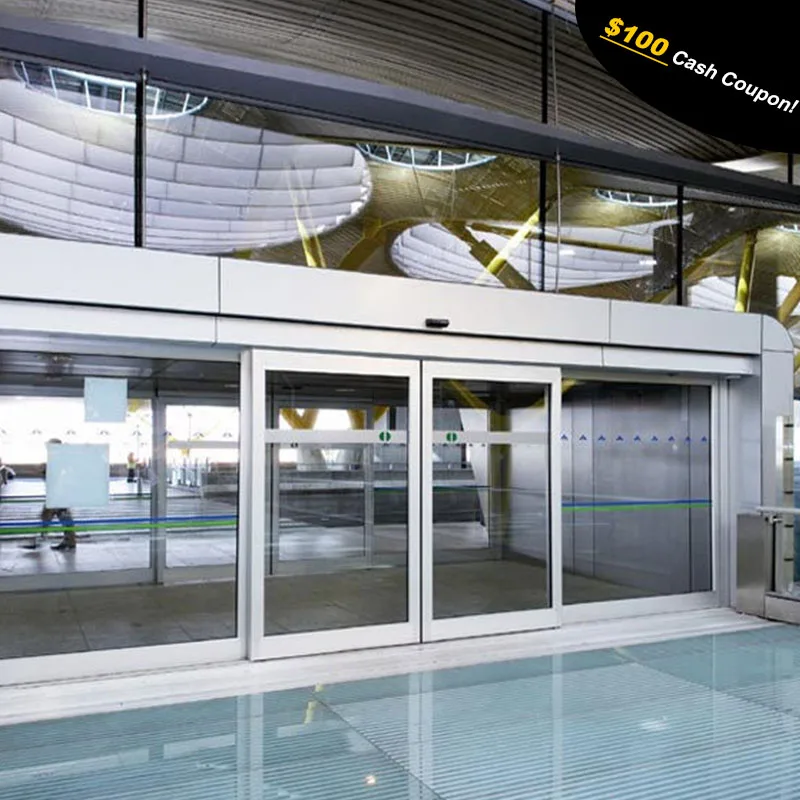

Низкая цена сенсорная алюминиевая раздвижная автоматическая дверь
50,00-80,00 $

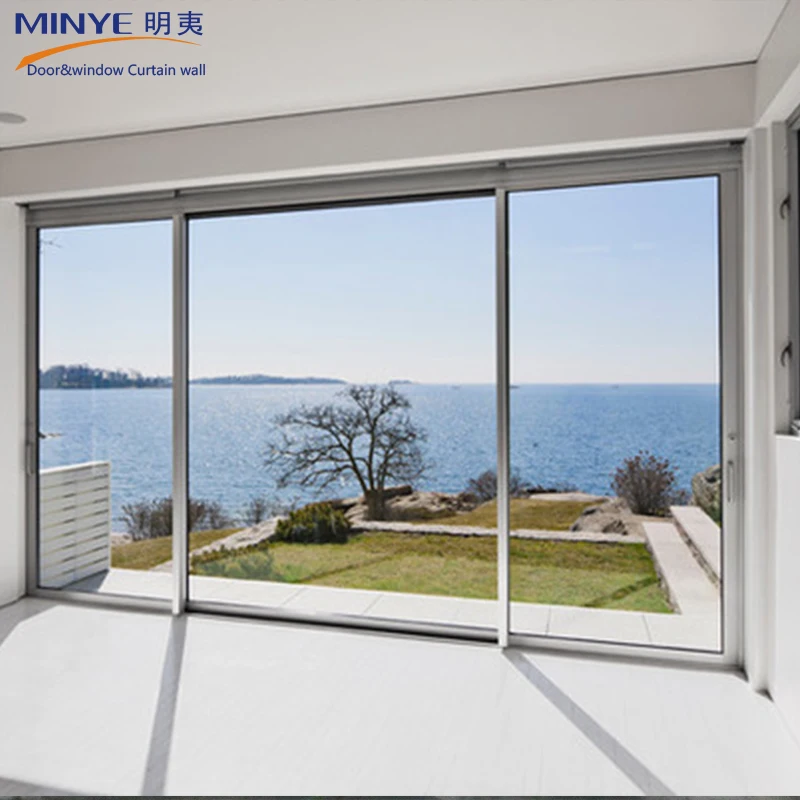

Американская створчатая оконная дверь upvc/ПВХ двери и окна
59,00-68,00 $

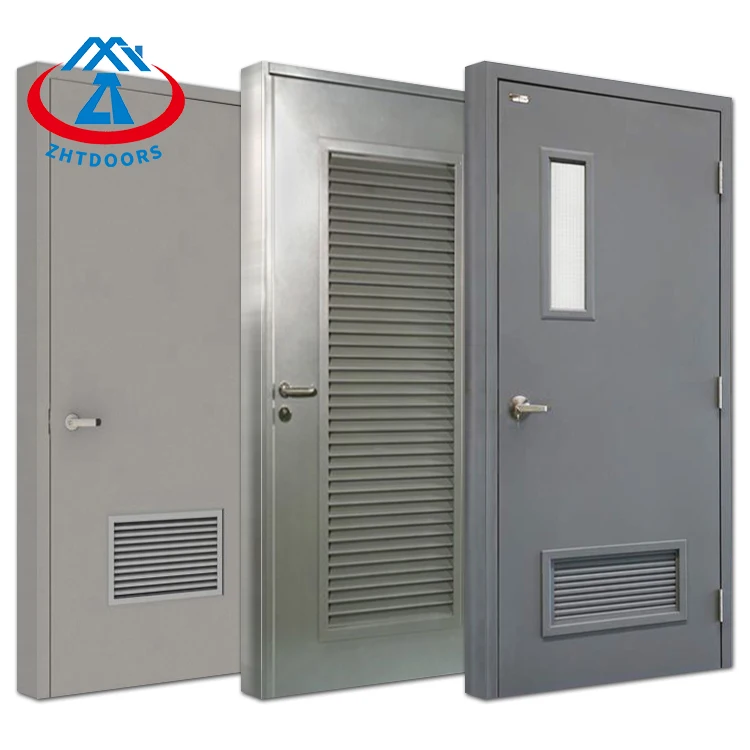

Производитель ZHTDOORS индивидуальная промышленная трансформаторная вентиляция и глушитель стальная дверь жалюзи
