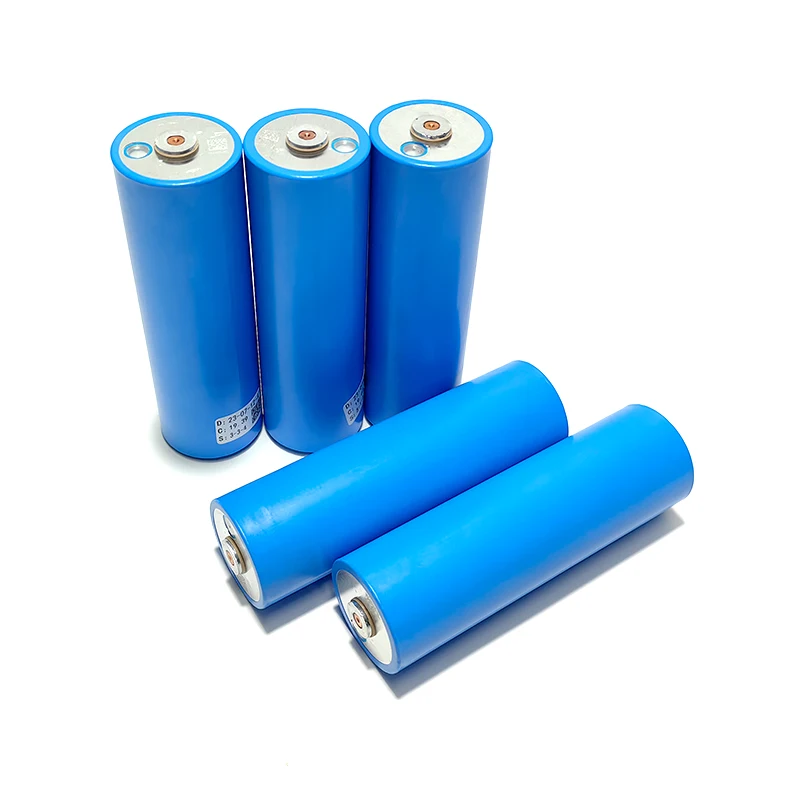

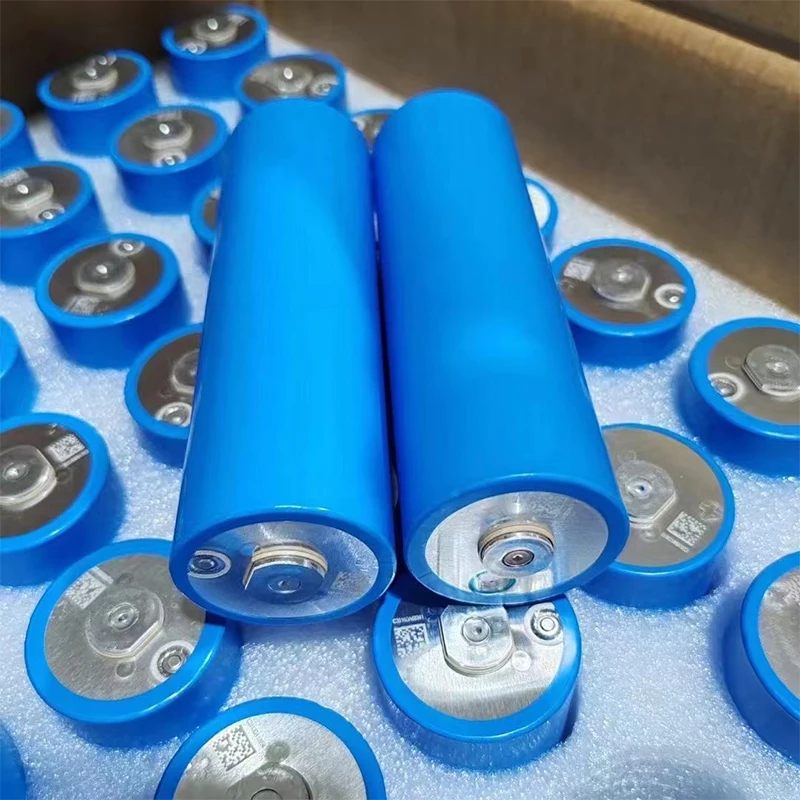

Новый C40 40135 22ah 50ah цилиндрический Аккумулятор lifepo4 CE 3 2 V 20a 3C EV E IFR 20AH сотовый
- Категория: >>>
- Поставщик: Shenzhen Kai Xinda Energy Technology Limited Company
Сохранить в закладки 1601265310009:
Описание и отзывы
Характеристики
Hot Sales Products
Product Description

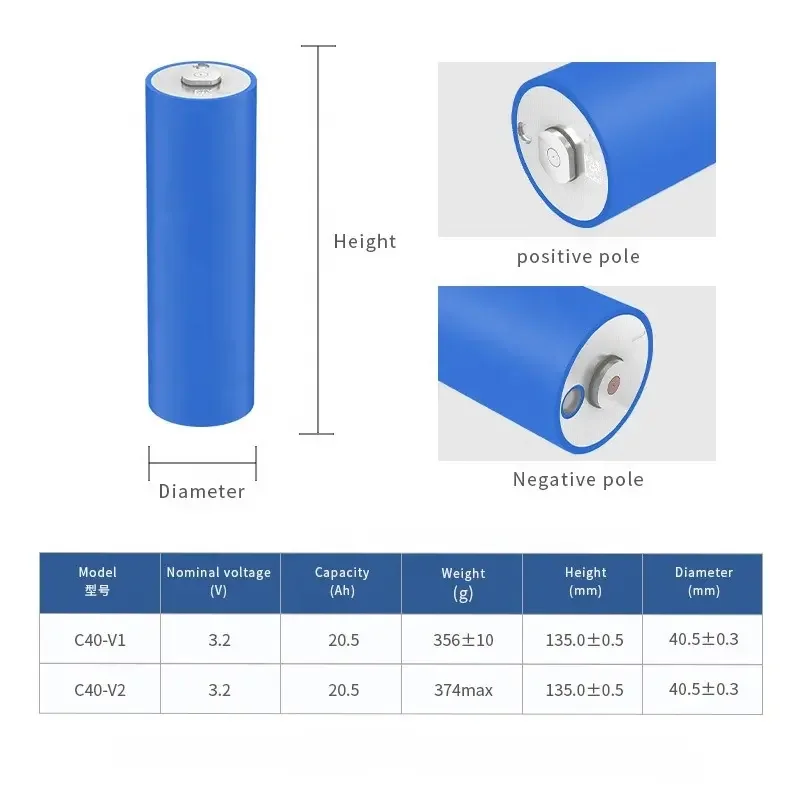

Normal parameters | ||||
NO. | Item | General Parameter | ||
1 | Type | LiFePO4 Battery cell | ||
2 | Model | C40 40135 | ||
3 | Casing material for single cell | Steel | ||
4 | Standard capacity(0.2C5A) | 20Ah | ||
5 | Rated voltage | 3.2v | ||
6 | Discharging voltage | 3.65V~2.0V | ||
8 | Standard charge current | <0.5C,10A | ||
9 | Max continuous discharge current | <3C, 60A | ||
11 | Battery dimension | 40*135mm | ||
12 | (Approx.)Total weight(Approx.) | about 365g | ||
13 | Standard charging temperature | 0℃~45℃ | ||
14 | Discharge temperature | -20℃~60℃ | ||
15 | Storage temperature | 0℃~45℃ | ||
16 | Cycle life | >2000 times | ||
17 | Case | blue PVC wrap | ||
18 | Option | Studs and parts/Wires /Connectors/plug/other | ||
19 | Application | Boat/Drone/Ebike/Lighting/Solar system/Devices etc | ||
Nominal Voltage: 3.2V
Nominal Capacity: 25AHDischarging Voltage: 3.65V~2.0V
Max Charging: 10A
Max Discharging Current: 60A
Charging temperature: 0~55 °C
Discharging temperature: -20~60 °C
Dimension: 46*135mm
Weight: 500g
Dimension: 46*135mm
Weight: 500g
Nominal Voltage: 3.2V
Nominal Capacity: 15AH
Discharging Voltage: 3.65V~2.0V
Maximum Charging: 7.5A
Discharging Current: 45A
Nominal Capacity: 15AH
Discharging Voltage: 3.65V~2.0V
Maximum Charging: 7.5A
Discharging Current: 45A
Charging temperature: 0~55 °C
Discharging temperature: -20~60 °C
Dimension: 33*140/32*135mm
Weight: 265g
Dimension: 33*140/32*135mm
Weight: 265g
INR21700-50S Battery
Nominal Voltage: 3.7V
Nominal Capacity:5.0AHDischarging Voltage: 4.2V~2.5V
Maximum Charging: 5A
Discharging Current: 45A 10C
Charging temperature: 0~60 °C
Discharging temperature: -20~60 °C
Dimension: 70*21*21mm
Weight: 70g
Dimension: 70*21*21mm
Weight: 70g
Grade A , 100% original
INR21700-40T Battery
Nominal Voltage: 3.7V
Nominal Capacity:4.0AH
Discharging Voltage: 4.2V~2.5V
Maximum Charging: 4A
Discharging Current: 35A
Nominal Capacity:4.0AH
Discharging Voltage: 4.2V~2.5V
Maximum Charging: 4A
Discharging Current: 35A
Charging temperature: 0~60 °C
Discharging temperature: -20~60 °C
Dimension: 70*21*21mm
Weight: 70g
Dimension: 70*21*21mm
Weight: 70g
Grade A , 100% original
Nominal Voltage: 22.2V/24V
Nominal Capacity:8.4AH
Charging Voltage: 25.2V
Maximum Charging: 2C
Discharging Current: 10C
Nominal Capacity:8.4AH
Charging Voltage: 25.2V
Maximum Charging: 2C
Discharging Current: 10C
Charging temperature: 0~60 °C
Discharging temperature: -40~60 °C
Dimension: 45*72*132mm
Weight:0.9kg
Dimension: 45*72*132mm
Weight:0.9kg
INR21700-P45B Battery
Nominal Voltage: 3.7V
Nominal Capacity:4.5AH
Discharging Voltage: 4.2V~2.5V
Maximum Charging: 4.5A
Discharging Current: 45A
Nominal Capacity:4.5AH
Discharging Voltage: 4.2V~2.5V
Maximum Charging: 4.5A
Discharging Current: 45A
Charging temperature: 0~60 °C
Discharging temperature: -20~60 °C
Dimension: 70*21*21mm
Weight: 70g
Dimension: 70*21*21mm
Weight: 70g
Grade A , 100% original
Nominal Voltage: 22.2V/24V
Nominal Capacity:9000mAH
Charging Voltage: 25.2V
Maximum Charging: 2C
Discharging Current: 10CCharging temperature: 0~60 °C
Discharging temperature: -40~60 °C
Dimension: 45*72*132mm
Weight:0.9kg
Nominal Capacity:9000mAH
Charging Voltage: 25.2V
Maximum Charging: 2C
Discharging Current: 10CCharging temperature: 0~60 °C
Discharging temperature: -40~60 °C
Dimension: 45*72*132mm
Weight:0.9kg
Custom Battery Packs:
Manufacturer | Shenzhen Kaixinda Energy Technology Co., Ltd. | ||||||||
Voltage | 3.7V/7.4V/11.1V/14.8V/22.2V/24V | ||||||||
Capacity | 2Ah/2.2AH/ 2.5AH/3AH | 4Ah/4.4AH/ 5AH/6AH | 6Ah/6.6AH/ 7.5AH/9AH | 8Ah/8.8AH/ 10AH/12AH | 10Ah/11AH/ 12.5AH/15AH | ||||
Discharge current | 2-12A | 3-15A | 5-30A | 6-35A | 10-60A | ||||
Support Power | <300W | <360W | <720W | <840W | <1440W | ||||
OED/ODM | Availiable | ||||||||
Size | 1S 2S 3S 4S 6S 7S 18650 21700 Customized to your requirements | ||||||||
Connector | JST/Molex/XT plug/DC jacket /SM plug/Customized to your requirements | ||||||||
Cycle Life | ≥80% capacity after 500 times | ||||||||
Warranty | 12 Months | ||||||||
Application | Lighting/Digital products/Monitoring equipment/Portable audio system/Solar system/Ebike/Other | ||||||||
360℃ customized service:
1.Over charged voltage protection
2.Over discharged voltage protection
3.Thermal protection
4.Over load protection
5.Over charge and discharge current protection
6. Balance functions. Etc
3.Thermal protection
4.Over load protection
5.Over charge and discharge current protection
6. Balance functions. Etc
1.JST / Molex connector
2. DC 1.35*3.5, 2.1*5.5 plug
3. XT plug
3. XT plug
4.SM conector
5.Other

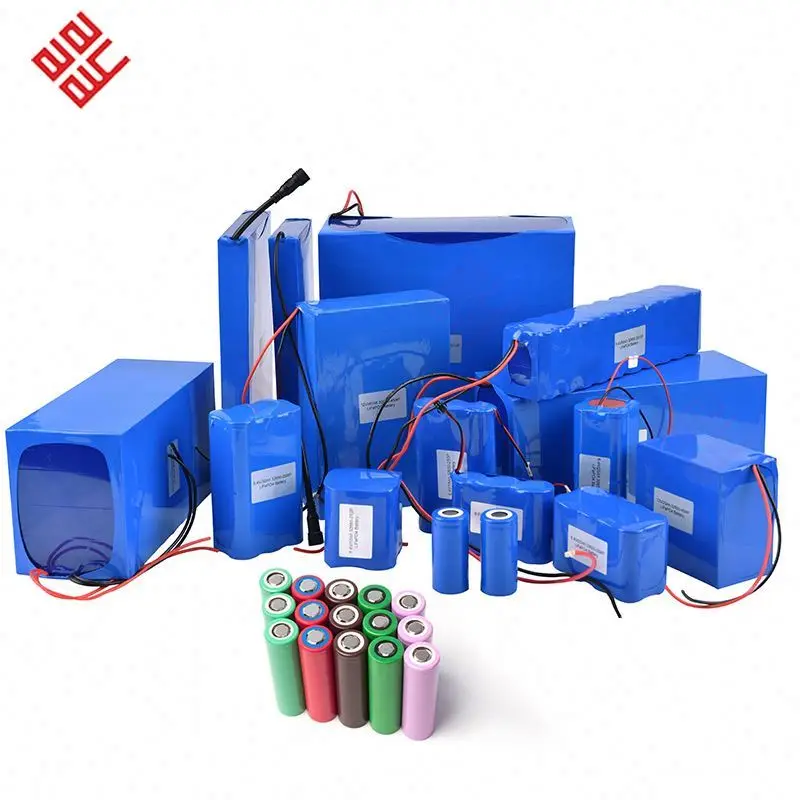

Some of the battery packs we customize for customers
1S 2S 3S 4S 5S 6S 7S 18650 21700 Customized to your requirements
Here at KXD we stock a range of standard Li-Ion Battery Packs which are used in a wide range of applications both in consumer and industrial markets. All of these lithium batteries have a PCM/PCB/BMS (protection control module) to ensure safety.
If you need a quote of Li-Ion Battery Packs or you can’t find a specific Li-Ion pack you need on our website, please get in touch with us.
If you need a quote of Li-Ion Battery Packs or you can’t find a specific Li-Ion pack you need on our website, please get in touch with us.
Company Introduction
Shenzhen Kaixinda Energy Technology Co., Ltd.
KXD is a professional leading lithium battery producer with more than 16 years history in China.
KXD is a professional leading lithium battery producer with more than 16 years history in China.
The main productus are lithium battery , lithium polymer batteries, LiFePO4 battery, AGV car batteries, or any customized battery projects.
We’ve grown to a company with complete R&D team and quality inspection system. We focus on battery solutions for Solar Energy Storage System, Home Appliances, AGV robots, Solar Street Lighting, Electric Vehicle, Telecom, Medical Devices, and UPS etc.
Certifications
Exhibition
FAQ
Q: 1. Can I have a sample for customized specification?
A: Of course. please send us your specific requirement.
Q: 2. What is the lead time?
A: 3~7 days for sample, 10~25 days for bulk order.
Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.
Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive.
For large quantity, ship by airplane or ocean, shipping time will depend on destination port.
we can do DDP DDU to the door .
Q: 5. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
Q: 5. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
Похожие товары
SOEC 18650 21700 3 2 в 2600 мАч 4800 6000 32700 LiFePO4 аккумулятор для электрических велосипедов скутеров
209,77 ₽ - 298,09 ₽
Литиевая батарея 6000 циклов литий-железо-фосфатная Ач литиевая 72 в 40 для мотоцикла электроники
Lifepo4 solare 48 В 200ah 20 кВт аккумулятор солнечной батареи 100 kwh solaire batterie

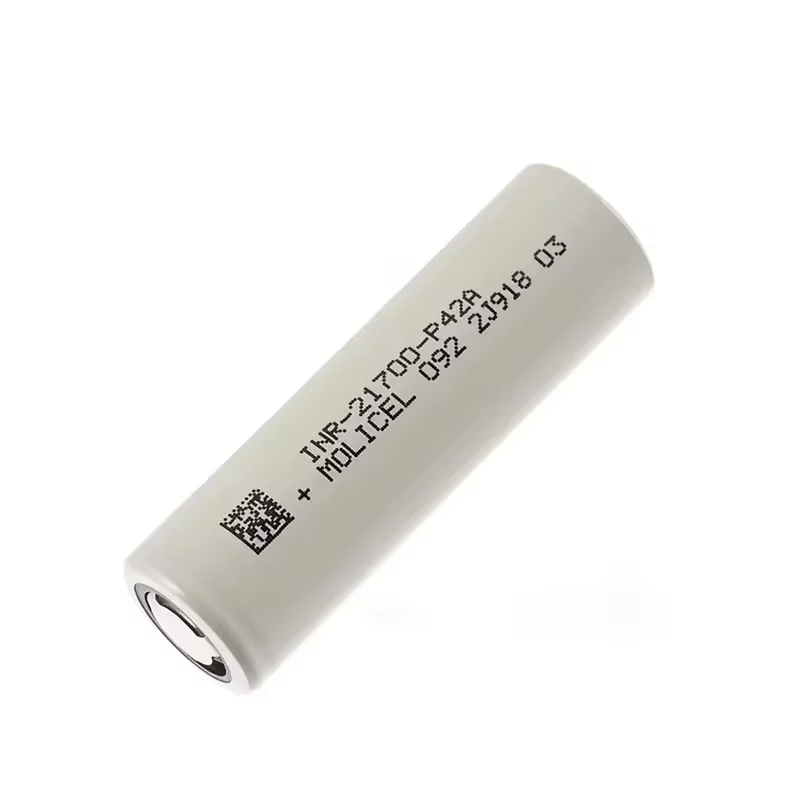

Оптовая продажа 21700 литий-ионная батарея Molicel p42 inr литиево-ионная inr21700 4200 мАч 3 7 В P42A 21700-P42A
320,18 ₽ - 353,30 ₽

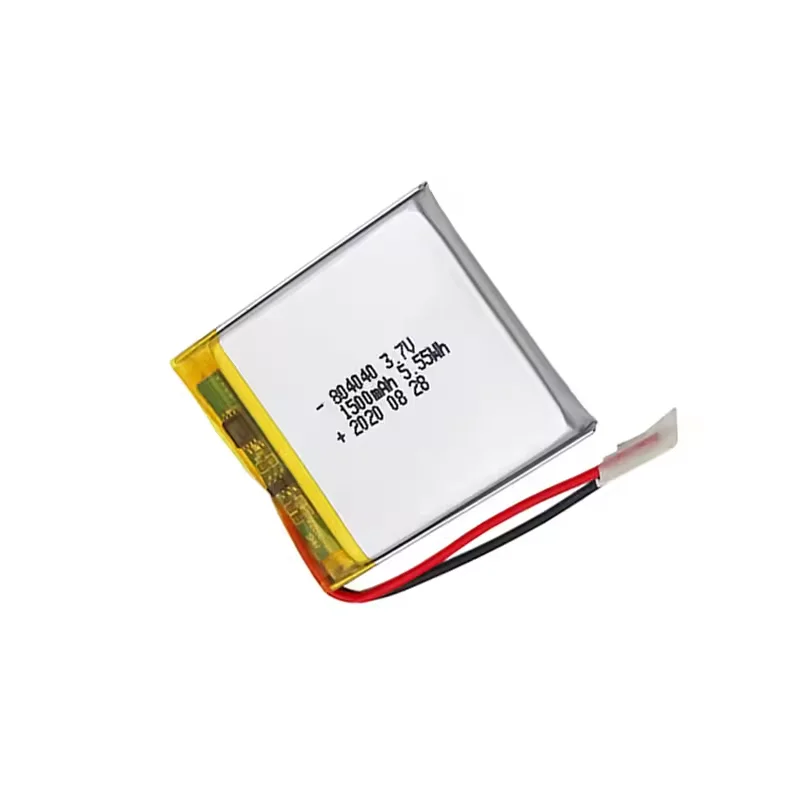

Аккумуляторная батарея 1500mah 3 7 v 804040 батареи ячеек lipo V li-полимерный аккумулятор с pcb
66,25 ₽ - 143,53 ₽
Литий-ионная батарея 18650 74 в 4400 мАч 24 В Lipo Box 280Ah Icr 37 52 28Ah 36 7Ah 50 Lifepo4 12 100Ah Bms 5Ah модуль зарядного устройства
309,14 ₽ - 1 380,05 ₽

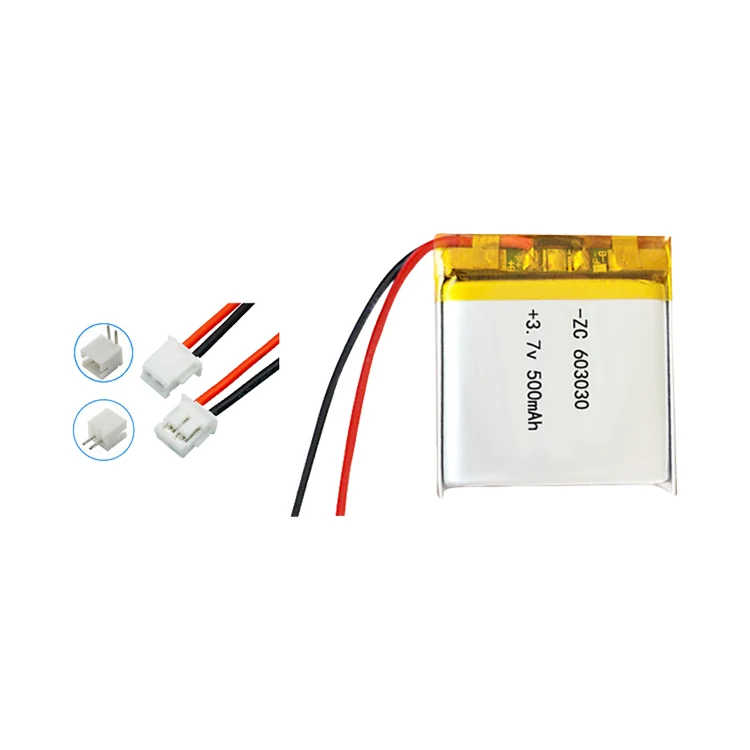

Горячая Распродажа аккумуляторная батарея 1.85wh 3 7 v 500mah lipo batteries 603030
