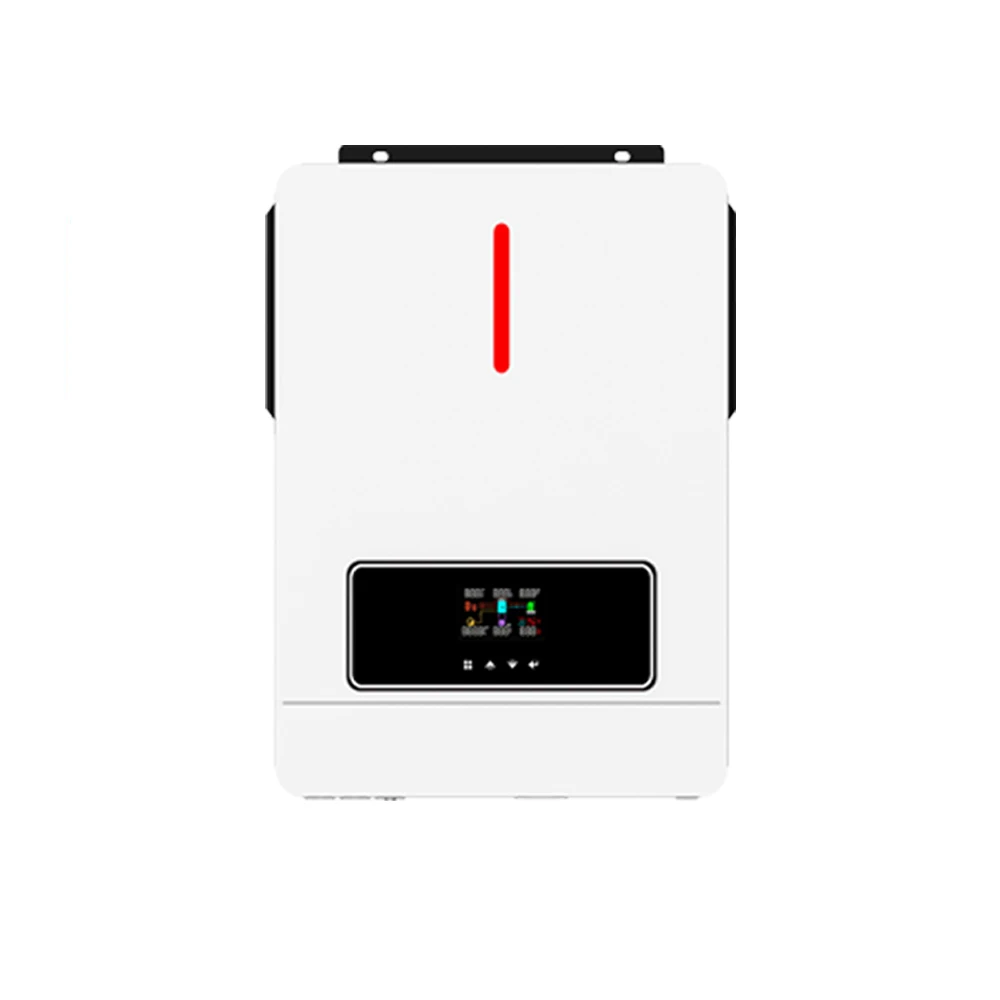

Европейский высоковольтный инвертор 48 В 220 5 кВт низкочастотный Сертифицированный Solaire
27 741,05 ₽ - 30 756,38 ₽
3.6KW 4.2kw 6.2kw солнечный инвертор низкочастотный Солнечный чистый синусоидальный 230Vac 24V 48V автономная солнечная энергетическая система
- Категория: >>>
- Поставщик: Dongguan Jubilee Energy Technology Co. Ltd.
Сохранить в закладки 1601265321465:
Описание и отзывы
Характеристики

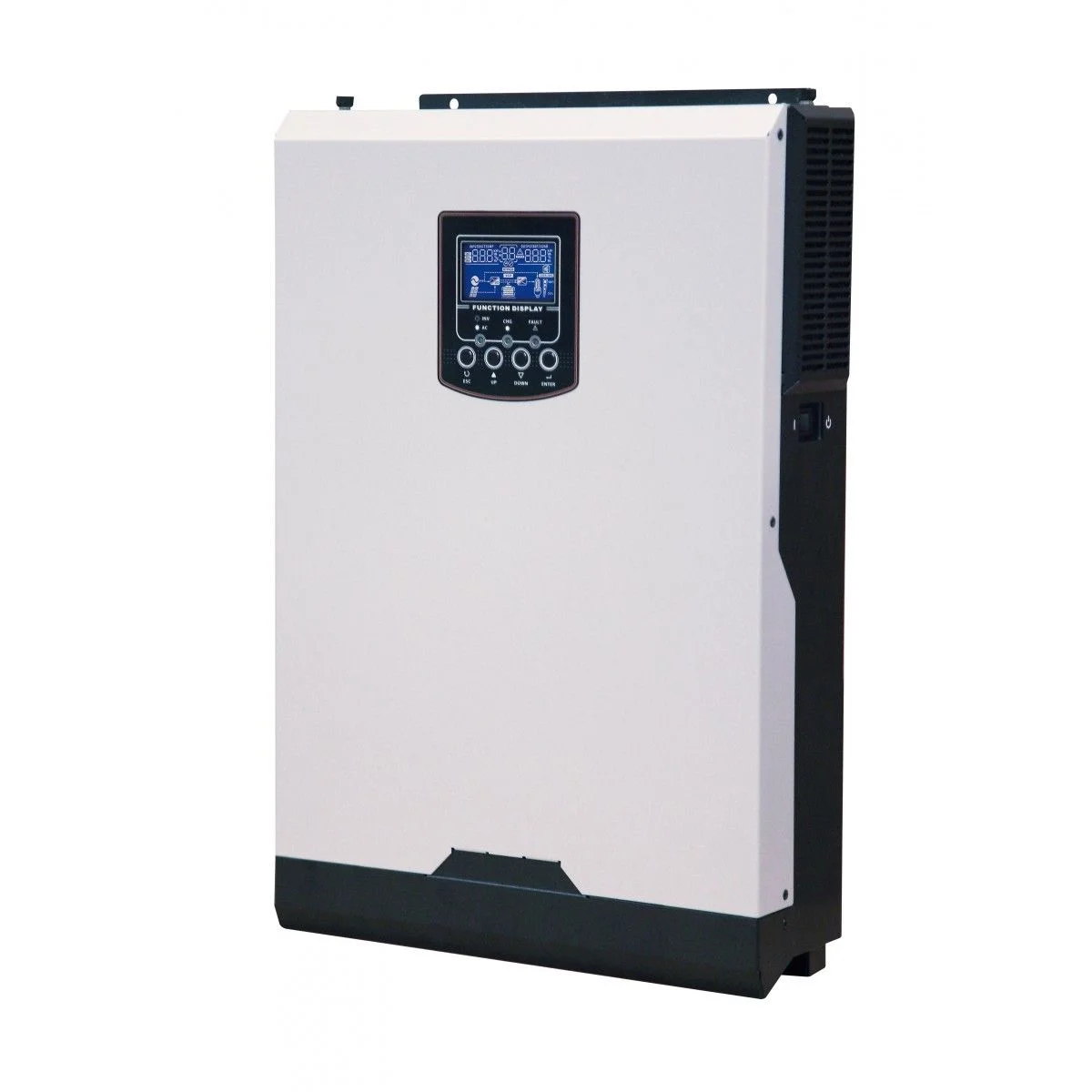

24V 48V 220V 230V 4.2KW 6.2KW Hybrid Solar Inverter With MPPT Charge Controller
Rated Power | 4200W | 6200W | ||||||
Maximum PV Input Power | 6200W | 6500W | ||||||
PV INPUT (DC) | ||||||||
Nαninal DC Voltage/Max DC Voltage | 360VDC/500VDC | |||||||
Maximum DC Voltage | 90-450VDC | |||||||
GRID OUTPUT (AC) | ||||||||
Nominal Output Voltage | 220/230/240VAC | |||||||
Output Voltage Range | 195.5-253VAC | |||||||
Nominal Output Current | 15.7A | 27.0A | ||||||
Power Factor | >0.99 | |||||||
EFFICIENCY | ||||||||
Max Conversion Efficiency(Solar to AC) | 98% | |||||||
TWO LOAD OUTPUT POWER | ||||||||
Full Load | 4200W | 6200W | ||||||
Maximum Second Load(battery mode) | 1200W | 2067W | ||||||
Main Load Cut Off Voltage | 22VDC | 44VDC | ||||||
Main Load Return Voltage | 26VDC | 52VDC | ||||||
AC INPUT | ||||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||||||
Maximum AC Input Current | 30A | 40A | ||||||
Nominal operating frequency | 50/60Hz | |||||||
Surge Power | 7200W | 12400W | ||||||
BATTERY MODE OUTPUT(AC) | ||||||||
Nominal Output Voltage | 220/230/240VAC | |||||||
Output Waveform | Pure sine wave | |||||||
BATTERY & CHARGER | ||||||||
Nominal DC Voltage | 24VDC | 48VDC | ||||||
Max Charging Current(Solar to AC) | 120A | |||||||
Maximum AC Charging Current | 100A | |||||||
PHYSICAL | ||||||||
Dimension, D x W x H (mm) | 420*350*110mm | 450*350*110mm | ||||||
Net Weight (kgs) | 9 | 10 | ||||||
INTERFACE | ||||||||
Communication interface | WIFI | |||||||
Company Profile
Dongguan Jubilee Energy Technology Co., Ltd. specializing inR & D, manufacturing and sales of power supplies, solar power station,solarpanel and other related products for 18 years.
The company's core products include home energy storage and energy storage system, industrial high voltage energy storage, BESS container energy storage system, portable emergency power station, RV/golf cart lithium ion battery and etc. At the same time, we provide a variety of household and commercial use of customized solar energy BESS solutions. Meanwhile, we have our own long-term close cooperated inverter and solar panel manufacturers which have passed various qualification certifications. Our products have been exported to the United States, Germany, Japan, France, South Africa, the Middle East and other European and Southeast Asian countries.
Our company is dedicated in establish a long-term stable cooperative relationship with our customers, to provide them with high-quality products and professional pre-sales and after-sales.
The company's core products include home energy storage and energy storage system, industrial high voltage energy storage, BESS container energy storage system, portable emergency power station, RV/golf cart lithium ion battery and etc. At the same time, we provide a variety of household and commercial use of customized solar energy BESS solutions. Meanwhile, we have our own long-term close cooperated inverter and solar panel manufacturers which have passed various qualification certifications. Our products have been exported to the United States, Germany, Japan, France, South Africa, the Middle East and other European and Southeast Asian countries.
Our company is dedicated in establish a long-term stable cooperative relationship with our customers, to provide them with high-quality products and professional pre-sales and after-sales.
FAQ
Q1:Can I get some samples to test before placing the order? How many days about it? Is sample free of charge?
A: Yes, It’s 3 days for our stock one, and around 7-15 working days for customized, it depends on the customer’s requirement. It’s charged sample fee and freight together.
Q2: What is MOQ for logo printing?
A: Normally MOQ 1 set as trial order about our existing stock or 10 sets for customized ones. We accept OEM&ODM about product.
Q3: What is your payment term?
A: T/T, Paypal, Credit Card, Western Union are available.
Q4: How about the quality about the products?
A:We will offer 3 years warranty about energy storage, 5-12 years about solar system,
and we 'll test all goods and send you test reports before out of factory.
Q5:Do you have any certifications of products?
A: We have ISO9001:2000, UN38.3,UL Report, FCC, PSE, METI, CE, RoHS, MSDS.
Q6: Are you a manufacturer or trading company?
A: We are a professional manufacturer. Both OEM & ODM service can be accepted.
A: Yes, It’s 3 days for our stock one, and around 7-15 working days for customized, it depends on the customer’s requirement. It’s charged sample fee and freight together.
Q2: What is MOQ for logo printing?
A: Normally MOQ 1 set as trial order about our existing stock or 10 sets for customized ones. We accept OEM&ODM about product.
Q3: What is your payment term?
A: T/T, Paypal, Credit Card, Western Union are available.
Q4: How about the quality about the products?
A:We will offer 3 years warranty about energy storage, 5-12 years about solar system,
and we 'll test all goods and send you test reports before out of factory.
Q5:Do you have any certifications of products?
A: We have ISO9001:2000, UN38.3,UL Report, FCC, PSE, METI, CE, RoHS, MSDS.
Q6: Are you a manufacturer or trading company?
A: We are a professional manufacturer. Both OEM & ODM service can be accepted.
Похожие товары

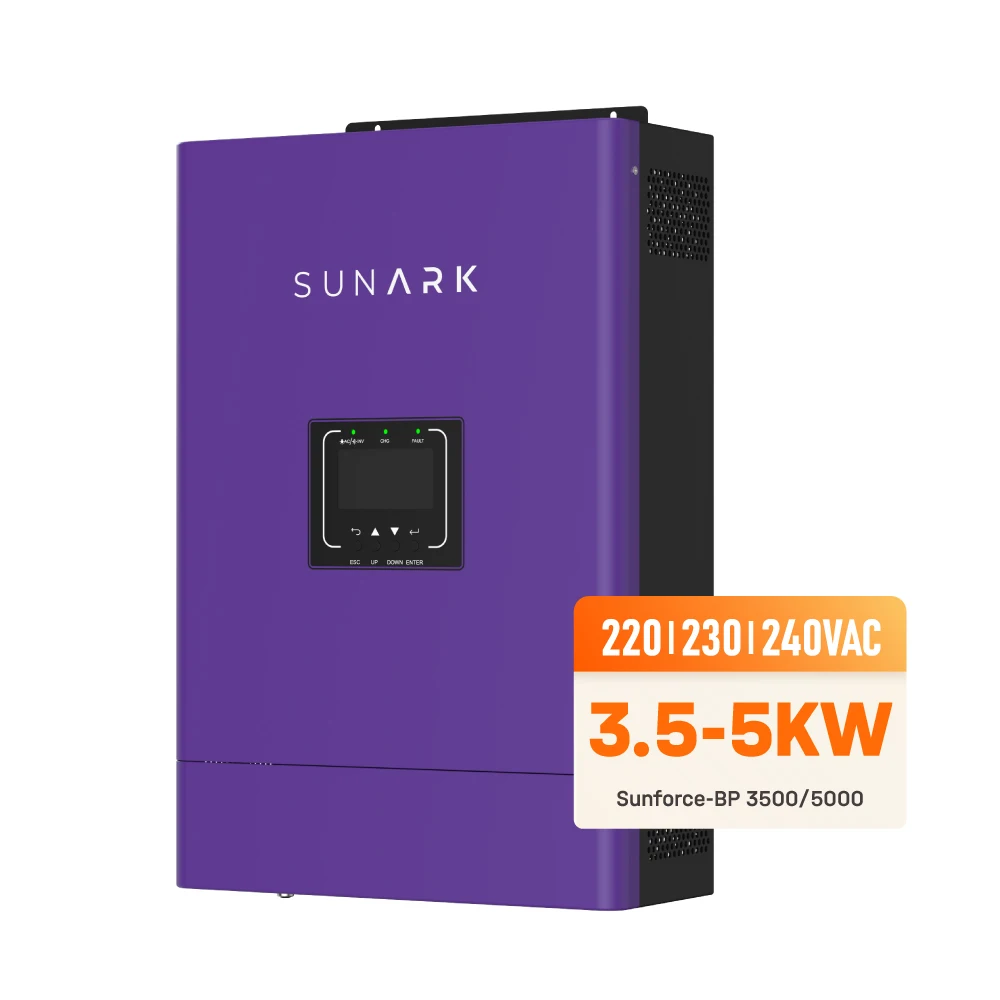

Солнечные инверторы Sunark высокочастотный PV выходное напряжение 240 В 3 кВт 5 6
26 863,86 ₽ - 43 311,12 ₽
Чистый синусоидальный инвертор 12 В 24 48 110 220 300 Вт 500 2000 3000 несколько преобразователей напряжения
Солнечный инвертор модифицирует синусоидальную волну 2 кВт 2000 Вт DC инверторы переменного тока преобразователи
1 644,73 ₽ - 1 973,68 ₽
8 кВт Номинальный чистый синусоидальный однофазный выход 60 Гц частота MPPT контроллер литиевая батарея WiFi
Солнечный инвертор Sunark до 6 единиц 3 5 кВт 240 В
31 798,04 ₽ - 44 955,85 ₽

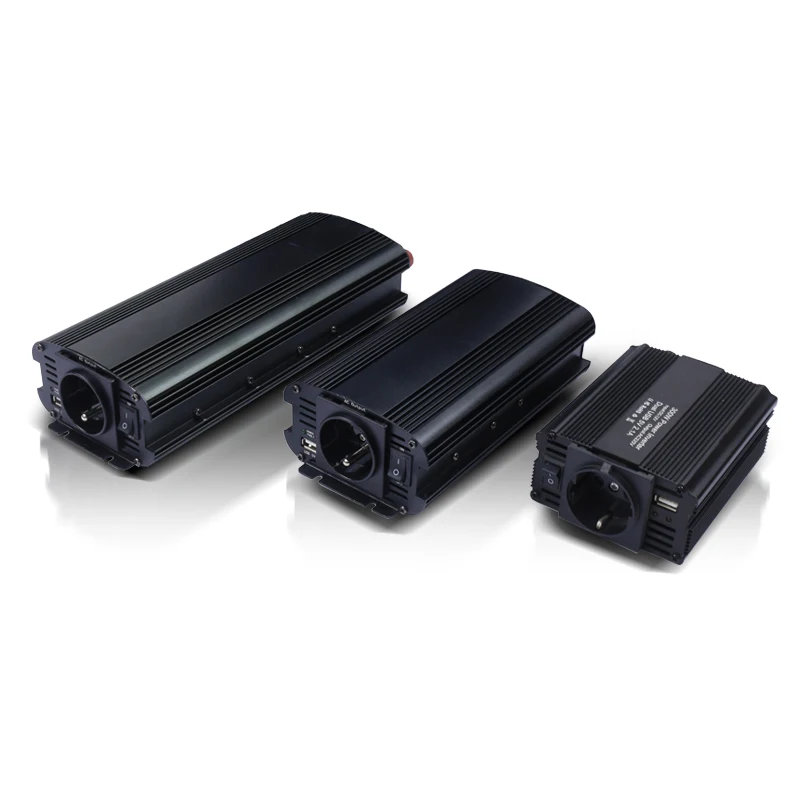

Высокое качество 300 Вт 500 1000 несколько преобразователей напряжения постоянного тока в переменный инвертор для домашнего использования
