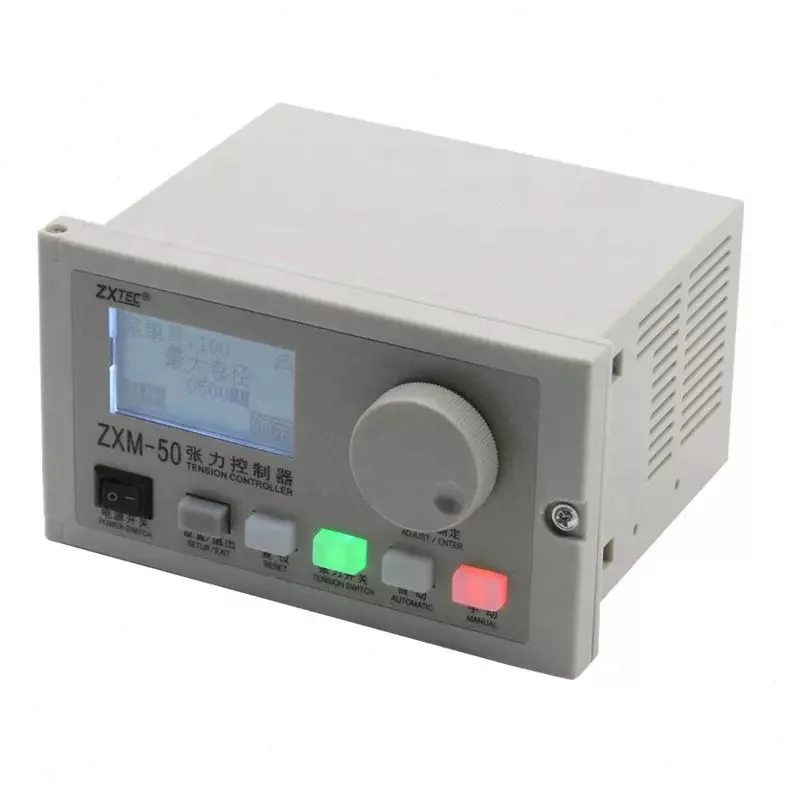

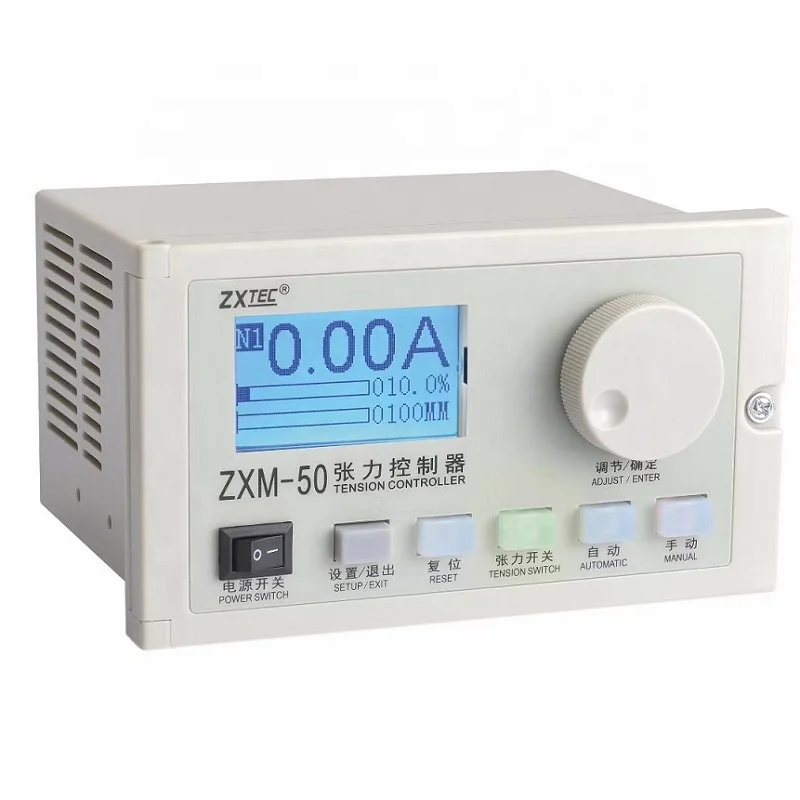

ZXTEC ZXM 50 контроллер конического натяжения полуавтоматический блок управления натяжением заменяет старую версию ZXM 32

ZXTEC ZXM-50 Taper Tension Controller Semi-automatic Tension Control Box Replace Old Version ZXM-32

Description:

The tension control method of the ZXM-50 taper tension controller is to detect the number of running pulses of the rewinding or unwinding shaft through the Hall switch. When the pulse count reaches the preset pulse value of the controller, the tension output increases or decreases by one unit, so as to realize the retraction Taper tension control of roll or unwind. The main circuit of the tension controller uses a PWM constant current switch circuit to replace the conventional bulky transformer power supply circuit, so it has the characteristics of light weight, small size, and high constant current accuracy. The controller operation panel uses a micro touch switch to make the operation easier and output current. Use LED digital tube to make the display more intuitive. The product can be set to manual tension control, rewinding taper tension control, unwinding taper tension control, and can be applied to various printing and packaging machinery for rewinding and unwinding semi-automatic tension control.

parameter:

Power supply: AC 220V±15% 50/60HZ

Output current: DC 0-3A (adapted load impedance 8-12Ω)

Main output mode: DC 0-2A constant current output (adapted load impedance 8-12Ω)

Current output fluctuation: <0.01A

Tension control mode: manual control/pulse type winding taper control/pulse type unwinding taper control

Pulse setting range: 0-999 times

Maximum pulse frequency: 100HZ
