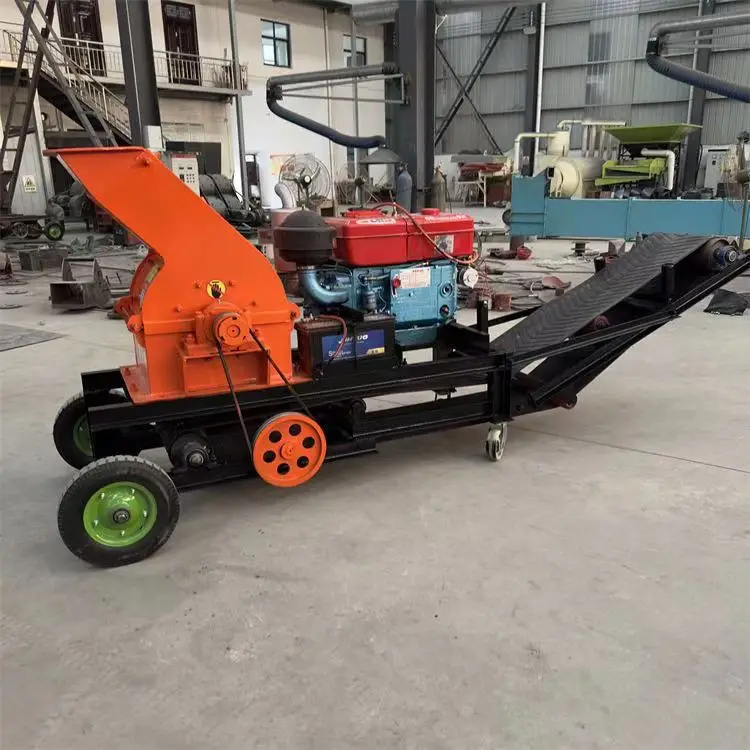

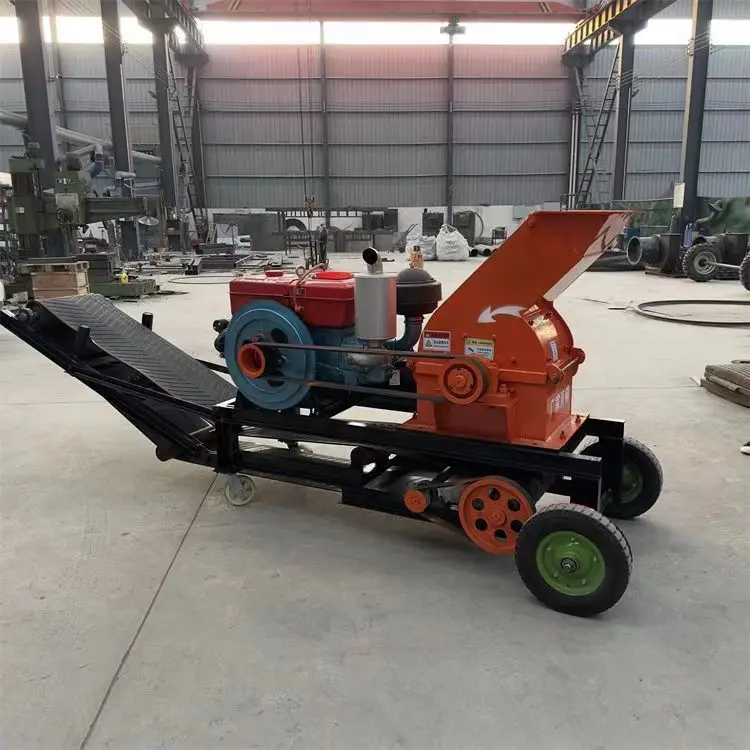

Мобильная камнедробильная молотковая дробилка PC200 * 300 маленькая портативная
Мобильная камнедробильная молотковая дробилка PC200 * 300 маленькая портативная
Мобильная камнедробильная молотковая дробилка PC200 * 300 маленькая портативная
Мобильная камнедробильная молотковая дробилка PC200 * 300 маленькая портативная
Мобильная камнедробильная молотковая дробилка PC200 * 300 маленькая портативная
Мобильная камнедробильная молотковая дробилка PC200 * 300 маленькая портативная
Мобильная камнедробильная молотковая дробилка PC200 * 300 маленькая портативная

Мобильная камнедробильная молотковая дробилка PC200 * 300 маленькая портативная

Сохранить в закладки 1601265373374:


Цена:720,00-880,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

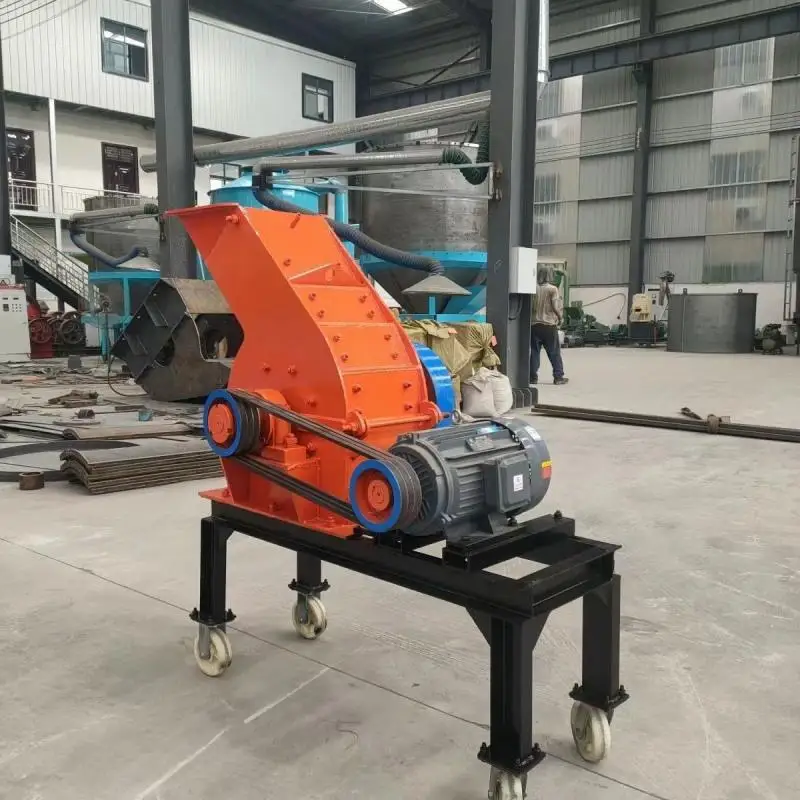

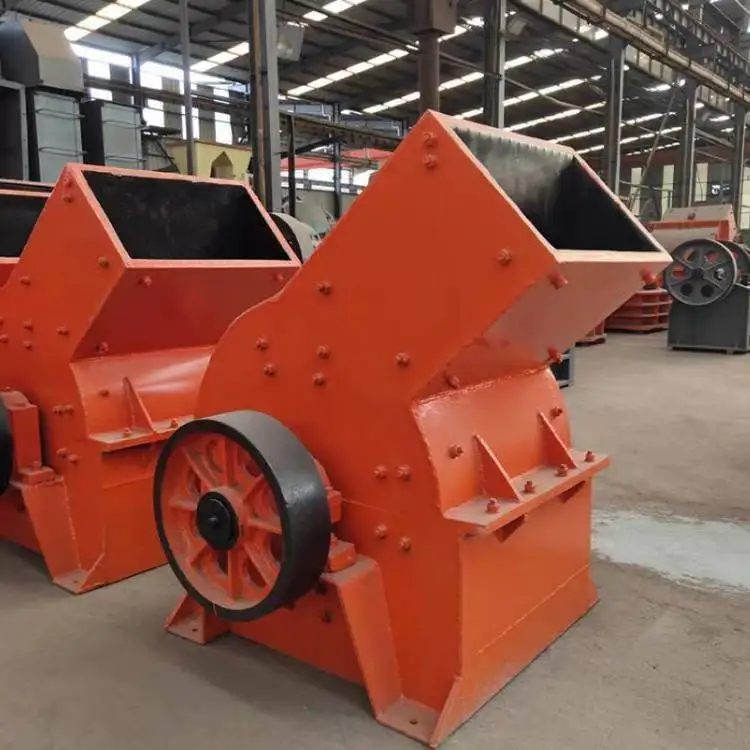

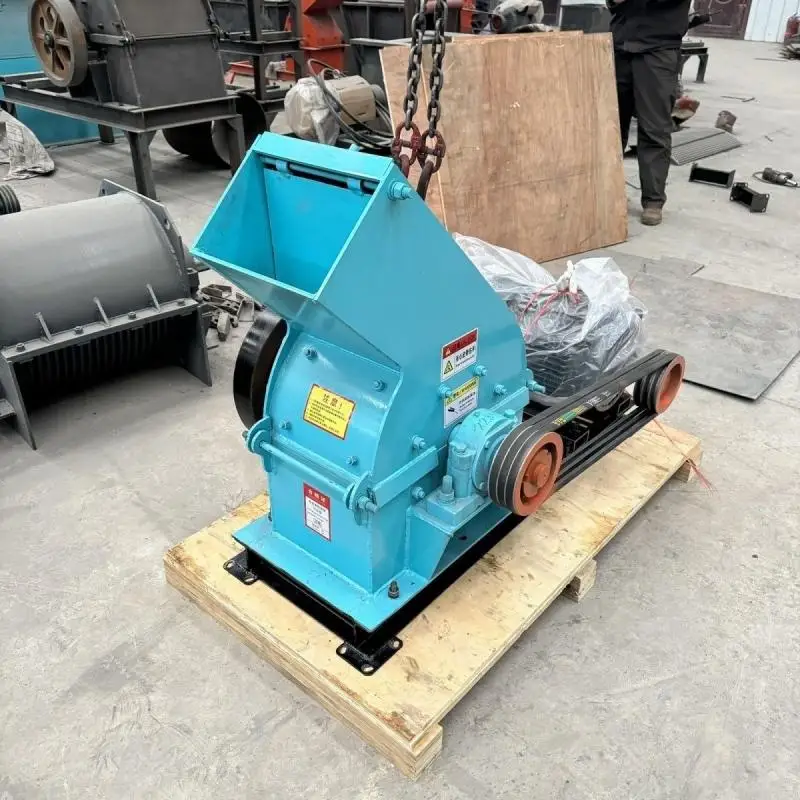

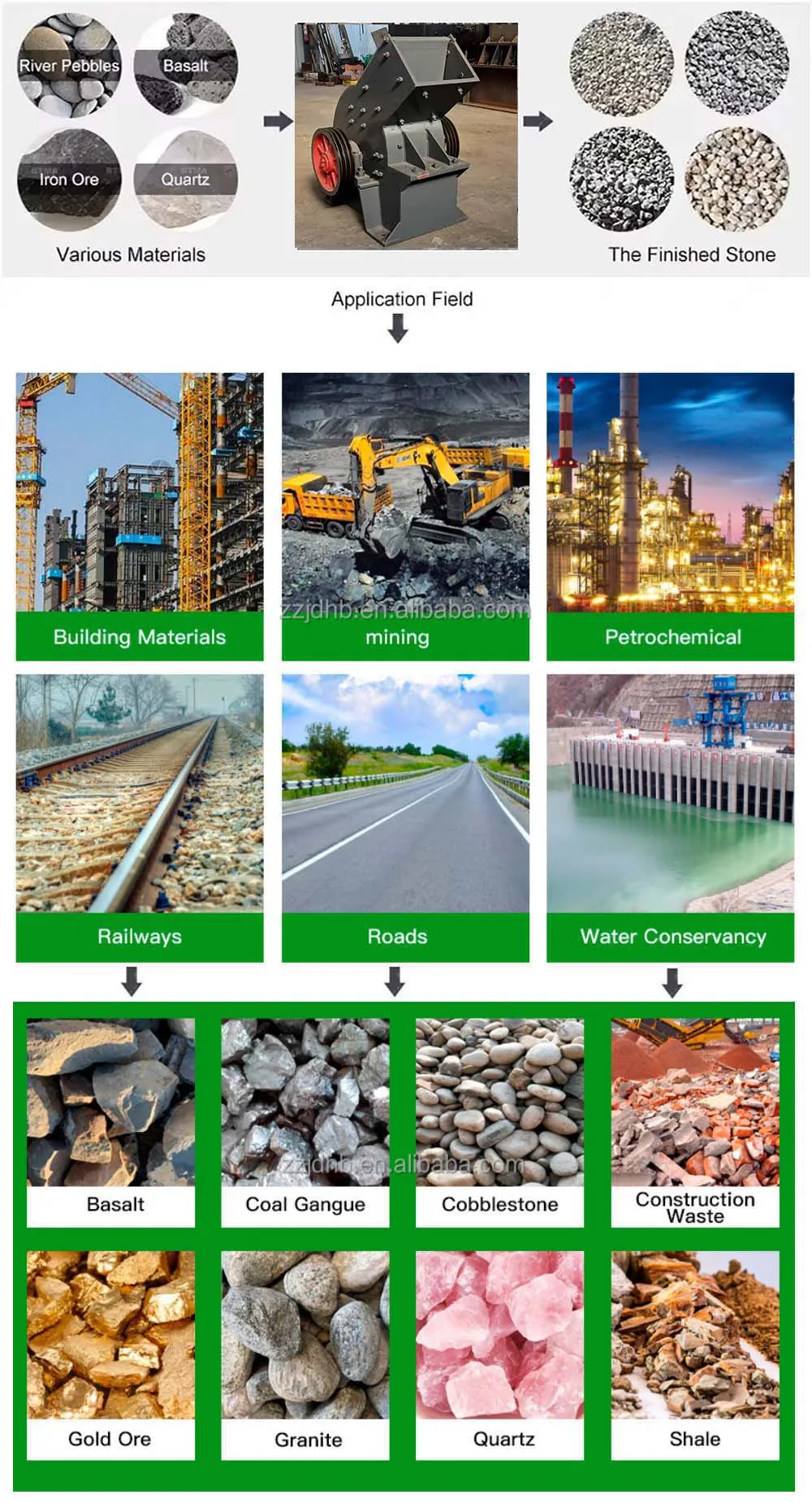

Hammer crusher is a commonly used crushing equipment with large crushing ratio (generally 10-25, high up to 50), high production capacity, uniform product, less powder phenomenon, low energy consumption per unit product, simple structure, light equipment,easy operation and maintenance, etc. It is suitable for fine crushing of medium hardness and brittle materials in mining, cement,coal, metallurgy, building materials, highways, and combustion.The material discharge size can be adjusted by change the gap of the gridscreen, to meet the different needs of different users.Heavy hammer crusher can be directly used for material crushing without initial crushing.







The Motor Drives The Rotor In The Crusher Rapidly. Raw Material Enters The Crusher Through The Feed Inlet And Is Impacted, Cut And Ground By The High Speed Hammers. There Is A Screen Below The Rotor Assembly, So Material With Dimensions Smaller Than The Screen Mesh Is Screened Out, While Other Materials Are Further Hammered Until They Reach A Standard Size. The Size Of The End Product Can Be Adjusted By Changing The Screen Mesh, And The Gap Between The Rotor Assembly And The Screen Mesh Can Be Adjusted To Suit Different Requirements.








Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control over the industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the customer support. 24 hours service with.




Model
Max Feeding Size(mm)
Discharging Size(mm)
Capacity(t/h)
Motor Power(kw)
Weight(t)
PC200*300
125*250
0-8
1-3
5.5
0.2
PC240*450
240*450
0-8
5-7
7.5
0.4
PC320*510
320*510
0-8
7-10
15
0.55
PC400*600
400*600
0-8
10-15
22
0.8
PC600*600
600*600
0-15
20-30
30
1
PC600*800
600*800
0-15
30-50
55
1.8
PC800*1000
800
0-15
50-80
75
2.8
PC1000*1000
1000
0-15
80-100
110
4.5

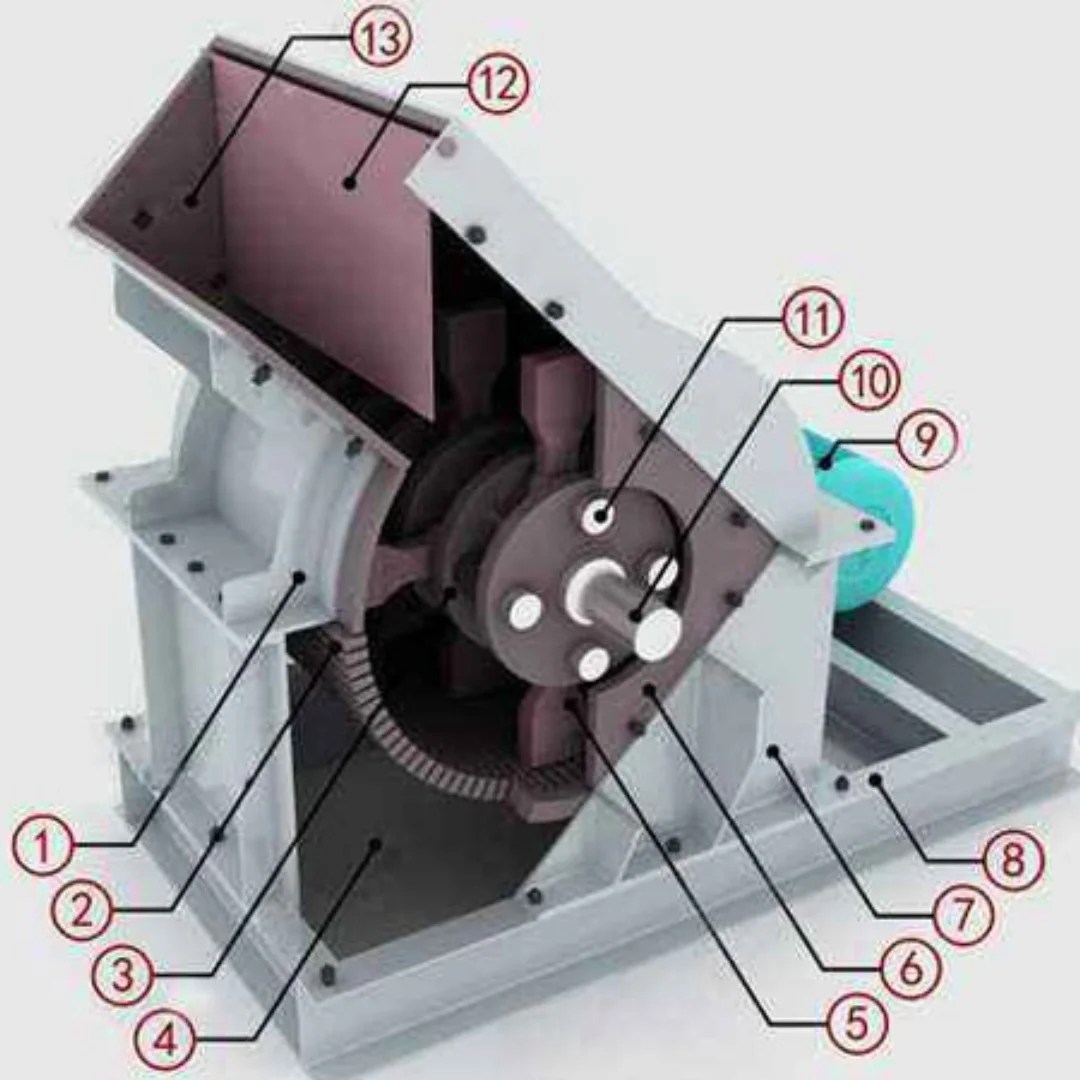

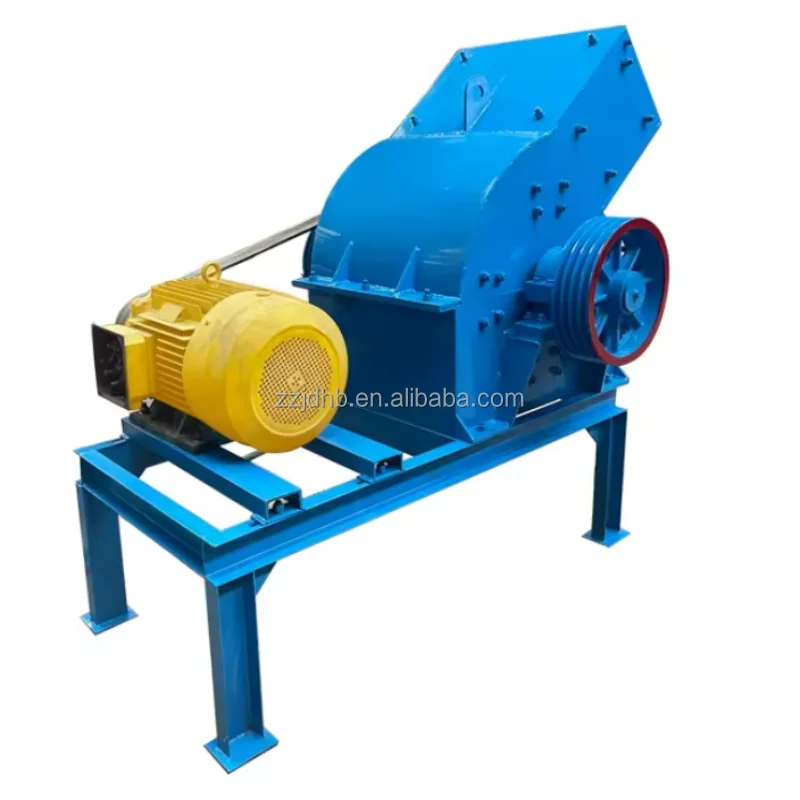

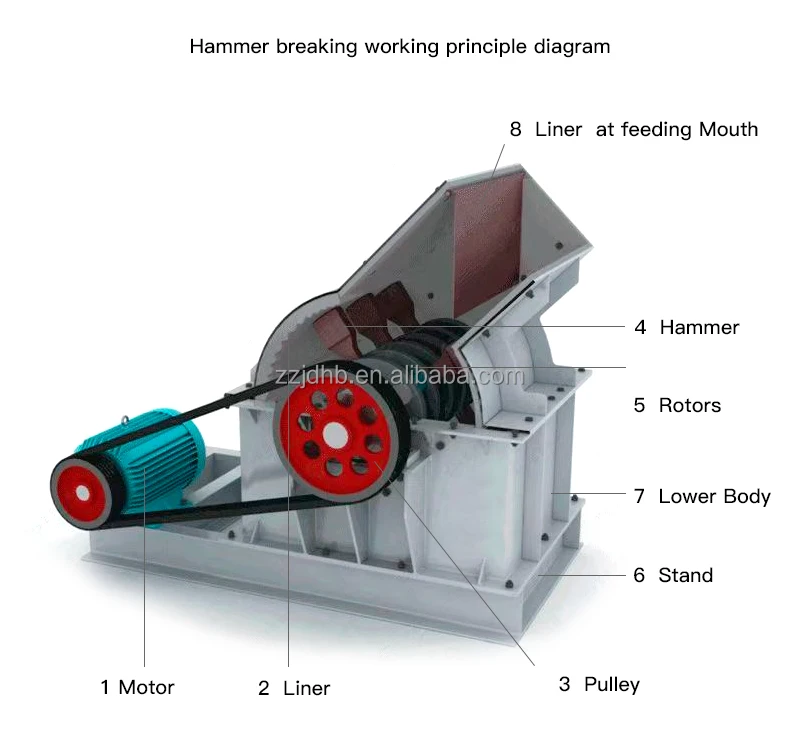

Hammer Crusher Main
 Parts Display


1：Wear-resistant Hammer
2：Motor
3：Belt Pulley
4：Bottom of the sieve
5: Double-layer housings
6：Rotor


Wear-resistant Hammer
using new technology casting, with wear resistance, impact resistance.
Motor
Adopting big brand motors with the advantages of high efficiency, low energy consumption and long life, you can specify the brand
of motor.
Belt Pulley
The machine runs smoothly, and the granularity of the output can be adjusted by replacing the motor wheel.


Bottom of the sieve
The size of the output is controlled by adjusting
the gap between the
screen bars.
Double-layer housings
Double-layer steel plate protection casing for
feed inlet
Rotor
The material is crushed by
the high-speed rotation
of the hammer head.




Features Of Hammer Crusher Machine：
1 The Hammer Head Of The Hammer Crusher Introduces Foreign Advanced Technology And Adopts New Technology For Casting, Which IsMore Wear-Resistant, Impact-Resistant And Prolongs Its Service Life.
2 The Hammer Crusher Machinery Can Adjust The Grate Gap According To The Size Of The Material To Meet The Different Needs Of Different Users.
3 The Body Of The Hammer Crusher Equipment Adopts A Fully Sealed Device, Which Has Less Dust Pollution In The Workshop, And Is
Safe And Reliable.
4 Large Crusher Ratio And High Production Efficiency














Zhengzhou Juding Environmental Protection Equipment Co., Ltd. is an enterprise focusing on the research and development, manufacture, sales and service of mining machinery equipment and automation equipment. The main products are: mobile crushing plant, sand making machine, sand washing machine, all kinds of crushers, vibrating screen, feeder and related accessories. The products are widely used in mining, building materials, highway, railroad, bridge, chemical industry, metallurgy, refractory materials and other industries, and are exported to Vietnam, North Korea, Central Africa, the Middle East and other countries and regions. The company adheres to the enterprise tenet of “integrity, innovation, enterprise and win-win”, takes the market as the guide and customer satisfaction as the purpose, pursues excellence and continuous improvement.






























Q1: Are you a factory or a trading company?
A: our company warmly welcome clients to visit our plant at anytime. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc...

Q2: Where have your products been exported to?
A:we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...

Q3:What Information should customers give us, so that we can be able to provide you suitable quotation and service.
A:What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?

Q4: How long is the warranty of your equipment? Does your company supply the spare parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send atechnician to your location, so you will be responsible for all related costs.

Q5: What about after-sales service?
A:All products are guaranteed for 12 months.


Похожие товары

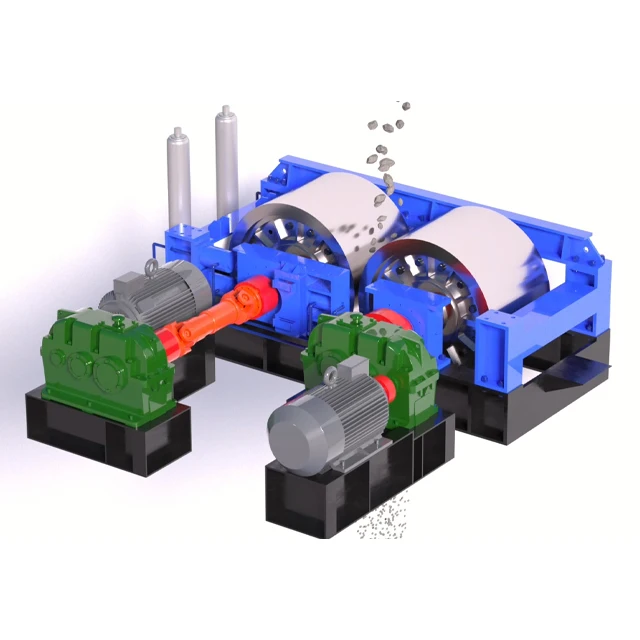

Дизельная Мобильная Двухвалковая дробилка 200t/h2Pgy1500 * 1000 гладкая для доломита
2 900,00-3 000,00 $
Молотковая дробилка для измельчения гипса и известняка мелкого целого срока службы 15
3 100,00-3 778,00 $
Машина для дробления молотковой дробилки
1 500,00-1 800,00 $

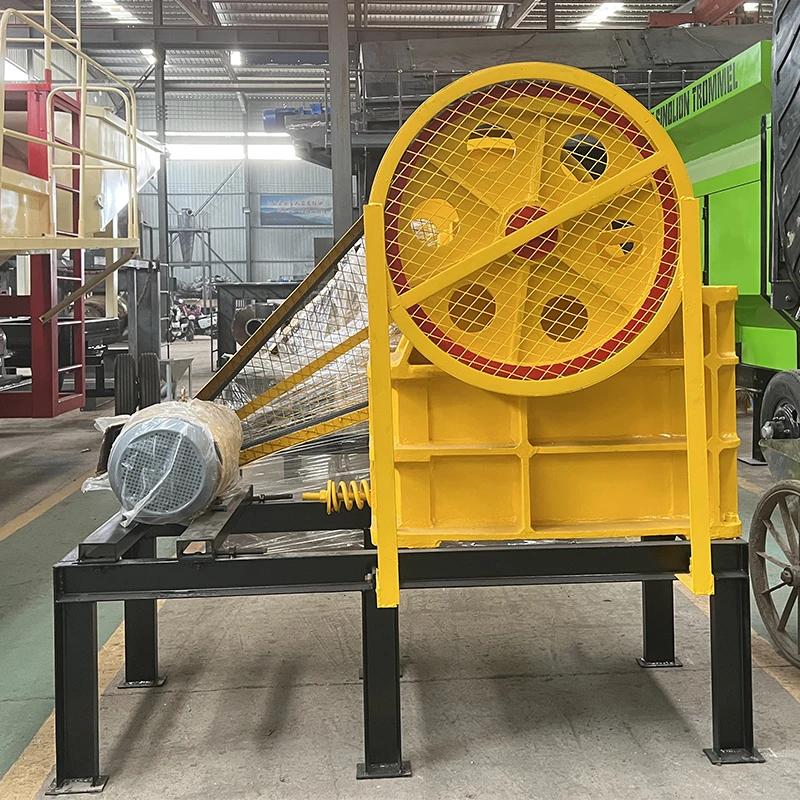

Маленькие портативные дробилки для камня щековая дробилка
4 950,00 $

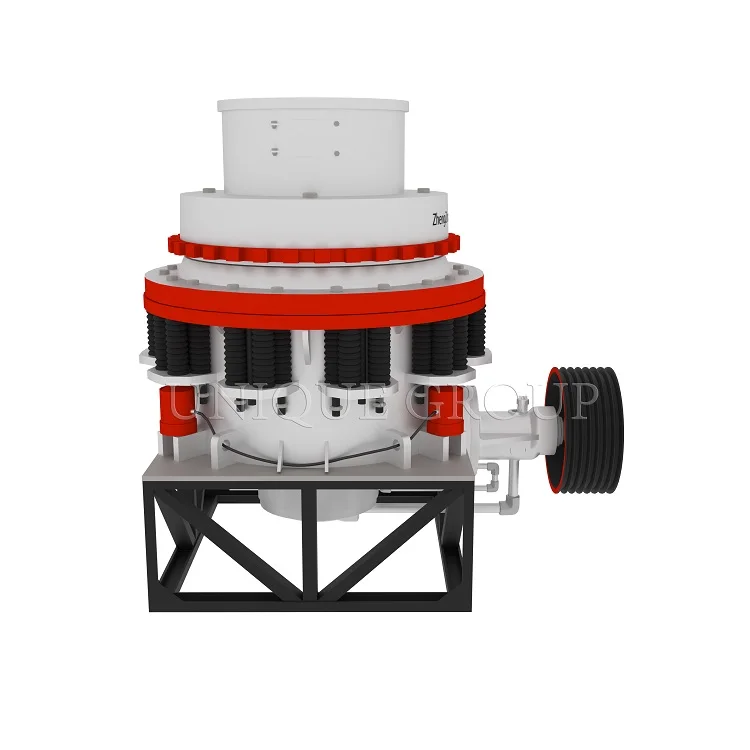

Машина для дробления речного камня многоцилиндровая гидравлическая конусная дробилка горных работ
7 000,00 $
Мобильная щековая дробилка бетонная галька строительные отходы минерального камня конвейер
1 300,00-1 699,00 $

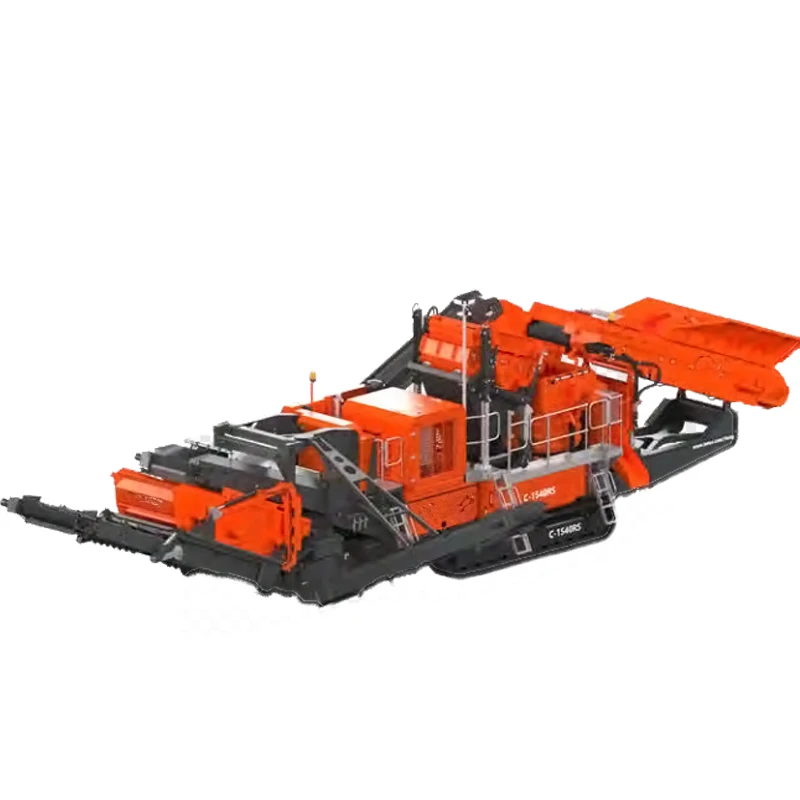

Гусеничная мобильная дробильная установка ударная челюсть Конусная Дробилка вибрационный экран гранит известняк цена включая шестерню насоса двигателя PLC
18 970,00 $

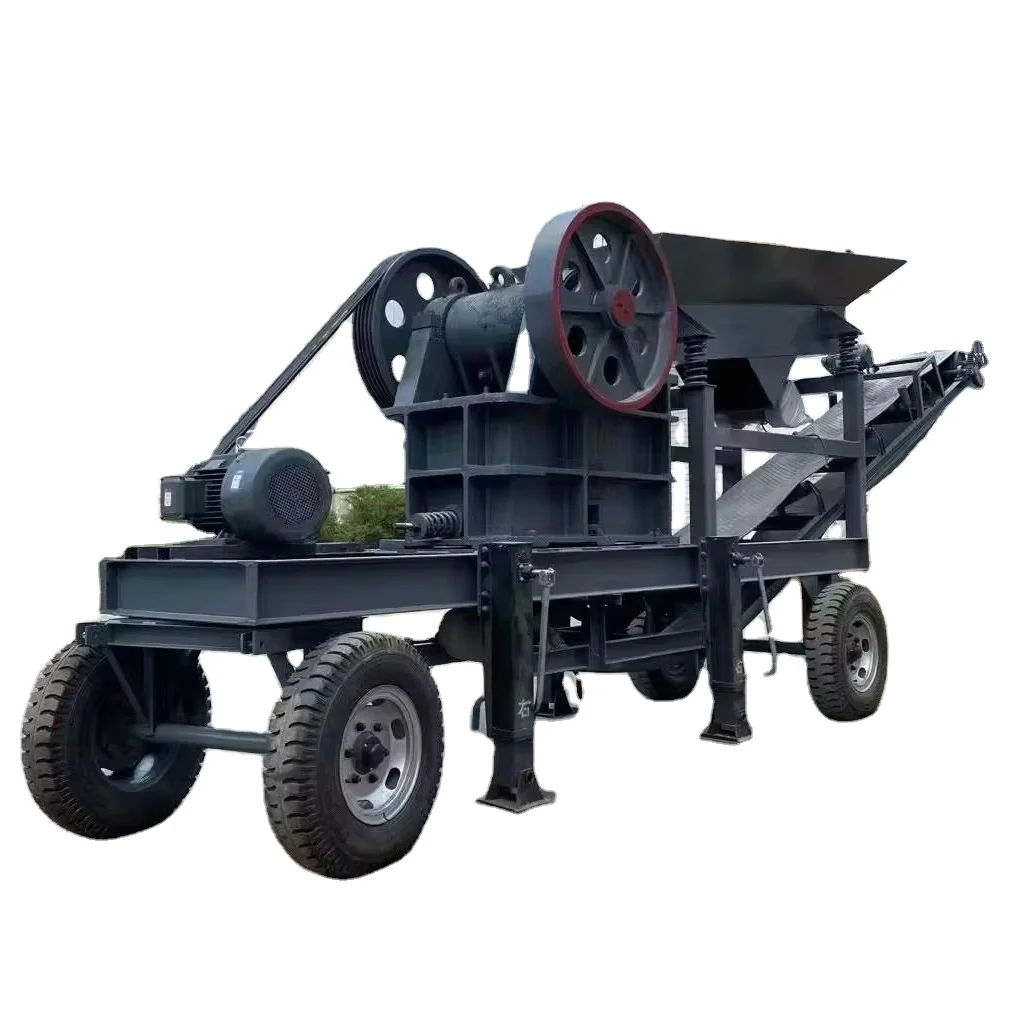

Верх 150x250 портативная мобильная дробилка для небольших дизельных двигателей
