XIONGISOLAR Водонепроницаемый Пластиковый Солнечный PV Массив 1000 В 2 струнный комбайнер распределительная коробка входа выхода для солнечной панели

SOLAR BOX Application

Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.

Product features

1.Very high impact resistance

2.Easy machining with normal tools

3.IP65

4.Wide operation temperature range

5.Non-conductive

6.Good resistance to chemical corrosion

7.Light weight

8.Excellent insulating properties

9.Cost-effective material for harsh environments

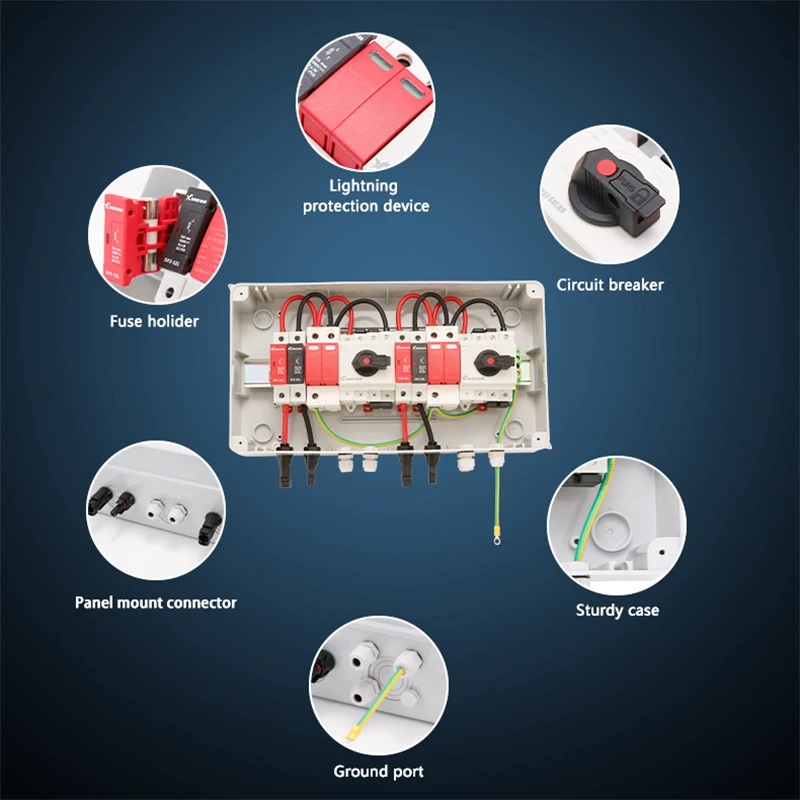

Product functions

1.Simplify the physical between solar panel and inverter

2.Fault current protection for each String

3.Fault alarm

4.Easy installation and maintenance

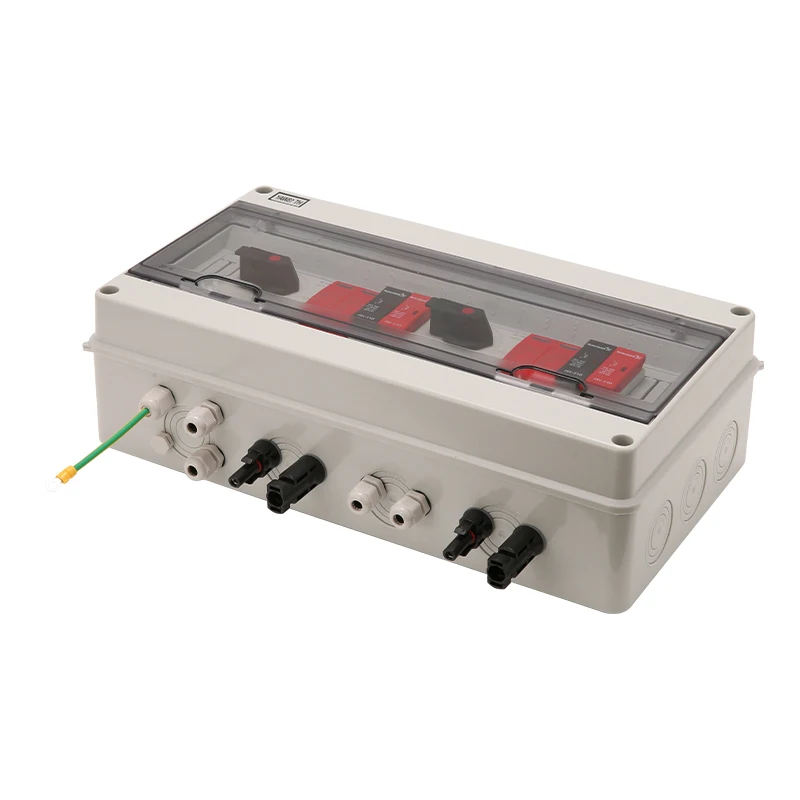

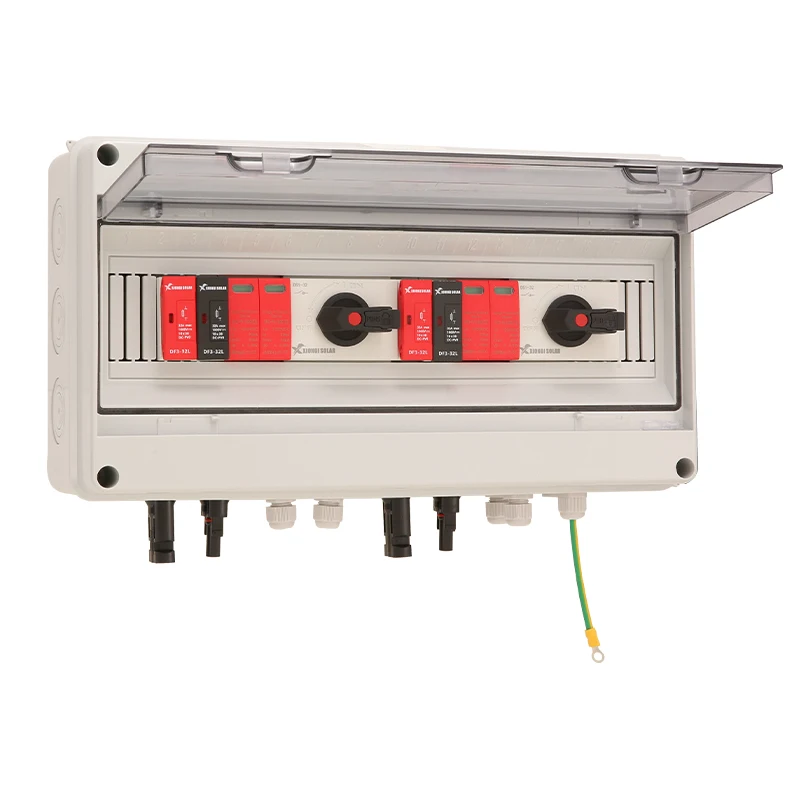

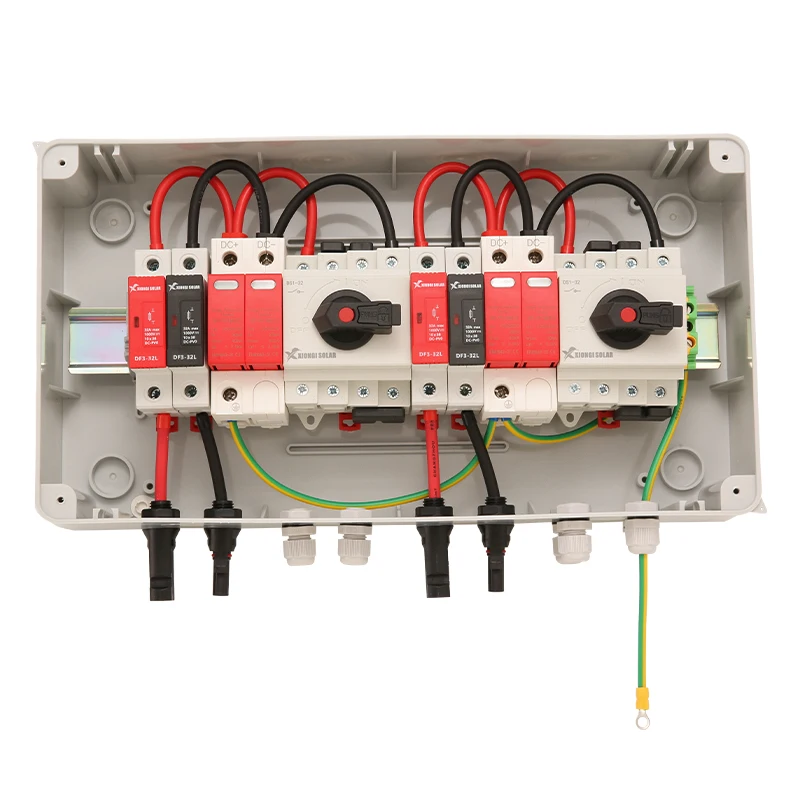

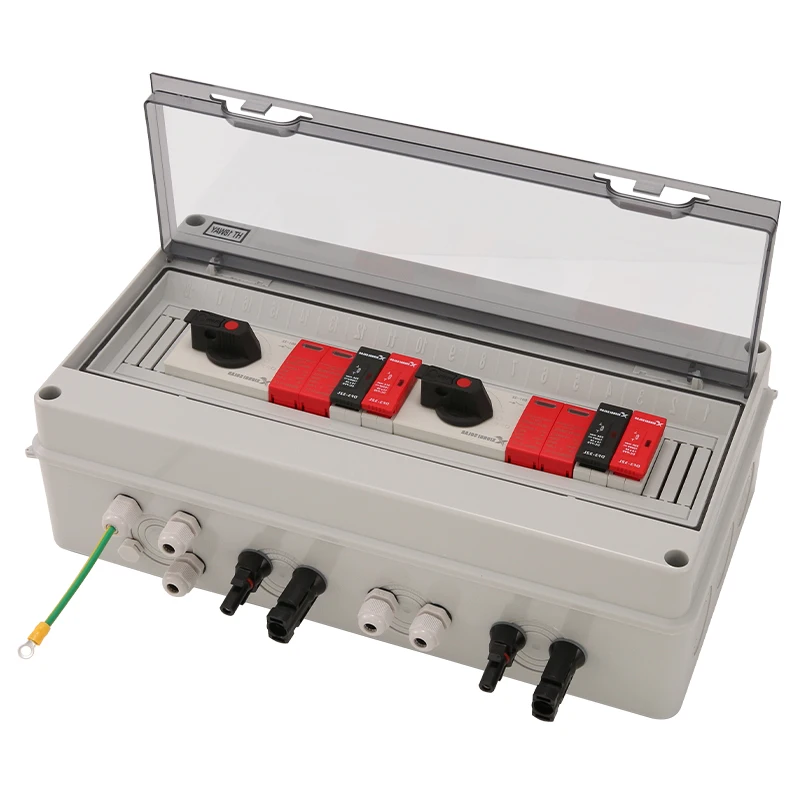

olar PV DC Combiner Box	2 in 2 out
Rated voltage of photovoltaic system	DC 1000V
Max input amp for each string	15A
Input strings	2
Number of output strings	2
Waterproof grade ip65/ Lighting protection
Category of test	II grade protection
Nominal discharge amp	20KA
Max discharge amp	40KA
Volt protection level	2.8KV
SPD Max operation voltage	DC 600V
Poles	2P
Structure characteristic	Plug push module
System
Protection grade	IP20
Output switch	4P DC Isolating switch
	32
Solar connector	Standard
Box material	PVC  PC  ABS
Box Specifications	HT
Installation method	Wall mounting type
Operating temperature	-25℃-+60℃
Installation: indoors/outdoors	Yes
Mechanical parameter
Widh*high*Depth(mm)	37*11*20CM

1.Customized 2 in 2 out 2 string solar photovoltaic PV DC array plastic battery combiner box. The product can integrate three solar panels into one electrical circuit, allowing for ease of wiring and installation. This box supports both input and output configurations, making it suitable for a variety of solar panel system configurations.

2.High voltage and current capacity. The XIONGISOLAR 2IN 2OUT combiner box is designed for 1000V DC systems, capable of handling up to 63A of current. This makes it suitable for medium to large-scale solar panel installations.

3.Durable and weather-resistant plastic construction. The box is made from premium-grade plastic materials that provide excellent durability and resistance to environmental factors like moisture, sun exposure, and temperature fluctuations. This ensures the product's longevity and reliable performance in various climates.

4.Brand credibility and warranty. Backed by the XIONGISOLAR brand, a renowned provider in the solar energy industry, customers can trust the quality and performance of this combiner box. The 2IN 2OUT model comes with a warranty, providing customers with peace of mind and reassurance of product quality and service.

5.Easy installation and maintenance. The 2 in 2 out combiner box offers a user-friendly design, allowing for quick and effortless installation and maintenance. Its compact size and modular design enable hassle-free connection and disconnection of solar panels, ensuring smooth and efficient system operations.
