Грузовик прицеп шина freightliner полуприцеп тормозной барабан металлический алюминиевый грузовик
499 173,75 ₽ - 1 048 264,88 ₽

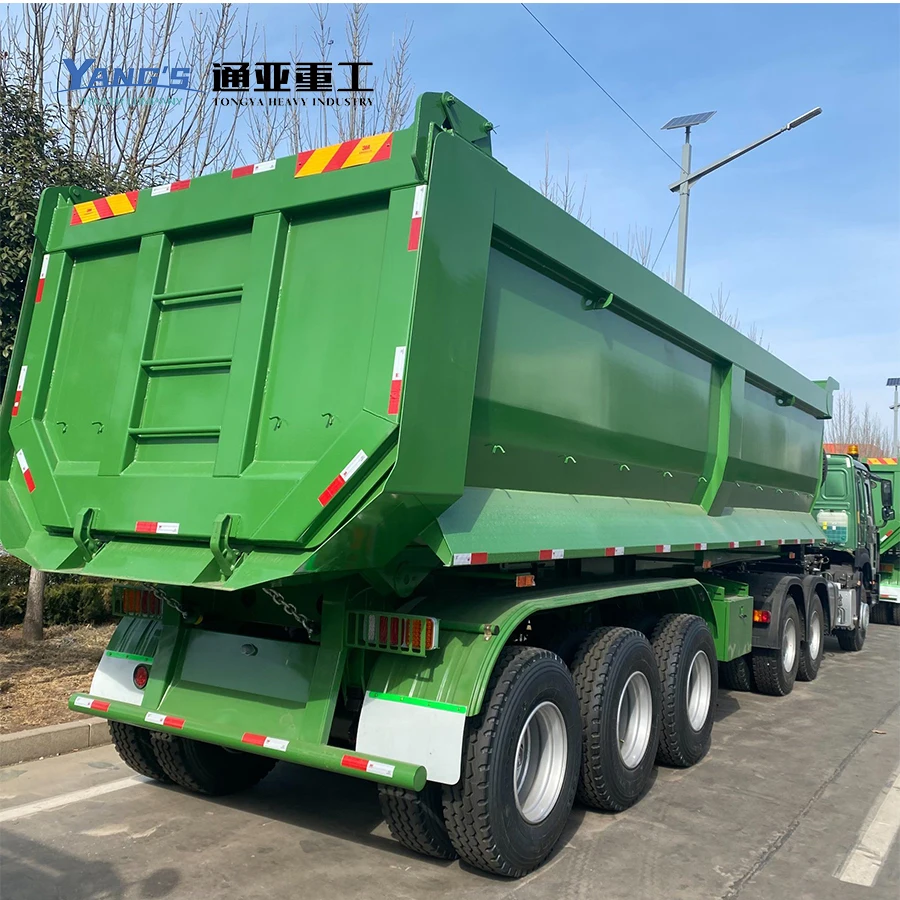

Высокое качество задний Самосвал полуприцеп опрокидной прицеп сделано в Китае для продажи
- Категория: >>>
- Поставщик: Liangshan Tongya Heavy Industry Co. Ltd.
Сохранить в закладки 1601265447640:
Описание и отзывы
Характеристики
This price is the deposit price for product production.
Based on the feedback needs of our clients, in order to alleviate your financial pressure, we have launched a deposit plan that can prioritize production for you to ensure that your construction time is not delayed. If you have any questions, you can contact us. Our top semi-trailer factory in China can meet any of your vehicle needs.
Contact
Liangshan Tongya Semi trailer Factory has over 40 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can provide high-quality products and competitive prices. If necessary, please contact me.
Product Parameters
Dump semi trailer adopt advanced design concept. For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.
Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
Chassis adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance. The advanced software optimizes the design of the products to meet the individual needs of customers. The process tooling of flow operation ensures the excellent quality of products.
Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
Chassis adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance. The advanced software optimizes the design of the products to meet the individual needs of customers. The process tooling of flow operation ensures the excellent quality of products.
Dump semi trailer(customerize and oem service available) | ||||||||
Product name | 2 axles dump semi trailer | 3 axles dump semi trailer | 4 axles dump semi trailer | 5-6axles dump semi trailer | ||||
Size（mm） | 8500*2500*3500 | 10000x2500x3800 | 10500*2500*3900 | 11500*2500*3950 | ||||
Bucket capacity | 25 cubic meters | 30-40 cubic meters | 40 cubic meters | 45 cubic meters | ||||
Lifting system | Hyva brand fe/fc type cylinders diameter=191 mm | Hyva brand fe/fc type cylinders diameter=191 mm | Hyva brand fe/fc type cylinders diameter=202 mm | Hyva brand fe/fc type cylinders diameter=214 mm | ||||
Axles | 2 * 13ton capacity (brand optional) | 3 * 13ton capacity (brand optional) | 4 * 13ton capacity (brand optional) | 5-6 * 13ton capacity (brand optional) | ||||
Tipping box | T700 / hardox | |||||||
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; material is q345b steel. | |||||||
Suspension | Mechanical suspension (air suspension optional) | |||||||
Leaf spring | 90(w)mm*13(thickness)mm*10 layer or 100mm*12mm*12 (special for export market ) | |||||||
Tire | 12r22.5 / 11.00r20 (other size optional) | |||||||
Rim | 9.00-22.5 / 11.00r20 (other size optional) | |||||||
Kin pin | Jost brand 2.0'' / 3.5'' bolt type king pin | |||||||
Landing gear | 28t double speed jost / taihua brand | |||||||
Braking system | Double air chamber ,brake valve,45l air tanks ;abs optional | |||||||
Electrical | Led light , 7 ways ,24v | |||||||
Accessory | One tooling box with a set of standard trailer tool | |||||||
Painting | 1.sand blasting processing clean rust. 2.coat of anticorrosive primer. 3.coats of finish urethane paint. 4.color as customer choice. | |||||||

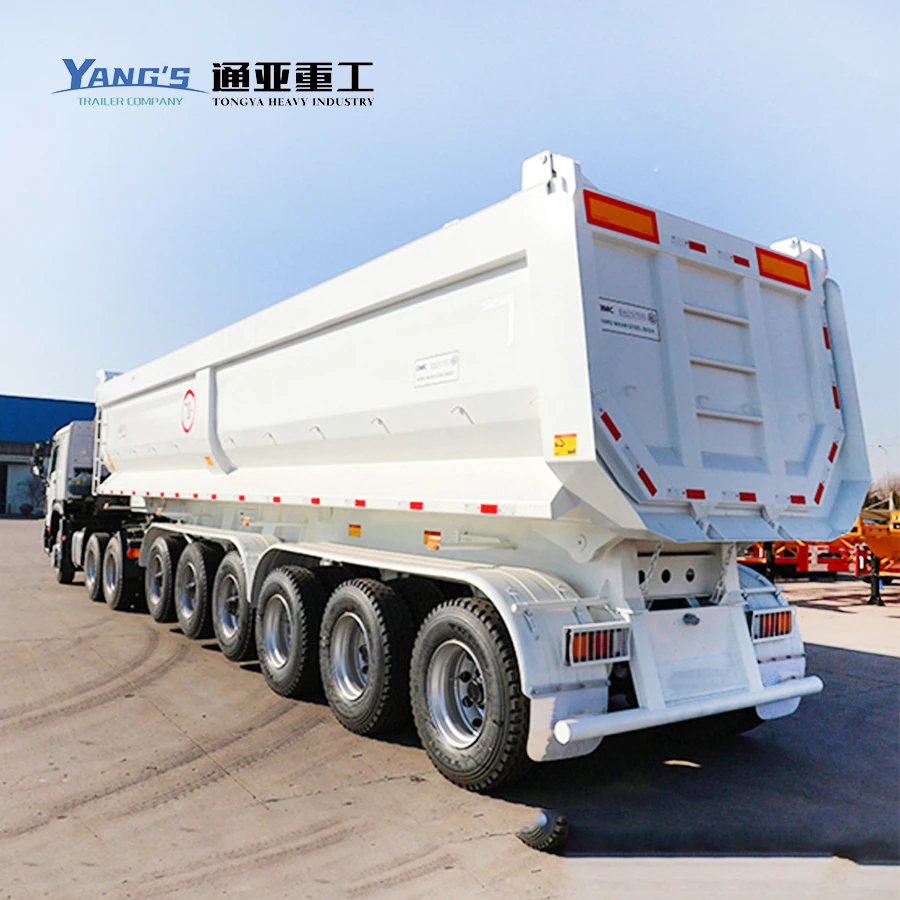

Product Display

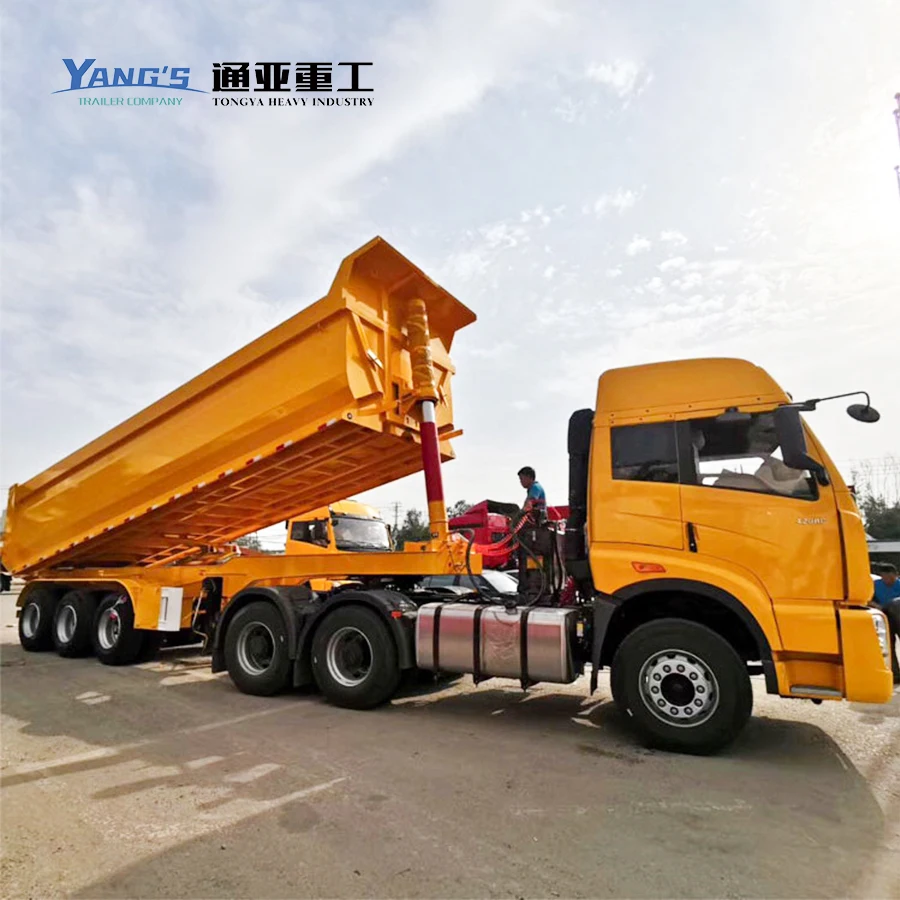

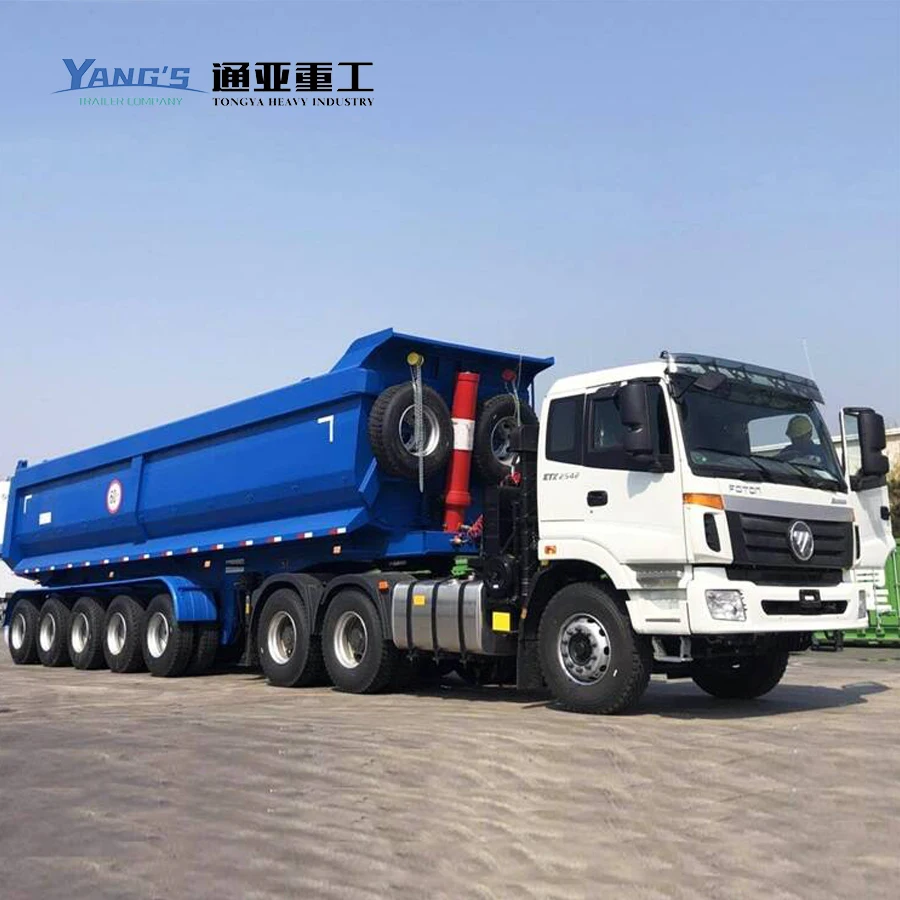

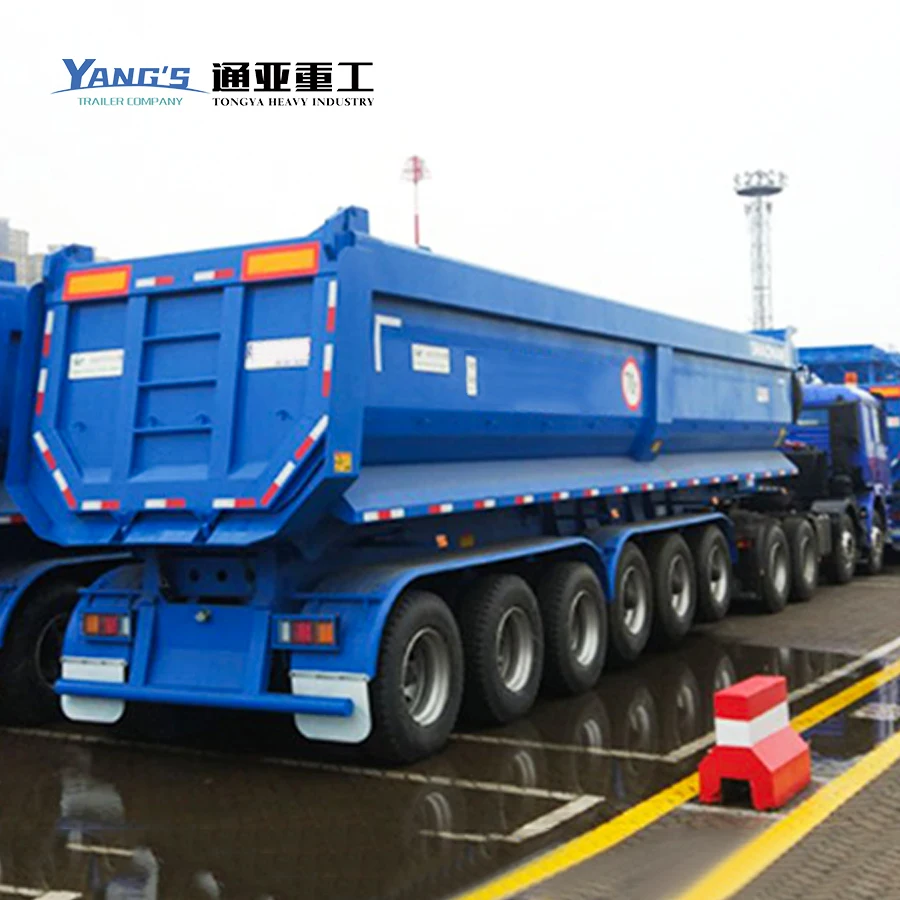

The Tongya rear dump semi-trailer is a transportation vehicle made of high-strength steel and equipped with a hydraulic or mechanical lifting system. It can efficiently unload bulk materials and is suitable for various scenarios. It has the characteristics of stability, simplicity, and strong adaptability, while paying attention to safety and maintenance, and providing comprehensive after-sales service.
Load capacity: Depending on the vehicle model and design, the load capacity may vary.
Carriage size: Customized according to needs to adapt to different loading capacities.
Unloading angle: usually can reach 45 to 90 degrees to facilitate material dumping.
Hydraulic system: Some models are equipped with hydraulic systems to achieve a smoother and more controllable unloading process.
Anti overturning design: The vehicle design considers the stability of anti overturning to ensure safety during the unloading process.
Emergency braking system: equipped with an emergency braking system to cope with unexpected situations.
Load capacity: Depending on the vehicle model and design, the load capacity may vary.
Carriage size: Customized according to needs to adapt to different loading capacities.
Unloading angle: usually can reach 45 to 90 degrees to facilitate material dumping.
Hydraulic system: Some models are equipped with hydraulic systems to achieve a smoother and more controllable unloading process.
Anti overturning design: The vehicle design considers the stability of anti overturning to ensure safety during the unloading process.
Emergency braking system: equipped with an emergency braking system to cope with unexpected situations.
The dump semi trailer of this series adopts the through-beam structure, and the frame structure includes straight the overall strength is high, the weight is light. the appearance is beautiful, and the use is safe and reliable
It adopts three-axis balance type, two-axis balance type or mechanical suspension,and a mass balance block is installed between the front and rear leaf springs, so that the deflection of the front and rear leaf springs can be changed in equal amounts, so that the front and rear axles are balanced in force.etc.
The whole frame of the lowbed trailer should be shot blasted to effectively eliminate welding residues.The vehicle body is electrophoretic coating, resistant to coating,and the coating effect can reach more than 10 years.
We adopt the world famous brand of parts, like jost, hyva,bpw etc. And the main part is hydraulic support system. it is stable and long service life.
The body of a dump semi-trailer usually consists of a cariage and an unloading mechanism at the bottom. The cabin is made of materials such as high-strength steel to ensure lightweight and solidity.
Product Details
Packaging & Shipping
About Us
Founded in 1982, TONGYA HEAVY INDUSTRY CO., LTD. is a leading Chinese manufacturer of semi trailers, trailers and truck bodies. It has 26 senior engineers, 500 experienced staff, over 134,500 square meter land, 10 advanced and automatic production lines including biggest laser cutting machines, CNC bending machines, Switzerland Locator, automatic welding, jointing, bending machines to work for you!
30 years of production, an average of 20 years of work experience of employees, 500 sets trailersmonthly output by a wealth of quality inspection team and engineers to ensure excellent quality, strong supply chain system of over 100 suppliers of second-hand and stock trailers, trucks, traction heads and auto parts, and do a full range of quality inspection, documents, inspection,delivery services for you. Professional customer service provides you with a full range of after-sales services.
FAQ
1. Who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(90.00%),Southeast Asia(6.00%),Africa(4.00%). There are
total about 301-500 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Bulk Cemenet Tanker Semi Trailer, Fuel Tanker Semi Trailer, Three Axle Low Bed Semi Trailer, Rear Dumper Semi Trailer, Three Axle
Flat Bed Semi Trailer
4. Why should you buy from us not from other suppliers?
null
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DAF；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Russian
We are based in Shandong, China, start from 2010,sell to Domestic Market(90.00%),Southeast Asia(6.00%),Africa(4.00%). There are
total about 301-500 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Bulk Cemenet Tanker Semi Trailer, Fuel Tanker Semi Trailer, Three Axle Low Bed Semi Trailer, Rear Dumper Semi Trailer, Three Axle
Flat Bed Semi Trailer
4. Why should you buy from us not from other suppliers?
null
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DAF；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Russian
Похожие товары
Тяговая тяга с низкой платформой для транспортировки контейнеров
Поворотные кронштейны
1 209,11 ₽ - 2 096,53 ₽
Sinotruck Howo головка прицепа б/у тракторные грузовики Лидер продаж
321 689,75 ₽ - 499 173,75 ₽

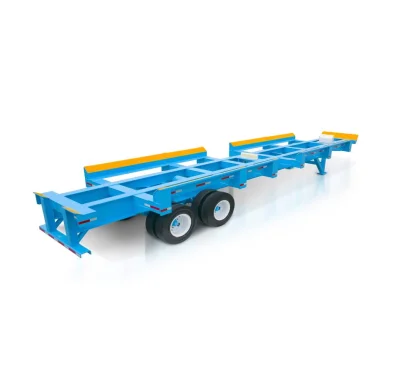

Порт-контейнеровоз полуприцеп контейнерный прицеп клеммное шасси
