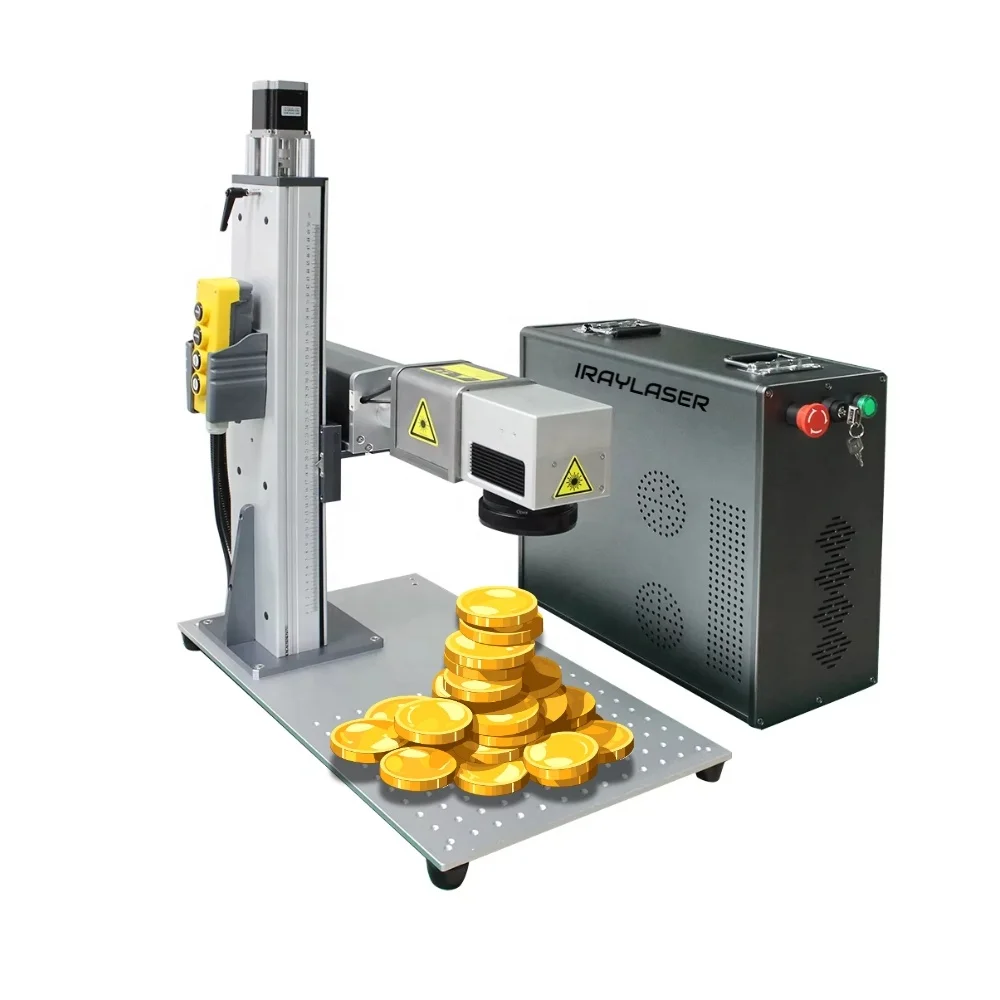

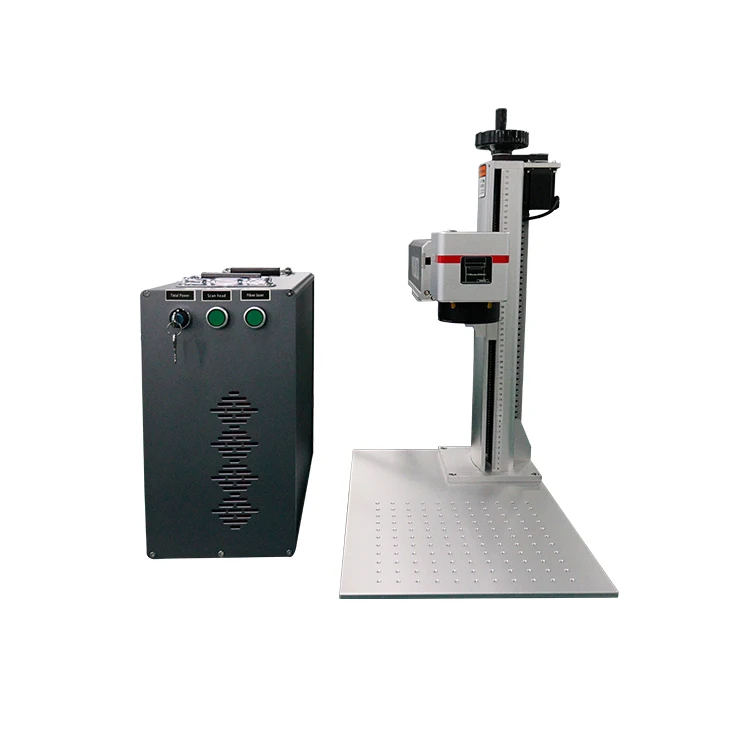

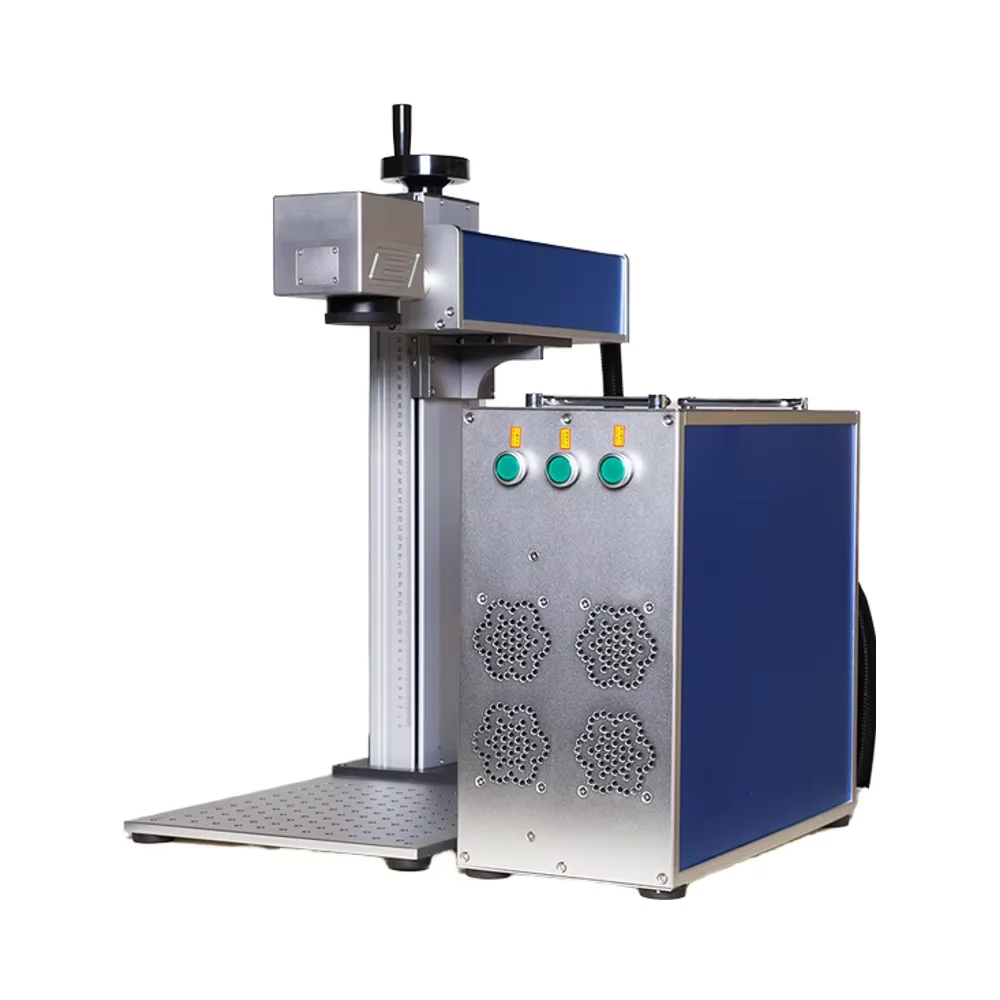

Лазерная маркировочная машина, Настольная волоконно-оптическая гравировальная машина, печатный знак, небольшое автоматическое кодирование металла, лазерная гравировальная машина
603 754,66 ₽ - 637 236,58 ₽
Galvo волоконно оптический лазер 30 Вт 50 Raycus /JPT 60 промышленная лазерная маркировочная машина для резки золота и серебра
- Категория: >>>
- Поставщик: Wuhan Yirui Technology Co. Ltd.
Сохранить в закладки 1601265516571:
Описание и отзывы
Характеристики
Product Description
We supply laser engraving machine of jpt mopa 30W 60W 100W
JPT non-mopa 20W 30W 50W
Raycus 20W 30W 50W
"Send inquiry" to Aria for get more product information More videos and product details.
You can als call or add whatsapp 0086- 132 -9661-9382
JPT non-mopa 20W 30W 50W
Raycus 20W 30W 50W
"Send inquiry" to Aria for get more product information More videos and product details.
You can als call or add whatsapp 0086- 132 -9661-9382
Specification
Product | Laser Marking Machine | Machine Type | Split Type | ||
Laser Source | JPT Mopa / Raycus | Laser Power | 30W /50W / 60W / 100W | ||
Frequency | 30W Raycus: 30khz to 60khz. 50W Raycus: 50khz to 100khz. 30W 60W 100W JPT Mopa : 1khz to 4000khz. | ||||
Pulse Width | 30W 50W Raycus: 200ns. 30W 60W 100W JPT MOPA: 2ns to 500ns | ||||
Filed Lens | 30W- 60W: Opex field K9 glass lens. 100W : Quartz lens. | ||||
Max Speed | 8000mm/s | Working Area | 110*110mm (optional) | ||
Cooling System | Air Cooling | Double Red Lights | YES | ||
Software | EZCAD2, compatiable with lightburn. (EZCAD3 for option) | ||||
Scanning Head | High precision galvo head with silicon mirrors inside. | ||||
Focus | Manual focus (auto focus for option) | ||||
Mark Materials | All all of gold silver brass titanium stainless steel brass copper, partial of nonmetal. | ||||
Main Features | Engrave all metal jewelry Engrave Photo Engrave Ring inside and outside Cut gold silver names necklace | ||||
Marking Material | All metal of gold silver brass titanium steel, partial of plastic. | ||||
Computer Requirements | Windows XP, 7, 8, 10, 11 (Lightburn software can work with apple computer) | ||||
Power Supply | AC110V 60HZ / 230V 50HZ according to your needs . | ||||
Warranty | 2 Years | ||||
After-Sale Service | Free software setup + Free online training + Free lifetime technical support + Free Parameter list for reference. | ||||
Product Detail
galvanometer head
3D dyamnic galvo head high speed galvanometer scan technology,digital signal,high precision and Speed.High quality laser scanning
system makes the marking speed up to 7000mm/s.
system makes the marking speed up to 7000mm/s.
Laser source
1. The Raycus/JPT brand laser source has a normal working life of 100,000 hours. The industry's best quality fiber optic
manufacturer, microfiber beam 0.001mm; the laser's overall 3-year warranty.
2. Hand-cranked lifting system, easy to operate and easy to use. The laser focal length can be adjusted up and down according to
different kinds of materials and marking materials.
manufacturer, microfiber beam 0.001mm; the laser's overall 3-year warranty.
2. Hand-cranked lifting system, easy to operate and easy to use. The laser focal length can be adjusted up and down according to
different kinds of materials and marking materials.
Focus lens
Imported high light focusing mirror.Improve the ability of edge beam incident to the detector makes the probe on the surface of
the photosensitive non-uniform illumination uniformity.
the photosensitive non-uniform illumination uniformity.
Working area(Change working area for free):
50*50mm,,75*75mm ,110*110mm, 150*150mm,175*175mm,200*200mm,
50*50mm,,75*75mm ,110*110mm, 150*150mm,175*175mm,200*200mm,
300*300mm
Control system
Easy to use Software
EZCAD
Software version: 2.14.11,compatiblewith multiple picture formats,simple operation and
simple interface
EZCAD2 can compatible with Lightburn
EZCAD
Software version: 2.14.11,compatiblewith multiple picture formats,simple operation and
simple interface
EZCAD2 can compatible with Lightburn
Applications
Packing & Delivery
1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 1 years warranty, during the period, any problem happen, we are responsible to solve.
2.After-sales services and Guarantee. We offer 1 years warranty, during the period, any problem happen, we are responsible to solve.
Company Profile
FAQ
Q1: How can I choose the best machine for me?
Let us know the material or thickness you will used for engraving or cutting , also advice the working result you need , we willrecommend the suitable model with suitable power based on your request
Q2: Is it easy to operate for Green user?
Yes , Machine all install and test well before delivery , after you receive , just need to learn how to use software , we offer
manual , video and online training support , make sure your machine work well after received
Q3: Is the machine safe to operate?
Yes, the laser is completely safe to operate. DOWIN Laser machines offer so many safe system, like leakage proof socket, emergency stop button ,water alarm, red dot focus.
Q4: What's the guarantee, in case the machine breaks down?
The machine has three year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality problem under "normal use". .
Q5: How's the payment? How long is the delivery time?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU)
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q6: Do You Arrange Shipment For The Machines?
Yes, we could use door to door express ,air plane way to your air port and sea shipping way to your sea port.
Based on EXW (factory price),FOB terms(Free on board),CIF terms(cost, insurance and freight),DDU(Door to Door and tax unpaid)
Q7: How about the documents after shipment?
After shipment, we'll send documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Let us know the material or thickness you will used for engraving or cutting , also advice the working result you need , we willrecommend the suitable model with suitable power based on your request
Q2: Is it easy to operate for Green user?
Yes , Machine all install and test well before delivery , after you receive , just need to learn how to use software , we offer
manual , video and online training support , make sure your machine work well after received
Q3: Is the machine safe to operate?
Yes, the laser is completely safe to operate. DOWIN Laser machines offer so many safe system, like leakage proof socket, emergency stop button ,water alarm, red dot focus.
Q4: What's the guarantee, in case the machine breaks down?
The machine has three year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality problem under "normal use". .
Q5: How's the payment? How long is the delivery time?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU)
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q6: Do You Arrange Shipment For The Machines?
Yes, we could use door to door express ,air plane way to your air port and sea shipping way to your sea port.
Based on EXW (factory price),FOB terms(Free on board),CIF terms(cost, insurance and freight),DDU(Door to Door and tax unpaid)
Q7: How about the documents after shipment?
After shipment, we'll send documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Похожие товары
Волоконно-оптический лазерный гравировальный станок, 30 Вт

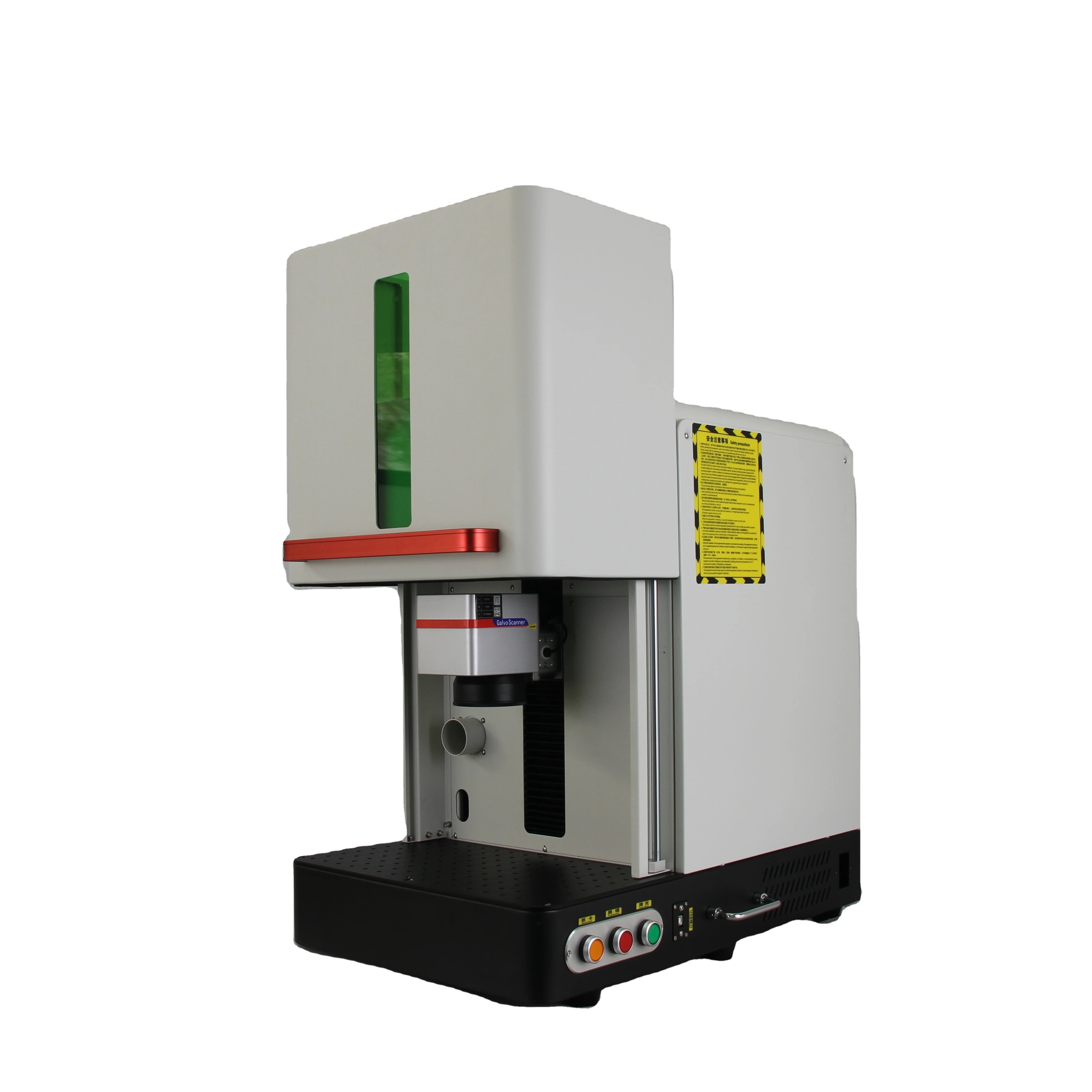

Тип шкафа 20 Вт 30 Вт 50 Вт волоконно-лазерная маркировочная машина гравировка металла нержавеющая сталь карандаш гравировка пластиковая лазерная маркировка
102 605,89 ₽ - 113 406,51 ₽

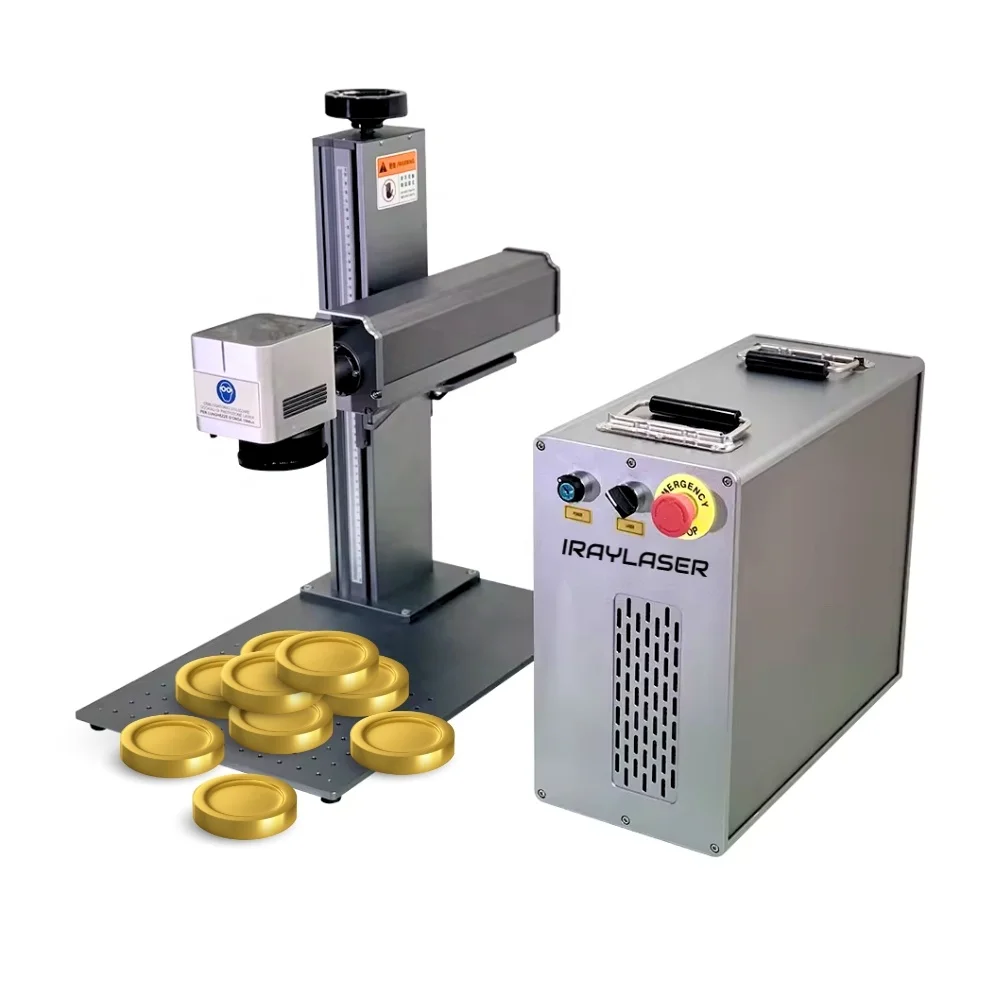

Золото и серебро лазерная гравировальная машина на металле с 20 Вт 30 Вт 50 Вт мощность 30 Вт мини лазерная гравировальная машина 3D волоконный лазер

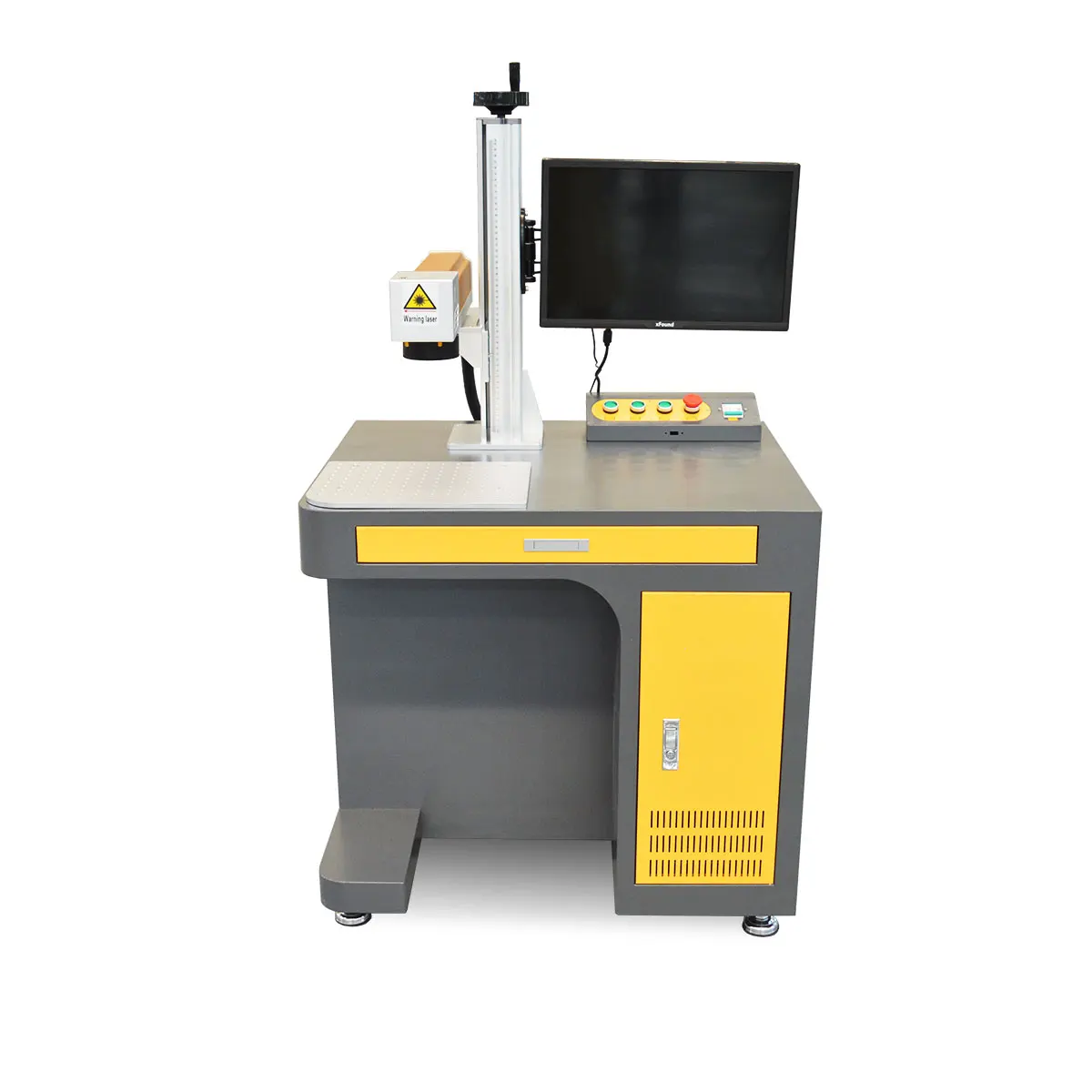

Заводская цена волоконно-лазерная маркировочная машина KAWALONG 30 Вт для металла и неметалла
151 208,68 ₽ - 172 809,92 ₽

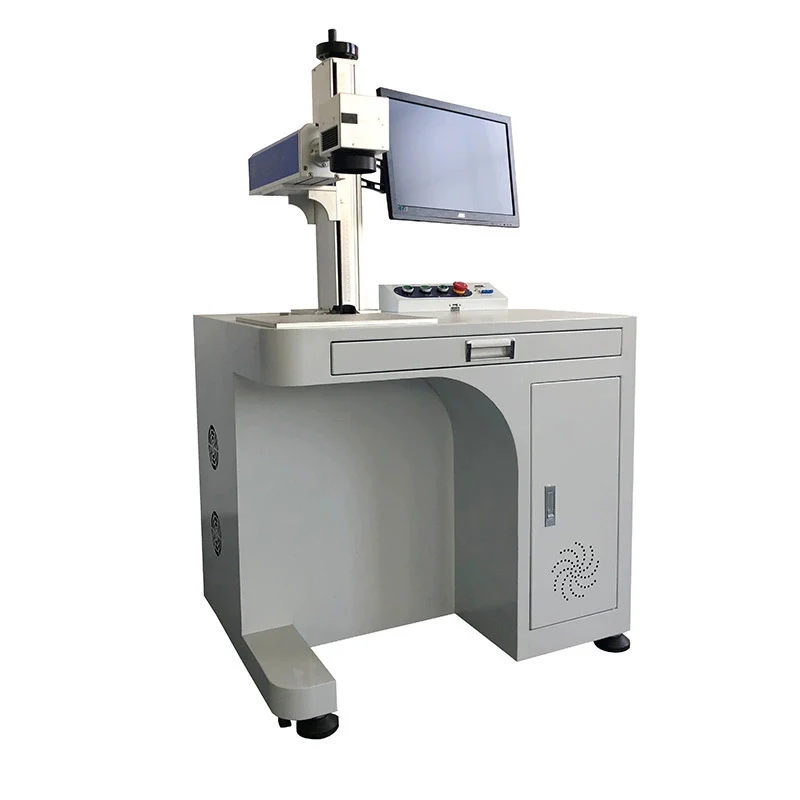

Лидер продаж, волоконно-лазерная маркировочная лазерная гравировальная машина из нержавеющей стали для клавиатуры lpod и других стандартных деталей

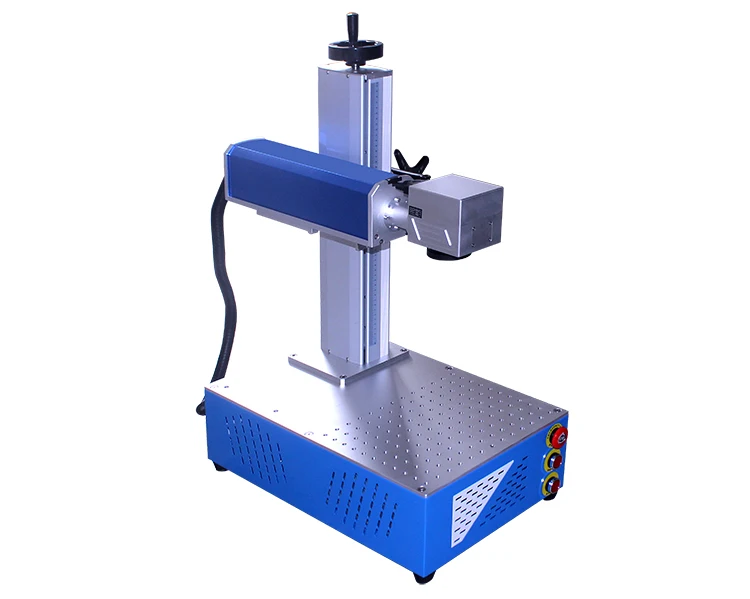

Волоконно-оптическая разделенная лазерная маркировочная машина 20 Вт волоконно-оптическая онлайн высокоскоростная летающая лазерная маркировка
140 408,06 ₽ - 145 808,37 ₽

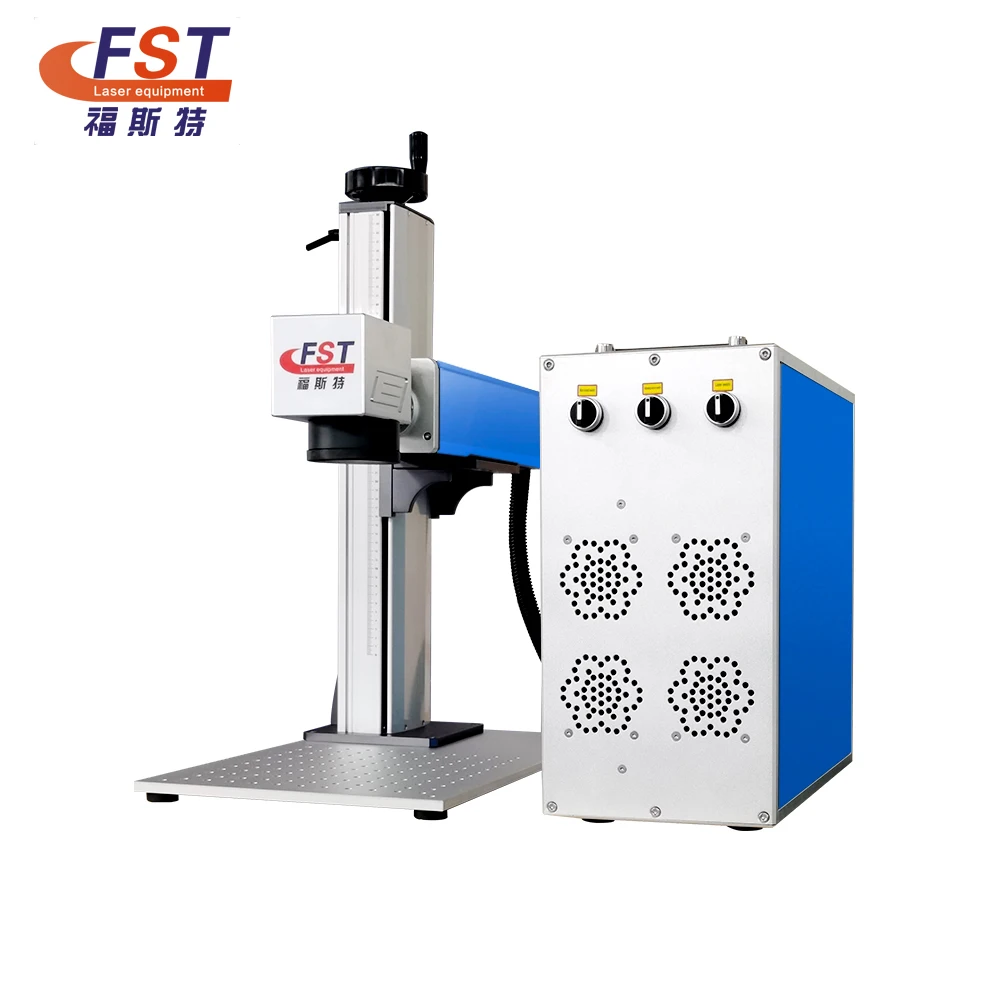

30 Вт FSH сплит-Настольный портативный станок для гравировки металла, лазерная резка, волоконно-лазерная маркировочная машина
