Ударная дробилка из твердого камня серии NP ударная Дробилка мягкого PF 200TPH гипсовая дробильная установка
3 549 680,00 ₽
Высокоэффективная Европейская ударная Дробилка серии NP профессиональная гранитная Известняковая кварцевая Производитель
- Категория: >>>
- Поставщик: Henan Vest Machinery Co. Ltd.
Сохранить в закладки 1601265571230:
Описание и отзывы
Характеристики
Product Introduction:

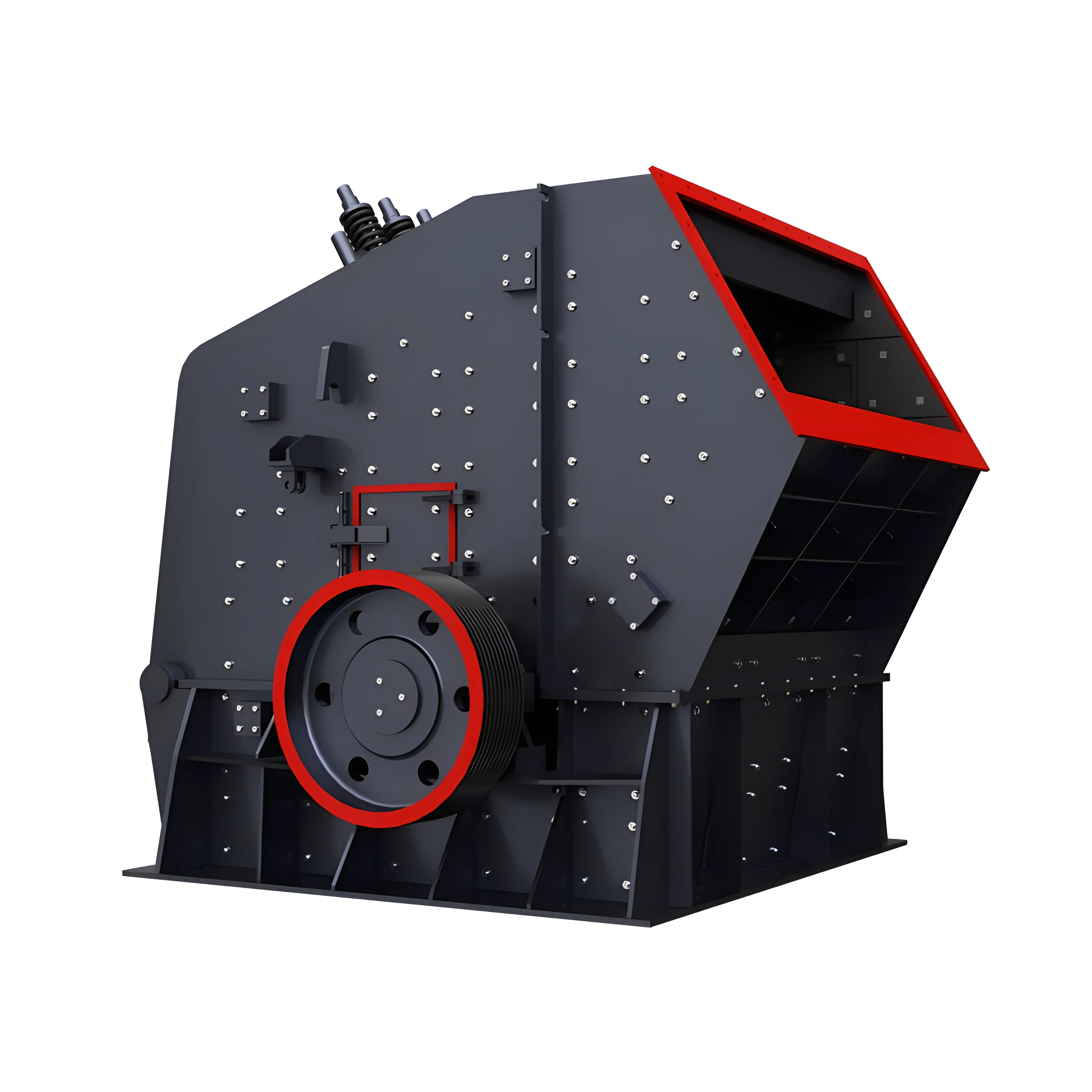

The NP Series impact crusher is engineered for high-performance and versatility in the crushing process. Designed with a robust and durable construction, this impact crusher excels in both primary and secondary crushing applications.
• Max. Input size: 220-1020mm
• Min. Output size: 15-300mm
• Capacity: 20-900t/h
• Max. Input size: 220-1020mm
• Min. Output size: 15-300mm
Application Field:

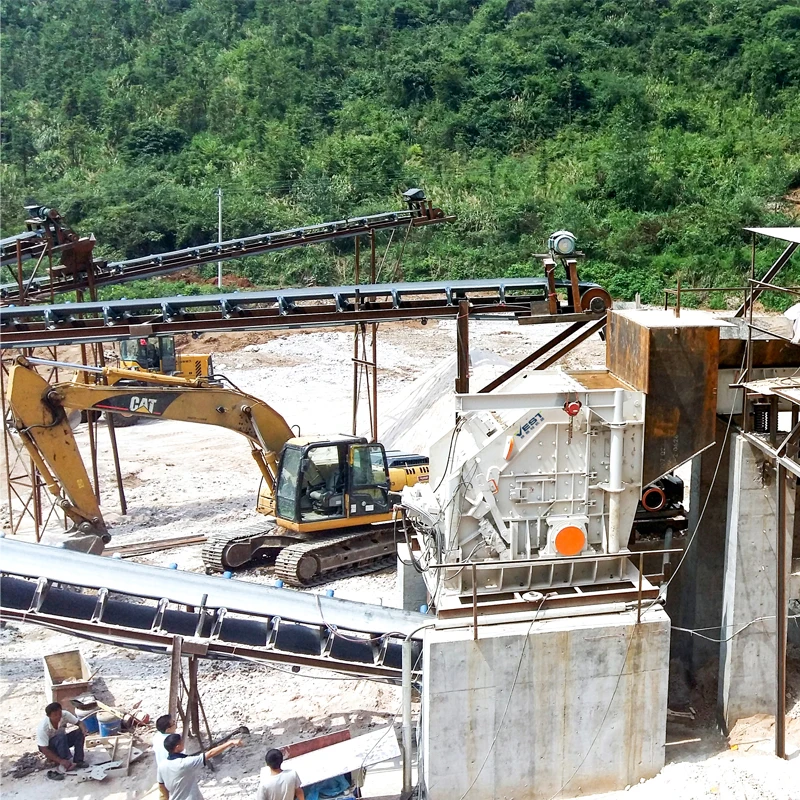

NP system impact crusher has been optimized with a larger crushing chamber and larger feed particle size. It also improves production efficiency under various application conditions by optimizing the liner and specific rotor. It is mainly used in metal mines, non-metal mines, sand and gravel aggregates, construction recycling, chemical industry and other fields. It is generally used to crush materials with low abrasiveness below medium hardness. It can be used as coarse crushing, medium crushing and fine crushing. It has a large crushing ratio and good finished product particle shape.
Technical Features:
1.Optimal design of rotor: optimize the heavy-duty design of the rotor, increase rotational inertia, and improve equipment productivity. The unique locking device of wedge plate hammer is convenient to disassemble, safe, and reliable.
2.Flexible configuration: All models have two cavities and three cavities, and the cavity type and wear-resistant plate hammer are selected according to different purposes to obtain better output ratio.
3.Good final-stone shape: Semi-open the discharge system finished material particle shape is good, cube, conducive to recycling.
4.Modular design of wearing parts: through reasonable design and layout of wear-resistant lining plate, the types of wearing parts can be minimized, and they can be used interchangeably according to the different wear degrees of components, so as to improve the utilization rate of wearing parts and reduce inventory.
2.Flexible configuration: All models have two cavities and three cavities, and the cavity type and wear-resistant plate hammer are selected according to different purposes to obtain better output ratio.
3.Good final-stone shape: Semi-open the discharge system finished material particle shape is good, cube, conducive to recycling.
4.Modular design of wearing parts: through reasonable design and layout of wear-resistant lining plate, the types of wearing parts can be minimized, and they can be used interchangeably according to the different wear degrees of components, so as to improve the utilization rate of wearing parts and reduce inventory.
Working Principle:
Impact crushers use high-speed impact to crush materials. When the material enters the action area of the blow bar from the feed port, it is first crushed by the high-speed impact of the blow bar, and the strong impact force throws the material to the impact plate for further crushing, and the material rebounded by the impact plate falls to the plate again. Continue to repeat the above process until the material is crushed to be smaller than the size of the discharge port, and it will be discharged from the discharge port due to its own weight.
Model | Feeder Opening Size (mm) | Rotor Size (mm) | Max. Feeding Size (mm) | Max Rotating Speed (rpm) | Motor Power (kw) | Capacity (t/h) |
NP1007 | 750×800 | φ1000×700 | 500 (300) | 800 | 90-110 | 100-150 |
NP1110 | 1020×820 | φ1100×1000 | 600 (300) | 800 | 132-200 | 150-250 |
NP1213 | 1320×880 | φ1200×1300 | 600 (350) | 700 | 200-250 | 200-300 |
NP1315 | 1540×930 | φ1300×1500 | 600 (400) | 700 | 250-355 | 300-400 |
NP1520 | 2040×995 | φ1500×2000 | 700 (400) | 600 | 400-630 | 350-600 |
NP1210 | 1020×1080 | φ1200×1000 | 800 (400) | 700 | 160-200 | 250-380 |
NP1313 | 1320×1200 | φ1300×1300 | 900 (450) | 700 | 200-250 | 350-520 |
NP1415 | 1540×1320 | φ1400×1500 | 1000 (600) | 600 | 250-315 | 400-600 |
NP1620 | 2040×1630 | 1600×2000 | 1300 (700) | 500 | 400-500 | 650-950 |
NP2023 | 2310×1980 | φ2000×2300 | 1500 (800) | 520 | 900-1200 | 1300-2000 |
NP13 | 1320×560 | φ1200×1300 | 350 | 700 | 250-315 | 250-350 |
NP15 | 1540×600 | φ1300×1500 | 400 | 700 | 315-355 | 300-400 |
NP20 | 2040×700 | φ1500×2000 | 400 | 600 | 500-630 | 500-600 |
1. Are you a manufacturer or trading company?
We are a factory, founded in 1987 and restructured in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. How can I get the free solution and quotation?
Please send an inquiry to us, leave your WhatsApp and email, and our sales manager will contact you within 1 hour.
We are a factory, founded in 1987 and restructured in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. How can I get the free solution and quotation?
Please send an inquiry to us, leave your WhatsApp and email, and our sales manager will contact you within 1 hour.
