Hiland 2024 трубчатый мотор приемник TM5111 с 30 передатчиками и 433 92 МГц горячая распродажа
- Категория: >>>
- Поставщик: Hangzhou Hiland Technology Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601265780332:
Описание и отзывы
Характеристики

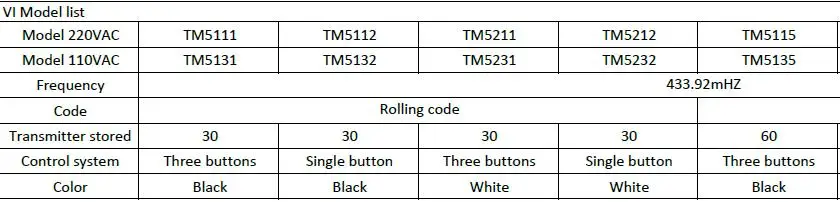

Product Description
Frequency | 433.92MHz |
Code | Rolling code |
Transmitter Stored | 30pcs |
Size | 113*74*44mm |
Weight | 363g/pc |
Diameter of motor | ≤115MM |
1. Safety Instruction
1.For security, please read the instructions carefully before initial operation;making sure that the power is off before
connection.
2.The received signal may be interfered by other communication devices. (e.g. the wireless control system with the same frequency range)
3.It is forbidden to control the high-risk coefficient equipment / system.
4.It should be applied in dry indoor place or in the electric appliance place.
2. learning and deleting remotes by receiver
1. Learn transmitter:Press the learning button on the panel,LED turns into red and gets into learning state;press the same
button twice on the same transmitter,LED blinks for a while and turns into green shows transmitter has been learned successfully.
2. Delete transmitter:Continue pressing the learning button (about 8s) until LED turns green then release the learning button, LED turns red (about 1s) then turns green. It indicates that the erasing process is successful
3. Operational process
3.1 Three button control system with transmitter and non-Latch model Button 1,2,3 in transmitter is in correspondence with open, close and stop.
3.2 Three button control with transmitter and latch model Motor works clockwise when keep pressing button 1;Motor works anti clock wise when keep pressing button 2;Motor stops when releasing button
3.3 Single button control system and non-Latch model "Press-Open(motor works clockwise), press-stop, press close(motor works anti clockwise),press-stop,and so on in a loop. Single-button control is only effective to the learned button; if a new button of transmitter learned into the control panel, the formal one is useless. (e.g.: if learned button 1 at first, and then button 2 or 3, the former button 1 becomes invalid)."
3.4 Single button control and latch model Motor works clockwise/anticlockwise when keep pressing the button; motor stops when releasing.
4. NOTE
1.Single-button control refers to single button in transmitter; ↑ ↓in control panel is in correspondence with open, close and
stop.
2. Max running time means that the motor's maximum running time at a time is 100S; the motor stops immediately if longer than 100S.
3. ↑ ↓in control panel and OPEN STOP CLOSE button in transmitter are in correspondence with open, close and stop.
1.For security, please read the instructions carefully before initial operation;making sure that the power is off before
connection.
2.The received signal may be interfered by other communication devices. (e.g. the wireless control system with the same frequency range)
3.It is forbidden to control the high-risk coefficient equipment / system.
4.It should be applied in dry indoor place or in the electric appliance place.
2. learning and deleting remotes by receiver
1. Learn transmitter:Press the learning button on the panel,LED turns into red and gets into learning state;press the same
button twice on the same transmitter,LED blinks for a while and turns into green shows transmitter has been learned successfully.
2. Delete transmitter:Continue pressing the learning button (about 8s) until LED turns green then release the learning button, LED turns red (about 1s) then turns green. It indicates that the erasing process is successful
3. Operational process
3.1 Three button control system with transmitter and non-Latch model Button 1,2,3 in transmitter is in correspondence with open, close and stop.
3.2 Three button control with transmitter and latch model Motor works clockwise when keep pressing button 1;Motor works anti clock wise when keep pressing button 2;Motor stops when releasing button
3.3 Single button control system and non-Latch model "Press-Open(motor works clockwise), press-stop, press close(motor works anti clockwise),press-stop,and so on in a loop. Single-button control is only effective to the learned button; if a new button of transmitter learned into the control panel, the formal one is useless. (e.g.: if learned button 1 at first, and then button 2 or 3, the former button 1 becomes invalid)."
3.4 Single button control and latch model Motor works clockwise/anticlockwise when keep pressing the button; motor stops when releasing.
4. NOTE
1.Single-button control refers to single button in transmitter; ↑ ↓in control panel is in correspondence with open, close and
stop.
2. Max running time means that the motor's maximum running time at a time is 100S; the motor stops immediately if longer than 100S.
3. ↑ ↓in control panel and OPEN STOP CLOSE button in transmitter are in correspondence with open, close and stop.
More options
Our Exhibition
Company profile
Packaging And Logistics
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Transmitter,Tubular Motor Receiver,Sliding Gate Opener,Garage Door Opener,Photocell
3. Why should you buy from us not from other suppliers?
Hiland is professional designer and qualified manufacturer of the automatic door control systems.We have 15 years experience We
have sliding/garage/swing/rolling shutter opener and control systems,transmitters,receivers,photocell,flash lamp,keypad etc.
Q4.How can i get a price of needed garage door opener?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q5.We want to be your agent of our area. How to apply for this?
A: Please send your ideal and your profile to any e-mails of us .Let's talk more.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Transmitter,Tubular Motor Receiver,Sliding Gate Opener,Garage Door Opener,Photocell
3. Why should you buy from us not from other suppliers?
Hiland is professional designer and qualified manufacturer of the automatic door control systems.We have 15 years experience We
have sliding/garage/swing/rolling shutter opener and control systems,transmitters,receivers,photocell,flash lamp,keypad etc.
Q4.How can i get a price of needed garage door opener?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q5.We want to be your agent of our area. How to apply for this?
A: Please send your ideal and your profile to any e-mails of us .Let's talk more.
