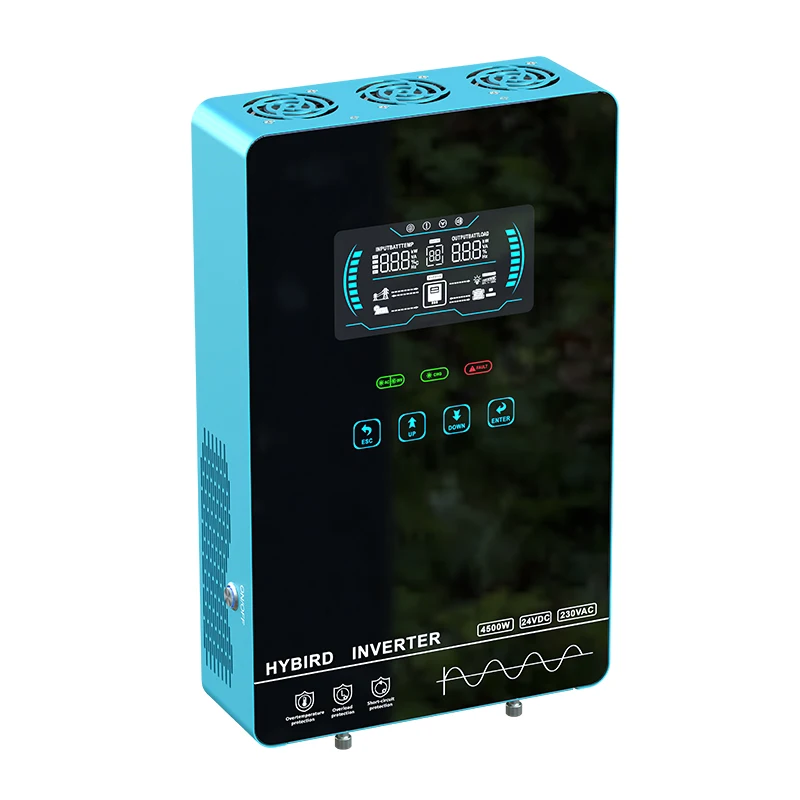

4500 Вт 6500 Вт 7200 Вт 24 в 48 в Гибридный солнечный инвертор с MPPT для системы солнечной энергии для дома и правительства
24 066,55 ₽
Микро инвертор с солнечной сеткой Y & H MPPT 350 Вт DC18V 50V до AC110V 230V 50 Гц/60 Гц Солнечный PV водонепроницаемый
- Категория: >>>
- Поставщик: Shenzhen Yonghui Fashion Co. Ltd.
Сохранить в закладки 1601265887985:
Описание и отзывы
Характеристики
Products Description
Description:
Grid Tie Inverter MPPT Range 15.5-25V
Working voltage Vmp (of a solar panel) must be in the MPPT range to ensure the good output efficiency
Grid Tie Solar Inverter PV Panel Voltage: Vmp16-21V; Voc20-24V
Solar panel power cannot exceed 180W
Micro Grid Tie Inverter Doesn't work with battery.Only use solar panels as a DC power source.
Description:

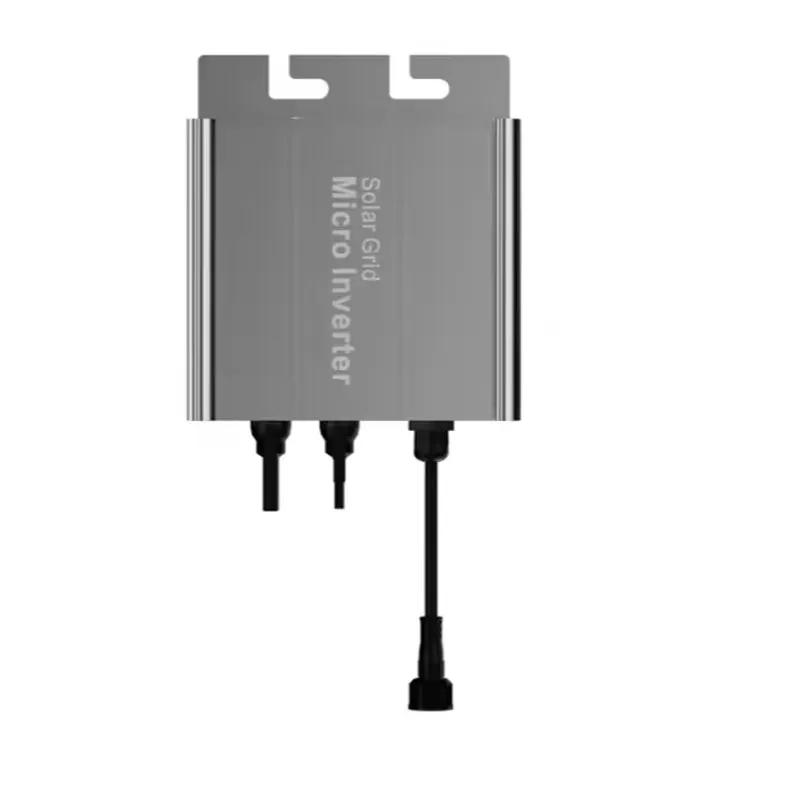

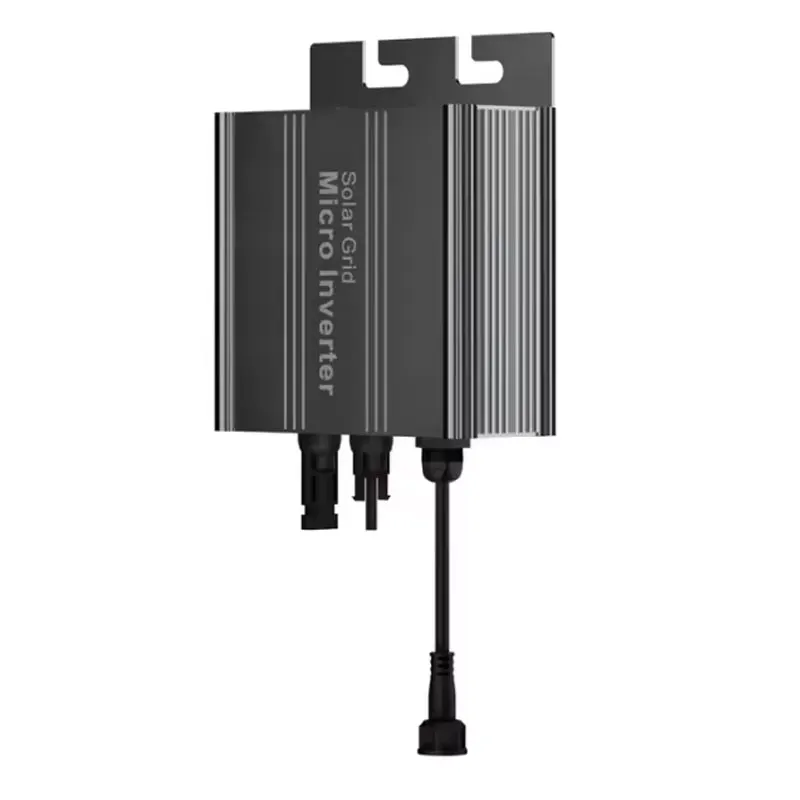

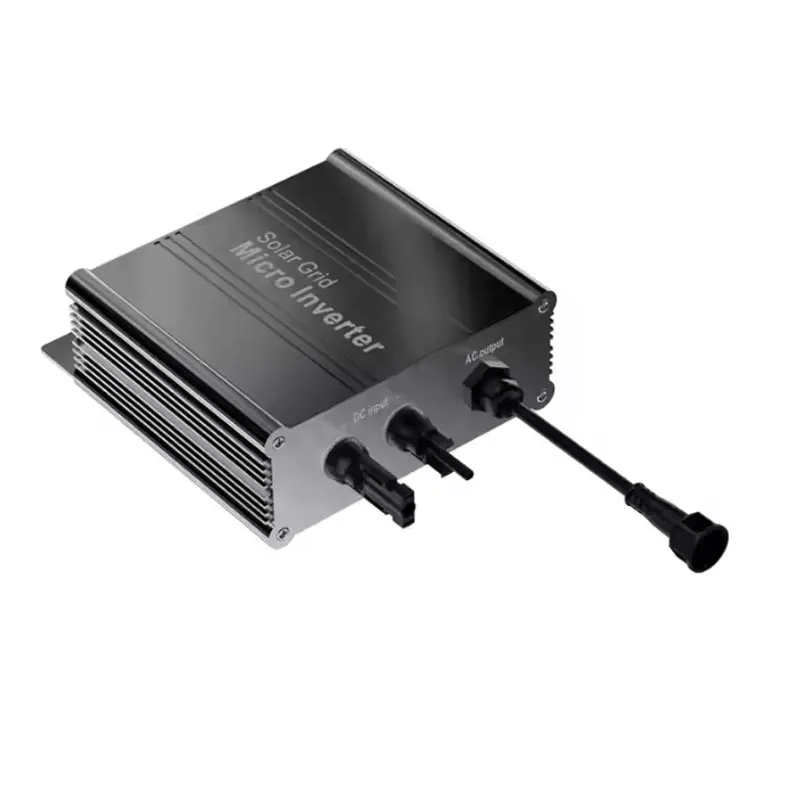

180W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.
Specifications:
Grid Tie Inverter Maximum Output Power:160W
Rated Output Power:150W
DC Input: 16V-30V
Startup Voltage:16V（The lowest working voltage after starting 10.8V）
Maximum Input Voltage:30V(Voc)
MPPT Voltage Range:16V - 25V.（Working voltage Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency）
Maximum Input Current：7.5A
AC Output Voltage: 80-260V
Solar Panel Voltage: Vmp16-21V; Voc20-24V
Solar Panel Power: maximum 180W
Frequency Range：50/60HZ Auto
On Grid inverter Certification:CE
Dimensions (W x H x D):24mm x 14mm x 7mm
Weight:0.56kg
User notice：
• Use solar panel ONLY connect to this equipment.
• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.
• Do NOT exceed PV panel(s) voltage over the Solar Grid Tie Inverter max input voltage.（Voc＜30V）
• Do NOT exceed PV panel(s) power over the Grid Tie solar Inverter max input power.（180W）

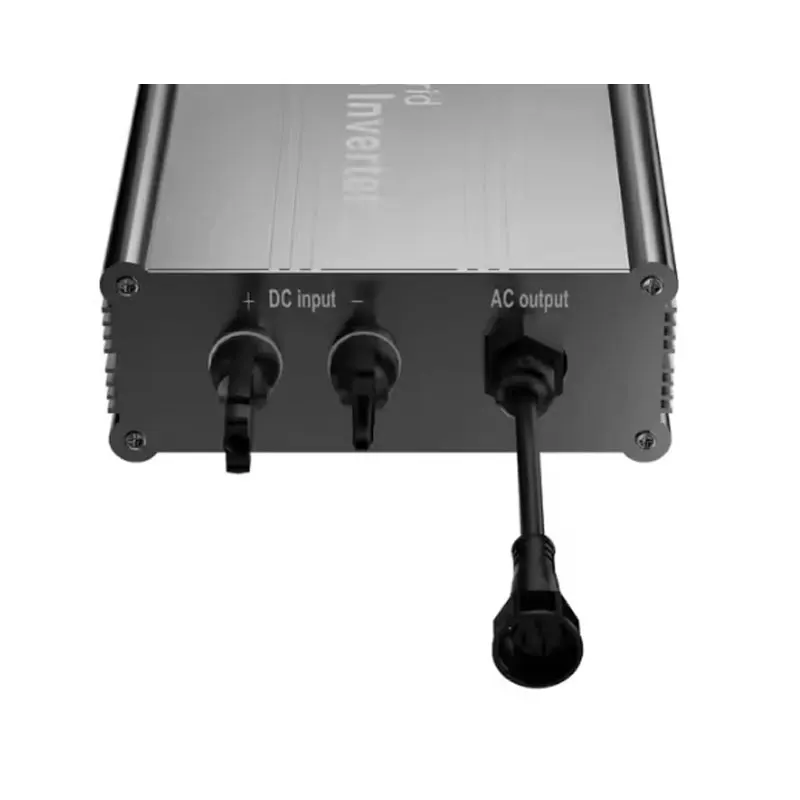

• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be
careful about this problem.
• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)
Regarding the heating problem of the inverter: this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will
automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.
About inverter repair：（This is a common problem of micro-inverters）

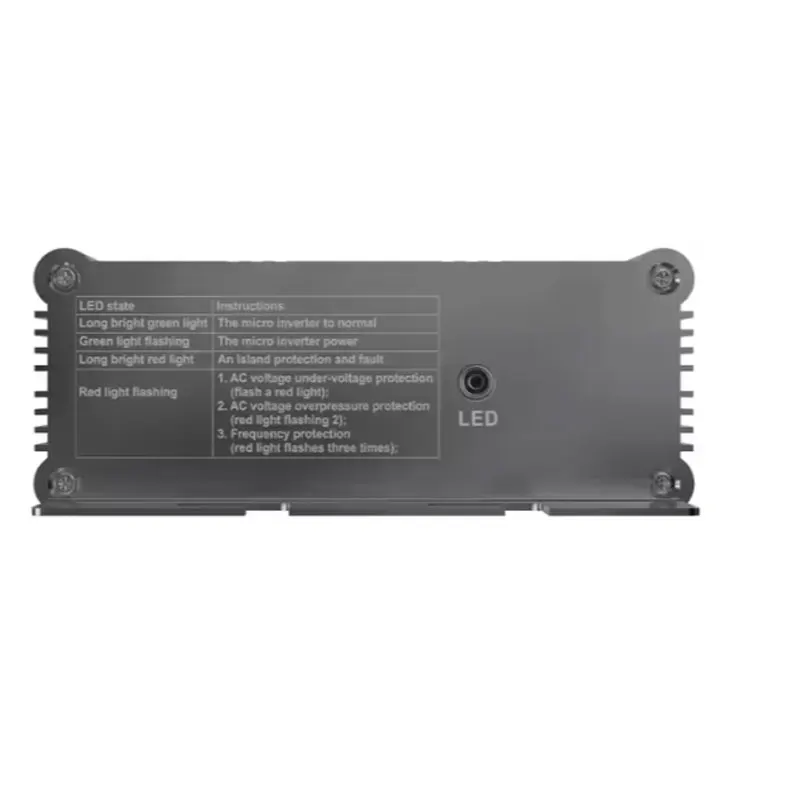

After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. (The red light is on because the AC accessories are damaged, and if the light is off, the DC accessories are damaged)When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it. If you have any questions after receiving the product, please contact us in time, we will give you good after-sales service, so you don't have to open disputes at will.
Working voltage Vmp (of a solar panel) must be in the MPPT range to ensure the good output efficiency
Grid Tie Solar Inverter PV Panel Voltage: Vmp16-21V; Voc20-24V
Solar panel power cannot exceed 180W
Micro Grid Tie Inverter Doesn't work with battery.Only use solar panels as a DC power source.
Description:
180W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.
Specifications:
Grid Tie Inverter Maximum Output Power:160W
Rated Output Power:150W
DC Input: 16V-30V
Startup Voltage:16V（The lowest working voltage after starting 10.8V）
Maximum Input Voltage:30V(Voc)
MPPT Voltage Range:16V - 25V.（Working voltage Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency）
Maximum Input Current：7.5A
AC Output Voltage: 80-260V
Solar Panel Voltage: Vmp16-21V; Voc20-24V
Solar Panel Power: maximum 180W
Frequency Range：50/60HZ Auto
On Grid inverter Certification:CE
Dimensions (W x H x D):24mm x 14mm x 7mm
Weight:0.56kg
User notice：
• Use solar panel ONLY connect to this equipment.
• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.
• Do NOT exceed PV panel(s) voltage over the Solar Grid Tie Inverter max input voltage.（Voc＜30V）
• Do NOT exceed PV panel(s) power over the Grid Tie solar Inverter max input power.（180W）
• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be
careful about this problem.
• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)
Regarding the heating problem of the inverter: this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will
automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.
About inverter repair：（This is a common problem of micro-inverters）
After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. (The red light is on because the AC accessories are damaged, and if the light is off, the DC accessories are damaged)When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it. If you have any questions after receiving the product, please contact us in time, we will give you good after-sales service, so you don't have to open disputes at will.
Product Show
Recommend Products
Company Profile
"Y&H"was established in 2016. Provide customers with one -stop solar system service.Y&H is a field of solar products,
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
Product packaging and shipping
Certifications
FAQ
FAQ
1. How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation
will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation
will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
Похожие товары
Все в одном, 48 В, контроллер заряда инвертора на солнечной батарее
109 284,01 ₽ - 123 505,15 ₽
Дешевая цена бытовой коммерческий фотоэлектрический инвертор 10 кВт Гибридный солнечный инвертор с контроллером mppt
26 910,78 ₽ - 30 083,19 ₽

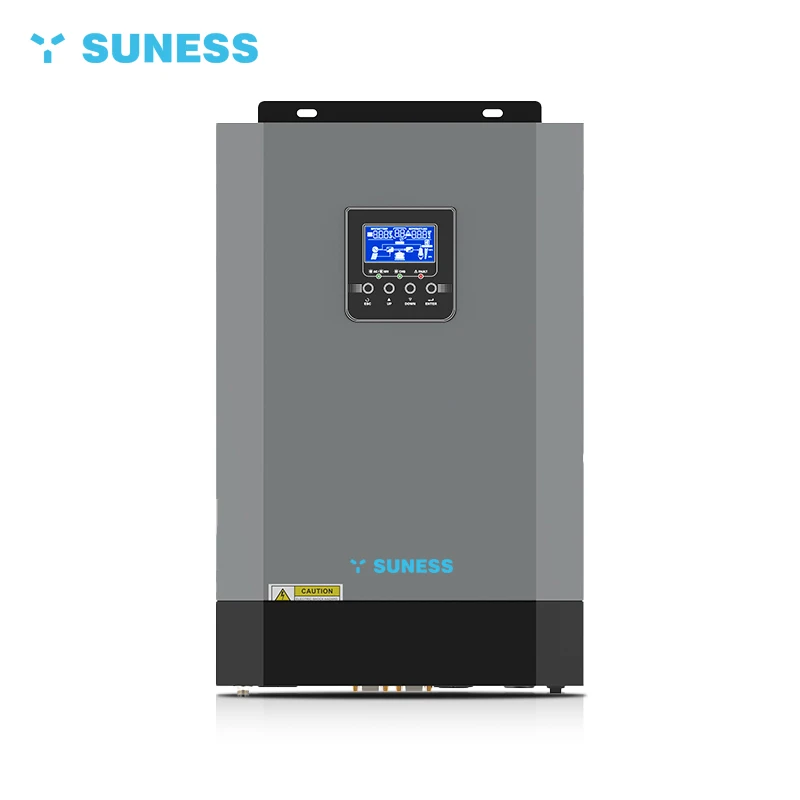

Suness с контроллером Mppt, домашняя мощность, 3 кВт, гибридный солнечный инвертор для системы хранения энергии
24 613,52 ₽ - 28 332,90 ₽

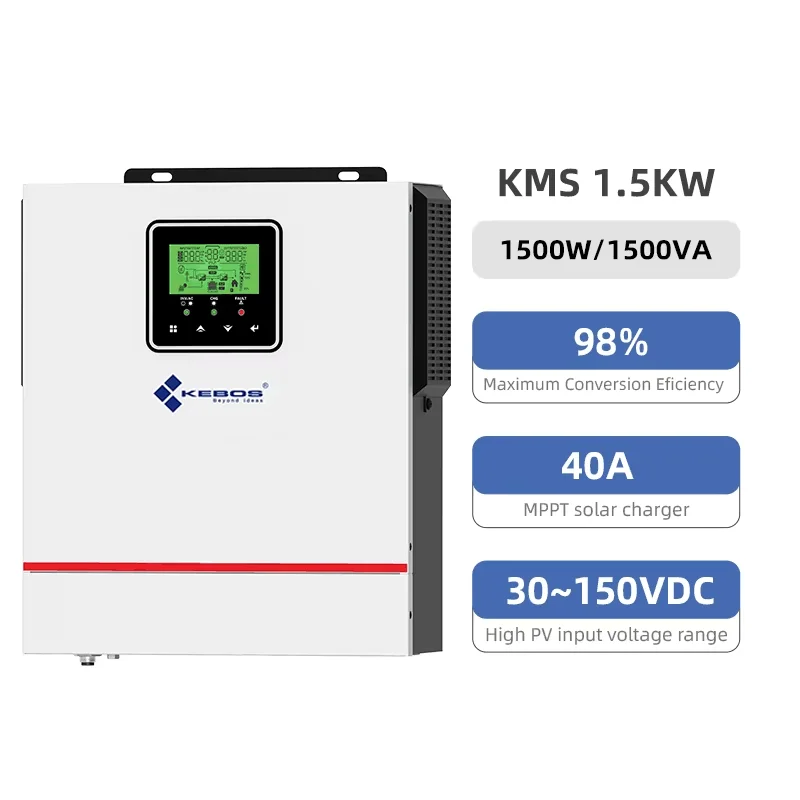

Кебос KMS-1500-24 MPPT умный контроллер заряда батареи 1500 Вт 24 В постоянного тока в переменный ток солнечный инвертор для центра обработки данных
11 267,53 ₽ - 11 923,89 ₽
Лучший Инвертор солнечной энергии, 48 В, 3 кВт, 5 кВт, 5000 Вт, 5 кВт
Гибридный солнечный инвертор мощностью 5,5 кВт, 48 В, 100 А, MPPT, контроллер заряда, 230VAC, однофазный инвертор высокого качества
10 720,56 ₽ - 15 424,47 ₽

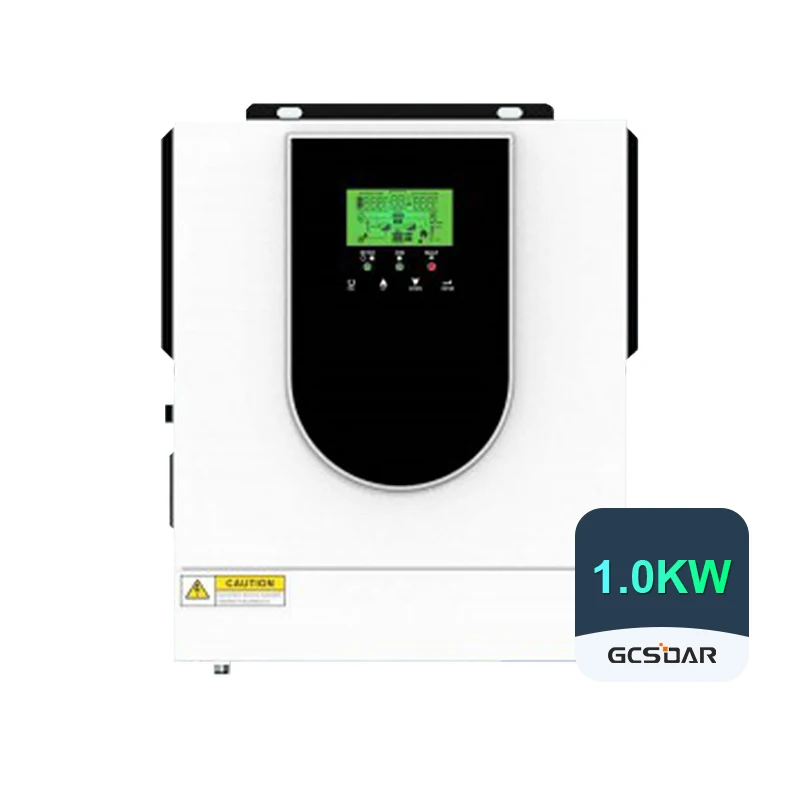

GCSOAR, чистый синусоидальный инвертор, 1 кВт, солнечный инвертор, встроенный контроллер MPPT
