2024 Одиночная площадка для сквоша китайские производители поставляют корты установка и строительство

Сохранить в закладки 1601266094372:


Цена:793 500,48 ₽ - 936 771,40 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description




Specification


item
value
Place of Origin
China
Hebei
Model Number
SC-001
Brand Name
XYK
Material
glass, wooden floor
color
Black
Product name
Squash Court
Size
9.75*6.4m
Material
Carbon Fiber
Tempressed glass thickness
12mm
Logo
Customized Logo Availabled
Feature
Light Weight
Type
Training Equipments
Weight
135+/-8g
MOQ
1 Set
Delivery time
15-30 Days


plastering squash court
The thickness of the plastering resin material on the front wall and side walls is 8mm. The surface is a wear-resistant paint layer.The plastering material does not contain moisture and does not require watering or maintenance. The process is simple and maintenance is convenient and easy. Compared with other products with complicated installation, it is less difficult to install during construction. The possibility of making mistakes is greatly reduced; the wall surface looks smooth and uniform after completion, and the color remains stable under the high-speed impact of the ball; the elasticity and strength are moderate, and the elasticity is excellent and uniform

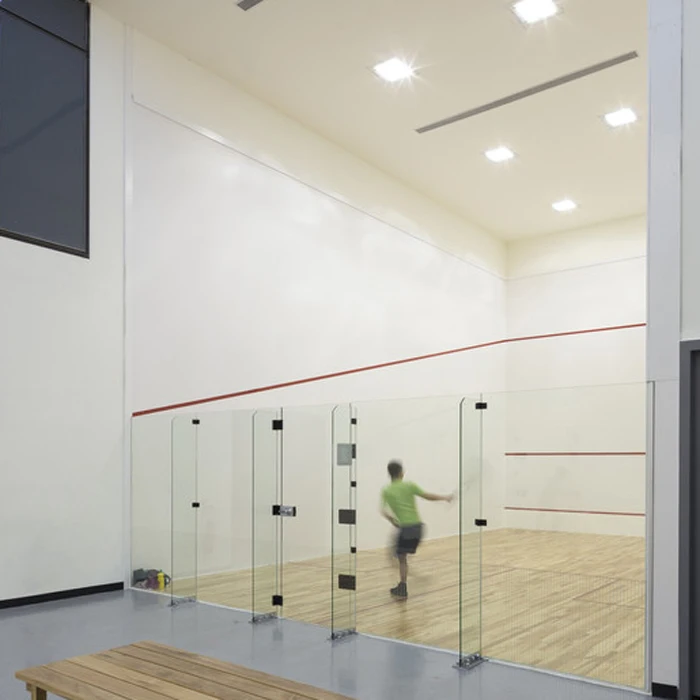

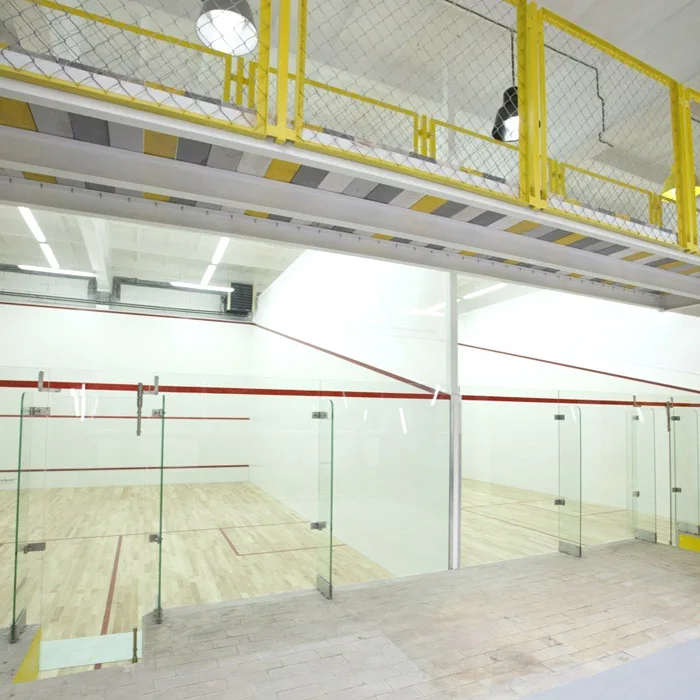

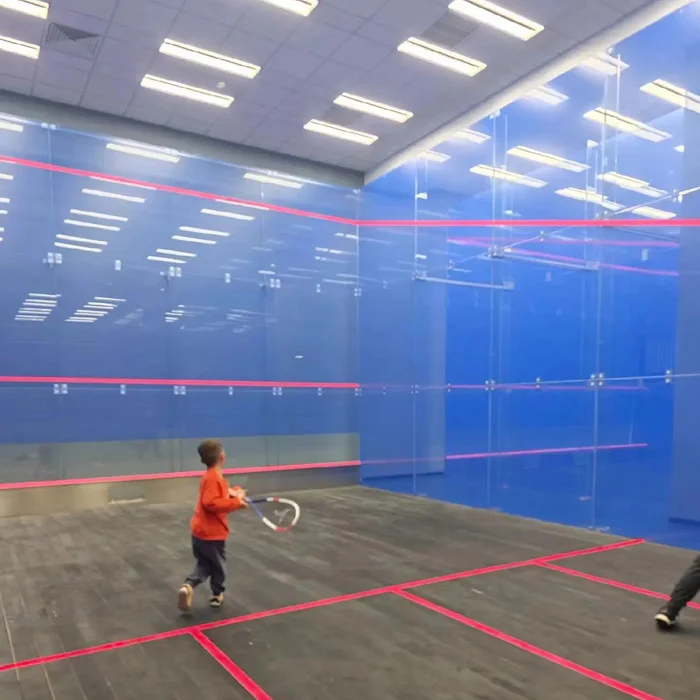

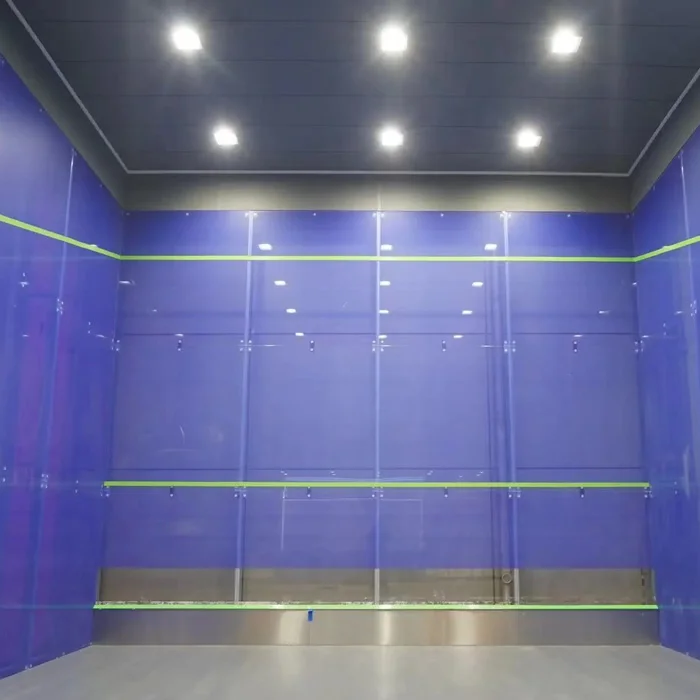

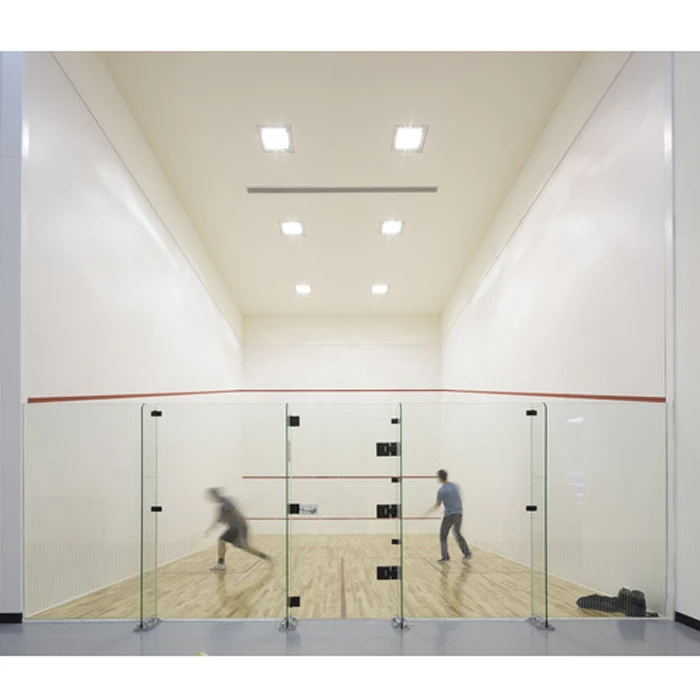

Panoramic squash court
The front wall and side walls are made of specially processed glass materials or organic materials according to the corresponding installation specifications. Fix the wall system after installing the studs through the floor frame. The wall material system
adjusts the color and lighting to allow athletes in the venue to focus on the court during the game and avoid being disturbed by spectators outside the venue. At the same time, the television broadcast becomes simpler and the effect is better through the set
observation holes. The spectators’ enjoyment of watching the game is greatly improved.
Template squash court
The thickness of the front wall and side wall formwork can be selected from 18mm-25mm high-density boards. The surface is modified with plaster material and painted with a layer of wear-resistant paint. The formwork material installation is divided into aluminum or steel metal keels. After the wall is fixed and leveled, each wall formwork is adjusted and installed according to the layout size of the wall. The formwork is connected to each other through metal connecting strips and filled with elastic buffer material. After the formwork is installed, the surface is modified with plaster material and finally a layer of wear-resistant paint is applied.




Squash court venue size: 10*7*5.5 meters (height), of which 5.5 meters is the lighting installation height. Installation requires a 2-meter wide channel on all sides. Compared with the assembled type, it contains light integrated parts. The net internal dimensions of the completed squash court are: 9.75*6.4*5 meters (height), of which the height of the front wall boundary is 4.57 meters and the height of the glass back wall is 2.13 meters. These dimensions comply with the requirements of the International Squash Federation for squash singles competition venues. The size of the doubles squash court is slightly larger. The finished internal net size is: 9.75*7.62*4.57 meters (height), of which the height of the front wall boundary is 4.57 meters and the height of the glass back wall is 2.13 meters. The dimensions also meet the requirements of the International Squash Federation for squash doubles venues.


Sports wood flooring system:
The structure of the sports floor system adopts a single-layer keel structure. The panel uses 20-22mm thick Maple birch flooring, moisture-proof membrane, 9mm multi-layer board, 40*50mm keel, and 10mm elastic rubber pad. Maple birch wood flooring has high toughness and good wear resistance; it has good bouncing performance against the ball and regular ball paths; it has excellent vibration absorption and earthquake resistance, and good sound insulation effect; the unique elastic soft cushion provides elasticity and withstands heavy pressure for the reinforced maple wood flooring. , Reduce the possibility of athletes jumping and shock injuries.




Glass hardware system:
The rear wall glass is made of 12mm tempered glass, and the edges of the glass require fine side walls and glass supports. It is characterized by high strength, impact resistance and heavy load resistance. If accidentally broken, it will only become a small blunt piece and will not cause significant harm to the human body; decorative sand strips and logo graphics can be made on the glass surface. The glass hardware uses aluminum alloy door locks and corridor chain accessories, both of which are produced by die extrusion. The aluminum material is made of high-quality aluminum alloy material, which is high in strength and durable. The natural color treatment is elegant and beautiful, and all bolt accessories are made of stainless steel for durability.




Soundboard boundary system:
The wall boundary is made of internal arc aluminum alloy, all produced by die extrusion. The product has high dimensional
accuracy, and its shape meets sports requirements and is beautiful and practical. The surface is spray-painted in red and can be
used for a long time without discoloration or damage. The front wall soundboard is made of aluminum alloy soundboard and adjacent
slots, all produced by die extrusion. The product has high dimensional accuracy and is easy to install. When the ball hits the
soundboard during the game, it will make a crisp and pleasant sound to indicate the hitting mold. The surface is spray-painted in
red and beige, which can be used for a long time without wear or loss.








Packing & Delivery




Company Profile






Cangzhou Xinyikang Sport Equipments Co. Ltd is located in Bohai on the shore of the history of the ancient city of salt mountain U. Shanghai, Huang railway intersection here, the Beijing Shanghai Shi Huang highway in this through, the traffic is very convenient.The company was founded in 2001, after the merger into Xinyikang company, belonging to private enterprises. Covering an area of 26000m2, there are more than 120 employees, including 18 senior titles, 38 intermediate titles, and nearly more than 90 sets of equipment. Our company is a comprehensive enterprise integrating scientific research, development, production and sales. In recent years, we have been adhering to the principle of "technology for production, quality for survival, reputation for development". The production of "Xinyi Kang" brand sports fitness equipment and teaching equipment in nearly a thousand kinds of products, by the national sports goods quality supervision and Inspection Center for identification, in full compliance with national standards and international rules of the game. It is suitable for international and domestic large and medium-sized competitions and professional training. Outdoor fitness equipment has many advantages, such as many functions, strong taste, low price and excellent quality. It is well received by the national education and sports system, which fully embodies the scientific nature of the movement, the use of safety and economic practicality. Our company is certified by 1SO9001 international quality management system certification, ISO14001 international environmental system certification, 28001 occupational health and safety management system. All products are insured by PICC China People's property insurance company. It is approved by the State Sports General Administration, the member of the Teaching Instrument Association, the designated inspection unit of the national quality supervision and inspection center, the designated sports unit of Hebei Sports Bureau, and the employees of our company have made the old age pension insurance. For five years, it has been appraised as a heavy contract and trustworthy enterprise. The products produced have been distributed in more than 20 provinces, cities and autonomous regions in China. It mainly produces basketball series, mobile row, feather, tennis pole, table tennis table, plastic track series, track and field equipment, martial arts, lifting equipment, music, art, sanitary equipment, ball games and so on. In response to the call for "national fitness", we have developed more than 100 kinds of residential, residential and recreational streets, street and street facilities suitable for old, middle and small exercises, fitness and entertainment.


FAQ


1. who are we?
We are based in Hebei, China, start from 2008,sell to Domestic Market(95.75%),Africa(4.25%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Soccer goal,padel court,sport floor,stadium seat,artificial turf

4. why should you buy from us not from other suppliers?
Our company is a comprehensive enterprise integrating scientific research, development, production and sales. Our products have passed ISO9001 international quality management system certification, ISO14001 international environmental system certification.

5. what services can we provide?
Accepted Delivery Terms: null;
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
