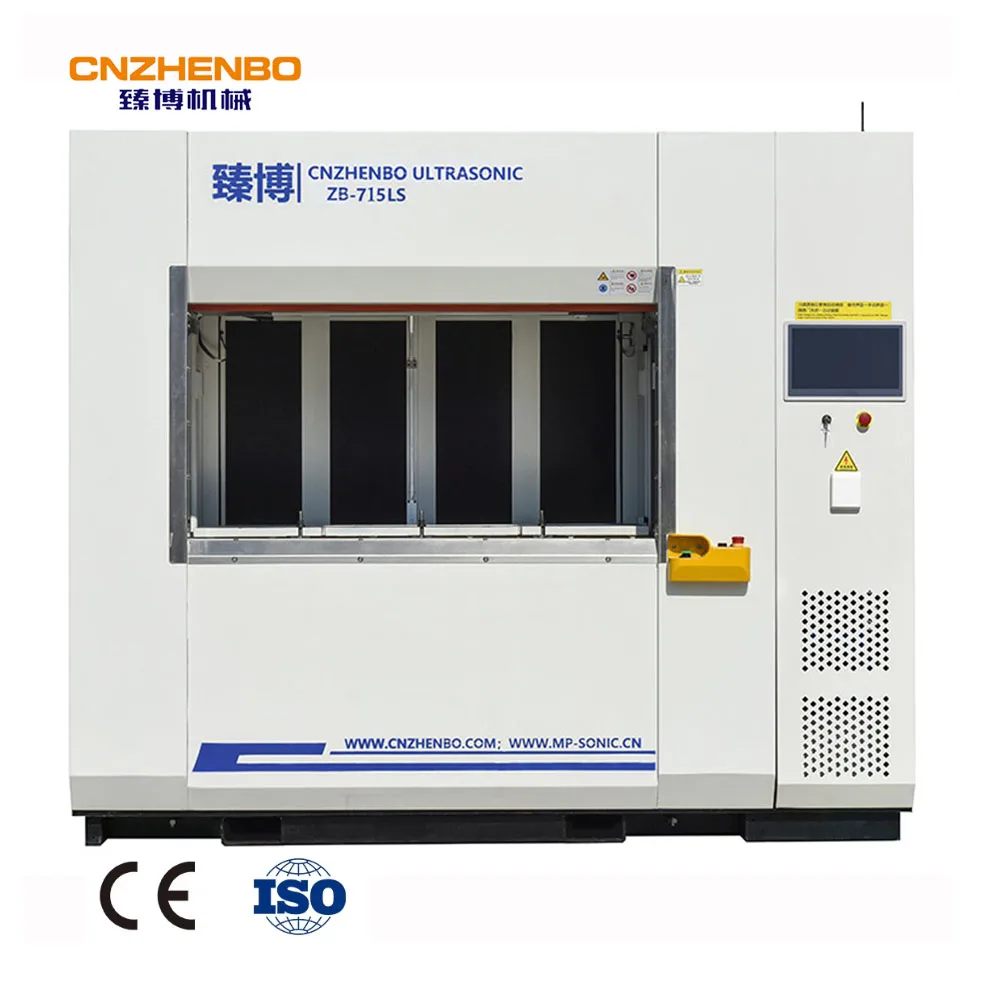

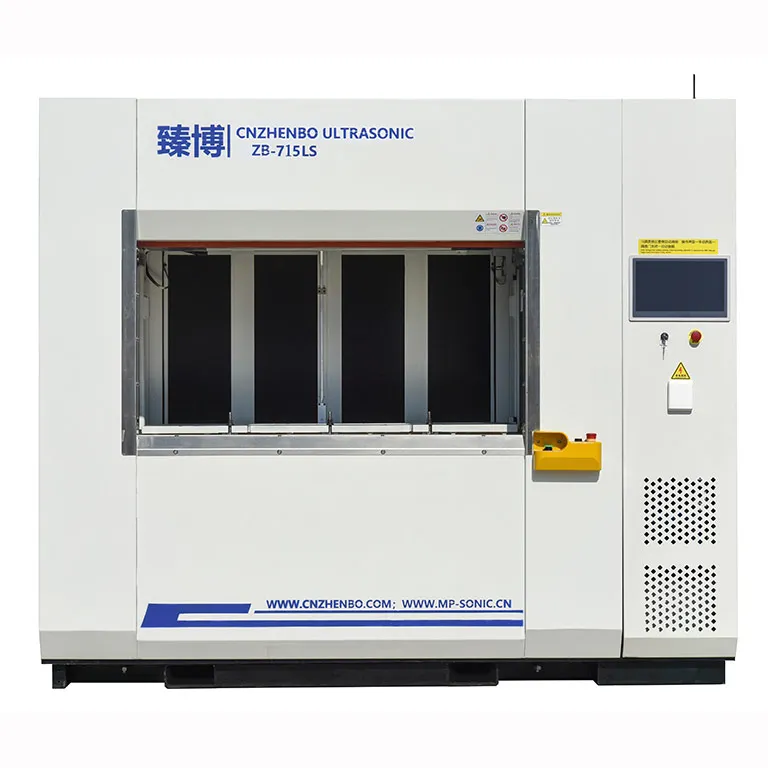

Сварочный аппарат трения с двойным шпинделем 20 тонн
8 223 630,00 ₽
ZB 715LS виброфрикционный сварочный аппарат для линии сборки впускного коллектора автомобиля
- Категория: >>>
- Поставщик: Chongqing Yongai Technology Co. Ltd.
Сохранить в закладки 1601266202224:
Описание и отзывы
Характеристики
Model | ZB-715LS | |
VibratIon Head | ||
Weight upper tool | 15 Kg | |
Welding area(approx. / for PP) | 50 ㎠ | |
Amplitude(peak to peak) | 0.5∼1.8 mm | |
Frequency | 230∼280 Hz | |
Spring Quantity | 2 | |
Magnetic Quantity | 1 | |
Machine | ||
Machine Size : Width | 1650 mm | |
Depth | 960 mm | |
Height | 1990 mm | |
Front Door Opening : Width | 800 mm | |
Height | 540 mm | |
Drive Platen/upper : Width | 360 mm | |
Depth | 310mm | |
Lift Table Size : Width | 1200 mm | |
Depth | 500 mm | |
Table stroke/Max. | 300 mm | |
Max. distance between lift table/ | 500 mm | |
VibratIon head | ||
Table speed | 250 mm/s | |
Clamp force | 8 KN | |
Weight | ≒1，500 kg | |
Sound pressure level | ＜85db | |
Electrical | ||
Power consumption | 6 KVA | |
Maximum Power/Out Put | 5.5 Kw | |
1) Main performance:
1. Automatic welding fixture frequency tracking;
2. 8-level welding step control, adapt to different product material characteristics;
3. Welding control mode: time mode and depth mode;
4. 80 groups of welding parameters storage;
5. Welding result judgment;
6. Multi-functional interface control system to achieve equipment safety, setting, management, monitoring and other functions;
7. High precision servo hydraulic system, fast, stable, quiet, extend the service life of hydraulic oil;
8. Cloud service system to achieve remote services, improve service efficiency, reduce equipment service costs.
1. Automatic welding fixture frequency tracking;
2. 8-level welding step control, adapt to different product material characteristics;
3. Welding control mode: time mode and depth mode;
4. 80 groups of welding parameters storage;
5. Welding result judgment;
6. Multi-functional interface control system to achieve equipment safety, setting, management, monitoring and other functions;
7. High precision servo hydraulic system, fast, stable, quiet, extend the service life of hydraulic oil;
8. Cloud service system to achieve remote services, improve service efficiency, reduce equipment service costs.
FAQ
Q1: How do I choose the right power?
A1: The power of the machine is determined by materials and thickness processed. You can tell us materials and thickness you want to cut, our professional technicians will recommend the most suitable power for you.
Q2: If we have special needs and want to customize the machine, is this possible?
A2: Yes, please send us your requirements and our engineers will provide you with the suitable solution.
Q3: Can you arrange the shipment for me ?
A3: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very experienced. You can tell us the nearest port to you and the dedicated manager will check the freight
A1: The power of the machine is determined by materials and thickness processed. You can tell us materials and thickness you want to cut, our professional technicians will recommend the most suitable power for you.
Q2: If we have special needs and want to customize the machine, is this possible?
A2: Yes, please send us your requirements and our engineers will provide you with the suitable solution.
Q3: Can you arrange the shipment for me ?
A3: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very experienced. You can tell us the nearest port to you and the dedicated manager will check the freight
for you and help you handle subsequent transportation.
For more questions please click here and let us know!
