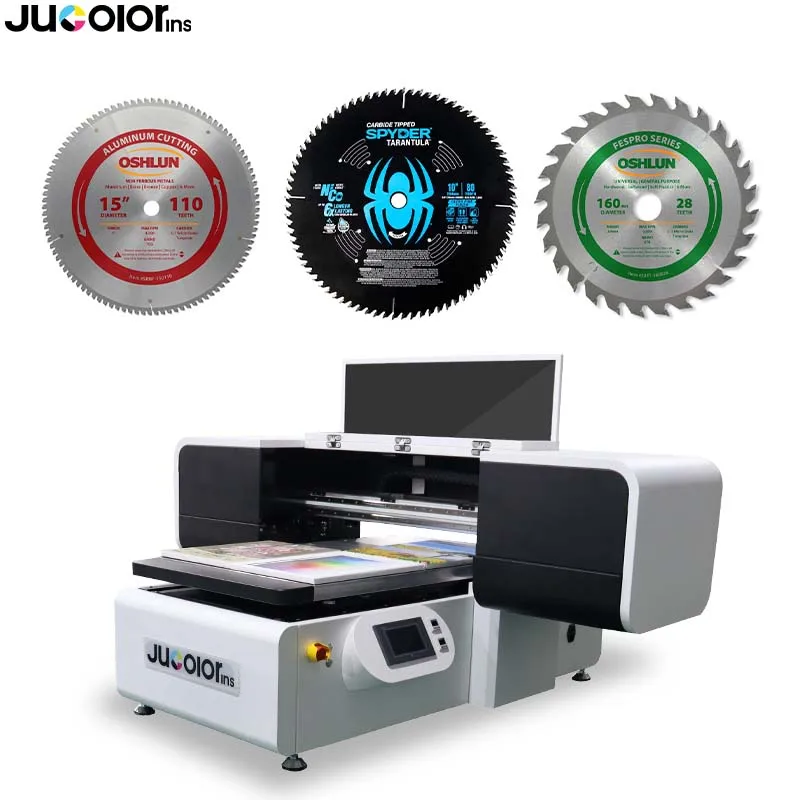

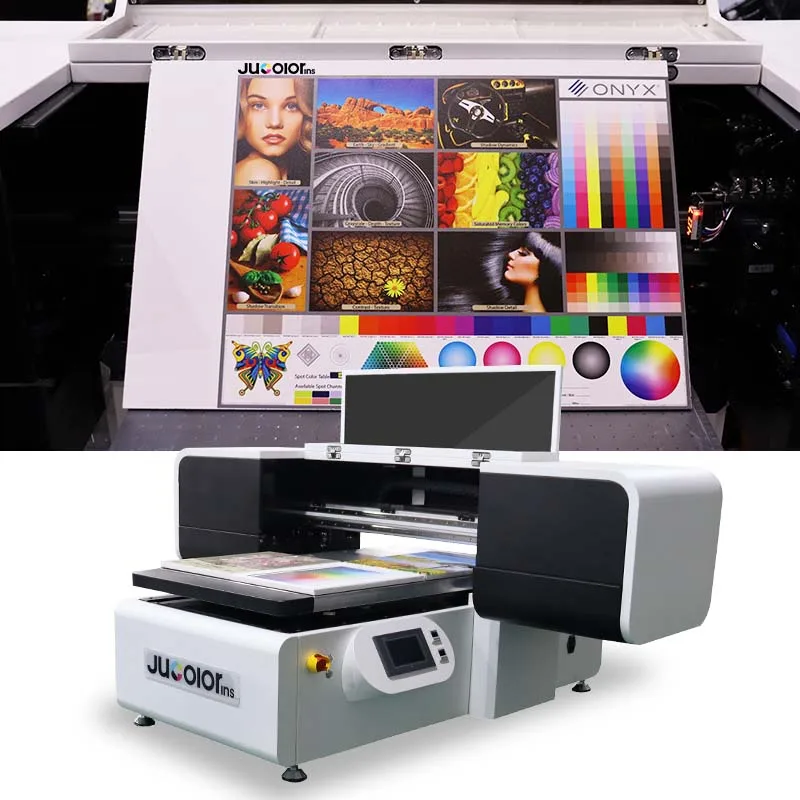

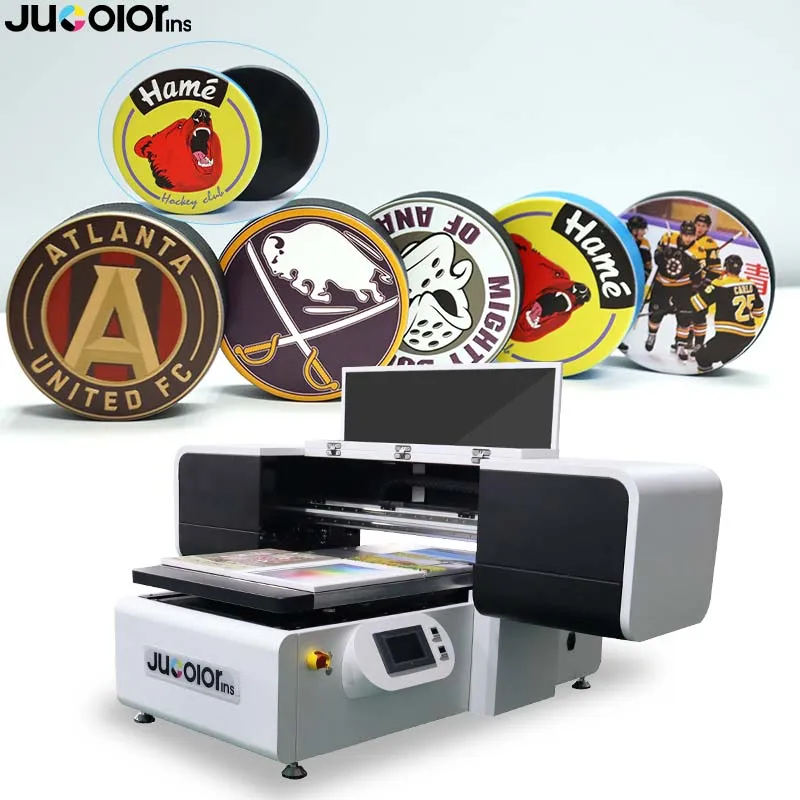

Jucolor 6090Pro A1 промышленный 10 цветный Ультрафиолетовый планшетный принтер с RICOH GEN5 GEN6 EP SON DX7 I3200 головками и камерой сканером
- Категория: >>>
- Поставщик: Shanghai jucolor industry Co .Ltd
Сохранить в закладки 1601266378581:
Описание и отзывы
Характеристики

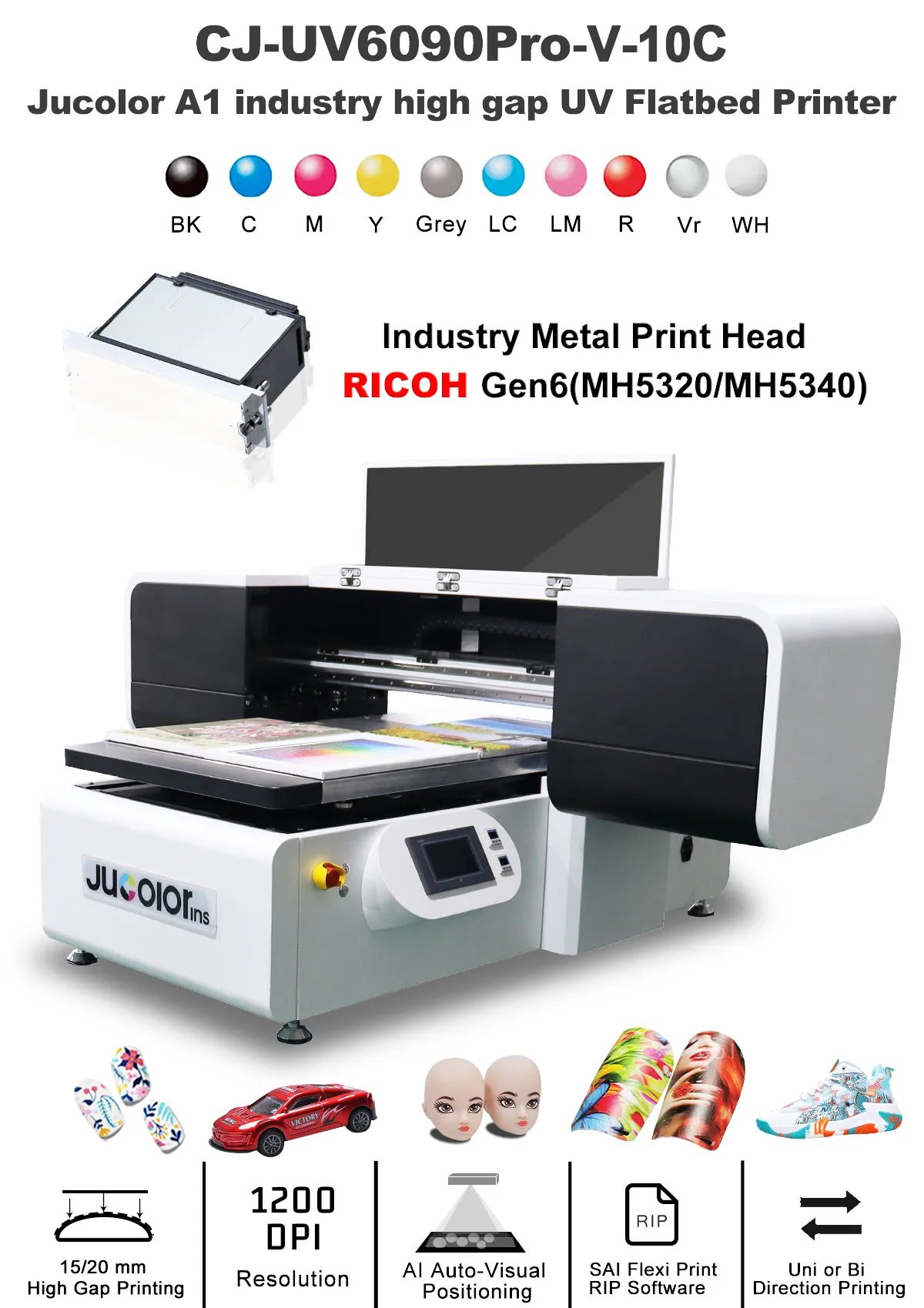

CJ-UVF6090Pro-V is A1 industry uv printer is the latest generation of CJ-UV6090Pro series of Jucolor Group, It uses a more stable board control system and Ricoh stainless steel Industry inkjet print heads, which is more stable, faster printing speed, and higher printing gap, greatly meets the customer's requirements for speed, printing accuracy and high-injection printing.
Jucolor2*3ft uv flatbed printer is an ideal economical and efficient solution for personalized souvenirs, customized gifts, advertising printing, industrial production and special promotional materials. Can print high-thickness media, high print quality, large print drop, low maintenance, flexible printing
* RICOH GEN6 stainless steel industry print head
* RICOH GEN6 stainless steel industry print head
* 10-color White+CMYK+LC, LM, Grey, Red+Varnish
* Photo-level printing out
* AICamera Auto-Visual Position system available
* Magnetic grating, more accurate printing and lower failure rate
* 15/20 mm max high gap printing
* 61*91cm print size, 20cm/7.87" print height
* 3D embossed printing, Varnish glossy & matte printing
* Bi-direction Faster printing
* One-piece Aluminum Alloy Casting Fuselage
* Less Maintenance, heavy duty, reduce maintenance cost and time
* SAI FlexiPRINT UV 22 JUCOLOR Permanent free Edition
* Double quiet ball screw guides
* Variable droplet technology minimizesgraininess
* Vacuum suctions platform for increased print accuracy
Machine Model | CJ-UVF6090Pro-10C-Gen6 CJ-UVF6090Pro-10C-Gen5 CJ-UVF6090Pro-10C-I3200HD CJ-UVF6090Pro-10C-DX7 | Print Head | RICOHGen6(MH5320/MH5340) RICOH Gen5(MH5420/MH5420) EP SON I3200-HD Enter class EP SON DX7 Classic & durable |
Max Print Size | 61*91cm/24*35.8 inche | Max Print Height | 20 cm/ 7.87 inch |
Print Resolution | High speed： 720*600 DPIStandard： 720*900 DPI High-quality： 720*1200 DPI | Print Quality | Real photo level photographic quality |
High Drop Distance | 15mm/20mm | Ink Colors | W+CMYK+LC,LM+Grey+Red+V |
RIP Software | SAI FlexiPRINT UV 22JUCOLOR Edition Permanent free version | Printing Tech | Micro Piezo Technology |
Voltage | AC220/110±1050HZ-60HZ | Type of Ink | Voltage |
Service Environment | 20-30℃ 35*65%Rh | Power Consumption | Service Environment |
Machine Size | 145*170*77cm,220 kg | Packing Size | Machine Size |

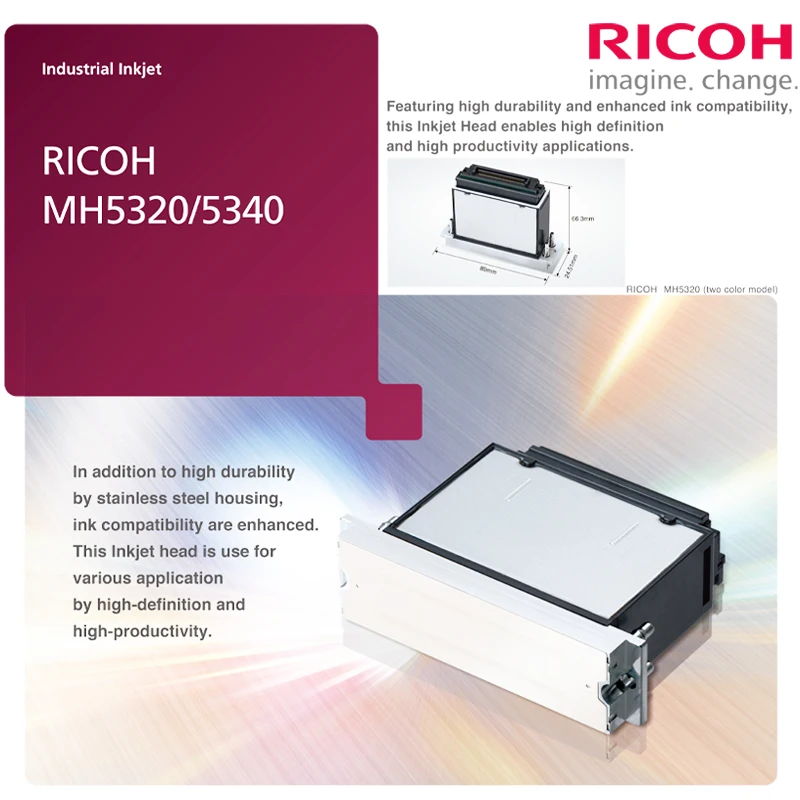

Jucolor 6090Pro A1 industry uv printer Adopt Japanese Ricoh Gen6 industrial-grade print head, this model Ricoh print head is all-steel structure with extremely strong working stability, strong corrosion resistance, more than 4 years super long working life, greatly reducing maintenance time and cost, 5.0 pl drop volume, variable drop technology makes it have excellent print output quality, 54.1 mm effective print width makes the printer achieve much faster printing speed than EP SON heads
Compared with EP SON series print heads, the comprehensive use cost is lower, the output is higher, the maintenance time and cost are lower, and users can have more time for production instead of maintenance
10-COLOR Photo level printing quality
Jucolor 9060 inkjet industry uv printer equipped 10-COLOR White+KCMY, LC, LM, Grey,
Red+Varnish eco friendly uv led curing ink.
Red+Varnish eco friendly uv led curing ink.
The light-colored ink effectively improves the saturation, delivers bright, colorful, tactile prints with low graininess and smooth gradation. so the 10-color inks Print output quality is much more higher than CMYK or CMYK , LC, LM

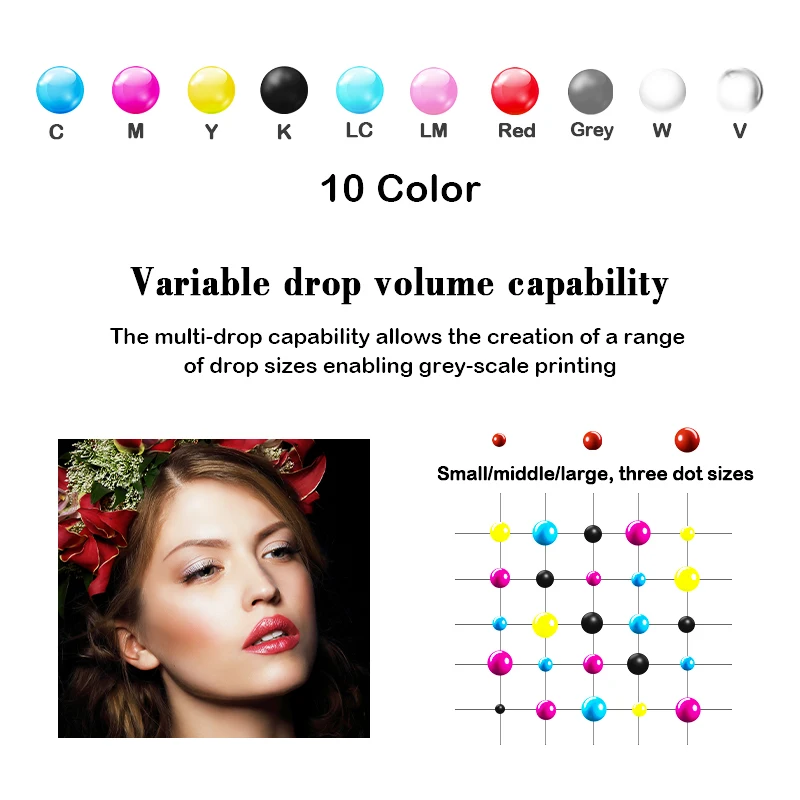

Variable drop technology
5PL, 10PL,15PL, Small/middle/large, three different dot sizes switched freely, provide smooth quality and less graininess high quality printing without noticeable banding
Variable drop technology
5PL, 10PL,15PL, Small/middle/large, three different dot sizes switched freely, provide smooth quality and less graininess high quality printing without noticeable banding
The Jucolor CJ-UVF6090Pro uv printer using RICOH GEN6,MH5340/MH5320 print heads which can achieve effective 3-15mm high droplet printing distance. If use special ink the high gap distance can reach to 20 mm. Greatly expands users' business scope, available to print on Curved board, toy, shoe, special cover, helmet, mouse, balls, bottles.

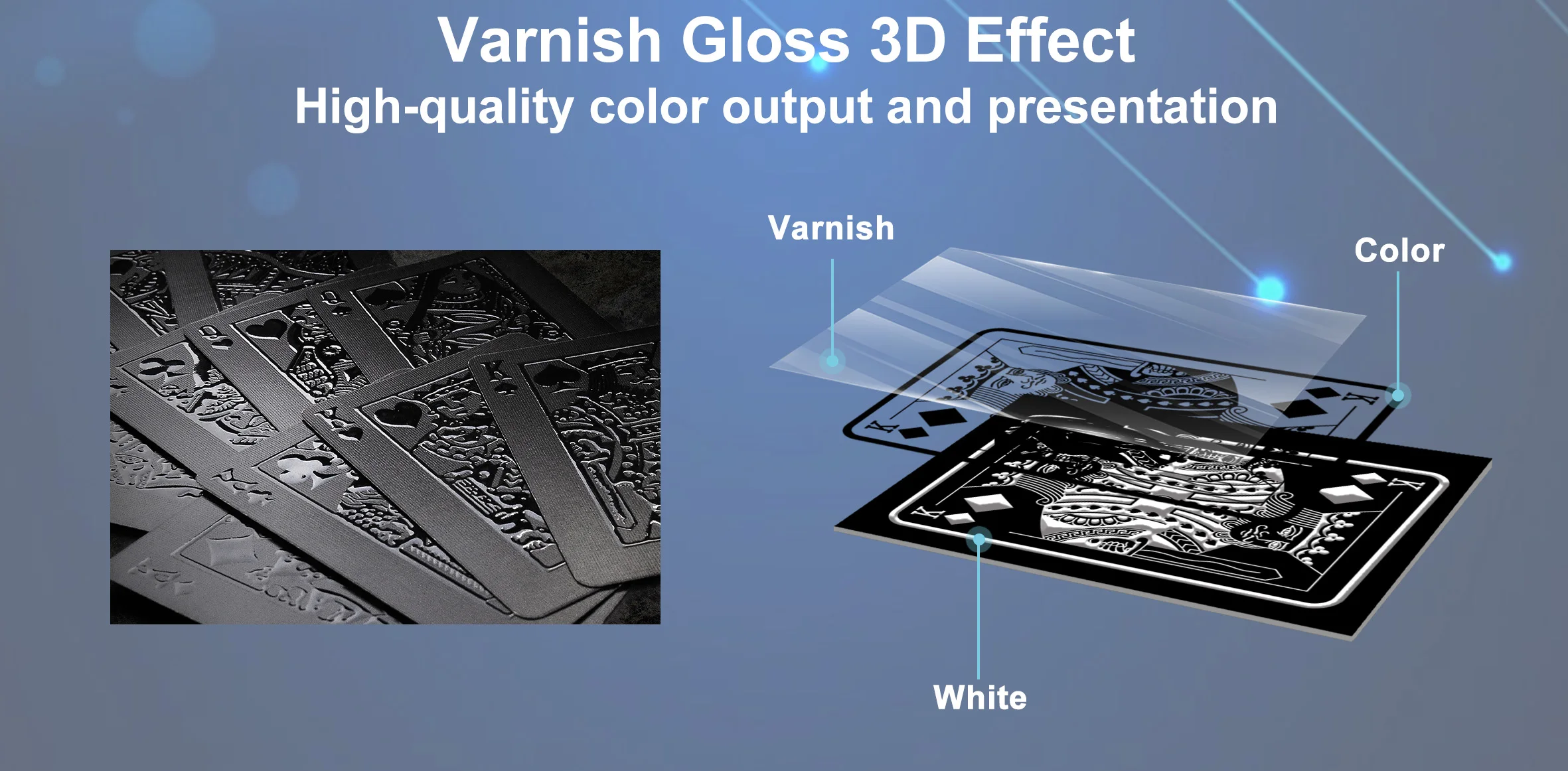

3D embossed printing
Jucolor 6090pro 9060 A1 industry uv printer equipped with 4 pcs RICOH GEN6 print heads
Support, White+CMYK+lc+lm,Grey+Red +Varnish inks print one pass 3D embossed printing
varnish inks glossy or matte effect printing
Support, White+CMYK+lc+lm,Grey+Red +Varnish inks print one pass 3D embossed printing
varnish inks glossy or matte effect printing

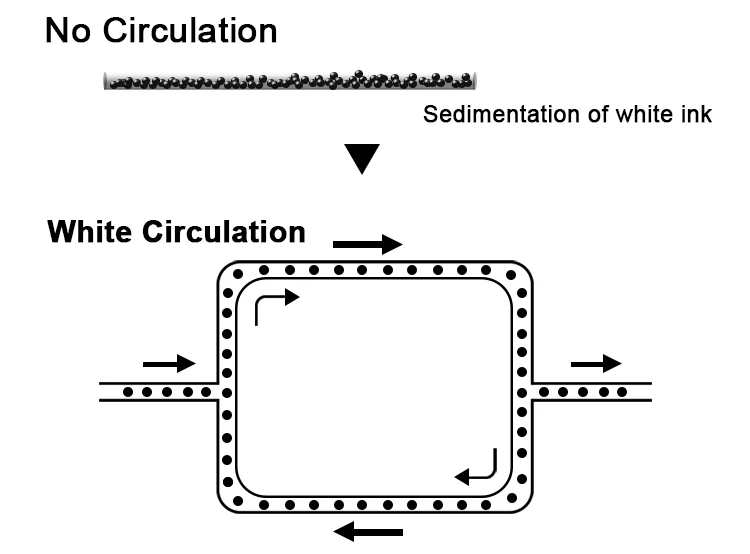

White ink circulation system
Jucolor group has developed its own white ink circulation system. White ink can circulate in the ink tube and secondary ink cartridge to ensure that white ink does not precipitate. Effectively reduce white ink precipitation, ensure the flow of ink, avoid white yellowing and print heads clogging during printing, etc. Effectively improve the life of print heads

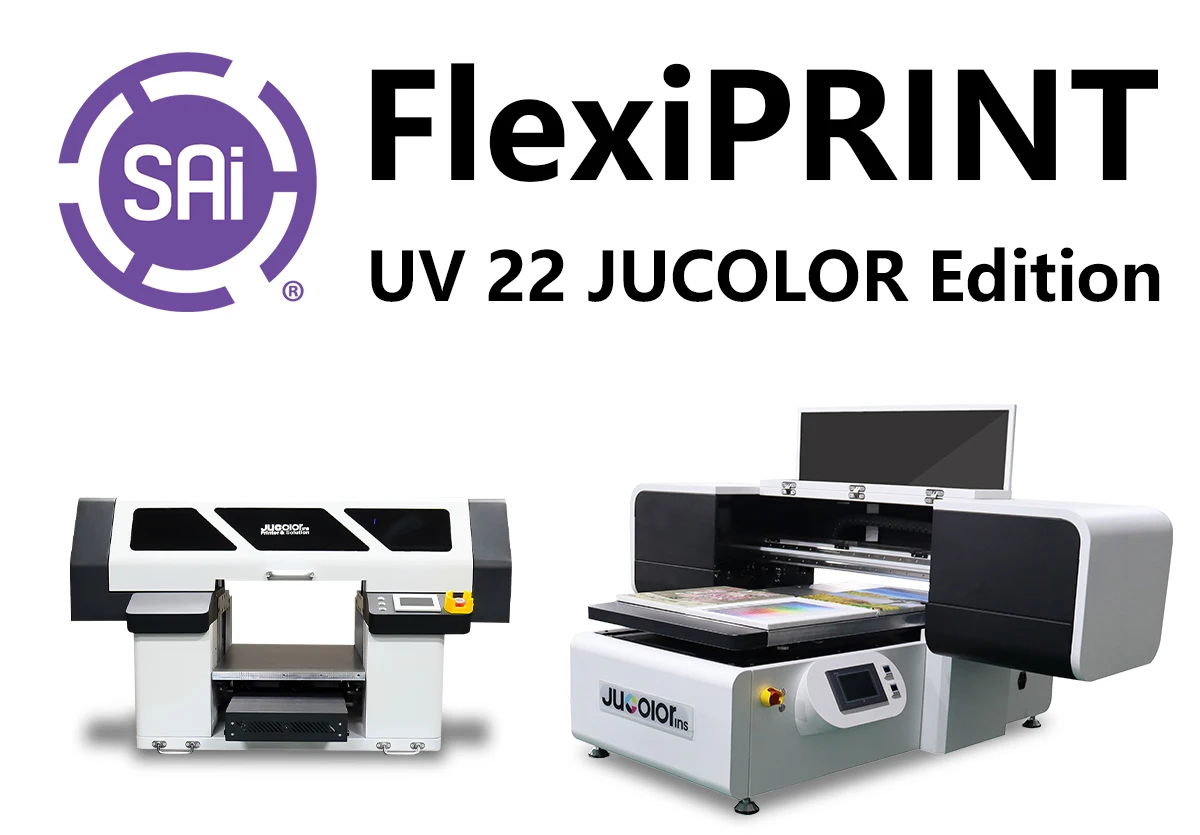

SAI FlexiPRINT uv22 jucolor Edition
SAI FlexiPRINT RIP software is much popular rip software, easy to operate, versatile, high color reproduction We use genuine SAI FlexiPRINT No monthly or annual payment required, permanent free version.

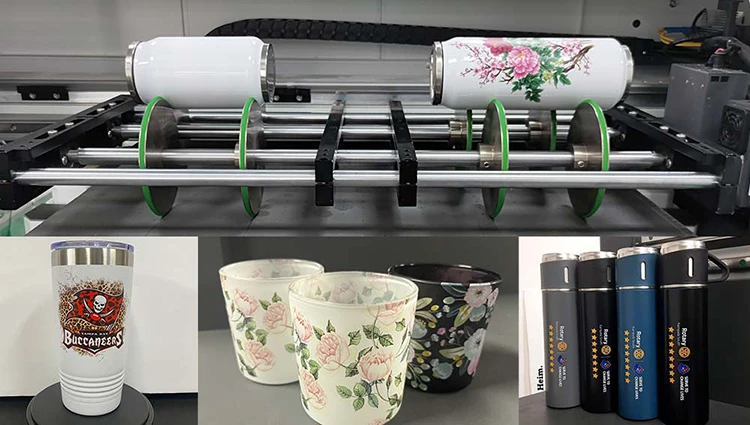

Flat-rotary dual-purpose UV printer
This Jucolor 6090Pro model A1 size uv printer can not only print flat objects but also cylindrical materials. It is equipped with a rotating fixture independently developed by Jucolor group, can directly print various cups, such as straight-through cups, cone cups, thermos cups, electronic cigarettes, candles, and mugs with handles.

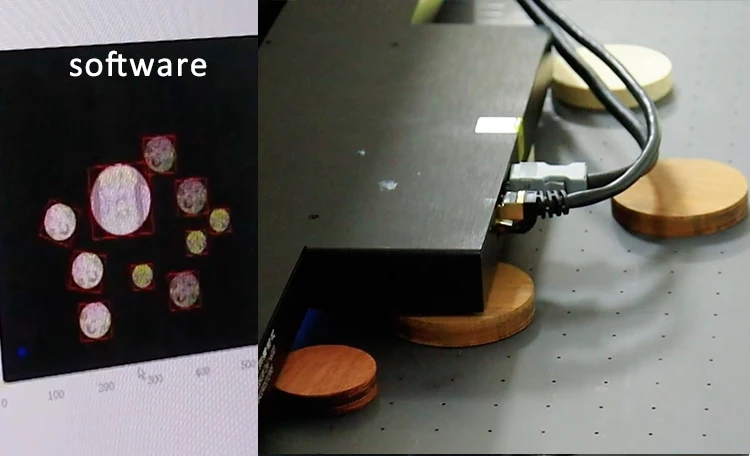

AI Camera Auto-Visual Position system
Use the newest technology, AI Camera Auto-Visual Position system, Automatically identify the position, quantity, and shape of materials, and automatically achieve accurate matching of the position and size of images and materials without manual typesetting and control of recognition error within ±0.1mm.
Double Negative Pressure Ink Supply
White and color ink supply adopts independent negative pressure system, digital control, larger pressure display and large-capacity stainless steel air bottle to make negative pressure change more stable, ink supply more smooth, ensure stability of ink supply during high-speed continuous printing. imaging effect is more realistic, not easy to clog PRINT HEADS.
All Metal Seconard Ink Cartridge
The all-metal secondary ink cartridge Excellent corrosion resistance. UV ink is corrosive chemical liquid. so corrosion resistance of secondary ink cartridge is very important, which can effectively prolong working life. Avoid high failure rate and high maintenance rate.
Automatic Capping Station with Wiper
Capping Station With Auto-Wiper Jucolor team develop auto cap station with wiper it can * Automatic Hed Maintenance Function *
Automatic Head Cleaning * Automatic head Moisturizing * Automatic head wipe Very useful to avoid print heads clogging easily.
Automatic Head Cleaning * Automatic head Moisturizing * Automatic head wipe Very useful to avoid print heads clogging easily.
Anti-collision and Light block system
Jucolor team developed large-width, highly sensitive printhead anti-collision and light-avoidance system. Effectively protect printhead. sensor bottom is lower than printhead surface, when touch medias, will stop printhead moving.After adjusting height,
will continue print to avoid wasting materials.this system is located center of heads and UV lamp, which can effectively shield the reflected light, protect printhead, avoid printhead from being blocked due to reflection.
will continue print to avoid wasting materials.this system is located center of heads and UV lamp, which can effectively shield the reflected light, protect printhead, avoid printhead from being blocked due to reflection.
Magnetic grating
Jucolor A1 industry uv printer adpot High-precision (1um) magnetic grating counting ruler, compared with linear grating, magnetic grating has better durability, stability, and longer service life, not need to be replaced. accurate positioning.Completely solve
problem of inaccurate counting and printing failure caused by frequent worn or position deviation of traditional plastic encoder, Users do not need to frequently troubleshoot printer failures.
problem of inaccurate counting and printing failure caused by frequent worn or position deviation of traditional plastic encoder, Users do not need to frequently troubleshoot printer failures.
Laser height measure & anti-collision system
Jucolor uses laser sensor to detect height of printing material, effectively ensure that distance between print head material is within a safe range, avoid touch or collision between print head and material, causing damage to print head. Supports bidirectional printing, no need customers to recalibrate bidirectional value because of changes in different medias
Похожие товары

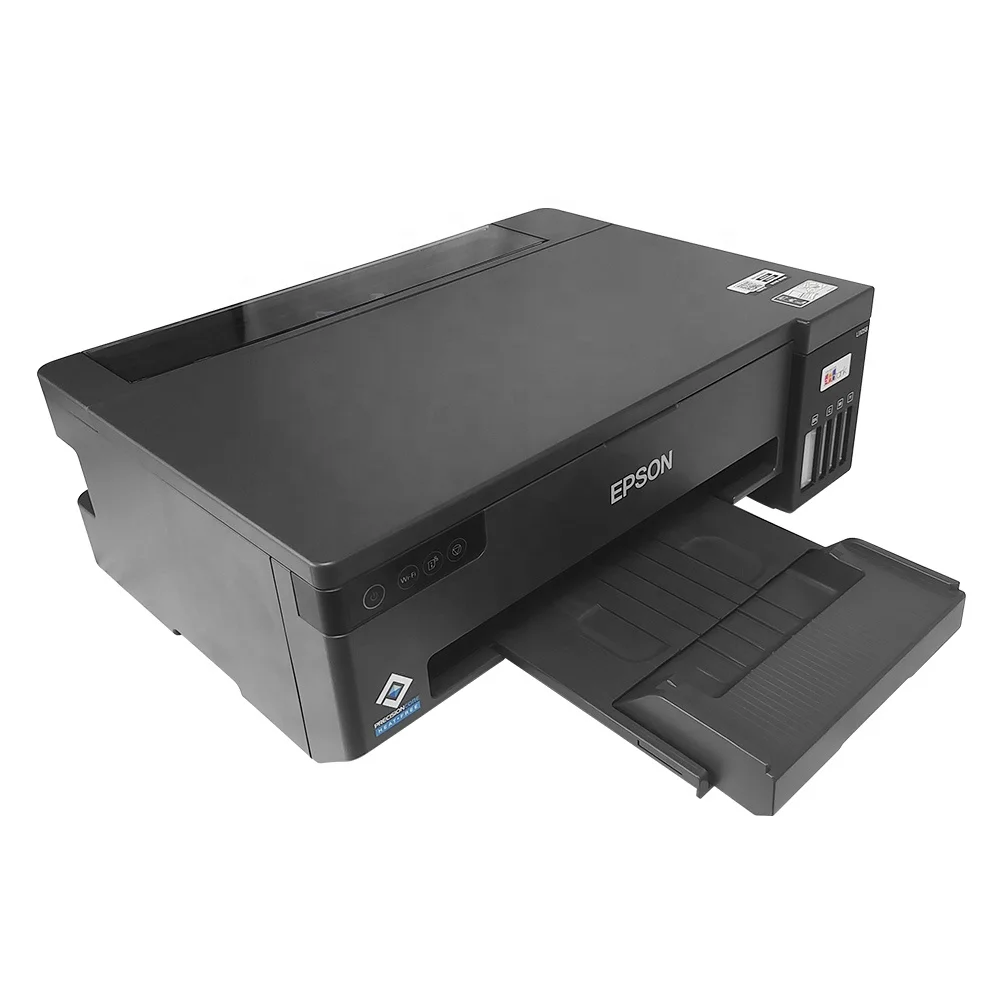

Новый 5 цветов A3 L1300 Модернизированный L11058 EcoTank графический дизайн высокоскоростной принтер для струйного принтера epson L11058 L11050
38 287,69 ₽ - 42 116,46 ₽
Небольшой принтер 30 см УФ планшетный печатный станок и лучший принтер и сканер для домашнего использования
260 356,30 ₽ - 280 047,11 ₽

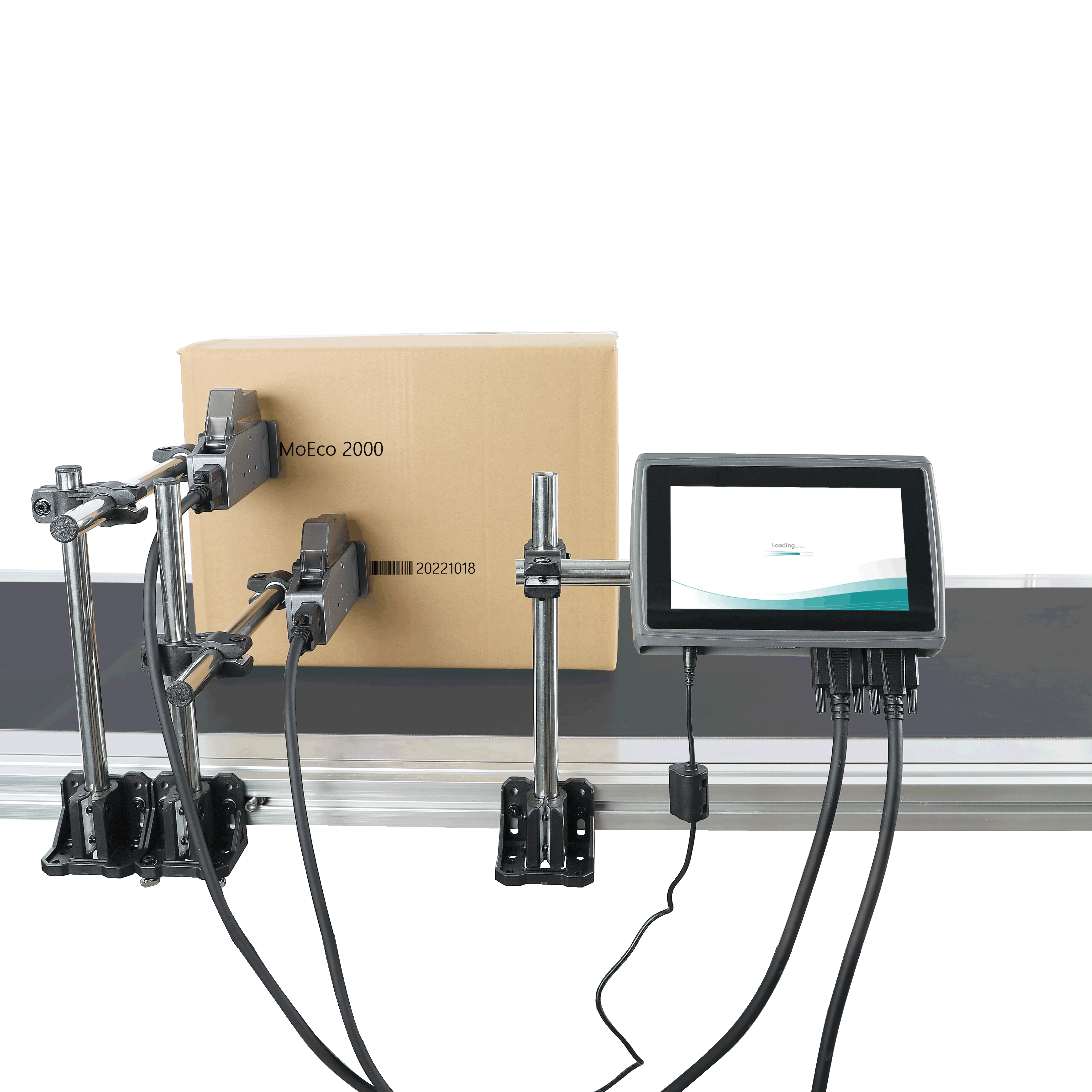

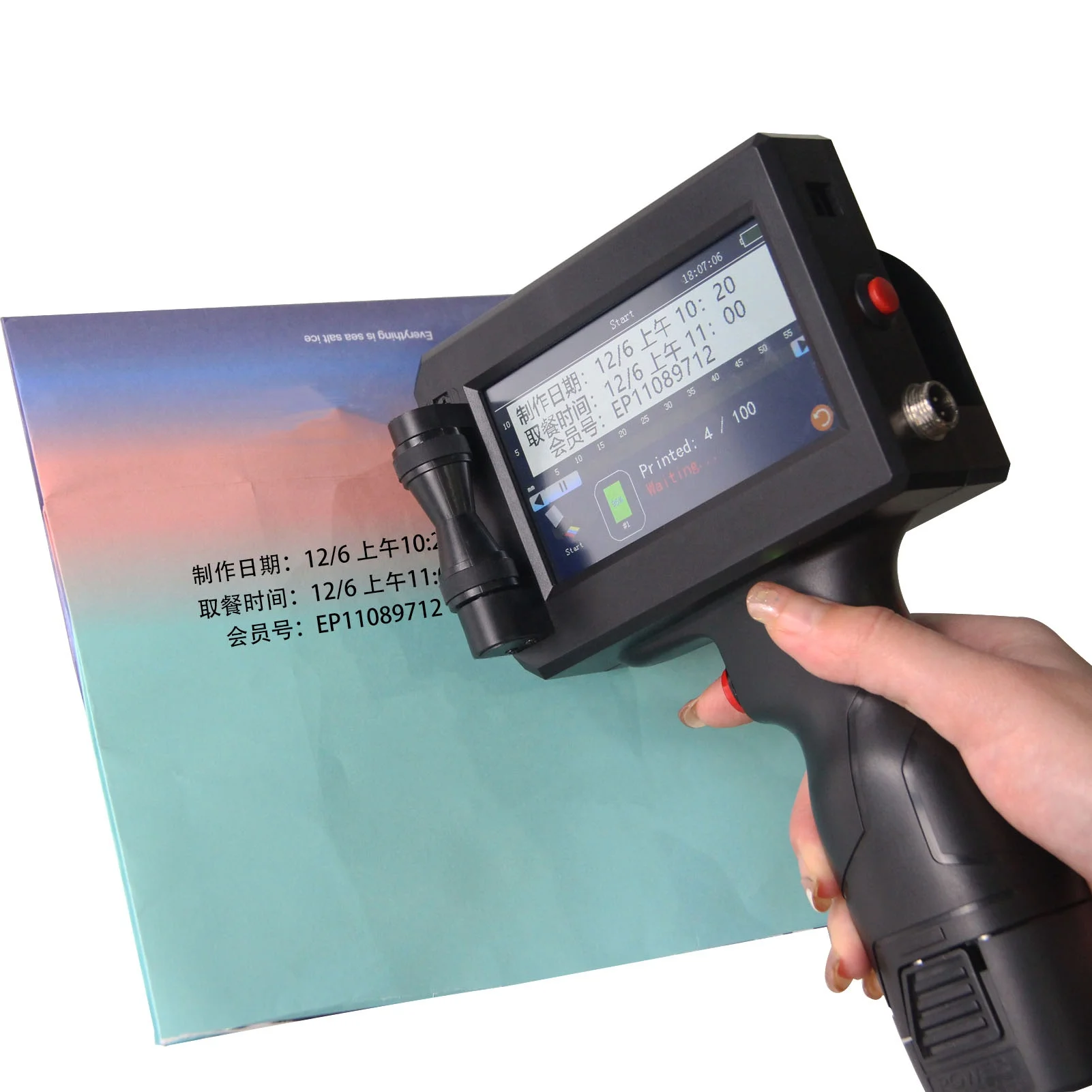

Высокоскоростные пластиковые пакеты Tij со штрих-кодом, термоумный ручной струйный принтер
Струйный принтер с серийным кодом
87 405,33 ₽ - 98 344,67 ₽
Акриловая кожа пластик guangdong УФ принтер ПВХ карты рекламные вывески xp600 uv принтер
1 238 333,29 ₽ - 1 393 671,92 ₽
Совершенно новый промышленный маркировочный станок новый принтер кодирования Pekoko деревянный принтер

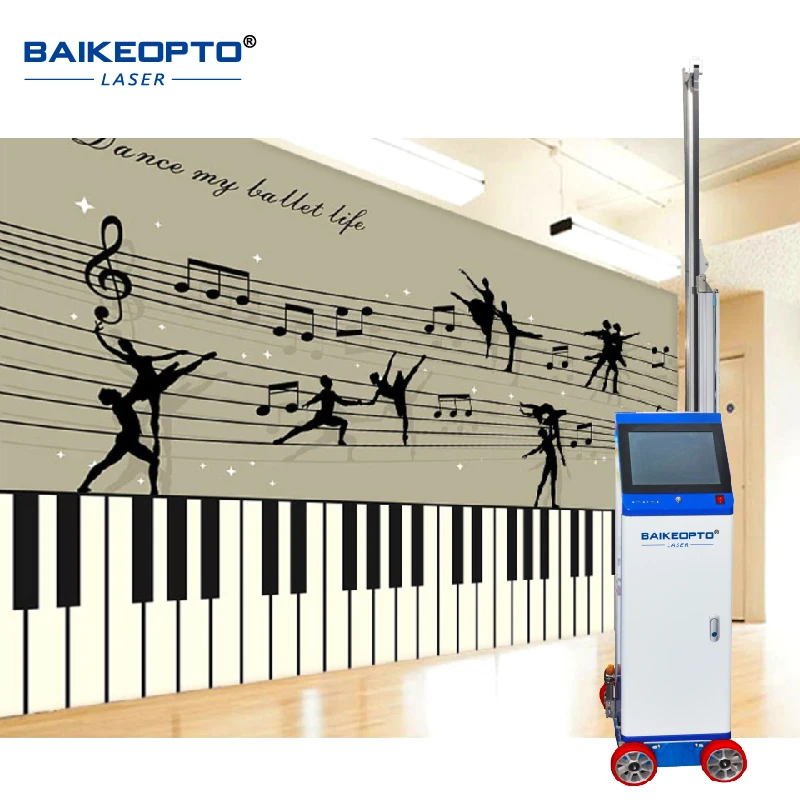

Большой масштаб настенная печатная машина сенсорный экран настенный принтер УФ чернила машина хорошего качества
