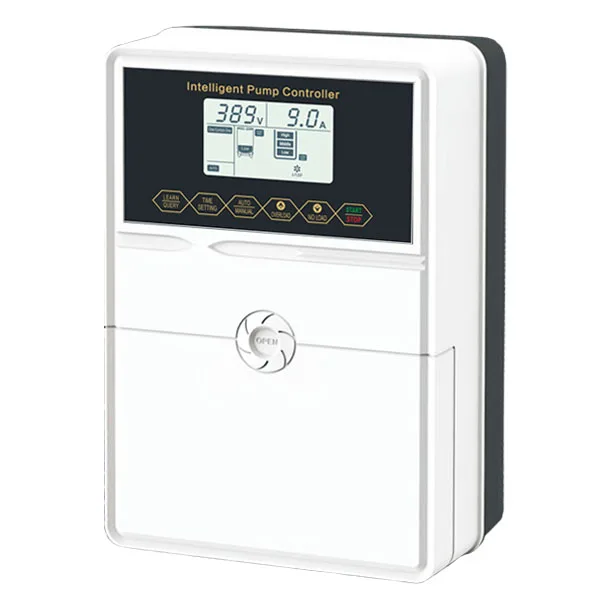

JNN ABS пластиковый автоматический запуск водяного насоса панель управления переключателем для коммерческих зданий с управлением водяным насосом
- Категория: >>>
- Поставщик: Yueqing Haiyin Electric Co. Ltd.
Сохранить в закладки 1601266576446:
Описание и отзывы
Характеристики
PRODUCT DESCRIPTION
The automatic pump controller is simple and efficient. When the pump is started to pump water, it is often forgotten to shut it down, resulting in waste of electricity and water. The installation of the fully automatic pump is simple and efficient to solve the start and stop of the pump. When the pool is filled with high water level, the pump water supply is stopped by the sensor signal. When the pool is at low water level, the sensor signal starts the pump to pump water.
The automatic water pump controller adopts digital core with overload, no load and ultra low voltage protection. The upper and lower levels and pressure are automatically controlled in one.
Can be connected to float control, pressure gauge control and probe sensor control.
The automatic water pump controller adopts digital core with overload, no load and ultra low voltage protection. The upper and lower levels and pressure are automatically controlled in one.
Can be connected to float control, pressure gauge control and probe sensor control.
Type | Y1 | ||||||||||
Model | Y1-4KW | Y1-7.5KW | Y1-11KW | Y1-15KW | Y1-18.5KW | Y1-22KW | |||||
Rated Power | 0.75-4KW | 1.1-7.5KW | 1.1-11KW | 2.2-15KW | 3-18.5KW | 4-22KW | |||||
Main Parameters | 1,Rated voltage:AC380V+10% or AC220V+10% (50Hz-60Hz) 2,IP rating: IP54 3,Material: ABS plastic shell 4,Working temperature:-20ºC-- +80ºC 5,Max. control distance:≤2000m without strong electric and electromagnetic fields 6,Working humidity:20%--90%RH, no drips concreted 7,Qty.of Controlled Pump:Single pump 8,Over-voltage/under-voltage: default AC304V-456V or AC176V-264V (adjustable) 9,Over-voltage/under-voltage trip time: ≤3 seconds 10,Phase loss trip time:<2 seconds 11,Static consumption power:<3W | ||||||||||
Main Functions | 1,Operation mode: automatic/manual starts and stops 2,Timed start/stop 3,Anti-rust protection, long-term non-use of the pump,15 days to start once for 3 seconds. 4,Setting protection current for motor overload/no-load,no-load delay restart time adjustable. 5,Automatic restart when voltage comes to normal rating after over-voltage/under-voltage protection. 6,Automatic restart after power failure recovery. 7,Automatic re-starting pump from dry running, restart time range 0-720 minutes adjustable. 8,Fault indication:failure record, latest 10 pump failure reasons display, audio/light alarms. 9,Automatic learning of overload and no-load currents | ||||||||||

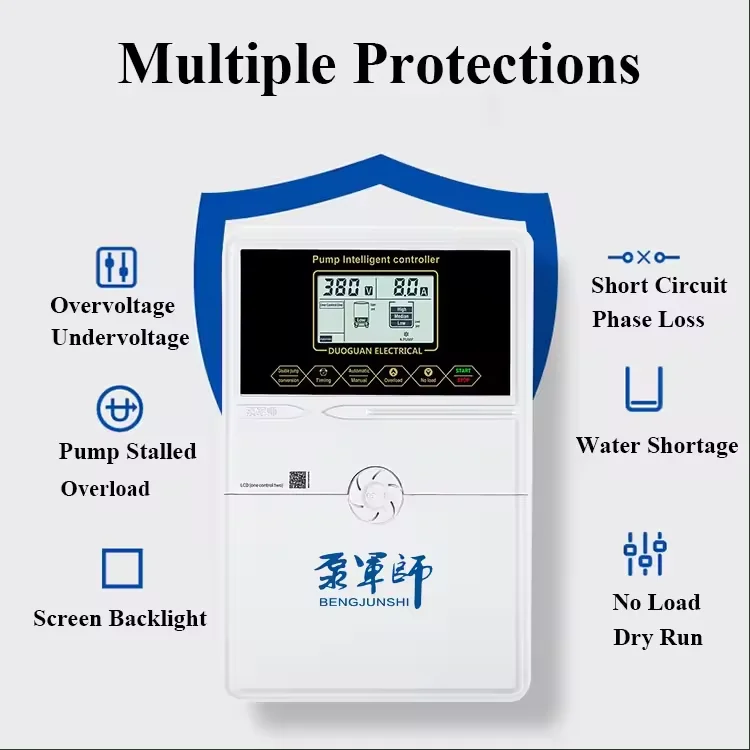

Advantages | 1,Multiple Protection:Dry run、Overload、no load、over/under-voltage、water shortage、pump stalled、anti-seizing、short circuit、phase loss 2,Waterproof and Damp-proof 3,Save energy 4,Robustness 5,Supports multiple signal sources: floats, level sensors, pressure switches, electric contact pressure gauges. | ||||||||||

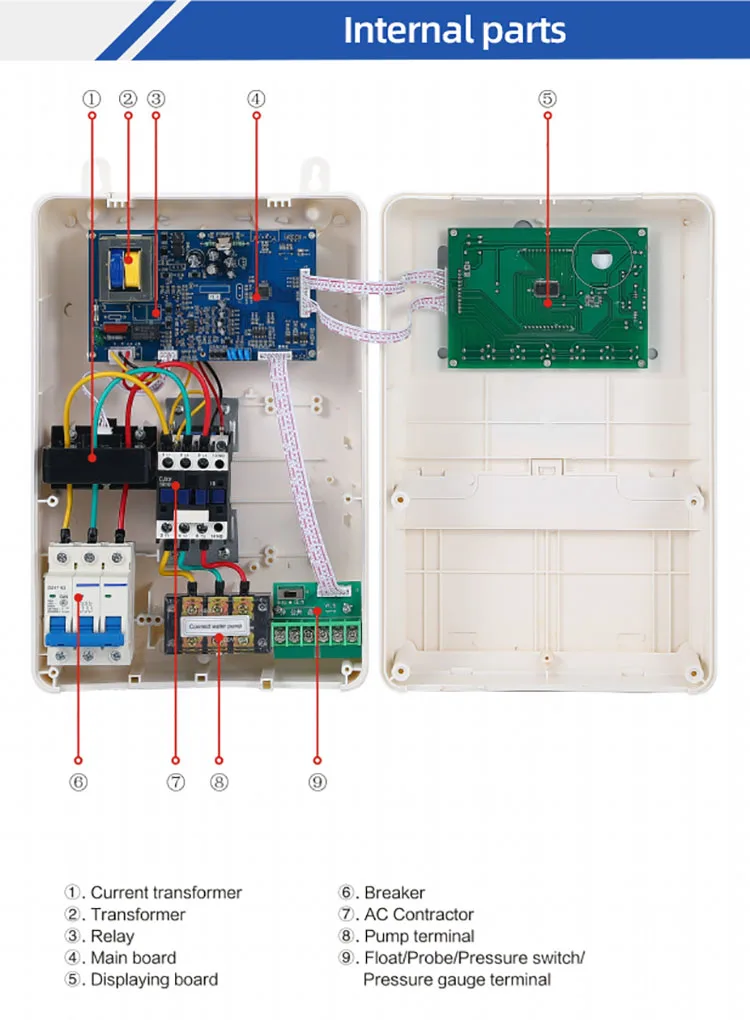

Details Images
2:Transformer
3:Relay
4:Main board
5:Displaying board
6:Breaker
7:AC Contractor
8:Pump terminal
9:Gauge terminal

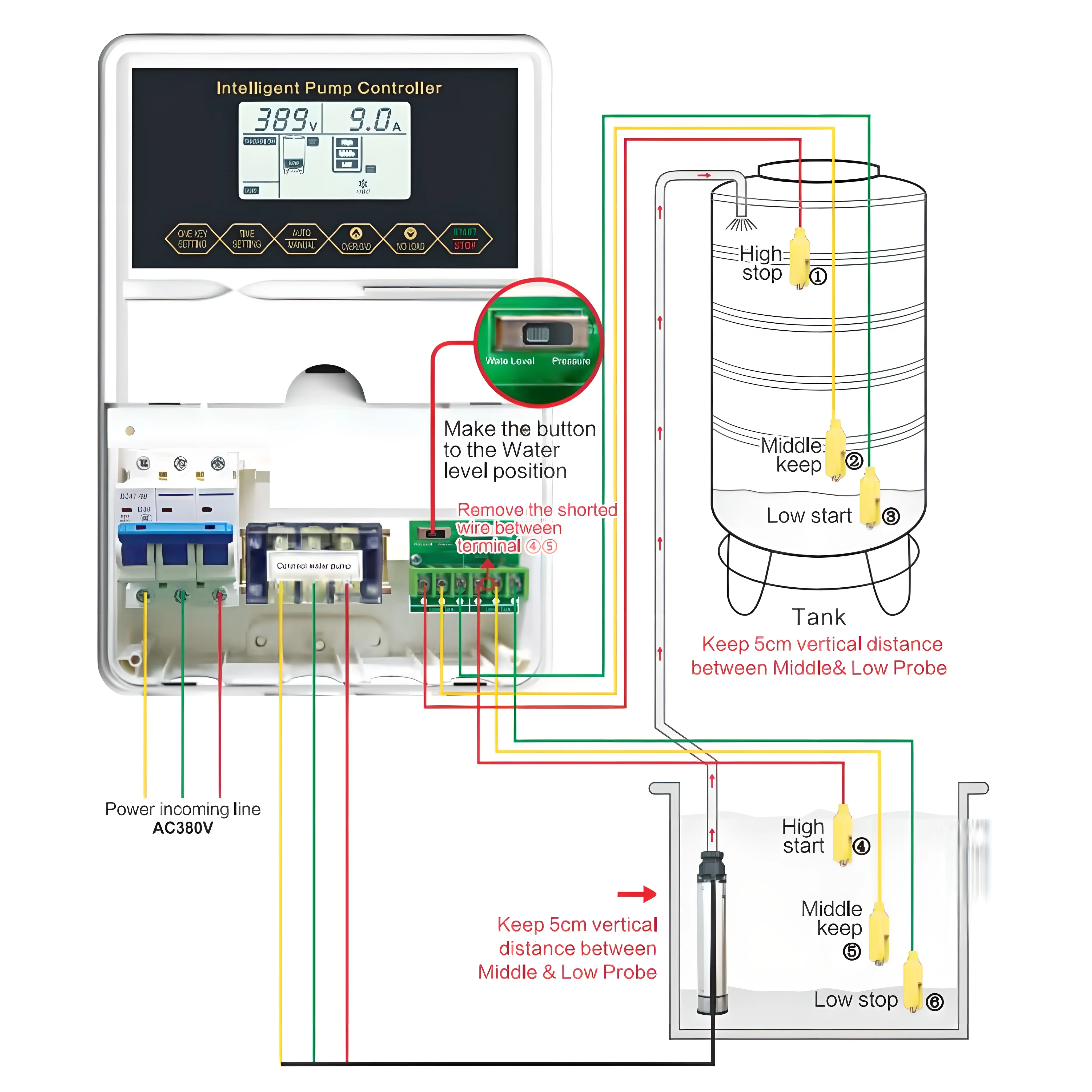

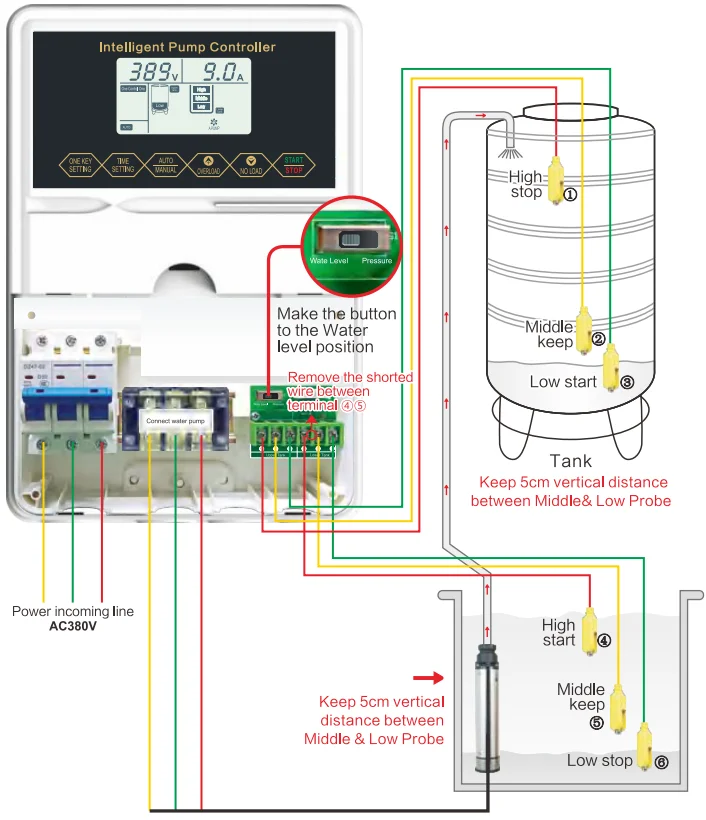

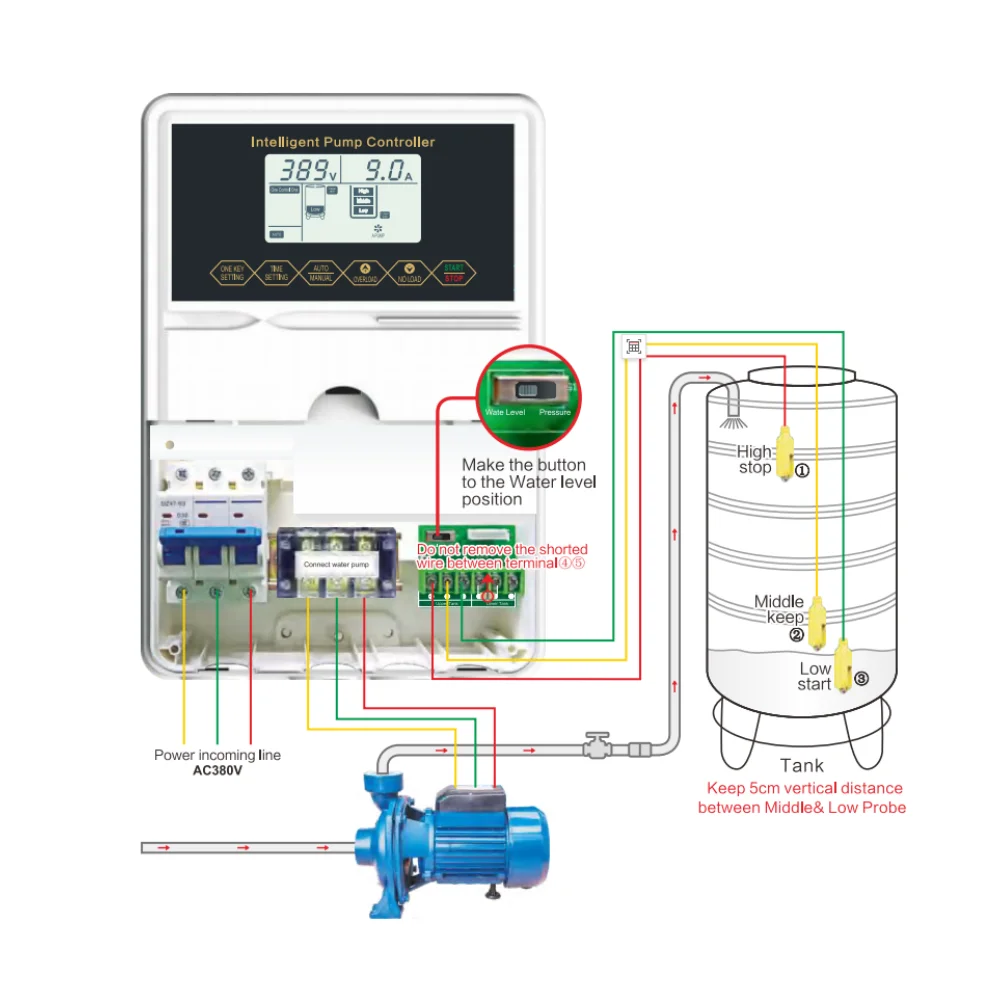

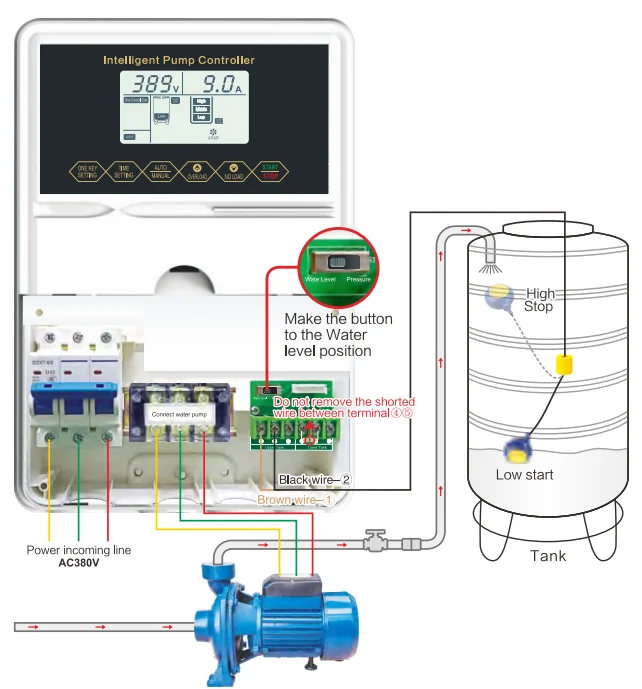

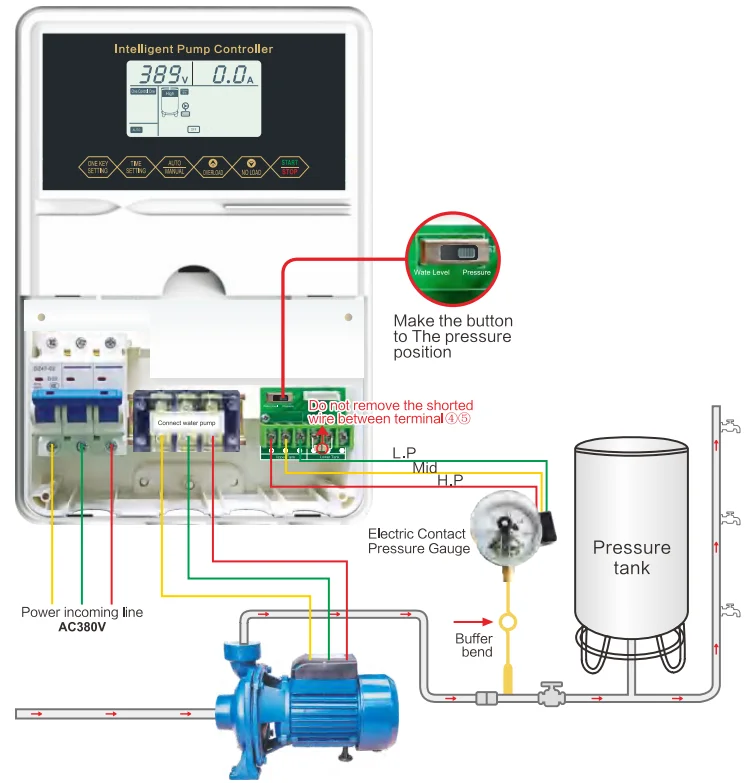

Installation Instructions
Applications

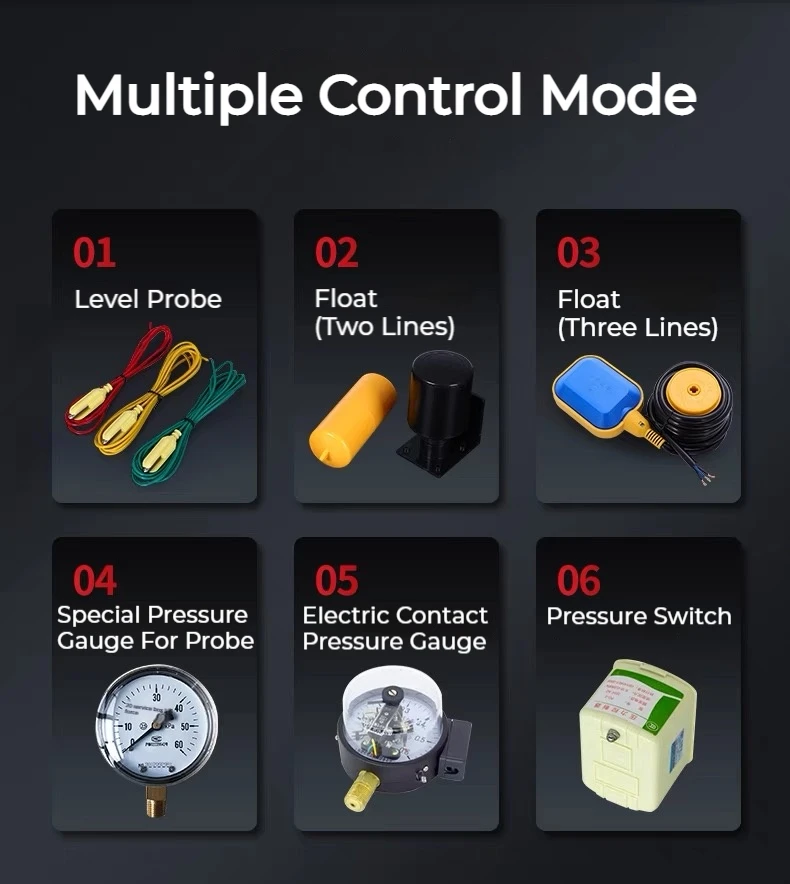

Intelligent pump controller supports a variety of signal control. Float, liquid level probe, pressure gauge, pressure sensor, etc.

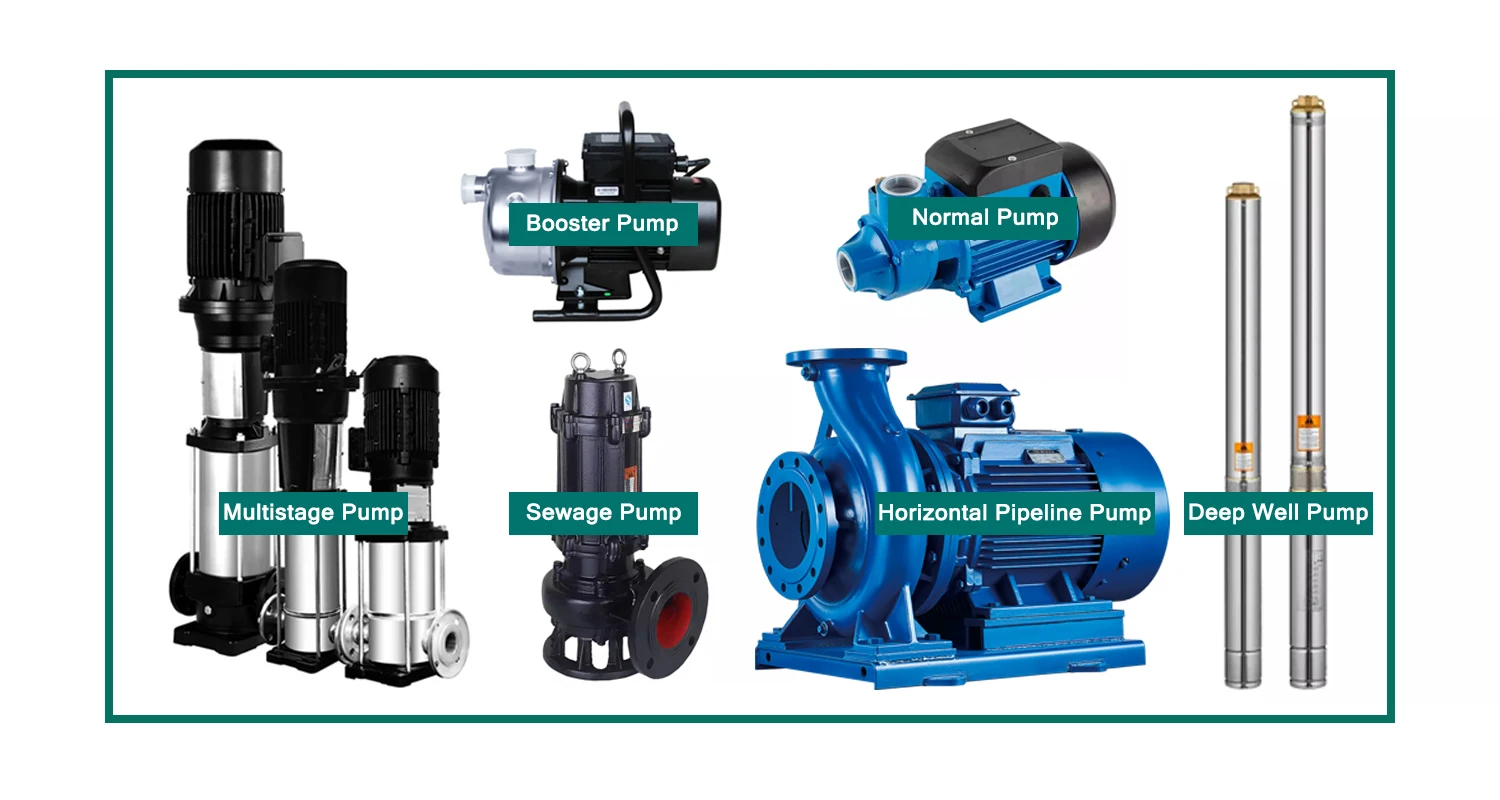

Intelligent Pump Controllers can control a wide range of pumps, such as subermersible pump, centrifugal pump, multistage pump,deep-well pump, sewage pump, booster pump, pipeline pump, ground pump.etc.
Intelligent pump controller has extensive applications in water boosting, farm irrigation, sewage pumping, fountains, storage tanks, swimming pools, industrial buildings, mining pump systems, and other water treatment-related industries
Why Choose Us
Yueqing Haiyin Electric Co, Ltd. is a technology company specializing in intelligent motor control and protection system
solutions. Our company has technical,production, engineering and business epartments, with strong R&D and production
capabilities,and can provide users with water pumps, motors,fans,fire protection, boilers and other intelligent controller series product design, development, system integration,automation and other services.
solutions. Our company has technical,production, engineering and business epartments, with strong R&D and production
capabilities,and can provide users with water pumps, motors,fans,fire protection, boilers and other intelligent controller series product design, development, system integration,automation and other services.
At present, the company has mainly developed several major categories of products,namely: intelligent water pump controller, fan, auto-coupling step-down starter cabinet, soft starter cabinet, frequency conversion cabinet, fire protection intelligent controller, boiler floor heating and air energy circulation pump intelligent control protector. The product application covers high-rise building water supply and underground drainage,industrial control,irrigation,central air conditioning drainage, breeding and other industries.
Adhering to the business philosophy of "professional, honest,technology and service", creating a brand that customers trust and prefer is our goal, and we are dedicated to providing customers with comprehensive solutions.
FAQ
Q: How about Warranty Time?
A: One year
Q: How you do the quality control in your factory?
A: We have professional QC team and equipment to do Incoming inspection Inprocess checking and 100% online testing.
Q: Is sample order available? And can I make trial order?
A: Yes, the sample available, and you can make trial order to check the details first.
Q:Can you provide OEM or ODM ?
A:Yes,we can make the orders according to your detailed request.
Q:what is your delivery time?
A:It takes 3-5 days for sample orders,and 15-20 days for orders.Depends on the quantity
A: One year
Q: How you do the quality control in your factory?
A: We have professional QC team and equipment to do Incoming inspection Inprocess checking and 100% online testing.
Q: Is sample order available? And can I make trial order?
A: Yes, the sample available, and you can make trial order to check the details first.
Q:Can you provide OEM or ODM ?
A:Yes,we can make the orders according to your detailed request.
Q:what is your delivery time?
A:It takes 3-5 days for sample orders,and 15-20 days for orders.Depends on the quantity
Похожие товары

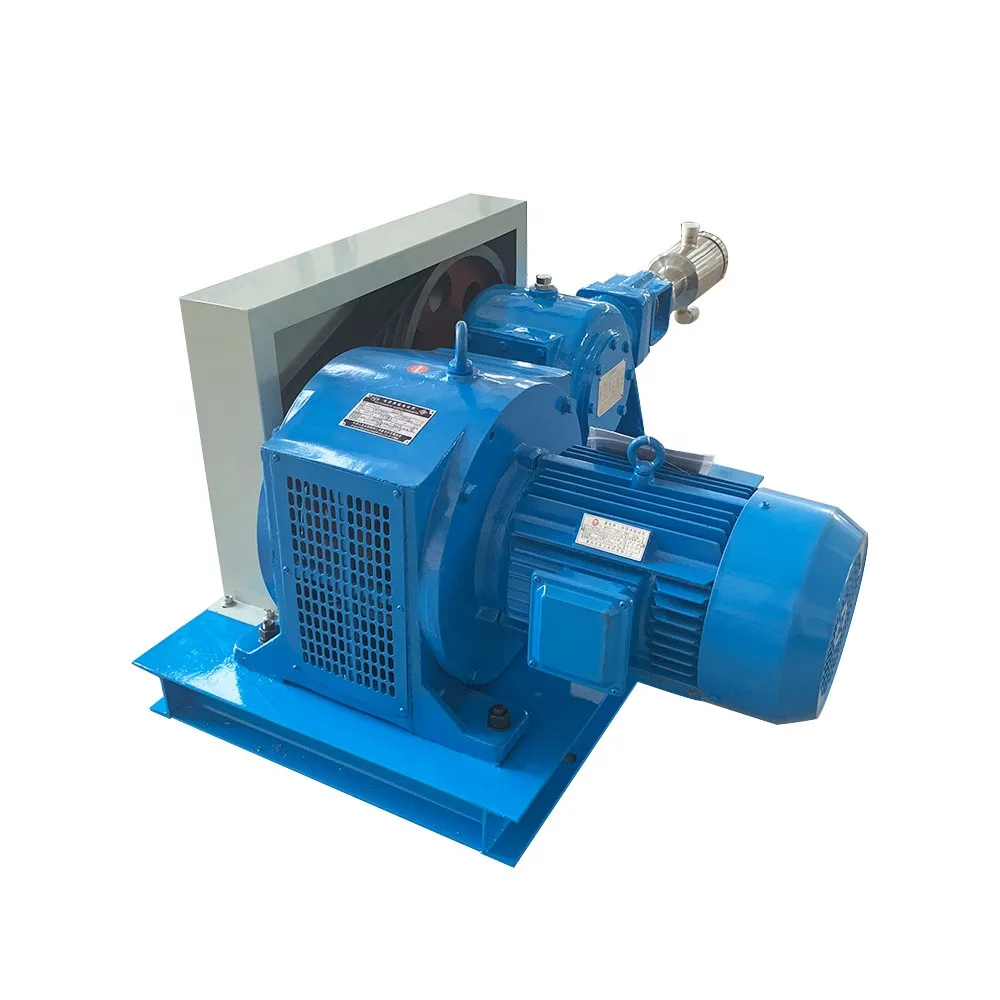

Криогенный Разливочный насос для жидкого кислорода с хорошей производительностью, 300-600 л/ч
307 508,73 ₽ - 312 903,62 ₽
Коммерческий Электрический автоматический насос 800 Вт с реле давления
3 776,43 ₽ - 13 487,23 ₽
Портативный маленький погружной насос с электромотором, автоматические погружные насосы с Поплавковым переключателем
2 233,49 ₽ - 2 373,76 ₽
3-дюймовый автоматический Гибридный водяной насос
Интеллектуальный усилитель высокого давления, домашний электрический микроводяной насос
17 263,65 ₽

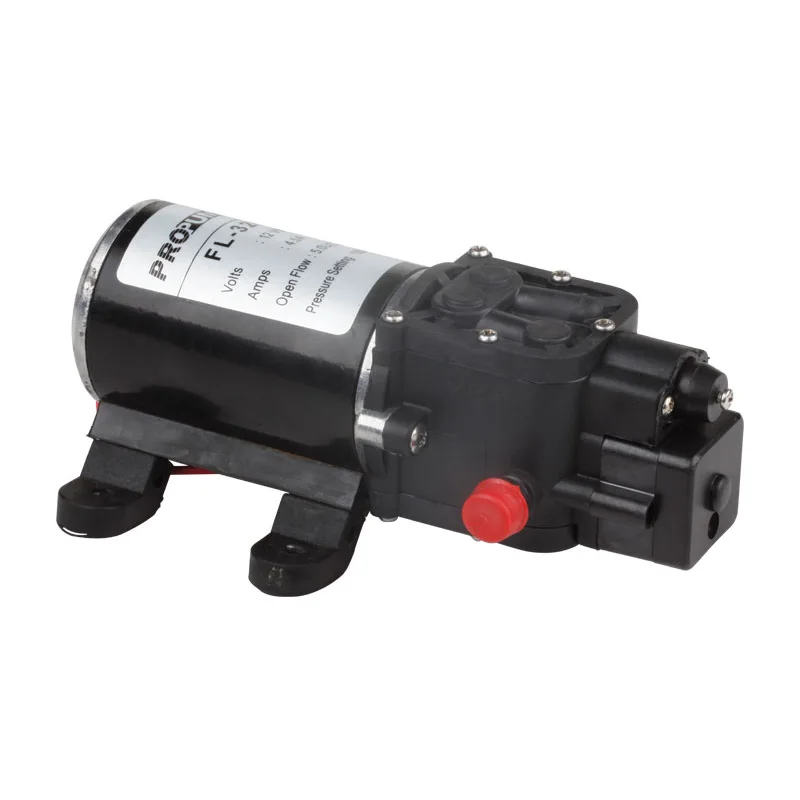

Propumps FL-3203 5.1LPM 100PSI 12 вольт высокого давления для полива и орошения водяной насос с переключателем давления
