Бронзовый бар медный стержень/латунный стержень заводская цена
7,60-7,80 $
Прямые продажи от производителя сварочный стержень S221F с покрытием Флюсом OEM диаметр 1 6 6 35 мм
- Категория: >>>
- Поставщик: Tongling Junshuo New Materials Co. Ltd.Tongling Ltd.
Сохранить в закладки 1601266661038:
Описание и отзывы
Характеристики
PRODUCTS DESCRIPTION

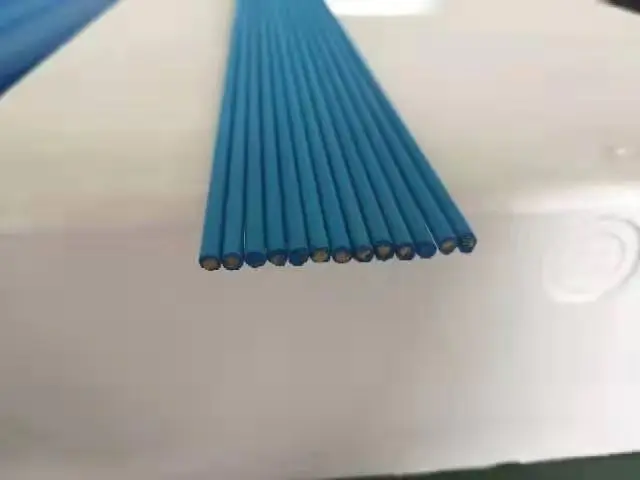

BRASS WELDING ROD COATED WITH FLUX | ||
TRADE MARK | HS221F | |
HS222F | ||
LFB-FC (Low fuming bronze coated with flux) | ||
RBCuZn-A | ||
RBCuZn-C | ||

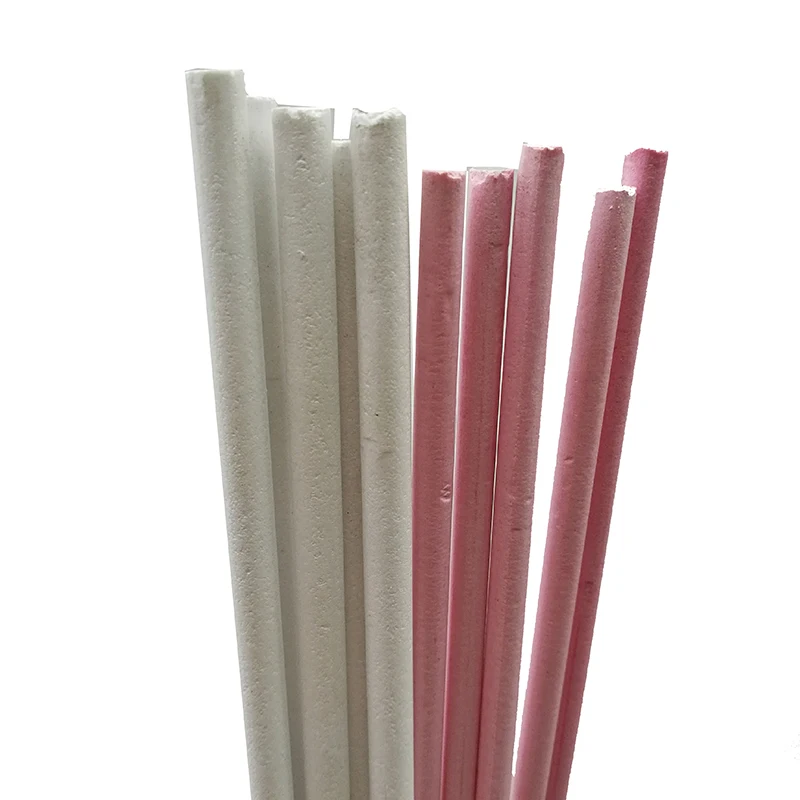

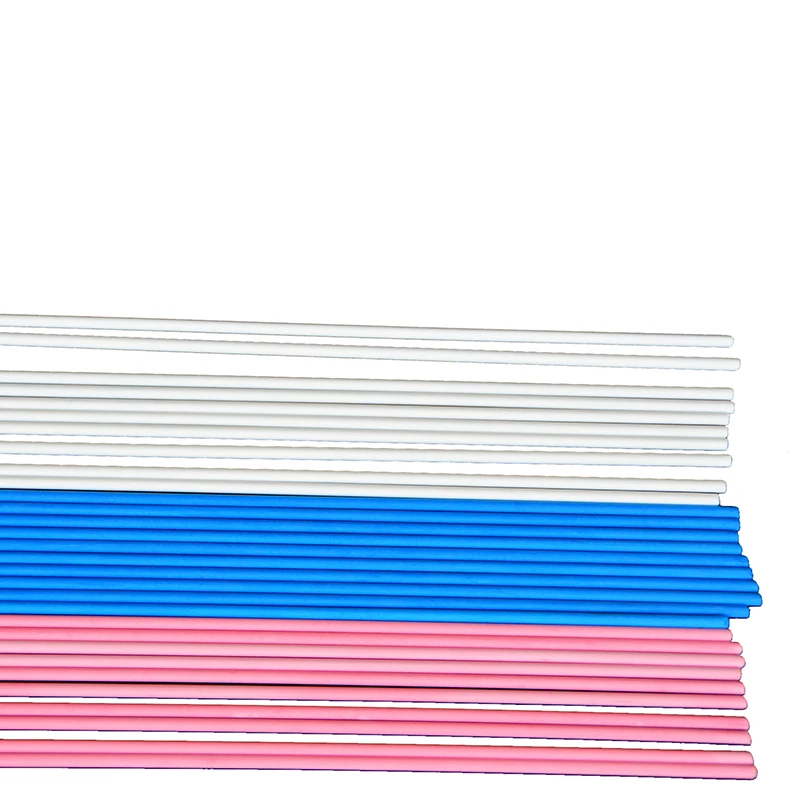

Color: Pink White Blue Red Purple Yellow and Green.
PIECES:size 3.0MM×500MM in 2.5KGS，total 72±1 pcs.
PIECES:size 3.0MM×500MM in 2.5KGS，total 72±1 pcs.
PROCEDURE
1.Clean braze area
2.Remove all rust oil and grease
3.Heavy sections should be beveled
4.The alloy should be applied by brazing technique with netural flame
5.When applying the bare rod,
use a neutal flame with CJ301 flux
6.Flux residue should be removed by wire brushing with hot water
1.Clean braze area
2.Remove all rust oil and grease
3.Heavy sections should be beveled
4.The alloy should be applied by brazing technique with netural flame
5.When applying the bare rod,
use a neutal flame with CJ301 flux
6.Flux residue should be removed by wire brushing with hot water
FEATURES
1. Tensile strength-Up to 65000psi
2.Brazing temperature range-1670℉ to 1750℉
3.Flux Coating provides excellent wetting action with no objective fuming
4.Porosity-free deposits
5.Good machinability
6.Color matches yellow brass
1. Tensile strength-Up to 65000psi
2.Brazing temperature range-1670℉ to 1750℉
3.Flux Coating provides excellent wetting action with no objective fuming
4.Porosity-free deposits
5.Good machinability
6.Color matches yellow brass
Standard | Class | Alloy | Chemical Composition | |||
ISO24373 | Cu4641 | CuZn40SnSi | Cu:58.0~62.0 Al:0.01 Fe:0.2 Mn:0.3 Ni:~ P~ Pb:0.03 Si:0.1~0.5 Sn:1.0 Zn:bal. Other:0.2 | |||
GB/T9460 | SCu6810A | CuZn40SnSi | Cu:58.0~62.0 Al:max 0.01 Fe:max 0.2 Mn:max 0.3 Ni:~ P~ Pb:max 0.03 Si:0.1~0.5 Sn:max 1.0 Zn:bal. Other:max 0.2 | |||
BS EN14640 | SCu6810 | CuZn40SnSi | Cu:58.0~62.0 Al:0.01 Fe:0.2 Mn:0.3 Ni:~ P~ Pb:0.03 Si:0.1~0.5 Sn:1.0 Zn:bal. Other:0.2 | |||
DIN 1733 | 2.0366 | SG-CuZn40SnSi | Cu:58.0~62.0 Al:max 0.01 Fe:max 0.2 Mn:max 0.3 Ni:~ P~ Pb:max 0.03 Si:0.1~0.5 Sn:max 1.0 Zn:bal. Other:max 0.2 | |||
Physical Properties and Mechanical Properties: | ||||||
Solid-Temperature | 870~890℃ | Liquids-Temperature | 880~910℃ | |||
Density | 8.4kg/dm³ | Tensile Strength | 381N/m㎡ | |||
Elongation | 30% | Brinell Hardness | 88HB | |||
Introduction: | ||||||
Most popular for padding material of gas-welding and carbon arc welding in brass.Can also used in brazing of copper,steel,copper-nickel,cast iron and carbide cutting tools incrustation | ||||||
PACKING & SHIPPING
5kg/small carton
Can be customized according to customer needs
5 small cartons in a big carton
Can be customized according to customer needs.

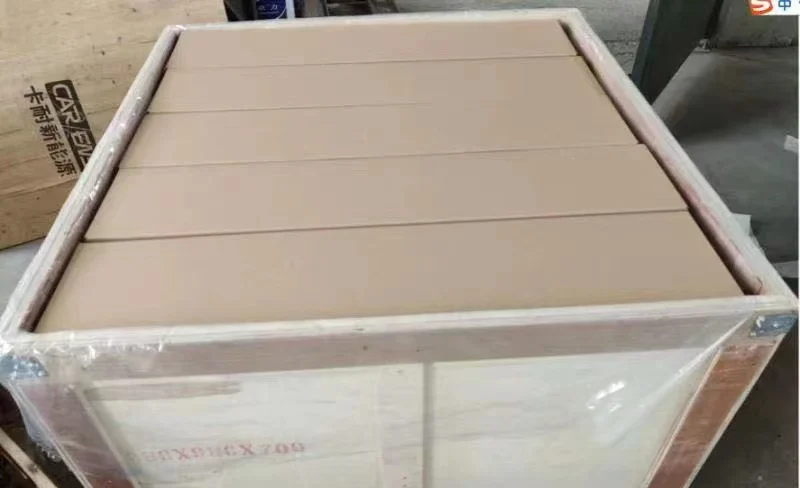

1000kgs/wooden case
Can be customized according to customer needs
1kg/ transparent plastic box
Can be customized according to customer needs

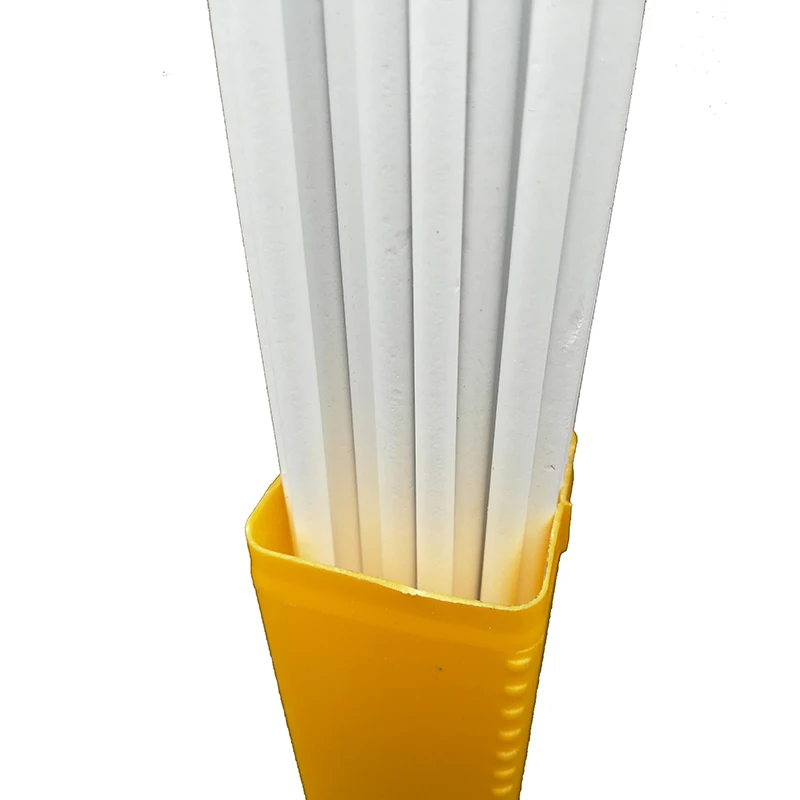

2.5kg,3.5kg,4.5kg or 5kg/yellow plastic box
Can be customized according to customer needs.
1000kgs/wooden case
Can be customized according to customer needs
RELATED PRODUCTS
PRODUCTS APPLICATION
Our products are suitable for automobile casting, high pressure valve iron, hydraulic rod, marine casting,aerospace casting, ocean exploration, precision machinery, deep sea scale, marine water scale, high pressure valve, etc, Our company is a world leader in the field of copper alloys, and has made outstanding contributions to the field of copper alloy welding in the world. Our company has been to Arabia, Dubai, Germany, the United States, France, the Middle East, and Vietnam for many times to conduct academic exchanges and promote the world. Development in the field of copper alloy welding.
ABOUT US
Tongling Junshuo New Materials Co., Ltd. is a professional manufacturer of welding
materials. To build a supply chain in the field of welding materials and provide customers with efficient quality services, the company adopts the latest production processes of continuous casting and rolling, mid-level traction and online annealing inaccordance with GB/T9460, BS EN14640, AWS and DIN standards. The company has passed the ISO 9001:2015 international quality system certification, with leading product technology, complete production and testing equipment, outstanding product performance and quality assurance. The company's leading products are: various types and specifications of copper welding wire, stainless steel welding wire, aluminum welding wire, CO2 gas shielded welding wire, carbon steel welding wire, etc., suitable for sintering of MIG, MAG, TIG, submerged arc welding, flux-cored welding, and electroslag welding Flux. The company has cooperated with large-scale brands in various countries and exported to many countries in Europe, Africa, the Middle East, Southeast Asia, etc. The company is committed to building a complete supply chain of welding materials and providing customers with high standards of quality first and service first. The company sincerely recruits brand agents from various countries to negotiate business cooperation and open a new window for welding materials in the world.
materials. To build a supply chain in the field of welding materials and provide customers with efficient quality services, the company adopts the latest production processes of continuous casting and rolling, mid-level traction and online annealing inaccordance with GB/T9460, BS EN14640, AWS and DIN standards. The company has passed the ISO 9001:2015 international quality system certification, with leading product technology, complete production and testing equipment, outstanding product performance and quality assurance. The company's leading products are: various types and specifications of copper welding wire, stainless steel welding wire, aluminum welding wire, CO2 gas shielded welding wire, carbon steel welding wire, etc., suitable for sintering of MIG, MAG, TIG, submerged arc welding, flux-cored welding, and electroslag welding Flux. The company has cooperated with large-scale brands in various countries and exported to many countries in Europe, Africa, the Middle East, Southeast Asia, etc. The company is committed to building a complete supply chain of welding materials and providing customers with high standards of quality first and service first. The company sincerely recruits brand agents from various countries to negotiate business cooperation and open a new window for welding materials in the world.
FAQ
