Бесконтактная автомоечная машина 360 бесщеточного оборудования для мойки автомобиля высокого давления
1 087 045,13 ₽ - 1 481 625,34 ₽
Лидер продаж аксессуары для автомойки
- Категория: >>>
- Поставщик: Shandong Boyou Automation Equipment Co. Ltd.
Сохранить в закладки 1601266778365:
Описание и отзывы
Характеристики
Product parameters
main features.
1.Intelligent unmanned system, self-service card payment system.
2.Smart 360 Technology.
3.Intelligent chemical system.
4.Innovative Suspension System Drag Free Guide .
5.Unique embedded fast drying system .
6.Digital voice security alarm system .
7.Fault self-test system .
8. Own Antifreeze System .
2.Smart 360 Technology.
3.Intelligent chemical system.
4.Innovative Suspension System Drag Free Guide .
5.Unique embedded fast drying system .
6.Digital voice security alarm system .
7.Fault self-test system .
8. Own Antifreeze System .
describe.
-- Touch free automatic cleaning, to avoid scratches, no avoid damage.
-- 360 ° rotary nozzle design, 90 kg / cm2 high pressure washing, the best washing performance.
-- Ultrasonic testing, excellent safety. PLC programming and touch screen operating system, greatly saving labor and time.
-- Beautiful structure, stable performance and space saving.
-- Stainless steel material, corrosion resistance, long service life, saving maintenance costs.
Basic equipment parameters | ||||||
Project Description | Basic parameters | Mode configuration | Standard √ Optional O | |||
Car washing machine outer frame installation size requirements | Standard mode | √ | ||||
Frame mounting length | 6500mm~7500mm | Precision mode | √ | |||
Frame mounting width | ≥3600mm | Chassis flush | √ | |||
Frame mounting height | ≥3000mm | Rotating smart flush | √ | |||
High pressure pump and dosing pump integrated station power | Tire washing | √ | ||||
High pressure piston pump and motor power | 15kw~22kw | Car wash spray | √ | |||
Car wash liquid pump | 40W | Coated water wax spray | √ | |||
Coated water wax plus liquid pump | 40W | Spray high foam shampoo | √ | |||
Pic central processor | 80W | LED prompt guidance | √ | |||
Man-machine control panel | 80W | Statistics of car washing times | √ | |||
Operating system power | Fault self-test | √ | ||||
Longitudinal stepless variable frequency motor | 500W | Antifreeze automatic emptying | √ | |||
Lateral servo motor | 750W | Automatic standby | √ | |||
Cantilever drive servo motor | 750W | Remote control | √ | |||
Average energy consumption breakdown | Smart card payment | O | ||||
Chassis flushing water | 28L/vehicle | WeChat payment | O | |||
Vehicle washing water | 100-150L/vehicle | Air compressor | O | |||
Crystal was consumption | 20ml-40ml/vehicle | |||||
Magic shampoo consumption | 50ml-100ml/vehicle | |||||
Overglow shampoo consumption | 70ml-100ml/vehicle | |||||
time consuming | ||||||
Rinse speed | 28S/vehicle | |||||
Soft water film wax | 30S/vehicle | |||||
Magic shampoo glazing | 30S/vehicle | |||||
Over glow Hi-gloss | 30S/vehicle | |||||
Air drying | 50S/vehicle | |||||
Electricity consumption | 1.5-1.8KWH/Vehicle | |||||
Equipment workflow

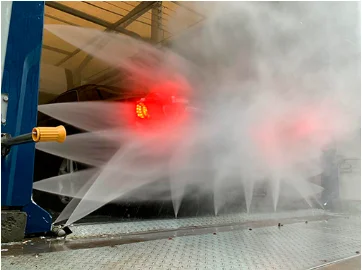

1.High pressure pre-wash under chassis and wheels .
With a unique chassis and fan hub flushing function, 90 kg / cm2 high-pressure water effectively removes dirt from the chassis,body sides and wheels .
2.Intelligent 360-degree rotating arm, using high-precision ratio technology to spray a variety of washing chemicals.
100% accurate measurement with adjustable ratio. Through the high-precision car wash only 20 ~ 50 ml of pre-soaking chemicalmixing system, saving materials and high cost.

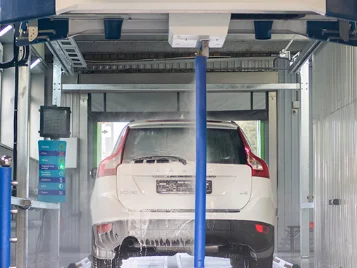

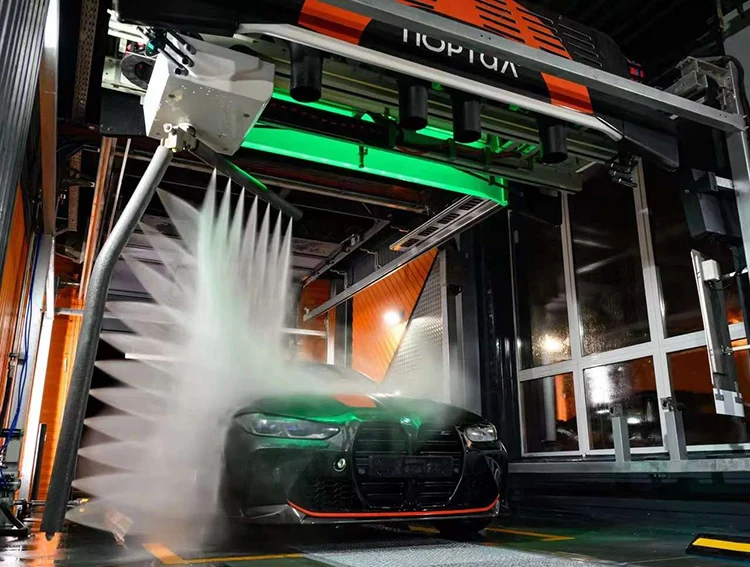

3. Smart 360 Swivel Arm, Wash Body 360 ° with High Pressure Water .
360 ° rotation in 28 seconds, water savings of 50%, power savings of 60%, automatic detection of the length and width of the vehicle, up to 90 bar of high-pressure water to easily remove dirt.

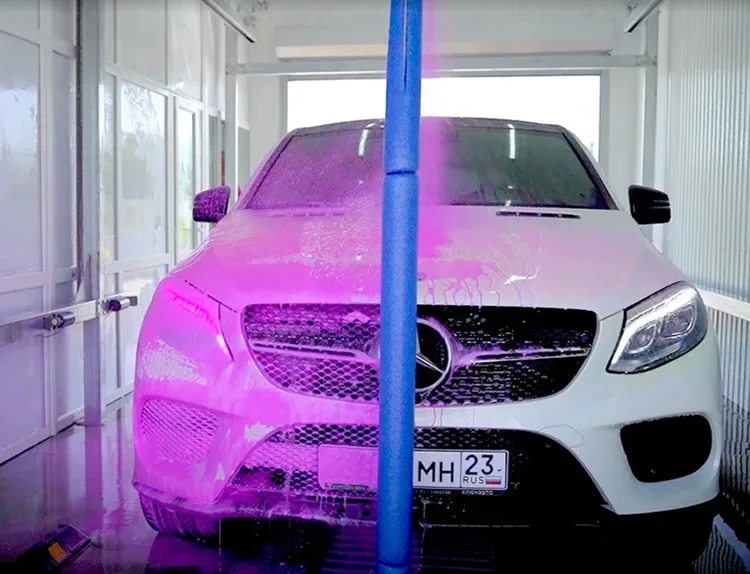

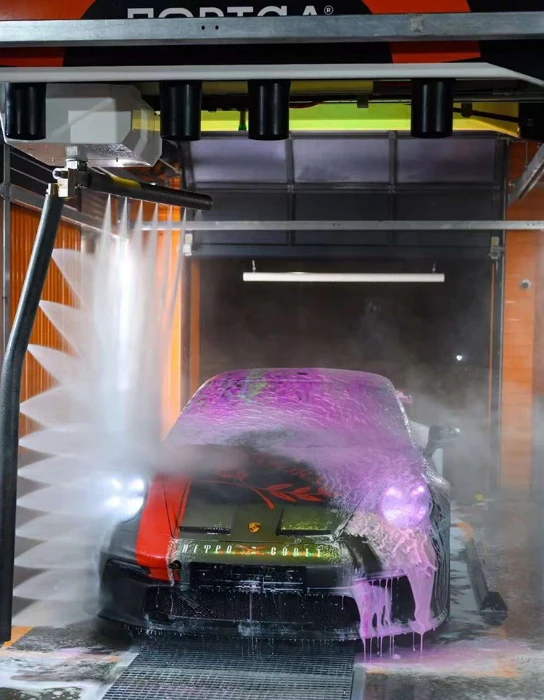

4. Magic Color Polished Car Wash.
The thick foam makes the cleaning and maintenance components contact with dirt more fully, thereby improving the decontamination efficiency and making the paint color more moist and bright. Unique soft and broad-spectrum active ionic cleaning agent, emulsifying and effective daily cleaning dirt on the body and non-corrosive to car paint, wheels, tires, window glass.
5. Spray soft water with crystal wax coating.
Soft water can make the magic crystal coated color shampoo and wax completely adsorbed on the surface of the body, forming a
multi-layer interaction strength protective film, with lasting paint protection, so that the car paint becomes more dazzling. The crystalline coating of the wax produces a polymer in the paint surface layer, fuses the water softener into a hard protective film, has superior automotive paint protection, and has the characteristics of resistance to acid rain, pollution, and ultraviolet erosion.
multi-layer interaction strength protective film, with lasting paint protection, so that the car paint becomes more dazzling. The crystalline coating of the wax produces a polymer in the paint surface layer, fuses the water softener into a hard protective film, has superior automotive paint protection, and has the characteristics of resistance to acid rain, pollution, and ultraviolet erosion.
6. Unique embedded fast drying system.
Configuration of three 5.5kw and a 4kw motor embedded in the washing machine, through the four cylindrical control airflow outlet,
the first task is to separate a pile of wind, Reduce the wind resistance force, followed by the airflow drying surface body, has the characteristics of optimizing the wind speed, other traditional type fan is to increase the speed, but by the time it reaches the body, the wind has been minimized, in fact, high-speed airflow is the best drying solution.
the first task is to separate a pile of wind, Reduce the wind resistance force, followed by the airflow drying surface body, has the characteristics of optimizing the wind speed, other traditional type fan is to increase the speed, but by the time it reaches the body, the wind has been minimized, in fact, high-speed airflow is the best drying solution.
Friendly design of an machine interface.
* Light Emitting Diode with Voice Guidance
* Self Cleaning Mirror
* Error logs with data reports
* Automatic Standby Service
* Automatic Standby Service
*Multiple control modes (cleaning system can be operated by touch panel, magnetic card, payment
station button, remote control)Friendly design of an machine interface.
station button, remote control)Friendly design of an machine interface.
Customer Photos
Company scale and introduction
Company Profile
Shandong Boyou Automation Equipment Co., Ltd. is a high-tech enterprise specializing in manufacturing and selling China's automatic car washing machine. The company is located in Zhucheng Economic Development Zone, Shandong Province, with beautiful scenery and developed traffic. Our company is the development and manufacture of leading automatic car washing machine. It has won the favor of customers with its unique structure, beautiful appearance, excellent production and advanced technology. The company is committed to technology upgrading, improve the function and quality of products, the first through the ISO 9001 international quality management system certification, with a number of invention patents, welcomed by customers. The company has professional and technical personnel, engineers and sales and after-sales service personnel, forming a high-quality young, highly innovativeteam spirit. The company has always been "people-oriented, leading technology, integrity management, create a well-known brand" for the purpose, as always, to provide customers with reliable products, improve services, common development, and create success.
In today's increasingly competitive market, we take scientific research as the guide, technology as the guarantee, quality as the foundation, and perfect after-sales service as the guarantee to provide customers with better products and services. The company is willing to work with people from all walks of life to provide technical advice, planning, design, all over the friends came to discuss cooperation.
In today's increasingly competitive market, we take scientific research as the guide, technology as the guarantee, quality as the foundation, and perfect after-sales service as the guarantee to provide customers with better products and services. The company is willing to work with people from all walks of life to provide technical advice, planning, design, all over the friends came to discuss cooperation.
We participating in the exhibition
Contact information
Shandong Boyou Automation Equipment Co., Ltd. Address: Shandong Weifang Zhucheng East and South Outer Ring Intersection East 300m
Email: 18753671607@163.com
Email: 18753671607@163.com
Mobile: + 86-18753671607
whatsapp:+ 86-18753671607
WeChat: 18753671607
whatsapp:+ 86-18753671607
WeChat: 18753671607
Packing & Delivery
Common problem
Title goes here.
Q1: How do you control production quality?
A:We have an independent quality control team. Our Quality Control Team performs sample
inspection, parts inspection during production and 100% final inspection prior to each shipment.
inspection, parts inspection during production and 100% final inspection prior to each shipment.
Q2: Can I visit your companybefore I place an order?
A:Of course, welcome to visit Bo You Ai. Our factory is located in Shandong Province and our showroom is in Zhucheng City.
Q3: If I am an agent of Bo You AE, what kind of support can I get?
A: Reserve price, free catalogue and marketing gifts, on-site training.
Q4: Can I know the delivery time?
A: The lead time for our machines is 15 to 30 days.
Q5: What are your payment terms?
A:We accept Alibaba Trade Guarantee, TT, LC, etc.
Q6: Can you provide the entire workshop of automotive equipment?
A:Yes. We have 6 series containing almost all automotive equipment.
Q7: How long is the warranty?
A: Our warranty period is 48 months, we will send free parts for replacement during the warranty period and provide spare parts for life.
A:Of course, welcome to visit Bo You Ai. Our factory is located in Shandong Province and our showroom is in Zhucheng City.
Q3: If I am an agent of Bo You AE, what kind of support can I get?
A: Reserve price, free catalogue and marketing gifts, on-site training.
Q4: Can I know the delivery time?
A: The lead time for our machines is 15 to 30 days.
Q5: What are your payment terms?
A:We accept Alibaba Trade Guarantee, TT, LC, etc.
Q6: Can you provide the entire workshop of automotive equipment?
A:Yes. We have 6 series containing almost all automotive equipment.
Q7: How long is the warranty?
A: Our warranty period is 48 months, we will send free parts for replacement during the warranty period and provide spare parts for life.
