Распределительное устройство низкого напряжения
- Категория: >>>
- Поставщик: Henan Beiyoute Transformer Co. Ltd
Сохранить в закладки 1601266889810:
Описание и отзывы
Характеристики
BYT High and Low Voltage Switchgear is applied to receive and distribute the electrical energy in three-phase AC power system with rated voltage 3, 6, 10KV and rated frequency 50HZ, especially for the frequently operated occasion. Its busbar system is a single busbar (which can derive the single busbar with bypass and double busbar structure). The switchgear cabinet is in line with the requirements of the National Standards GB3906 3-35KV AC Metal-enclosed Switchgear and the international Standard IEC298.HXGN modular high-voltage switchgear cabinet is applied to receive and distribute the electrical energy in three-phase AC power system with rated voltage 3, 6, 10KV and rated frequency 50HZ, especially for the frequently operated occasion. Its busbar system is a single busbar (which can derive the single busbar with bypass and double busbar structure). The switchgear cabinet is in line with the requirements of the National Standards GB3906 3-35KV AC Metal-enclosed Switchgear and the international Standard IEC298.
Application Channels:
Widely used in industrial and civil cable ring networks and power terminals, as the reception and distribution of electric energy, especially suitable for urban residential area power distribution, small secondary power distribution stations, small opening and closing stations, industrial and mining enterprises, shopping malls, airports, subways, power stations, hospitals, stadiums, railways, tunnels and other places.
Applicable Environment:
Ambient temperature: high temperature 45°C, low temperature -35°C;
Daily temperature difference: no more than 25°C;
The average daily relative humidity does not exceed 95%, and the monthly average relative humidity does not exceed 90%;
Earthquake tolerance: earthquake intensity does not exceed 8°;
There is no fire, explosion hazard, chemical corrosion and severe vibration at the installation site.
Ambient temperature: high temperature 45°C, low temperature -35°C;
Daily temperature difference: no more than 25°C;
The average daily relative humidity does not exceed 95%, and the monthly average relative humidity does not exceed 90%;
Earthquake tolerance: earthquake intensity does not exceed 8°;
There is no fire, explosion hazard, chemical corrosion and severe vibration at the installation site.
Rated Voltage | KV | 7.2/12 | |||
Main Busbar Rated Current | A | 400;630;1250 | |||
Rated Current | Incoming Cabinet | A | 400;630;1250 | ||
Outlet Cabinet | A | 125 | |||
Rated Short time Withstand Current | KA | 20 | |||
Rated Peak Withstand Current | KA | 31.5 | |||
Rated Short Circuit Closing Current Peak Value | KA | 50 | |||
Rated Active Load Breaking Current | A | 630 | |||
Rated Closed Loop Breaking Current | A | 630 | |||
Rated Cable Charging Current | A | 10 | |||
Ground Switch Rated Short Time Withstand Current | KA | 20 | |||
Ground Switch Rated Peak Withstand Current | KA | 50 | |||
Ground Switch Rated Short Circuit Closing Current Peak value | KA | 50 | |||
Rated AC Current of Combination Apparatus | A | 3150 | |||
1min Power Frequency Withstand Voltage | Interphase Relative Vacuum Fracture | KV | 42 | ||
Isolating Distance | 48 | ||||
Lightning Impulse Withstand Voltage | Interphase Relative Vacuum Fracture | KV | 75 | ||
Isolating Distance | 85 | ||||
Mechanical Life | Vacuum Load Switch | time | 10000 | ||
Isolation Knife Grounding Knife | 2000 | ||||
Load Switch | Average Closing Speed | m/S | 0.6±0.2 | ||
Average Opening Speed | m/S | 1.1±0.2 | |||
Three-phase Different Phases | mS | ≤2 | |||
Fuse for Combined Appliances | Maximum Rated Current | A | 125 | ||
Rated Short Circuit Breaking Current | KA | 31.5 | |||
IP Code | IP2X | ||||
Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee, many samples are be requested to be sent, so we must get delivery fee.
If you tell me to use the appointed Express, you will give me your express account or you will pay according to the Express. If you do not request, I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality, we will make compensation for our customers.
2)We will suggest our packing and take charge in our packing, we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling, we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee, many samples are be requested to be sent, so we must get delivery fee.
If you tell me to use the appointed Express, you will give me your express account or you will pay according to the Express. If you do not request, I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality, we will make compensation for our customers.
2)We will suggest our packing and take charge in our packing, we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling, we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
Похожие товары

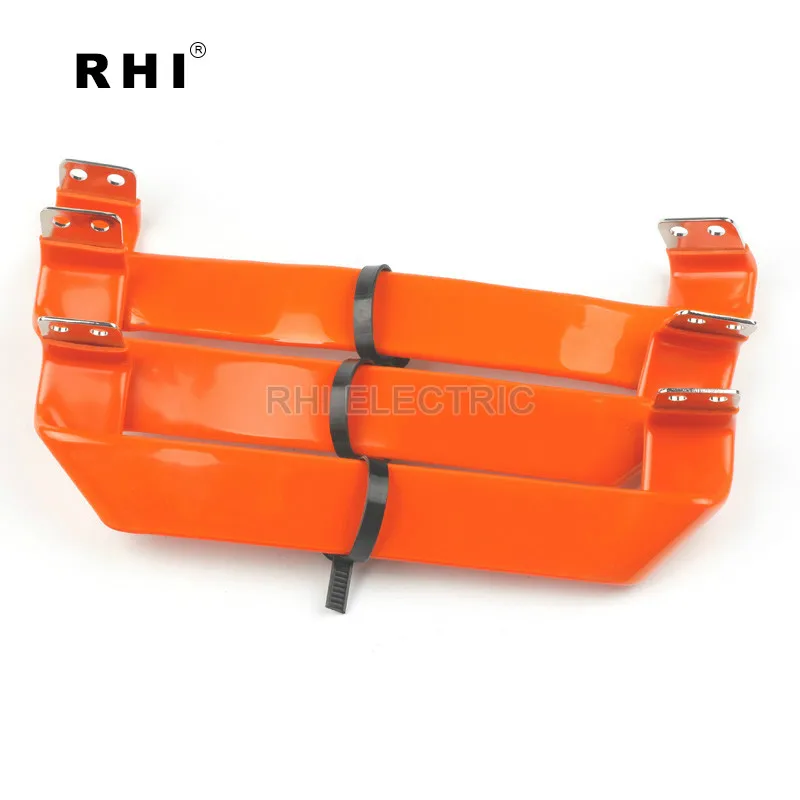

Гибкая изолированная медная ламинированная шина для литиевой батареи
8pt коммутатор сименс sivacon технологии встретился стандартом мэк

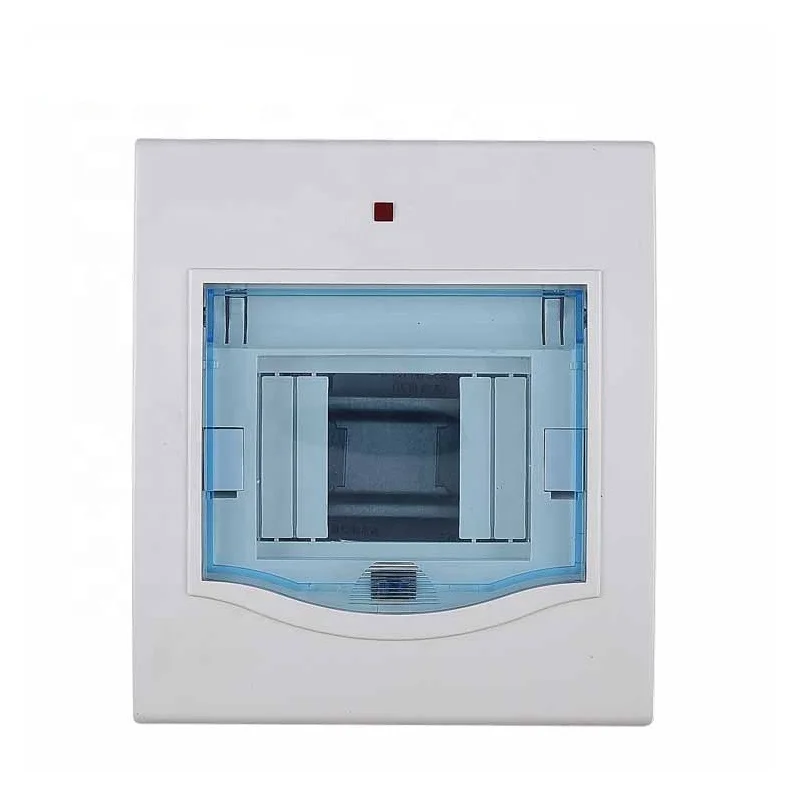

Высокое качество Встроенный бытовой низкого напряжения 4 способ пластиковый корпус распределительная коробка электронный
