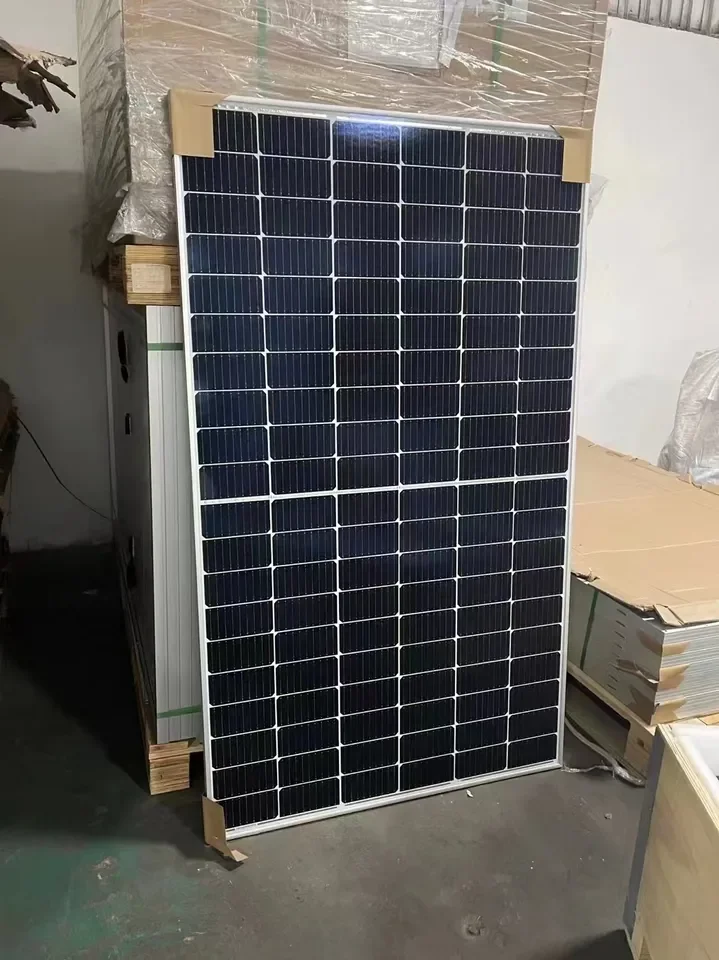

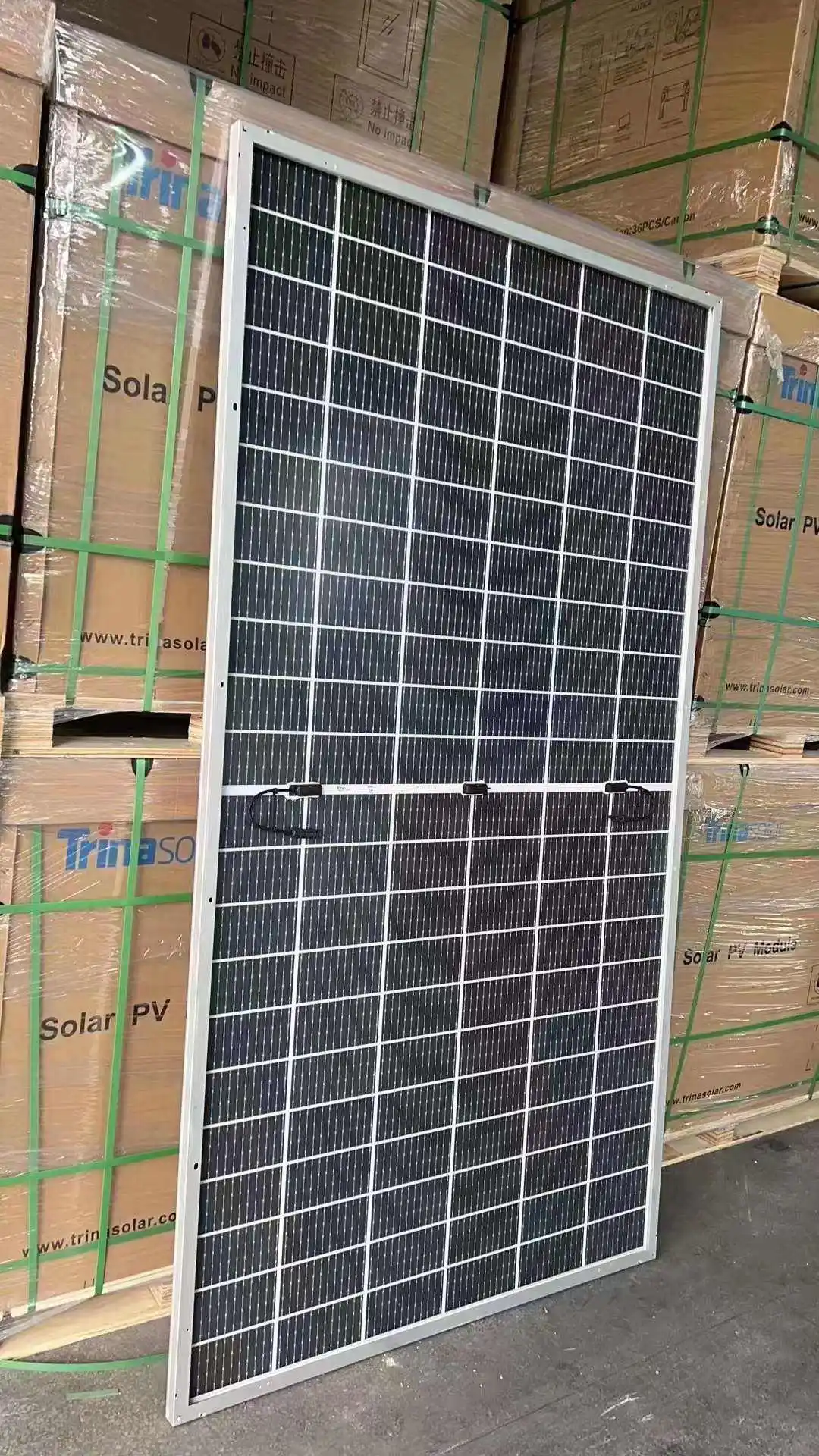

Купить фотогальваническая панель тринасолярная мощность 585 Вт 605 Вт монокристаллический солнечный модуль двулицевой двойной стеклянный Солнечный панели 1000 цена
- Категория: >>>
- Поставщик: Hefei Sunrise New Energy Co. Ltd.
Сохранить в закладки 1601266932632:
Описание и отзывы
Характеристики
Product description
Product Paramenters
Mechanical Characteristics | ||||||||
Cell type | Monocrystalline | |||||||
Number of half Cell | 120cells | |||||||
Module Dimension | 2172×1303×33mm | |||||||
Module Weight | 34.9kg | |||||||
Front Glass | 2.0 mm (0.08 inches),High Transmission, AR Coated Heat Strengthened Glass | |||||||
Back Glass | 2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass) | |||||||
Junction Box | IP68 Rated | |||||||
Output wire | Photovoltaic Technology Cable 4.0mm2,Portrait: 350/280 mm | |||||||
STC | ||||||||||
Module Number | TSM-NEG20C.20 625W~650W | |||||||||
Maximum Power(Pmax) | 585Wp | 590Wp | 595Wp | 600Wp | 605Wp | |||||
Optimum Operating Voltage(Vmp) | 34.0V | 34.2V | 34.4V | 34.6V | 34.8V | |||||
Optimum Operating Current(Imp) | 17.21A | 17.25A | 17.30A | 17.34A | 17.39A | |||||
Open-circuit Voltag(Voc) | 41.1V | 41.3V | 41.5V | 41.7V | 41.9V | |||||
Short-circuit Voltage(Isc) | 18.26A | 18.31A | 18.36A | 18.42A | 18.48A | |||||
Module Efficiency(%) | 20.7% | 20.8% | 21.0% | 21.1% | 21.4% | |||||
Operating Temperature(℃） | -40℃~+85℃ | |||||||||
Maximum System Voltage | 1500VDC (IEC) | |||||||||
Maximum Rated Fuse Current | 35A | |||||||||
Output Power Tolerance | 0~+5% | |||||||||
Pmax Temperature Coefficient | -0.34%/℃ | |||||||||
Voc Temperature Coefficient | -0.25%/℃ | |||||||||
Isc Temperature Coefficient | 0.04%/℃ | |||||||||
NOCT | 43℃±2℃ | |||||||||

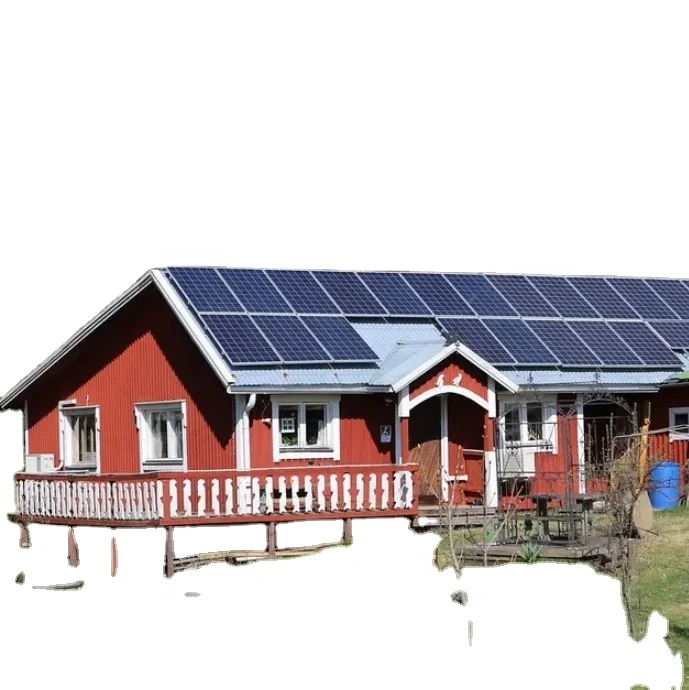

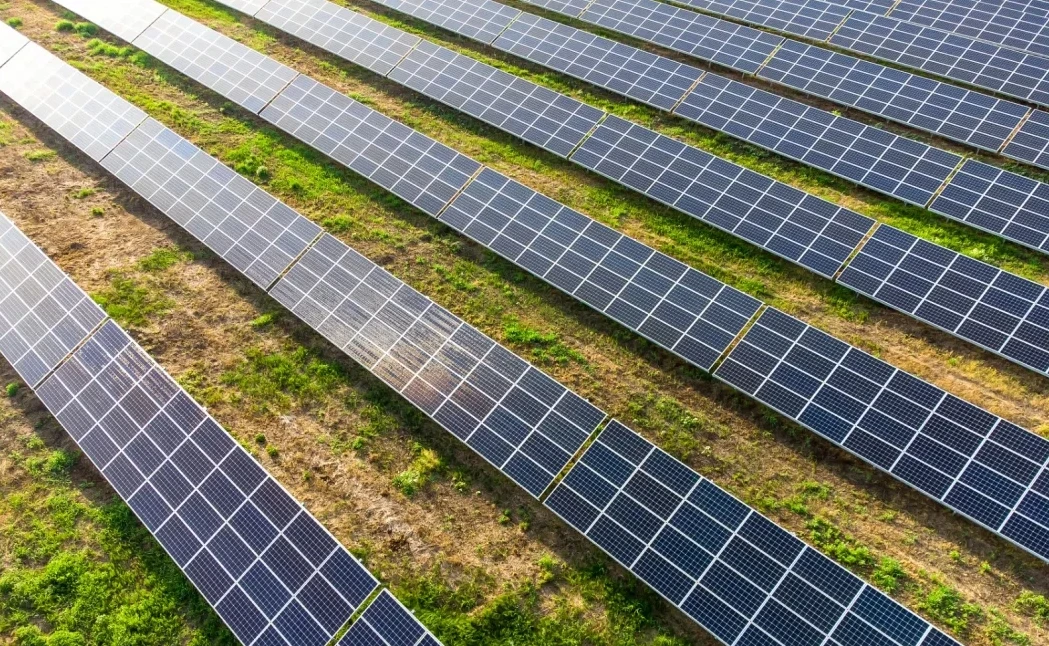

Application program
Certifications

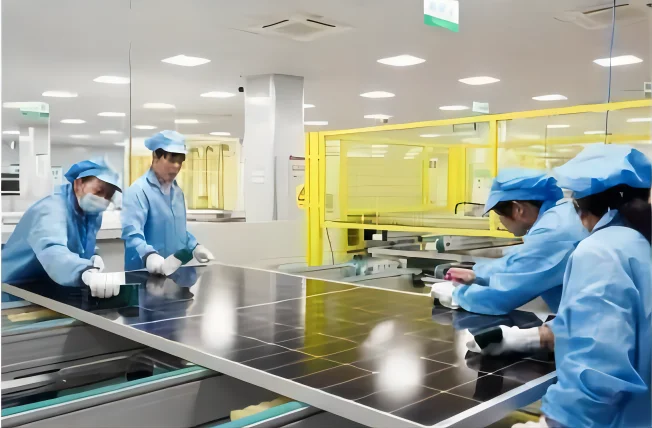

Company Profile
Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city, Anhui province. Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.
Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.
To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.
Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa, etc. Aalso have got certificates of TUV ,CE, CQC, etc.
To complete the most intimate cooperation, we will provide customers with the best quality products & service, and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.
Our strength
1. 10 years experience of PV products, cheaper price.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.
2. We provide very fast delivery after order confirmed.
3. Professional technical team support.
4. One-stop photovoltaic product solutions to provide.
5. Complete certificates.
6. Provide ODM/OEM service.
7. Long warranty and after-sales service.

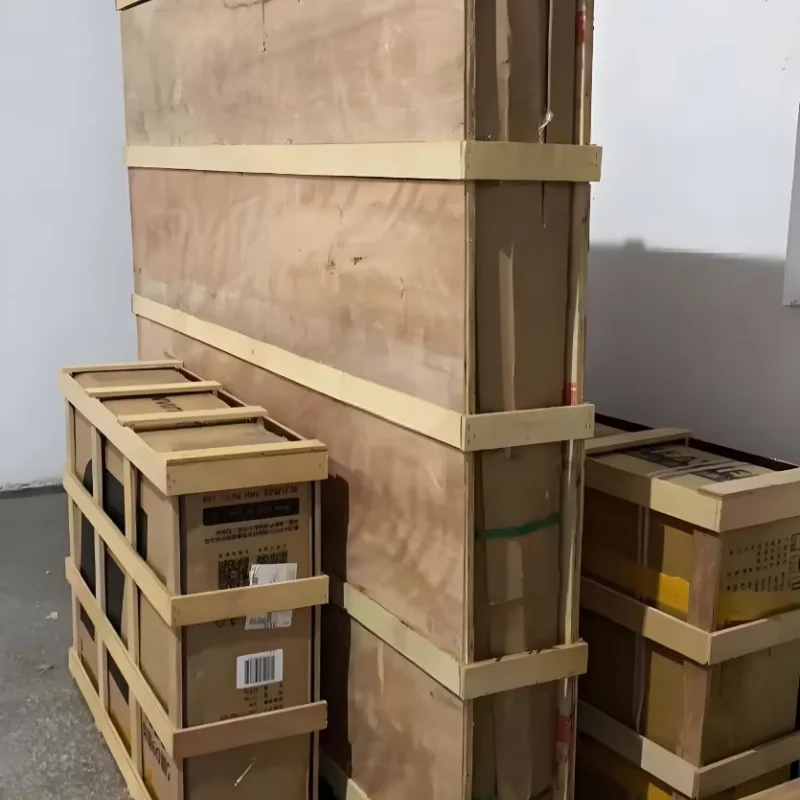

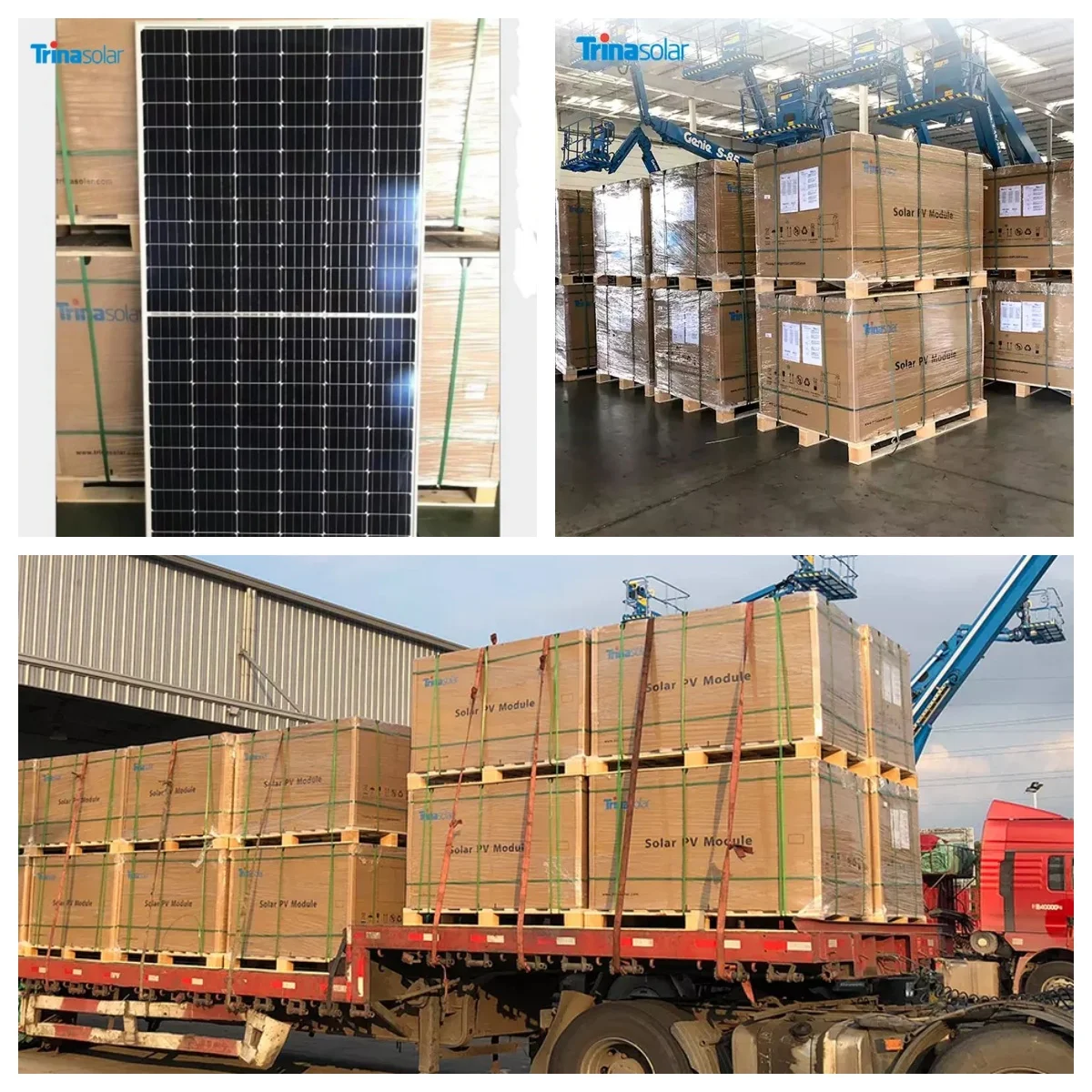

Packaging and Shipping
FAQ
Q1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.
Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.
Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.
Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.
Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power Accessories.
Q2. Are you a factory or trading company?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line, can ensure superior supply capacity.
Q3. How can you guarantee your product quality?
We will provide a pre-production sample before mass production. Each product will after several inspection procedures before shipment.
Q4. Could you print our company logo in nameplate and package?
Yes ,we can customized your logo according to your design and request.
Q5. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.
Похожие товары

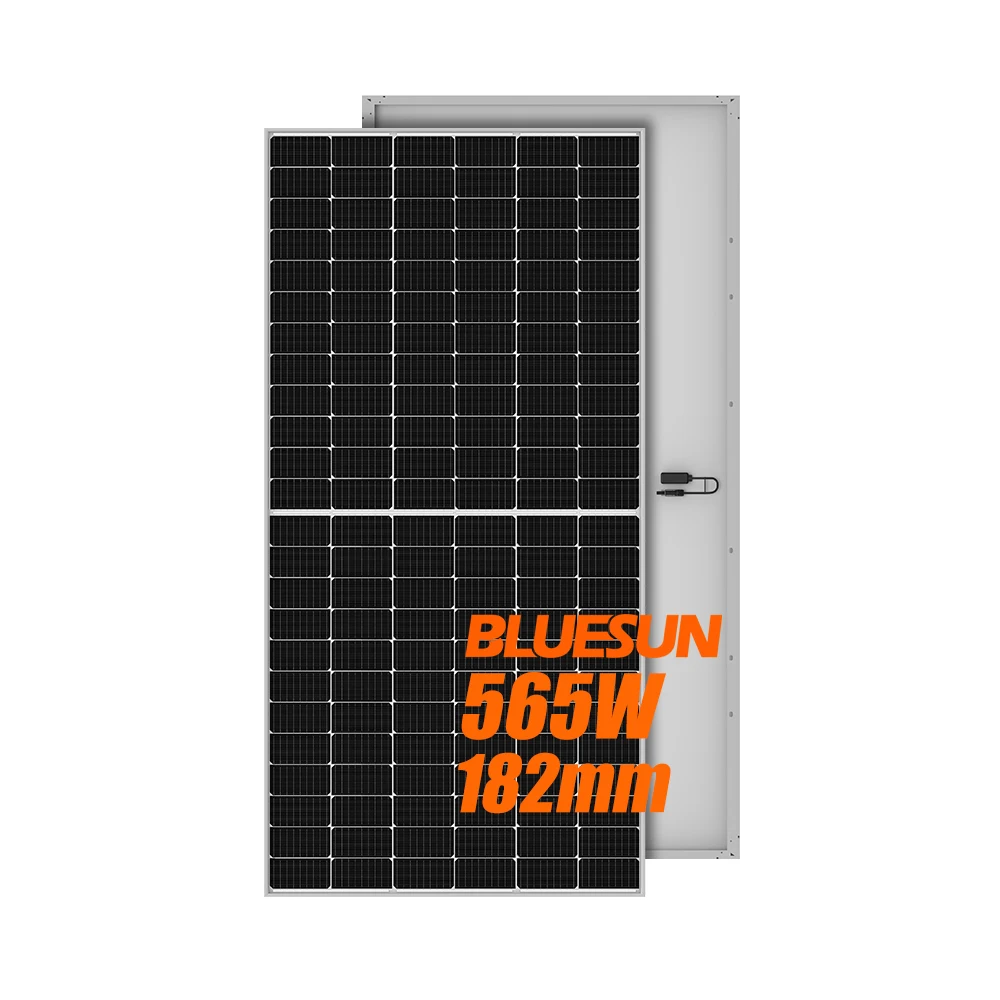

Bluesun Лидер продаж и дешевые моно 560 Вт 565 570 солнечные панели модули для дома
17,75 ₽ - 19,97 ₽

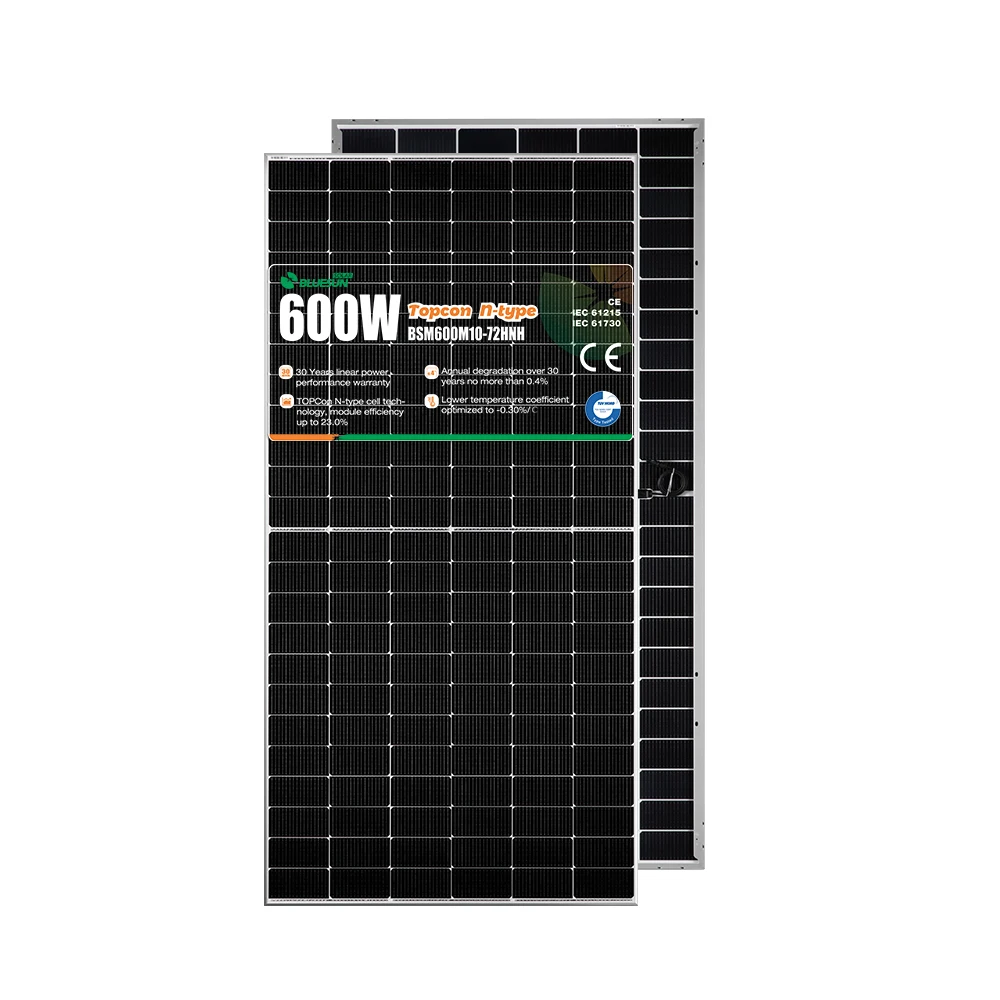

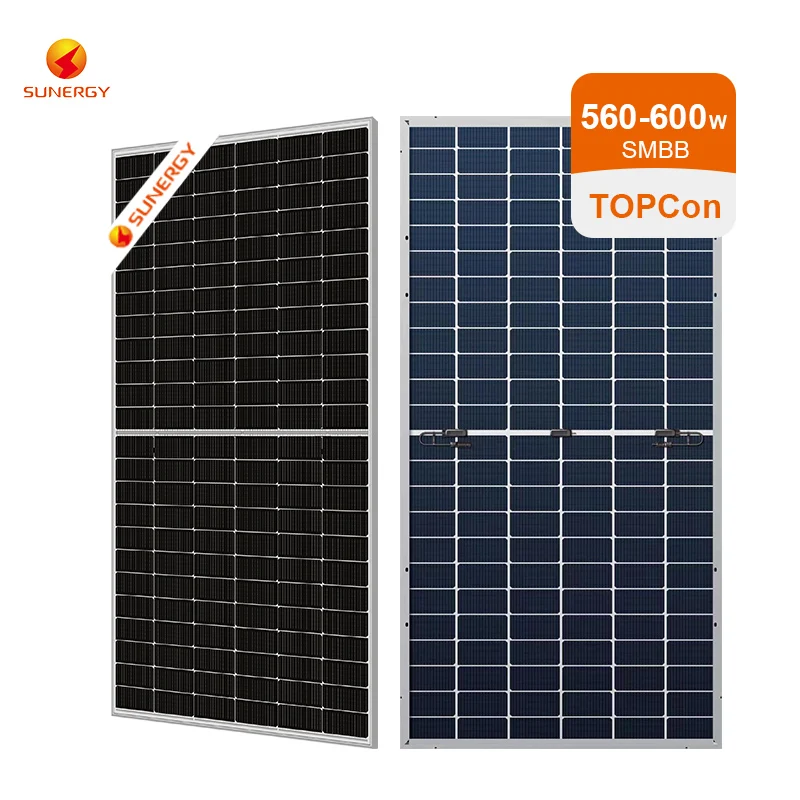

Недорогие солнечные панели N-типа 570 Вт 575 580 topcon Фотоэлектрические модули Китай
12,21 ₽ - 13,32 ₽
Купить bluesun paneles solares 550 Вт 750 1000 дешевые солнечные панели 10 кВт Китай стоим комплект для дома
6 101,02 ₽ - 7 321,22 ₽

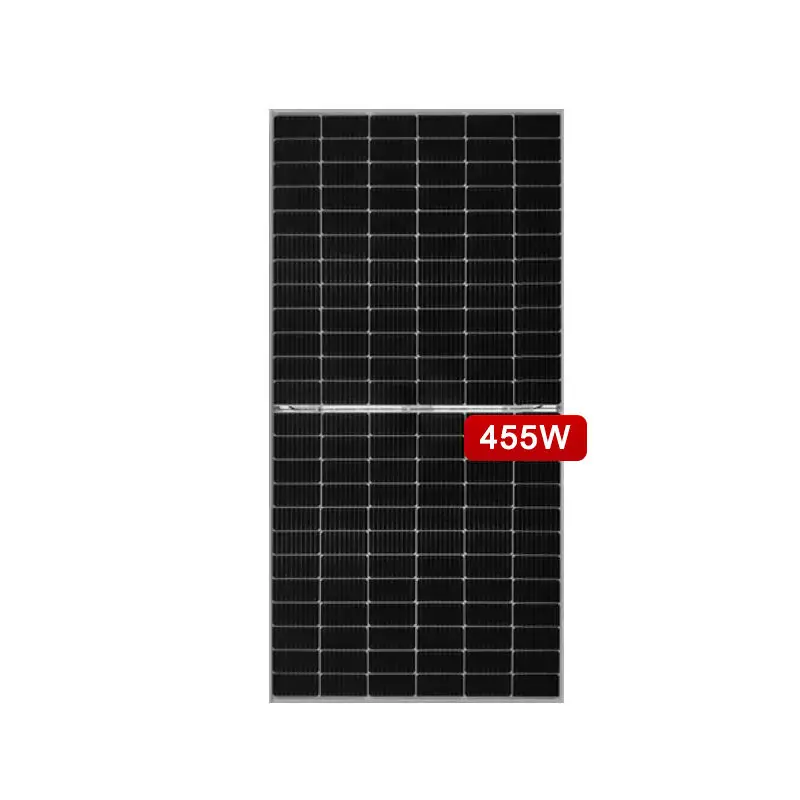

Китайские RM-430W 440 Вт 450 1500VDC 120 ячеек солнечные панели для домашнего использования дешевые крыша
18,86 ₽ - 19,97 ₽
Bluesun Новые поступления дешевые солнечные панели 550 Вт цены купить для дома
7 986,78 ₽ - 8 652,35 ₽
Дешевая канадская 675W 680W 685W 690W 695W 700 W 705W купить Ватт двухсторонняя солнечная панель Trina цена из Китая Прямая
7,77 ₽ - 11,10 ₽

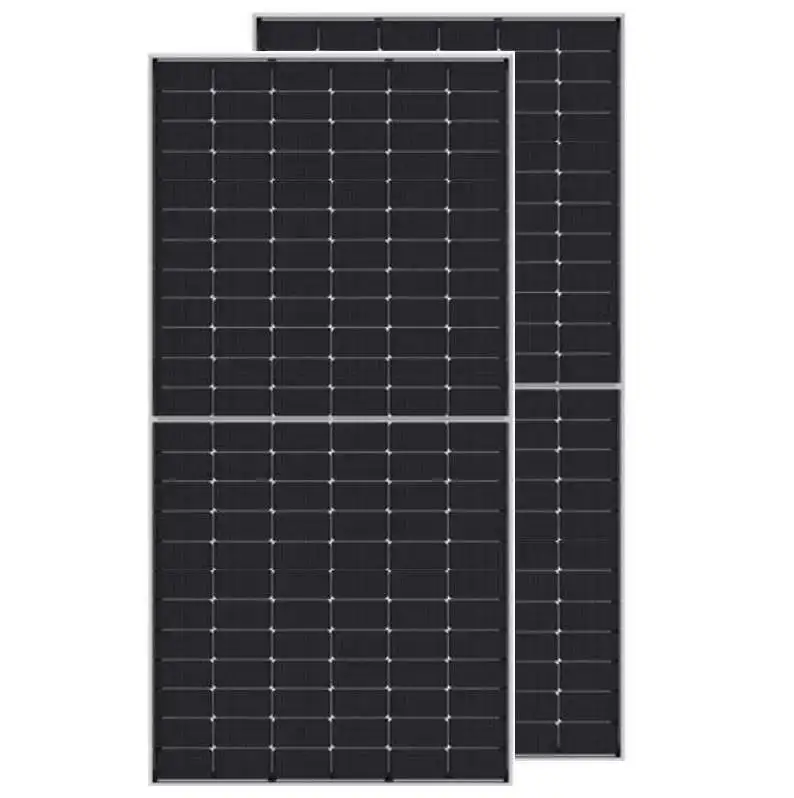

Прямая поставка с завода низкая цена 560w 565W 570W 575W 580W моно солнечная панель для солнечной системы
