Products Description

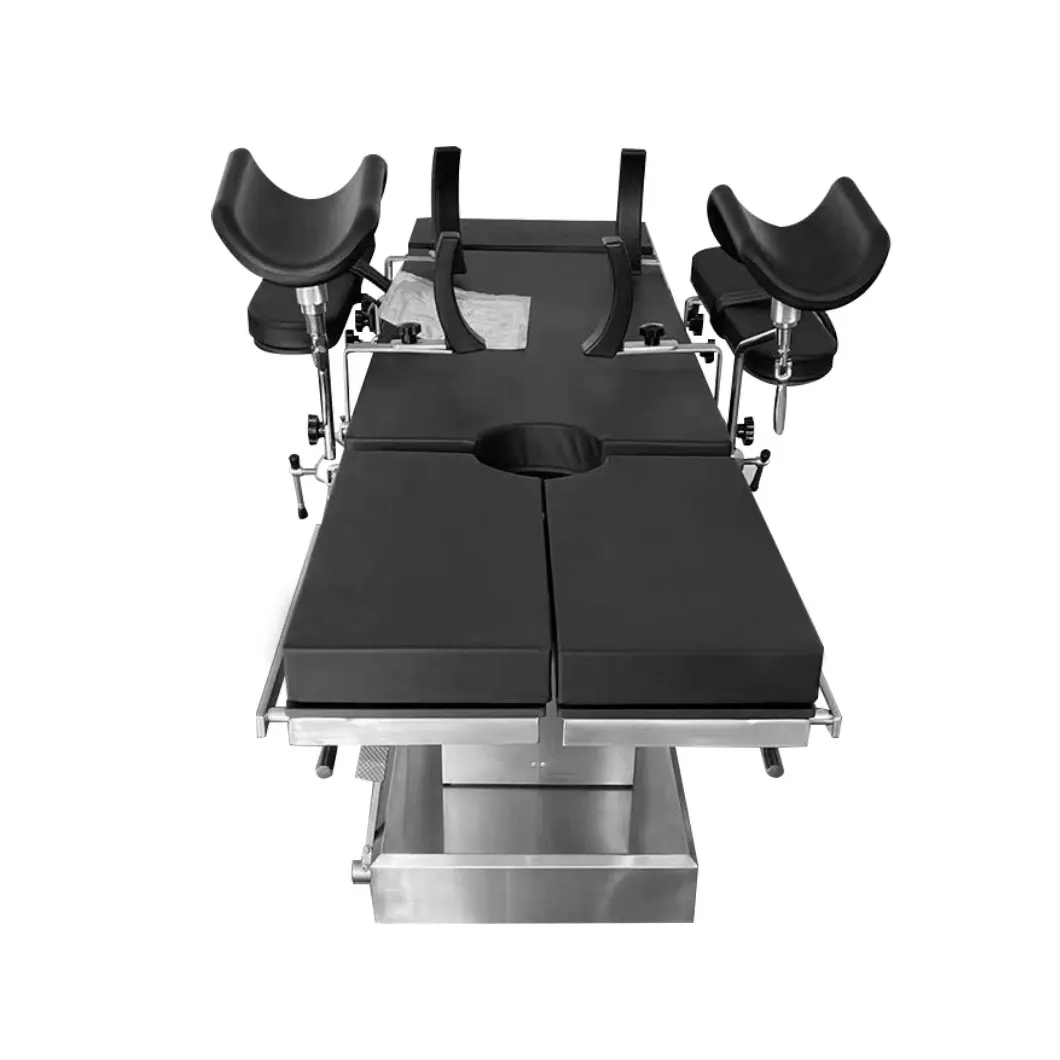

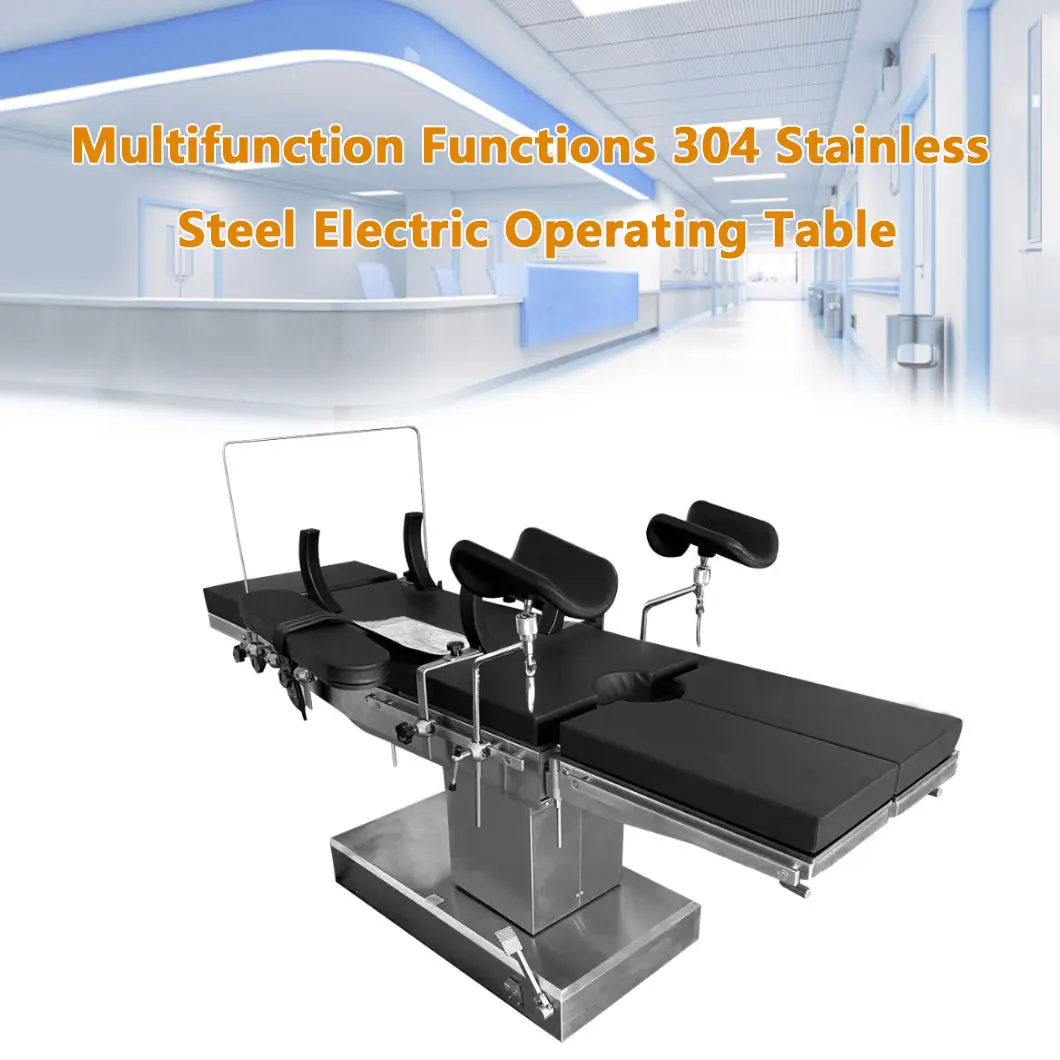

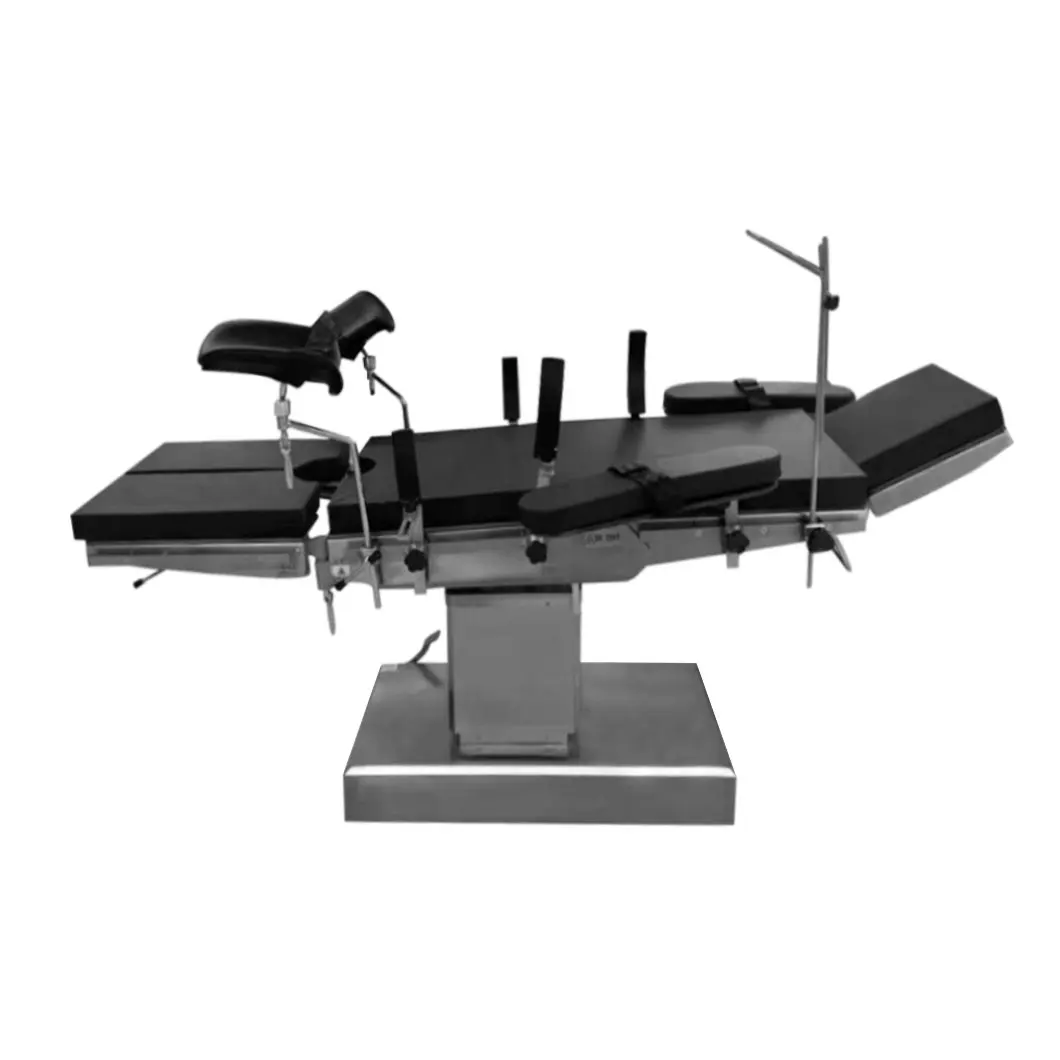

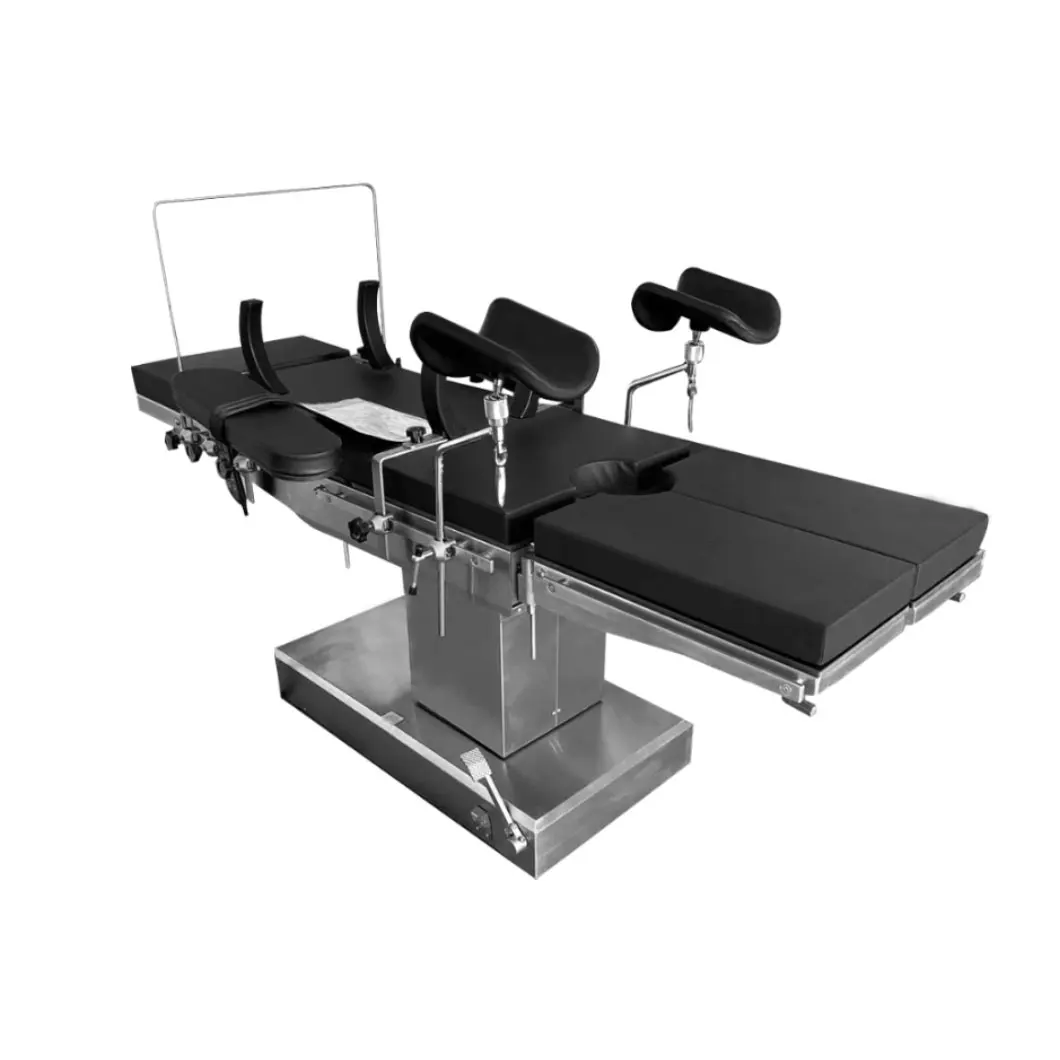

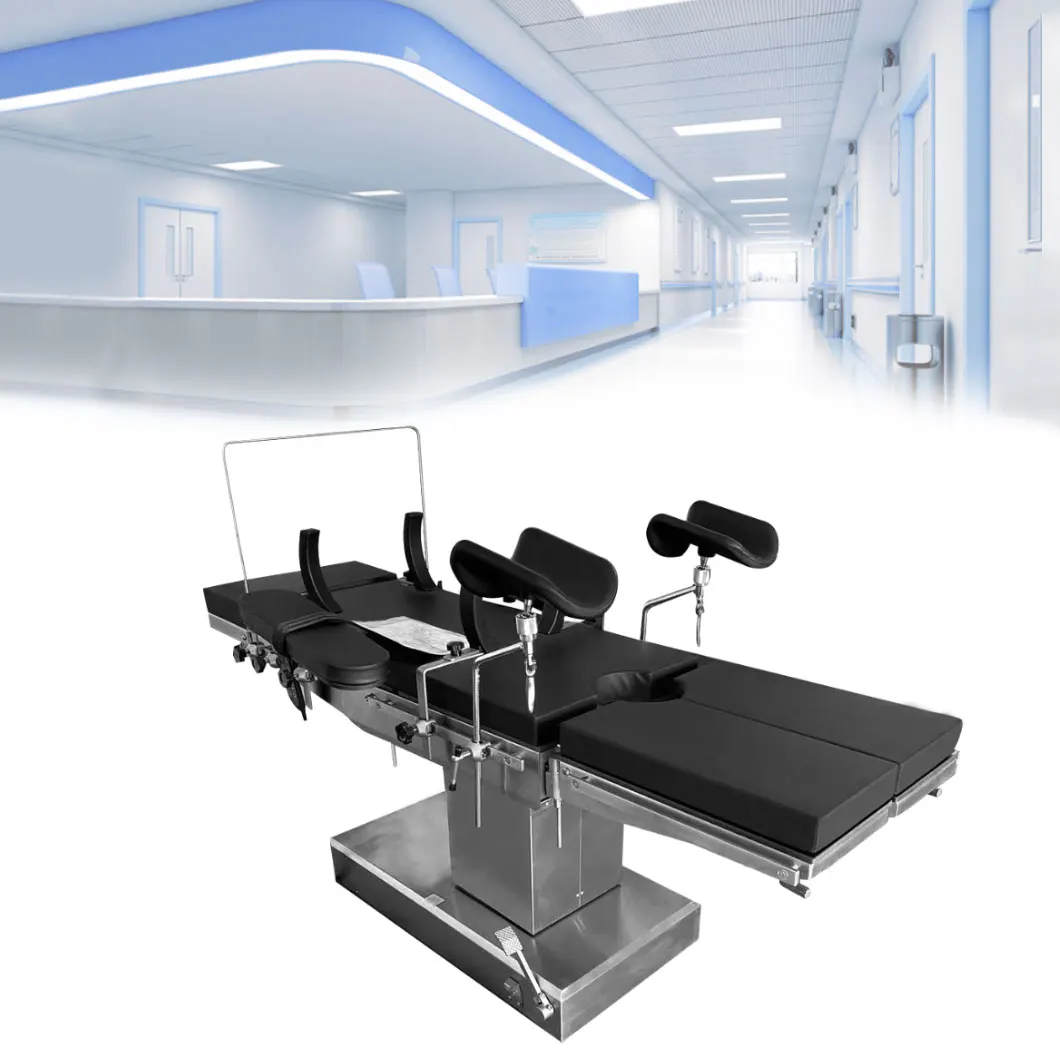

HDS-4000 Multifunction Stainless 304 Steel Electric Operating Table
Product introduction:
The electric comprehensive operating table is used for comprehensive operations such as chest and abdomen, surgery, brain surgery, ophthalmology, otolaryngology, obstetrics and gynecology, and urology.
The product has unique advantages:
1. The main body position adjustments such as table top lifting, forward and backward tilt, left and right tilt, and back-up and back are all realized by button operation and electric push rod transmission;
2. The countertop is made of high-quality acrylic board, and the mattress is made of slow rebound memory foam, whichis comfortable and beautiful; the memory foam mattress can evenly share the pressure of the load, and has the advantages of corrosion resistance, acid and alkali resistance, ventilation, and easy cleaning. It can be shaped naturally according to the patient' s body temperature, effectively preventing the patient from producing bedsores.
3. The leg plate can be detached, manually rotated and abducted, folded down, easy to adjust, very convenient for urological surgery;
4. The head and leg plates are detachable for easy operation and provide more flexible operation space;
5. The handheld manipulator uses 24V DC voltage, which is easy to operate, safe and reliable;
6. The operating table is made of medical grade 304 stainless steel, and the surface is treated with special matt, which is more modern and easier to clean;
7. High-strength stainless steel bottom cover, strong pressure resistance, anti-corrosion, and easy to clean;
8. The base of the operating table has a fixed or mobile function, with wheels on the bottom, which can move flexibly and be fixed reliably;
9. The table can be equipped with a built-in lumbar bridgeto provide convenience for bile and kidney operations;
10. The main actions of the operating table: the table top is raised and lowered, the front of the table is tilted, the table is tilted to the left and right, and the back board adopts an electric device, which is composed of a controller, an electric push rod, etc.; Gas spring control operation; lumbar plate lifting mechanical control.
11. The electric control part is mainly composed of power supply, control button box, etc. The power supply used in this operating table is: the external 220V alternating current is transformed into 24V direct current through the power supply to drive the motor.
Technical parameters | ||||||||
Table length and width | 2020(±20)×500(±20)mm | |||||||
Table height | Minimum 650(±20)---Maximum 950(±20)mm(electric) | |||||||
The table is tilted to the left and right (side tilt) | ≥20° (electric) | |||||||
Rated load | 135kg | |||||||
Pan function | none | |||||||
Waist bridge lifting 120mm (±10) | ||||||||
Tilt in front of the platform ≥25°, tilt ≥20°(electric) | ||||||||
Folding on the back panel: ≥75°Folding down: ≥15°(electric) | ||||||||
Folding on the head plate≥35°Folding down≥90°(manual) | ||||||||
Fold down the leg plate: 90° shaft type can be expanded and 180° detachable (manual) | ||||||||
Product Image
Customer Feedbacks
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
Похожие товары

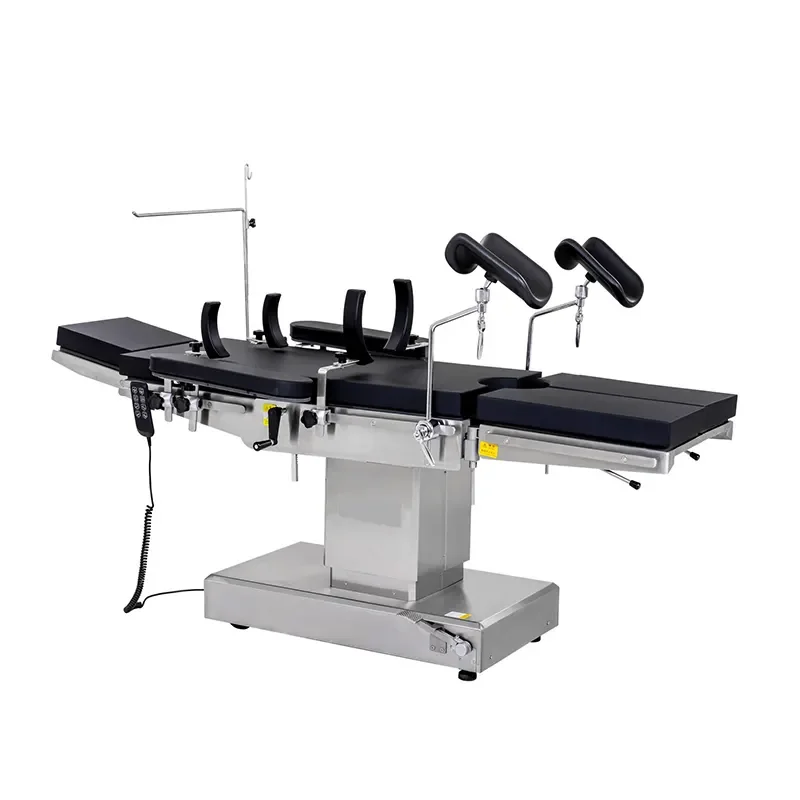

Медицинский театр кровать хирургический операционный стол Электрический гидравлический
144 205,75 ₽ - 149 752,13 ₽

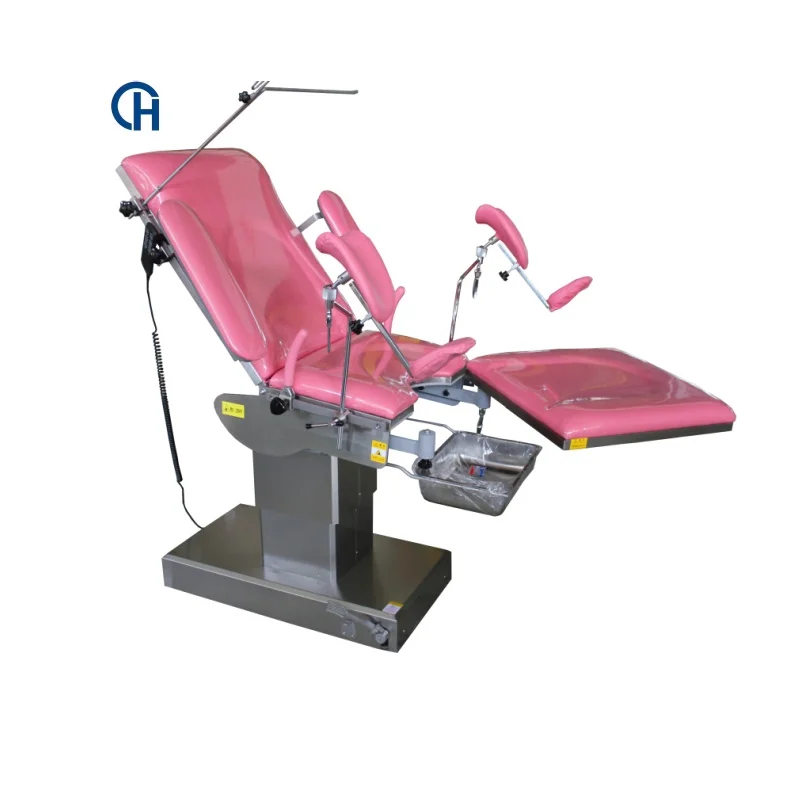

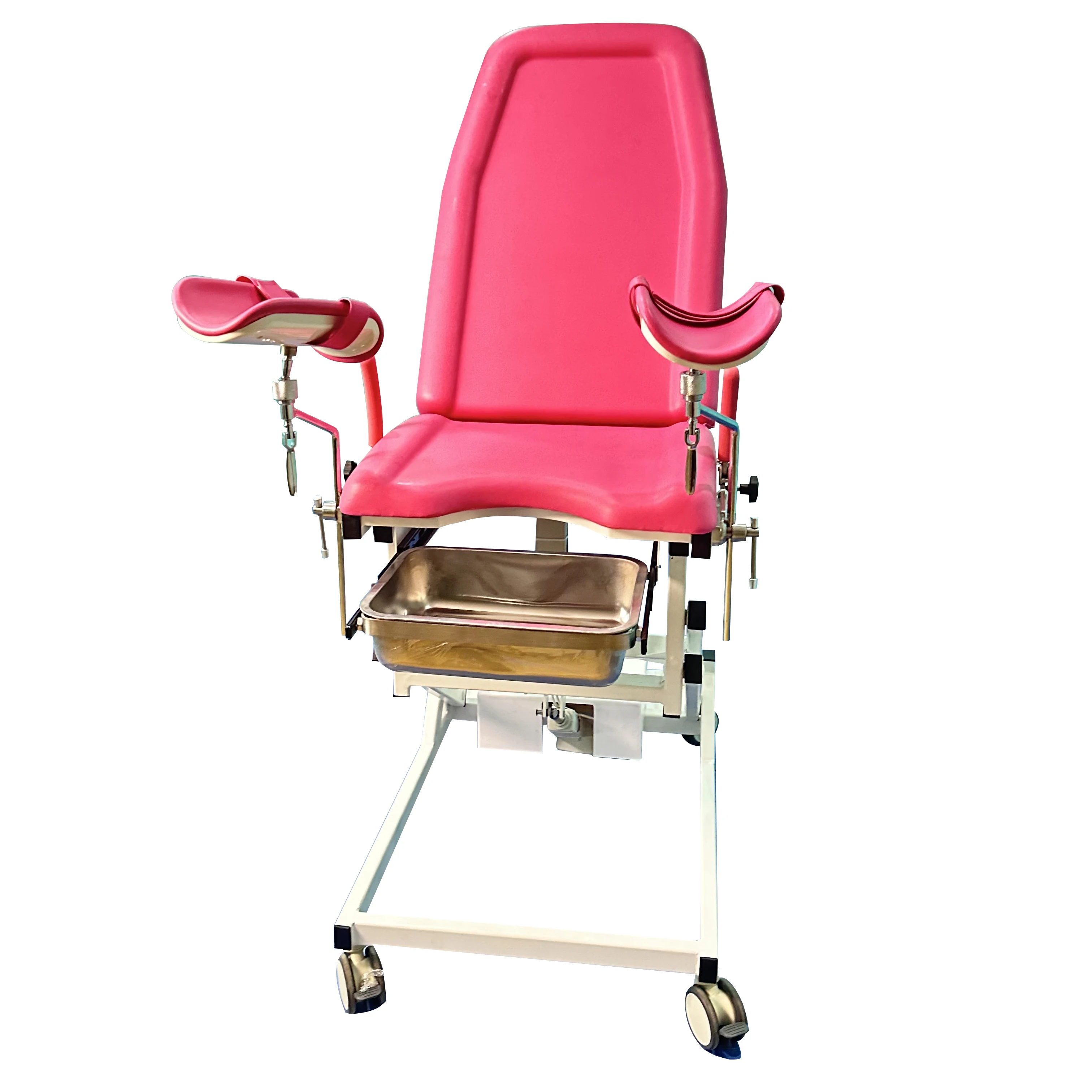

Медицинский акушерский операционный стол гинекологический стул для родов Электрический
90 516,84 ₽ - 101 831,45 ₽

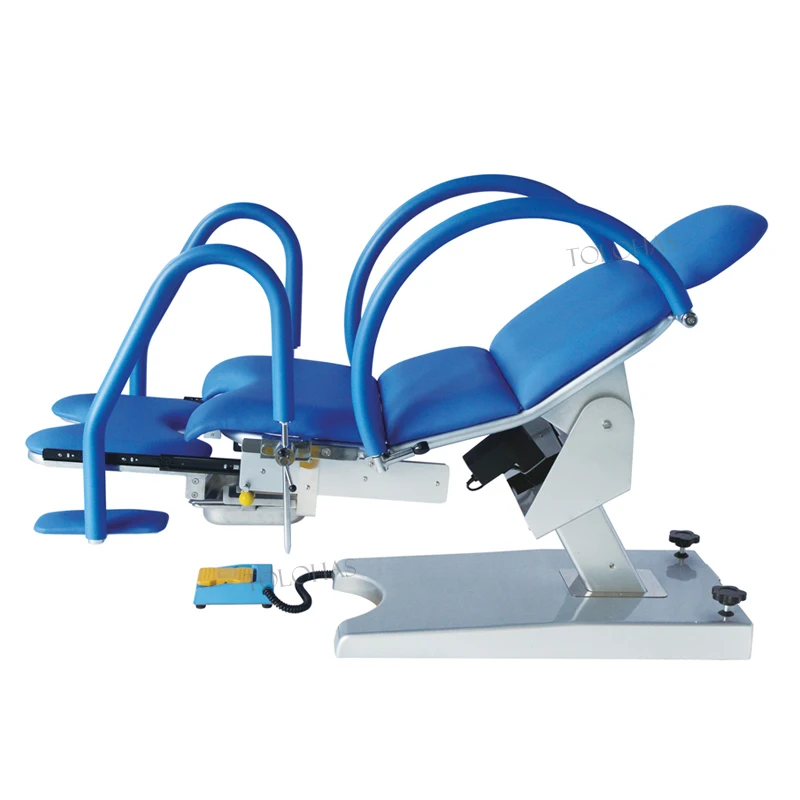

Электрогинекологическое Акушерское кресло для родовспоможения операционный стол
99 834,75 ₽ - 122 020,25 ₽

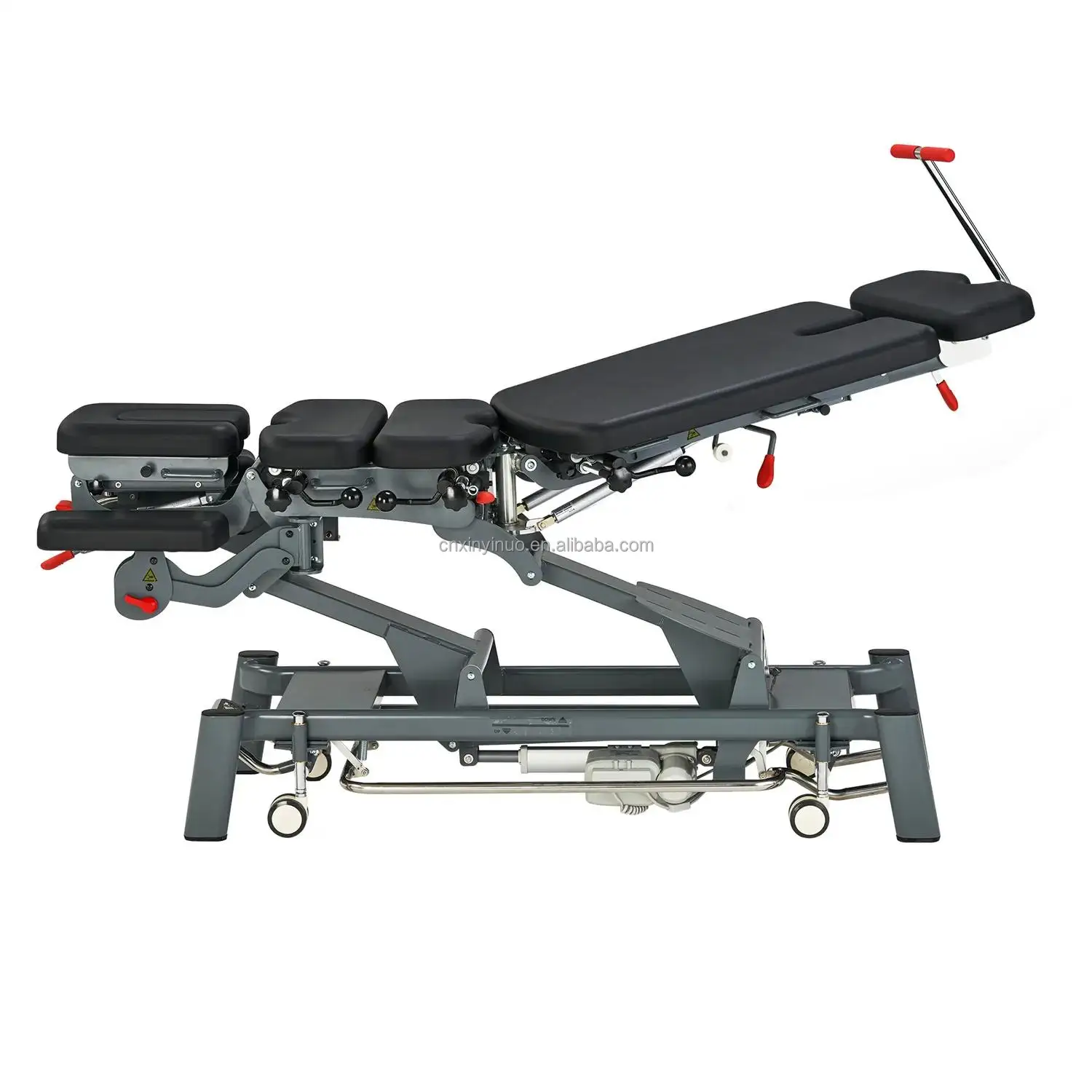

4-секционная электрическая кушетка для лечения позвоночника
