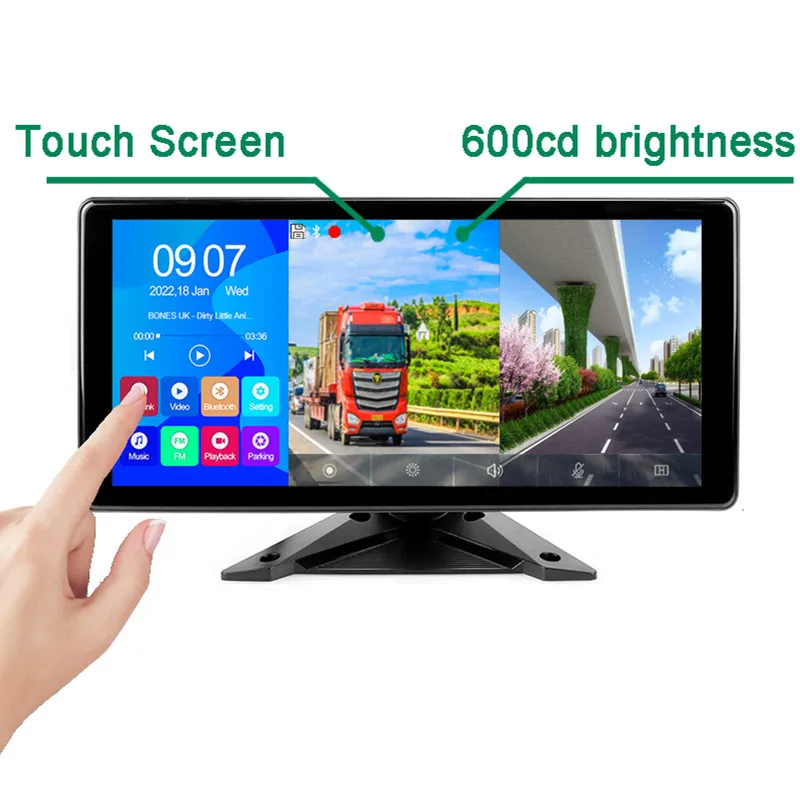

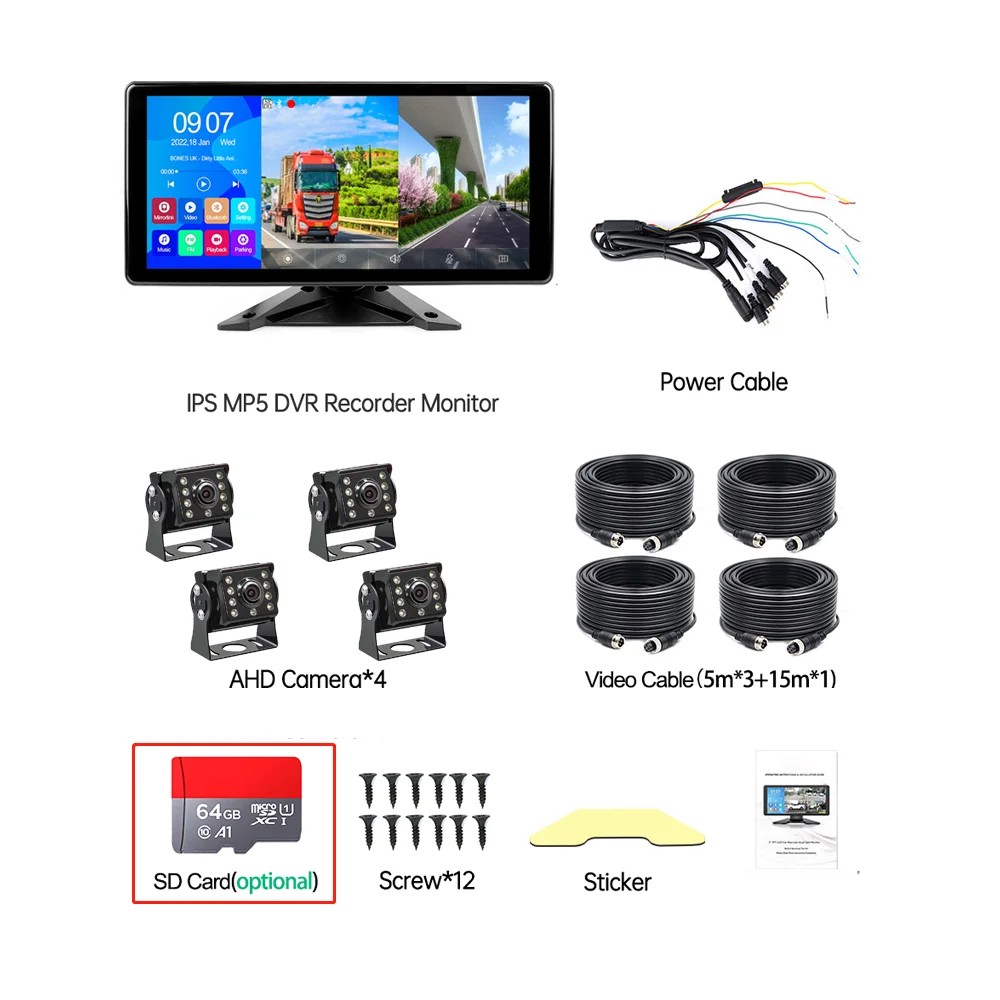

10.36 inch touch screen dvr monitor and camera set (with video recording function)
Product Description
The KM1036-1 four-way camera captures images of the vehicle's surroundings simultaneously via four wide-angle cameras mounted inside/outside the body, with a driving recorder function that can be transmitted to the all-in-one in real time. With this system, the driver can visually see obstacles and pedestrians around the vehicle, effectively reducing accidents such as scrapes, collisions and traps.
The car comes with entertainment functions, which can provide drivers with multimedia entertainment experience, video playback, music playback, FM transmission, etc.
The Siren's self-researched mobile phone interconnection function can realize the user's mobile phone to cast screen operation on the all-in-one machine, and the all-in-one machine can reverse control the mobile phone, making the operation more intelligent and convenient; Baidu Carlife, intelligent navigation and other Android platform functions are easily realized on the KM1036-1 four-way all-in-one machine.
The car comes with entertainment functions, which can provide drivers with multimedia entertainment experience, video playback, music playback, FM transmission, etc.
The Siren's self-researched mobile phone interconnection function can realize the user's mobile phone to cast screen operation on the all-in-one machine, and the all-in-one machine can reverse control the mobile phone, making the operation more intelligent and convenient; Baidu Carlife, intelligent navigation and other Android platform functions are easily realized on the KM1036-1 four-way all-in-one machine.
Details Images
Main Interface
Product Usage
Item | Function profile | Performance indicators |
Systems | Operating Interface | Multi-language support |
Mode of operation | Touch | |
Language of operation | Multi-language support | |
Video input | Video input | 4 x AHD HD video inputs |
Video input | Video method | Default power-on recording without missing a second |
Video formats | 2K H.264 video with 4 separate video channels | |
Video display | Real-time display | 10.36" HD IPS screen, 1600*720 |
Video display | 10 multiplexed view display modes | |
Native Playback | Local playback, view at any time | |
Screen Protection | Can be set for 1 minute / 5 minutes / off | |
Local Entertainment | Music | Supports playback of local music from a USB stick, with multiple looping options |
Video | Supports playback of local videos on USB sticks and full screen playback | |
Trigger display | Trigger display | Automatic switch to the corresponding camera view |
Multimedia | BT | Supports BT linking to mobile phones, playing mobile music and other functions |
FM | FM transmitter for connecting to the car radio to play music | |
Monitoring | One Second One Shot | Optional 1/3/5/8/24 hour surveillance recording |
Video storage | TF card | CLASS10 U1, minimum 64GB, maximum support 256GB |
Audio section | Microphone | Microphone recording support, menu can be set off |
Voice control | Support voice control, menu can be set off | |

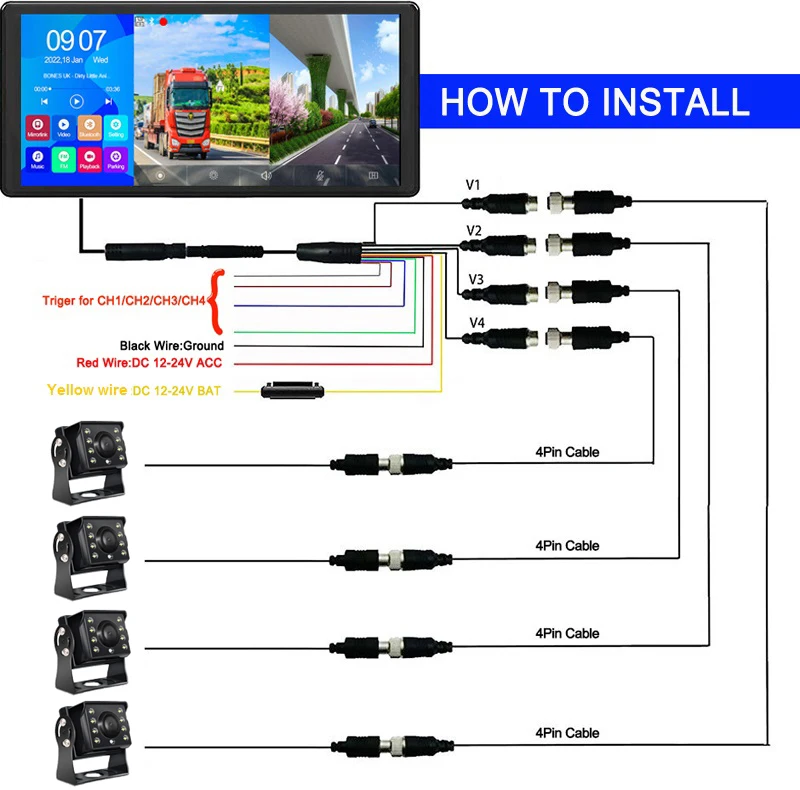

Power supply section | Power input | Support 9V~36V wide voltage, with automotive grade surge, overload, overvoltage, undervoltage, short circuit and other power protection circuits, suitable for various vehicle power supply environments. |
Overall power consumption | Engine testing | ACC Inspection Line |
4-channel video | Less than 10W (on-screen display, 4-way camera recording) | |
Other | Operating temperature | -20 to 65 degrees |
Heat dissipation methods | Passive heat dissipation | |
Reversing line | Adjustable | |
Video length | Video recording length can be set | |
Channel trigger delay | Settable steering signal delay | |
Screen mirroring | Mirror display for each of the four screens, menu settable | |
License plate settings | Support |
Company Introduction
Shenzhen(Zhongshan) Koen Electronics Co., Ltd has over 10 years of experience in OEM and ODM of auto electronics. Our products involved in rear view mirrors, front & rear cameras for cars, monitors and cameras for medium/heavy duty vehicles, dash cameras and brake light cameras, parking sensors and wireless camera systems, etc.
Our Services & Strength
Our Services & Strength
1. 360 camera systems for cars, buses and trucks. With or without Android car radio.
2. Reverse camera or dash camera for cars, buses, truck, with or without recording function.
3. Rearview mirror for cars, with cameras, parking sensors, dash cameras.
4. Monitor with or without recording function for cars, trucks and buses.
1. 360 camera systems for cars, buses and trucks. With or without Android car radio.
2. Reverse camera or dash camera for cars, buses, truck, with or without recording function.
3. Rearview mirror for cars, with cameras, parking sensors, dash cameras.
4. Monitor with or without recording function for cars, trucks and buses.
FAQ
1. Q: Are you a factory or trading company?
A: We are a OEM/ODM factory.
2. Q: Can I get some samples?
A: Sample order is welcome.
Price would be negotiated bassed on bigger quantity.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product . All parts from us warranty time is 12 months
4. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size of your order.
5. Q: Why choose you?
A: 1)We provide 7*24-hour customer service.
2)Professional English Spanish Portuguese .
3)We focus on design, high quality, fast lead time, competitive price.
♥ If you want to know more about our products and company, welcome to contact us at any time.
Once you choose to work with us, you will enjoy helpful technical support from us.
Any of your question will be replied within 24 hours.
All of our rearview mirrors, we offer 12 months of guarantee.
so, if you cannot see the product you are looking for, please contact us today!
Related Products
Похожие товары

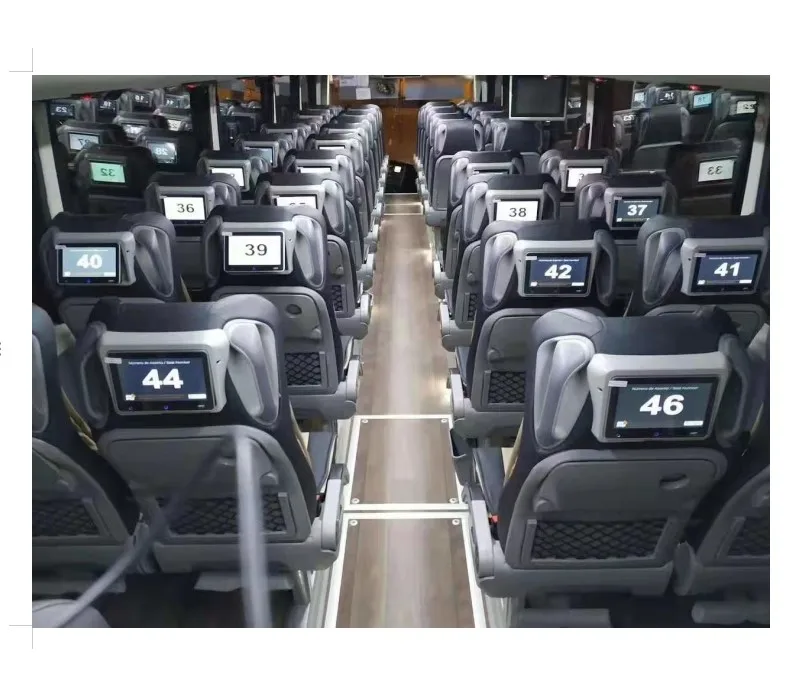

2019 Шэньчжэнь TAMO 10 1 дюймов для Автобусного Сиденья развлекательной системы видео по запросу Для Автобус/поезд
21 381,44 ₽
Монитор с сенсорным экраном
8 662,23 ₽ - 9 320,12 ₽

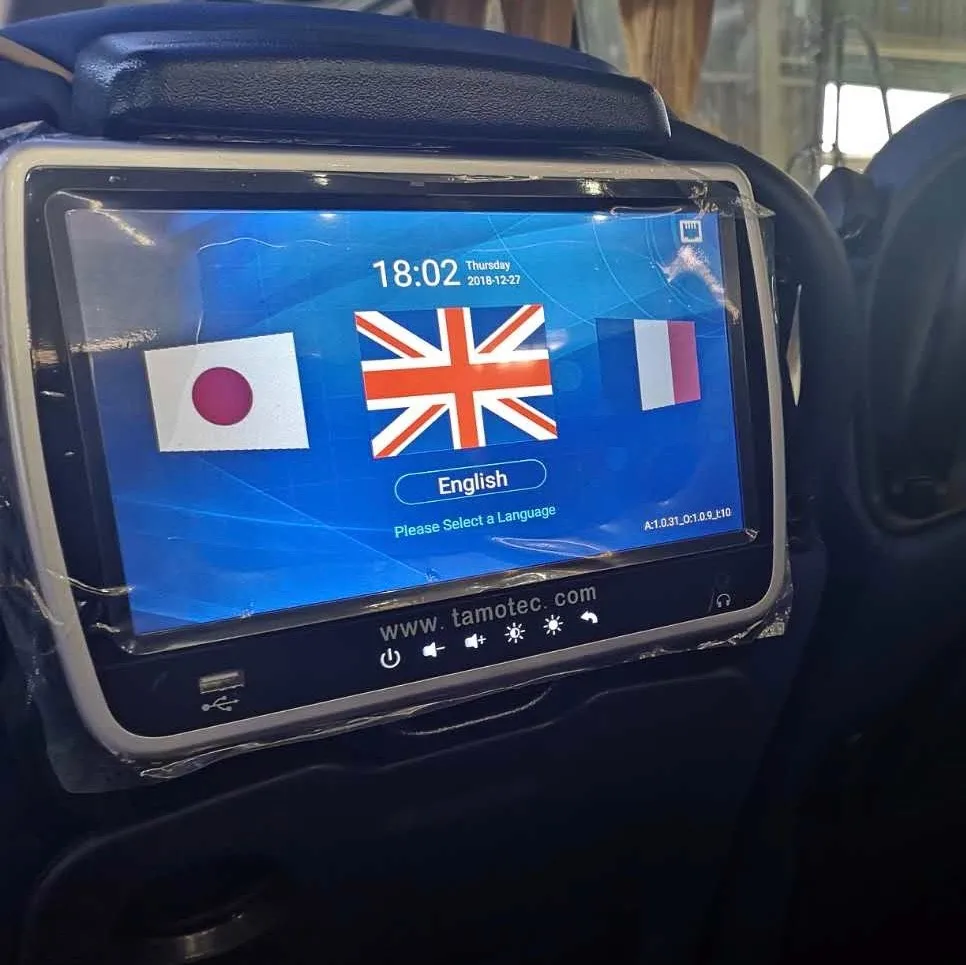

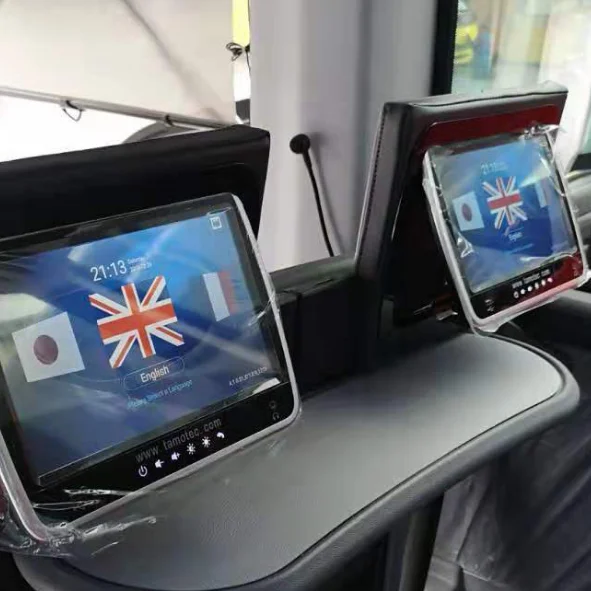

2019 новый продукт Android 6 0 10 1 дюйма развлекательная система заднего сиденья автобуса
21 381,44 ₽
Новый автомобильный монитор заднего вида и аксессуары цифровой камеры видео радионяня беспроводной Автомобильная камера для Volkswagen Golf
9 868,36 ₽ - 13 256,50 ₽
2024 Новый 11 6/12 2 дюймов ЖК-экран IPS Широкоэкранный монитор Android автомобильное ТВ верхний пульт дистанционного управления Автомобильное потолочное крепление автомобильный на крыше автомобиля

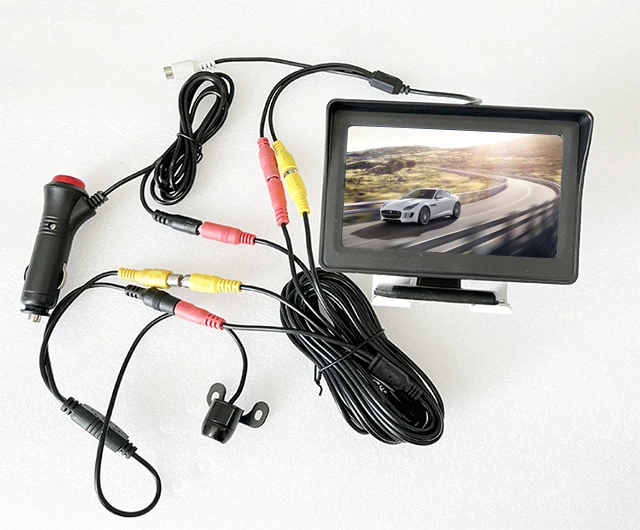

Прямые продажи с фабрики 4 3 дюймов AV Настольный дисплей также камера прикуриватель шнур питания легко проводка обратного мониторинга
712,72 ₽ - 899,12 ₽

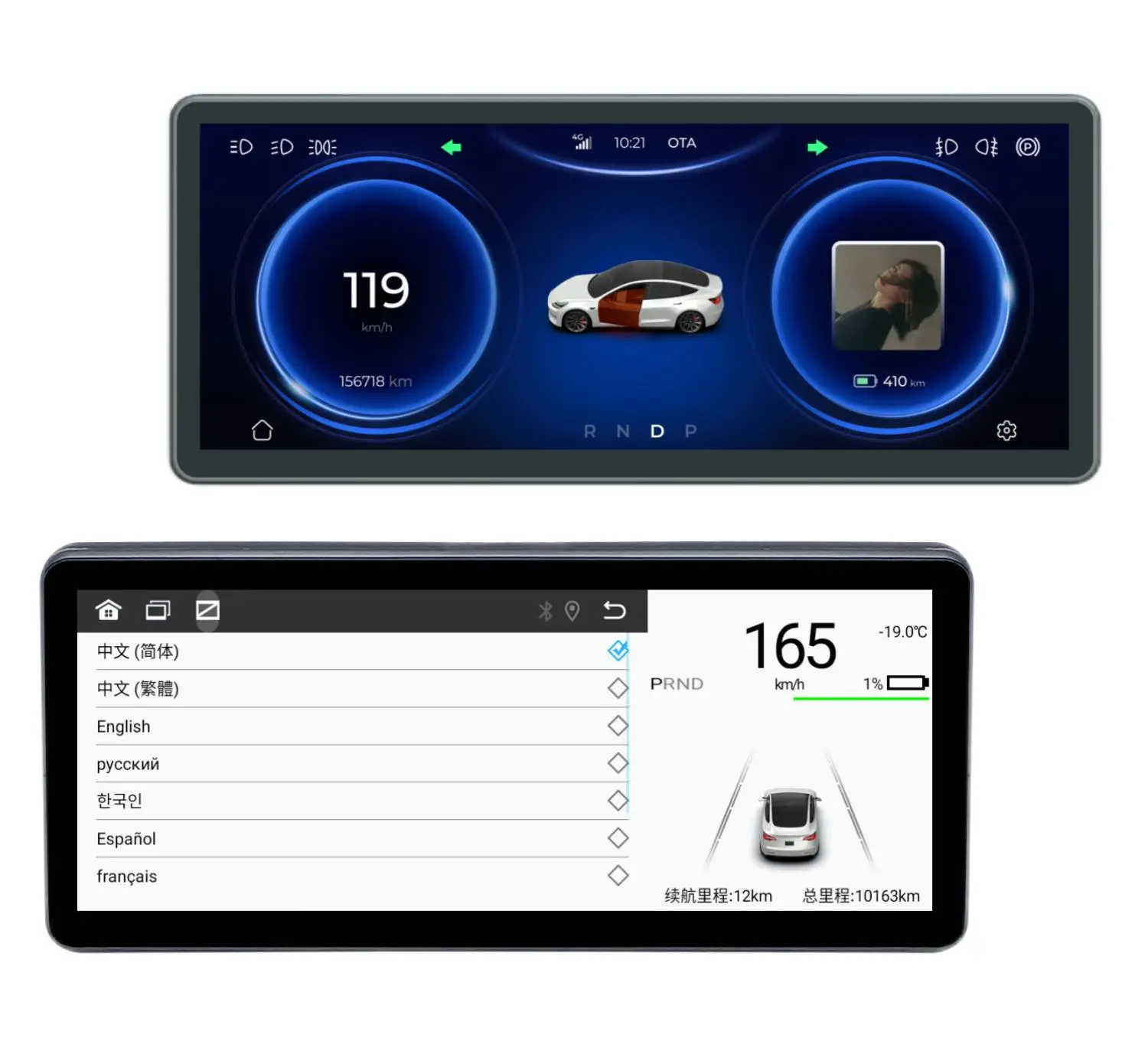

Новое поступление подходит для tesla y экран автомобиля Электрический цифровой инструмент кластер приборной панели ooled
