Многофункциональный AKJ1325F 2 Двойной лазерный источник металла и дерева акриловая машина для резки кожи CO2 волоконно лазерной

Сохранить в закладки 1601267198559:


Цена:11 500,00-12 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Sales manager :Laura zhang



Product Description


Multi Functions AKJ1325F-2 Dual Laser Source Metal and Wood Acrylic Leather Cutting Machine CO2 And Fiber Laser Cutting Machine

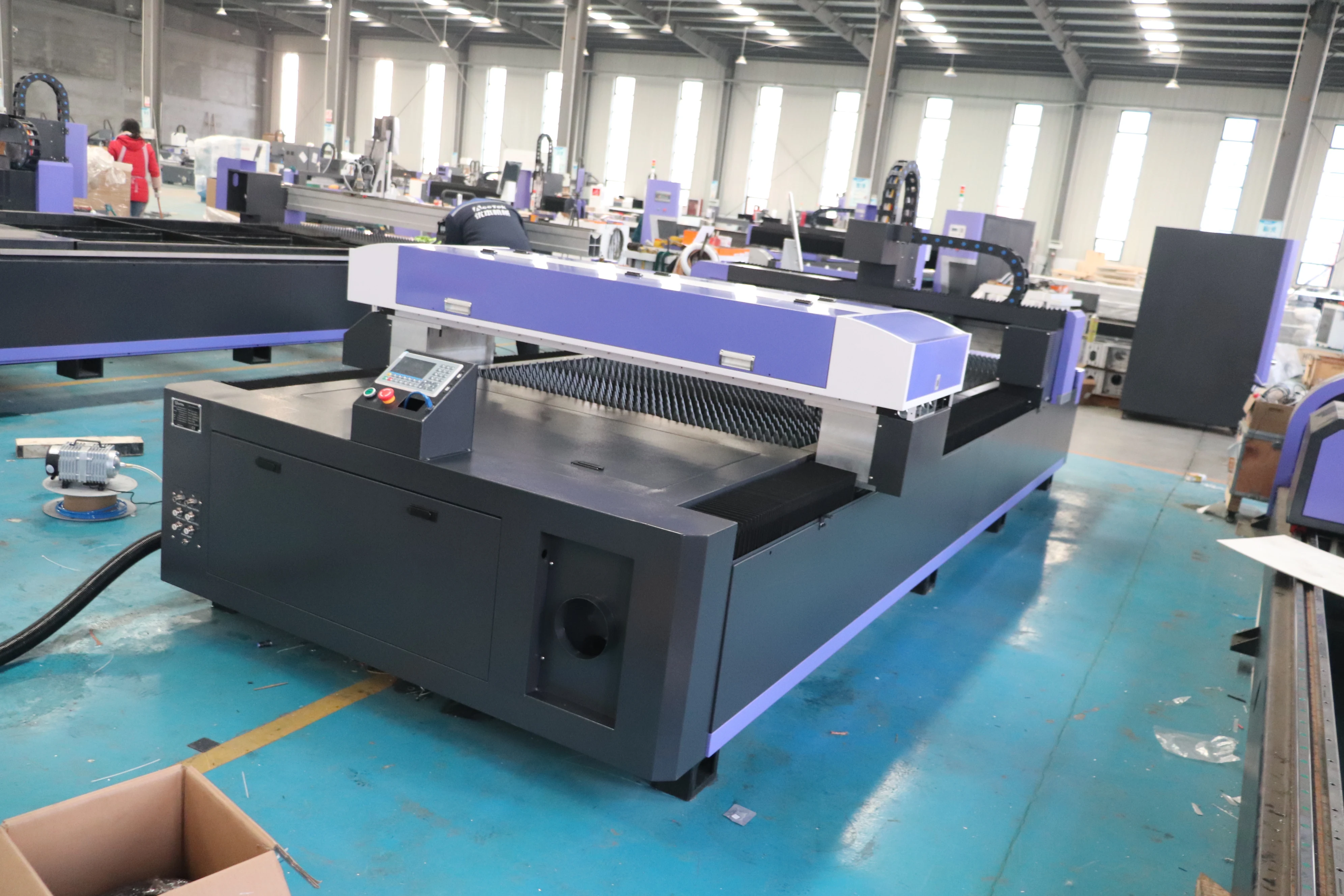

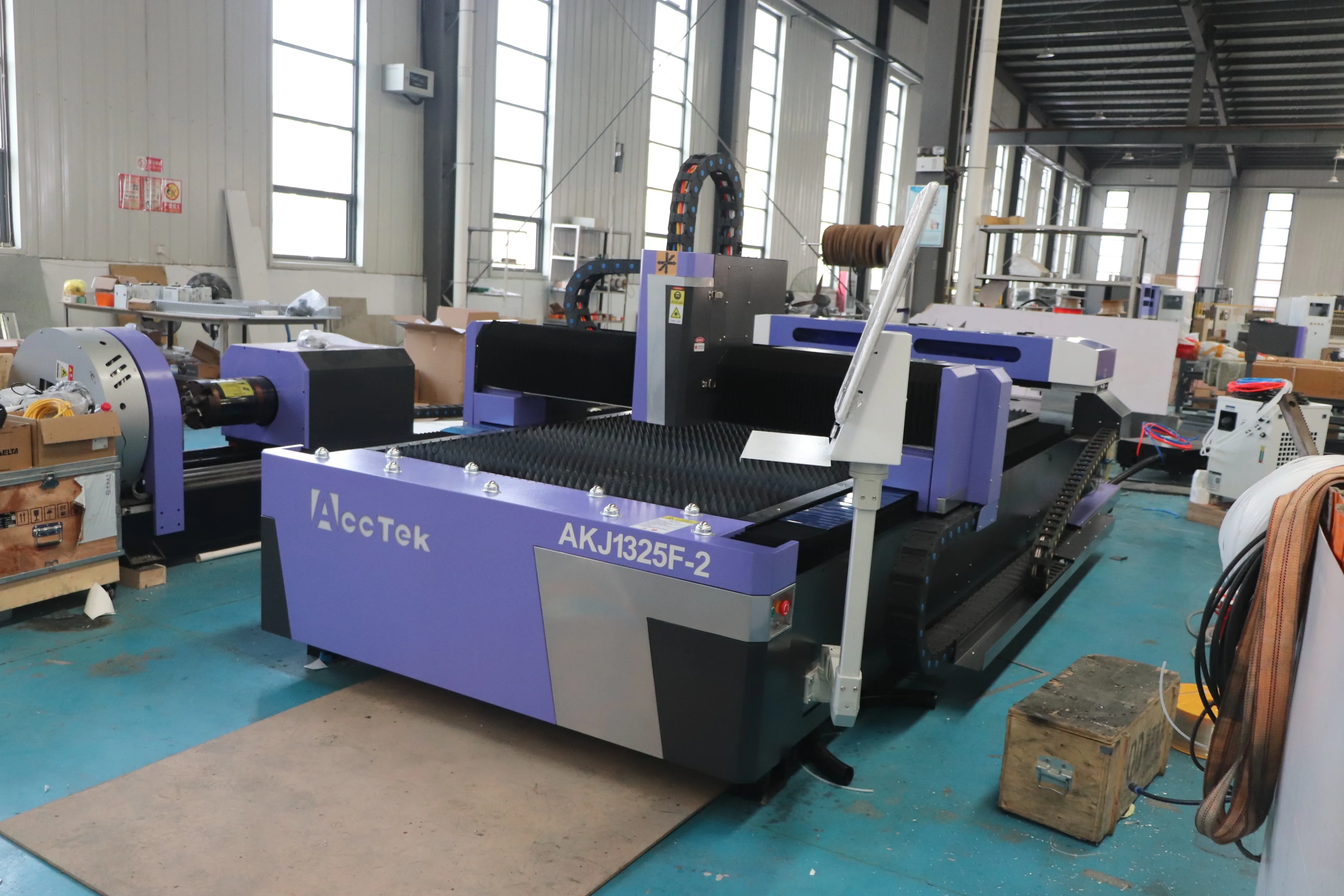

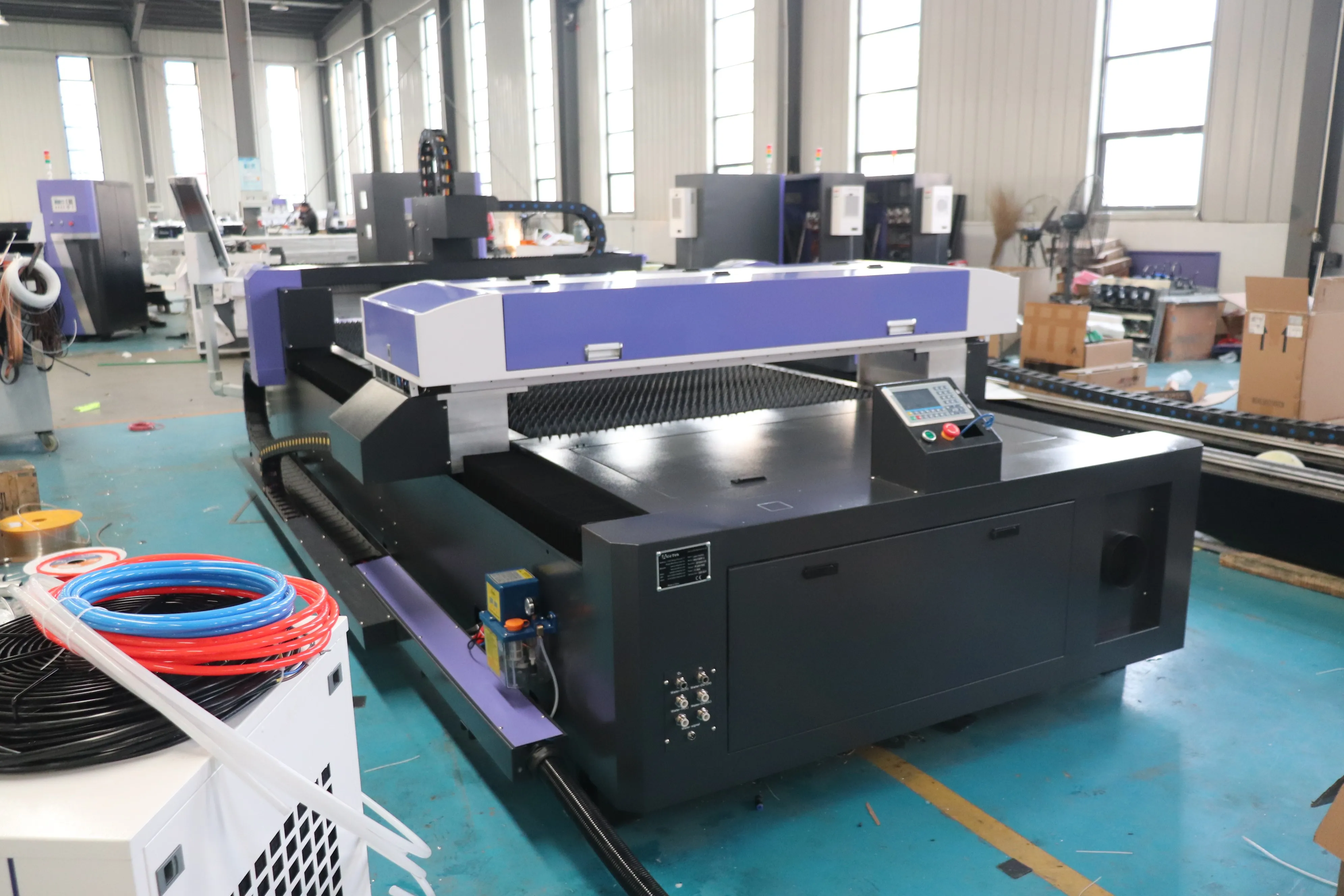

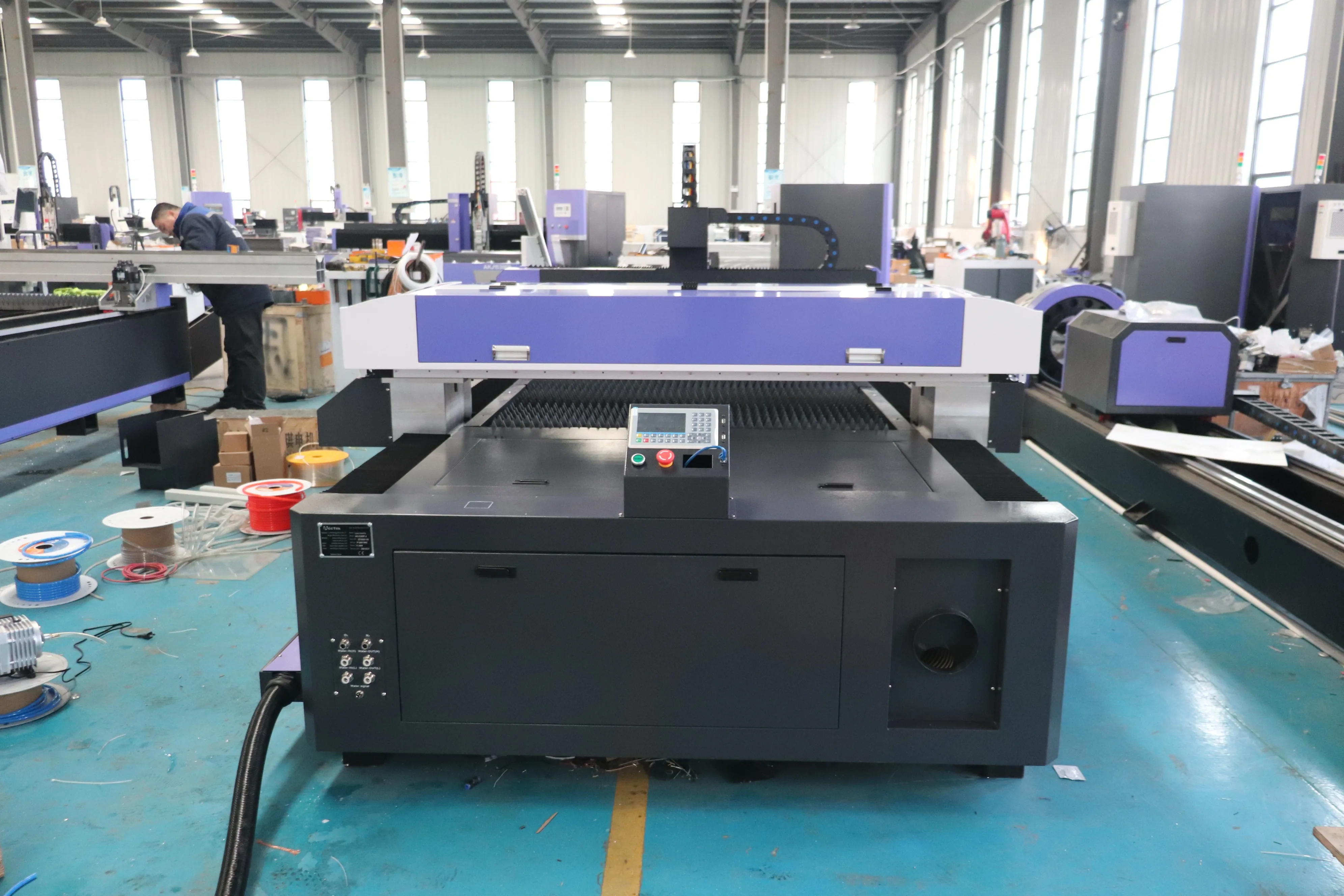

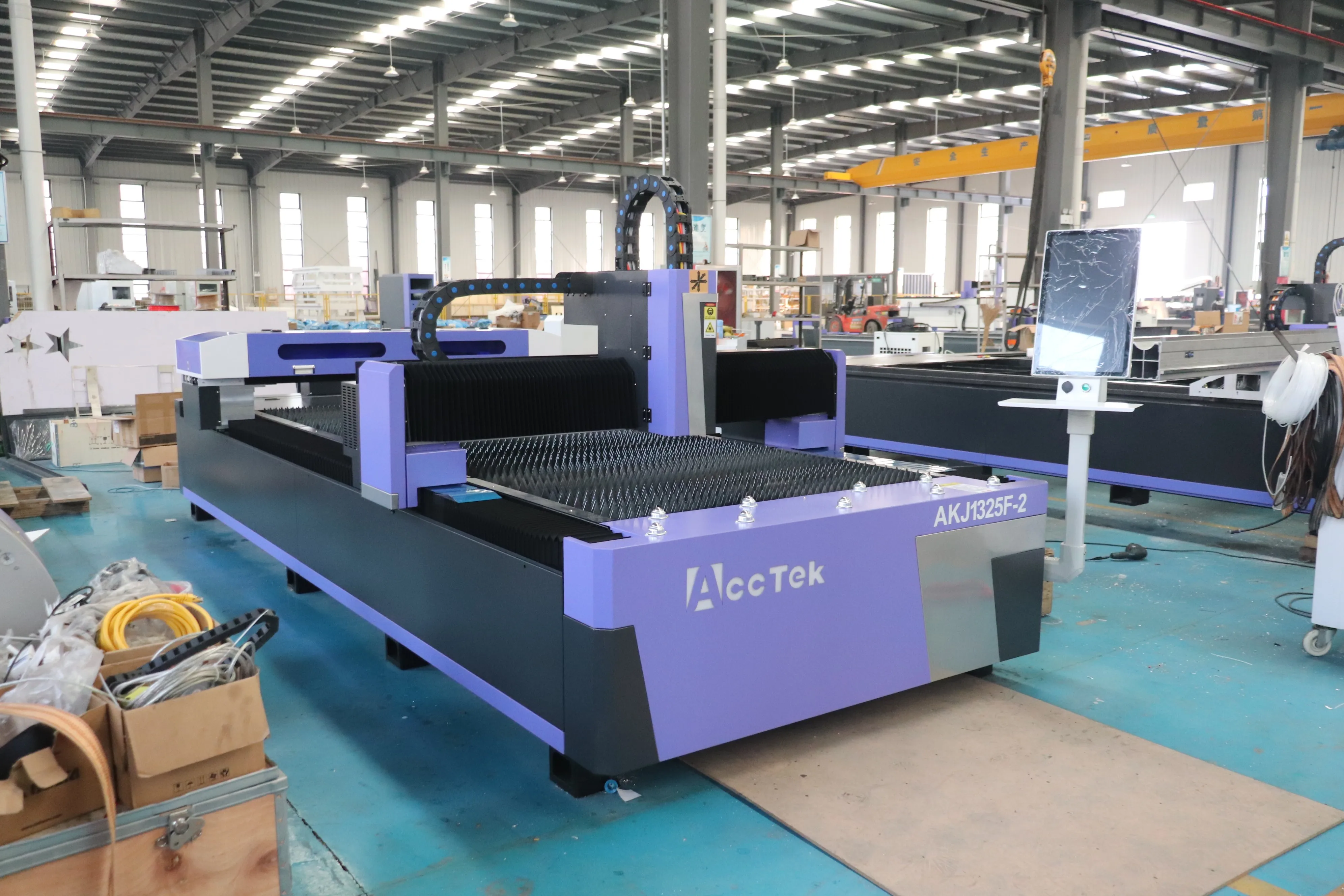

Detailed Images







Machine details










Technician parameter

































































Item


Specification


Machine model

AKJ1020F CUTTING MACHINE

Working area



1000*2000MM



Lathe structure


Seamless welded steel structure, better than cast iron one


Laser head


Au3tech


Control system


Au3tech


Drive Mechanism


Y axis rack and gear, Z axis Taiwan TBI ball screw


Linear rail



All aix Japanese THK linear guide rails 30mm



Motor and driver



Delta  servo motor and driver



Max. traveling speed



55m/min



Max. working speed



20m/min



Command



G code (HPGL, U00, mmg, plt)



Cooling way



Water cooling



Voltage



AC 220V/380V 3PH, 50/60Hz (220V 1PH












Product Application


 This machine is specially designed for metal industry ,professional for cutting metal tube ,such as round tube ,square tube,H-steel,special profils etc.





AKJ1530F1_04





Our Services


 Pre-sale services of oscillating knife cutting machine :


     1) Provide the free consultation of the equipment.


     2) Provide the standard device and the flow chart.


     3) According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.


     4) Welcome to visit our factory.


Services during the sales of oscillating knife cutting machine :


     1) Inspect the machine before leaving the factory.


     2) Oversea install and debug the equipment


     3) Train the first-line operator.


After sale services of oscillating knife cutting machine :


     1) 24 hours online service.


     2) Provide the VIDEO with Install and debug the equipment.


     3) Provide technical exchanging.


AKM1325-5A_10








Packaging & Shipping


 Each ACCTEK machine has a strict shipping standard process before shipment from the factory,


so that the machine you received can be quickly put into use within 24 hours, because we help you improve the


preparation work for all machines before use.




  • Cleaning and maintenance before shipment.




  • Review the accessories and customer remarks according to the order again.




  • Complementary tools, software installation packages, product manuals, etc. are shipped together.




  • Order the most cost-effective warehouse.




AKH-1000_09





Company Information


 AKM1325-5A_11










FAQ


 1. Do you provide installation?


Before the machine delivery, we will install all the parts and test the machine for you. If the gantry is not removed (if the working area is more than 1325, you need to remove the gantry of the machine to put it in the container), after the machine arrives, you only need to connect the plasma power supply, software, etc., which is easier for you. If you are not at ease, we can shoot a teaching video for you.

2. Where can we get replacement parts?

Most spare parts are kept in stock. They will be sent directly to buyers from our warehouse at an agency price.

3. What technical support do you provide?

(1) 24-hour technical support via phone, WeChat, email, or WhatsApp/Skype. (2) Friendly English version manual and operation video. (3) We have a professional design team and sales team to provide design proposals within 24 hours.

4. Do you have a setup and equipment commissioning service?

Yes, we have. The machine has been installed and debugged before leaving the factory. You can use the machine directly after receiving it.
