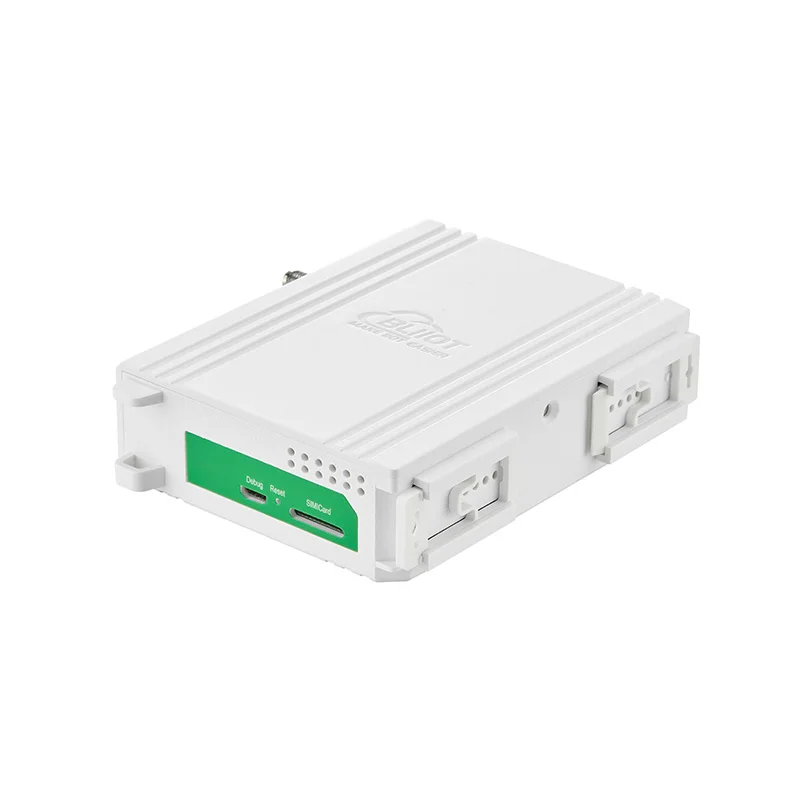

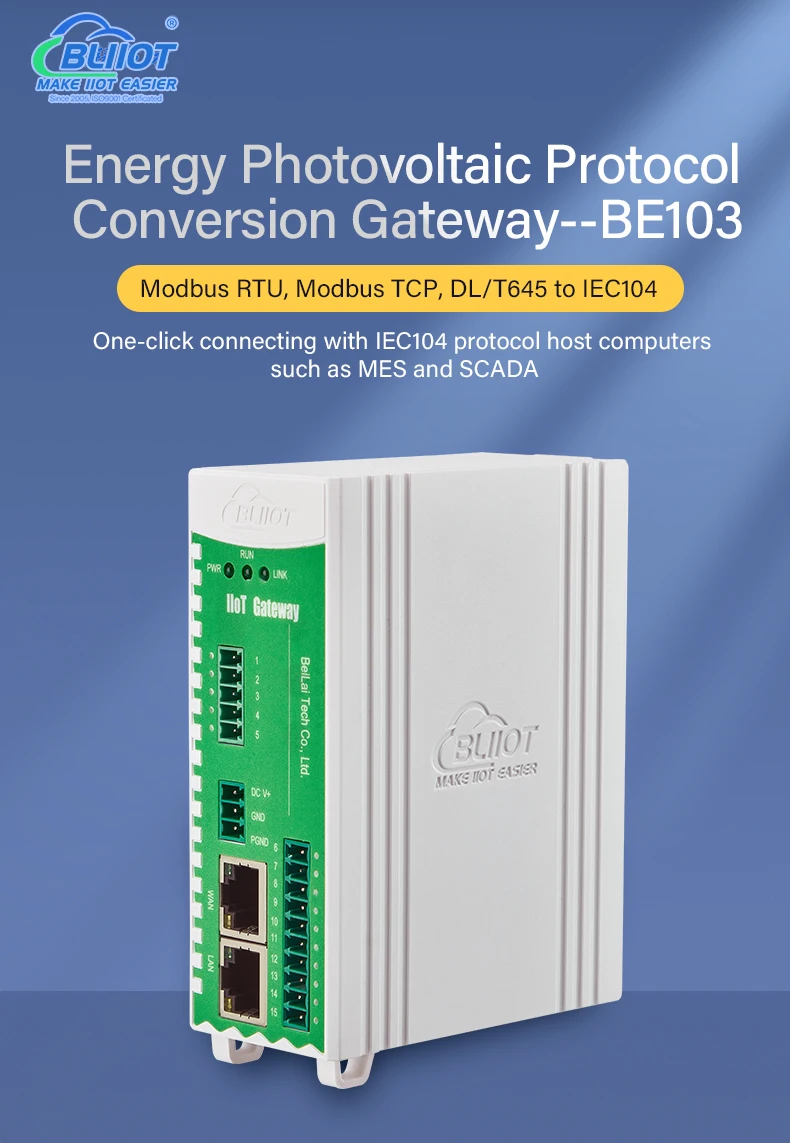

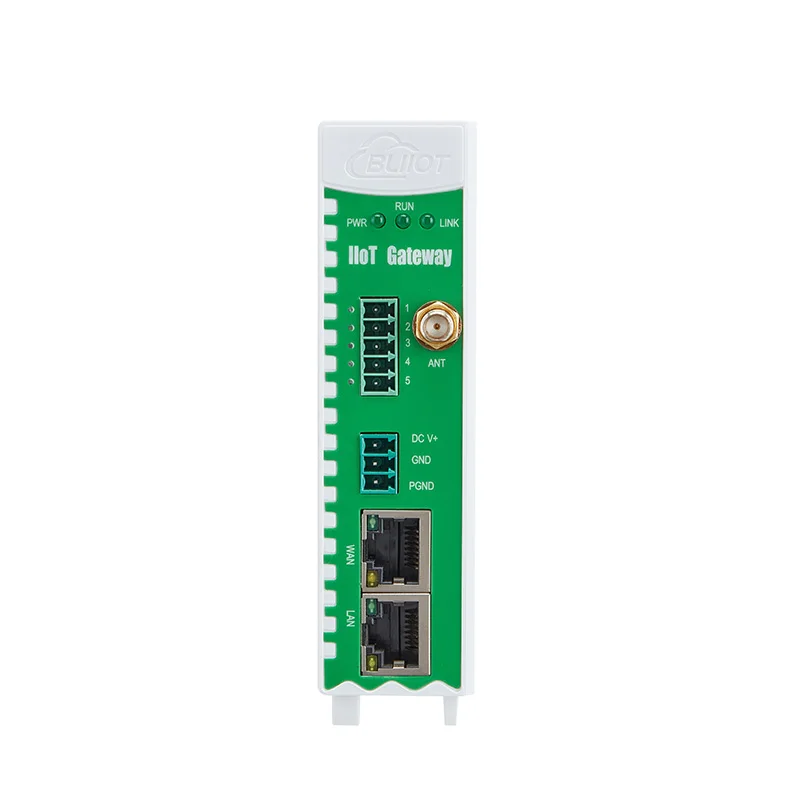

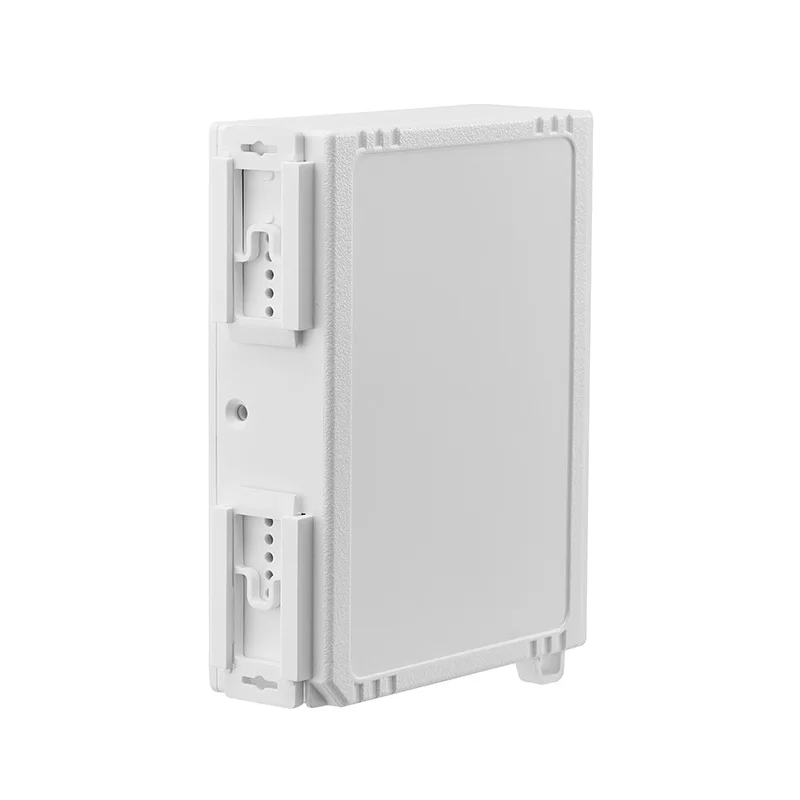

BLIIOT DLT645 Modbus на IEC104 BE103 шлюз для протокола электропитания умной сети
- Категория: >>>
- Поставщик: Shenzhen Beilai Technology Co. Ltd.
Сохранить в закладки 1601267255564:
Описание и отзывы
Характеристики
Products Description
BE103 is a DLT645 IEC101 IEC102 IEC103 to IEC104 protocol gateway, supporting up to 10 devices, 512 data points acquisition.
It adopts embedded ARM MCU and is developed based on Linux OS system. Provides 2 RS232/RS485 optional serial inputs, 1 power input, 2 Ethernet ports (WAN port and LAN port) and 2 USB ports. Access to the Internet by WiFi or Ethernet, characterized by fast rate and low latency.
It adopts embedded ARM MCU and is developed based on Linux OS system. Provides 2 RS232/RS485 optional serial inputs, 1 power input, 2 Ethernet ports (WAN port and LAN port) and 2 USB ports. Access to the Internet by WiFi or Ethernet, characterized by fast rate and low latency.
Support OpenVPN function.
Support routing function and cascade switch data acquisition, convenient to collect more industrial equipment data, software function is perfect, covering most of the conventional application scenarios.
Integration of barium rhenium technology adhering to the humanized configuration interface, as well as remote configuration, remote upgrade firmware and other functions, the user only through a simple setup .
Support routing function and cascade switch data acquisition, convenient to collect more industrial equipment data, software function is perfect, covering most of the conventional application scenarios.
Integration of barium rhenium technology adhering to the humanized configuration interface, as well as remote configuration, remote upgrade firmware and other functions, the user only through a simple setup .
Detailed Photos
Model List
Model | WAN | LAN | COM(RS485/RS232) | WiFi |
BE103 | 1 | 1 | 2 | × |
BE103W | 1 | 1 | 2 | √ |
BE103P | 1 | 1 | 6 | × |
BE103PW | 1 | 1 | 6 | √ |
Product Parameters
Parameter | Description | |
System | Processor | Clock speed 300Mhz |
Storage | 128MB | |
Flash memory | 64MB | |
Power Supply | Input voltage | DC 9~36V |
Power consumption | Normal: 85mA@12V, MAX: 117mA@12V | |
Wiring | Anti-reverse connection | |
Ethernet Ports | Specification | 2CH RJ45, 10/100Mbps, adaptive MDI/MDIX |
Protection | ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz | |
Serial Ports | QTY | 2CH RS485 or RS232 |
Baud Rate | 2400bps-115200bps | |
Data Bit | 7, 8 | |
Parity Bit | None, Even, Odd | |
Stop Bit | 1, 2 | |
Protection | ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz | |
USB Ports | QTY | 1CH program downloading, 1CH program debugging |
Specification | Micro USB OTG | |
Protection | Over Current Protection | |
WiFi(Optional) | Antenna QTY | 1 |
Antenna type | SMA | |
Protocol | 802.11a/b/g/n(mixed) | |
Mode | Client mode | |
Signal path | 2.4G Channel 1 - 13, 5G Channel 36 - 165 | |
Security | Open, WPA, WPA2 | |
Encryption | AES, TKIP, TKIPAES | |
Speed | 150Mbps(Max) | |
Transmission distance | Outdoor open area, up to 20 meters | |
SSID | Support | |
Indicator | PWR | Always on when device powered on Off when device lose power |
RUN | Flickering when system running Off when system shutdown | |
LINK | Flickering when Ethernet communication; Always on when WiFi communication, OFF when Ethernet, WiFi are all disconnected. | |
Software | Internet Protocol | IPV4, TCP/UDP, DHCP, DNS |
IP Retrieving | Static IP/DHCP | |
Transmission | Support Transparent Transmission | |
DNS | Support Domain Name Resolution | |
Configuration | PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10 | |
Internet Cache | Transmitting: 8Kbyte; Receiving: 8Kbyte | |
Login Package | Support custom login package | |
Heartbeat Package | Support custom heartbeat package | |
Safety Certification | MTBF | ≥100,000 hours |
EMC | EN 55022: 2006/A1: 2007 (CE &RE) Class B | |
IEC 61000-4-2 (ESD) Level 3 | ||
IEC 61000-4-4 (EFT) Level 3 | ||
IEC 61000-4-5 (Surge)Level 3 | ||
Others | CE, RoHS, FCC | |
Environment | Working | -40~55℃, 5~95% RH |
Storage | -40~70℃, 5~95% RH | |
Others | Shell | Plastic |
Dimension | 30mm×83mm×110mm(LxWxH) | |
IP Grade | IP30 | |
Net Weight | 133g | |
Installation | DIN-Rail Mounting, Wall-Mounting |
Packaging & Shipping
Box & ship by air,sea ,land
Company Introduction
Start Your Digital Transformation with BLIIoT Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of loT devices.
Beilai is the pinyin of barium-rhenium in Mandarin. Barium is a lively element, and rhenium is the last element discovered by human beings.The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.Beilai-Original&Reliable IoT Products Manufacturer Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.
Beilai is the pinyin of barium-rhenium in Mandarin. Barium is a lively element, and rhenium is the last element discovered by human beings.The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.Beilai-Original&Reliable IoT Products Manufacturer Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.
