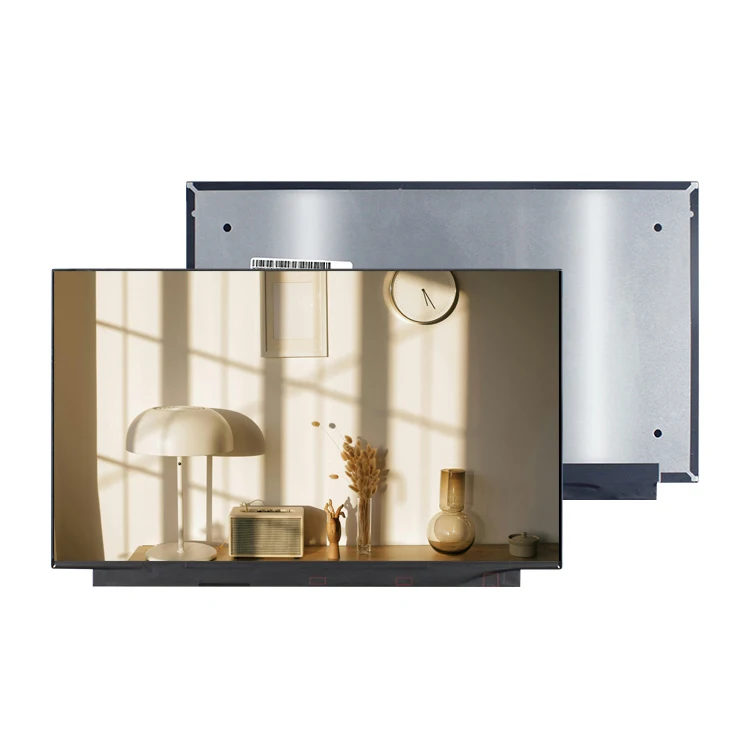

13,3 дюймов ЖК-модули FHD IPS 500 Nits 30 контактов eDP полный угол обзора 0% дымовые блики обработка поверхности
6 607,42 ₽ - 6 955,00 ₽
Горячая Распродажа Бо NV116WHM N45 11 6 дюймов 1366*768 WXGA TFT ЖК дисплей
- Категория: >>>
- Поставщик: Hangzhou Chuanbao Electronic Technology Co. Ltd.
Сохранить в закладки 1601267291819:
Описание и отзывы
Характеристики
Product Description
NV116WHM-N45 is a 11.6" a-Si TFT-LCD display panel product from BOE (hereafter called BOE), with an integral WLED backlight, With LED Driver Backlight Driver, without touch. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are: White LED Backlight, With LED Driver, Flip Terminal, eDP1.2. Based on its features, Panelook recommend that this model be applied to Laptop etc. According to the product specification with version number Rev.P0 released by BOE on May 25, 2017, NV116WHM-N45 has a display resolution of 1366(RGB)×768 (WXGA), an aspect ratio of 16:9 (W:H), and pixels are arranged in RGB vertical stripes. NV116WHM-N45 has an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are: White LED Backlight, With LED Driver, Flip Terminal, eDP1.2. Based on its features, Panelook recommend that this model be applied to Laptop etc. Its display area size is 256.125 (width) × 144 (height) mm, the appearance size is 278 (width) × 168 (height) × 3 (thickness) mm, and the product net weight is 200g (Max.). The appearance style is a thin screen (PCBA flat, thickness ≤3.2mm). In terms of backlight, this product uses an 8S3P WLED side-entry light source (bottom), and the service life of the light source is 15K hours, including LED driver. NV116WHM-N45 uses an eDP (1 Lane) signal interface, a total of 30 pins, terminal connection, and a screen drive voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Specification
Item | Value |
Type | TFT |
Display Size | 11.6 inch |
Supplier Type | lcd panel |
Place of Origin | China |
Brand Name | BOE |
Resolution | 1366(RGB)×768, WXGA, 135PPI |
Model Number | NV116WHM-N45 |
Body Size | 278×168×3mm (H×V×D) |
Panel type | Liquid crystal glass, a-Si TFT-LCD |
Frequency | 60Hz |
Screen voltage displacement | 3.3V (Typ.) |
Signal interface | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , terminal , 30 pins |

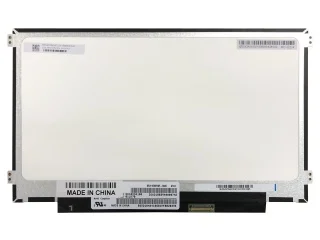

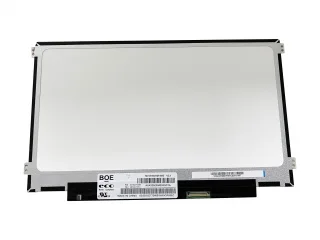

Product photos

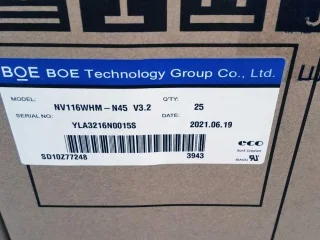

Packing & Delivery
Standard export packing
Other Hot Sale Models
Application
Our products can be used in PC, TV, digital signage, industrial, medical, conference etc.
Company Profile
Hangzhou Chuanbao Electronic Technology Co., Ltd. mainly operates services: electronic products, computer software and hardware,LCD displays, household appliances, office supplies, intelligent equipment, communication equipment, monitoring equipment technology development, technical consultation, technical services and achievement transfer; Computer Network Engineering; Wholesale, retail: computer software and hardware; LCD display; Household appliances; office supplies; smart devices; communication equipment; monitoring equipment, etc. The registered capital of the company is RMB1,000,000, our company's office address is located in the largest city in Zhejiang Province, the paradise on earth Hangzhou, we have the best products and professional sales and technical team, the company is developing rapidly, we provide customers with the best products, good technical support, sound after-sales service!
FAQ
1.What Brand do you have?
4.What is the warranty period of the product?
Re:We mainly provide BOE brand products. If customers have any needs, you can communicate with us. We will try our best to provide you with other electronic components and accessories with higher quality and lower price
2.What’s your products condition?
Re: Brand New,A grade,Original Package.
3.what’s your MOQ of your products?
Re: According different products,1pcs or 1 box .
4.What is the warranty period of the product?
Re:According to different products, our warranty time is 1 - 3 years.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

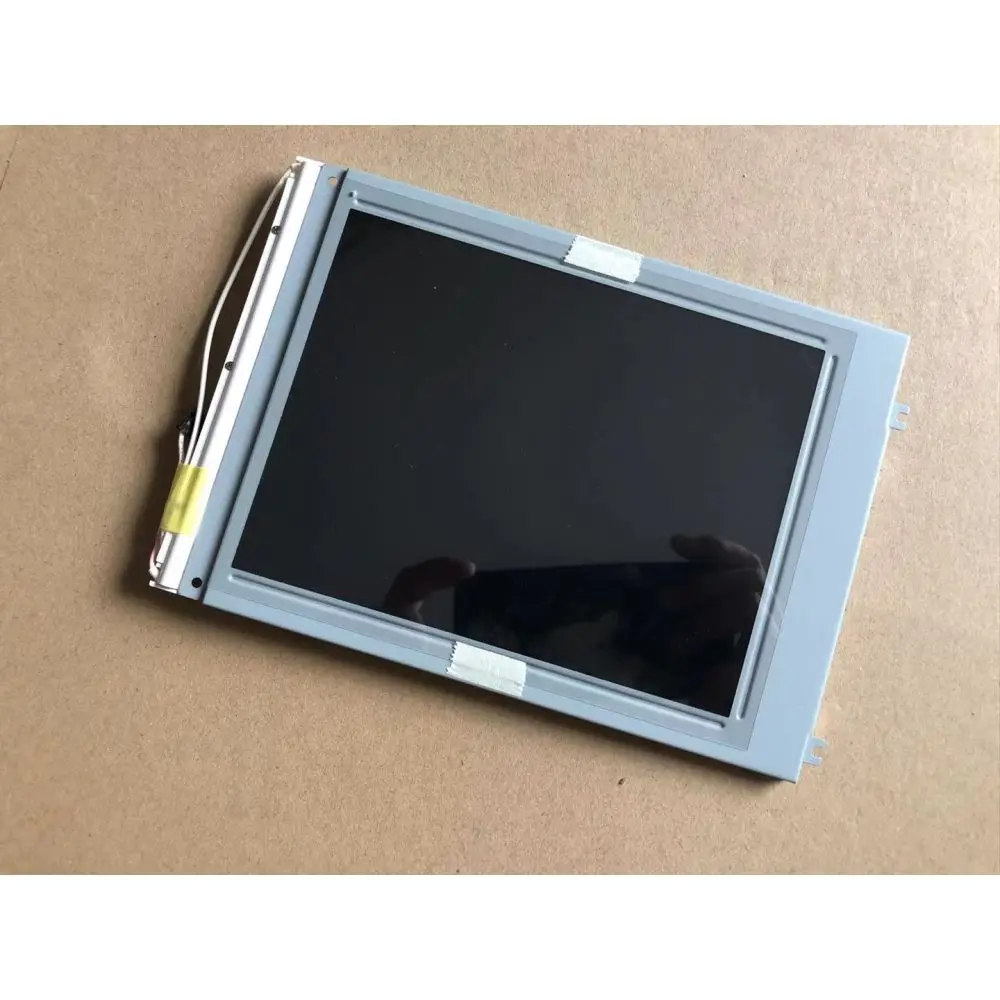

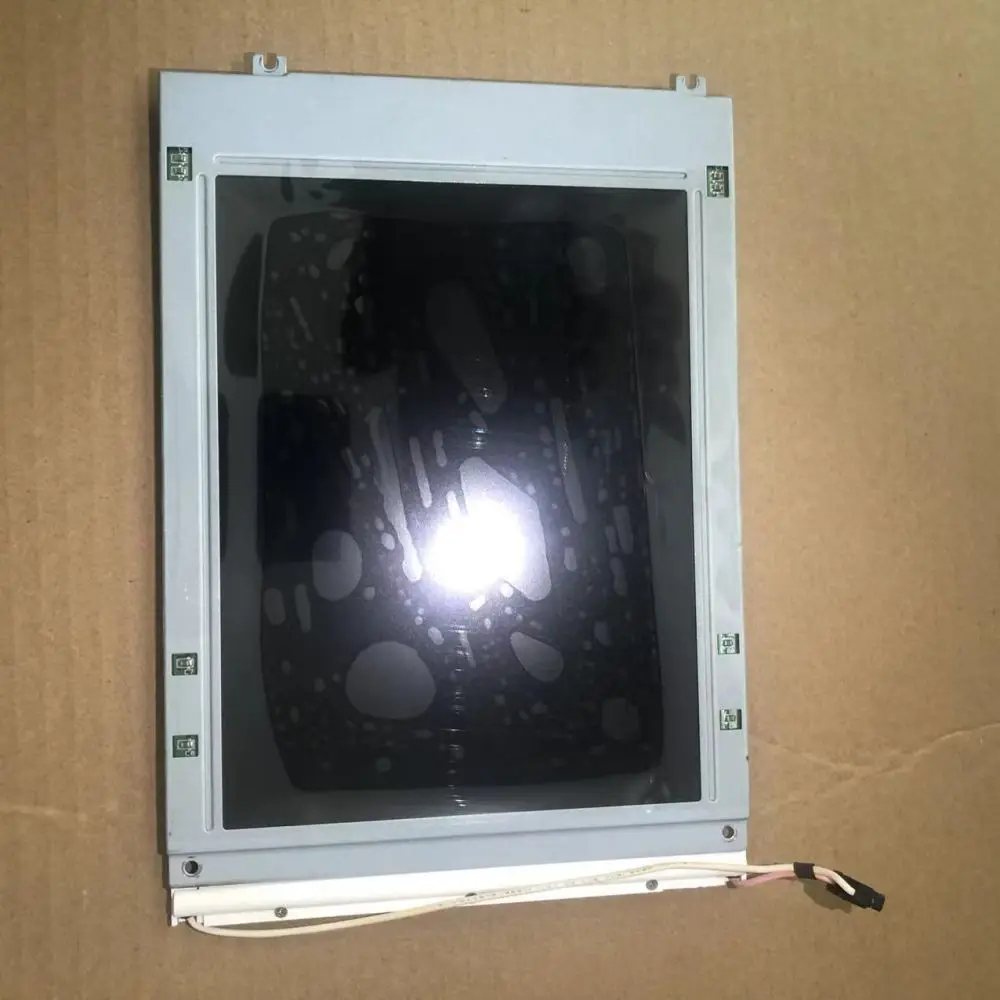

LM64P101R 7,2 дюймов новая Совместимая модель 640*480 разрешение ЖК-дисплей модуль
P495IVN02.0 49,5 дюймов 1920*540 TFT ЖК-экран для растянутого ЖК-дисплея
10 964,84 ₽
LM64P101 7,2 дюймов новая Совместимая модель 640*480 разрешение ЖК-дисплей модуль
1080*1920 портрет ЖК-экран высокой яркости 5,5 дюймов сенсорный ЖК-дисплей для POS монитора
Инновационный 1080x2160 400 Nits яркость 6 дюймов ЖК-экран для интерактивных дисплеев и киосков
2 609,64 ₽ - 4 671,03 ₽

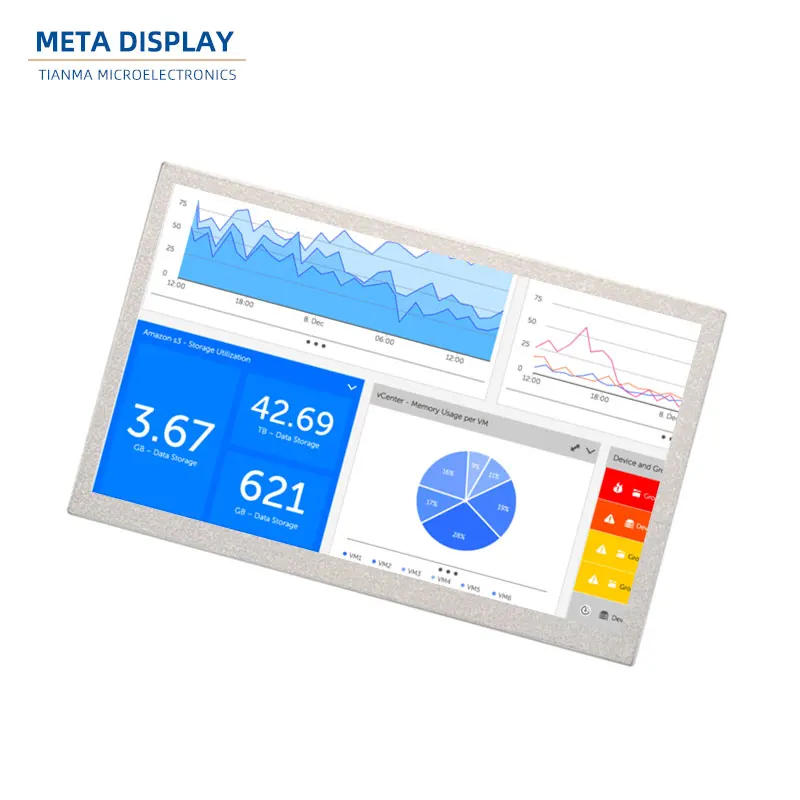

Tianma TM070JDHG34-00 7,0 дюймов 1280x800 LVDS высокой яркости TFT ЖК-дисплей для промышленного использования
