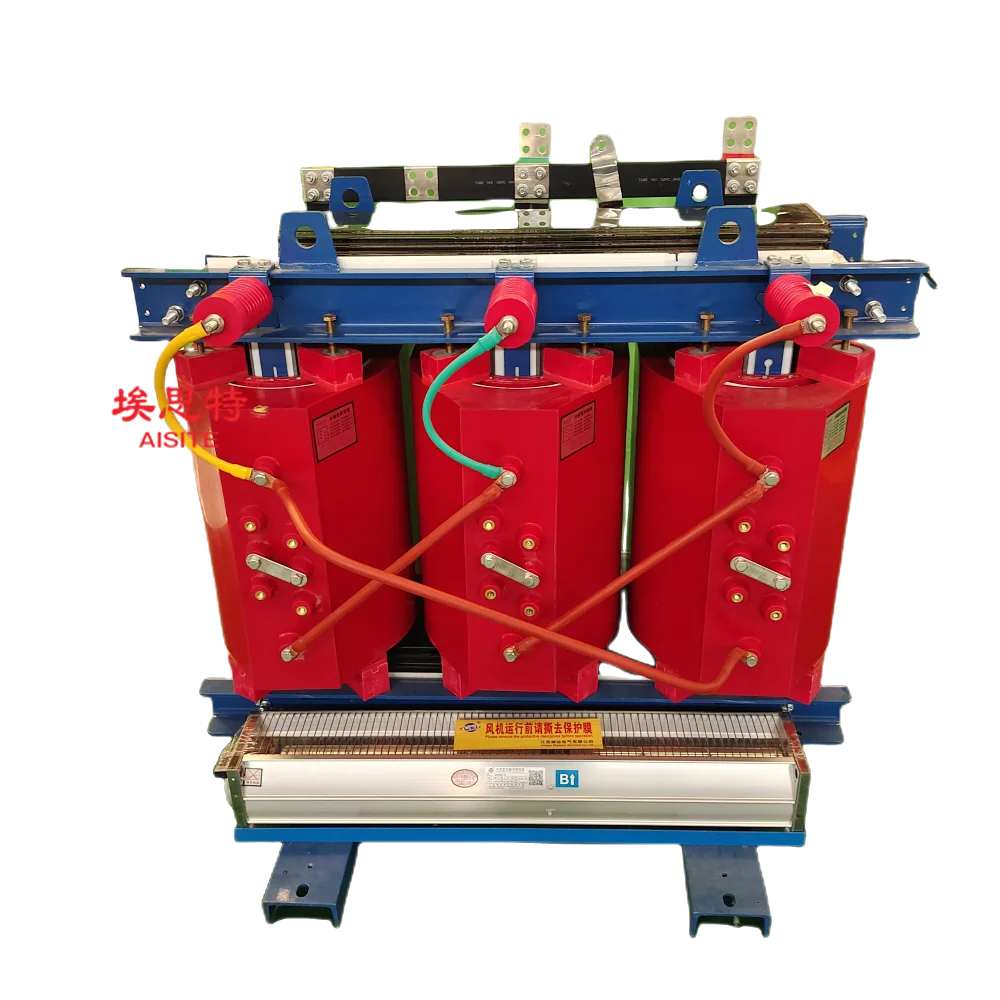

Оптовая продажа, высокое качество, прямые продажи с завода, трансформатор сухого типа 1600 кВА, 35 кВ, 800 В
2 506 233,48 ₽

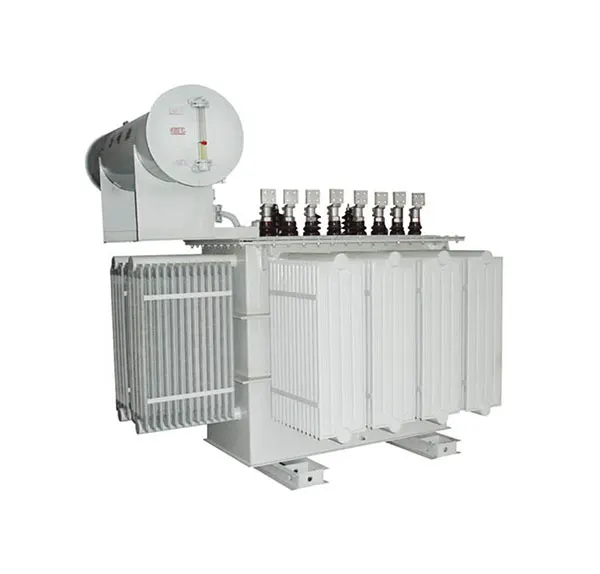

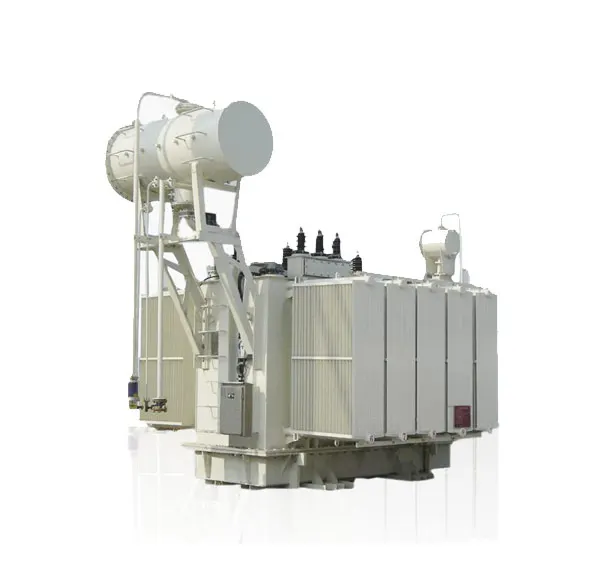

Открытый трехфазный масляный погружной силовой трансформатор
- Категория: >>>
- Поставщик: Qingdao Claire Metal Products Co. Ltd.
Сохранить в закладки 1601267345628:
Описание и отзывы
Характеристики
Product Display
Technical Data
Rated Capacity (KVA) | Connection Symbol | No-load Loss (KW) | No-load Current (%) | 75ºC (W) Load-Loss | Weight (Kg) | Boundary Dimension (mm) | Sound power Level (db) | |||||||
30 | Dyn11 Yyn0 Yzn11 | 80 | 0.3 | 630/600 | 330 | 800*500*850 | 35 | |||||||
50 | 100 | 0.24 | 910/870 | 380 | 820*550*850 | 35 | ||||||||
63 | 110 | 0.23 | 1090/104 | 410 | 835*580*850 | 35 | ||||||||
80 | 130 | 0.22 | 1310/1250 | 430 | 840*600*880 | 36 | ||||||||
100 | 150 | 0.21 | 1580/1500 | 460 | 860*600*890 | 36 | ||||||||
125 | 170 | 0.2 | 1890/1800 | 590 | 1020*660*880 | 37 | ||||||||
160 | 200 | 0.19 | 2310/2200 | 650 | 1035*660*950 | 38 | ||||||||
200 | 240 | 0.18 | 2730/2600 | 710 | 1040*680*980 | 39 | ||||||||
250 | 290 | 0.17 | 3200/3050 | 850 | 1140*740*1010 | 40 | ||||||||
315 | 340 | 0.16 | 3830/3650 | 970 | 1160*760*1150 | 42 | ||||||||
400 | 410 | 0.16 | 4520/4300 | 1130 | 1230*800*1200 | 44 | ||||||||
500 | 480 | 0.16 | 5410/5150 | 1335 | 1320*900*1200 | 45 | ||||||||
For more product parameters,please consult our sales. | ||||||||||||||
Note
1. For transformer whose rated capacity is 500 KVA and below, the load loss value above the slash in the table is suitable for Dyn11 or Yzn11 connection groups, and that below the slash for YynO connection groups.
2. Transformers whose HV tapping range is ±2×2.5 may be provided, if need be.
3. Transformers whose LV is 0.69KV may be provided, if need be.
4.Users may choose other loss values as they need. 5.Due to product upgrading and changes to the external dimensions and products in the table, please refer to the external dimensions provided at the time of ordering.
Product Introduction
Voltage grade 10KV/0.4~0.63~1.14KV ; Capacity 30-2500KVA;

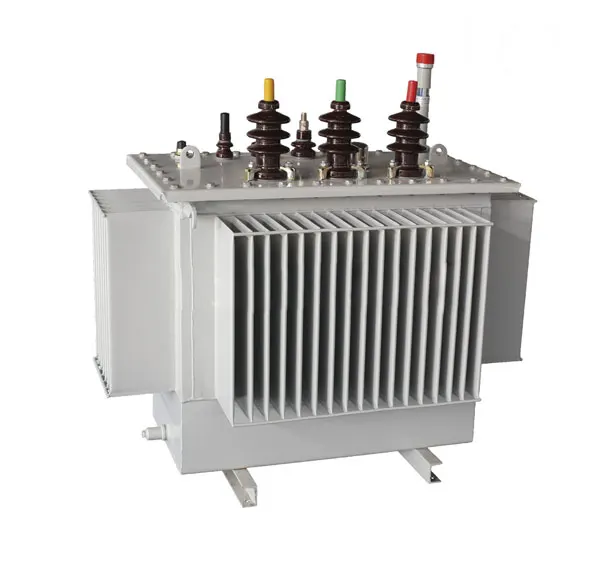

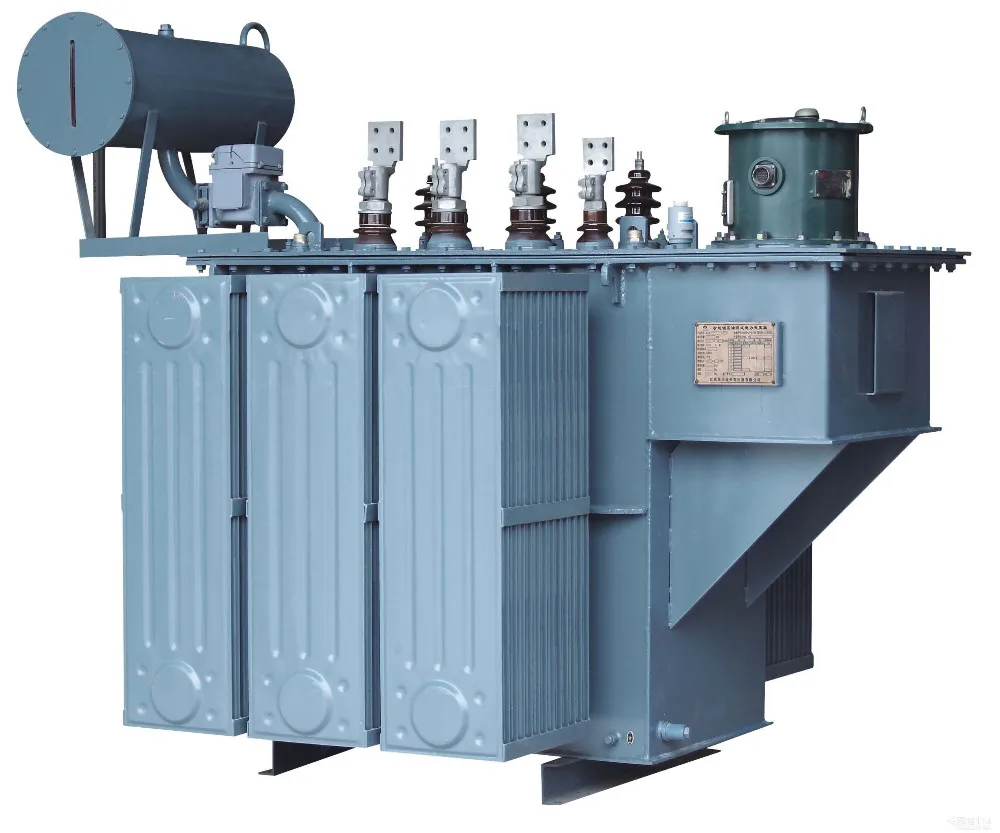

10 KV Fully-sealed oil-immersed transformer is suitable for AC 50 ~ 60 Hz, rated voltage below 10 KV power systems. It is often used as the distribution transformer for petroleum, metallurgy, chemical industry, textile, light industry and other enterprises with a lot of dust on site. It is one of the key promoted transmission equipment of the national grid and petrochina.
Fully-sealed transformer adopts the breath-type corrugated tank radiator. It has many characteristics, such as free of hanging core and free of maintenance. The transformer of more than 800 KVA is equipped with QJ – 40F gas relay. The signal thermometer can monitor the change of oil temperature far away.
10 KV Fully-sealed oil-immersed transformer is suitable for AC 50 ~ 60 Hz, rated voltage below 10 KV power systems. It is often used as the distribution transformer for petroleum, metallurgy, chemical industry, textile, light industry and other enterprises with a lot of dust on site. It is one of the key promoted transmission equipment of the national grid and petrochina.
Fully-sealed transformer adopts the breath-type corrugated tank radiator. It has many characteristics, such as free of hanging core and free of maintenance. The transformer of more than 800 KVA is equipped with QJ – 40F gas relay. The signal thermometer can monitor the change of oil temperature far away.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Our company is a high-tech enterprise engaged in production, sales and system integration. The company mainly produces electric meter box, cable bushing, high and low voltage electrical switchgear, distribution transformer, box-type substation, cable branch box, distribution box, ring-network cabinet, comprehensive distribution box, JP cabinet, low-voltage reactive power compensation control cabinet, electric energy metering box, high-voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instruments. The production and sales of insulated wires, wires and cables, communication lines,cableaccessories, monitoring equipment, electrical fittings and power equipment sheath processing, glass fiber reinforced plastic(SMC), PC+ABS material metering box products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generator sets), and wind power generation equipment are influential and technically strong enterprises in North China,and ISO9001 quality management system OHSAS18001 occupational health and safety management system and ISO14001 environmental
management system certification enterprises, 3C certification enterprises.
management system certification enterprises, 3C certification enterprises.
Certifications
Service & Support
For the products sold, we provide perfect after-sales service.
When you use high-quality products, you will enjoy our high-quality services.
To this end, we solemnly promise:
1. Quality assurance: within the one-year warranty period, you will receive technical support from our designated engineers.
2. Lifetime maintenance: We will be responsible for the lifelong maintenance of the equipment sold and provide spare parts at a preferential price.
3. Regular return visit: after the warranty period, we will make regular return visit and inspection to understand the equipment operation and maintenance status, and guide customers to maintain and apply.
4. Troubleshooting: If the equipment fails, we will reply within 6 hours after receiving the customer's request.
5. Supply of spare parts: For the vulnerable parts of equipment in the production process, the company has established a spare parts warehouse, which can quickly respond to customer needs.
6. Value-added service: We will assist customers in technical transformation related to our products.
Похожие товары

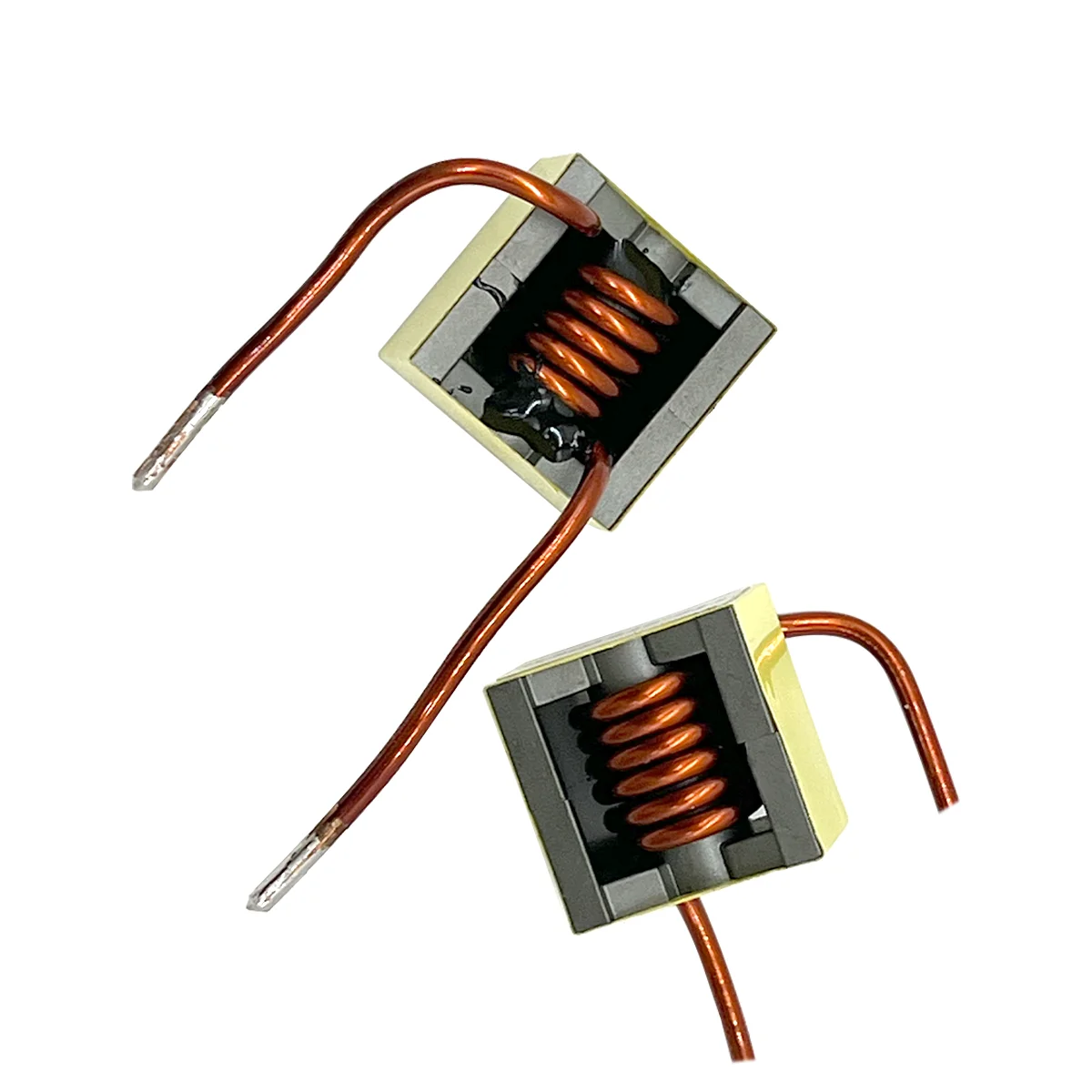

Трансформатор с ферритовым сердечником, 230 В, 220 В, 110 В, 600 Вт

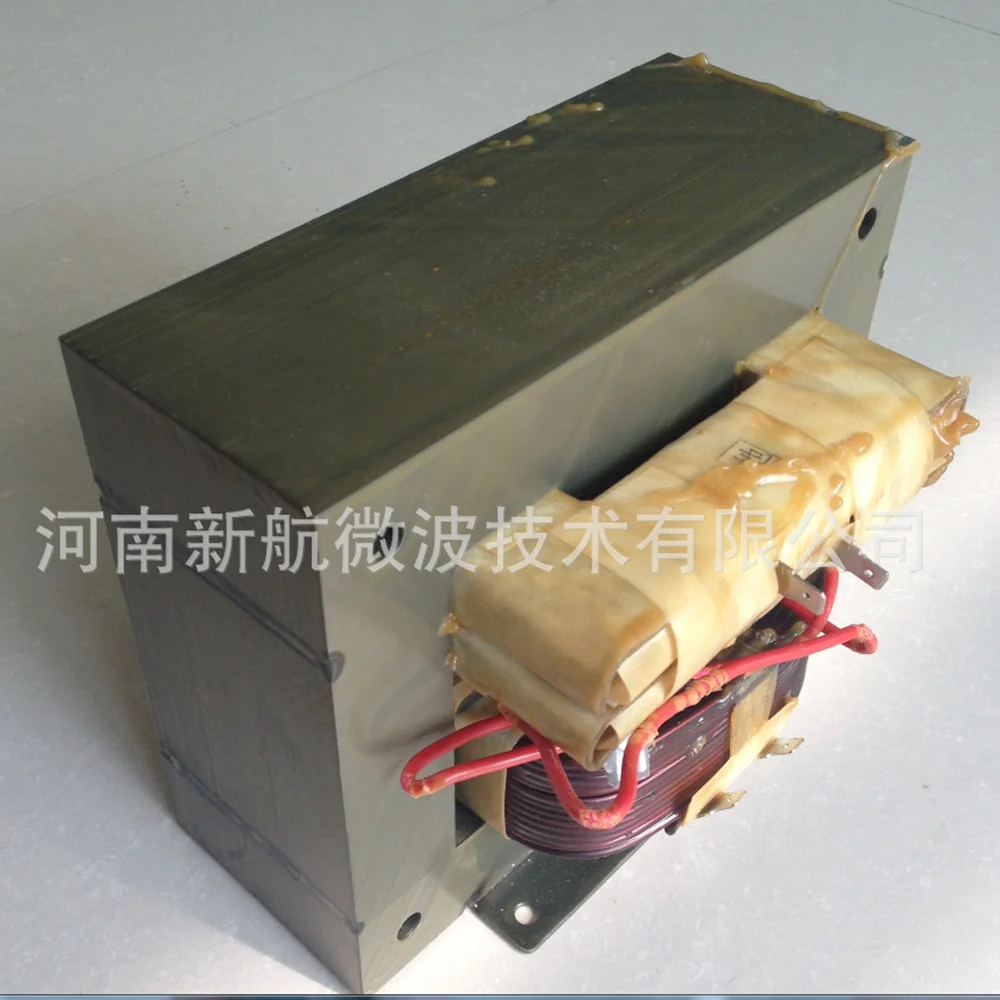

Китай хэнань Xinhang изготовлено медные обмоточные 2000 Вт микроволновая печь трансформатор DY-2020
