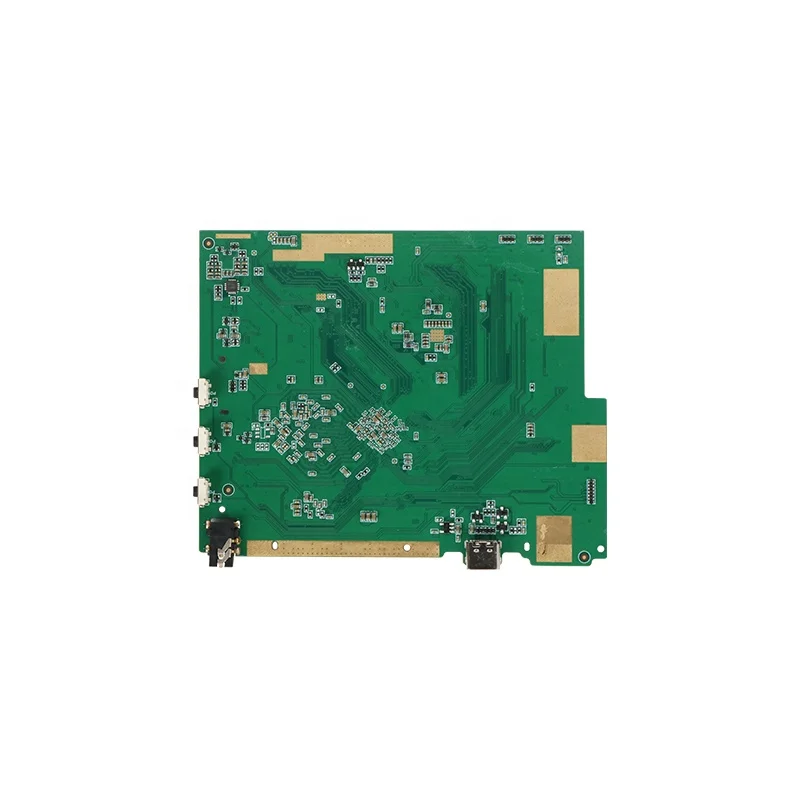

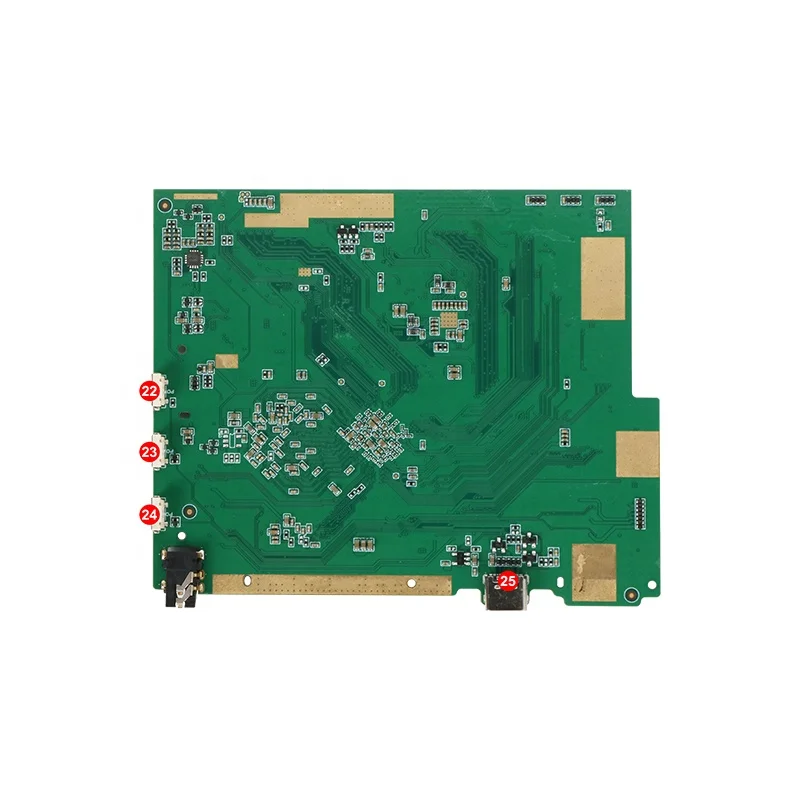

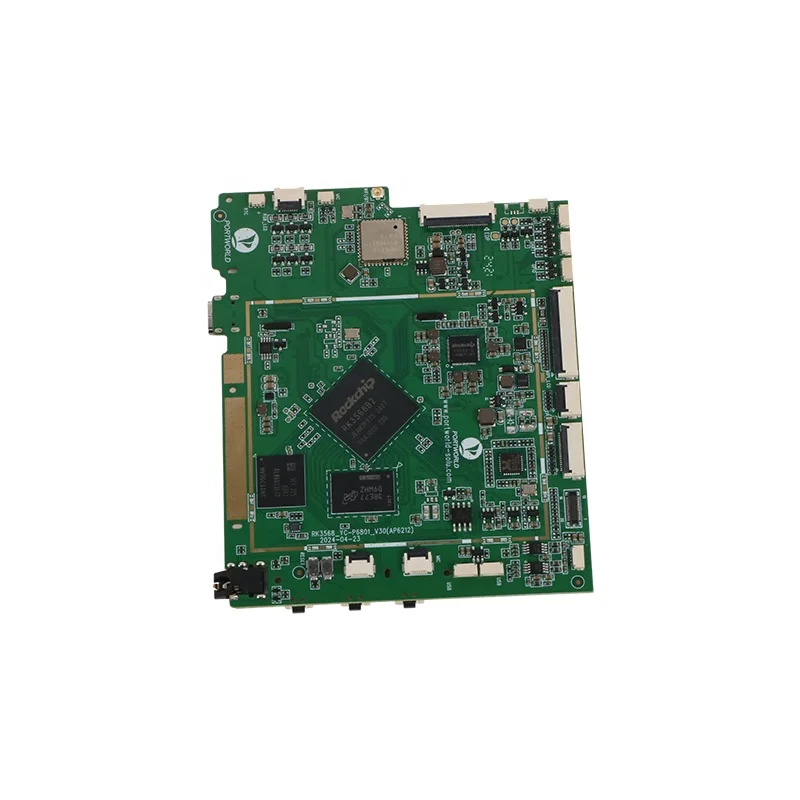

Комплект CCD RK3568 четырехъядерный 64 битный процессор PCB PCBA Android Linux Ubuntu Debian Buildroot Yocto Centos материнская плата
- Категория: >>>
- Поставщик: Shenzhen Portworld Technology Co. Ltd.
Сохранить в закладки 1601267364802:
Описание и отзывы
Характеристики
Product Description
Specification
SOC | RockChip RK3568 |
CPU | Quad-core 64-bit Cortex-A55 processor, advanced 22nm process, up to 2.0GHz |
GPU | ARM G52 2EE graphics processor, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, with embedded high-performance 2D acceleration hardware |
NPU | Integrated RKNN NPU AI accelerator, 1 Tops@INT8 performance, supports one-click conversion for Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models |
Decoding/Encoding | Video Decoding: 4K@60fps H.265/H.264/VP9 Video Encoding: 1080P@100fps H.265/H.264 |
RAM | 2GB (optional 4GB/8GB LPDDR4) |
ROM | 16GB (optional 32GB/64GB/128GB eMMC) |
Power | 5.0V (voltage tolerance ±5%, expandable POE, DC/AC power) |
System | Android, Ubuntu, Buildroot, Debian, etc. |
Dimensions | 89mm ×108mm |
Power Consumption | Min: 0.03W(5.0V/6mA)，Normal: 2.5W(5.0V/500mA)，Max: 5.25W (5.0V/1050mA) |
Environmental Conditions | Operating Temperature: -10℃ to 60℃ Storage Temperature: -20℃ to 70℃ Operating Humidity: 10% to 90% RH (non-condensing) |
Ethernet | 1 × 100Mbps Ethernet (RJ45) ( supports POE power supply) |
WiFi | 2.4GHz, 802.11a/b/g/n protocol, BT 5.2 (optional: 2.4GHz/5GHz dual-band WiFi, 802.11a/b/g/n/ac protocol, BT 5.2) |
Display | 1 × MIPI DSI (single channel 1920*1080@60fps) |
Audio | 2 × Speaker output (1.2W 8Ω) 1 × Mic input or 2 × Digital Array Microphone 1 × Headphone output (3.5mm) |
USB | 1 ×USB-C (OTG USB2.0) (current limit: 500mA), 2 × USB2.0（current limit: 500mA） |
Touch | Supports I2C touch |
Camera | 1 ×MIPI CSI |
Other interface | 2* UART, RGB light, GPIO*2, Temperature and humidity |
Extension interface | Light sensor, temperature and humidity sensor, RS485, RS232, KNX, UART etc. |
Company Profile
Shenzhen Portworld Technogy co.ltd. specializes in the development, sale and trading of notebook accessories, IT peripherals and 3C digital products. We are located in Guangdong, the largest 3C electronics manufacture base in the world. We are committed to providing the most user-friendly designs, BVM products, the most convenient purchasing channels, and the highest quality pre-/after-sales service.
Our products have attained UL, CE, FCC and RoHS certifications in Europe and the United States. Our company has attained ISO9001 quality system certification. All products are 100% factory tested. We also have their own quality of QC to check every detail of products for you. In addition, in cognizance of the current wide variety of peripheral components, each kind of product is selected and tested by our QC.
Our company works towards our objectives of "service concept, people-oriented, sincere management, customers first and forging ahead with determination". According to customers' demands to create the higher value for our customers is our aim. All customers' demands come first.
Choosing us means you will choose the quality, high efficiency and integrity. Let us work together to create a beautiful future!
Our products have attained UL, CE, FCC and RoHS certifications in Europe and the United States. Our company has attained ISO9001 quality system certification. All products are 100% factory tested. We also have their own quality of QC to check every detail of products for you. In addition, in cognizance of the current wide variety of peripheral components, each kind of product is selected and tested by our QC.
Our company works towards our objectives of "service concept, people-oriented, sincere management, customers first and forging ahead with determination". According to customers' demands to create the higher value for our customers is our aim. All customers' demands come first.
Choosing us means you will choose the quality, high efficiency and integrity. Let us work together to create a beautiful future!
FAQ
1. What is your Minimum Order Quantity (MOQ)?
A: Our standard MOQ varies depending on the product. For most standard products, there is no MOQ. For customized products, the MOQ is 500 units. Please contact us for more details.
2. What are your payment terms?
A: We accept payments via Alibaba Trade Assurance, T/T, Paypal, and Western Union.
3. Can you accept sample orders?
A: Yes
4. What is your production lead time?
A: Lead time depends on the products and quantity ordered. Usually, standard samples take 5-7 days after receiving payment. Bulk orders take 15-30 days after receiving the deposit and confirming all order details.
5. Can you customize products?
A: Yes, we offer OEM/ODM services. Customization options include logos, packaging, software customization, and specific product features, etc. MOQ may apply for customized orders. Please contact us about your specific customization requirements.
6. What shipping methods do you offer?
A: We can ship via air, sea, or express (DHL, UPS, FedEx, etc.), depending on your preference and urgency. Shipping costs and delivery times vary by location and method.
7. What are your warranty terms?
A: We provide a one-year warranty for our products.\t
8. Do you support CKD/SKD services?
A: Yes, we do support CKD (Completely Knocked Down) and SKD (Semi Knocked Down) services. We can provide disassembled products for easier shipping and local assembly, which helps reduce shipping costs and import duties in some countries. Please contact us for more details.
A: Our standard MOQ varies depending on the product. For most standard products, there is no MOQ. For customized products, the MOQ is 500 units. Please contact us for more details.
2. What are your payment terms?
A: We accept payments via Alibaba Trade Assurance, T/T, Paypal, and Western Union.
3. Can you accept sample orders?
A: Yes
4. What is your production lead time?
A: Lead time depends on the products and quantity ordered. Usually, standard samples take 5-7 days after receiving payment. Bulk orders take 15-30 days after receiving the deposit and confirming all order details.
5. Can you customize products?
A: Yes, we offer OEM/ODM services. Customization options include logos, packaging, software customization, and specific product features, etc. MOQ may apply for customized orders. Please contact us about your specific customization requirements.
6. What shipping methods do you offer?
A: We can ship via air, sea, or express (DHL, UPS, FedEx, etc.), depending on your preference and urgency. Shipping costs and delivery times vary by location and method.
7. What are your warranty terms?
A: We provide a one-year warranty for our products.\t
8. Do you support CKD/SKD services?
A: Yes, we do support CKD (Completely Knocked Down) and SKD (Semi Knocked Down) services. We can provide disassembled products for easier shipping and local assembly, which helps reduce shipping costs and import duties in some countries. Please contact us for more details.
Похожие товары
Дешевая двухканальная материнская плата LGA 1155 состояние настольного компьютера ОЗУ DDR3 H61 материнские
22,00 $ - 28,00 $
OEM настраиваемый Intel H61 материнская плата поддержка i3/i5/i7 четырехъядерный процессор плата
Премьер-B560M-K I5-10400F H610M материнская плата DDR4 процессор памяти 12600KF 12400F 12600K 12400
99,00 $ - 119,00 $
AS Rock материнская плата Z790 LiveMixer DDR5 ATX LGA 1700 13-го поколения 13600K
383,20 $ - 479,24 $

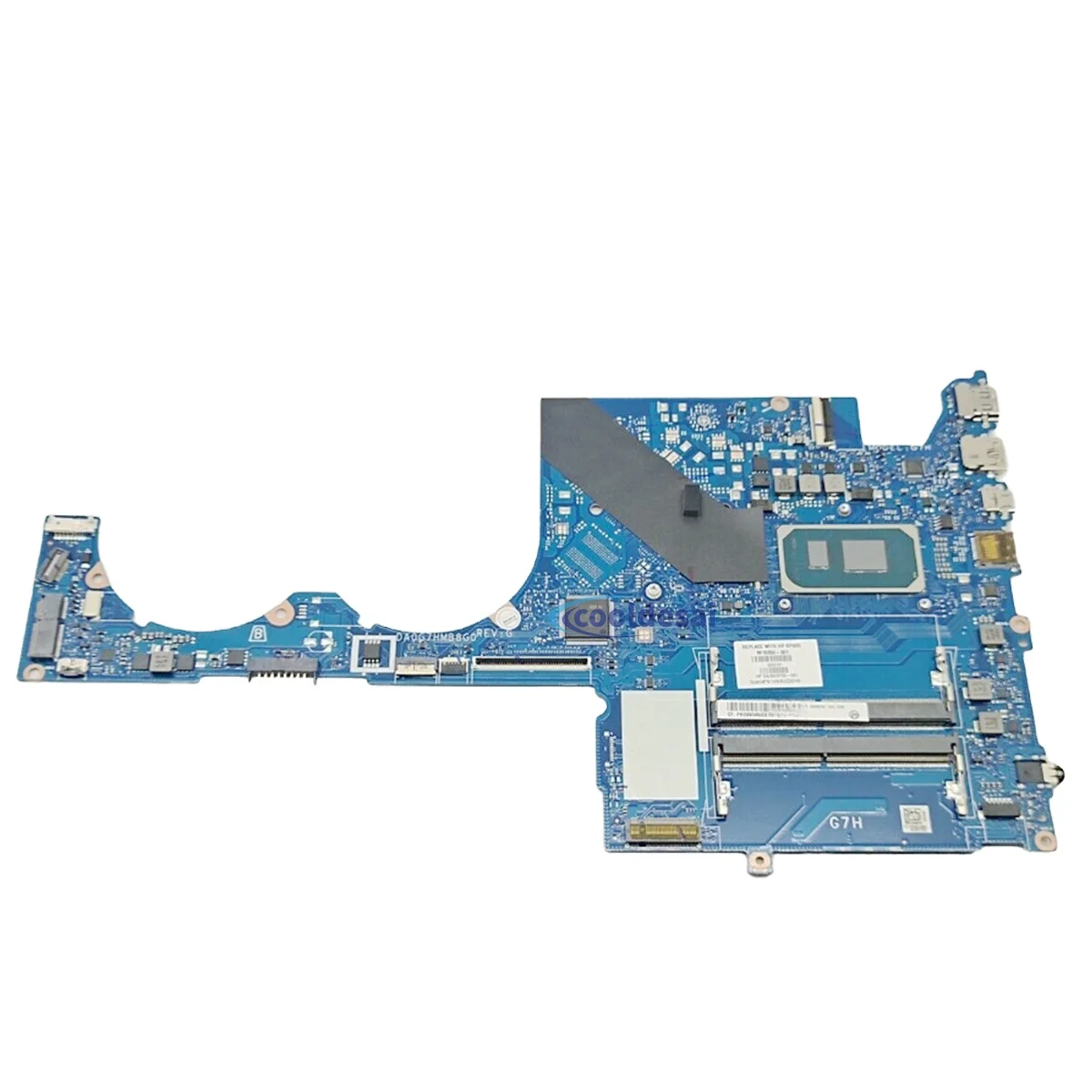

Материнская плата для HP Pavilion 15-eg-15t-eg TPN-Q245 ноутбука DA0G7HMB8H0 DA0G7HMB8G0 с I3-1115G4 I5-1135G7 I7-1165G7 CPU

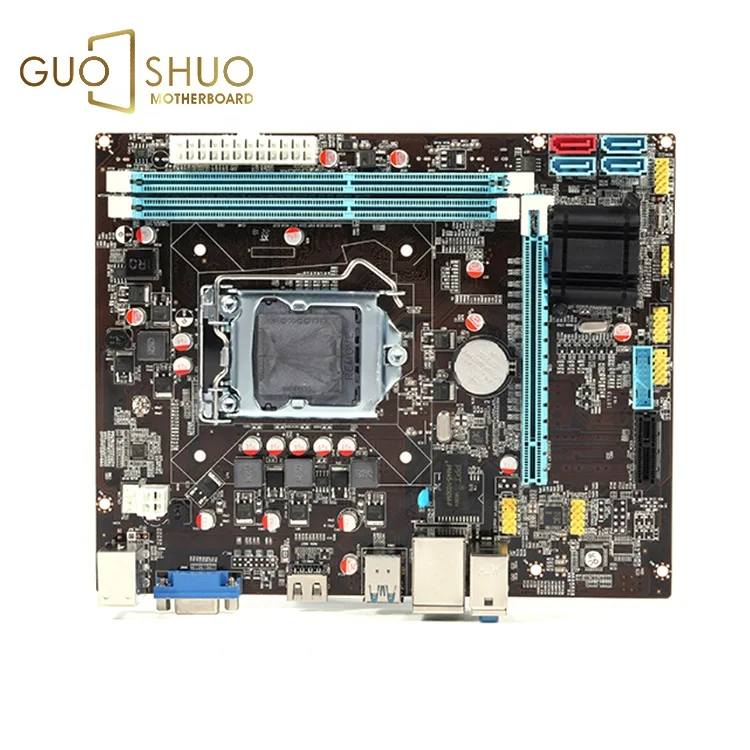

DDR3 Поддерживает Lga 1155 Atx H61 B75 настольном платы с бортовым процессора компьютер Core I3 I5 I7

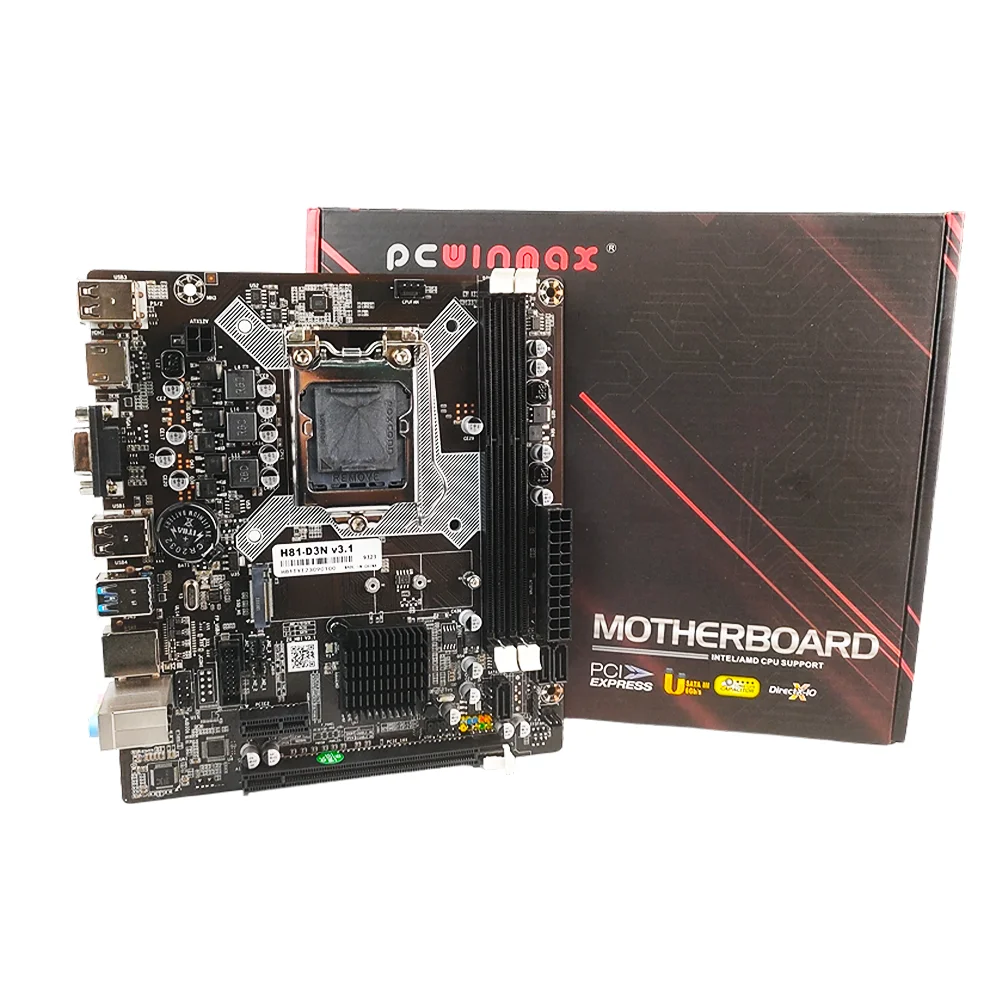

PCWINMAX Заводская цена OEM H81 гнездо LGA 1150 DDR4 Micro ATX mini ITX Промышленная материнская плата ПК
