Product Overview
Small Capacity Algae Powder Making Machine Seaweed Spray Dryer Spirulina Spray Drying Equipment
This small centrifugal spray dryer is specially developed for scientific research department, colleges and universities, enterprises and institutions and engineering experiment centers, for experiment, small test and pilot test and so on.

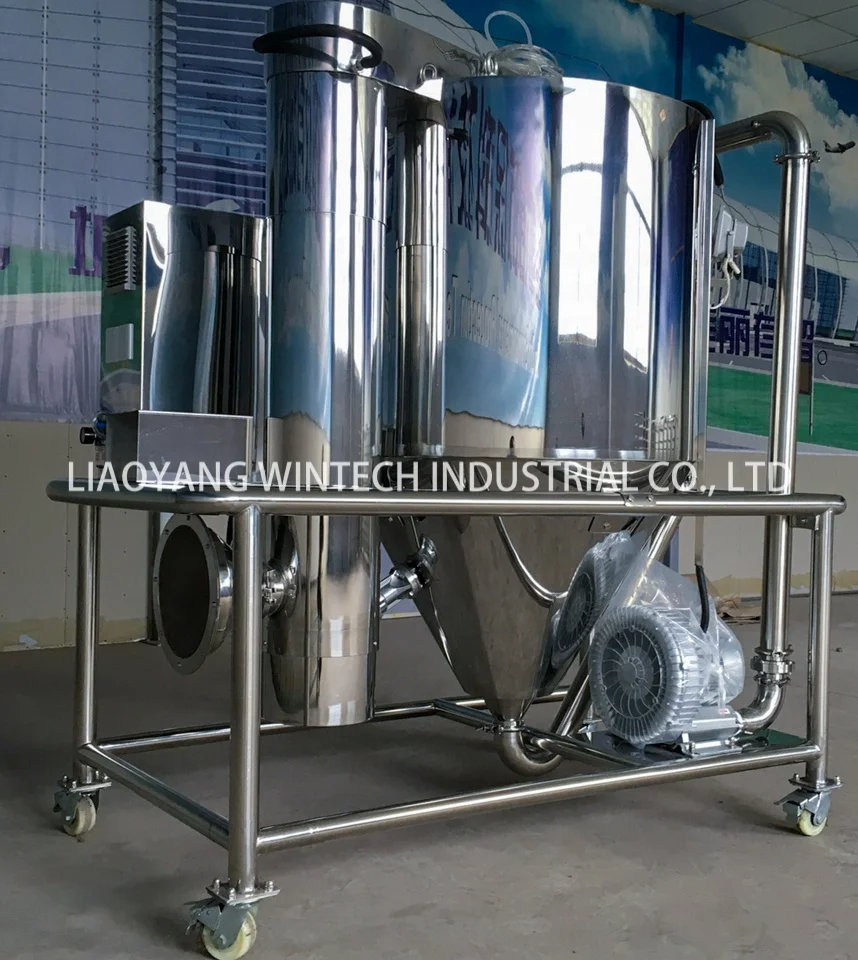

The equipment is mainly composed of a junior middle efficient filter, an electric heating box, a spray tower main body, a frequency conversion atomizer, a cyclone separator, an induced draft fan, a hot air pipe, an electric control box, etc. All parts are centralized on one frame, with wheels at the bottom of the frame for easy movement. The interface is simple and can be used only by connecting the power supply.
FEATURES AT A GLANCE
TEST SCALE
HIGH EFFICIENCY
STAINLESS STEEL
EASY OPERATION
SIMPLE CONTROL
VERSATILITY
HIGH SPEED
EASY MAINTENANCE
Right elevation
Front elevation
Left elevation
The drying speed is fast. After atomization, the surface area of the feed liquid increases greatly, and the moisture can be evaporated 65-98% in the hot air instantly.
Especially suitable for drying heat-sensitive materials, to ensure the color, aroma and taste of materials. Simple and stable operation, convenient adjustment and control, easy to achieve automation.
The product has uniform particle size, good fluidity and instant solubility, high purity and good quality. The atomizer is regulated by frequency conversion and the speed is adjustable from 0 to 25000 rpm.
The production process is simplified, the operation environment sanitation condition is superior, can avoid the dust in the drying process.For the integral frame structure, easy to move.
Water evaporation: 5 kg/h
Material: SUS304, SUS316

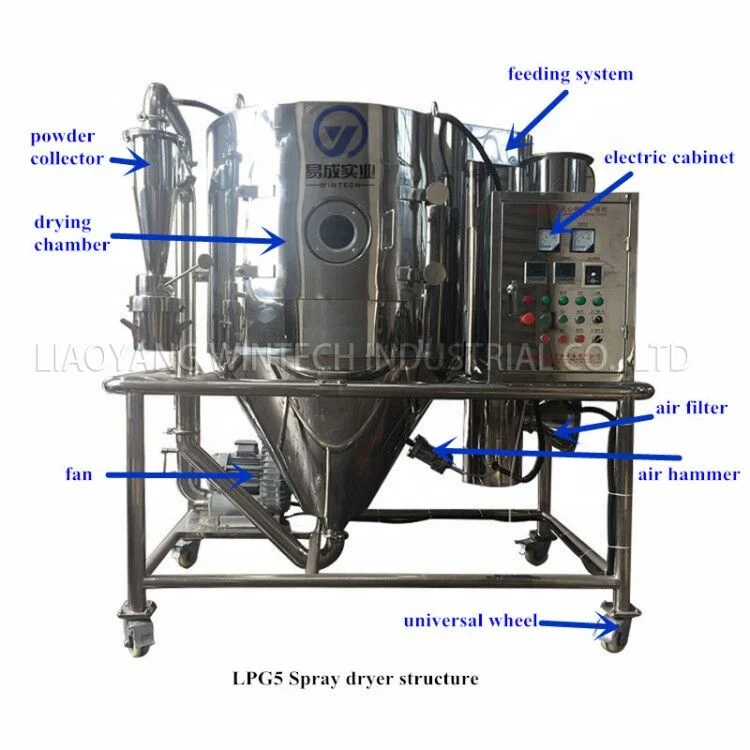

MACHINE STRUCTURE
Working Principle
After filtering and heating, the air enters into air distributor on top of the Drying Equipment. The hot air of the distributor is sent into the drying chamber in spiraling form. At the same time, the feed liquid is delivered by the pump to the centrifugal spray head mounted on the top of the drying chamber. The feed is sprayed into tiny foggy droplets, the surface area in contact with hot air is greatly increased. The droplet and the hot air flow together to sink, the water quickly evaporates in a very short time to be dried into products, captured in the cyclone separator, exhaust gas to the outside.
Product Parameters
Model | WTPG-5 | WTPG-25 | WTPG-50 | WTPG-100 | WTPG-150 | ||||
Inlet temperature | 140-350 ℃ automatic control | ||||||||
Outlet temperature | ~80-90℃ | ||||||||
Max water evaporation capacity | 5 kg/h | 25kg/h | 50kg/h | 100kg/h | 150kg/h | ||||
Centrifugal spraying nozzle transmission mode | Compressed air transmission | Mechanical transmission | |||||||
Rotation speed | 25000 r.p.m | 18000 r.p.m | 18000 r.p.m | 18000 r.p.m | 15000 r.p.m | ||||
Spraying desc diameter | 50 mm | 100 mm | 120 mm | 140 mm | 150 mm | ||||
Heat supply | Electric | Electric+steam | Electric+steam, fuel oil and gas | ||||||
Max electric heating power | 18 Kw | 36 Kw | 63 Kw | 81 Kw | 99 Kw | ||||
Overall dimensions (L*W*H) m | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | ||||
Dried powder collecting | ≥95% | ||||||||
APPLICATION SCOPE
It is suitable for drying all kinds of liquid materials with fluidity to powder in various industries.Typical such as food, chemical, feed, dye industry egg powder, milk powder, coffee powder, blood powder, polymer powder and so on.

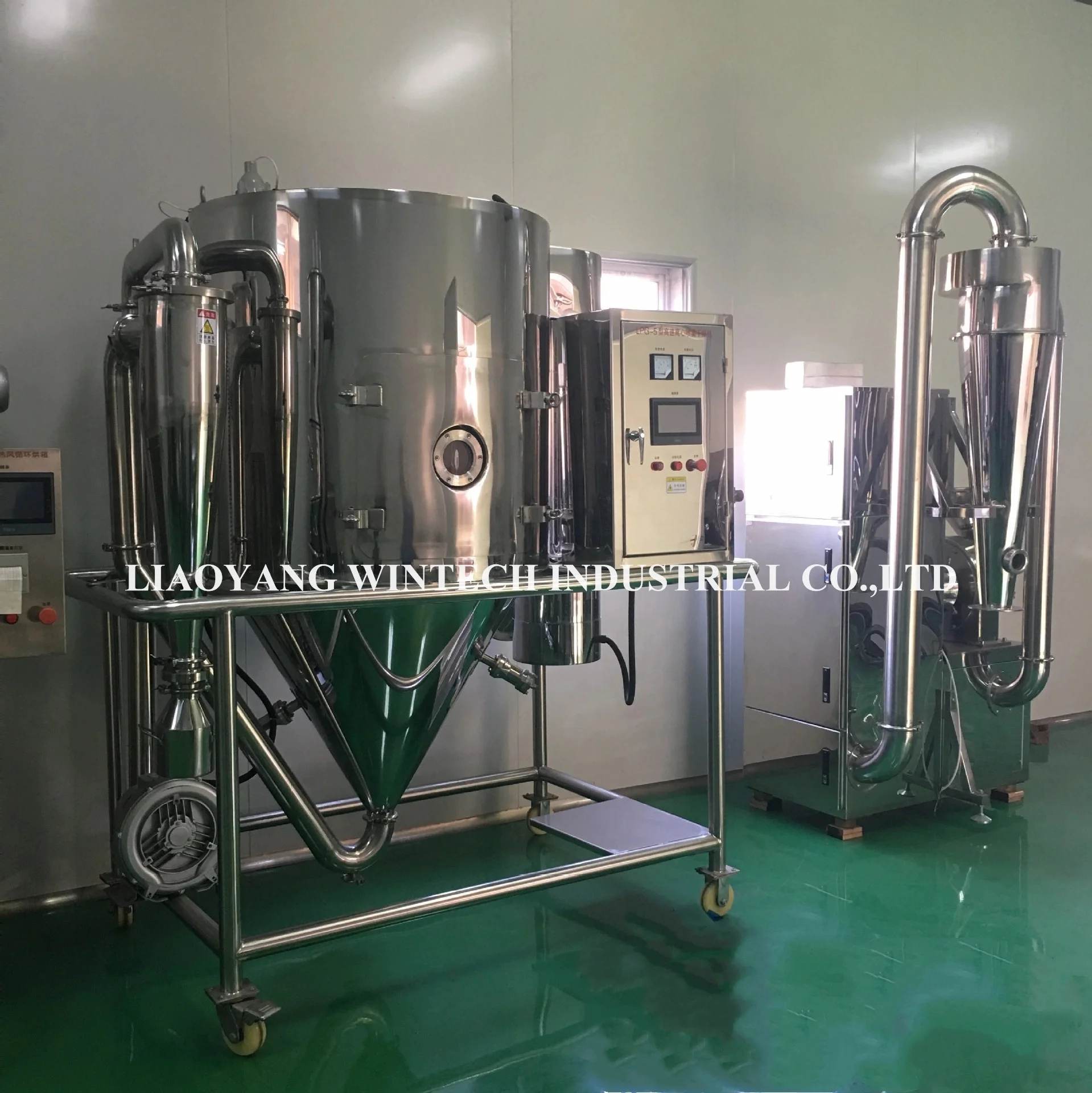

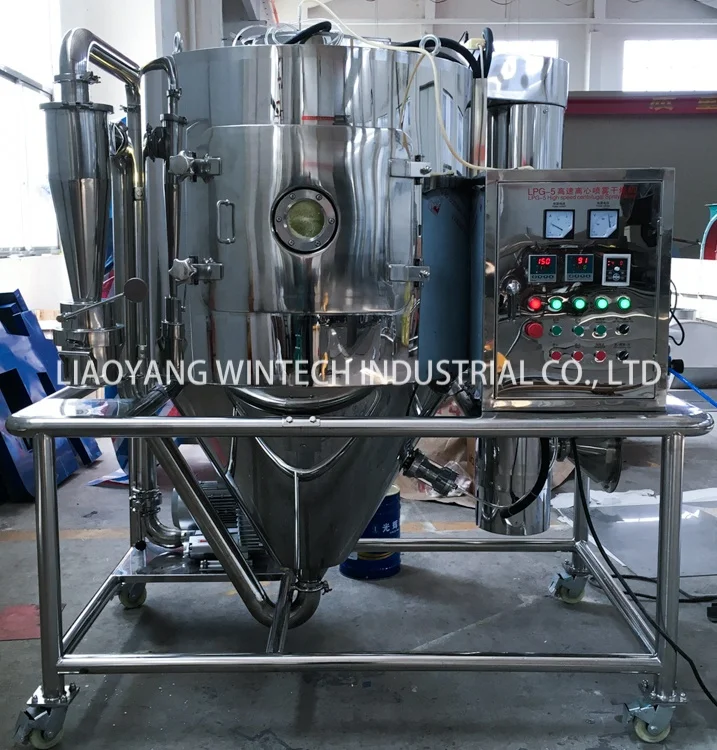

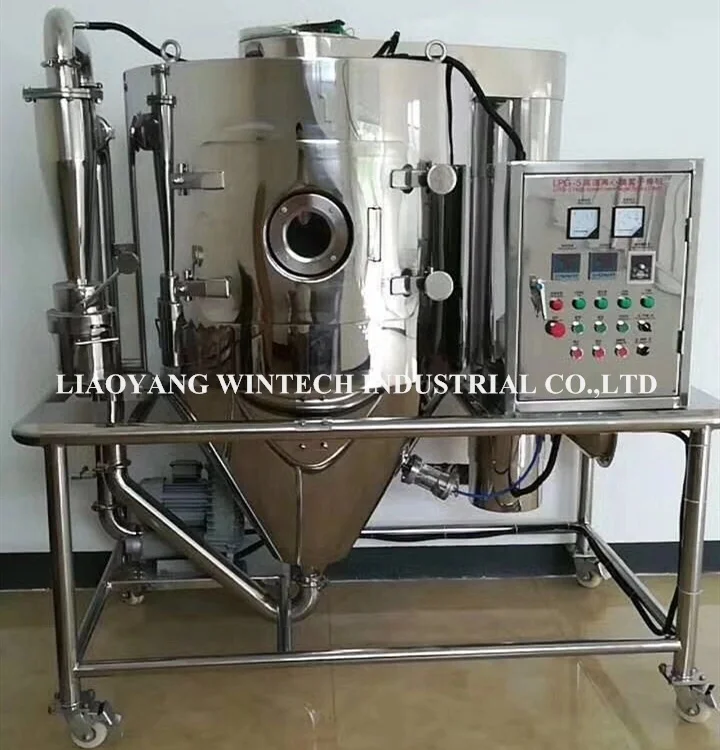

Product More Pictures
PACKING AND SHIPPING
Company Profile
LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifuge Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
SIMILAR PRODUCTS
FAQ
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying (4）Heating source（electricity/ gas/ thermal oil, etc)
2. What certificates do you have?
We can provide CE, ISO 9001, etc.
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Sure, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through video conference.
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
No problem, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
Похожие товары

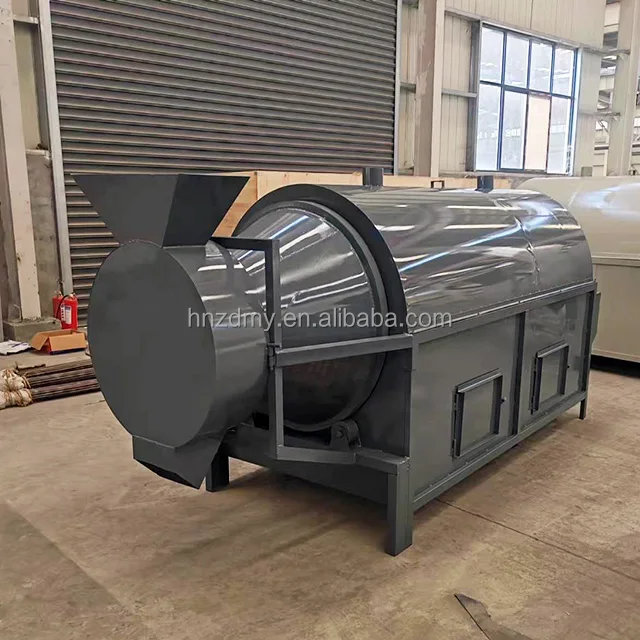

сушилка щепы древесины осушитель машина для просушки
sawdust dryer wood dehydrator drying machine

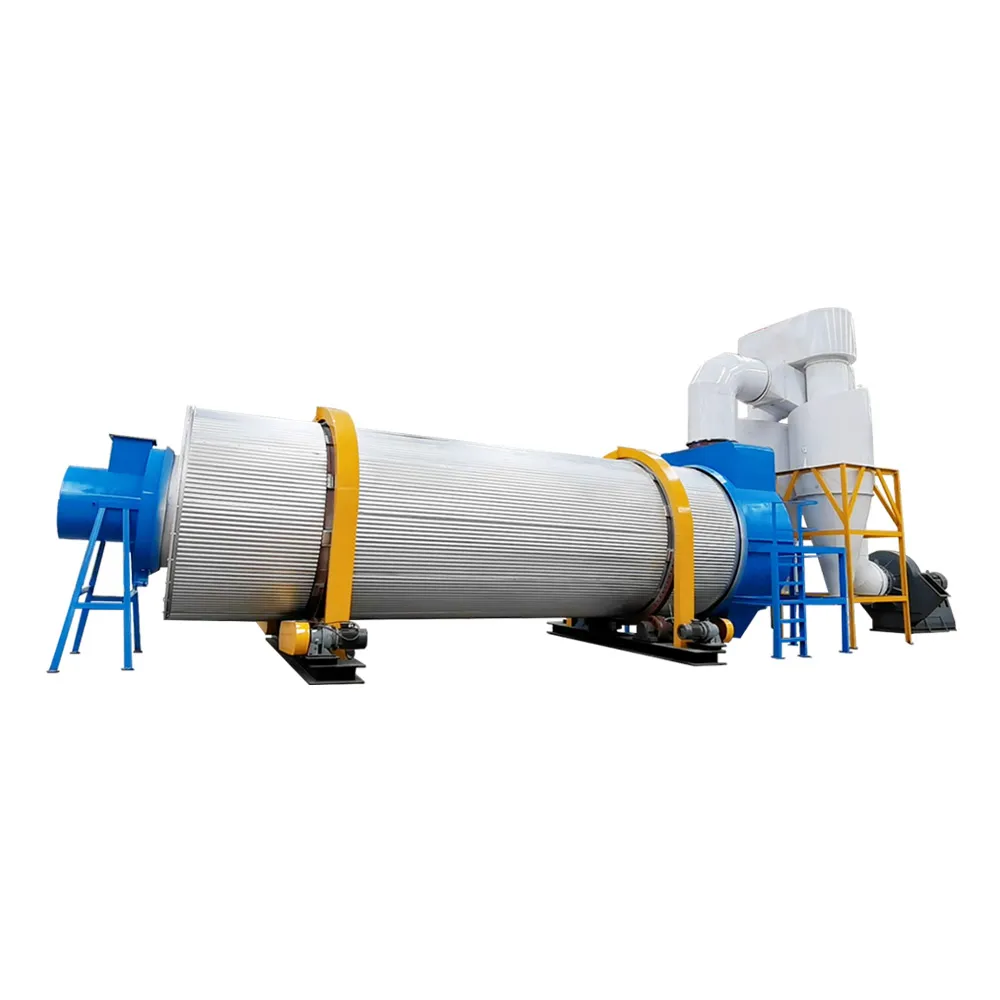

диаметр. 1.5m хорошем условно опилок роторные сушилки для продажи

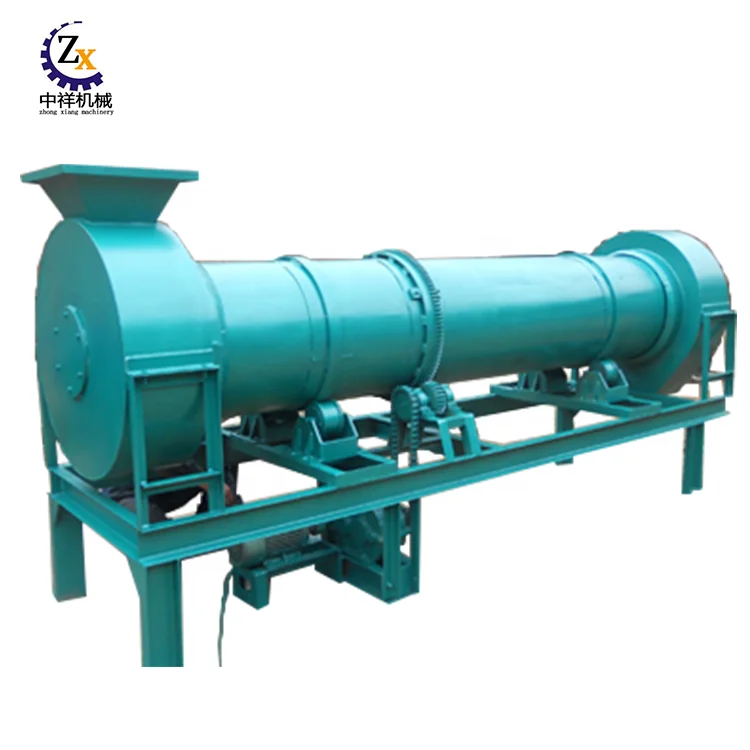

Ротационное сушильное Оборудование PLC control pellet PLC, однослойная ротационная сушилка, поставщик
3 289 452,00 ₽

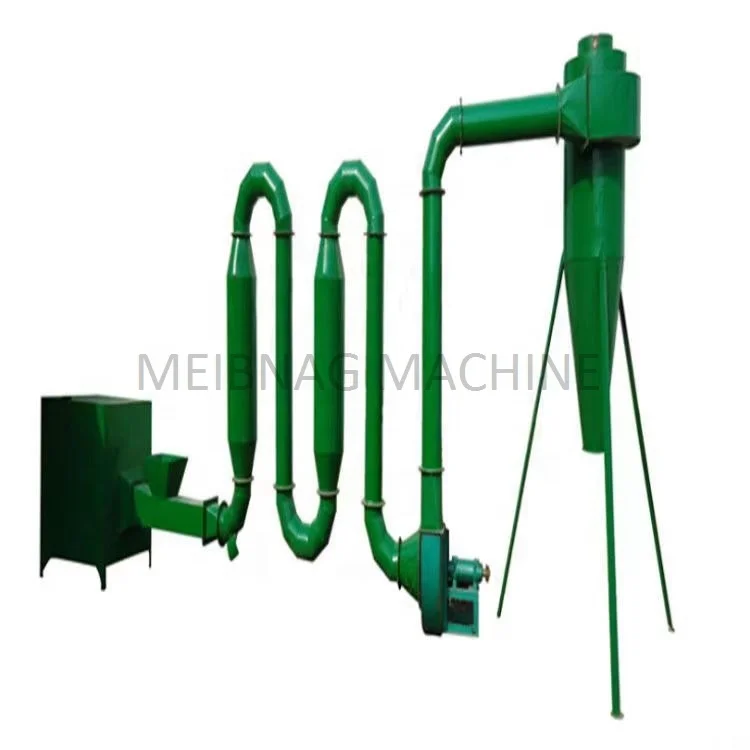

Объединенная Арабская Эмирейтс, рисовая шелуха, Бамбуковая биомасса, древесные опилки, порошок, сушилка для труб, сушилка для сушки опилок с воздушным потоком, сушилка для древесных щепы
