ZXHN F6600P AX3000 4GE 2 горшки 1USB двухдиапазонный волоконно-оптический Wifi6 Xpon для маршрутизатора Olt AX 3000 onu
2 289,46 ₽ - 3 605,24 ₽
Распродажа совместимый с olt gepon Gpon onu 4GE WIFI(4T4R) XPON ONU оптический сетевой маршрутизатор Xpon
- Категория: >>>
- Поставщик: Catcast Technology Co. Ltd. (chengdu)
Сохранить в закладки 1601267422287:
Описание и отзывы
Характеристики

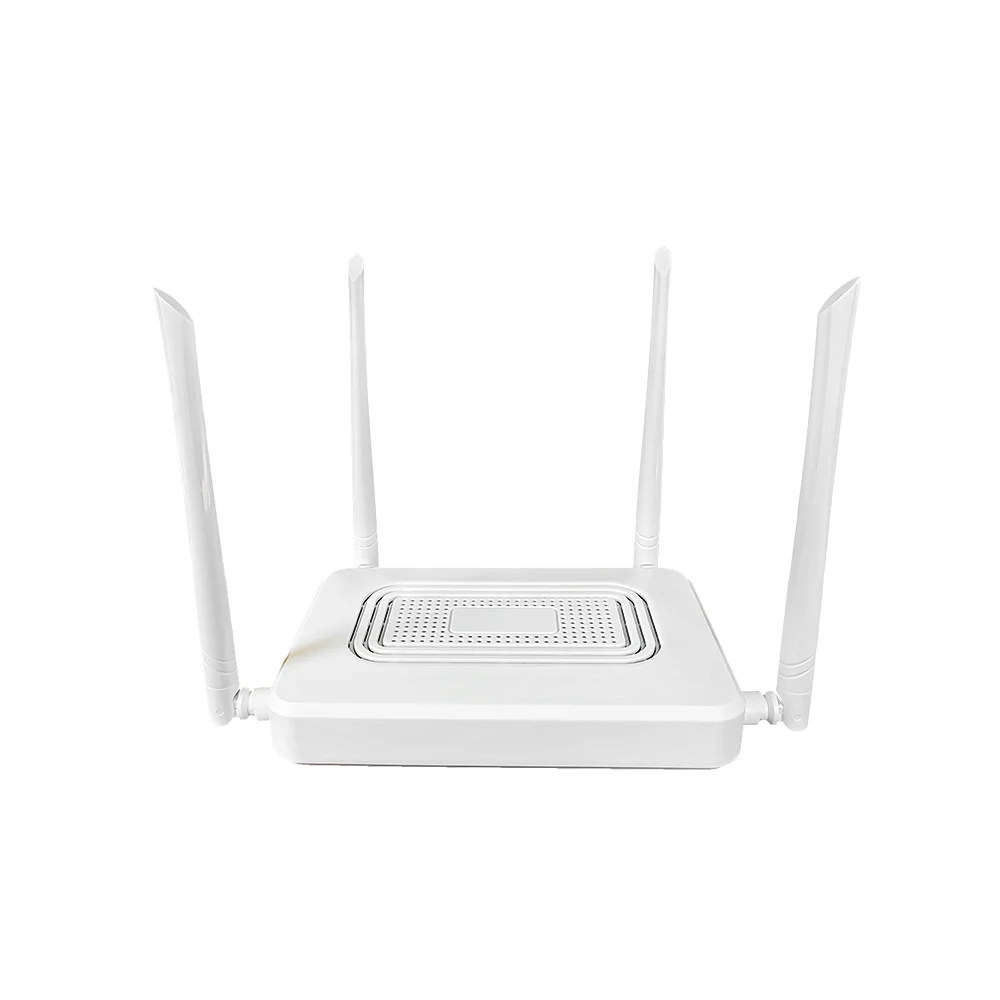

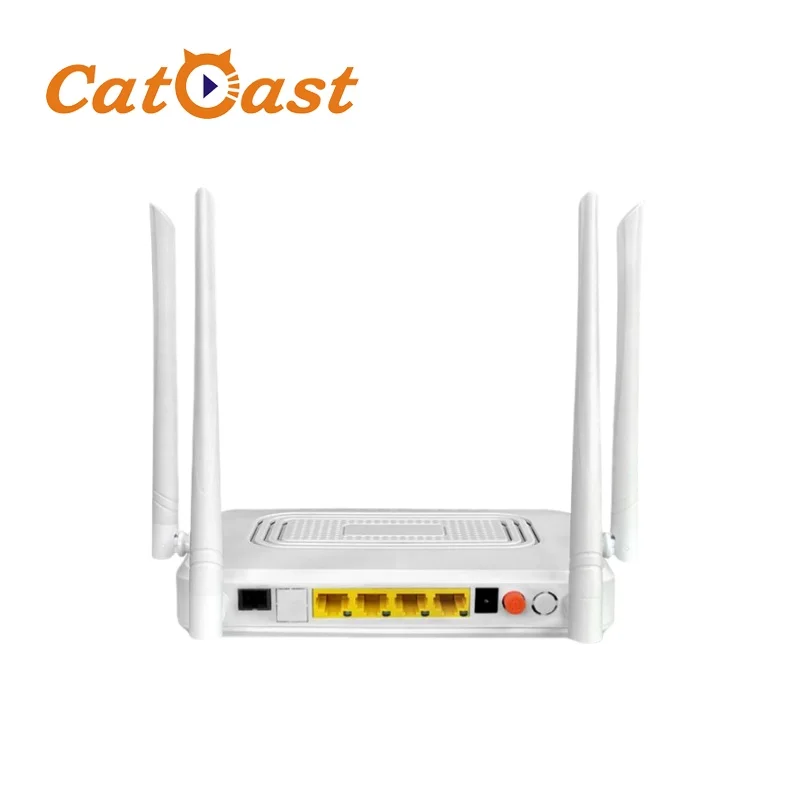

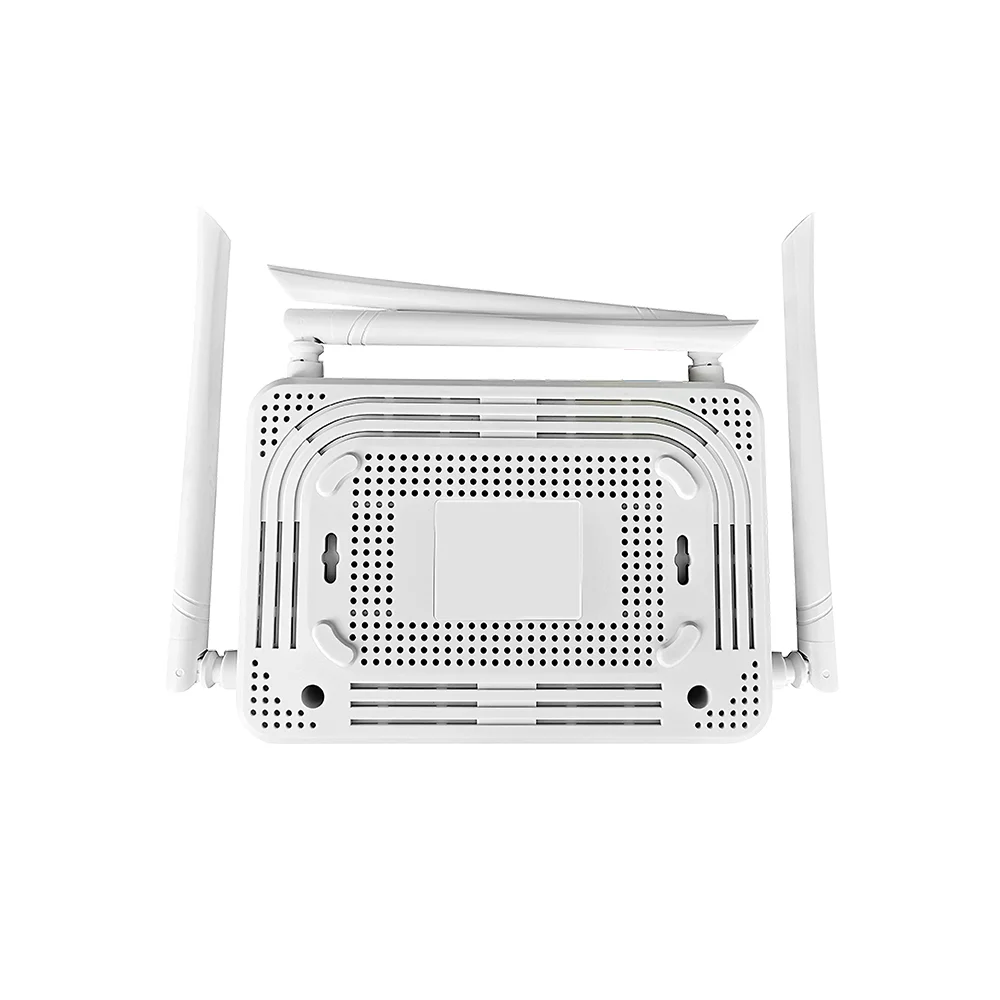

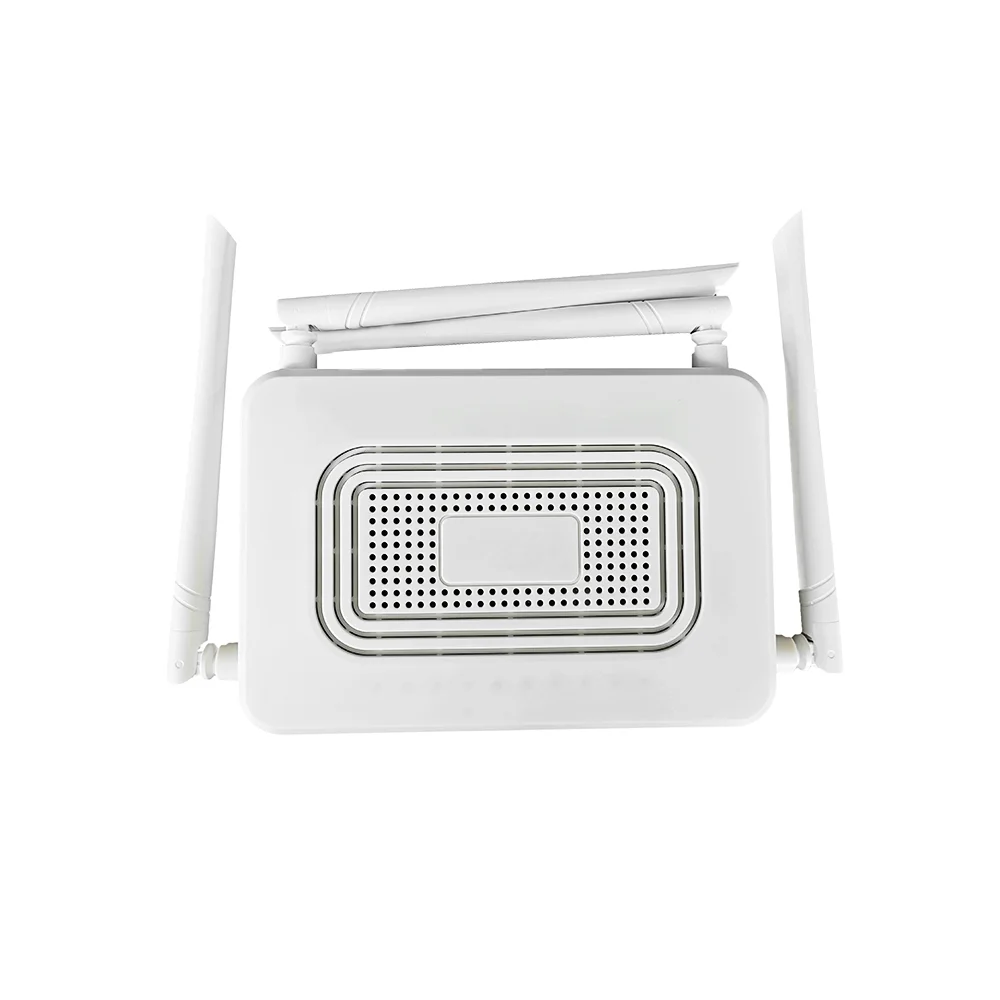

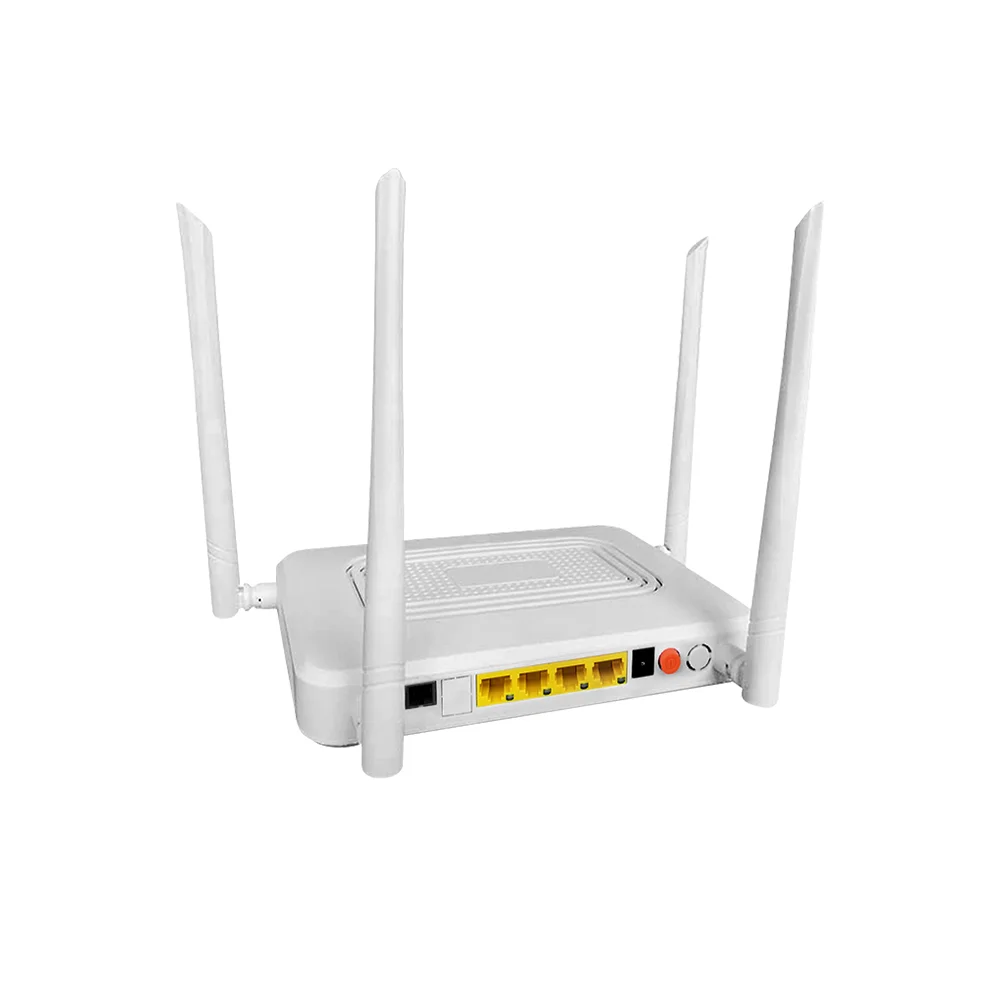

Hot sale Compatible olt gepon Gpon onu 4GE+WIFI(4T4R) XPON ONU Optic Network Router 4GE Xpon onu
Product Description
Overview
FIBERWAY HP2254Q is 4GE+WiFi GPON/EPON HGU terminal devices are designed for fulfilling FTTH service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3. They are high ratio of performance to price, high reliability and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah、ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom. It can also be applied to a wide temperature environment, and also has a firewall function.
Functional Feature
HGU ONU, bridging and routing modes can be set
Dual mode ONU compatible with popular EPON and GPON OLT
Support rich QinQ VLAN functions, IGMP snooping multicast features
802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Support port speed, support for storm suppression
Support 802.11a/b/g/n/ac dual band WiFi(4T4R), rate up to 1.167Gbps
Support No-auth, WEP, WPA-PSK and WPA2-PSK
Support Telnet, CLI, OMCI/OAM /TR069 and Web management
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade , etc
Support IPv4 and IPv6 dual stack
Support NAT, Firewall function
Dual mode ONU compatible with popular EPON and GPON OLT
Support rich QinQ VLAN functions, IGMP snooping multicast features
802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Support port speed, support for storm suppression
Support 802.11a/b/g/n/ac dual band WiFi(4T4R), rate up to 1.167Gbps
Support No-auth, WEP, WPA-PSK and WPA2-PSK
Support Telnet, CLI, OMCI/OAM /TR069 and Web management
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade , etc
Support IPv4 and IPv6 dual stack
Support NAT, Firewall function
Application
Technical parameters
Items | Unit | Specifications |
PON standard. | EPON IEEE802.3ah, GPON ITU-T G.984.x | |
Optical interface | SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～ +4dBmTransmission distance: 20KM | |
Speed | Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps. |
Wavelength | nm | Tx1310, Rx 1490 |
Interface | data | 4GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
Wireless | Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm | |
Indicator | LED | 9 LED for Status of POWER、LOS、PON、 LAN1～LAN4、WiFi2.4G、WiFi5.0G |
Operating condition | ℃ | Operating temp: 0 ~ +50 |
Storing condition | ℃ | Storing temp: -30 ~ +70 |
Humidity | % | 10~90(non-condensing) |
Power supply | V | DC 12V,1.5A adapter |
Power consumption | W | ≤12 |
Dimension | mm | 242mm×154mm×35mm(L×W×H) |
Net weight | Kg | 0.42 |
Application
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
Company Introduction
Catcast Technology Co.,Ltd is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 18 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog tv system to digital tv system. Upgrade CATV/MATV to IPTV system. We are always striving for innovation , and keep the principle to do business: The same product , we win the quality. The same quality, we win the price.
why choose us
Похожие товары

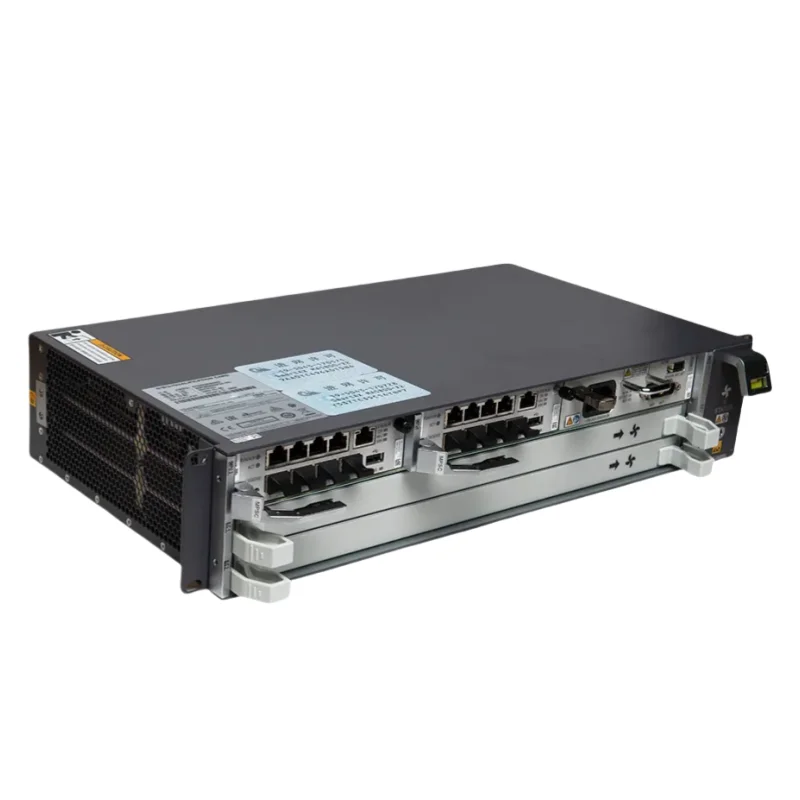

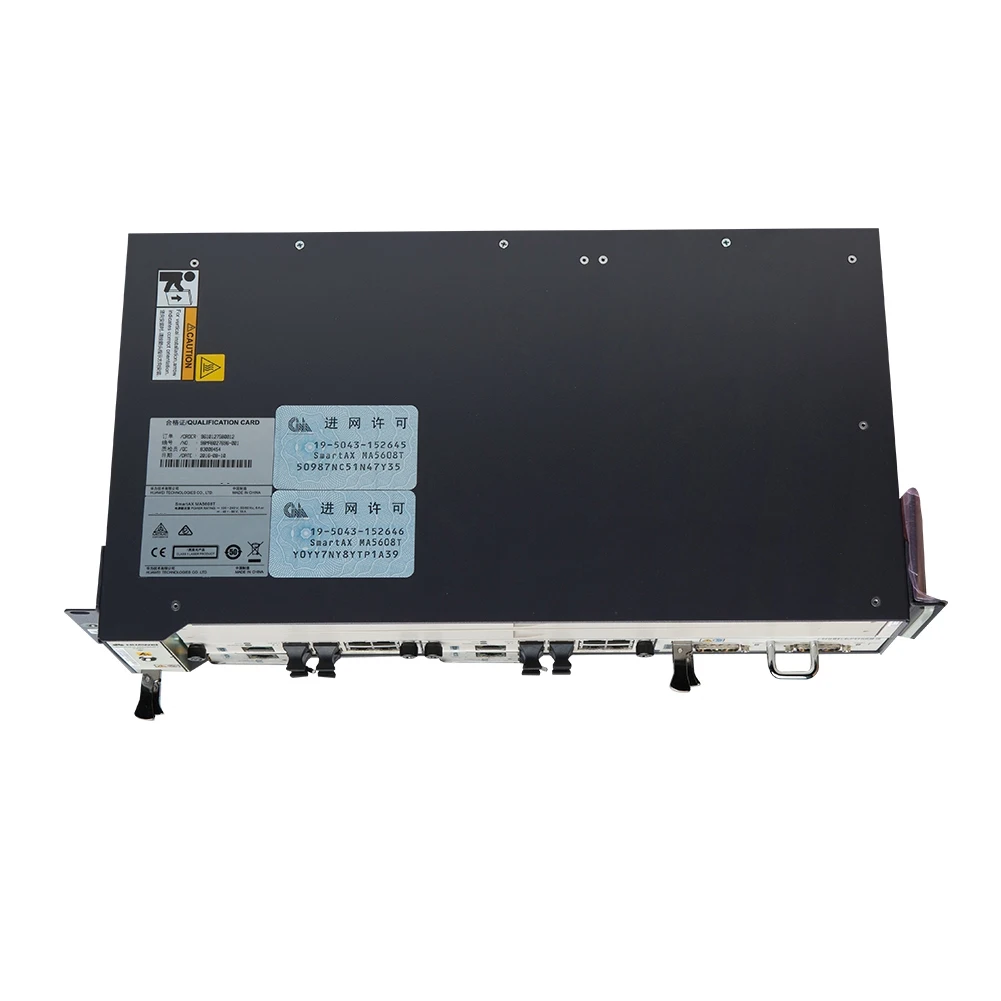

Оригинальный новый хороший продаваемый Оптический линейный терминал Ma5608t EPON GPON OLT FTTH ma5608t dc olt
Сетевое оборудование FTTH 2U высота 16 портов 10 г 1 г DC MCUD * 1 MPWC GPFD плата GPON OLT MA5608T цена
19 дюймов Оригинальный Новый 1 г 10 г MCUD MCUD1 MA5608T dc mini GEPON OLT, ac DC MPWD MPWC с GPBD/GPFD/EPBD, высота 2U MA5608T GPON
Новое оптоволоконное сетевое устройство 1G 10G DC MINI GPON OLT GPFD C + C ++ 16 порт MA5608T OLT
SmartAx MA5800X2 16 порт XGSPON XGPON GPON EPON карта MPSC PLSB * 1 DC мощность 4*10 Гб восходящий канал FTTH Mini OLT
120 613,24 ₽ - 126 095,66 ₽
8 портов Gpon Olt интерфейсная плата GPBD с 8 pcs C + использование для MA5600T MA5608T

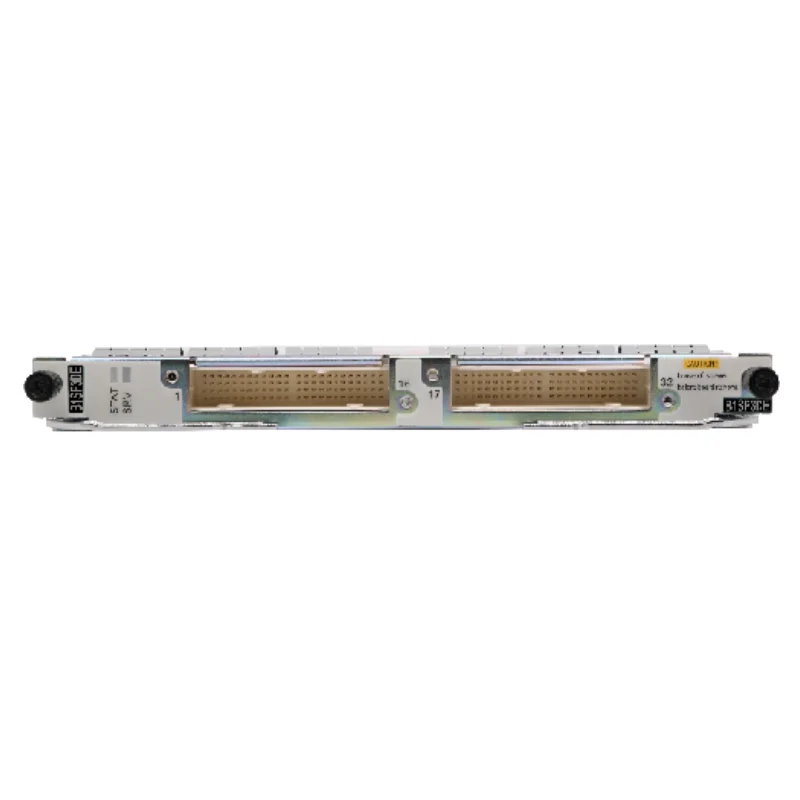

42 x E1 плата электрического интерфейса TMB1SP3DE для телекоммуникационного оборудования передачи OSN1800V Pro
