Product Description
Shengfan Quartz plate characteristic | ||
*Brand | shengfanquartz | |
*SIO2 | 99.99% | |
*Density | 2.2(g/cm³） | |
*Degree of hardness moh’ scale | 6.6 | |
*Melting point | 1732℃ | |
* Working temperature | 1100℃ | |
*Annealing point | 1180℃ | |
*Softening point | 1630℃ | |
How to customize?
1.Make drawings of the dimensions
2.Make products for drawing
Unit: mm
Remarks:In addition there are requirements such as tolerance, polish, translucency, etc. can beprovided according to demand.
We can customize any size quartz glass plate according to your drawing.
【Application scope】：Used to make semiconductors, electric light source device, semi-conductor communication devices, lasers,
optical instruments, laboratory instruments, electrical equipment, medical equipment and chemical instruments, chemical industry,
electronics, metallurgy and other industries.
【Product advantages】: not easy to be corroded, can withstand high temperature, beautiful appearance, compact structure, easy to operate, strong light transmission, good electrical insulation.
optical instruments, laboratory instruments, electrical equipment, medical equipment and chemical instruments, chemical industry,
electronics, metallurgy and other industries.
【Product advantages】: not easy to be corroded, can withstand high temperature, beautiful appearance, compact structure, easy to operate, strong light transmission, good electrical insulation.
Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
Softening Point | 1730°C | Annealing Point | 1215°C |
JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
The average transmittance | 90% | 85% | 85% |
Bubble class | 0 | 2 | 2 |
Birefringence | 1-2 | 1-2 | 1-2 |
Grain structure | 1 | 2 | 2 |
Fringe | 1-2 | 2 | 2 |
Uniformity | 1-2 | 2 | 2 |
Fluorescence | 1 | 2 | 2 |
Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Setting Information | ||
Color | Transparent | |
Shape | Circular / Round | |
Standard | JGS1,JGS2 | |
Material | 99.99% Sio2 | |
Diameter | 1-800mm | |
Thickness | 0.2-100mm | |
Application | Optics quartz windows | |
Light Transmittance | >92% | |
1. SiO2> 99.99% ,high purity quartz tube.
2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
3.Excellent visual and chemical performance .
4. without surface coating and infectant.
5. Health care and environmental protection.
6. Any dimension can be made.
7. CE.RoHs SGS approved.
2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
3.Excellent visual and chemical performance .
4. without surface coating and infectant.
5. Health care and environmental protection.
6. Any dimension can be made.
7. CE.RoHs SGS approved.

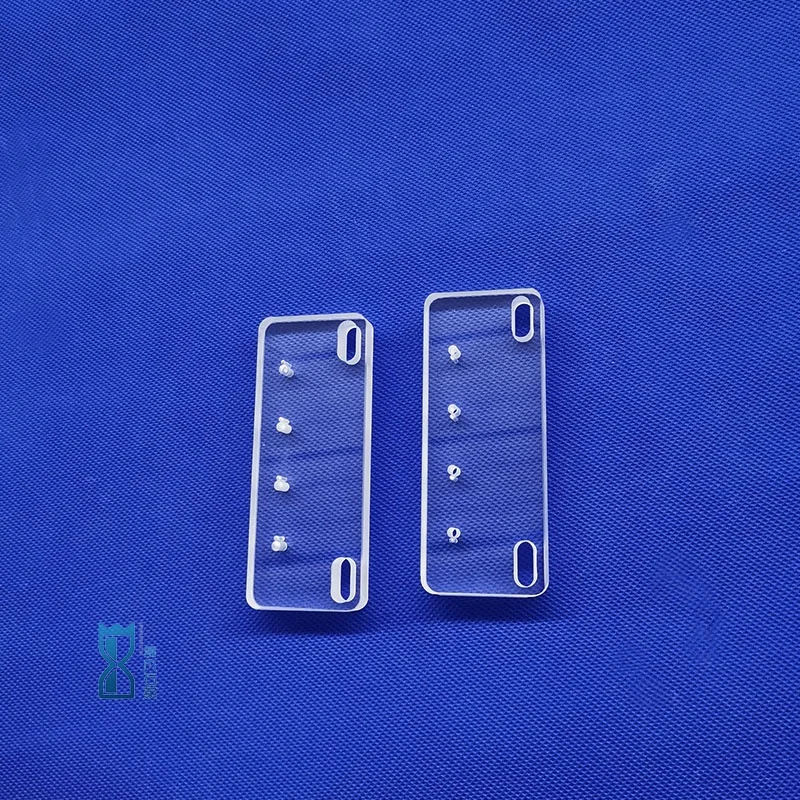

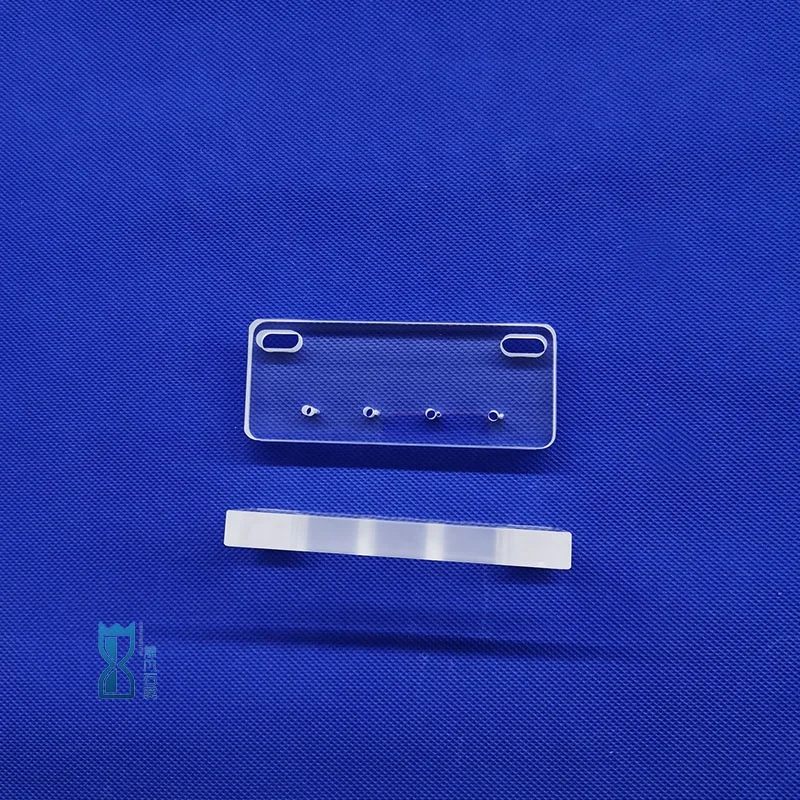

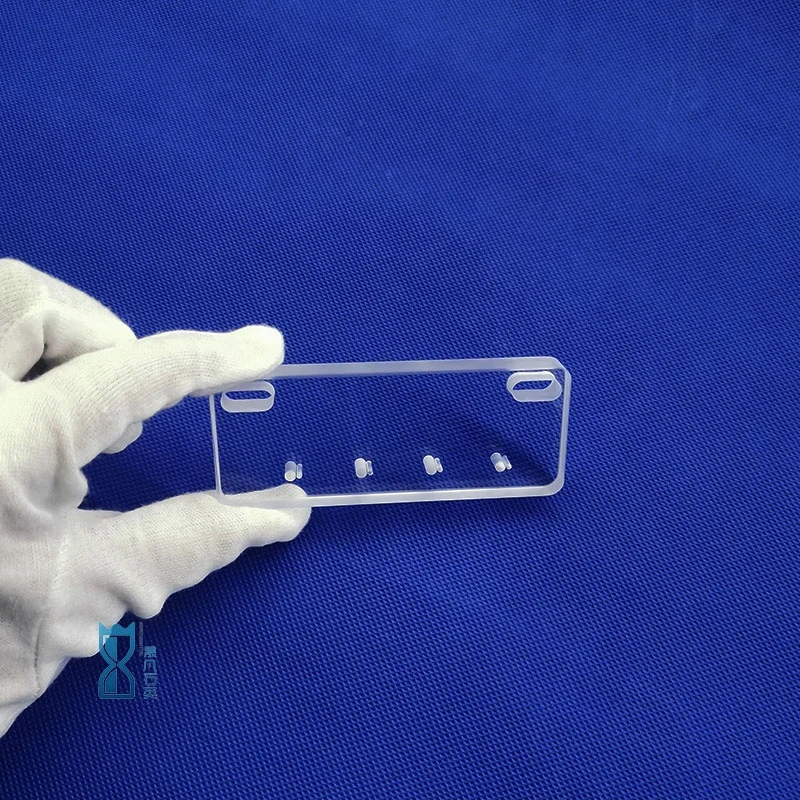

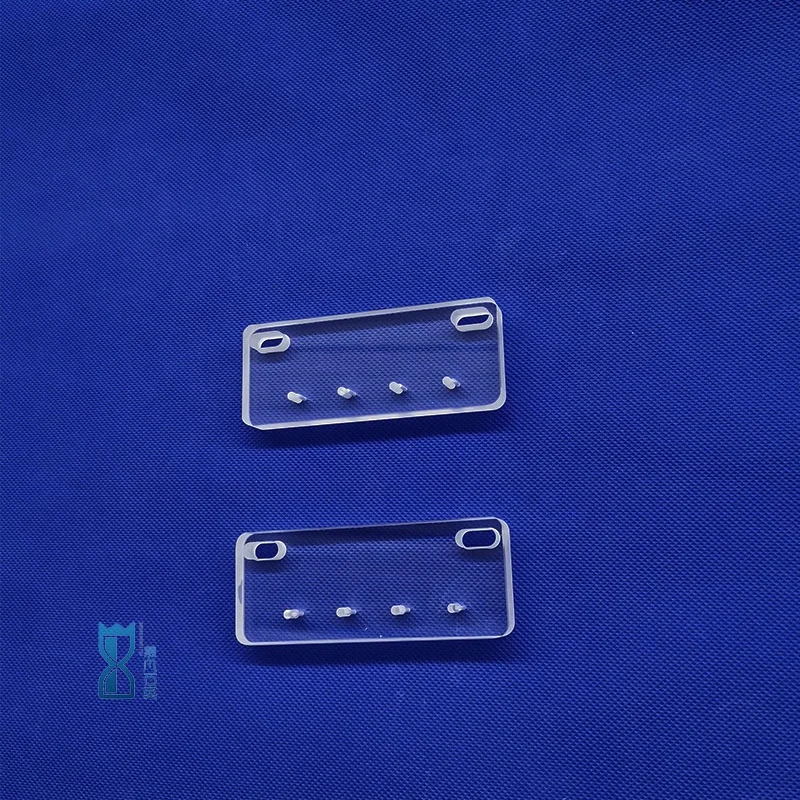

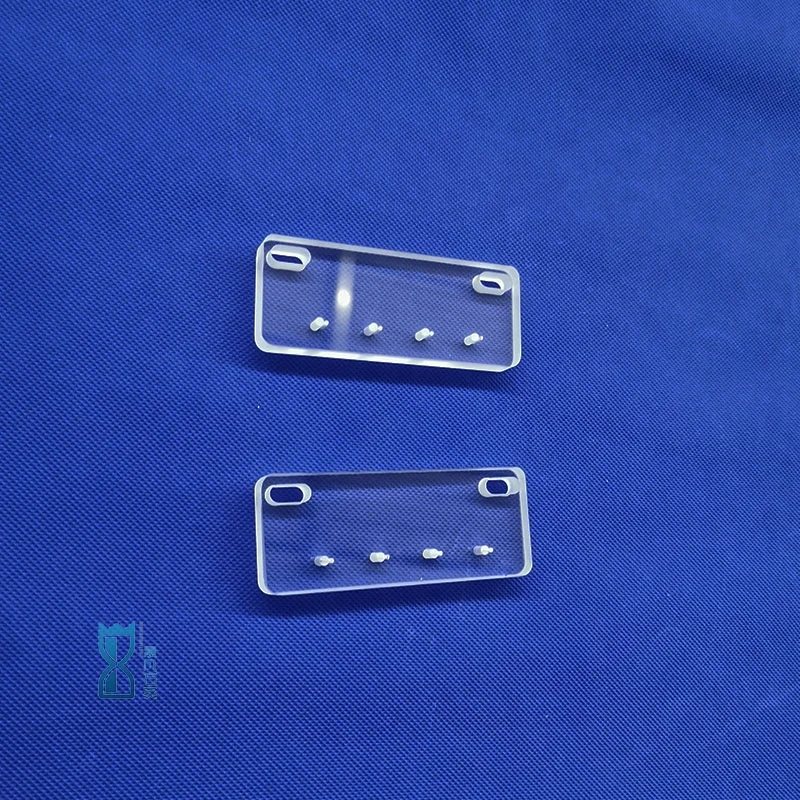

Details Images
