Автоматический винт мочевины зерна муки из нержавеющей стали винтовой конвейер

Автоматический винт мочевины зерна муки из нержавеющей стали винтовой конвейер

Категория: >>>
Поставщик: Xinxiang Jubao Intelligent Manufacturing Co. Ltd.

Цена:164 472,60 ₽ - 219 296,80 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Stainless steel 304 salt screw conveyor

loader sawdust screw conveyor price

Screw conveyor is a common conveying equipment, mainly used for conveying powder, granular and small block materials. Because of its simple structure, easy maintenance and management, reliable work and high stability, it is widely used in building materials, chemical industry, electric power, metallurgy, coal, grain and other industries

Features

1. The inlet and outlet position arrangement is flexible, the conveying efficiency is high;
2. Long servicing life;
3. Simple structure, small cross section size, good sealing, easy operation and maintenance；
4. 6mm thickness steel；
5. Good sealing performance, the shell is made of seamless steel pipe.

Model	Screw diameter (mm)	Screw pitch (mm)	Rotational speed of screw (r/min)	Convey measure (m3/h)	Motor power (kw)	Max dip angle (° )
LS-100	100	100	140	2.2	2.2~18.5	0-45
LS-125	125	125	125	4.0
LS-160	160	160	112	8
LS-200	200	200	100	11
LS-250	250	250	90	22
LS-315	315	315	80	34
LS-400	400	355	71	64
LS-500	500	400	63	95
LS-630	630	450	50	150
LS-800	800	500	40	210

The picture below is a production line we once designed for a customer:Polish mixed packaging system.
Production process:

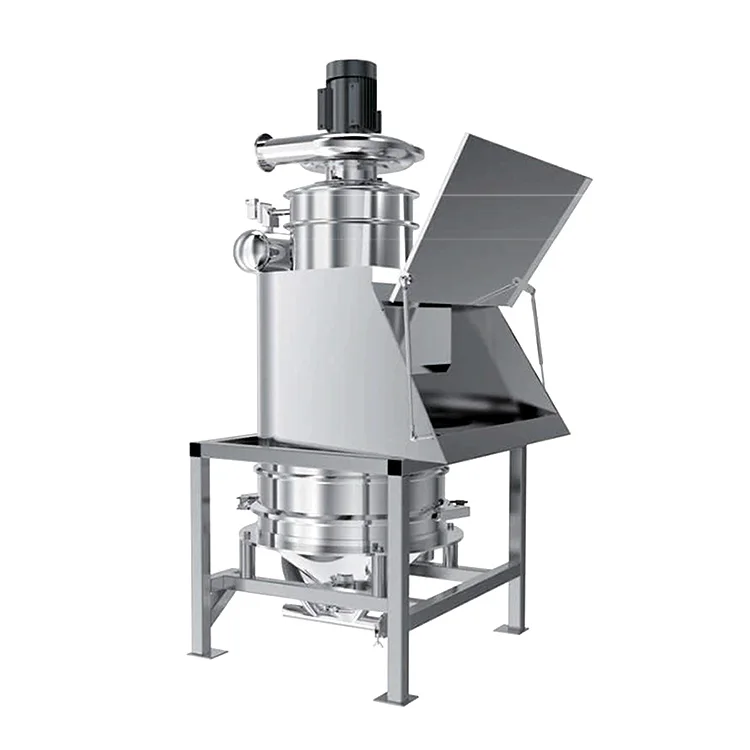

1. Feeding material to dust free dumping station.
2. Vacuum conveyor convey material from dust free dumping station to mixer.
3. Mixer convey material from screw conveyor to packing machine.
* Contact us to design your drawing today.

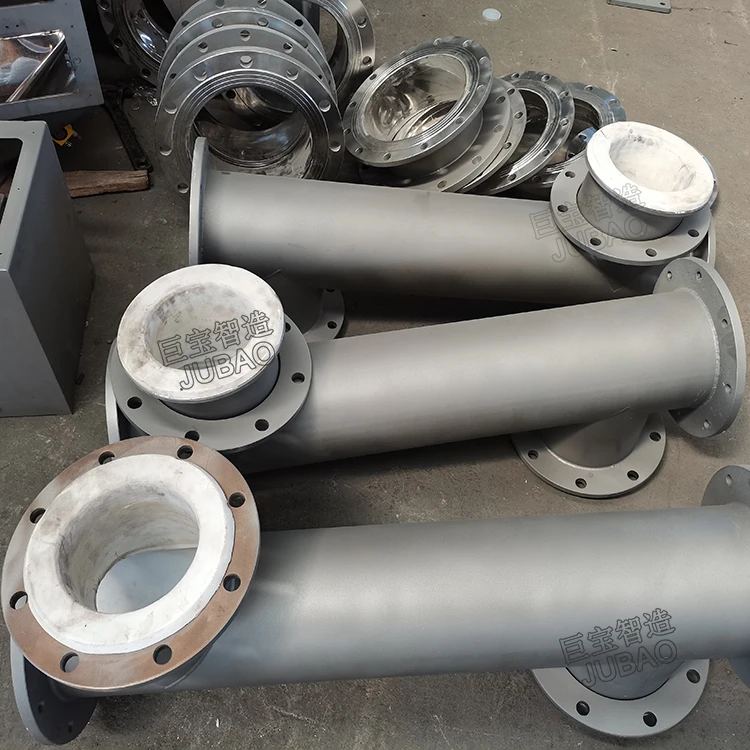

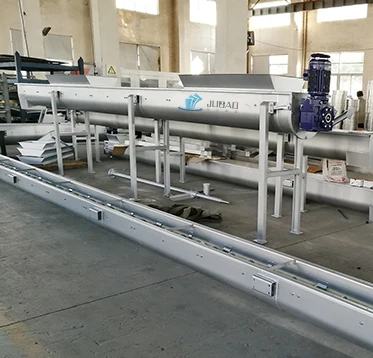

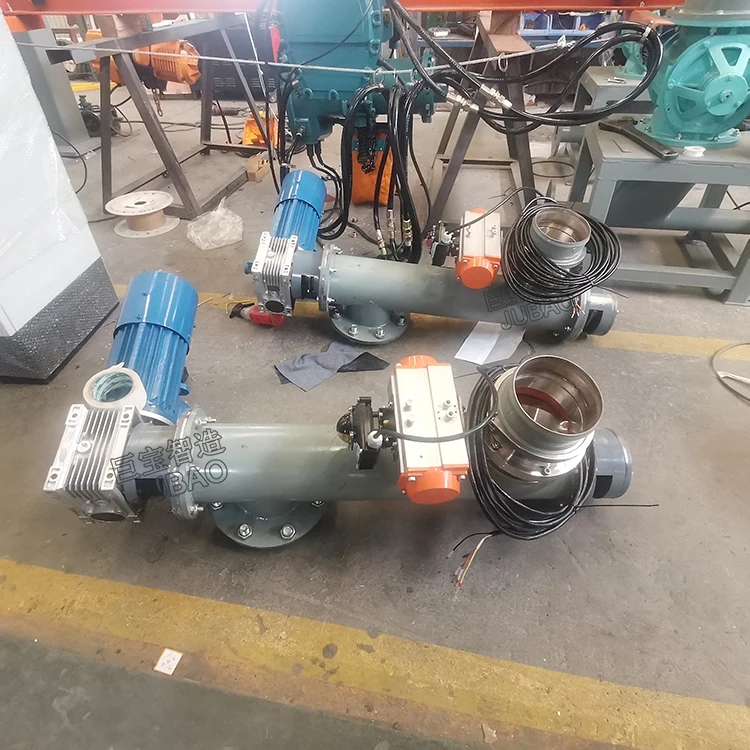

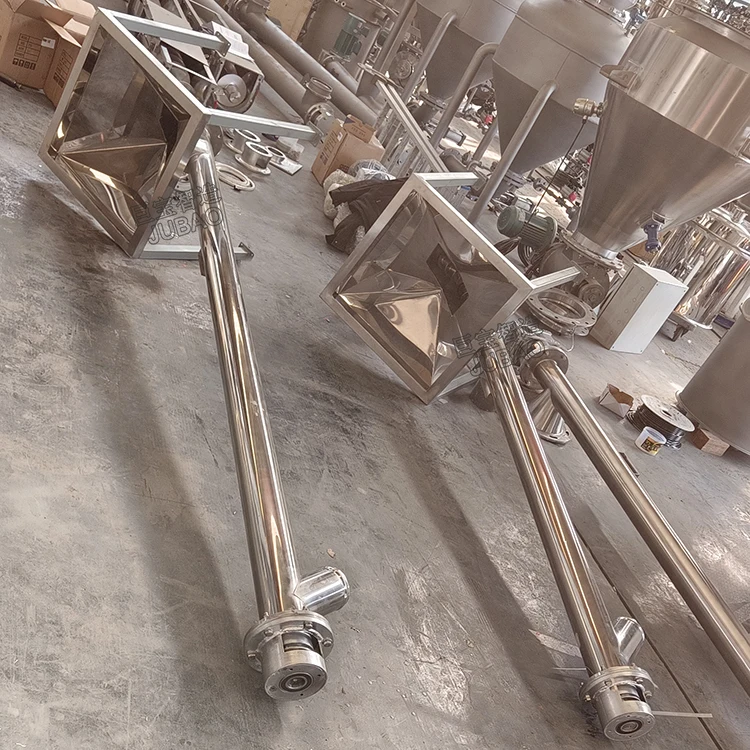

Detail display

Application

If you want to know more about product application, or consult smart powder solutions, please contact us.

Company Profile

Located in China's vibration screening industry base (Xinxiang city), Jubao Intelligent Manufacturing Co., Ltd. has become a leading enterprise in screening industry after over 10 years’fast development.Every year, Jubao provides more than 2000 sets screening equipment and systems to hundreds of customers around the world,such as the United States, the United Kingdom, Germany, Russia, Greece, Singapore and other countries and regions.

Our equipment is widely used in chemical, abrasive, ceramics, ceramics, paper making, mining, paint, metallurgy, geology, national defense, electronics and other industries. Mass production, Fast delivery, Stable quality, Affordable price and Intimate service has become the labels of Jubao, Jubao intelligent manufacturing -your excellent option for sieving,dust-free conveying and intelligent integrated.

* Contact us for a free video tour of our factory
