Железнодорожный порт Rmg контейнерный подъемный козловой кран 20 футов 40 45 рельсовый цена
- Категория: >>>
- Поставщик: Henan Mine Crane Co. Ltd.
Сохранить в закладки 1601267749698:
Описание и отзывы
Характеристики
PRODUCTS DESCRIPTION

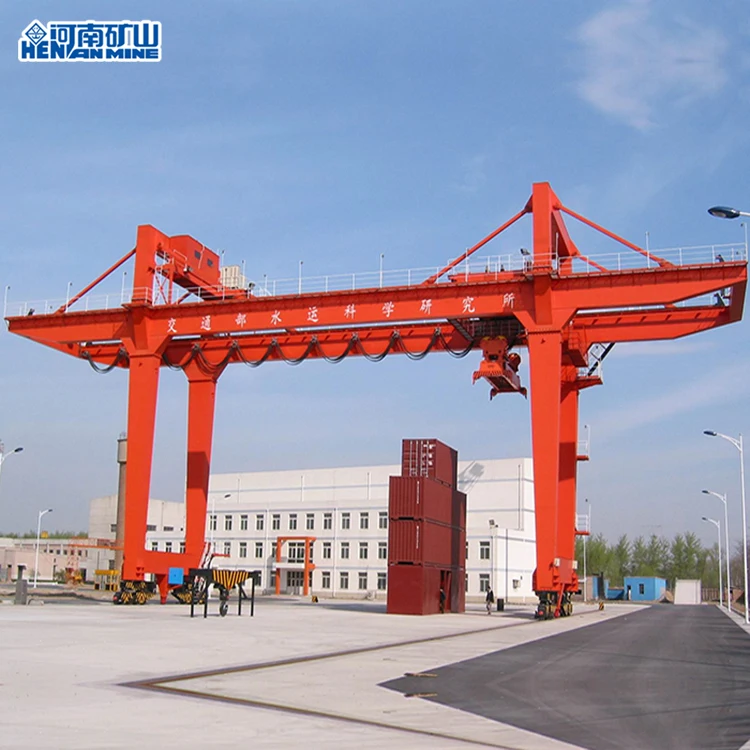

CE ISO RMG Type Ground Travel Rail Mounted cabin control Container Gantry Crane With Spreader

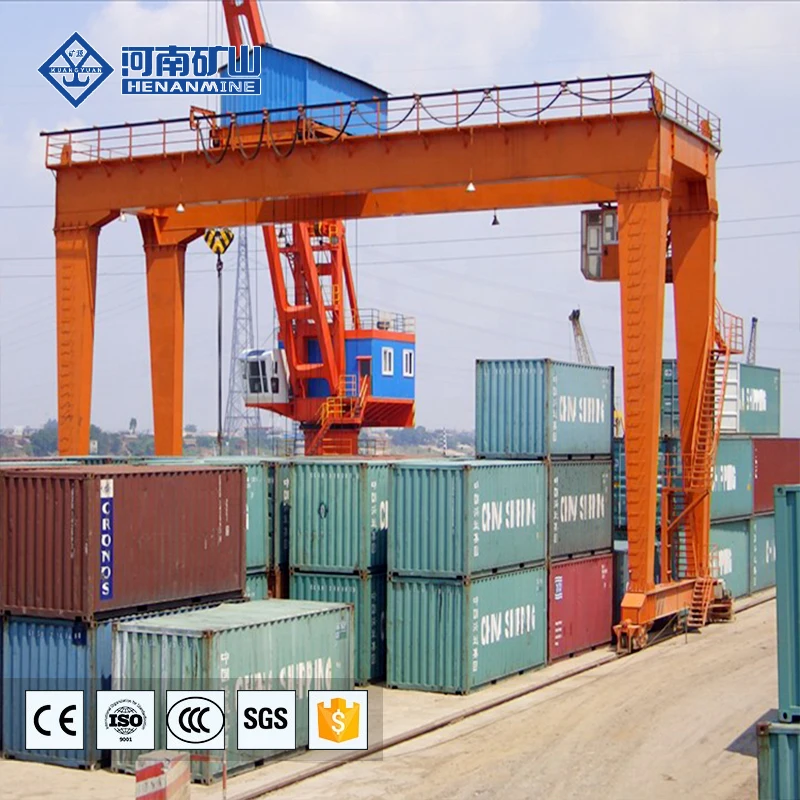

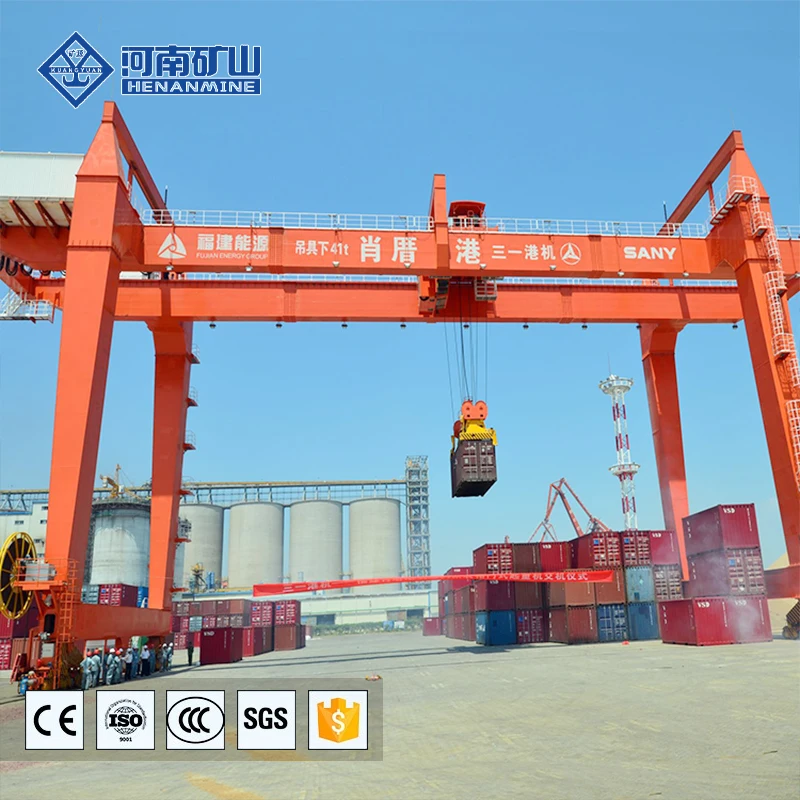

Rail mounted container gantry cranes (RMG) is a specialized container handling machine that is applicable in container yard, railway container terminal, to handle international standard containers.
Rail mounted container gantry cranes (RMG) can travel on rail by means of the yard power, usually powered by cable and cable drum, to lift and stack containers in the yard area with the equipment of the 20' or 40' or 45’ telescopic spreader (or twin-lift spreader if needed).
Rail mounted container gantry cranes (RMG) can travel on rail by means of the yard power, usually powered by cable and cable drum, to lift and stack containers in the yard area with the equipment of the 20' or 40' or 45’ telescopic spreader (or twin-lift spreader if needed).
\\uD83D\\uDC49EXPLORE MORE.
FEATURES AT A GLANCE
1.Safety First: Equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
2. Famous Brand Parts are choosen to make sure whole crane quality. adopts DIN FEM IEC international standards. PLC to easy control all mechanisms
3.Smooth Starting To Avoid Load Sway: Frequency conversion, double speed, single speed, and all hoisting and crane movements are independent, which can be run simultaneously different design duo to meet crane applications.
3.Smooth Starting To Avoid Load Sway: Frequency conversion, double speed, single speed, and all hoisting and crane movements are independent, which can be run simultaneously different design duo to meet crane applications.
4.Competitive Quality And Price!!!
Material Stocks Area
Construction industry
Container Handling
CUSTOMER CASE
Russia Case
Krasnodar portis located in the southern part of Russia. Because it is located in Siberia, the latitude is high, the climate is severely cold. We manufactured MGA636T-25M+10/11MU container gantry crane. Special consideration were given to the design and selection of the steel structure, mechanical parts and electrical equipment of the crane during the design, so that it can work normally in a low temperature environment of -40°C.
PRODUCT CONFIGURATION
Main Girder (Q235B or Q345B)
Lifting mechanism
Forged Wheels
Full View Cab Control
Famous Brand Motor
Cable Wheel
Control Box
(SIEMENS/Schneider/CHINT)
High-strength Bolts
Guard Railing & Walking Platform
PRODUCT SPECIFICATIONS
Safety device:
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Lifting limit switch
4. Crane travelling limit switch.
5. Trolley travelling limit switch.
6. Voltage lower protection function.
7. Emergency stop system.
8. Wind speed indicator
9. Typhoon anchor device
10. Current overloads protection system and so on!
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Lifting limit switch
4. Crane travelling limit switch.
5. Trolley travelling limit switch.
6. Voltage lower protection function.
7. Emergency stop system.
8. Wind speed indicator
9. Typhoon anchor device
10. Current overloads protection system and so on!
Capacity | Under spreader 35tons |
Duty Class | A6~A8 |
Span(rail to rail center) | 30m or as required |
Material handling | 20’ 40’ 45’container |
Cantilevers | According to your demand, but not more than 1/3 of span |
Lifting height | 16m or as required |
Spreader | 20' or 40' or 45’ telescopic spreader |
Lifting speed(m/min) | 0~20 |
Cross travelling speed(m/min) | 0~30 |
Long travelling speed(m/min) | 0~40 |
Power source | AC 380V 50HZ 3Ph (or other standard) |
Control model | Cabin |
Max.wheel pressure(KN) | 290 |
Rail model | QU80 |
COMPANY PROFILE
Established in China in 2002, Henan Mine Group is a multi-national specialist designer, manufacturer & supplier of:
* Overhead Bridge Cranes
* Overhead Bridge Cranes
* Gantry Crane
* Ladle Foundry Crane
* Rail Mounted Gantry Crane (RMG)
* Slewing jib cranes
* Electric wire rope hoists
* Crane component sets
* Material handling equipment
* Crane component sets
* Material handling equipment
FAQ
1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to
our factory to make the inspections.Meanwhile, also support live factory view & crane inspection.
2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What's your warranty period?
A: 18 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is
any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
7Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to
our factory to make the inspections.Meanwhile, also support live factory view & crane inspection.
2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What's your warranty period?
A: 18 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is
any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
7Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
