RS485 DI AI DO T & H Modbus MQTT сотовый M2M RTU шлюз для общественного освещения удаленного мониторинга

Сохранить в закладки 1601267773299:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Specification


Category
Parameter
Description
Power
Input Voltage
DC 9~36V
Power Consumption
Normal: 50mA@12V, Max: 150mA@12V
Output
1 Channel; Voltage: 9~36V DC; Current: 1500mA@12V(Max)
Protection
Reverse wiring prevention;
ESD Air: 15KV; Surge: 4KV
Backup Battery
3.7V/850mA (It is optional. Default: Without battery)
USB
USB
1xMini USB
Serial Port
QTY
1xRS485
Baud Rate
1200bps-115200bps
Data Bit
8
Parity Bit
None, Even, Odd
Stop Bit
1, 2
Protocol
Modbus RTU(slave), Modbus RTU(master)
Protection
ESD Contact: 8KV; Surge: 4KV(8/20us)
Digital Input
QTY
8 Channel
Type
Support both Wet contact and Dry contact
Dry Contact
Close: Short circuit; Open: Open circuits
Wet Contact
Close: 10~30V; Open: 0~3V
Others
DIN0 as a high-speed pulse counter, sampling frequency: 1MHz; DIN1~3 as low-speed pulse counter, anti-shake time can be set
1~2000ms, default 1ms; DIN1 with arm and disarm function;
Protection
2KVrms
Digital Output
QTY
4 Channel
Type
Relay output (5A@30VDC, 5A@250VAC)
Others
The first DO can set time to control by authorize number; Custom setting close and open times
Protection
2KVrms
Analog Input
QTY
6 Channel
Type
Differential input, 4-20mA/0-20mA/0-5V
Resolution
12Bit
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C
Sampling Rate
200ms
Input Impedance
>1M ohms
Temperature&Humidity (AM2301)
Resolution
16bit(0.1%RH, 0.1°C)
Sampling Rate
200ms
Temperature Range
-40 to +80°C
Accuracy
0.5°C
Humidity Range
0 to 99RH%
Accuracy
3%RH
Software
Internet Protocol
IPV4, TCP/UDP, Modbus RTU, Modbus TCP, MQTT, BLIIoT IoT RTU
Indicator
4G signal, running, arming and disarming, 485 transmit-receive
Configuration
PC software configuration, support WIN XP, WIN 7, WIN 8 and WIN 10
Slave Connection
16 devices, Max 320 I/O data points(Bool, 16bit, 32bit, 64bit)
Transparent Transmission
Support
SMS Command
Support
Login Package
Support custom login package
Heartbeat Package
Support custom heartbeat package
Storage
Built in 32G SD card, capable of storing up to 100,000 historical records
Environment
Working
-45~85°C, 5~95% RH
Storage
-45~105°C, 5~95% RH
Others
Shell
Metal
Size
108x82x40mm
Protection
IP30
Installation
Wall-mounting or DIN Rail mounting.

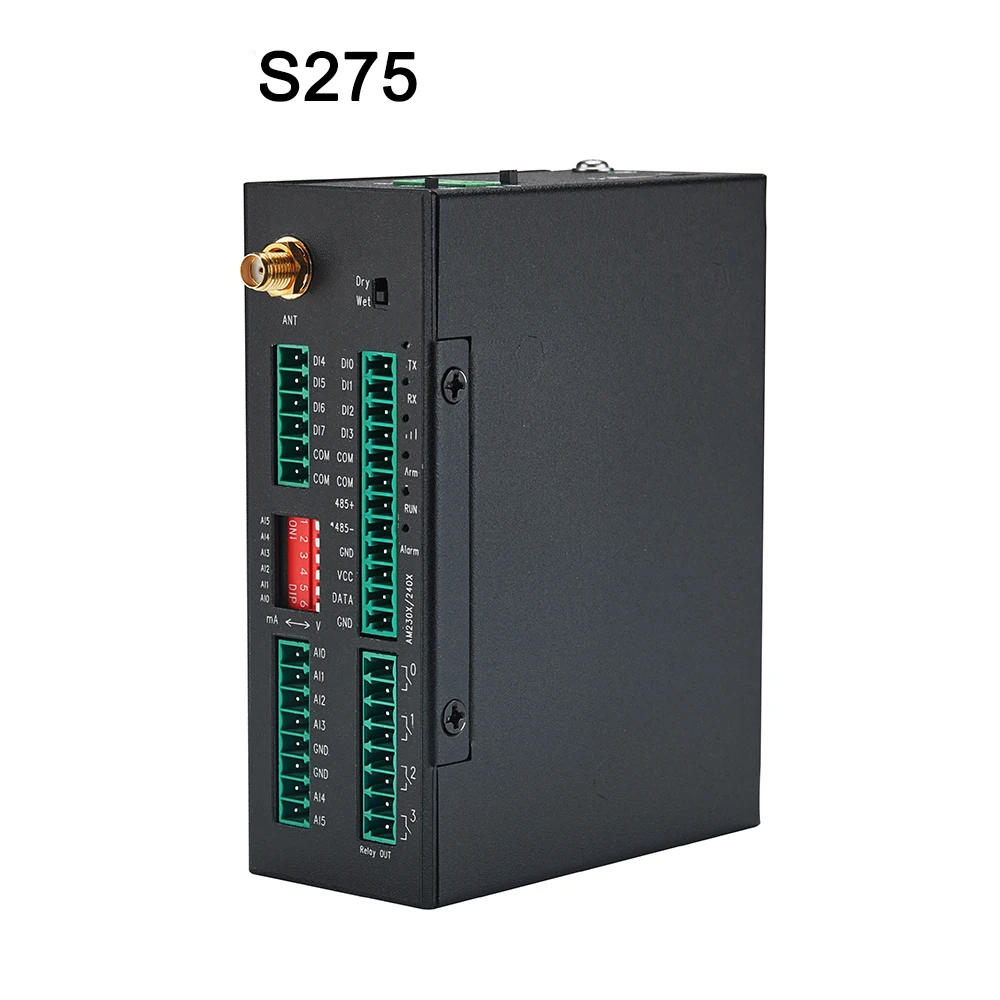

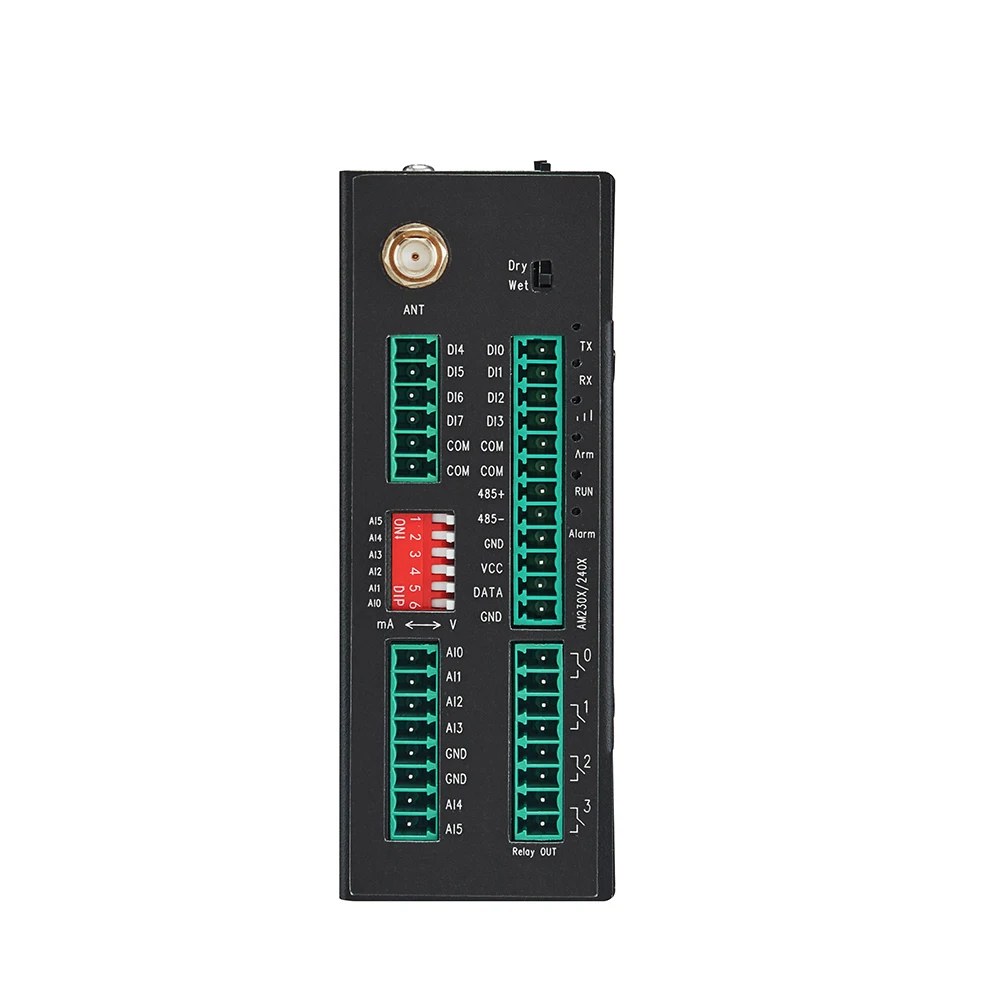

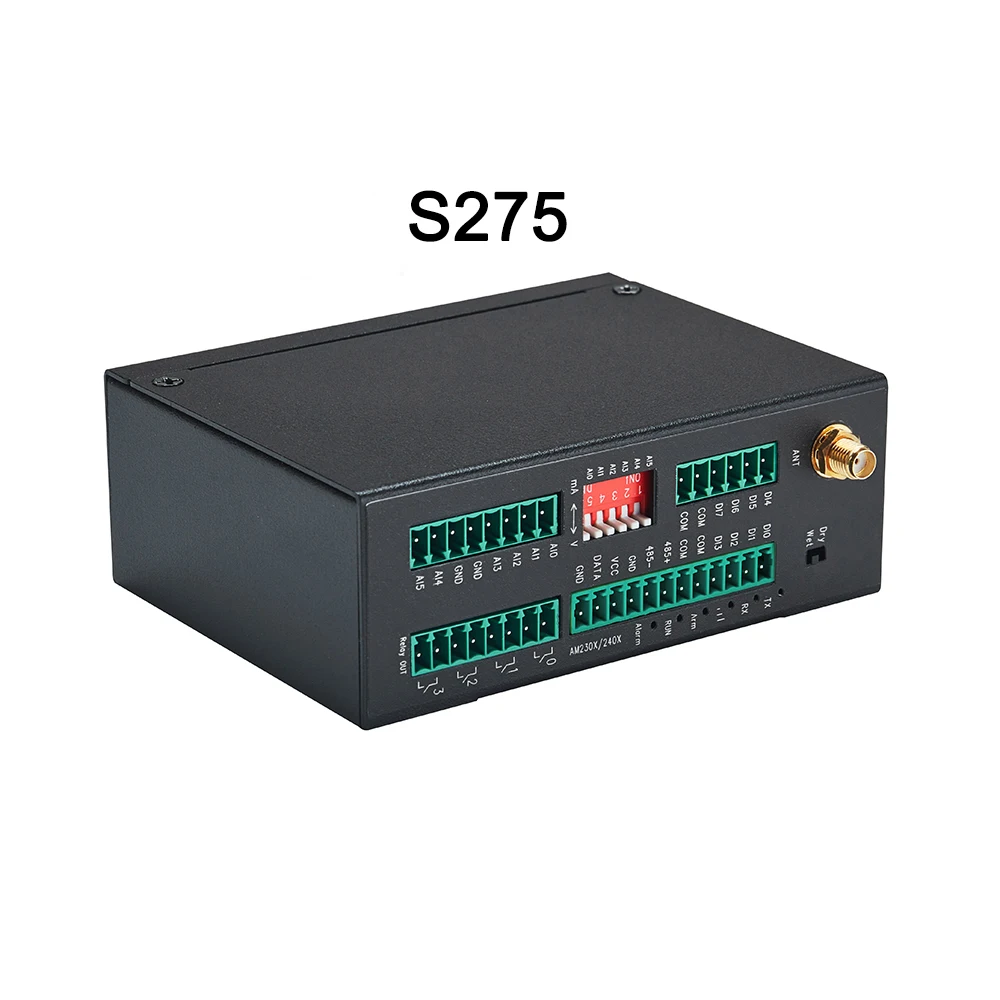

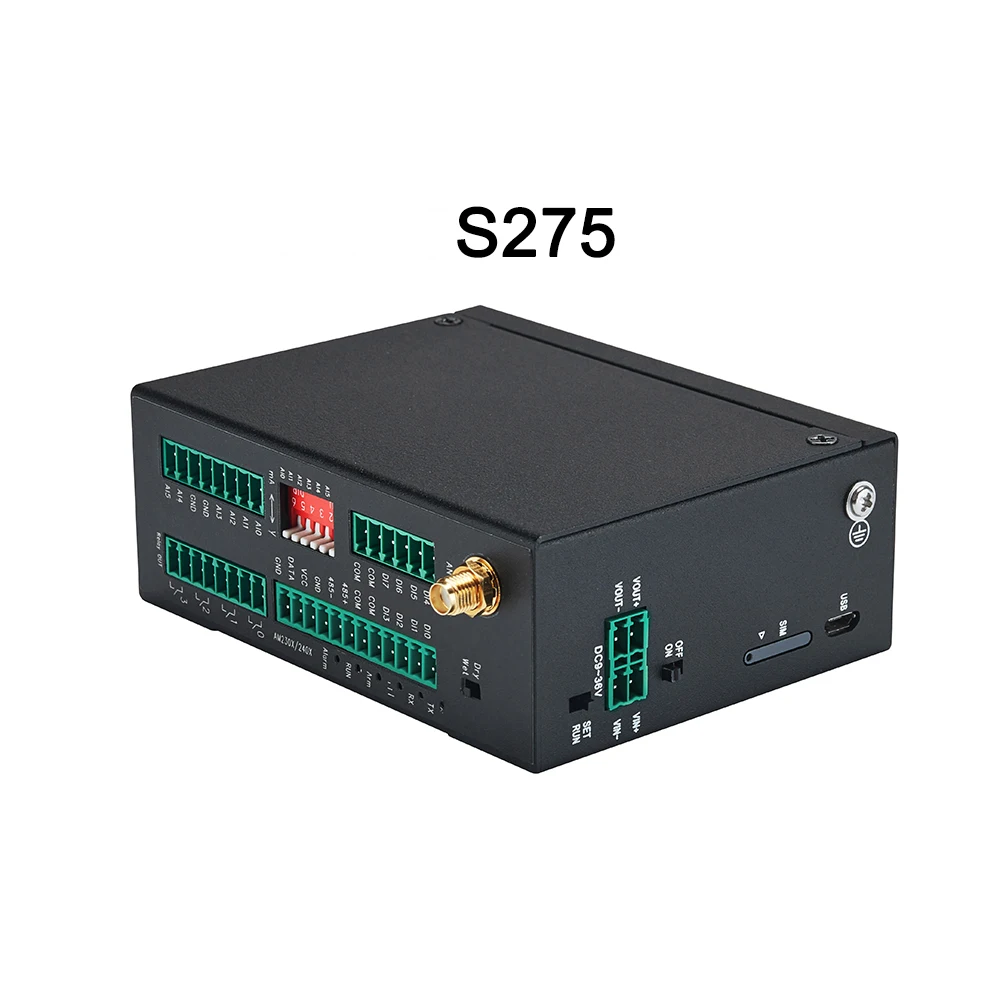

Product Description


The Cellular IoT M2M RTU is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU). It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module.
The RTU features 8 digital inputs, 6 analog inputs, 4 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity, and 1 RS485 serial port. And as Modbus master, the RTU can connect to expansion I/O module or read data from instruments, PLC and other devices. Users can set high and low limit according to different application scenarios, when alarm occurs, the RTU will notify users by SMS, dialing, and also uploading data to cloud platform, monitoring center.
The RTU also can be used as a remote switch, remote I/O, remote smart PLC, timer switches, which is able to open the gate or turn on the machine with a free charge call at specified time to save time for daily maintenance. The RTU supports IoT RTU protocol, Modbus RTU over TCP protocol, Modbus TCP protocol, MQTT protocol, which can communicate directly with the server, cloud platform or SCADA. It is a cost effective IoT solution for industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, remote data acquisition, telemetry systems,
automatically control system.




Features
 4G network communication, can be operated from anywhere, no distance limitation;
 Wide range power supply 9~36VDC with over voltage and phase-reversal protection;
 Embedded ARM Cortex-M4 32 Bit RISC Core RTOS system, reliable performance with in-built watchdog;
 8 digital inputs, supports both dry contact and wet contact. Logic level: 10~30V or short circuit
treated as close, 0~3V or open circuits treated as open. DIN0 as a high-speed pulse counter,
sampling frequency: 1MHz; DIN1~3 as low-speed pulse counter, anti-shake time can be set
1~2000ms, default 1ms; DIN1 with arm and disarm function;
 4 relay output (5A@30VDC, 5A@250VAC), can auto control by timer, alarm-link and remote
control by SMS, cloud. The first DO can set time to control by authorize number;
 1 temperature & humidity sensor input for monitoring onsite environment, the sensor model is
AM2301, temperatures range from -40°C to 80°C, with a 0.5°C accuracy, humidity range from 0
to 100RH%, with a 3% accuracy;
 6 analog inputs, 12bits resolution, supports 0-5V, 0-20mA, 4-20mA output transducers;
 Inbuilt 32G SD card to save up to tens of thousands historical data and events;
 1 RS485 port, support Modbus slave protocol, can link up to SCADA, HMI, DSC, PLC. Support
Modbus Master protocol, can connect to 16 Modbus Salve, e.g.: Data Acquisition Module,
meters, generator, PLC, VFD, etc., and 320 tags can set alarm value and content, also support
data transparent transmission;
 Powerful SMS function: Threshold high SMS alert, SMS set, SMS inquiry, SMS command for
Modbus PLC, and SMS monitoring communication with Slaves;
 Inbuilt 1 DC output for external transducers to save wiring cost;
 Automatically resend the data while communication interrupt or failure, and failure will alert by
SMS;
 Supports remote restart, remote configure and operate by SMS commands;
 10 SMS Alert and auto dial numbers for receiving alarm message, can program to receive
specified alarm message. The authorized numbers also can dial to open the door or turn on/off
machine with a free charge call at the specified time;
 Inbuilt inter-lock logic programmer and powerful timer program function;
 Support SMS, dial, 4G network for alert, USB port for configuration and upgrade firmware;
 Support TCP/UDP, MQTT, Modbus TCP, Modbus RTU over TCP, IoT RTU protocol and data
transparent transmission;
 Metal case with IP30 protection grade, safely isolated from inner system, especially suitable for
industrial control application.
 Small size: 108mmx82mmx40mm, support wall-mounting and DIN Rail mounting.


Application scenarios
BTS Monitoring, Security Alarm System applications, Supervision and monitoring alarm systems, Automatic monitoring system, Vending Machines security protection, Pumping Stations, Tanks, Oil or Water levels, Buildings and Real Estate, Weather Stations, River Monitoring and Flood Control, Oil and gas pipelines, Corrosion protection, Temperatures, Water leakage applications, Wellheads, boat, vehicle, Energy saving, street lights control system, Valve controls, Transformer stations, Unmanned machine rooms, Control room application, Automation System, M2M, Access Control System, etc.

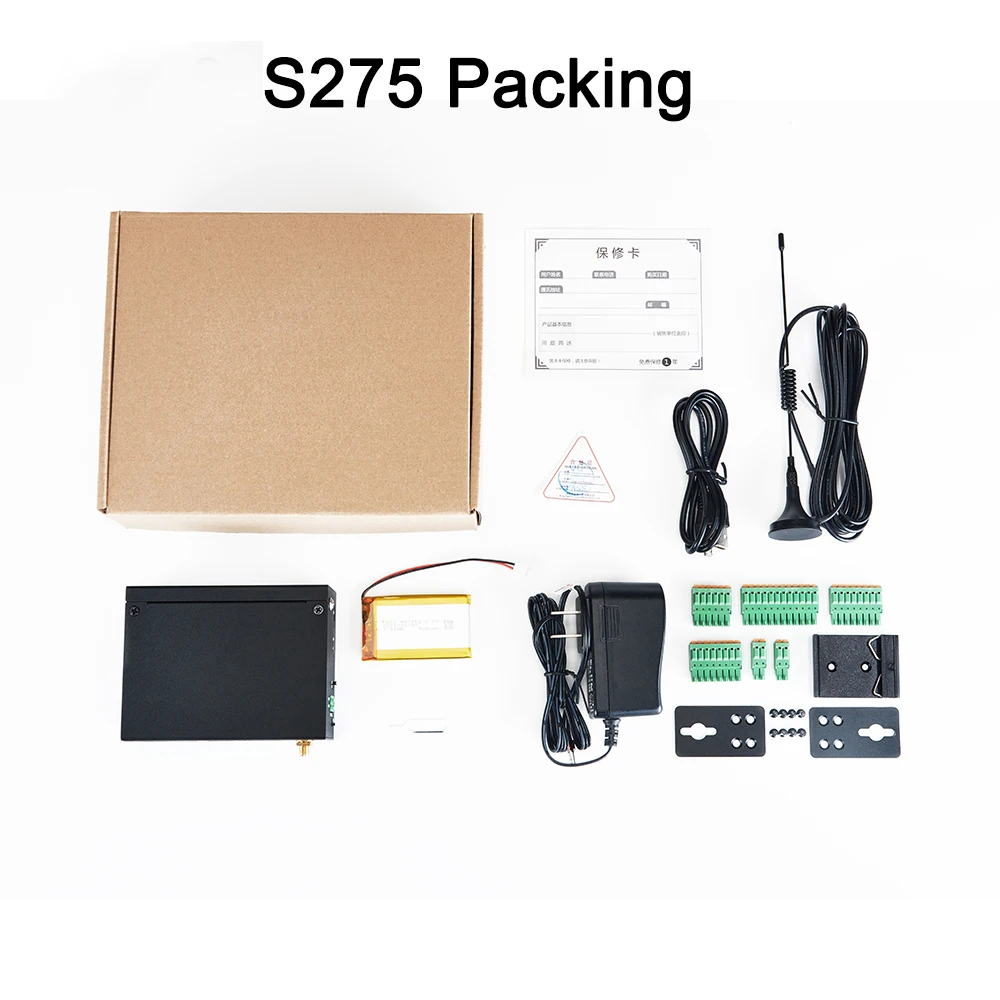

Packing & Delivery
