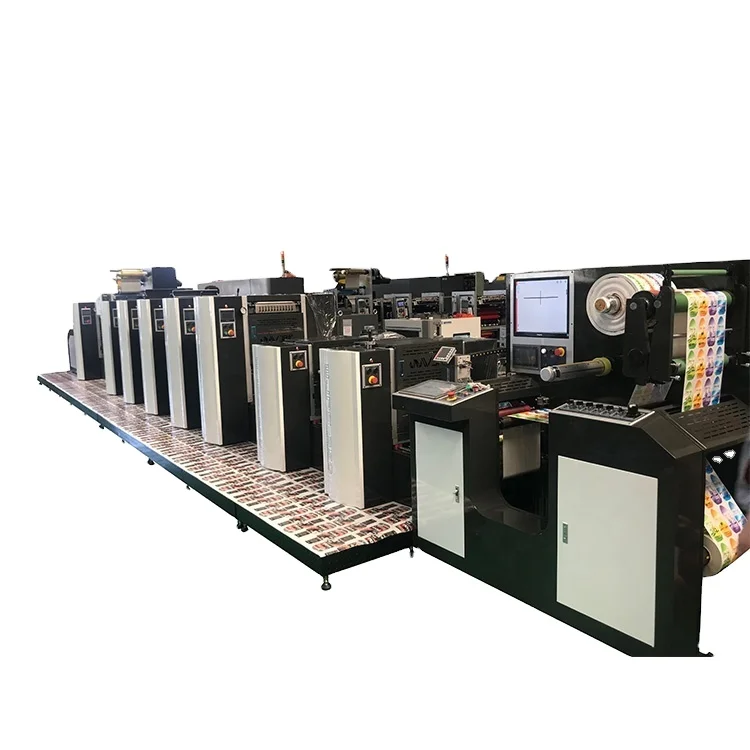

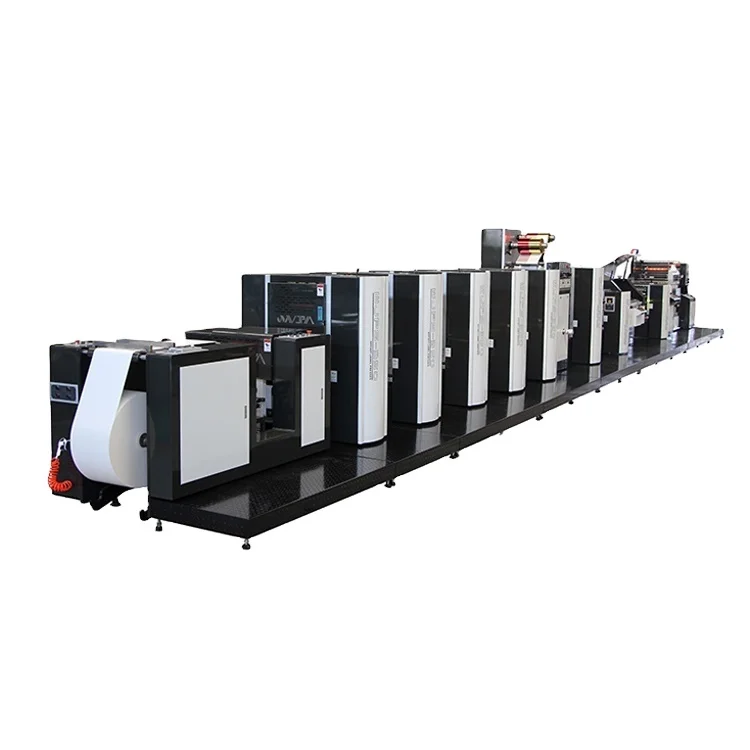

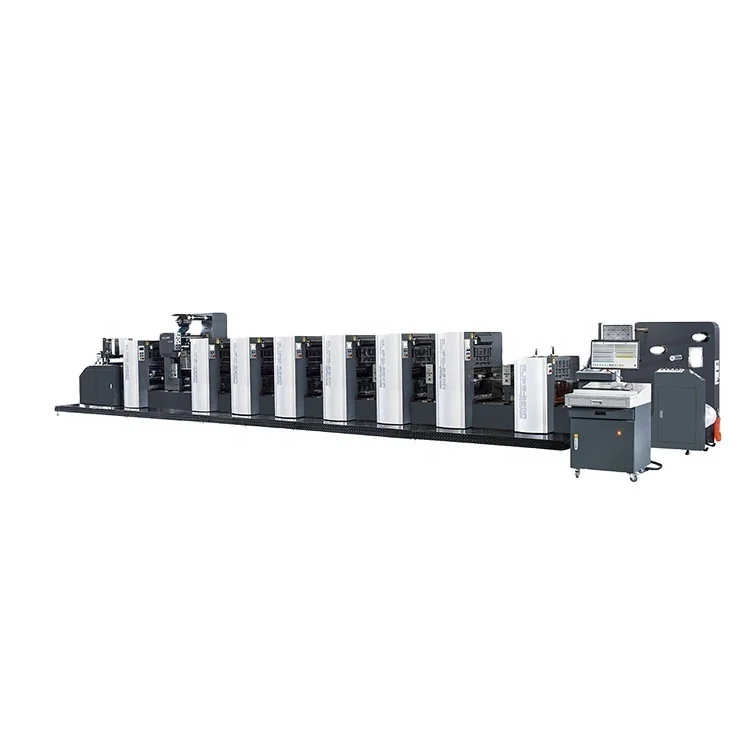

WJPS 660D рулонная клейкая этикетка/Наклейка/офсетная печатная машина

Описание и отзывы

Характеристики

Standard Functions:

The machine consists of unwinding and rewinding with pneumatic shaft, printing units, CCD camera, touch screen, second pass, web-guide, manual ink adjustment, Yaskawa or Panasonic servo motor, automatic oil supply, automatic plate mounting and adjustment- using 0.15 mm plate.

Key Points:

The big advantages of the machine are that: 1) it can cater to a wide range of materials, film- 0.05 mm and above, paper 80-400 g/m. 2) It can save paper at start stage, plate change –paper waste within 50 meters, at interval stop-almost no loss of color. 3) The dampening system only uses 3-5% alcohol which has less smell and also cost saving.

Main technical specifications

Main features

1).Electric Control System: CPU via DOS system to control the servo motors.
2).Shaftless Driving: The machine uses servo motor to drive the rollers directly.
3). Overprinting System: Once printing length is input at the main control unit, every unit will move automatically to the preset position. Each unit is controlled individually by a motor.
4).Printing Unit: Each unit can work independently, a touch screen on each unit.
5).Water And Ink Control: The machine adopts advanced American water and ink supplying system which ensures the water and ink balance.
6).Lubricating System: The machine uses automatically cycling oil-supply system to ensure the accuracy and service life of the machine.
7).Plate Mounting: The computer controlled automatic and manual plate mounting and dismounting system.
8).Heidelberg ink fountain partition structure, easier to adjust the ink, reducing printing time and paper waste.

Configuration list

Terms of payment

30% advanced T/T, 70% T/T before shipment.

Installation costs etc. are not included in the price.

Other Related Information

Delivery time :60-90 days after purchasing order and 30% down payment received .Thedelivery time varies because of the clients requirement is different.

Port of shipment: Tianjin Port, China.

Warranty: 0ne year starting from the date of shipment.

Quotationvalidity: One month.
