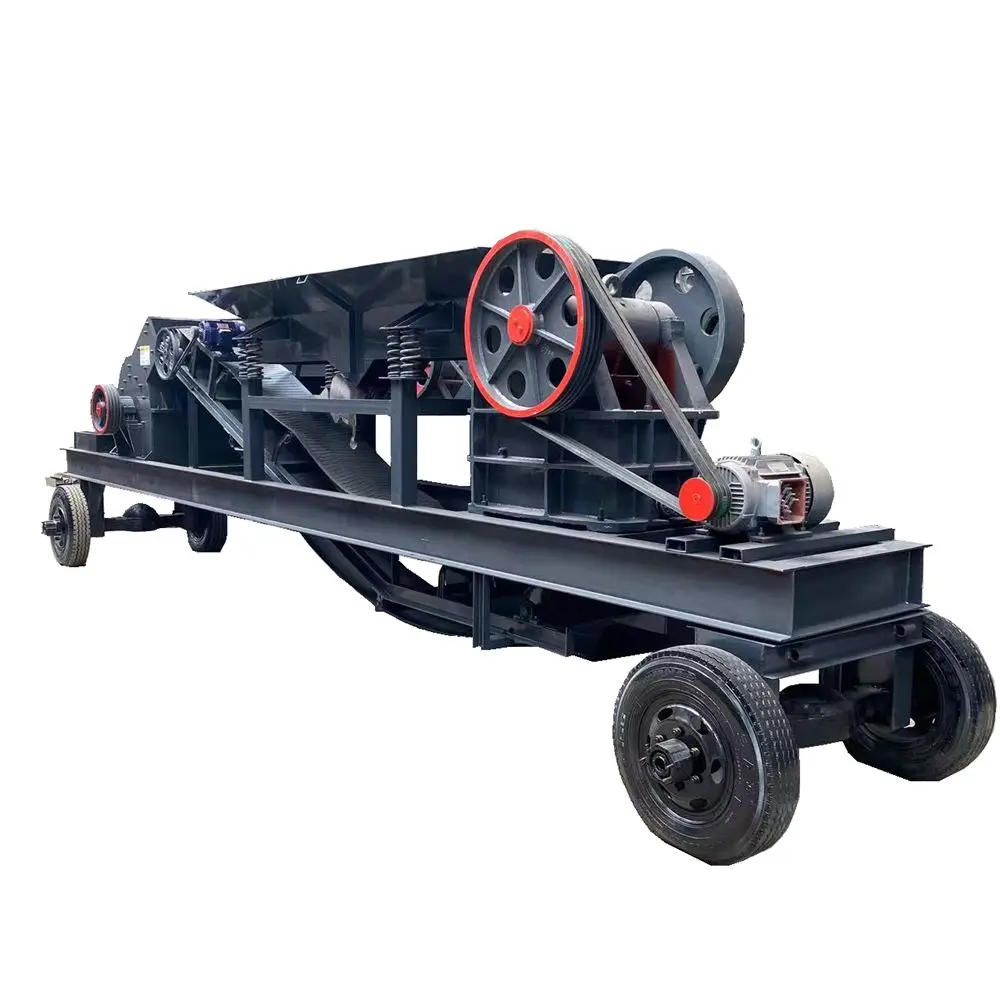

Новая маленькая Мобильная молотковая дробилка
- Категория: >>>
- Поставщик: Gongyi City Xiangrui Machinery Manufacturing Co. Ltd.Gongyi Ltd.
Сохранить в закладки 1601268020902:
Описание и отзывы
Характеристики

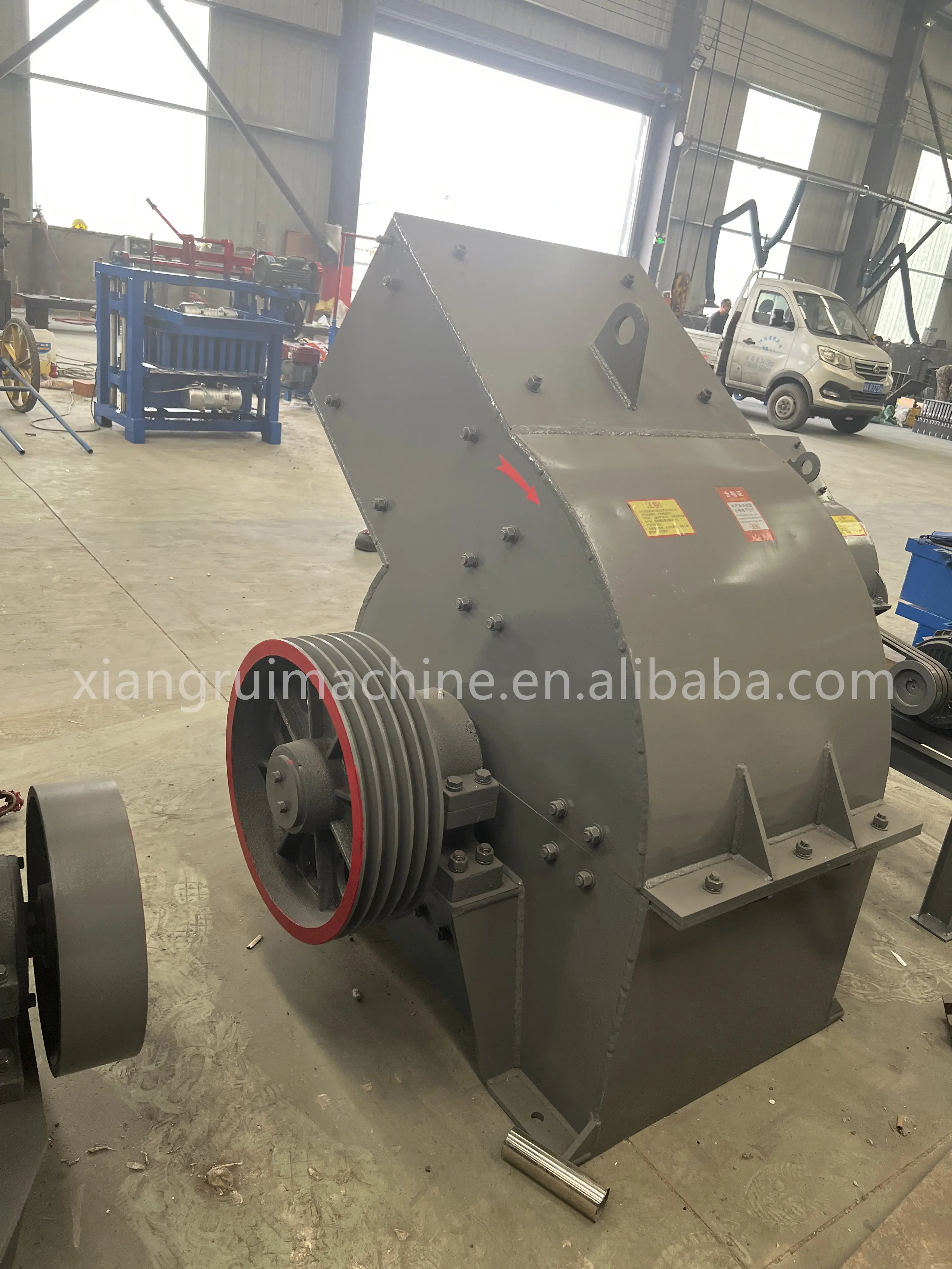

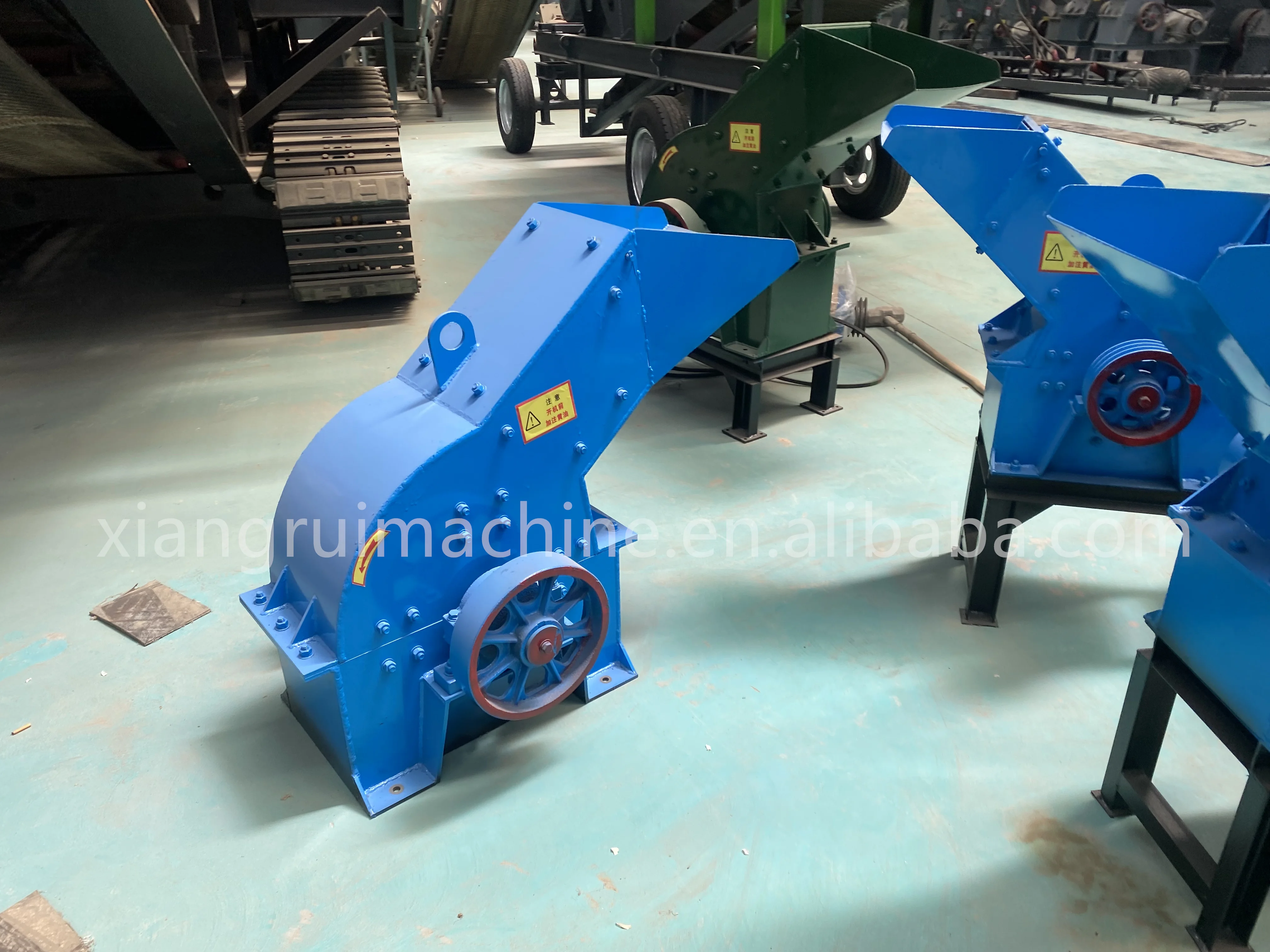

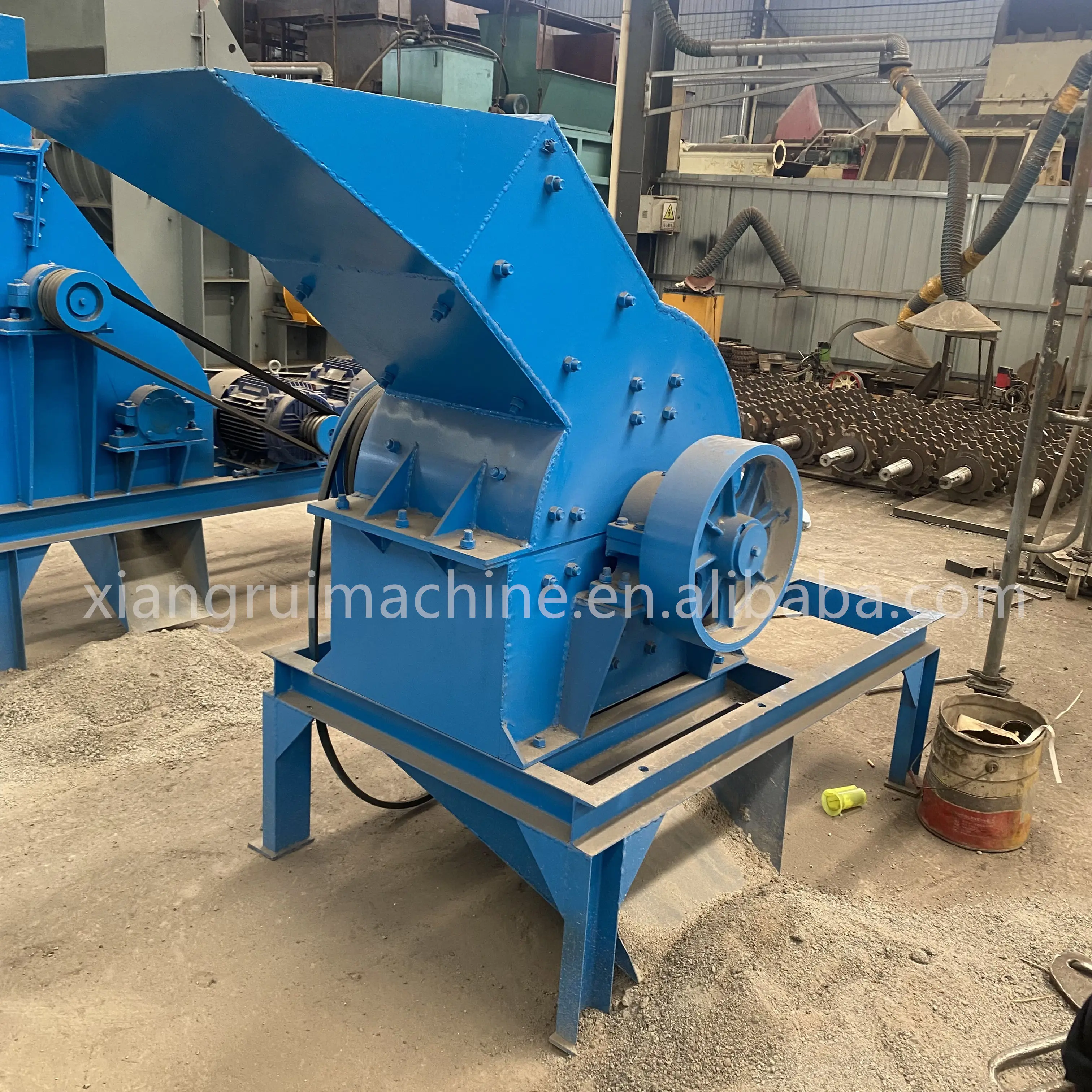

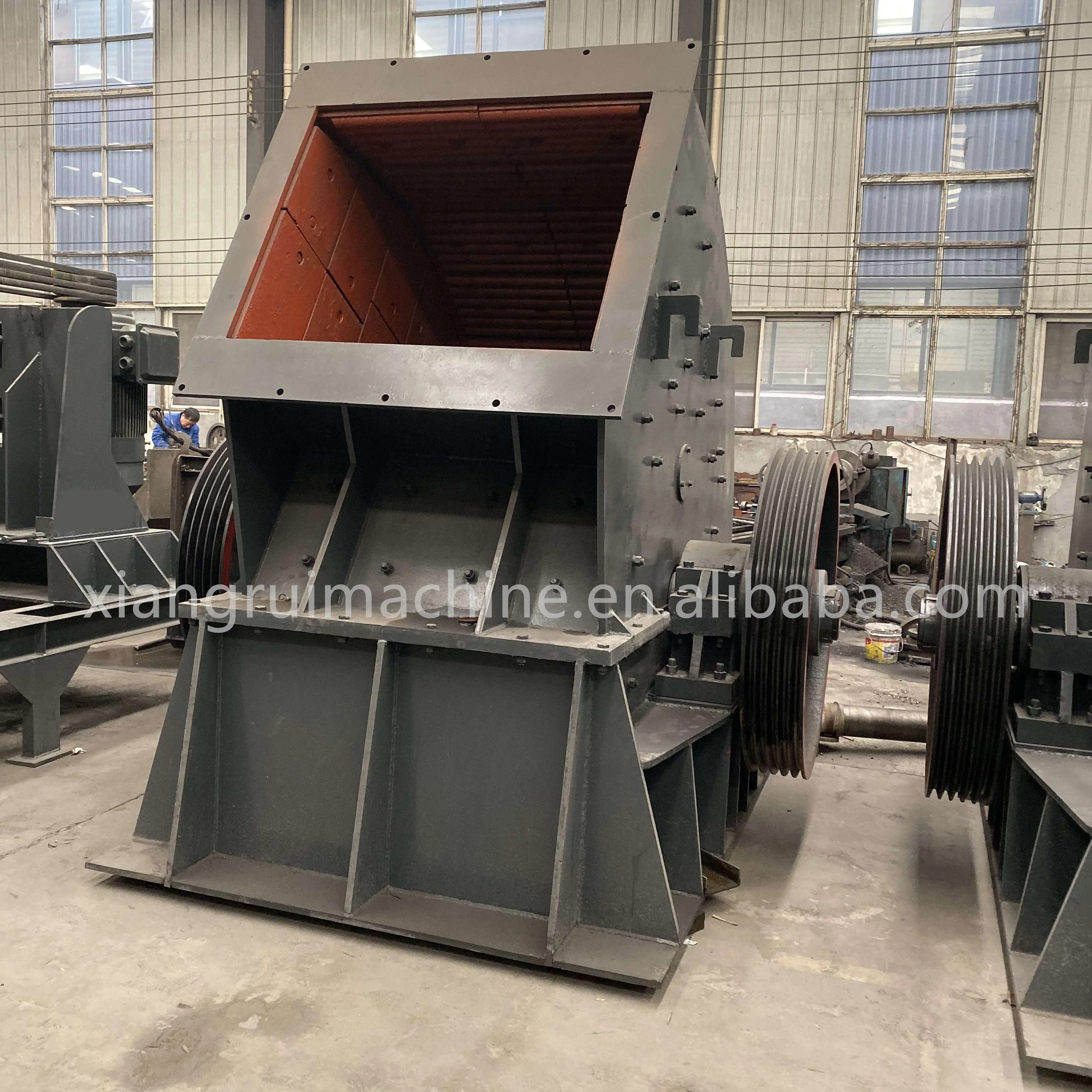

Product Display

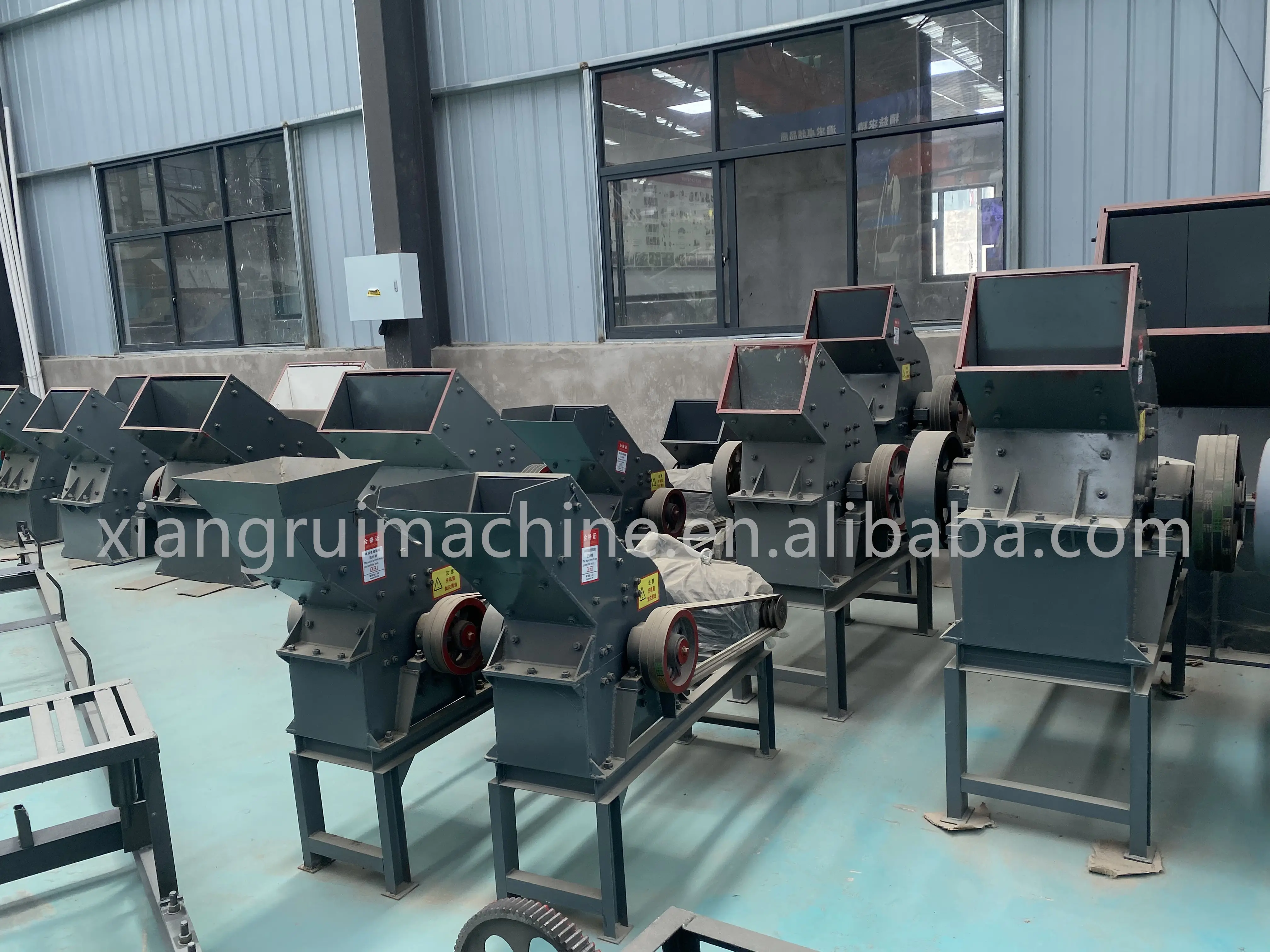

Hammer crusher, referred to as hammer crusher, is a kind of equipment that crushes materials in the form of impact, and can directly crush materials with a particle size of 600-1800mm into crushers with a particle size of 25 or below 25mm. The hammer crusher is suitable for crushing medium hardness materials, such as limestone, slag, coke, coal and other materials in cement, chemical, electric power, metallurgy and other industrial sectors.
Performance characteristics
The hammer crusher mainly relies on impact energy to complete the crushing material operation. When the hammer crusher is working, the motor drives the rotor to rotate at high speed, and the material evenly enters the crusher cavity, and the high-speed rotating hammer head impacts and shears and tears the material to cause the material to be crushed, and at the same time, the gravity of the material itself makes the material rush from the high-speed rotating hammer head to the baffle plate and sieve strip in the frame, and the material larger than the size of the sieve hole is blocked on the sieve plate and continues to be hit and ground by the hammer until it is crushed to the required discharge particle size and finally discharged out of the machine through the sieve plate.
The overall design of the hammer crusher is beautiful, and the hammer body is dismissed and sealed, which solves the problem of dust pollution and ash leakage in the crushing workshop.
The hammer crusher process is simplified, one-time feeding, no need for primary and secondary crushing, high output, reliable performance, large processing capacity, and can also adjust the required particle size according to customer requirements.
The working hammer head of the hammer crusher is cast by a new process, which is wear-resistant and impact-resistant, with few wearing parts and easy maintenance.
Product Paramenters
Model specifications | Model specifications | Discharging size(mm) | Production capacity（m³\\h） | Motor power (kw) | Weight (t) | Dimensions (L×W×H) |
PC 400×300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900×670×860 |
PC 600×400 | ≤250 | ≤30 | 10-22 | 22 | 2.26 | 1200×1050×1200 |
PC 800×600 | ≤250 | ≤35 | 18-40 | 55 | 4.8 | 1310×1180×1310 |
PC 1000×800 | ≤350 | ≤35 | 25-50 | 75 | 5.9 | 1600×1390×1575 |
PC 1000×1000 | ≤350 | ≤35 | 30-55 | 90 | 8 | 1800×1590×1775 |
PC 1200×1200 | ≤350 | ≤35 | 50-80 | 132-160 | 19.2 | 2060×1600×1890 |
PC 1400×1400 | ≤350 | ≤35 | 50-100 | 280 | 32 | 2060×1600×1890 |
PC 1400×1400 | ≤350 | ≤35 | 100-150 | 480 | 37.5 | 3050×2850×2800 |
Transportation method
Our goods will be transported to your country by ship.
Company Profile
Gongyi Xiangrui Machinery Manufacturing Co., Ltd. is a large-scale manufacturing enterprise mainly engaged in the production of
brick making machine machinery and heavy mining machinery, integrating scientific research, production, sales and service. The
company is located in the private science and technology park of Chuangye Road, Kangdian Town, Gongyi City, Henan Province,
covering an area of more than 15,000 square meters, with 6 modern heavy-duty production workshops, advanced technology and perfect
production management system. After more than 20 years of development, it has been exported to Serbia, Romania,
Russia,Mongolia,Indonesia, Kazakhstan, Viet Nam, North Korea, Egypt, Ghana, Tanzania, South Africa, Canada, Chile, Bolivia, Mexico
and othercountries and regions.
brick making machine machinery and heavy mining machinery, integrating scientific research, production, sales and service. The
company is located in the private science and technology park of Chuangye Road, Kangdian Town, Gongyi City, Henan Province,
covering an area of more than 15,000 square meters, with 6 modern heavy-duty production workshops, advanced technology and perfect
production management system. After more than 20 years of development, it has been exported to Serbia, Romania,
Russia,Mongolia,Indonesia, Kazakhstan, Viet Nam, North Korea, Egypt, Ghana, Tanzania, South Africa, Canada, Chile, Bolivia, Mexico
and othercountries and regions.
The jaw crusher, impact crusher, sand making machine and ball mill produced by the company have been successfully applied at home
and abroad. The main products are magnetic separator, sand making machine, sand washing machine, stone washing machine, vibrating
screen, jaw crusher, impact crusher, powerful scroll crusher, ball mill, vibrating feeder, dryer, belt conveyor and other complete
sets of equipment, all of which are tracked and tested by quality inspection engineers; And the company has passed ISO 9001:2015
international quality system certification, ISO 45001:2018 quality, health and safety management system certification, ISO
14001:2015 environmental management system certification, and five-star commodity after-sales service system certification to
ensure that users are provided with high-quality and reliable equipment.
and abroad. The main products are magnetic separator, sand making machine, sand washing machine, stone washing machine, vibrating
screen, jaw crusher, impact crusher, powerful scroll crusher, ball mill, vibrating feeder, dryer, belt conveyor and other complete
sets of equipment, all of which are tracked and tested by quality inspection engineers; And the company has passed ISO 9001:2015
international quality system certification, ISO 45001:2018 quality, health and safety management system certification, ISO
14001:2015 environmental management system certification, and five-star commodity after-sales service system certification to
ensure that users are provided with high-quality and reliable equipment.
The company can provide customized services according to customer requirements, including production line solution design, overall
operation turnkey project, and general contracting of mine design and operation, which can provide equipment and scheme design for
the production line of sand and gravel aggregate with an output of 100-6000 tons per hour and metal ore crushing and grinding
powder for the infrastructure industry, mine crushing, industrial sand making, green building materials and other fields. Xiangrui
Machinery pursues the business philosophy of "survival by quality, development by reputation", adhering to the production policy
of "not accepting defective products, not producing defective products, and not releasing defective products", all equipment from
casting - machining - assembly are controlled by technical engineers at all levels, and strive to create a brand enterprise that
satisfies users, so that customers can buy at ease and use comfortably! It has created more value for many enterprises and
society.
operation turnkey project, and general contracting of mine design and operation, which can provide equipment and scheme design for
the production line of sand and gravel aggregate with an output of 100-6000 tons per hour and metal ore crushing and grinding
powder for the infrastructure industry, mine crushing, industrial sand making, green building materials and other fields. Xiangrui
Machinery pursues the business philosophy of "survival by quality, development by reputation", adhering to the production policy
of "not accepting defective products, not producing defective products, and not releasing defective products", all equipment from
casting - machining - assembly are controlled by technical engineers at all levels, and strive to create a brand enterprise that
satisfies users, so that customers can buy at ease and use comfortably! It has created more value for many enterprises and
society.
Exhibition
Recommend Products
Похожие товары

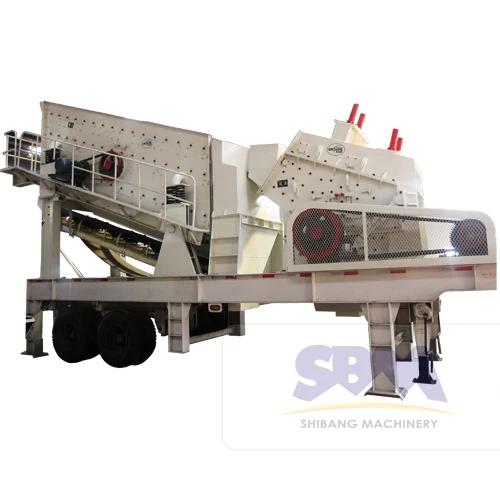

Передвижная роторная дробилка в горно-добывающей отрасли наличии
600*900 tolva RU trituradora de piedra цена 100 кВт 200ton/ч для спресования камней инвесторов
1 166,00-3 028,00 $

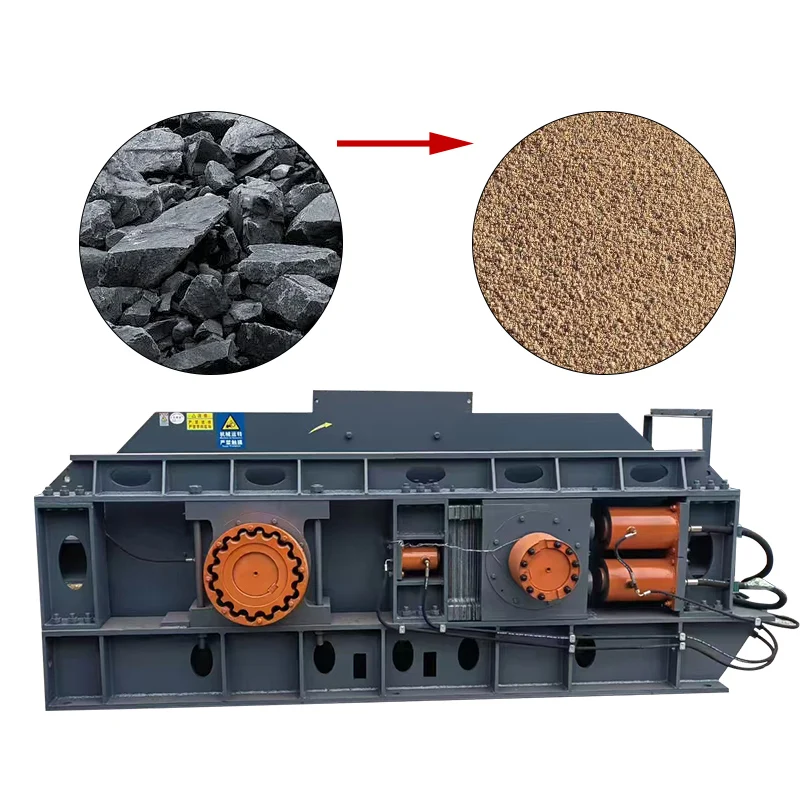

Высокоскоростная роликовая дробилка/тонкая дробилка мини двухроликовая оборудование для двойной зубчатой роликовой дробилки распродажа
1 500,00 $
Низкая цена портативная каменная дробилка конусная Мобильная

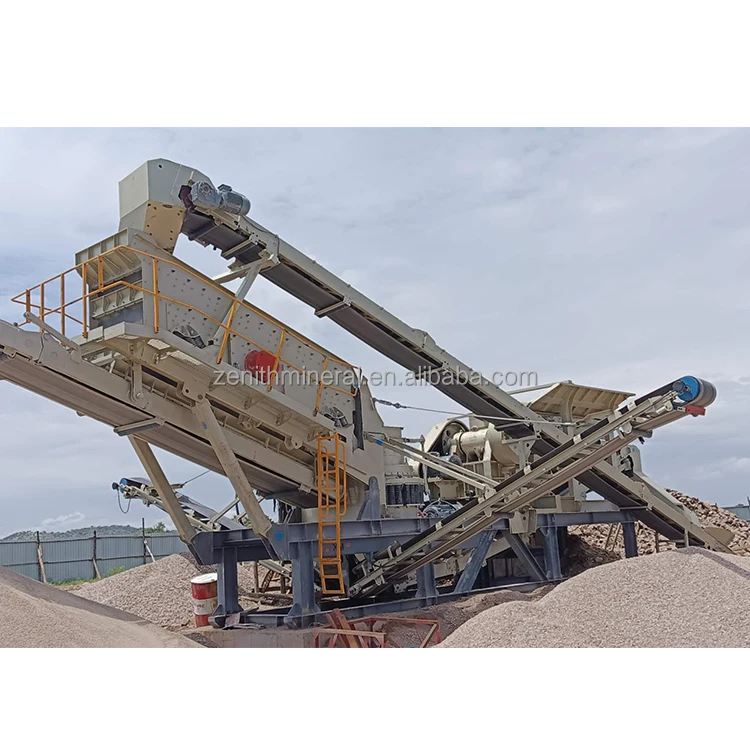

Мобильная дизельная руда молотковая дробилка щековая машина для изготовления песка «Все в одном»
1 280,00 $

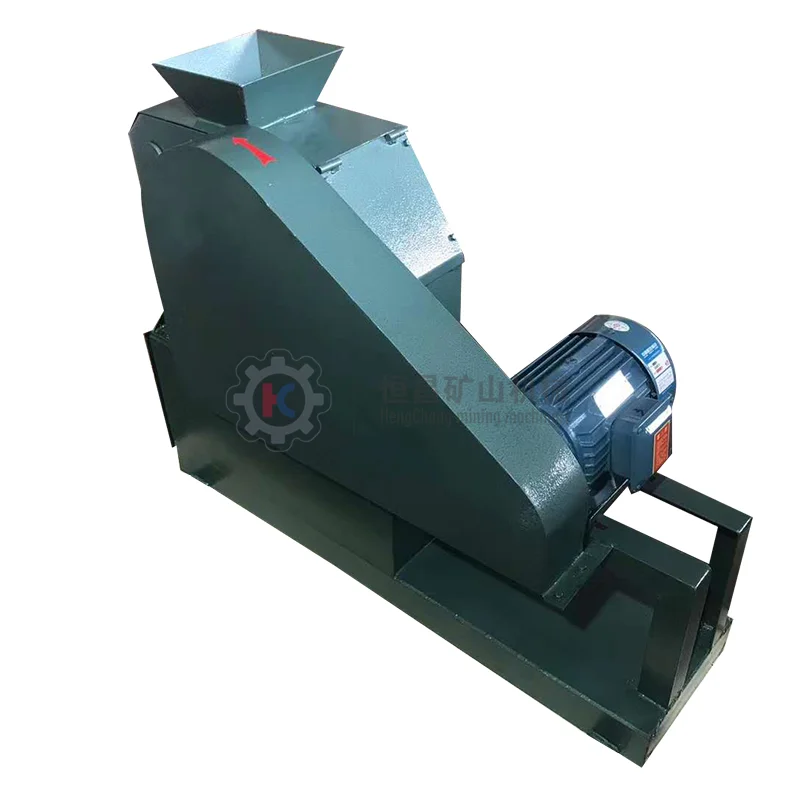

Мини-лабораторная щековая дробилка Zimbabwe Сверхтонкая PEF100X60 для лаборатории
950,00-1 300,00 $

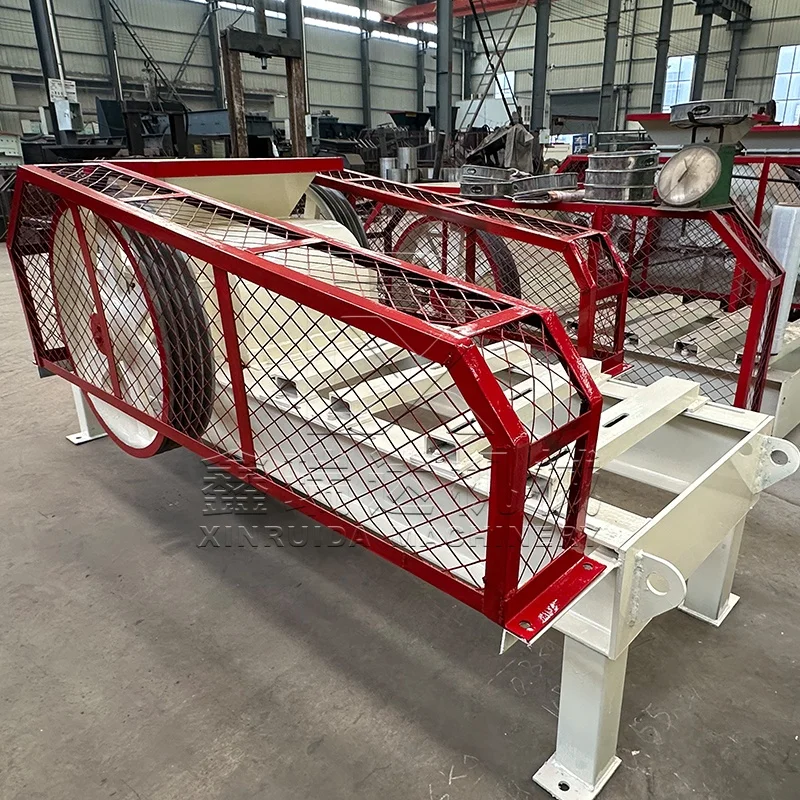

Бокситовая Двухвалковая дробилка
