Мельница для измельчения порошковых пород Raymond переработка нефтяного кокса ультратонкая шлифовальная мельница с эффективной производительностью
45 800,00 $
Порошок нефтяного кокса делая машину ультратонкого шлифования для продажи
- Категория: >>>
- Поставщик: Shanghai Zenith Machinery Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601268189644:
Описание и отзывы
Характеристики
Product Overview

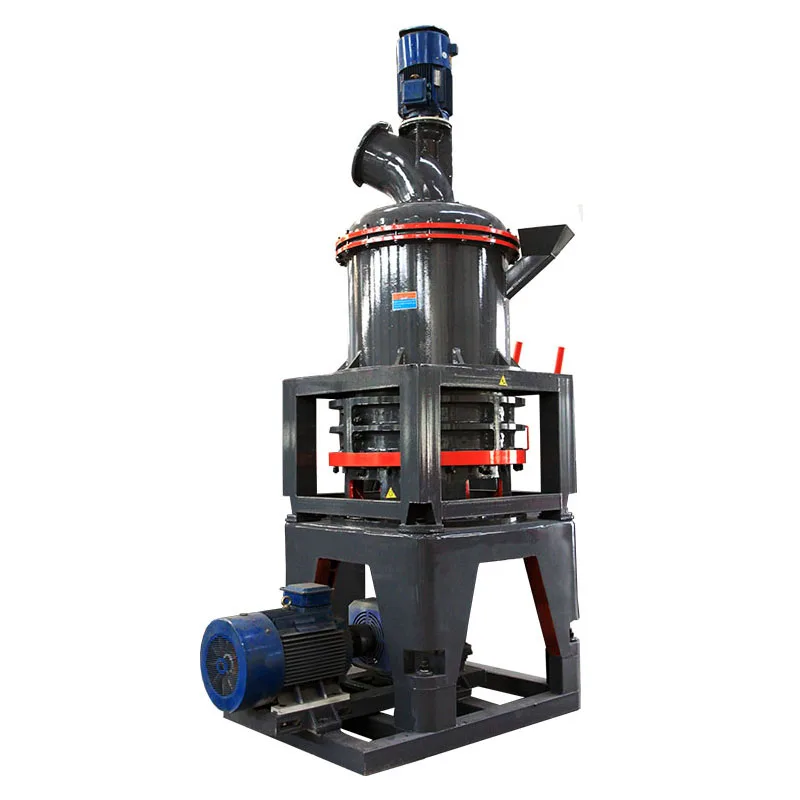

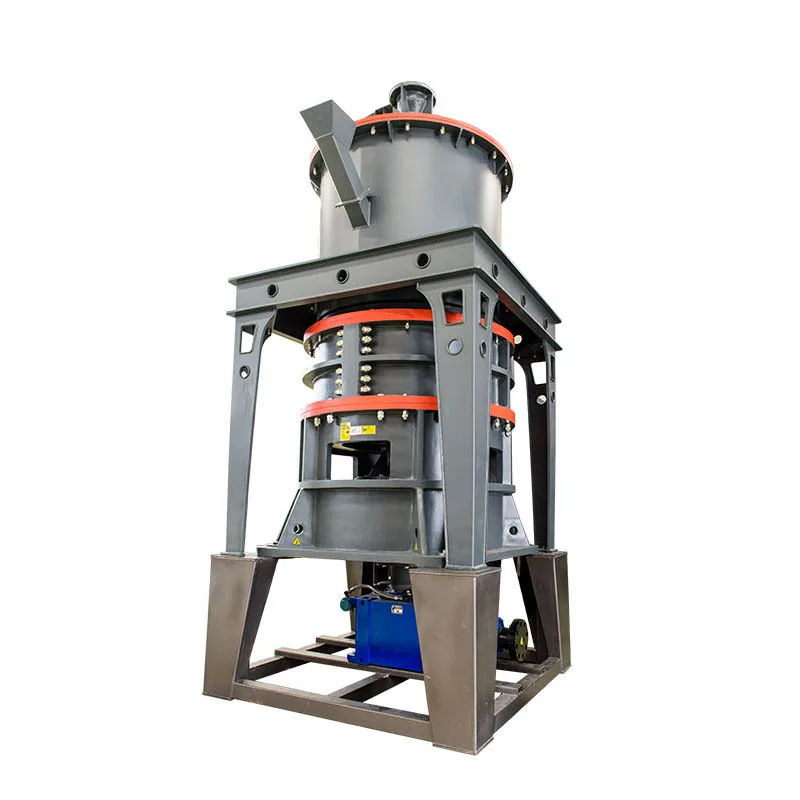

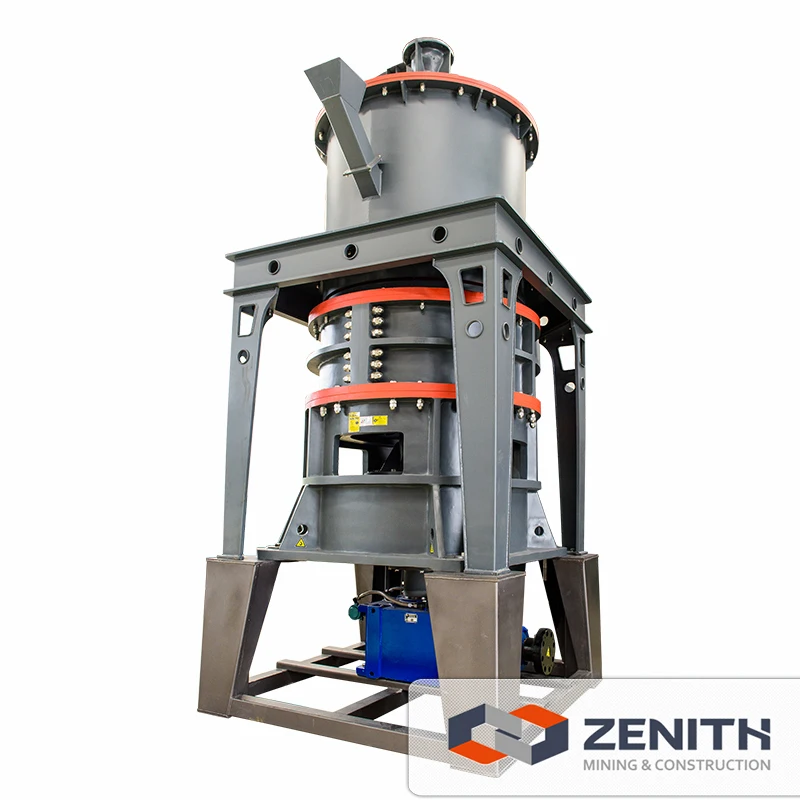

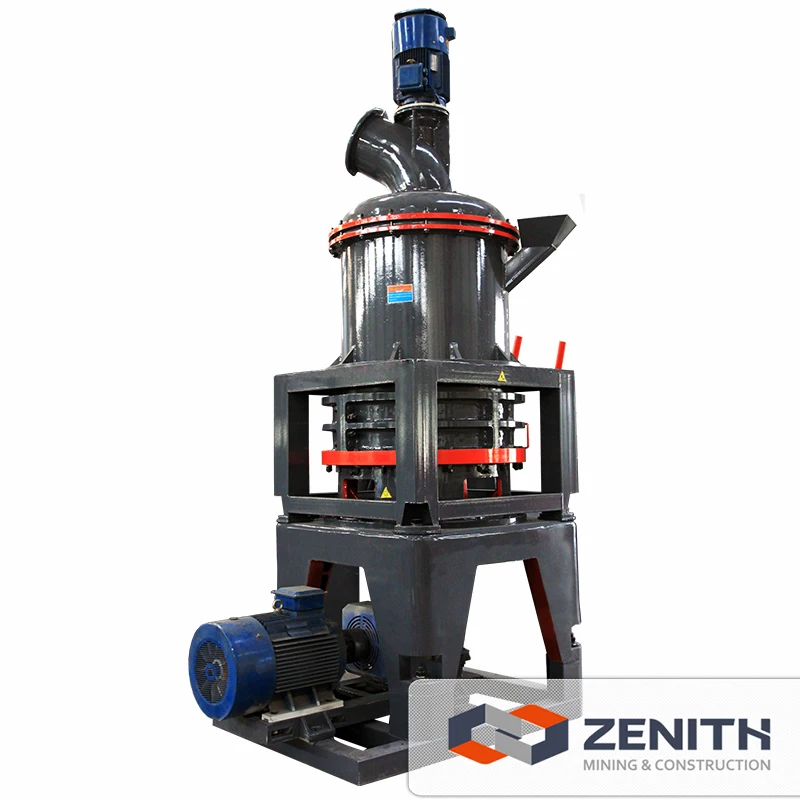

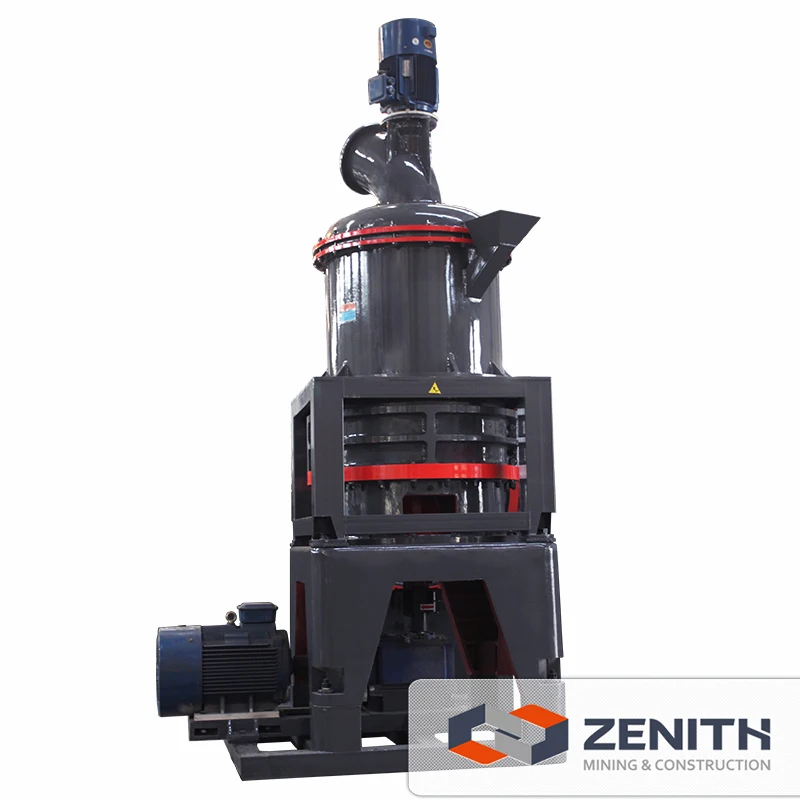

Shanghai Zenith XZM Ultra fine Grinding: The Optimal Equipment for Efficient Processing of Coal Powder
Shanghai Zenith Company has successfully developed the XZM medium speed micro powder mill, a high-efficiency and low-energy ultrafine powder processing equipment, based on its decades of accumulated experience in industrial powder mill production technology. It not only solves the problem of low efficiency and high cost in the ultrafine powder production process of traditional air flow mills, but also provides a new solution for coal powder processing through technological innovation.
XZM ultrafine powder grinding has significant performance advantages. When the fineness of the finished product and the power of the motor are the same, its output is 40% higher than that of the air flow mill and the stirring mill, while the system energy consumption is only one-third of that of the air flow mill. This means that using XZM ultrafine powder grinding to process coal powder can not only significantly improve production efficiency, but also significantly reduce energy consumption, bringing higher economic benefits to enterprises.
Product fineness is a key indicator in coal powder processing. The product fineness of XZM ultrafine micro grinding can be adjusted freely between 325 mesh and 2500 mesh according to demand, and the product fineness can reach D97 ≤ 5um at once. This high-precision processing capability ensures the uniformity and stability of coal powder, providing reliable guarantees for subsequent combustion and applications.
In addition, XZM ultrafine powder grinding also performs well in terms of safety, reliability, and environmental friendliness. There are no rolling bearings and screws in the grinding chamber, which avoids machine damage caused by fragile bearings and seals or loose screws. At the same time, the use of pulse dust collectors and mufflers effectively reduces dust pollution and noise, meets national environmental standards, and provides strong support for the sustainable development of enterprises.
XZM ultrafine powder grinding is mainly suitable for grinding and crushing medium and low hardness materials, including various non-metallic materials such as coal. Its efficient, low consumption, and high-precision processing capability makes coal powder processing simpler, faster, and more reliable. Whether in the fields of electricity, chemical engineering, building materials, or others, XZM ultrafine powder grinding can provide high-quality solutions for the processing of coal powder.
Choosing Shanghai Zenith XZM ultrafine micro grinding is choosing an efficient, low consumption, and environmentally friendly coal powder processing method. We look forward to working together with you to promote the development and innovation of the coal powder processing industry!
XZM ultrafine powder grinding has significant performance advantages. When the fineness of the finished product and the power of the motor are the same, its output is 40% higher than that of the air flow mill and the stirring mill, while the system energy consumption is only one-third of that of the air flow mill. This means that using XZM ultrafine powder grinding to process coal powder can not only significantly improve production efficiency, but also significantly reduce energy consumption, bringing higher economic benefits to enterprises.
Product fineness is a key indicator in coal powder processing. The product fineness of XZM ultrafine micro grinding can be adjusted freely between 325 mesh and 2500 mesh according to demand, and the product fineness can reach D97 ≤ 5um at once. This high-precision processing capability ensures the uniformity and stability of coal powder, providing reliable guarantees for subsequent combustion and applications.
In addition, XZM ultrafine powder grinding also performs well in terms of safety, reliability, and environmental friendliness. There are no rolling bearings and screws in the grinding chamber, which avoids machine damage caused by fragile bearings and seals or loose screws. At the same time, the use of pulse dust collectors and mufflers effectively reduces dust pollution and noise, meets national environmental standards, and provides strong support for the sustainable development of enterprises.
XZM ultrafine powder grinding is mainly suitable for grinding and crushing medium and low hardness materials, including various non-metallic materials such as coal. Its efficient, low consumption, and high-precision processing capability makes coal powder processing simpler, faster, and more reliable. Whether in the fields of electricity, chemical engineering, building materials, or others, XZM ultrafine powder grinding can provide high-quality solutions for the processing of coal powder.
Choosing Shanghai Zenith XZM ultrafine micro grinding is choosing an efficient, low consumption, and environmentally friendly coal powder processing method. We look forward to working together with you to promote the development and innovation of the coal powder processing industry!
Input:0-20mm
Capacity:500-25000KGPH
Material:
coal,anthracite,lignite,lump coal,Lan Coal,Coal powder, etc.
Capacity:500-25000KGPH
Material:
coal,anthracite,lignite,lump coal,Lan Coal,Coal powder, etc.
Arbitrary Adjustment of Fineness
The product fineness of XZM Ultrafine Coal Grinding Mill can be adjusted arbitrarily between 325 meshes and 2500 meshes, and can reach D97 < 5 micron at one time.
High Efficiency, Low Energy Consumption
To produce same powder under the same power, the XZM is 40% higher on efficiency and 70% lower on energy consumption than air-flow mill and stirring mill.
Environmentally Friendly
XZM Ultrafine Coal Grinding Mill adopts high-efficiency pulse dust collector and muffler. It has no dust pollution and noise pollution and fully meets the national environmental protection standards.
Safe Structural Design
There are no rolling bearings and screw in the grinding chamber. There is no problem of bearing and seal vulnerability and the hidden danger of screw loosening destroying.
FEATURES AT A GLANCE
8TPH Calcite Grinding Plant
Material:Coal
Input Size:5-10mm
Output Size:800mesh D90
Capacity:8TPH
Material:Coal
Input Size:5-10mm
Output Size:800mesh D90
Capacity:8TPH
Equipment
a set of XZM1250S Superfine Mill, electric cabinet, variable frequency feeder, impulse powder collector, spiral conveyor
a set of XZM1250S Superfine Mill, electric cabinet, variable frequency feeder, impulse powder collector, spiral conveyor
Ultrafine grinding mill
325mesh to 3000mesh
Limestone powder machine
Model | XZM221 | XZM224 | XZM236 | XZM244 | XZM268 |
Working diameter (mm) | Φ800 | Φ900 | Φ1000 | Φ1250 | Φ1680 |
Max feed size (mm) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
Final size (mesh) | 325-2500 | 325-2500 | 325-2500 | 325-2500 | 325-2500 |
Output (kgh) | 500-4500 | 800-6500 | 1000-8500 | 2500-14000 | 5000-25000 |
Model | XZM221 | XZM224 | XZM236 | XZM244 | XZM268 | ||
Main motor | Power | 75 | 45×2 | 132 | 185 | 315 | |
Analytical engine (FM motor) | Power | 18.5 | 18.5 | 30 | 15x4 | 18.5×5 | |
Blower motor | Power | 45 | 55 | 75 | 55×2 | 90×2 | |
Crusher | Model | PC400×600 | PC400×600 | PC400×600 | PC600×800 | PC600×800 | |
Power | 18.5 | 18.5 | 18.5 | 45 | 45 | ||
Elevator | Model | TH-200 | TH-200 | TH-300 | TH-300 | TH-300 | |
Power | 3 | 3 | 4 | 5.5 | 7.5 | ||
Vibrating feeder | Model | 300×60×1.8 Φ159-1.8 | 300×60×1.8 Φ159-1.8 | 300×60×1.8 Φ159-1.8 | 400×80×2 Φ219-2 | 400×80×2.8 | |
Power | 1.5/3 | 1.5/3 | 1.5/3 | 1.5/3 | 2.2 | ||
Discharge screw conveyor | Model | LS219-4.5/LS219-3 | LS219-5.8 | LS219-6.9/LS219-5 | LS219-5 | LS273-8.6 | |
Power | 3 | 3 | 4 | 3×2 | 5.5×2 | ||
Discharge valve | Model | ZJD-200 | ZJD-200 ZJD-250 | ZJD-200 ZJD-250 | ZJD-250 | ZJD-300 ZJD-200 | |
Power | 0.75 | 0.75 + 1.1 | 0.75+ 1.1 | 1.1 | 1.5+0.75 | ||
Pulse dust collectors | Model | DMC120/DMC16 | DMC16 | LDMC25 | LDMC45 | LDMC400×2 | |
Air compressor | Model | KSH150D/LG1.5-8 | KSH240D/LG2.4-8 | KSH300D/LG3.6-8 | LG6.2-8 | LG10-8 | |
Power | 11 | 15 | 22 | 37 | 55 | ||
