Products Description
1300x2500mm Laser Engraving and Cutting Machine 1325 laser cutting machine for wood acrylic leather Stainless steel plate
Applicable materials:
Laser Cutting Machine are many materials can be engraved, such as wood block, bamboo product, acrylic sheet, glass, pvc sheet,double-color sheet, ceramic tile, rubber, plastic, marble, bowlder, crystal, leather and cloth. Etc. Nonferrous materials.
Introduction to the machine:
1.64-bit processor: It adopts the internationally advanced 64 digits, high speed DSP for control system of the WMY laser engraving machine. The processing Capability and stability is highly improved.
2. Optimization of Arc: Stable S-style speed control software, quick and stable motion, which go very well with the automatic laser compensation, all these help the machine do a good job when cutting different parts, like straight lines, angles.
3. USB Interface: It supports the USB interface, with the WMY series laser engraving machine, it's not necessary to connect to the computer, in this case, it not only enjoys high anti-interference, but also you can use only one computer to control many laser engraving machines.
4. Storage function: The mainboard has EMS Memory which enables the user to store more than 100 files.
5. Automatic Protection: There's automatic smoke/dust-ejecting system, water cooling system, if there's no water or the water flows in opposite direction, there'll be no laser, which protects the laser tube in an effective way.
Laser Cutting Machine are many materials can be engraved, such as wood block, bamboo product, acrylic sheet, glass, pvc sheet,double-color sheet, ceramic tile, rubber, plastic, marble, bowlder, crystal, leather and cloth. Etc. Nonferrous materials.
Introduction to the machine:
1.64-bit processor: It adopts the internationally advanced 64 digits, high speed DSP for control system of the WMY laser engraving machine. The processing Capability and stability is highly improved.
2. Optimization of Arc: Stable S-style speed control software, quick and stable motion, which go very well with the automatic laser compensation, all these help the machine do a good job when cutting different parts, like straight lines, angles.
3. USB Interface: It supports the USB interface, with the WMY series laser engraving machine, it's not necessary to connect to the computer, in this case, it not only enjoys high anti-interference, but also you can use only one computer to control many laser engraving machines.
4. Storage function: The mainboard has EMS Memory which enables the user to store more than 100 files.
5. Automatic Protection: There's automatic smoke/dust-ejecting system, water cooling system, if there's no water or the water flows in opposite direction, there'll be no laser, which protects the laser tube in an effective way.
Product Paramenters

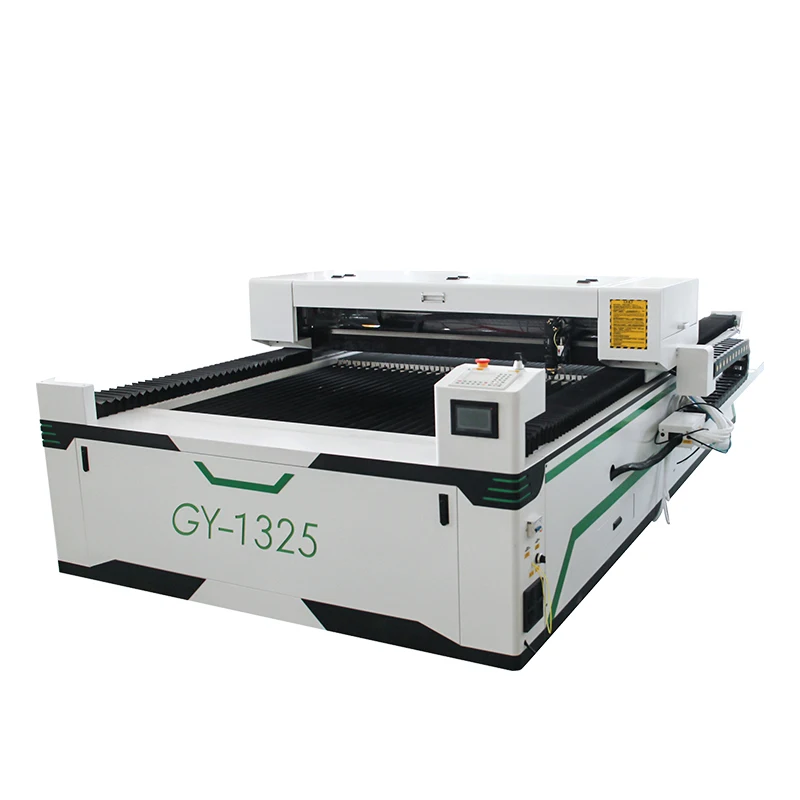

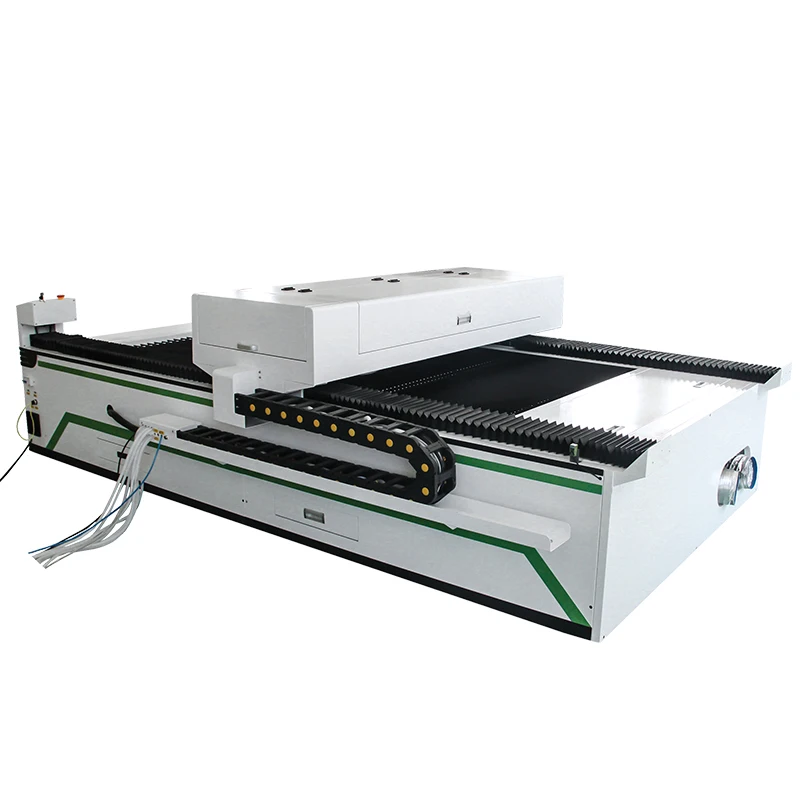

Product | 1325 Co2 laser engraving machine | ||||||
Laser Type | Sealed-off CO2 Laser Tube | ||||||
Work area | 130x250cm/160x250cm | ||||||
Laser Power | 100w 150w 200w 300w 500w (optional) | ||||||
Engraving speed maximum | 2000mm/s | ||||||
Minimum Character | 0.5mm | ||||||
Guideway | Taiwan HIWIN Linear Guideway | ||||||
Drive Mode | 57 Digital Subdivision Stepper Drive | ||||||
Positioning Mode | Red Light | ||||||
Cooling Mode | Air Cooling | ||||||
Direct output | CorelDraw, AutoCAD, Photoshop, Laser CAD, etc... | ||||||
Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc | ||||||
Power supply | 220V 10% 50HZ / 110V 10% 60HZ | ||||||

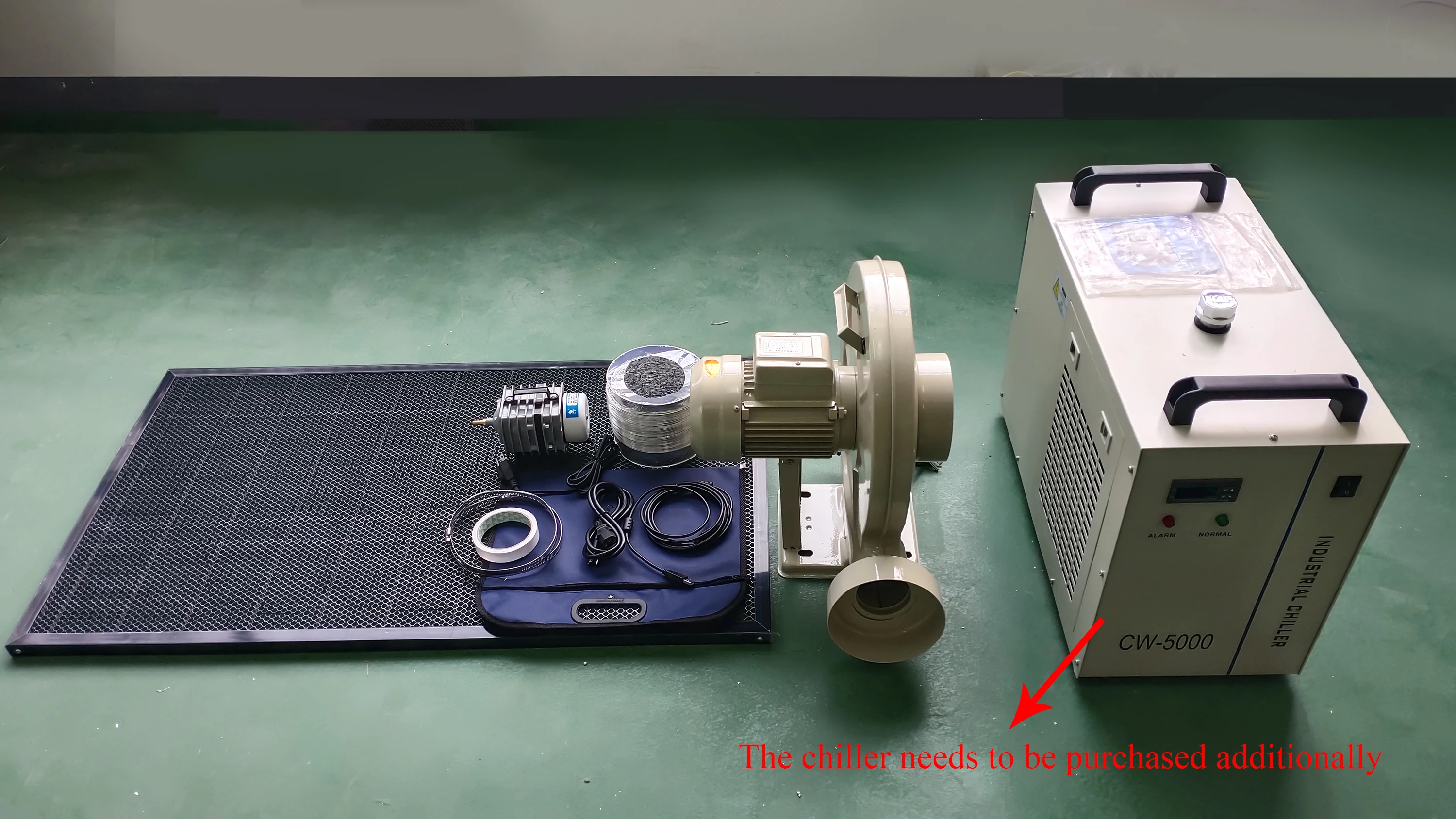

Standard parts | blower and exhaust pipe, water chiller, air pump, electric lift table, DSP offline control, software, etc. | ||||||
Main machine configuration

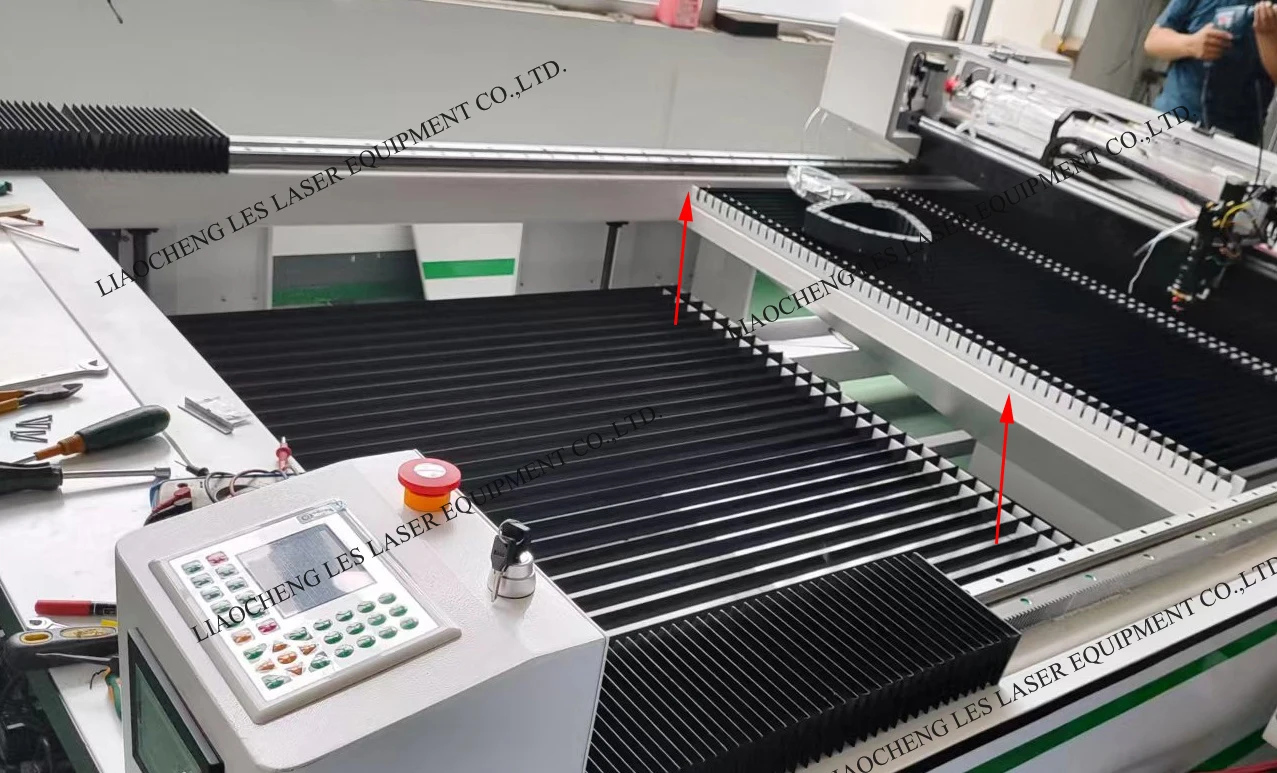

Part of the working platform has Up/Down function
--It can help you cut or engrave thicker objects. The lifting height is about 20cm
--It can help you cut or engrave thicker objects. The lifting height is about 20cm
Mixed laser cutting machine can cut wood, acrylic, aluminum, stainless steel and other materials
Machine application
Samples
Compared with other mini laser machine, our 6040 Co2 laser engraving machine glass cube laser engraver and acrylic cutter machine for motherboard ring fabric with higher precision and higher quality.
(1) Cutting:
acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,leather,fur,foam,plastic,PES,PC,PA,PE,PP,composite material,PVC, etc.
(2) Engraving:
acrylic,perspex,wood,MDF,plywood,stone,marble,glass,jade,crystal, metalcoating,paper,leather,rubber,fabric,cloth
Compared with other mini laser machine, our 6040 Co2 laser engraving machine glass cube laser engraver and acrylic cutter machine for motherboard ring fabric with higher precision and higher quality.
(1) Cutting:
acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,leather,fur,foam,plastic,PES,PC,PA,PE,PP,composite material,PVC, etc.
(2) Engraving:
acrylic,perspex,wood,MDF,plywood,stone,marble,glass,jade,crystal, metalcoating,paper,leather,rubber,fabric,cloth
,plastic,PVC,etc.
Machine optional accessories
Rotary Device
--This accessory is highly recommended for you to purchase, its main function is to help you carve round objects, such as wooden
sticks. You will have a hard time engraving round objects without this accessory.
sticks. You will have a hard time engraving round objects without this accessory.
CCD Camera
--It will automatically identify the edge of the object and then cut it, which is very suitable for cutting multiple objects of
the same quantity.
the same quantity.
Autofocus System
--It will help you find focus automatically, saving you a lot of working time.
High-Precision Metal Rack Transmission
--It is more accurate than the belt transmission system, and the movement speed is faster and more accurate.
Machine packing
1.--Collect all machine accessories and pack the machine together to prevent omissions.
2.--We will use clear plastic film to wrap the machine to prevent the machine from being scratched.
3.--Finally, the machine will be packed in wooden cases. We will put pearl cotton inside the wooden cases to prevent the machine from being damaged by transportation collision.
3.--Finally, the machine will be packed in wooden cases. We will put pearl cotton inside the wooden cases to prevent the machine from being damaged by transportation collision.
Company Profile
Our Guarantee and after-sales service 1. One Year for whole machine. 2. Lifelong Maintemance; 3. 24 hours technical support by email or phone; 4. Free installation and commissioning of equipment, and training of equipment user operators; 5. Free upgrade software for the device. | ||||||||
Our advantages * More Than 16 Years Experiences in Laser industry * 100% Original Famous Parts * 100% Brand New Machines * Free Samples Testing! Free Lifelong After-sale Service * We offer customized service, do the Laser as you like! | ||||||||
