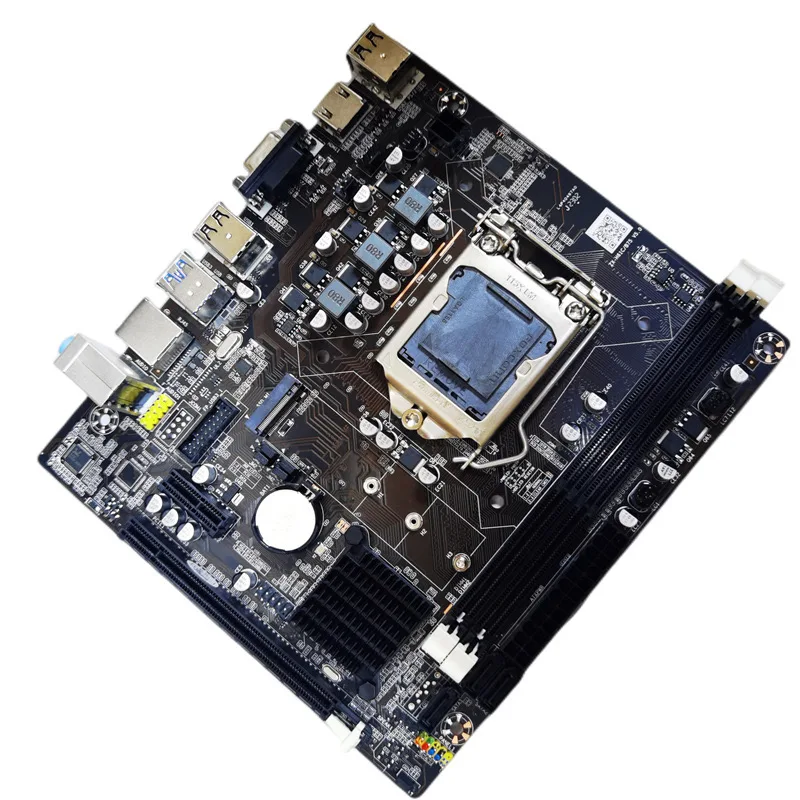

Профессиональная высокоскоростная используемая 1151 розетка Lga Ddr4 * 2 H310 материнская плата с двойным слотом в наличии горячая распродажа
3 182,99 ₽ - 3 344,84 ₽

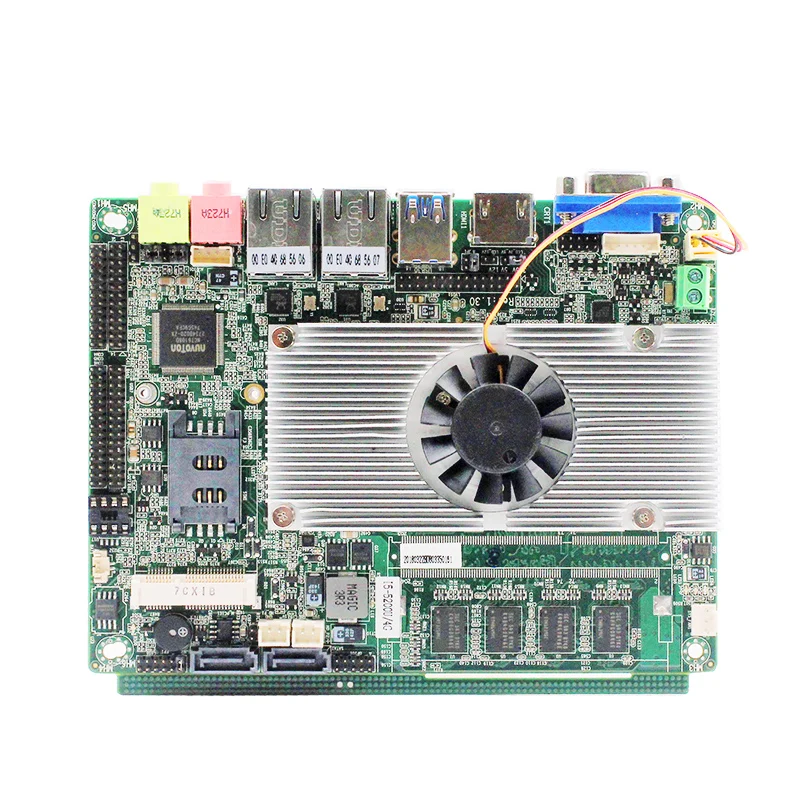

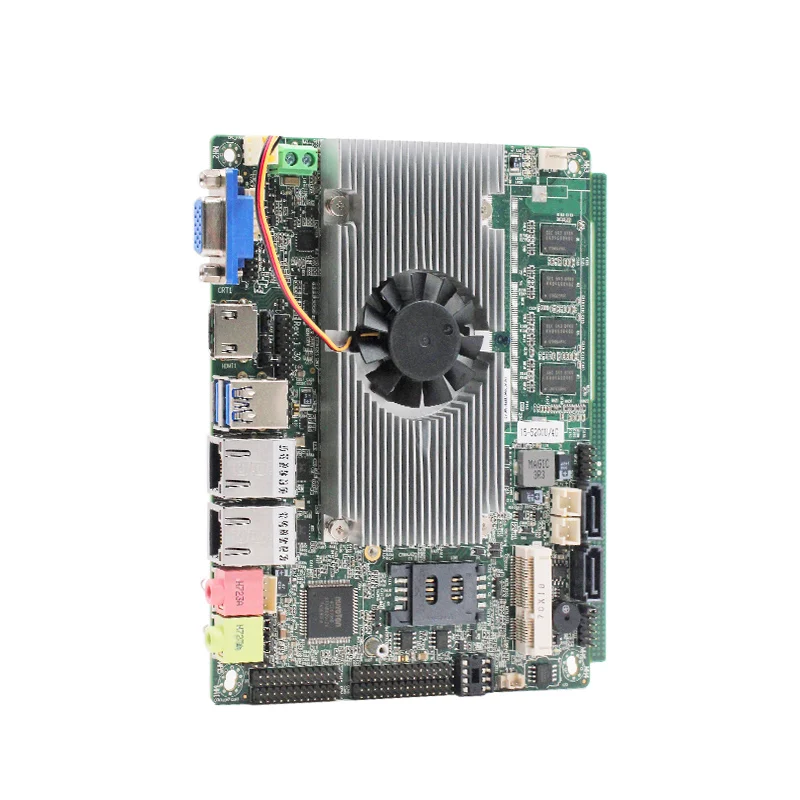

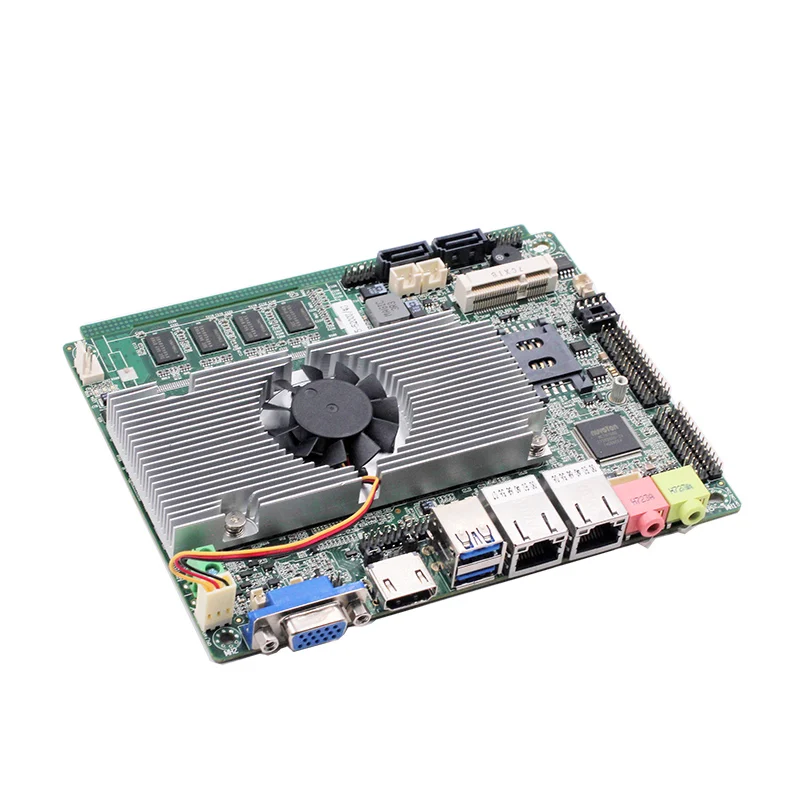

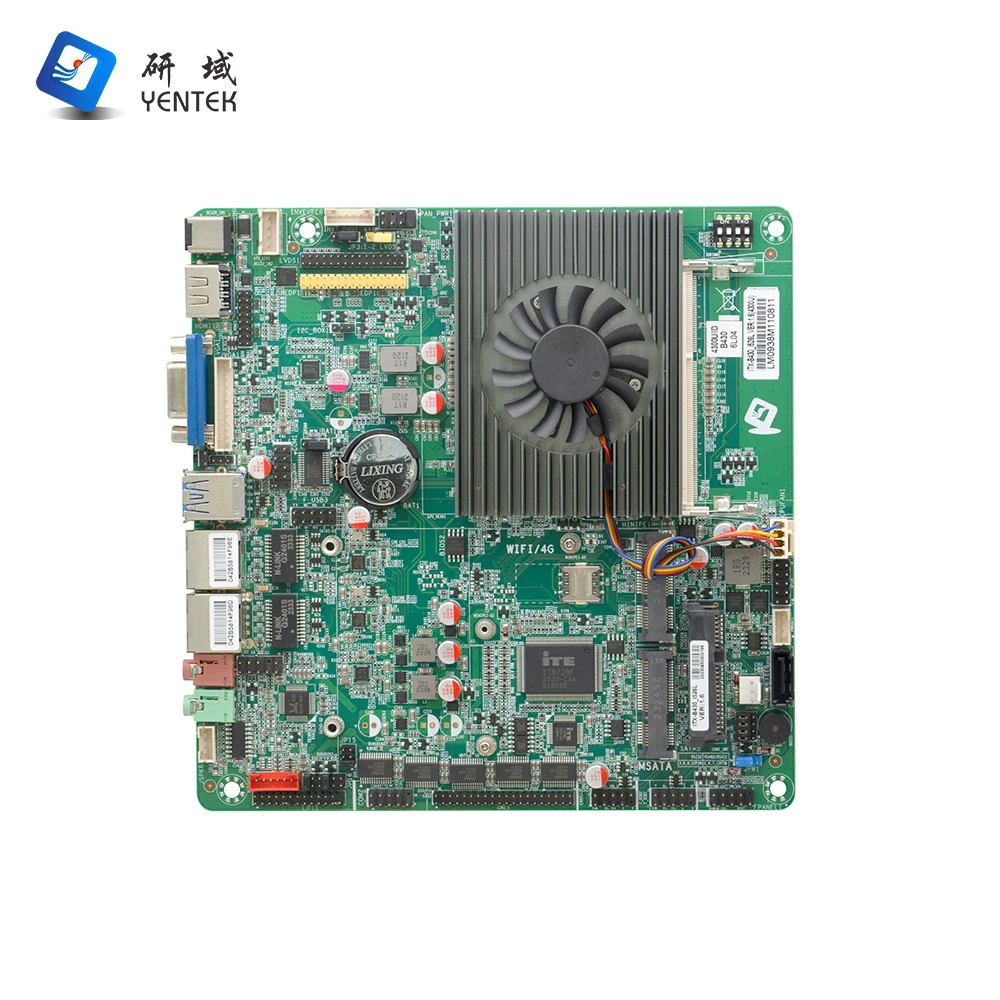

Материнская плата Intel 5 го поколения broadwell U I3i5 i7 5500U процессор на борту 4 ГБ оперативной памяти 2LAN 6com промышленный планшетный ПК материнская
- Категория: >>>
- Поставщик: Shenzhen Caixun Intelligent Technology Co. Ltd.
Сохранить в закладки 1601268288432:
Описание и отзывы
Характеристики
Product Description
Specification
Processor | CPU | Intel Mobile 5th Broadwell-U Soc i3/i5/i7 processor |
CPU Package | BGA | |
Chipset | intel Broadwell-U SOC | |
BIOS | EFI BIOS | |
RAM | Technology framework | Signal Channel DDR3L 1066/1333/1600MHz |
Capacity | Onboard 2GB/4GB DDR3L | |
Ram Socket | Can add a Ram socket,max support 12GB Ram | |
Video | Graphic controller | Intel HD Graphics 5500 (I3-5010U graphics card); graphics card model is related to CPU |
LVDS | Support dual channel 24bit LVDS,Resolution maximum:1920*1200 | |
VGA | Resolution maximum:2048*1536 | |
HDMI | Resolution maximum::2560×1600 | |
Double display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |
Three displays | support LVDS+VGA+HDMI synchronous or asynchronous display | |

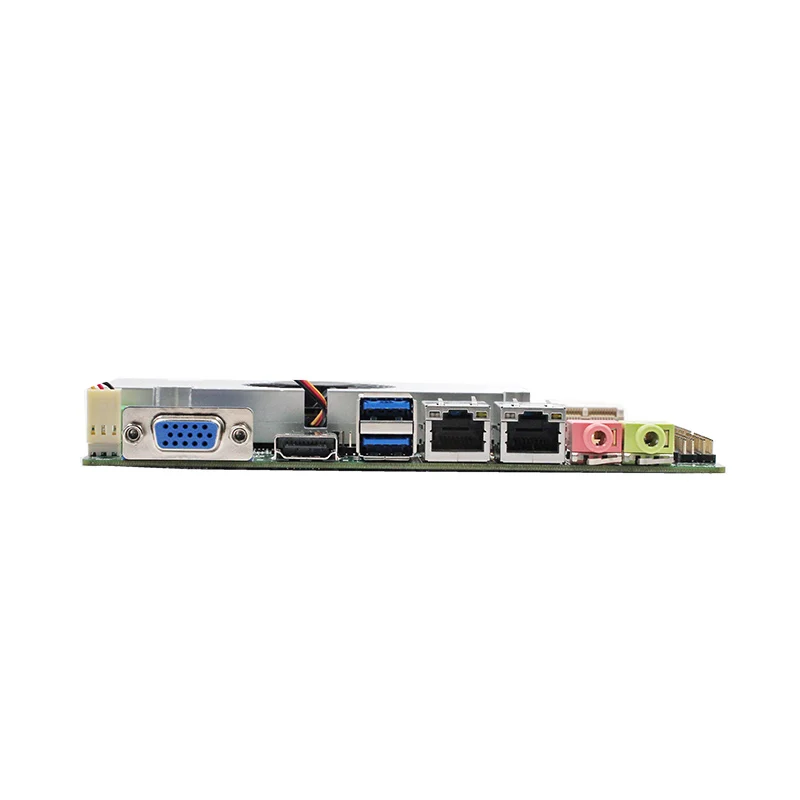

I/O port | Port | 1*VGA,1*HDMI,2*LAN,2*USB3.0/1*MIC-OUT/LINE-OUT |
Network | Controller | 2*RTL8111E-VL,10/100/1000Mbps,RJ45 LAN |
Audio | Controller | Realtek HD ALC662 audio decoding (left and right channels + microphone) |
Super I/O | Controller | NCT6106D |
Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
Cooler | Aluminum alloy heat sink with fan | |
Input/Output Interface | USB | 2*USB3.0 (compatible USB1.1/2.0) 5*USB2.0, Max. Current supported 5V/1A |
Serial ports | 5*RS232 ,1*RS232/485 optional, RS485 supported automatic flow control | |
GPIO | 8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output | |
Extended bus | mPCle | 1*miniPCIE socket ,supported PCIE and USB device |
Storage | SATA | 2 standard SATAII interfaces, maximum transfer rate 6Gb/s |
M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
Power Supply | Power Type | Single input DC power supply ,DC12V5A/7A |
Power consumption | 35W | |
Work environment | Working temperature | -20°C~60°C (-32°F~140°F) |
Storage temperature | -40°C~85°C (-104°F~185°F ) | |
Working humidity | 10%~90% (non-condensing) | |
Storage humidity | 10%~90% (non-condensing) | |
System Support | Windows7 Windows10 Linux | |
Measure | Size | 154.8 x 117.4 mm |
Weight | 0.5KG | |
Certification | CE,FCC,ROHS |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q1. Can I get a sample for testing?
Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 set.
Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q4. Can you print my logo on the mini computer ?
Re: Yes, we can silkscreen logo on computer case, silkscreen logo need extra fee and laser logo is free(just have one color:white)
MOQ is 1 unit.
Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q6. Can this computer support 2 monitors?
Re: Yes, it support 2 monitors display via 1 HDMI and 1 VGA.
Q7. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q8. What payment method do you accept?
Re: We accept L/C,Paypal, Western Union, T/T,
Q9. How will you delivery the device to me?
Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.
Q10.What's the warranty?
Re: 3 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 set.
Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q4. Can you print my logo on the mini computer ?
Re: Yes, we can silkscreen logo on computer case, silkscreen logo need extra fee and laser logo is free(just have one color:white)
MOQ is 1 unit.
Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q6. Can this computer support 2 monitors?
Re: Yes, it support 2 monitors display via 1 HDMI and 1 VGA.
Q7. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q8. What payment method do you accept?
Re: We accept L/C,Paypal, Western Union, T/T,
Q9. How will you delivery the device to me?
Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.
Q10.What's the warranty?
Re: 3 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Похожие товары

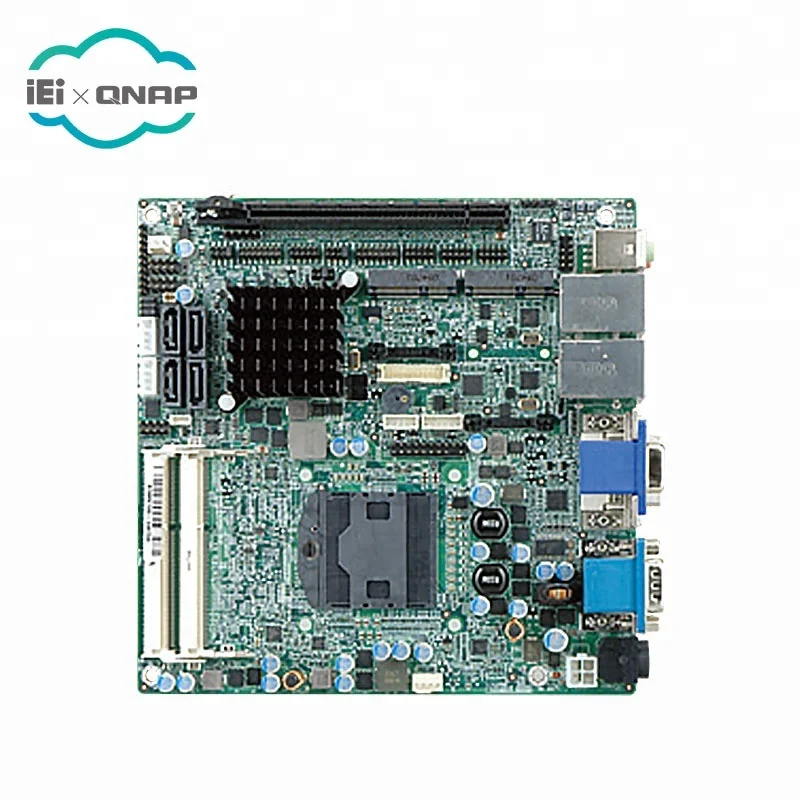

IEI KINO-HM551 Mini-ITX SBC с розеткой G1 для Intel mobile Core i7/i5/i3 и Celeron ЦП
Поддержка материнской платы intel PGA946 сокет HM86 чипсет i5-4200M/i5-4210M/i5-4300M/i5-4310M/i5-4330M/i5-4340M VGA HD-MI 4USB
7 768,65 ₽ - 10 142,40 ₽
Ощерб для компьютерных материнских плат Intel/Золотой ОЗУ и керамические процессорные обрезки процессора
53 948,90 ₽
Материнская плата с процессором Intel i3 i5 i7 4-5th DDR3 MSATA HD VGA LVDS 2 LV 6 COM промышленная мини-плата itx материнская плата

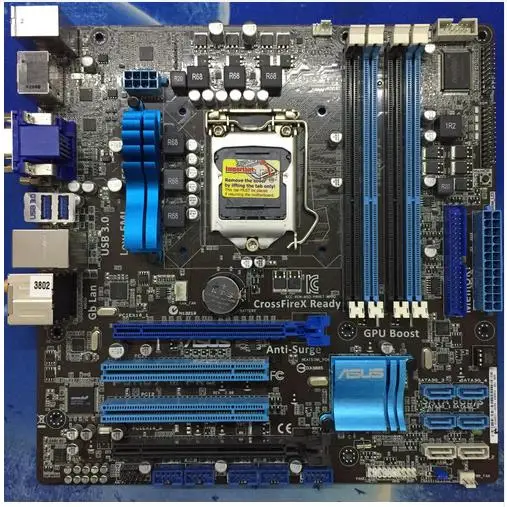

Б/у, sus (нержавеющая сталь) P8H67-M PRO Материнская плата Intel H67 разъем LGA 1155 i3 i5 i7 DDR3 объемом до 32 GB
5 394,89 ₽ - 6 689,67 ₽
Новая материнская плата B75, гнездо LGA 1155 i3 i5 i7 с поддержкой M.2 nvme ddr3 1600 мГц настольная материнская плата
1 564,52 ₽ - 1 704,79 ₽

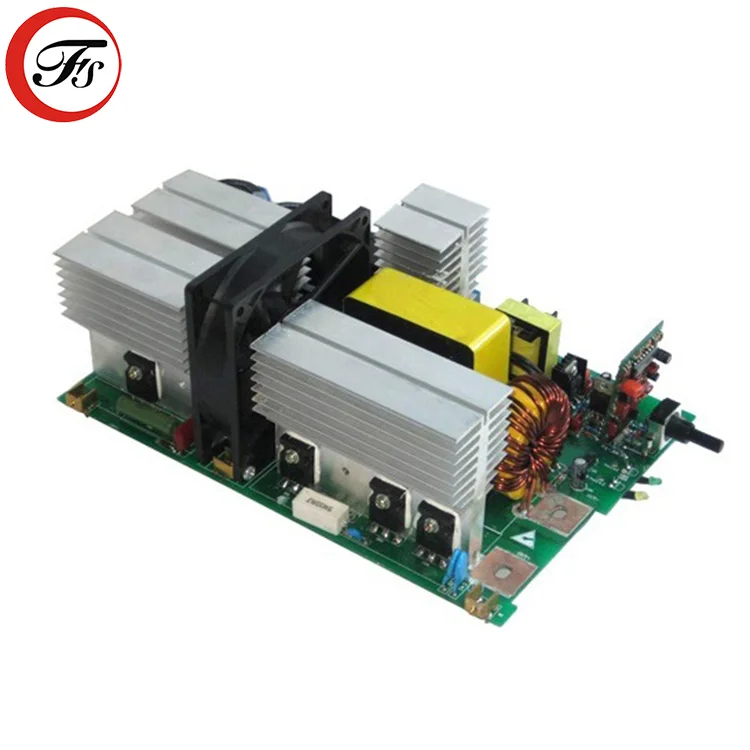

94v0 Rohs индукционная плита материнская плата
