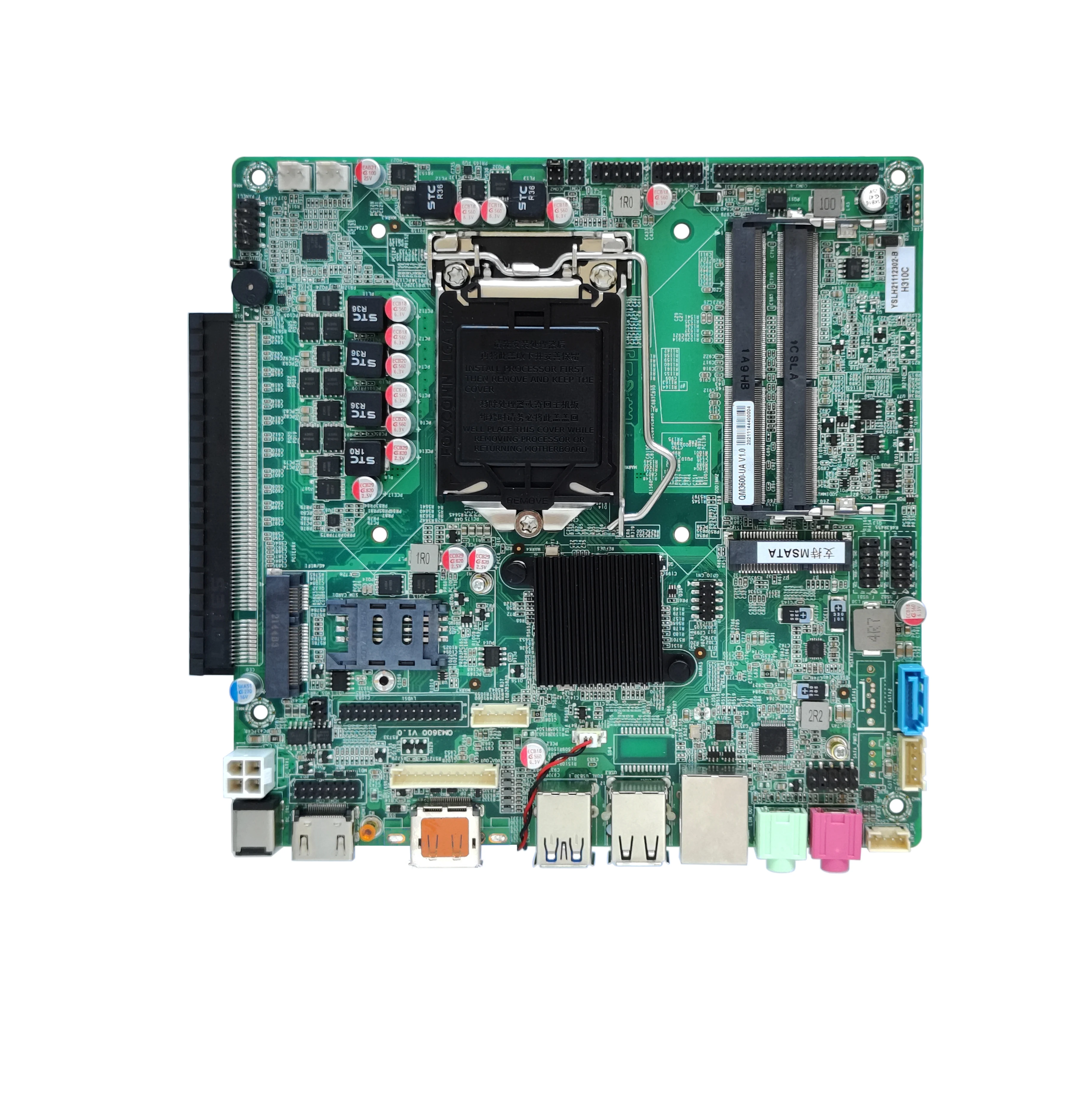

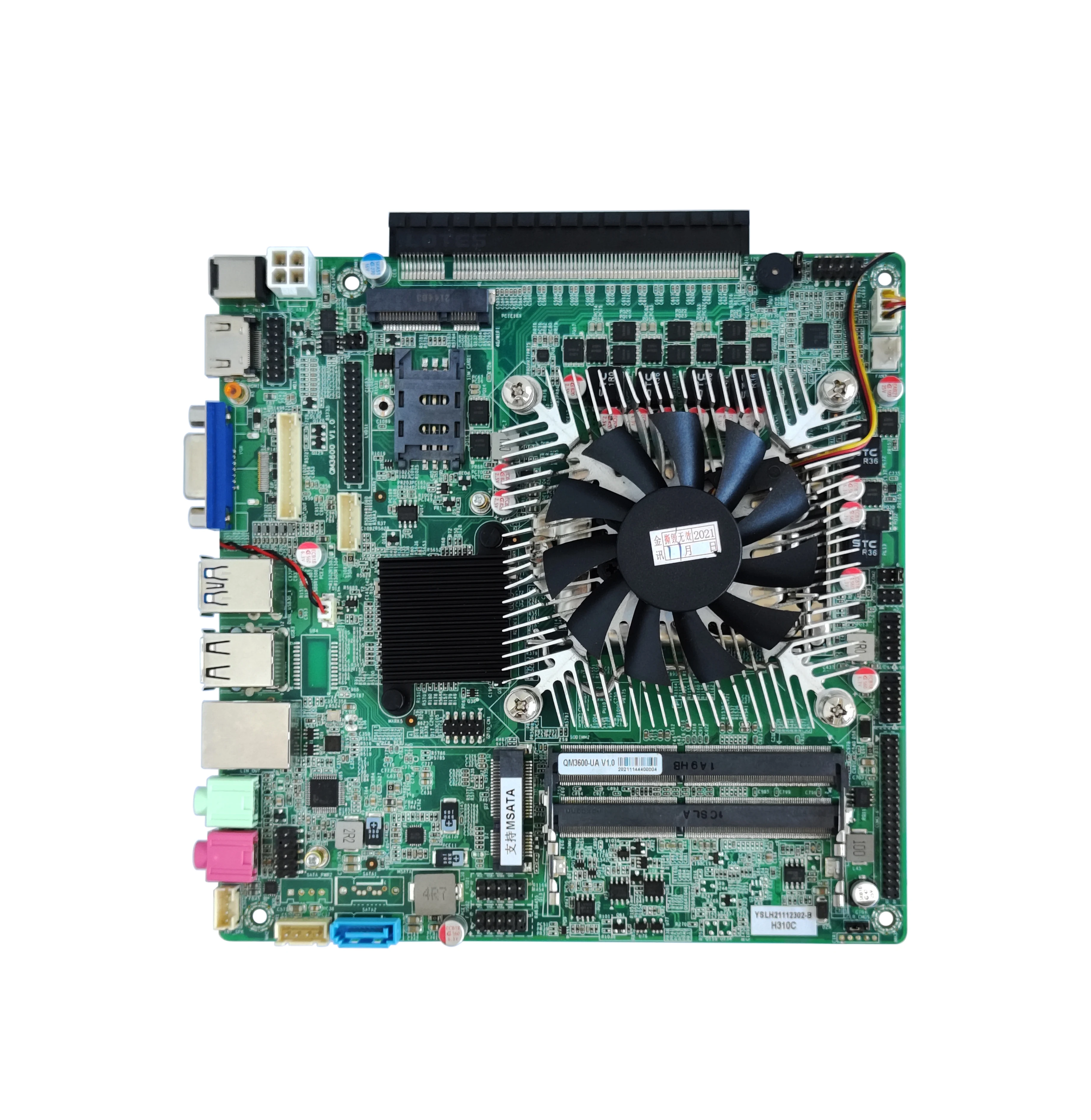

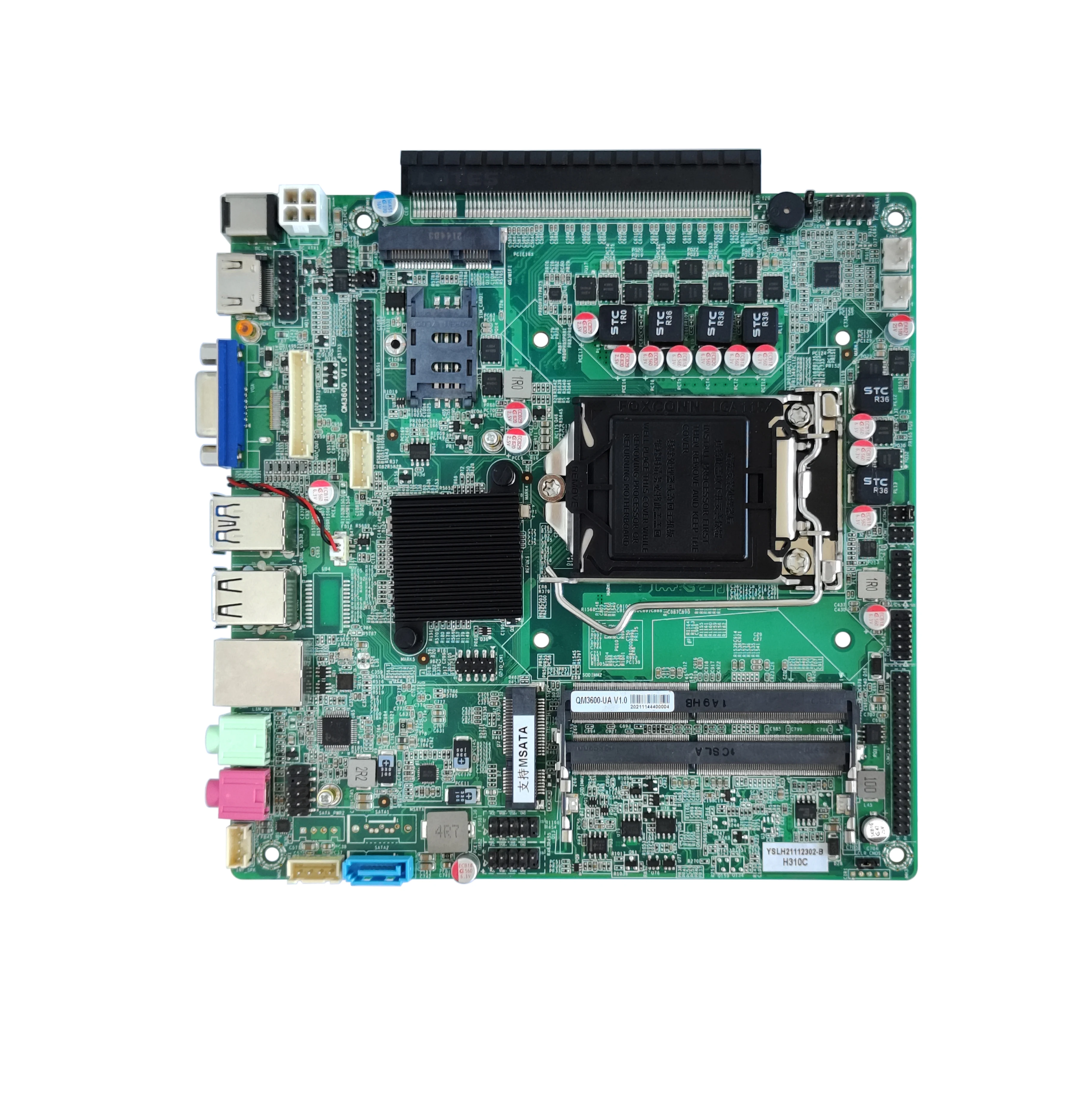

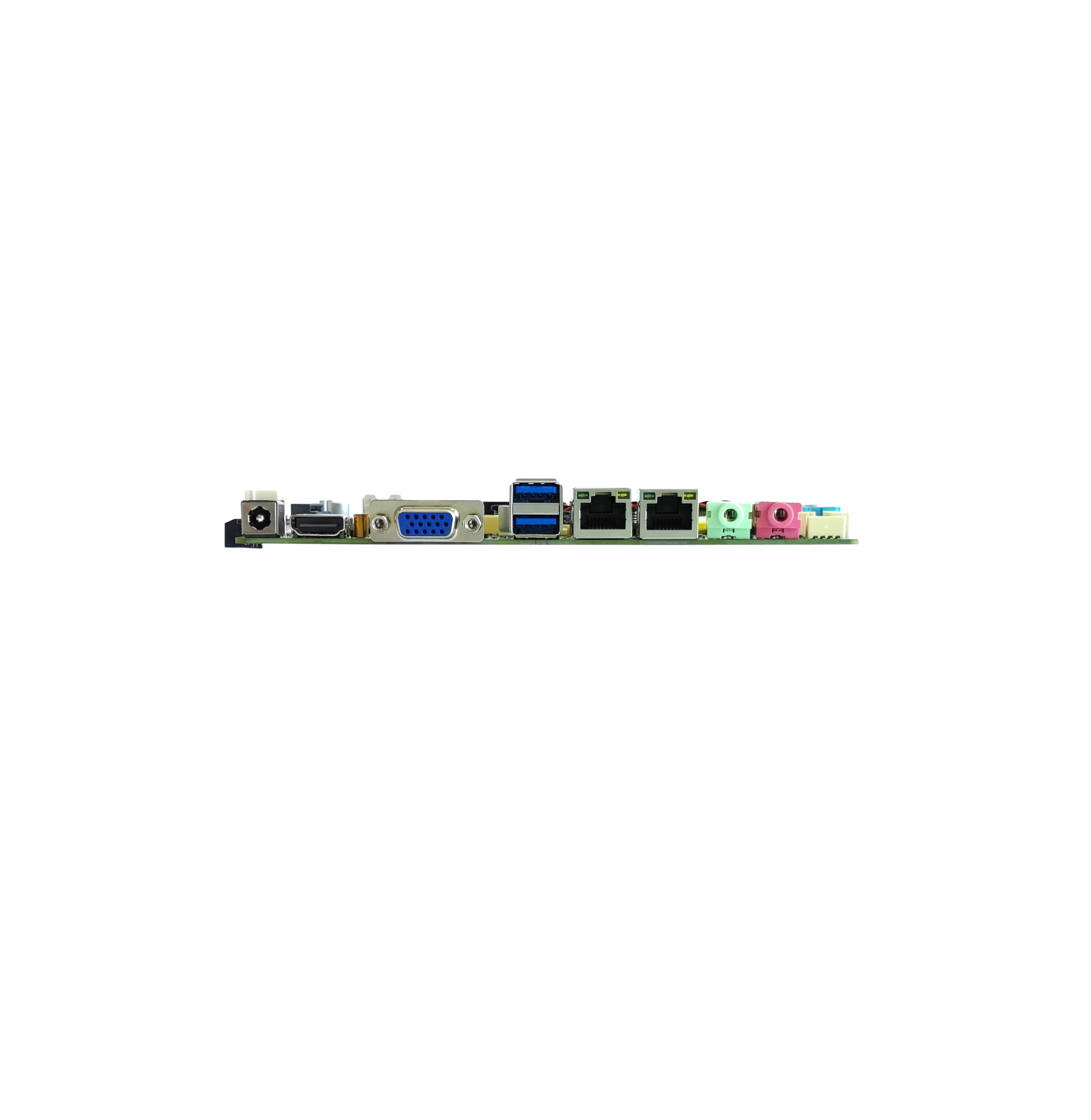

Материнская плата Elsky X86 ITX 6 го поколения Core i5 6400/6500 CPU DDR4 64G RAM H310 LGA1151 PCIE X16 HD MI VGA /DP LVDS/EDP

Motherboard size

170mm(L)*170mm(W)*22mm(H)(thickness including embedded radiator is 30mm, thickness including 115X double tube radiator is 42mm)

CPU

Support Intel 6/7/8/9 generation desktop platform 1151-pin i3, i5, i7, i9 independent CPU

Chipset

Intel H310C Chipset

Power

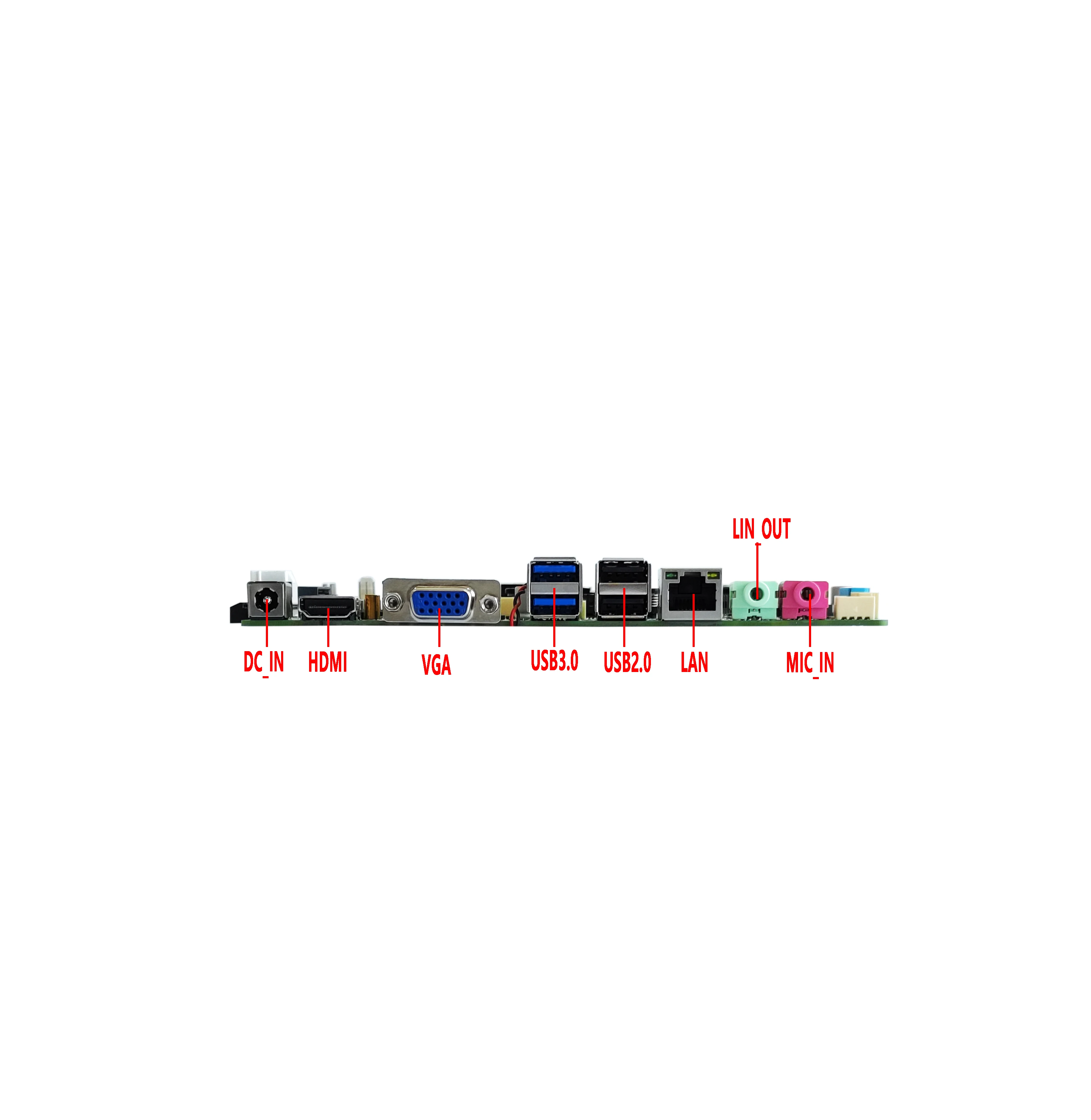

1*DC_IN

The inner diameter of the DC head is 2.5MM, supporting 12V/19V

The full load power consumption of the motherboard is about 90W, it is recommended to use a power supply above 12V/10A or 19V/6A

1*4Pin DC-ATX

Ram

2*SODIMM slot

NB-DDR4 memory, support 2133/2400/2666MHz memory, maximum support 64G

Network

1*LAN interface (dual network optional)

Realtek 8111H Gigabit Ethernet port, supports wake-up on LAN, PXE function

1*MINI_PCIE interface

Support WIFI/3G/4G/Bluetooth module

Display

graphics card

Intel HD Graphics 530/630 ultra-core graphics card, support single display, dual display copy, dual display expansion, single display under DOS

1*HDMI 1.4 interface

Support 4K resolution 4096/3840*2160@30Hz

1*HDMI_CON pin

Support resolution 4096/3840*2160@30Hz    (16Pin,2*8Pin,2.0mm)

1*VGA DB15 interface

Support resolution 1920*1080@60Hz

1*VGA_OUT pin

Support resolution 1920*1080@60Hz       (12Pin,1*12Pin,2.0mm)

1*DP interface (optional)

Support 4K resolution 4096/3840*2160@60Hz

Choose one of VGA and DP, default VGA signal, DP signal can be changed

1*LVDS pin (EDP optional)

Support resolution 1920*1080@60Hz        (30Pin,2*15Pin,2.0mm)

LVDS and EDP share pins, the default LVDS signal can be changed to EDP signal

1*LVDS_PWR pin

LVDS/EDP voltage control pin            (6Pin,2*3Pin,2.0mm)

1*INVERT pin

LVDS/EDP backlight switch control pin          (6Pin,1*6Pin,2.0mm)

USB

2*USB3.0 interface

Rear standard USB3.0 interface

2*USB2.0 interface

Rear standard USB2.0 interface

1*F_USB2 pin

Front USB2.0 pin, one group has 2*USB2.0     (9Pin,2*5Pin,2.54mm)

1*F_USB3 pin

Front USB2.0 pin, one group has 2*USB2.0     (9Pin,2*5Pin,2.54mm)

Sound

Integrated Cmedia HS_100B USB audio chip, can be changed to Realtek audio controller

1*LINE_OUT interface

Support audio output (green)

1*MIC_IN interface

Support microphone input (red)

1*F_AUDIO pin

Standard audio pin, when the motherboard is a USB sound card, the pin is not available  (9Pin,2*5Pin,2.54mm)

1*INT_SPK pin

Power amplifier supports 8 ohm 5 watt speaker dual channel output                (4Pin,1*4Pin,2.0mm)

Hard disk

1*MSATA interface

Support MINI_SATA disk, support MSATA 3.0

1*SATA1 interface(optional)

Standard SATA hard disk interface, support SATA 3.0 (no interface by default, can be changed to independent signal)

1*SATA2 interface

Standard SATA hard disk interface, support SATA 3.0

1*SATA_PWR1 pin

Hard disk power supply pin, can take power 5V, 12V  (4Pin,1*4Pin,2.54mm)

1*SATA_PWR2 pin(optional)

Hard disk power supply pin, can take power 5V, 12V (4Pin,1*4Pin,2.54mm)

switch function

1*F_PANEL pin

Switch, power light, hard disk light, reset pin   (9Pin,2*5Pin,2.0mm)

1*AUTO_SW pin(optional)

The hardware controls the power-on and boot pins, and the motherboard has no pins by default       (3Pin,1*3Pin,2.0mm)

Other I/O

1*COM1 pin

Serial port, support RS232/RS422/RS485 optional(9Pin,2*5Pin,2.54mm)

1*COM2 pin

Serial port, only supports RS232            (9Pin,2*5Pin,2.54mm)

1*JCOM1 pin

Control COM1 pin 9 voltage 0V/5V/12V optional(6Pin,2*3Pin,2.0mm)

1*JCOM2 pin

Control COM2 pin 9 voltage 0V/5V/12V optional(6Pin,2*3Pin,2.0mm)

COM3~COM6 pin

Serial port, support standard RS232;       (39Pin,2*20Pin,2.0mm)

1*SIM_CARD slot

Support SIM card, need SIM card when using 3G/4G

1*FAN1 pin

CPU fan pin, support temperature control  (3Pin,1*3Pin,2.54mm)

1*FAN2 pin

System fan pin, full speed does not support temperature control              (3Pin,1*3Pin,2.54mm)

1*CLR_CMOS pin

Motherboard reset, discharge pin          (3Pin,1*3Pin,2.0mm)
