Z4016 сверлильный станок вертикальный сверлильный станок с высоким эффектом, отличное качество и простота обслуживания.
67 503,88 ₽

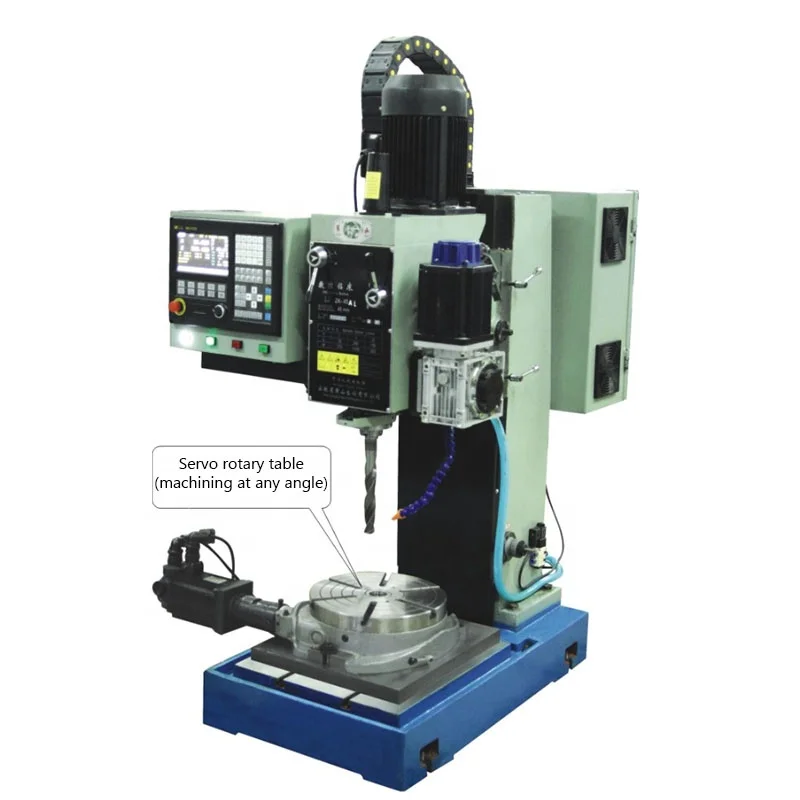

ZK 45A(L)x2 сверлильный станок с квадратными колонками ЧПУ промышленного типа поворотным столом
- Категория: >>>
- Поставщик: Wuxi Mingxu Machinery Equipment Co. Ltd.
Сохранить в закладки 1601268547946:
Описание и отзывы
Характеристики
Products Description
The above price is a deposit, and you need to contact customer service for quotation.
Main features:
1. The spindle feed mechanism is controlled by servo numerical control system, which is programmable and storable, easy to operate, and fast in idle stroke. The motor has large torque and high precision.
2. According to the processing needs, program actions such as fast-forward, work-forward, and fast-push can be set. The feed speed and fast forward and fast backward speed can be set arbitrarily. Realize full-automatic processing.
3. It has the function of automatic chip removal, which can feed and remove chips repeatedly (multi-stage cutting), and is suitable for deep hole processing.
4. Multi-spindle device can be installed, one person can operate multiple machines, and the processing efficiency is high.
5. The system has multiple additional functions, and can form an automatic production line with manipulator, feeding system, pneumatic rotary indexing device, clamping mechanism, etc.
2. According to the processing needs, program actions such as fast-forward, work-forward, and fast-push can be set. The feed speed and fast forward and fast backward speed can be set arbitrarily. Realize full-automatic processing.
3. It has the function of automatic chip removal, which can feed and remove chips repeatedly (multi-stage cutting), and is suitable for deep hole processing.
4. Multi-spindle device can be installed, one person can operate multiple machines, and the processing efficiency is high.
5. The system has multiple additional functions, and can form an automatic production line with manipulator, feeding system, pneumatic rotary indexing device, clamping mechanism, etc.
Product Paramenters
Model | ZK-45A(L)*2 | |
Max.Drilling capacity（mm） | 45/40 | 45/40 |
Max.spindle travel（mm） | 140 | 140 |
Morse taper of spindle nose | MT.4 | MT.4 |
Spindlo spoods（r／min） | 70-150-260-370-825-1430 | 70-150-260-370-825-1430 |
Spindie teed motor | Servo motor 10N.m (1:20) | Stepping motor 28n. m (1:20) servo motor 10N. m (1:20) |
Dividing leed motor | Servo motor 6N. m | - |
Rapid teed（mm／min） | Progressive motor ≤ 4000 Servo motor ≤ 7500 | Progressive motor ≤ 4000 Servo motor ≤ 7500 |
Positioning accuracy（mm） | 0.06 | 0.06 |
Repeat positioning accuracy（mm） | 0.03 | 0.03 |
Operating system | 2-axis (servo) | Single axis (step / servo) |
Size of base worktablo（mm） | 500/450 | 500/450 |
Distance from spindle axis to column surface（mm） | 325 | 325 |
Distance from spindle nose to hase surtace（mm） | 220-670 | 220-670 |
Main Motor power（kw） | 2.2 | 2.2 |
G.W/N.W（kg） | 700/600 | 650/560 |
Ship measurement（cm） | 150*88.8*155.3 | 150*88.8*155.3 |
Company Profile
Is a domestic enterprise specializing in the production of drilling machine series products. It is the director unit of cmtba Drilling and Boring Machine Branch, and the member unit of Drilling and Boring Machine Industry Standardization Technical Committee.
The company has nearly 120 employees, including 40 engineers and technicians, and has more than 200 sets of general-purpose mechanical processing and inspection equipment. The main products produced by the company are: desktop drilling machine, vertical drilling machine, milling drilling machine, tapping machine, dual-purpose drilling and tapping machine, radial drilling machine, universal tool grinder, numerical control drilling machine, numerical control milling machine, vertical machining center, deep hole drill, axial press and so on. With an annual output of more than 20,000 series drilling machines, we can design and customize all kinds of precise, efficient and special machine tools according to users' needs, and provide integrated drilling and processing solutions. The company has always paid attention to product quality and the development of new products, always adhered to the production concept of "innovation and refinement, pursuit of perfection", constantly introduced and absorbed advanced technology and equipment, and actively explored modern management mode. The company has passed the ISO 9001:2008 international quality management system certification.
The company has nearly 120 employees, including 40 engineers and technicians, and has more than 200 sets of general-purpose mechanical processing and inspection equipment. The main products produced by the company are: desktop drilling machine, vertical drilling machine, milling drilling machine, tapping machine, dual-purpose drilling and tapping machine, radial drilling machine, universal tool grinder, numerical control drilling machine, numerical control milling machine, vertical machining center, deep hole drill, axial press and so on. With an annual output of more than 20,000 series drilling machines, we can design and customize all kinds of precise, efficient and special machine tools according to users' needs, and provide integrated drilling and processing solutions. The company has always paid attention to product quality and the development of new products, always adhered to the production concept of "innovation and refinement, pursuit of perfection", constantly introduced and absorbed advanced technology and equipment, and actively explored modern management mode. The company has passed the ISO 9001:2008 international quality management system certification.
Product packaging
FAQ
1. Who are we?
A:Wuxi Mingxu Machinery Equipment Co., Ltd. was restructured from Wuxi Machinery Equipment Co., Ltd. Mainly produces and sells mechanical equipment, forging equipment, grinders, machining centers, hot die forging equipment, CNC machine tools, lathes, milling machines, machine tool parts and so on.
2.What is the package of the machines?
A: The machines standard packed by iron pallets with steel box ,high quality package to reduce the risk of damage during delivery.
3.What is your MOQ of this item?
A: Our MOQ is one set.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5.When is the delivery time?
A: Conventional Machines, we will deliver then within 20 working days after receiving your deposit. If some special machines will be longer, please contact us for details. According to the delivery date at that time, we will give you a reply accordingly.
6. What is the payment Terms ?
A : Alibaba or T/T ,30% initial payment when order ,70% balance payment before shipment ;
7.What kind of trade terms can you do ?
A:EXW,FOB,CFR,CIF,Etc.
8.What is Trade Assurance?
A:Trade Assurance is a free service by Alibaba .com that's designed to help create trust between buyers
and suppliers.Trade Assurance helps buyers in the event of shipping and quality-related dispute.
9.Dose Trade Assurance charge fees?
A: No.Trade Assurance is free for both buyers and suppliers.
A:Wuxi Mingxu Machinery Equipment Co., Ltd. was restructured from Wuxi Machinery Equipment Co., Ltd. Mainly produces and sells mechanical equipment, forging equipment, grinders, machining centers, hot die forging equipment, CNC machine tools, lathes, milling machines, machine tool parts and so on.
2.What is the package of the machines?
A: The machines standard packed by iron pallets with steel box ,high quality package to reduce the risk of damage during delivery.
3.What is your MOQ of this item?
A: Our MOQ is one set.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5.When is the delivery time?
A: Conventional Machines, we will deliver then within 20 working days after receiving your deposit. If some special machines will be longer, please contact us for details. According to the delivery date at that time, we will give you a reply accordingly.
6. What is the payment Terms ?
A : Alibaba or T/T ,30% initial payment when order ,70% balance payment before shipment ;
7.What kind of trade terms can you do ?
A:EXW,FOB,CFR,CIF,Etc.
8.What is Trade Assurance?
A:Trade Assurance is a free service by Alibaba .com that's designed to help create trust between buyers
and suppliers.Trade Assurance helps buyers in the event of shipping and quality-related dispute.
9.Dose Trade Assurance charge fees?
A: No.Trade Assurance is free for both buyers and suppliers.
Recommend Products
Похожие товары
Предложение от производителя Высокое качество оптовая продажа вертикальный сверлильный станок стойка сверлильный станок 16 мм 20 мм 25 мм
12 420,72 ₽
Мощный комбинированный токарный станок по дереву, вертикальный автоматический станок с переменной скоростью, сверлильный станок
24 625,42 ₽ - 61 563,54 ₽
Оптовая продажа настольная SP5216A-I сверлильно-Резьбонарезной автомат

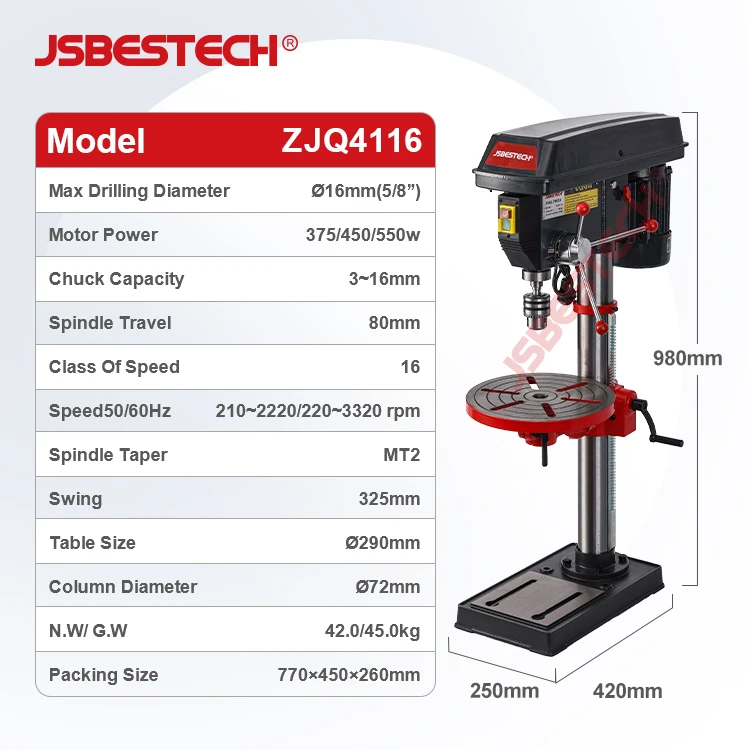

JSBESTECH, компания ZJQ4116, буровой станок
JSBESTECH компания ZJ5120 буровой станок

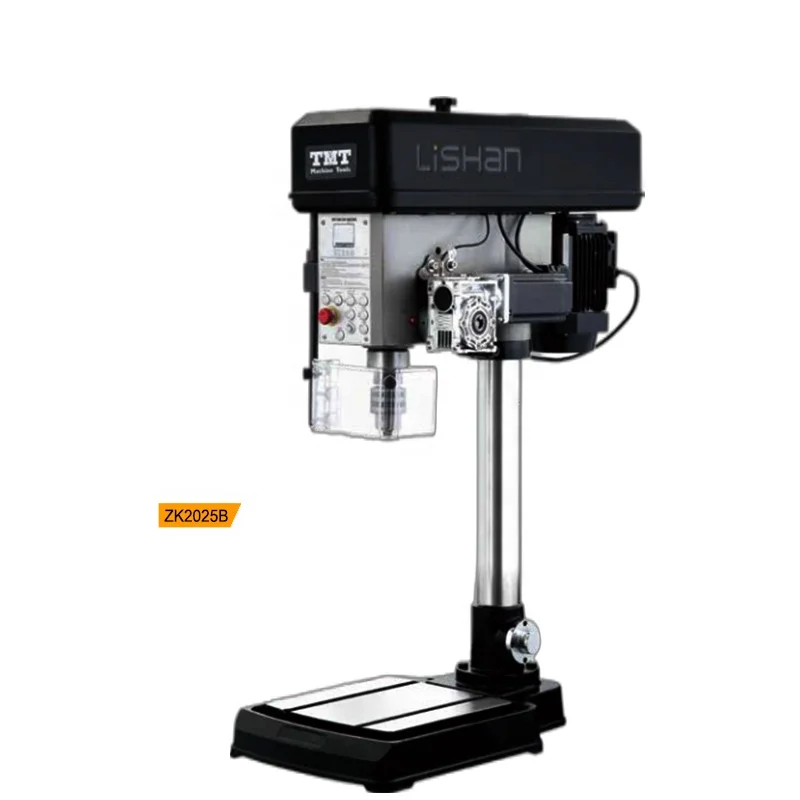

ZK2025B Вертикальная скамья сверлильный станок 32 мм мини-автоматический сверлильный станок высокомощный моторный автоматический сверлильный станок
