45ton Srsc45h1 контейнерный погрузчик вытяжной дизельный Телескопический с высоким качеством и большой мощностью для контейнеров из Китая

Сохранить в закладки 1601268596097:


Цена:17 047 852,40 ₽ - 25 679 676,40 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики




Overview




















Reach Stacker SRSC45H1






Adopt intelligent control technology, detect equipment' s real-time working parameters and automatically adjust the operating status under dangerous conditions to prevent rollover. It can achieve safe and worry-free operation.

Intelligent control of the positions of spreaders and booms can effectively prevent collision among the spreader, frame and boom, avoiding accidents by faulty operation and greatly reducing labor intensity.

The pipeline network automatic fire extinguisher with strong spray can realize fire alarm, antiflaming and fire extinction functions. The fireproof performance is steady and reliable.

Provide solid tyre flexible damping system according to customers' needs to achieve safer operation and lower maintenance cost.


Combine with flexible suspension technology, it significantly reduced the shocking load, raised operation comfort and prolonged component longevity.

Adopting technologies like laser scanning and graphic identification, the machine can precisely detect people or obstacles within the driving route and then brakes automatically to prevent accidents. It is highly intelligent with high safety.

Designed by China and Germany together, the equipment is assured to be highly reliable and endurable by adopting full-digit prototype design system, going through FEA, dynamics simulation analysis, as well as strict endurance and vibration tests.

Using world famous brand engines which are reliable in quality and strong in power, combining the advanced power matching and control technology, the equipment is greatly optimized in dynamic performance. Scientific and appropriate protection for the engine and gearbox will significantly prolong their longevity.

The intelligent controller monitors the boom' s parameters at real-time, and automatically adjust the position of the boom to ensure vertical lifting of the spreader, which makes stacking safer and improves work efficiency significantly.

Optimize the structure to make it lighter and stronger.













Product Paramenters














































































































Parameter


Unit


SRSC45H1




spreader


model


-


SDJ450FA


shift distance


mm


±800


slewing angle


deg


+105/-195


weight


t


7.8


application


-


ISO20'/40'/45'


boom


max hoisting height


mm


15100


inclination angle


deg


0~60


max hoisting speed(unloaded/loaded)


mm/s


420/250


max descending speed(unloaded/loaded)


mm/s


360/300


max travelling speed(unloaded/loaded)


km/h


25/21


gradeability(unloaded/loaded)


%


39/32


hydraulic system pressure


bar


260


overall weight


t


72


rated capacity


t


45


No. of stack


-


5 (9'6"/8'6")


overall length


mm


11340


wheel base


mm


6000


20' container aile width


mm


11300


40' container aile width


mm


13600

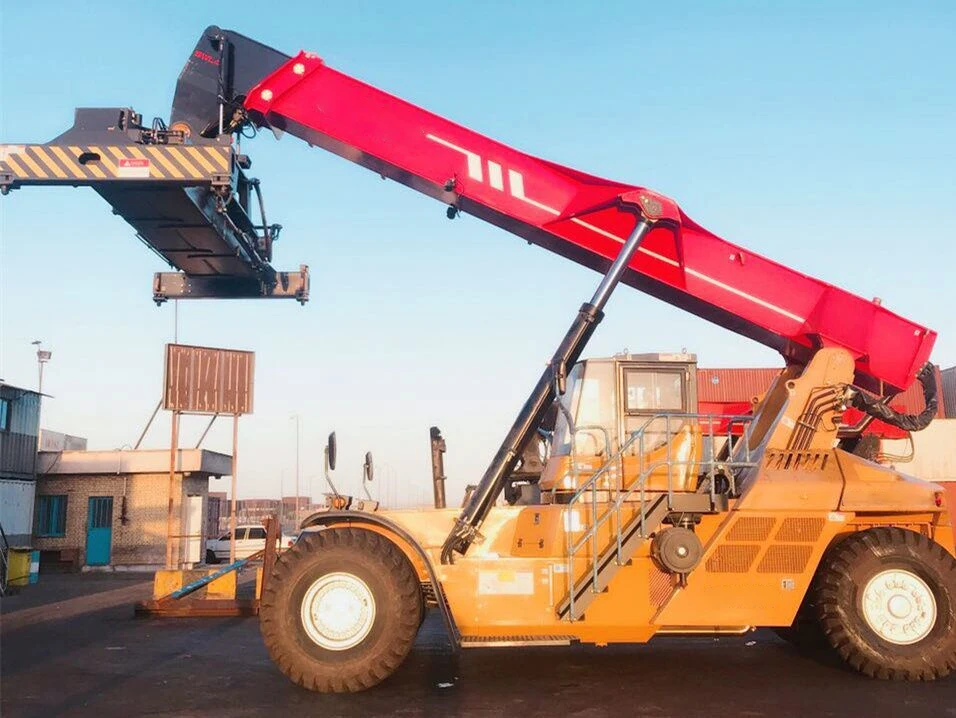

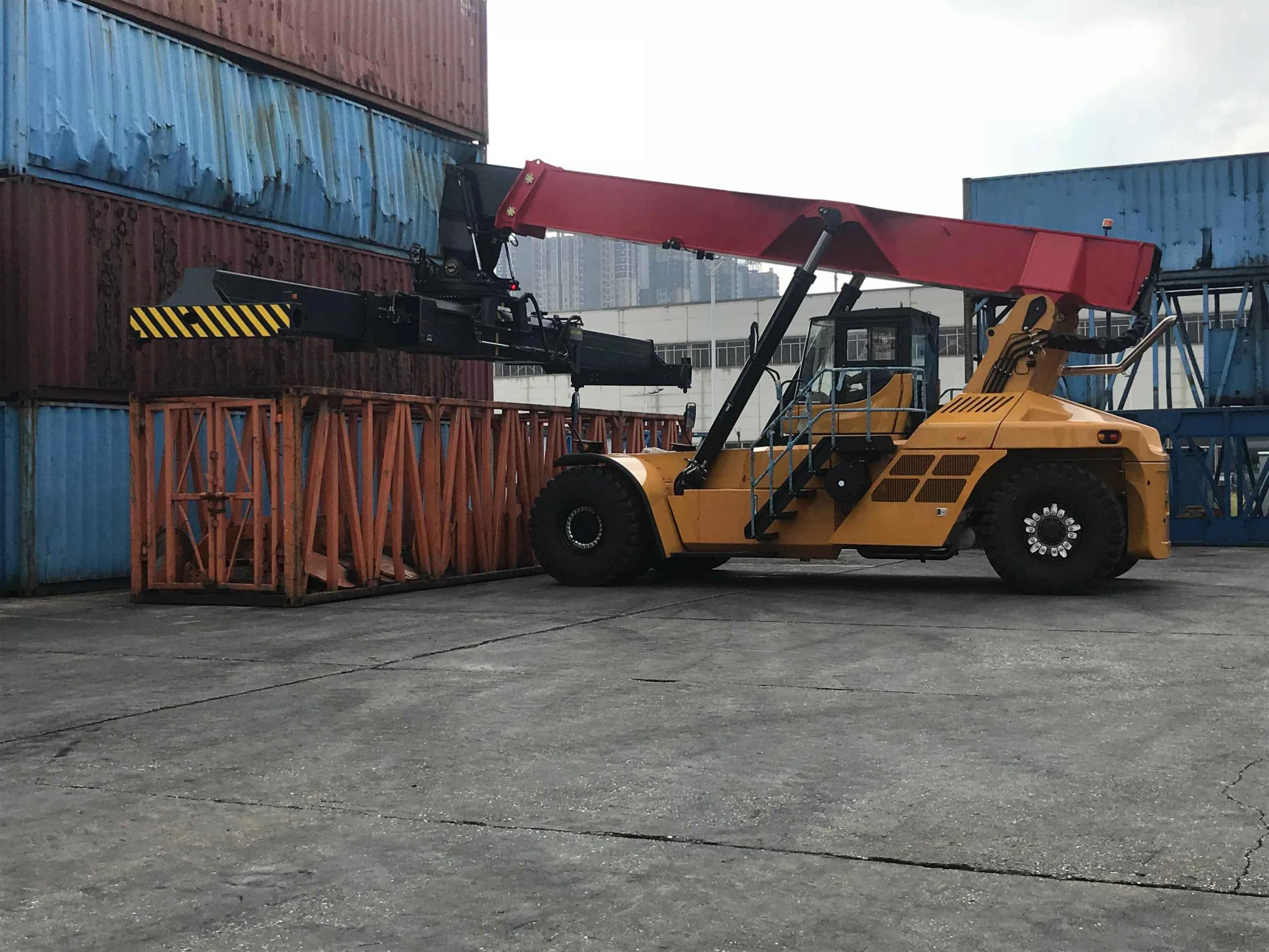

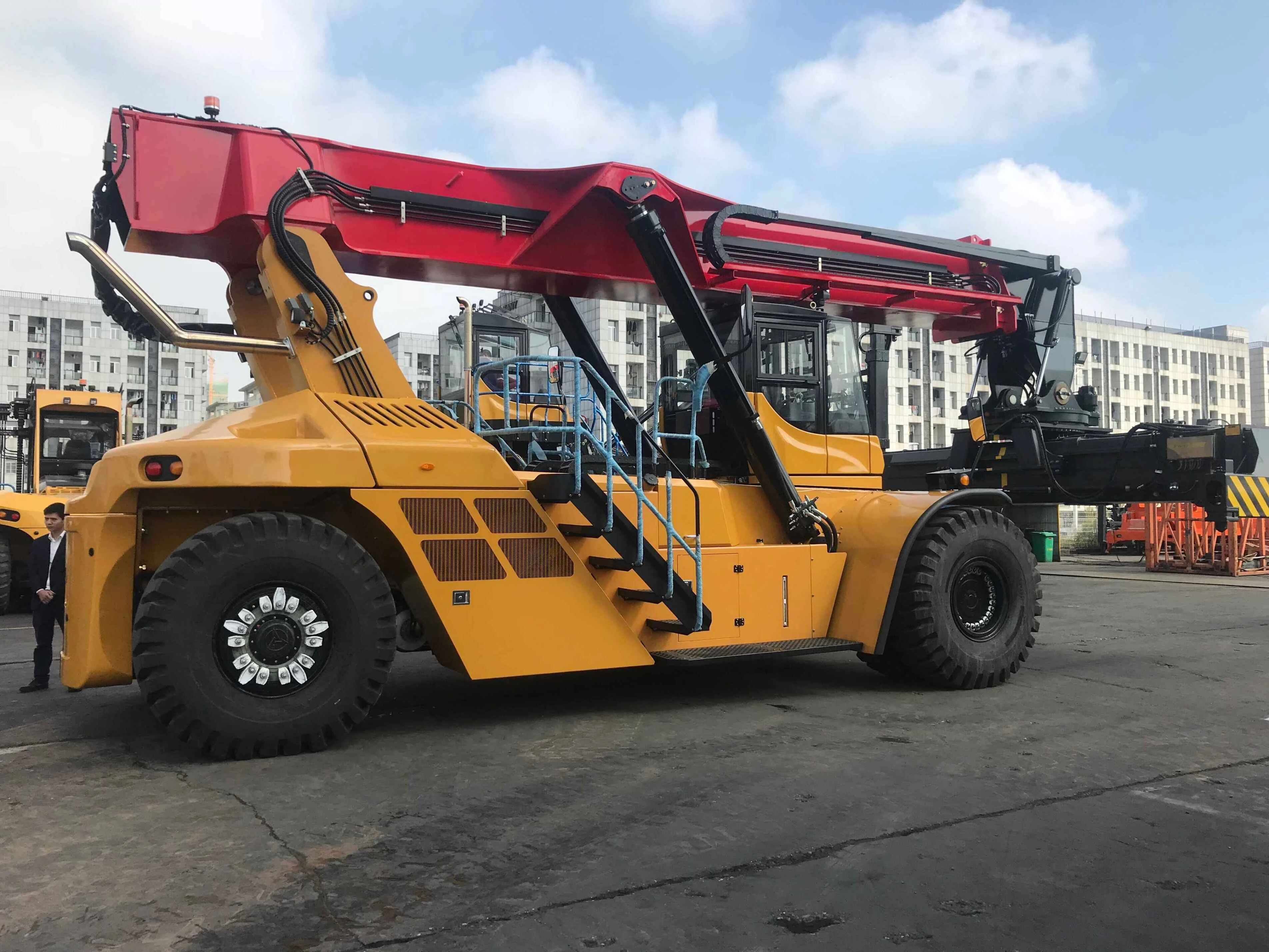

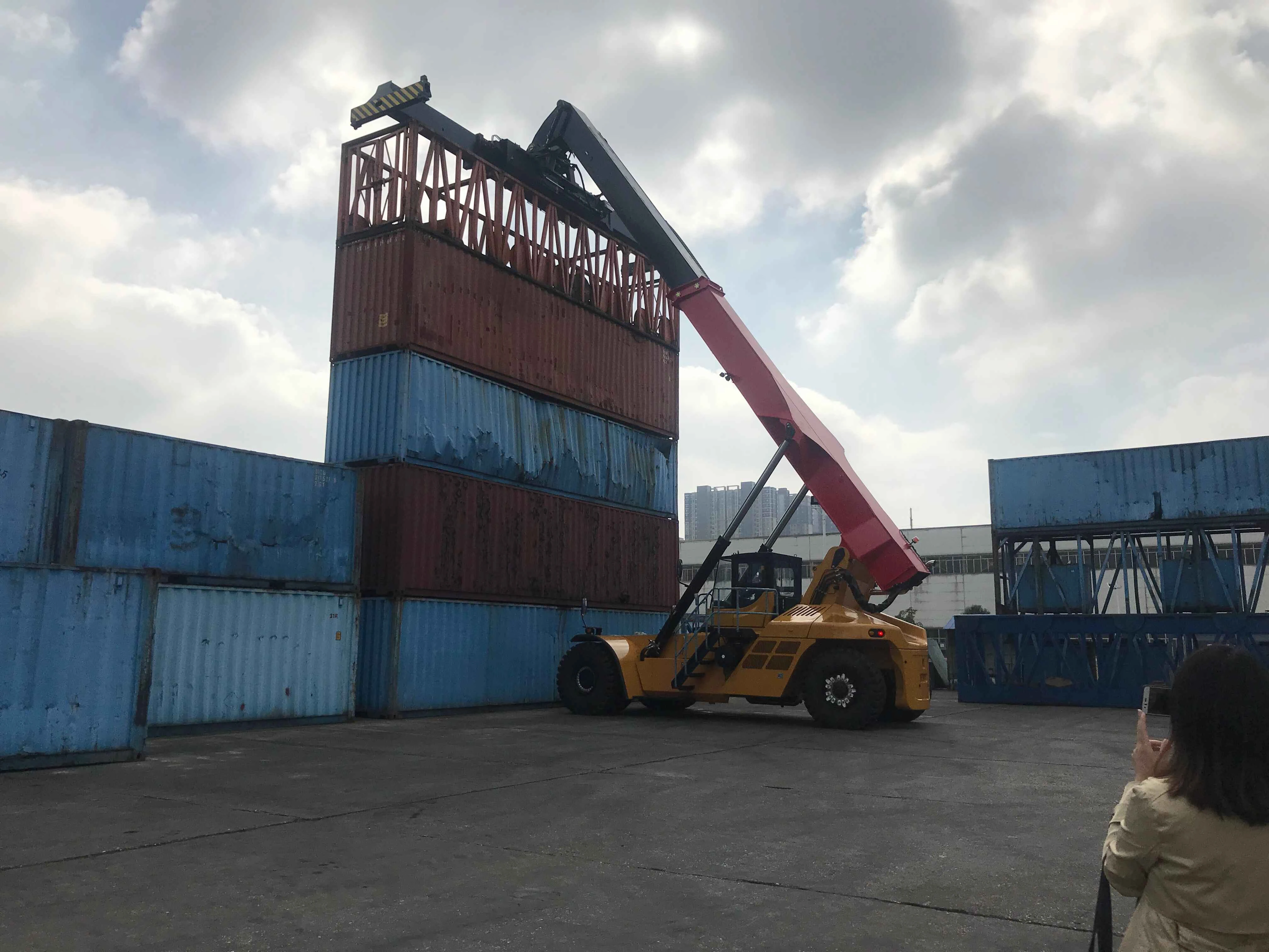

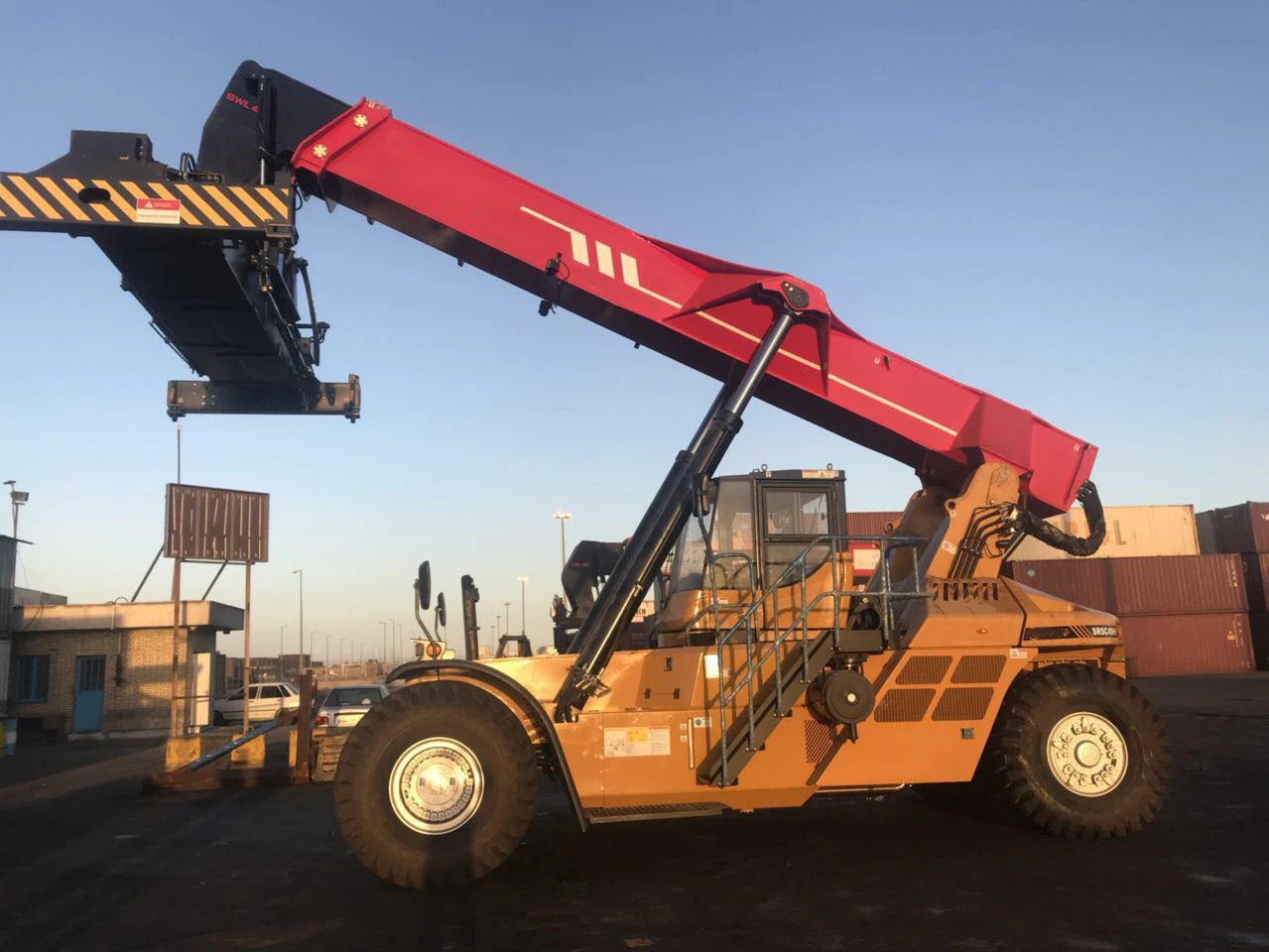

Product Show





























Our Advantages

Our Advantages





































Sales and Service Network

Sales and Service Network


























Customer Photos

Customer Photos


























FAQ

FAQ
