Product Description

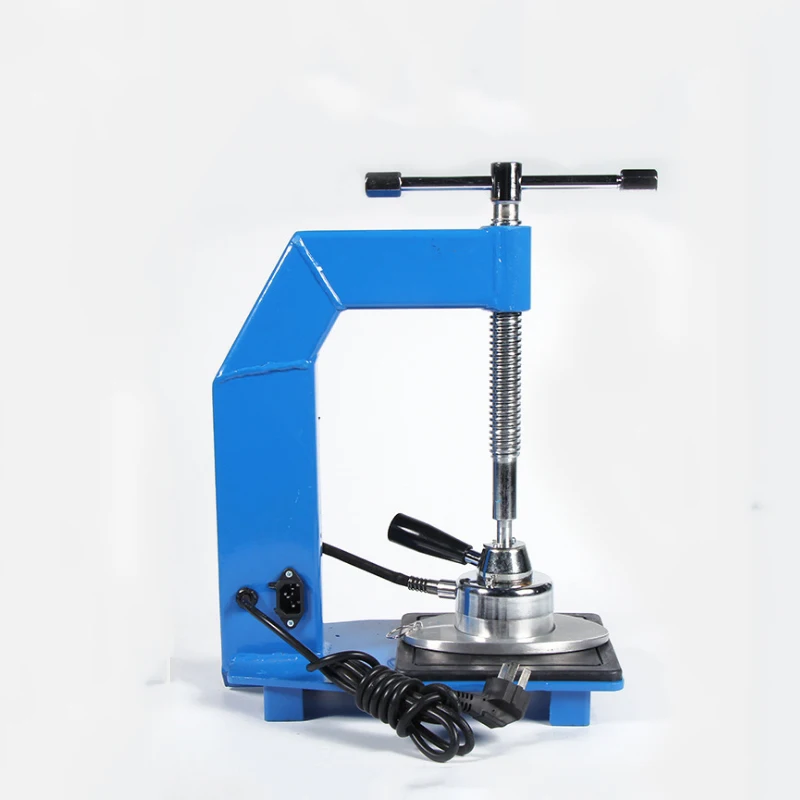

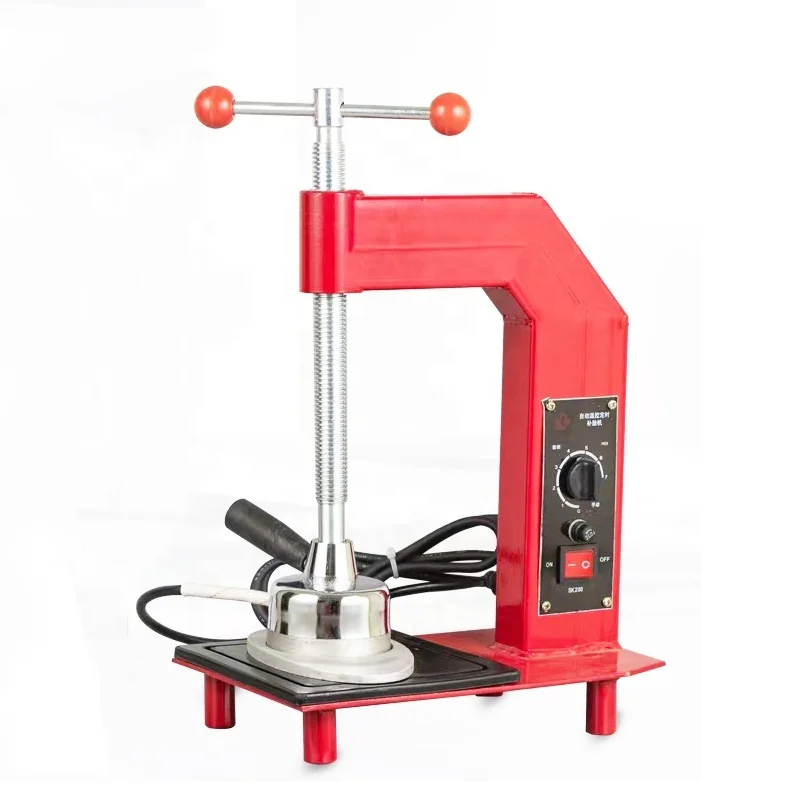

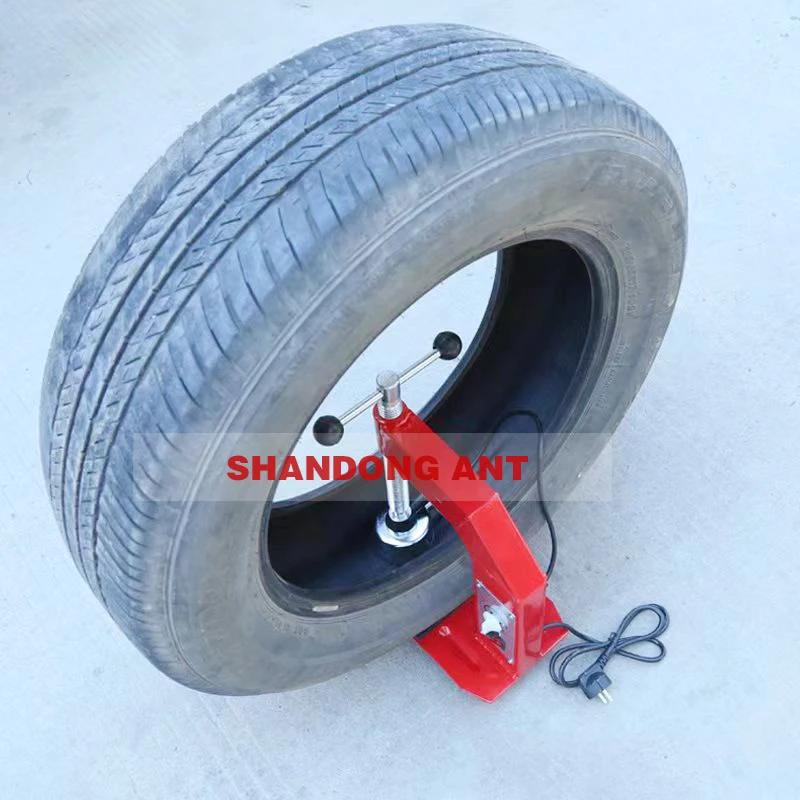

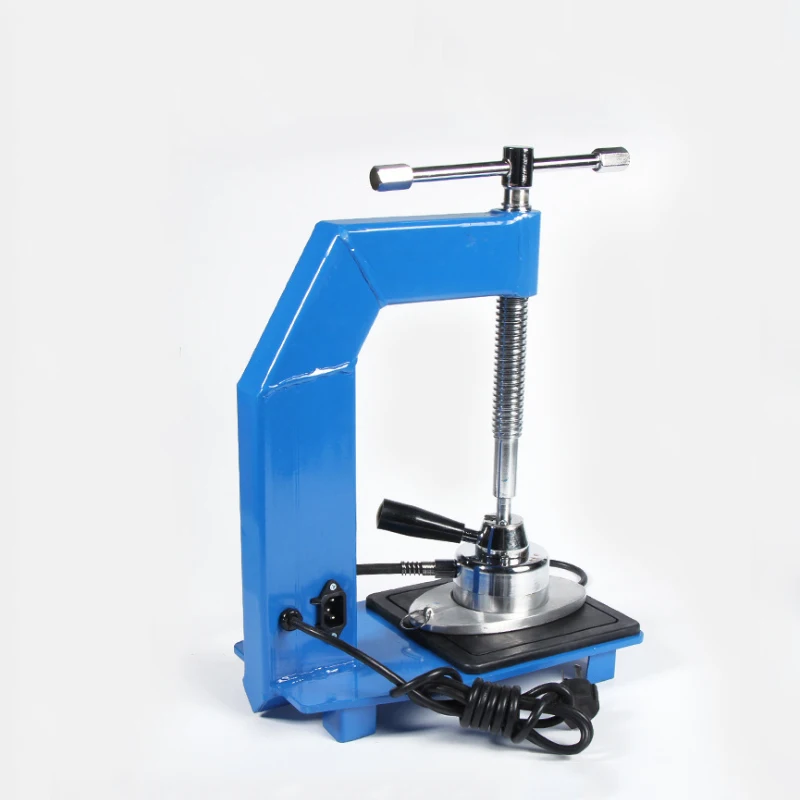

Tire vulcanizer feature
* Simple, one-man operation.Repairs tread, shoulder and sidewall.Large-capacity, fully rotating C-frame accommodates different wheel sizes and allows for vertical or horizontal repairs.
* Vulcanizing repair process cures the patch and inner tire lining to form a dense, sealed repair job.An adjustable, swing-open,rotating C-frame cavity simplifies tire loading and unloading while maximizing stability.
* Adjustable height tower.Contoured inner and outer curing heads conform to a variety of tire profilesLong-life Acme thread hand-wheel screw applies over 4,000-lbs. of pressure and heat for maximum adhesion of patch to casing.
* Energy and cost efficient for lower operating costs.Lightweight, self-standing design offers portability and maximum stability.Doesn't require any time consuming tensioning straps.
* Handles long sidewall repairs.Cures both patch and plug at the same time.Curing heads can be operated individually or simultaneously for maximum repair efficiency.Constant controlled heating elements maintain optimum temperature.
* Vulcanizing repair process cures the patch and inner tire lining to form a dense, sealed repair job.An adjustable, swing-open,rotating C-frame cavity simplifies tire loading and unloading while maximizing stability.
* Adjustable height tower.Contoured inner and outer curing heads conform to a variety of tire profilesLong-life Acme thread hand-wheel screw applies over 4,000-lbs. of pressure and heat for maximum adhesion of patch to casing.
* Energy and cost efficient for lower operating costs.Lightweight, self-standing design offers portability and maximum stability.Doesn't require any time consuming tensioning straps.
* Handles long sidewall repairs.Cures both patch and plug at the same time.Curing heads can be operated individually or simultaneously for maximum repair efficiency.Constant controlled heating elements maintain optimum temperature.

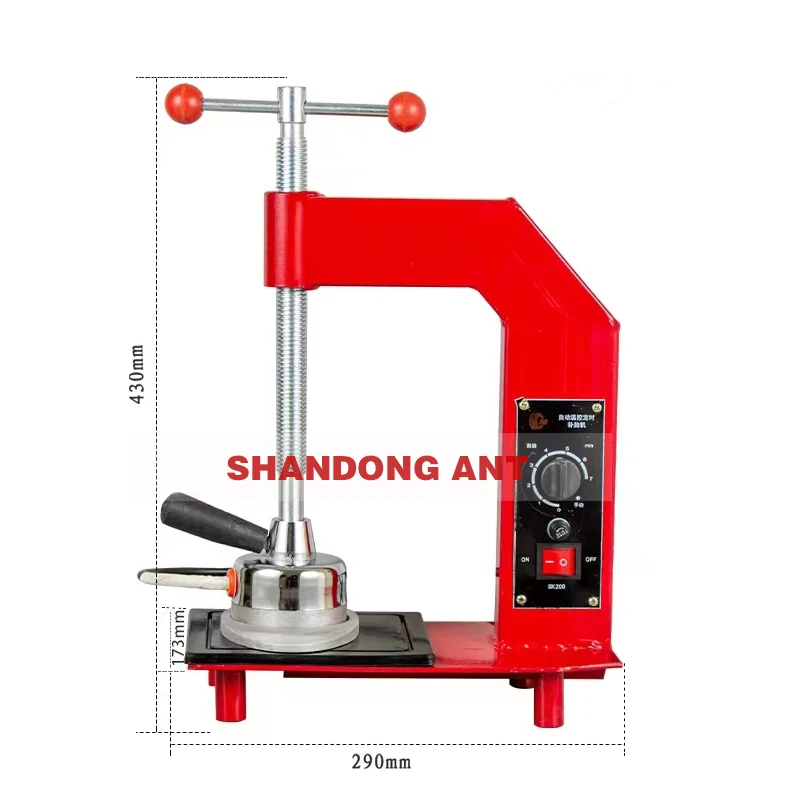

Specification
Type | Electric Tool |
Main Material | Steel |
Size | 35x20x50cm |
Voltage | 220v |
Usage | Tubless Car Tire |
Tire repair method:
1,Clean the surface of the wound where the tire needs to be repaired and mark it.
2,Use a grinding machine to grind the surface of the wound, the area is slightly larger than the wound.
3,Use the brush to raw rubber and gasoline blending good mortar (or hot glue) evenly coated on the polished.
4,Cut the appropriate size of the rubber, it will fill in the wound.
5,Pressure the hot head on raw rubber (if possible can pad a thin layer of aluminum or iron in the raw rubber), try to put the wound in the central heating head, pressing screw, fixed tires.
6,Turn on the timer switch and set it in the right place, Cold start can refer to "20" (Or adjust the vulcanizing time according to the temperature and the condition of the wound) the heat start time can be a little shorter,if you do not need timing can be set on the manual gear, then the hot head to work.
7,At the end of vulcanization, tire repair machine automatically cut off power supply hot head.
8,Turn off the power switch, loosen the screw tire pressure, carefully remove the hot head, remove the tire.
2,Use a grinding machine to grind the surface of the wound, the area is slightly larger than the wound.
3,Use the brush to raw rubber and gasoline blending good mortar (or hot glue) evenly coated on the polished.
4,Cut the appropriate size of the rubber, it will fill in the wound.
5,Pressure the hot head on raw rubber (if possible can pad a thin layer of aluminum or iron in the raw rubber), try to put the wound in the central heating head, pressing screw, fixed tires.
6,Turn on the timer switch and set it in the right place, Cold start can refer to "20" (Or adjust the vulcanizing time according to the temperature and the condition of the wound) the heat start time can be a little shorter,if you do not need timing can be set on the manual gear, then the hot head to work.
7,At the end of vulcanization, tire repair machine automatically cut off power supply hot head.
8,Turn off the power switch, loosen the screw tire pressure, carefully remove the hot head, remove the tire.
Packing & Delivery
Company Profile
FAQ
1. who are we?
We are based in Shandong, China, start from 2013,sell to Southeast Asia,South America,Northern Europe,Mid East,North
America,Western Europe,Africa,Eastern Asia. owned rich experience in production and sales
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment; After ship, provide full
ofdrawingand video of installation
3.what can you buy from us?
We are based in Shandong, China, start from 2013,sell to Southeast Asia,South America,Northern Europe,Mid East,North
America,Western Europe,Africa,Eastern Asia. owned rich experience in production and sales
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment; After ship, provide full
ofdrawingand video of installation
3.what can you buy from us?
Tire Tripling machine, tire load machine, tire changer, tire balancer, wheel aligment, motorcycle wheel
repairing machine, wheel packing machine, tire press test machine, tire unpacking machine, tire vulcanizing machine...
4. why should you buy from us not from other suppliers?
we are a senior manufacturer and exporter of surface treatment painting equipment;With a unit integrates production, research
&development together with sale , holds more than 10 years history in designing and manufacturing painting industry equipments
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Russian
repairing machine, wheel packing machine, tire press test machine, tire unpacking machine, tire vulcanizing machine...
4. why should you buy from us not from other suppliers?
we are a senior manufacturer and exporter of surface treatment painting equipment;With a unit integrates production, research
&development together with sale , holds more than 10 years history in designing and manufacturing painting industry equipments
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Russian
Похожие товары
Машина для вулканизации шин ремонта автомобильных труб
2 204,23 ₽ - 3 306,34 ₽
Универсальный аварийный патч для ремонта пассажирских шин
551,06 ₽

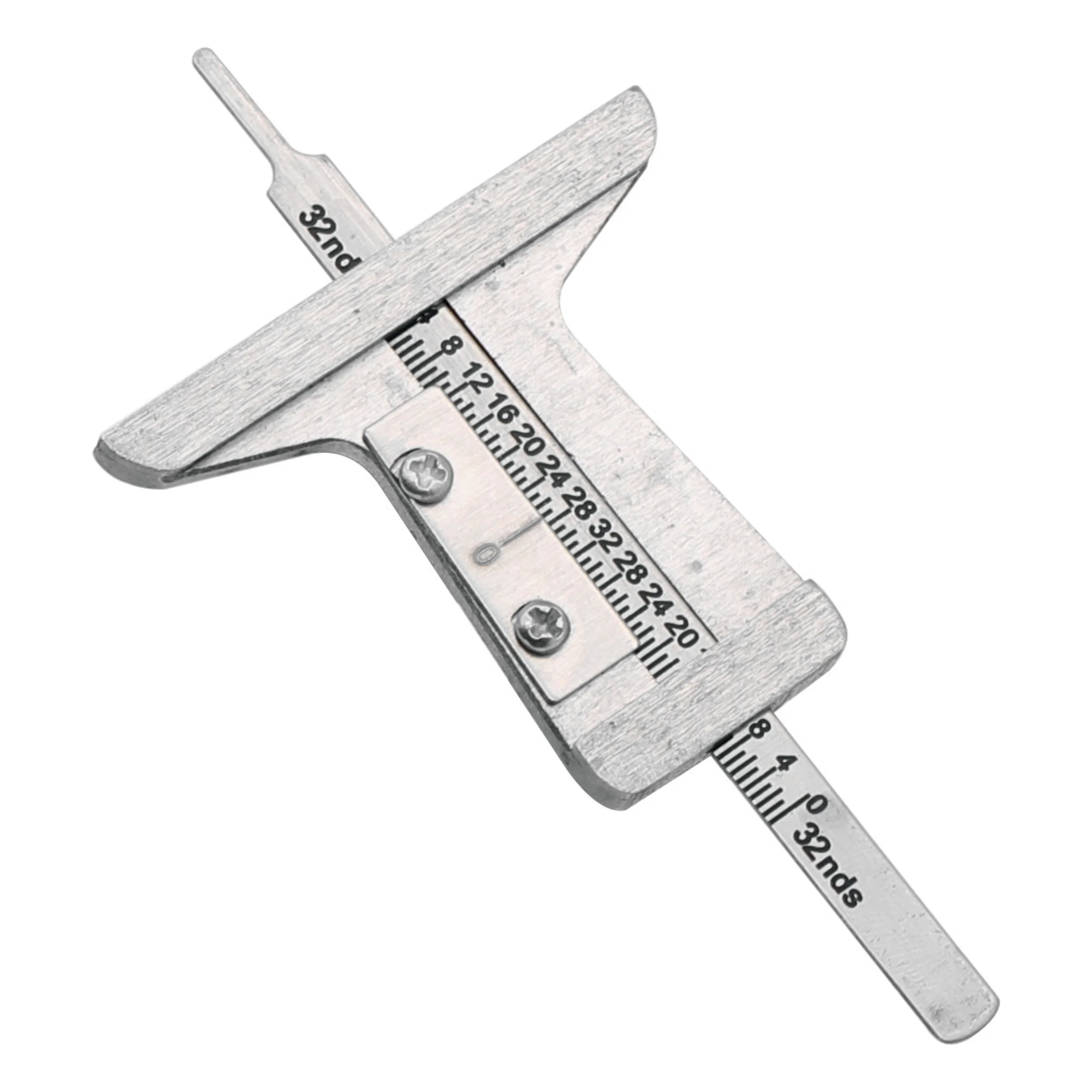

Т-образный измеритель глубины протектора шин из нержавеющей стали скользящий (съемный) диапазон 0-25 мм и 0-32 нds инструмент для измерения
88,17 ₽ - 281,04 ₽
6 5 «с длинным наклоном с прямой головкой двумя ножками черным порошковым покрытием воздушный патрон 1/4» комплект для ремонта шин
149,89 ₽ - 205,00 ₽

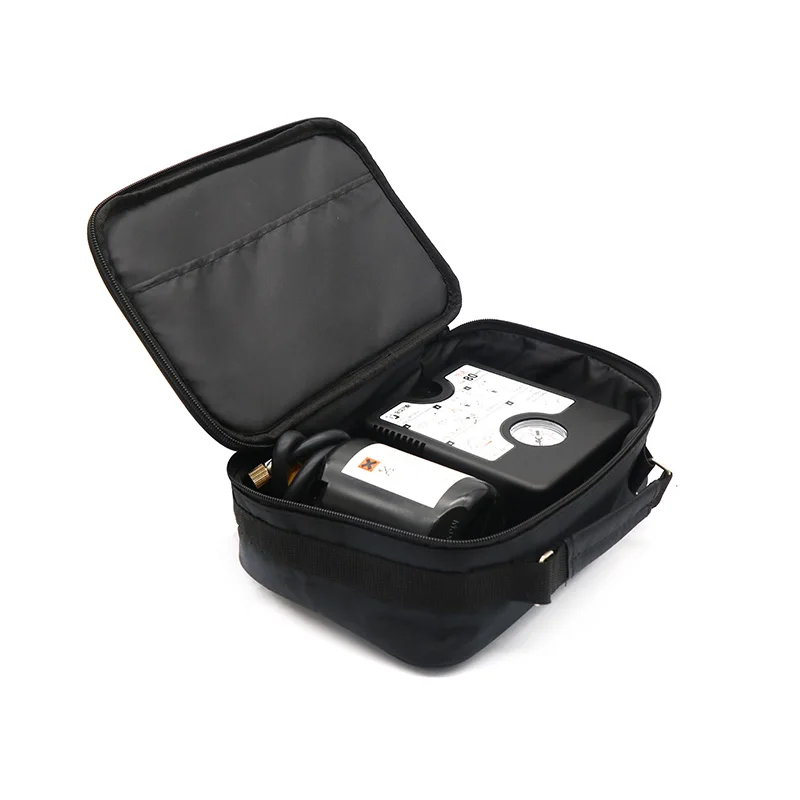

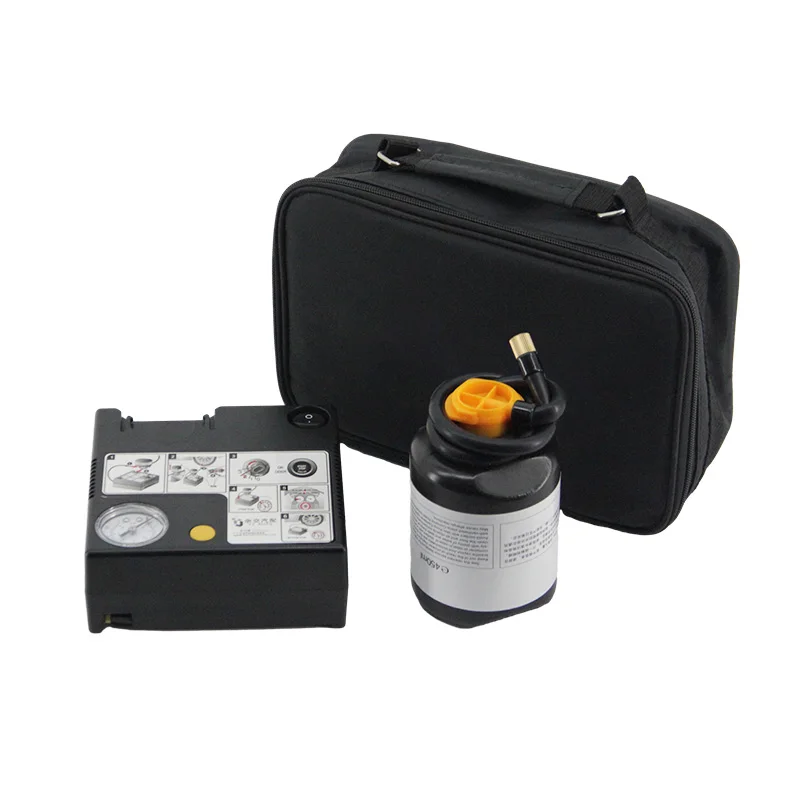

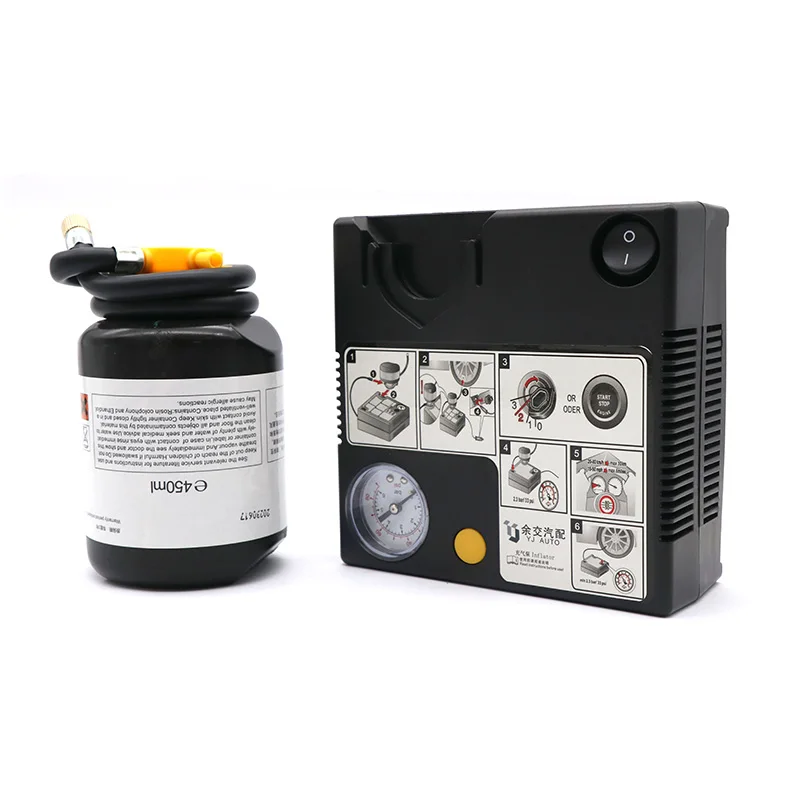

Комплект для ремонта проколов автомобиля
