Подержанный 102 E автоматический штамповочный станок для пресс-прессования
10 118 889,50 ₽
Индивидуальные решения для домашних животных машина резки и сгибания изготовления картонных коробок автоматическая Вырубка
- Категория: >>>
- Поставщик: Cangzhou Golden Wings Machinery Co. ltd
Сохранить в закладки 1601268761207:
Описание и отзывы
Характеристики
Model | ZHMY1080 | ZHMY1300 | ZHMY1500 | ||
Maximum sheet size | 1080*780mm | 1300*960mm | 1500*1100mm | ||
Maximum sheet size | 400*370mm | 400*370mm | 400*370mm | ||
Maximum sheet size | 1070*760mm | 1280×940mm | 1500*1050mm | ||
Maximum cutting pressure | About 300-350 Ton | About 300-350 Ton | About 300-350 Ton | ||
Stock range | B,C, A Flute and double wall or corrugated board up to 7mm B,C, A Flute and double wall or corrugated board up to 7mm | ||||
Maximum speed | 6500 s/h | 4500 s/h | 4500 s/h | ||
Minimum front waste | 12 mm | 12 mm | 12 mm | ||
Main motor power | 13 KW | 15 KW | 15 KW | ||
Dimension with work platform | L*W*H: 4000*2200*2000mm | L*W*H: 6000*4300*2300mm | L*W*H: 6300*4500*2500mm | ||
Net Weight | 14 Tons | 14 Tons | 15 Tons | ||

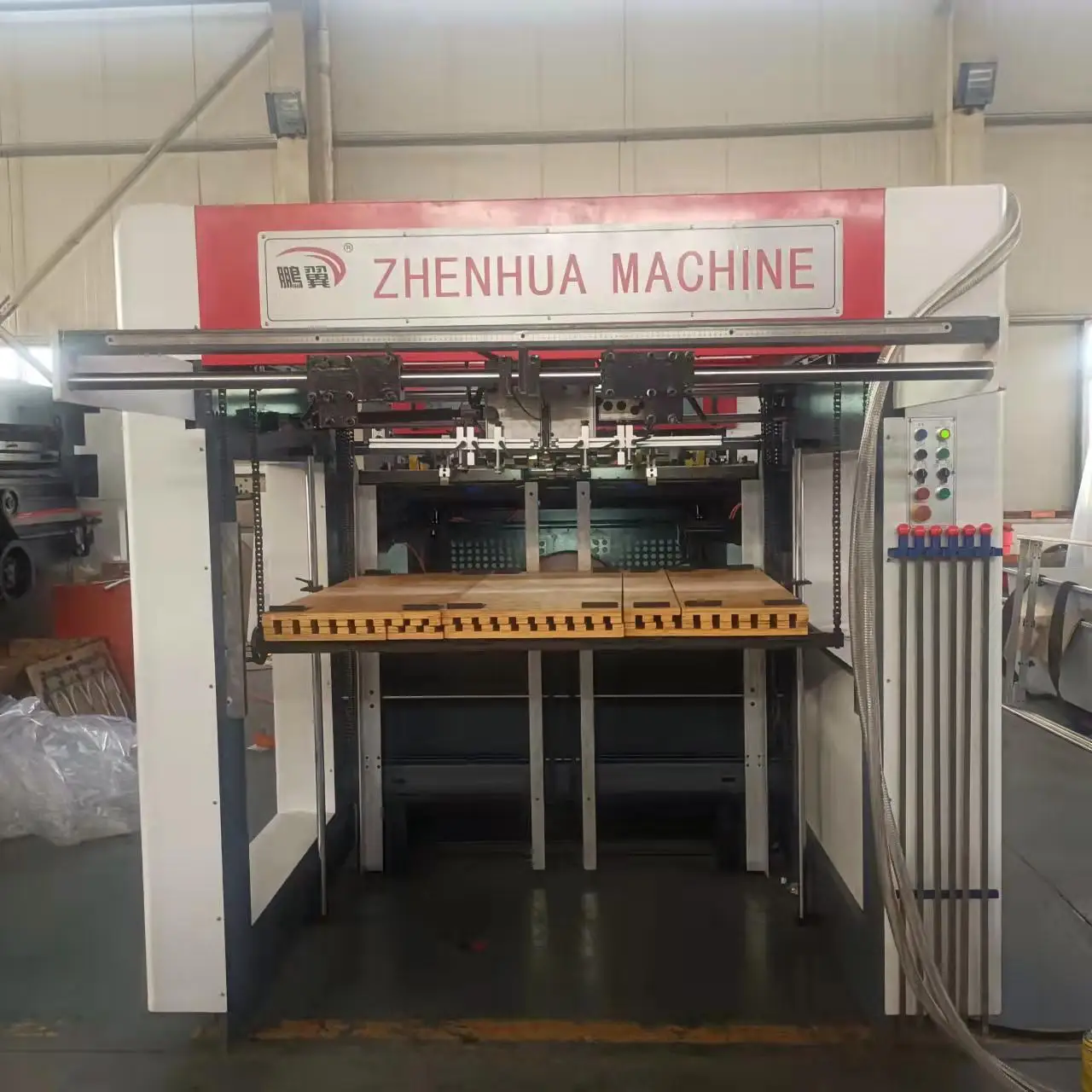

1. Adopt suction type feeder paper feeding system. Cardboard positioning is accurate. The paper suction part adopts upper suction paper feeding system, which achieves relative stillness and prevents paper scratches
2. The advanced double-side push positioning mechanism adopts cylindrical cam control, with high precision and fast adjustment
2. The advanced double-side push positioning mechanism adopts cylindrical cam control, with high precision and fast adjustment
3.The feeder paper feeding system is equipped with strong suction assistance to suck the paper flat before discharging it. The suction volume is continuously adjustable, which has good adaptability to curved cardboard and more stable paper feeding.

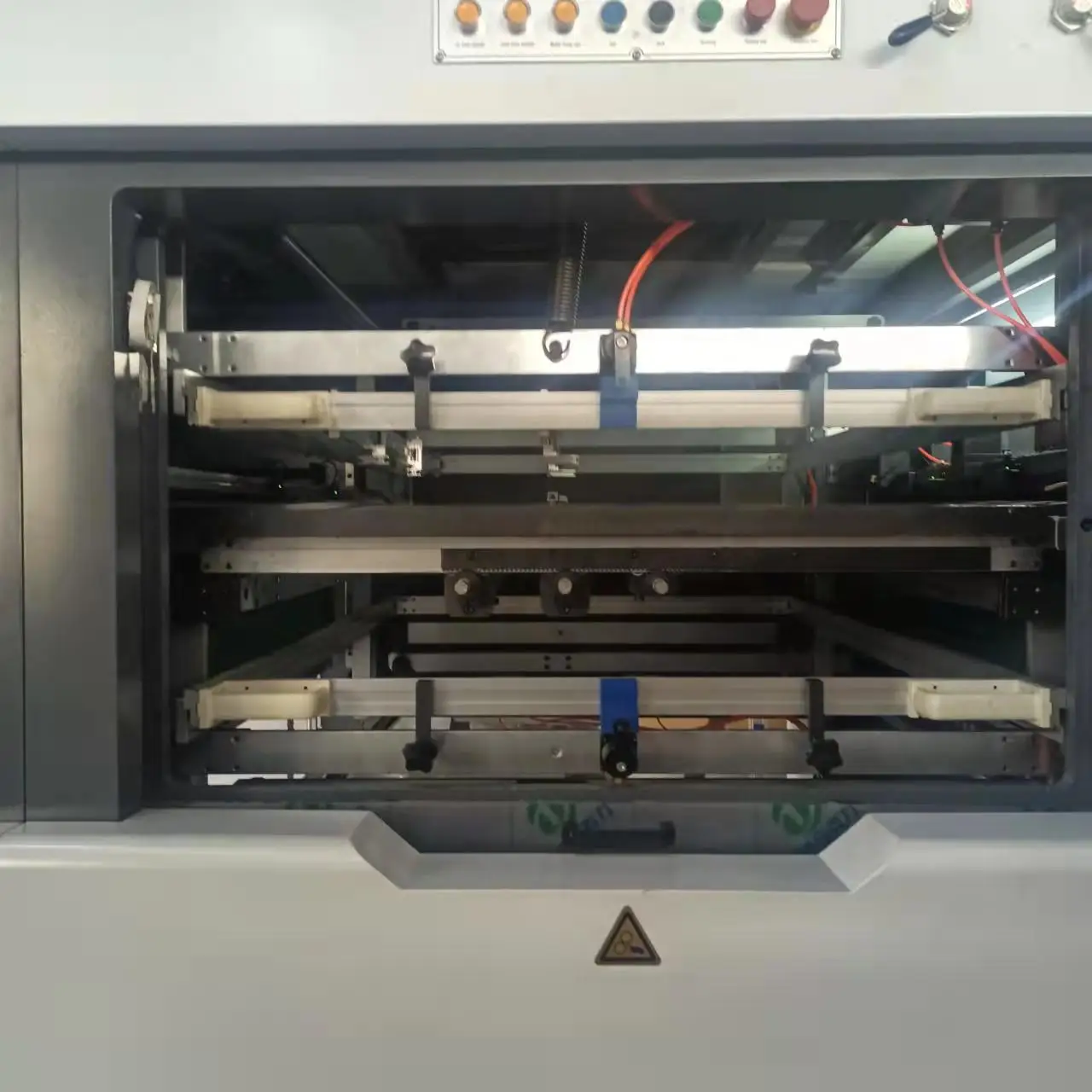

Die-cutting Unit
1) Adopting steel wall panels from Japanese machines, increasing the tension means increasing the clamping force, which is strong
and durable.
2) Automatic pressure adjustment, automatic front stop adjustment, easy operation, superior performance, and fast control speed.
3) The oil circuit adopts Taiwan high-pressure oil pump for forced lubrication to reduce wear, and an oil cooler is installed to cool the lubricating oil and improve work efficiency.
and durable.
2) Automatic pressure adjustment, automatic front stop adjustment, easy operation, superior performance, and fast control speed.
3) The oil circuit adopts Taiwan high-pressure oil pump for forced lubrication to reduce wear, and an oil cooler is installed to cool the lubricating oil and improve work efficiency.
4) New transmission mechanism, fast die-cutting speed, high-precision swing rod platform, and increased pad speed. and accuracy and reduces noise.
5) Pneumatic pressure plate device makes the upper frame fixed more firmly and faster.
6) The paper press chain is imported from Germany, with a long service life and stable die-cutting accuracy.
7) Taiwan intermittent mechanism is the main transmission component of the die-cutting machine, which improves the die-cutting speed and accuracy and reduces noise
1. Automatic paper aligning device to ensure neat paper piles
2. Equipped with pneumatic automatic auxiliary paper collection, it can safely and conveniently collect paper without stopping the machine
3. Main chain protection device
4. Anti-paper backfeed device
5. Through the photoelectric detection switch, the automatic lifting and lowering of the paper collection pile and the over-height of the paper collection can be accurately controlled
The machine realizes human-machine dialogue through the touch screen. The operator can easily eliminate various faults in the operation of the machine according to the prompts of the touch screen LCD display window, and can read various technical information of the machine. The whole machine is monitored and displayed by PLC and touch screen for the operation and faults of the whole machine. Each protective door and window has a safety alarm system to ensure personal safety
--Focusing on the research and development and production of high-quality packaging machinery for more than 18 years. Cangzhou Golden Wings Packaging Machinery Manufacturing Co., Ltd. was established in 2006 and is a professional carton packaging machinery designer and manufacturer
--We provide one-stop ODM and OEM services to our partners with leading performance and pioneering innovation.
--Our factory is located in Dongguang County, Cangzhou City, Hebei Province, China. The industrial park covers an area of 10,000 square meters. We now have more than 20 professional engineers, 100% quality inspection before shipment, and business personnel follow up throughout the process to ensure the stable operation of the machine.
--Today, we have a variety of multi-functional carton packaging machinery, including linkage lines, ink printing slotting die-cutting machines, touch-cutting machines, box gluing machines, box nailing machines, etc. We also provide professional packaging machinery solutions for customers in different industries.
--Our production lines are designed to achieve high-quality carton production and precision manufacturing without sacrificing the ability to achieve cost-sensitive goals. We have a professional and complete quality inspection process.
--As we have established partnerships with global brands, we understand the importance of your data security, and you need more than just a supplier. We hope to establish long-term business relationships with brokers and end users around the world. We are confident that we can provide a wide range of products that meet your requirements. If you can't find the product you want on our website, please feel free to contact us and we will work hard to develop or purchase the product for you. We can be your sincere partner in China.
--We provide one-stop ODM and OEM services to our partners with leading performance and pioneering innovation.
--Our factory is located in Dongguang County, Cangzhou City, Hebei Province, China. The industrial park covers an area of 10,000 square meters. We now have more than 20 professional engineers, 100% quality inspection before shipment, and business personnel follow up throughout the process to ensure the stable operation of the machine.
--Today, we have a variety of multi-functional carton packaging machinery, including linkage lines, ink printing slotting die-cutting machines, touch-cutting machines, box gluing machines, box nailing machines, etc. We also provide professional packaging machinery solutions for customers in different industries.
--Our production lines are designed to achieve high-quality carton production and precision manufacturing without sacrificing the ability to achieve cost-sensitive goals. We have a professional and complete quality inspection process.
--As we have established partnerships with global brands, we understand the importance of your data security, and you need more than just a supplier. We hope to establish long-term business relationships with brokers and end users around the world. We are confident that we can provide a wide range of products that meet your requirements. If you can't find the product you want on our website, please feel free to contact us and we will work hard to develop or purchase the product for you. We can be your sincere partner in China.
Cangzhou Golden Wings Machinery Co.,Ltd
1. Are you a factory or trading company?
Golden Wings Machinery is a factory and manufacturer in this field since 2006.
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery.
3. Where is your factory located ? How can I visit there?
Our factory located in DONGGUAGN County, HEBEI Province,China., near to the capital city Beijing and port Tianjin. You can fly to BEIJING airport directly and we will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority.We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
5. Why we choose Golden Wings Machinery?
Exporting to over 100 countries, we have gained a lot of experience that enable us to meet more and more customers.
“Golden Wings Machinery strives to provide world-class packaging products and printing solutions using the cutting-edge technology. Our continuous research and development are devoted to meeting our customers needs, and ensure their satisfactions.”
Golden Wings Machinery is a factory and manufacturer in this field since 2006.
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery.
3. Where is your factory located ? How can I visit there?
Our factory located in DONGGUAGN County, HEBEI Province,China., near to the capital city Beijing and port Tianjin. You can fly to BEIJING airport directly and we will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority.We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
5. Why we choose Golden Wings Machinery?
Exporting to over 100 countries, we have gained a lot of experience that enable us to meet more and more customers.
“Golden Wings Machinery strives to provide world-class packaging products and printing solutions using the cutting-edge technology. Our continuous research and development are devoted to meeting our customers needs, and ensure their satisfactions.”
