Products Description

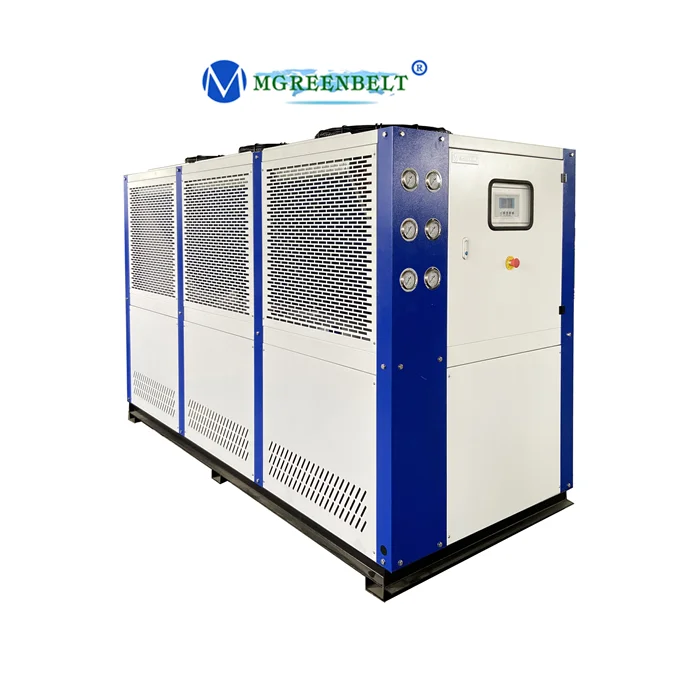

Air Cooled Water Chiller
Air-cooled water chillers adopt an air-cooled heat dissipation design. The built-in fan draws air into the device to dissipate heat from the condenser and lower the system temperature. No additional water cooling system is required, and installation and maintenance are relatively simple.
Air-cooled water chiller is suitable for situations where space is limited or where sufficient cooling water cannot be provided. Since cooling efficiency is affected by ambient temperature and humidity, they are typically used in applications with lower heat loads. Each model is equipped with a range of protective measures, including refrigerant high and low pressure protection, motor overload protection, and voltage phase loss and reversal alarms. These chiller units offer excellent performance and a long service life. They are particularly suitable for industries that require precise control and adjustment of chilled water temperatures, capable of accurately controlling temperatures within the range of 3°C to 50°C.
Air-cooled water chiller is suitable for situations where space is limited or where sufficient cooling water cannot be provided. Since cooling efficiency is affected by ambient temperature and humidity, they are typically used in applications with lower heat loads. Each model is equipped with a range of protective measures, including refrigerant high and low pressure protection, motor overload protection, and voltage phase loss and reversal alarms. These chiller units offer excellent performance and a long service life. They are particularly suitable for industries that require precise control and adjustment of chilled water temperatures, capable of accurately controlling temperatures within the range of 3°C to 50°C.
Working Principle
When the air-cooled water chiller is working, the refrigerant absorbs the heat from the cooled object in the evaporator and vaporizes. The compressor continuously draws the gas generated in the evaporator and compresses it into high-temperature and high-pressure vapor. The refrigerant vapor is then sent to the condenser to exchange heat with the air. After releasing heat, it condenses into liquid. The liquid refrigerant is decompressed after passing through the expansion valve. Then it enters the evaporator to absorb the heat of the cooled object and vaporizes again. This heat exchange process is repeated until the industrial water is cooled to the required temperature.
Application Scope in the Industry
1、Plastic industry: Accurately control the mold temperature of various plastic processing.
2、Electronics industry: Stabilizing the molecular structure inside the production line of electronic components.
3、Electroplating industry: Control plating temperature, increase the density and smoothness of the plated parts.
2、Electronics industry: Stabilizing the molecular structure inside the production line of electronic components.
3、Electroplating industry: Control plating temperature, increase the density and smoothness of the plated parts.
4、Machinery industry: Control the pressure oil temperature of the oil pressure system.
5、Construction industry: chilled water for concrete.
6、Vacuum coating: Control the temperature of the vacuum coating machine.
7、Food industry: Controlling the temperature of fermented foods.
5、Construction industry: chilled water for concrete.
6、Vacuum coating: Control the temperature of the vacuum coating machine.
7、Food industry: Controlling the temperature of fermented foods.
Product Details

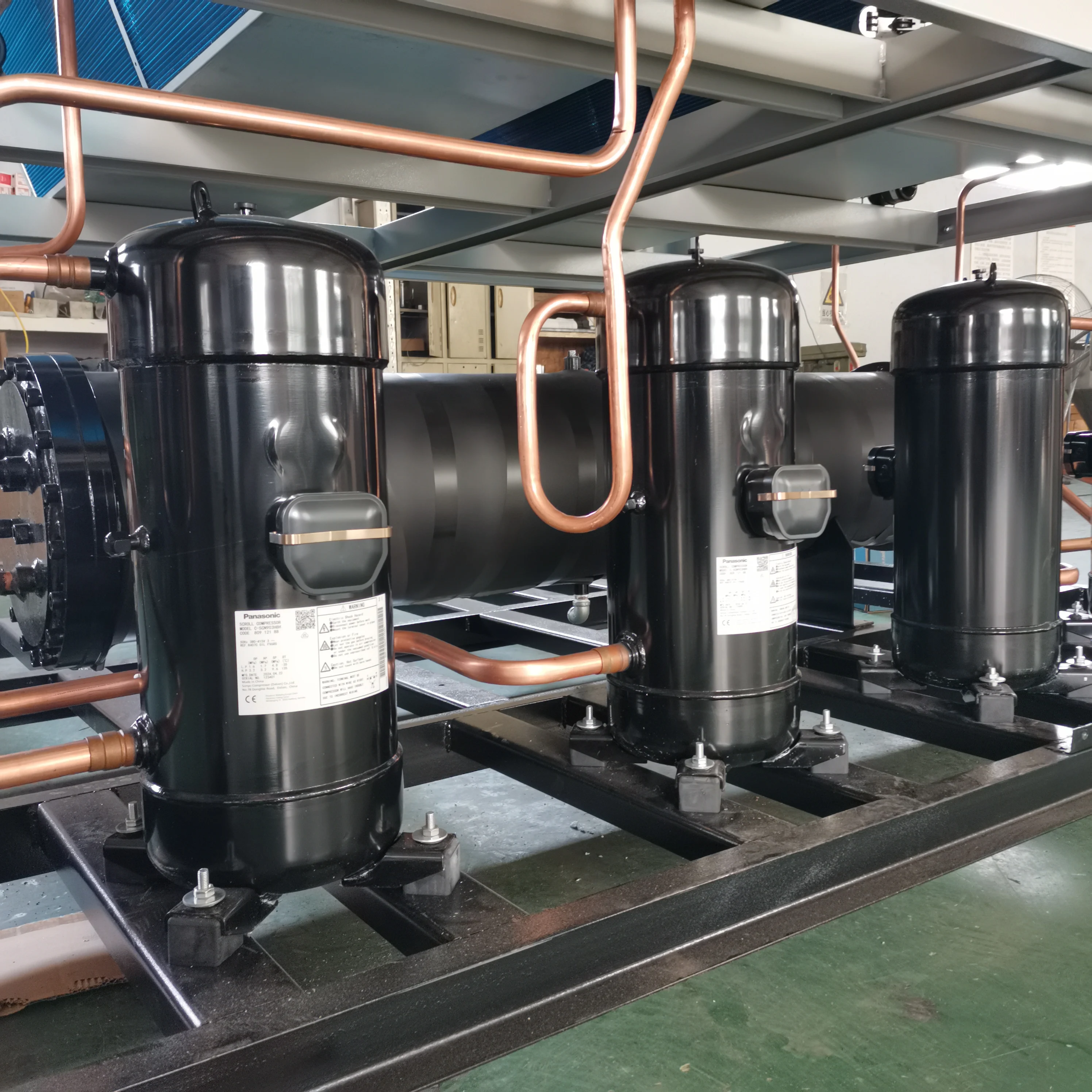

Compressors
High Efficiency and Energy Saving:
Adopting advanced scroll compressor technology, it provides higher compression efficiency and energy efficiency ratio, effectively utilizes energy and reduces operating costs.

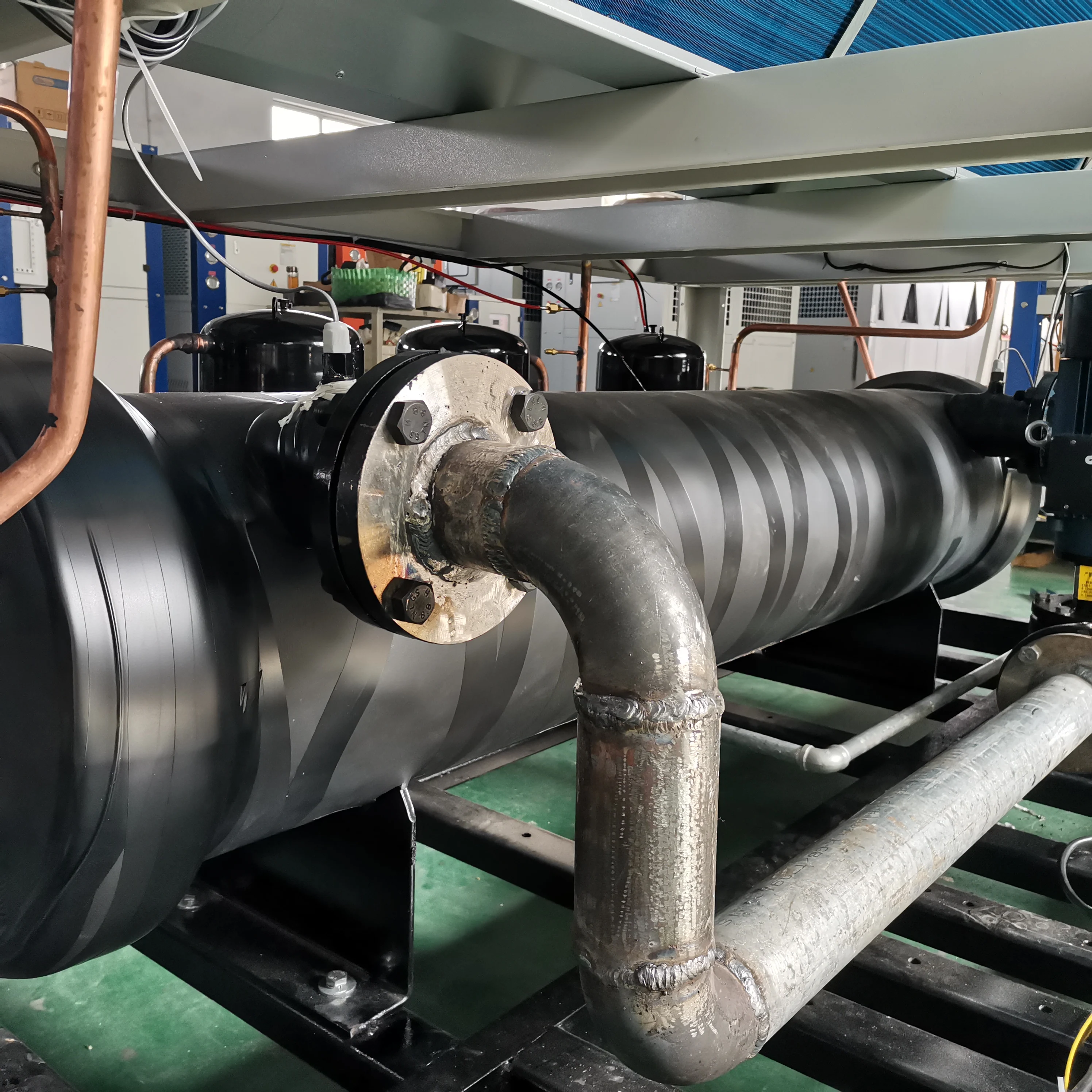

Evaporator
Optional Evaporator:
We offer a range of evaporator options to meet specific cooling requirements for different applications. This
allows us to tailor the chiller to specific processes and ensure optimal cooling performance.
allows us to tailor the chiller to specific processes and ensure optimal cooling performance.

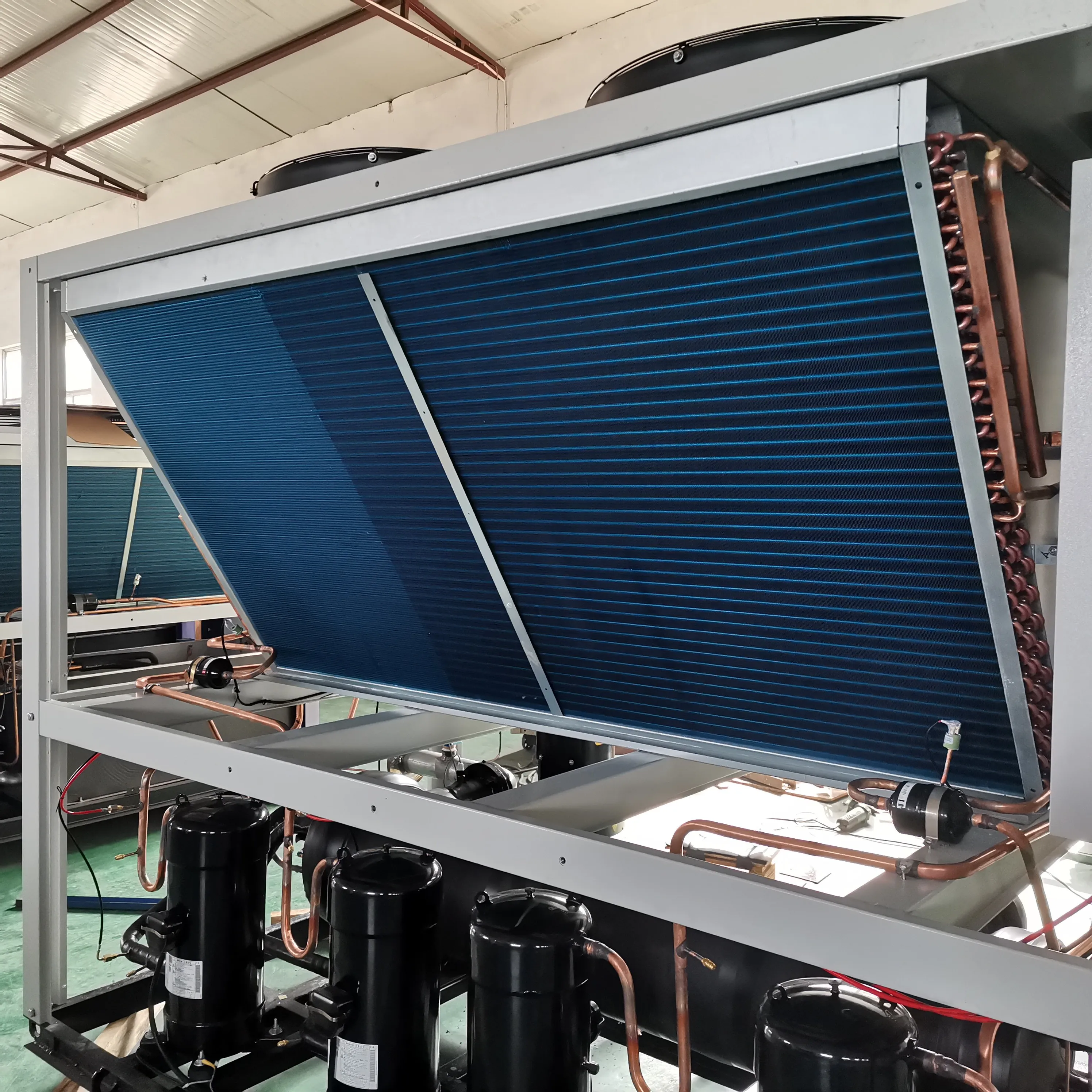

Condenser
Flexible Installation:
The air-cooled scroll chiller does not require cooling
The air-cooled scroll chiller does not require cooling
towers or water circulation systems, offering flexible and convenient installation options, saving space, and suitable for various settings and environments.
Water Pump
Built-in Water Pump:
The chiller is equipped with a built-in water pump, ensuring a continuous circulation of cooling water and ensuring a stable cooling effect.
Controller
Automatic Control:
Equipped with advanced microcomputer controllers, it provides precise temperature control and automatic
adjustment, enabling intelligent operation according to specific requirements, enhancing system stability and performance.
adjustment, enabling intelligent operation according to specific requirements, enhancing system stability and performance.

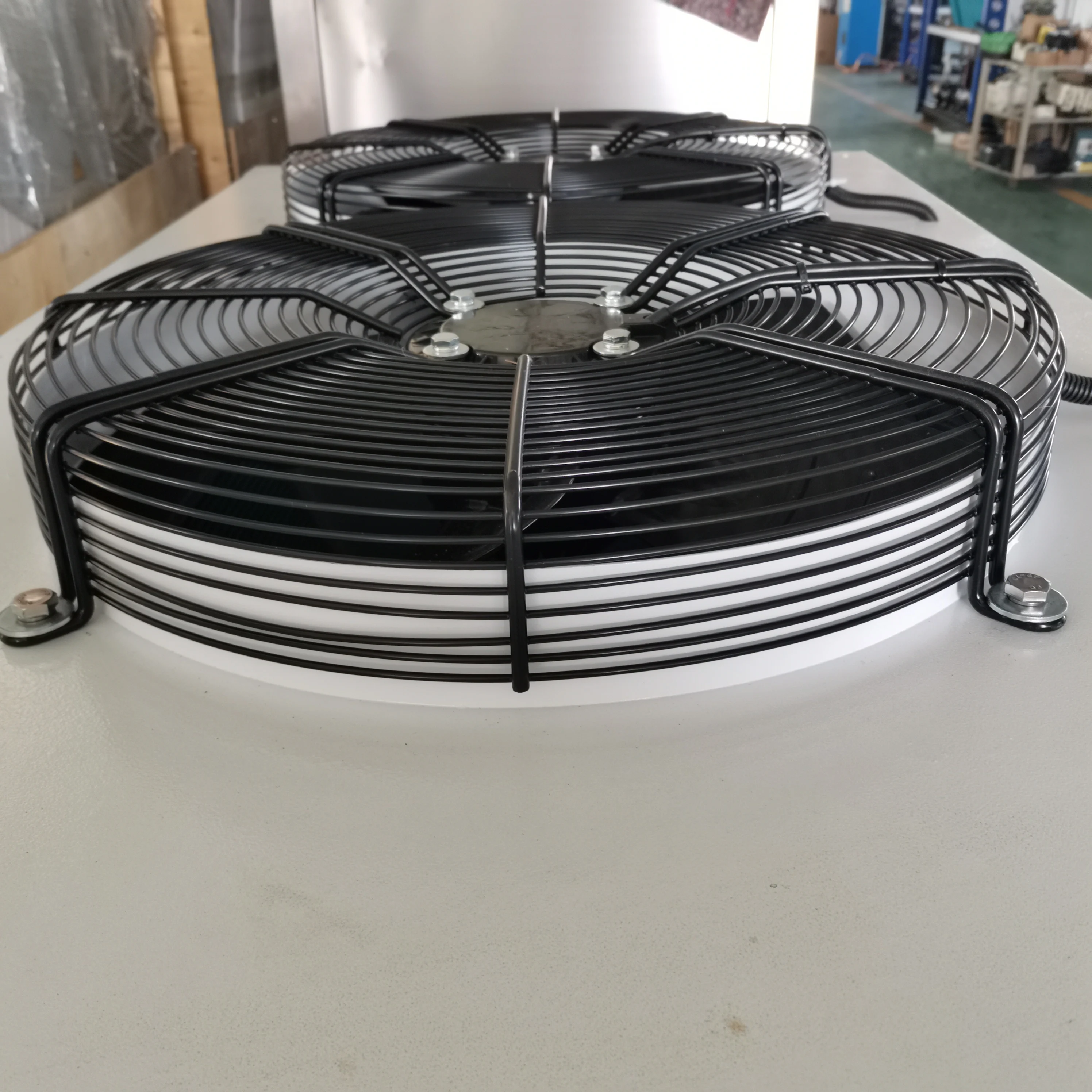

Condenser Fan
Low noise, high speed and large air volume axial flow fan. Improve the cooling efficiency of the condenser.
Product Paramenters
Air cooled scroll chiller | ||||||||||||||||
Model | MG-5C | MG-10CD | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | |||||||||
Cooling capacity | Kcal/h | 11524 | 23048 | 35948 | 47558 | 55212 | 71896 | 95116 | ||||||||
kw | 13.4 | 26.8 | 41.8 | 55.3 | 64.2 | 83.6 | 110.6 | |||||||||
power | kw | 5.05 | 9.91 | 13.56 | 19.63 | 24.48 | 30.2 | 38.52 | ||||||||
Power input | 3PH-380V-50HZ | |||||||||||||||
Refrigerant | Type | R22/R407C | ||||||||||||||
Control | Thermostatic expansion valve | |||||||||||||||
Compressor | Type | Hermetic scroll type | ||||||||||||||
Power（kw） | 4.1 | 4.1*2 | 5.36*2 | 8.13*2 | 9.79*2 | 8.13*3 | 8.13*4 | |||||||||
Evaporator | Type | SS Tank with coil or Shell and tube | ||||||||||||||
Water flow m³/h | 2.3 | 4.59 | 7.17 | 9.48 | 11.01 | 14.33 | 18.96 | |||||||||
Capacity L | 80 | 200 | 275 | 360 | 360 | 530 | 740 | |||||||||
Inlet/Outlet | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | |||||||||
Condenser | Type | High efficiency hydrophilic aluminum foll finned type | ||||||||||||||
Power | 0.58 | 0.58*2 | 0.67*2 | 0.937*2 | 1.7*2 | 0.937*3 | 1.7*4 | |||||||||
Pump | Type | Centrigual water pump | ||||||||||||||
Power kw | 0.37 | 0.55 | 1.5 | 1.5 | 1.5 | 3 | 3 | |||||||||
Lift m | 24 | 20 | 20 | 20 | 20 | 22 | 21 | |||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||||||||||
Dimension | L mm | 1220 | 1560 | 1800 | 2050 | 2050 | 2720 | 2450 | ||||||||
W mm | 600 | 840 | 900 | 990 | 990 | 1120 | 1400 | |||||||||
H mm | 1200 | 1530 | 1600 | 1740 | 1865 | 1800 | 2110 | |||||||||
Wight | kg | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | ||||||||
Our Company
Jinan Mgreenbelt Machinery Co., Ltd., established in 2000, is a supplier of Industrial Chiller, Glycol Chiller, Cold Room, Cold room Panel, and Air compressor etc. We have exported more than 100 countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, Australia etc. Mgreenbelt water chiller has wide variety cooling capacity and controlled water temperature. Both water cooled type and air cooled type chiller can extremely offer precise water temperature for any applications, such as plastic rubber, electroplating chemical, food&drinks, beverage, machinery medical and so on.
Certificates
Customer Photo
Packing & Delivery
PACKAGE
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q1: Are you trading company or manufacturer ?
A1: Our company is an integrated set of industry and trade company
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: What is your terms of payment ?
A3: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Q4: How to choose a suitable machine? And how to get a prompt quotation?
A1: Our company is an integrated set of industry and trade company
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: What is your terms of payment ?
A3: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Q4: How to choose a suitable machine? And how to get a prompt quotation?
A4: Please let us know the machine usage, we have
professional design team who will make a reasonable scheme. When you send the inquiry to us, please kindly provide the below
technical information:
a) Chiller type: Air cooled or water cooled
b) Cooling capacity: Kcal/hr or KW
c) Refrigerant: R410A or others
d) Voltages and Frequency : V/PH/HZ
