Высокоточный волоконно лазерный станок для резки труб pc 6020T лазерной
- Категория: >>>
- Поставщик: Accurl Cnc Machine(anhui) Manufactory Co. Ltd.
Сохранить в закладки 1601268907158:
Описание и отзывы
Характеристики
Products Description
ACCURL FIBER LASER TUBE CUTTING MACHINE
ACCURL® Laser tube cutting is specifically designed for businesses that care about high quality profile & tube cutting.full automatic Loading & Unloading requires less effort and time save for the operator.and Can cut column Crossed Lines at the end of branch pipe,and meet centrifugal and non-centrifugal.
*User friendlyFSCUT 5000 TwinCAT CNC control
* Unique features:
* Maximum simultaneous positioning speed: 120m/min.
* Acceleration speed: 13 m/ s2 (1.2G).
* CNC and CAM can calculate complex profiled sections
* Energy efficiency: greatly reduced power consumption.
* IPG Resonator. Power output from 1000W To 6000W
* Advanced Swiss RayTools AGcutting head (with air cross blast).
* φ8-440mm pipe processing range is optional
* The patented technology of three-chuck and zero-tail material high utilization of raw material.
* Effective high to low pressure gas exchange system.
* Automatic time and unit cost calculation function.
* Network connection from external.
* Smoke extraction (included in series models).
* The “L” shape of the machine assures total flexibility for processing round, square, rectangle “C” / “H” / “I” channel, and
angle.
* Unique features:
* Maximum simultaneous positioning speed: 120m/min.
* Acceleration speed: 13 m/ s2 (1.2G).
* CNC and CAM can calculate complex profiled sections
* Energy efficiency: greatly reduced power consumption.
* IPG Resonator. Power output from 1000W To 6000W
* Advanced Swiss RayTools AGcutting head (with air cross blast).
* φ8-440mm pipe processing range is optional
* The patented technology of three-chuck and zero-tail material high utilization of raw material.
* Effective high to low pressure gas exchange system.
* Automatic time and unit cost calculation function.
* Network connection from external.
* Smoke extraction (included in series models).
* The “L” shape of the machine assures total flexibility for processing round, square, rectangle “C” / “H” / “I” channel, and
angle.
MACHINE BODY
ACCURL steel frames bed adopts welding
structure, rough machining after annealing, then vibration aging treatment, and then finishing, can completely eliminate the
stress of welding and machining,good rigidity, high precision, can maintain long time use without deformation.
structure, rough machining after annealing, then vibration aging treatment, and then finishing, can completely eliminate the
stress of welding and machining,good rigidity, high precision, can maintain long time use without deformation.
CHUNKS AND CLAWS
Two high quality rotate chuck move with synchronous rotation, which ensure tube holding more steady . It reduce tube vibration to minimum, with solid guarantee for high accuracy in complicate tube figure.Suitable for cutting tube with diameter range from Ø20mm to Ø320mm.
FRONT CHUNKS
The X、Y、Z linear Axis and A、B rotary Axis both adopt imported large torque servo motor, high precision, high speed, large torque,
large inertia, stable and durable performance, which ensures the high speed and acceleration of the whole machine.
large inertia, stable and durable performance, which ensures the high speed and acceleration of the whole machine.
MEDIUM CHUNKS
The three chuck real-time to maintain the pipe before and afterthree-point clamping positioning, cutting space-time running speed
can achieve max stable cutting, relative cutting efficiency to be high.
can achieve max stable cutting, relative cutting efficiency to be high.
REAR CHUNKS
Independent research and development of the chuck with good sealing and motion characteristics, can hold square tube, round tube,elliptical tube, flat tube, triangle tube, I-beam and other materials.
CNC CONTROL SYSTEM
CUTTING HEAD RAYTOOLS
The RAYTOOLS AG comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.
CUTTING HEAD PRECITEC LIGHTCUTTER AUTO FOCUS(OPTIONAL)
The cutting head LightCutter 2.0 is the perfect solution for efficient and cost-effective laser cutting. The new generation of our Light Cutter family is designed for cutting applications in the medium power range up to 4 kW and is characterized by a highcutting quality for all metals - especially mild steel, stainless steel and aluminum.
AUTOMATIC LOADING SYSTEM
SEMI-AUTOMATIC LOADING SYSTEM SAT-60
*Transmission module: Place the pipe on the loading belt manually and the belt will transport the pipe forward.
* Material Misalignment module: The pipe is separated from the root, misplaced to the loading jaws.
* Loading module: The loading jaws send the pipe to the loading support of the main bed one by one.
* Loading Size: The size range of loading material is Ø25- Ø120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.
* Material Misalignment module: The pipe is separated from the root, misplaced to the loading jaws.
* Loading module: The loading jaws send the pipe to the loading support of the main bed one by one.
* Loading Size: The size range of loading material is Ø25- Ø120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.
AUTOMATIC MECHANICAL LOADING SYSTEM ATL-60
* Height Limit module: Automatically distinguish the long and short sides of the rectangular tube to ensure that each rectangulartube is laid flat and forward.
* Material framemodule: The whole bundle of pipes is hoisted and loaded into the material frame.
* Length measuring module: Flatten the pipe to the length of the pipe and transfer the date to the host.
* Loading Size: The size range of loading material is φ25-120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.The first loading time is less than of equal to 70s,and the subsequent loading time is less than or equal to 20s.
* Material framemodule: The whole bundle of pipes is hoisted and loaded into the material frame.
* Length measuring module: Flatten the pipe to the length of the pipe and transfer the date to the host.
* Loading Size: The size range of loading material is φ25-120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.The first loading time is less than of equal to 70s,and the subsequent loading time is less than or equal to 20s.
Specification
Equipment System Parameters | ||||
Processing format and | Technical parameters | Remarks | ||
Scope of Pipe Processing | Circular Tube ：Ø 10mm- Ø 200mm Square Tube ：□ 10mm-□ 145mm Rectangular Pipe：100*180mm | |||
machining groove angle | Bevel 3D 5-Axis Cutting Head with angle ±60 | |||
Max cutting processing length | 6100 mm | |||
Y axis travel | 460 mm | |||
A, B itinerary | Unlimited rotation | |||
Z axis travel | 300 mm | |||
X,Y axis positioning | ±0.03 mm/m | |||
X,Y axis repeat | ±0.03 mm | |||
X axis Empty Speed | 140 m/min | |||
A,B,C-axis Max Speed | 120 rpm | |||
Length of blanking | 3000≤ mm | |||
Acceleration | 1.2G | |||
Max load of single tube | 300Kgs | |||
loading length | 3200mm-6100mm | |||
Tail length | 0≥ mm | To be achieved if the process layout conditions meet the. | ||
Appearance Size | 12500mm*2500mm*2500mm | |||
Power parameters | ||||
Supply rated voltage | 400V/50HZ,3PH | |||
Total power protection | IP54 | |||
Related Products
Company Profile
WHY CHOOSE ACCURL ?
■The right tube laser.
■Innovative features such as bevel cutting.
■Comprehensive technology and cutting data.
■Ergonomic machine concepts.
Our functional features and integrated know-how support your tubes and profiles every step of the way through the machine. Each
component is designed to achieve optimal results. Real benefits every step of the way.
■Innovative features such as bevel cutting.
■Comprehensive technology and cutting data.
■Ergonomic machine concepts.
Our functional features and integrated know-how support your tubes and profiles every step of the way through the machine. Each
component is designed to achieve optimal results. Real benefits every step of the way.
We Got 5 Stars Rating!
Exhibition
Product packaging
1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.All the spare parts of themachine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.
Our serives
The use of an interferometer records the machines X and Y axis movement during cutting to ensure accuracy.
Adjustments are made to ensure machine is precisely tuned before shipment.
Adjustments are made to ensure machine is precisely tuned before shipment.
A Marble test is performed to measure the X and Y axis, calculating any necessary adjustments to ensure perfect level and alignment along length of machine.
A collimator is run along the full length of the guide rail, testing for straightness. Adjustments are made as required to ensure linear accurae linear accuracy.
FAQ
1.Can you supply the relevant documentation?Yes, we can provide most documentation including Certificates of Analysis /Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
Похожие товары
Высококачественное китайское лазерное оборудование, которое хорошо продается в разных странах ----- 3015 одноплатформенный станок для лазерной резки

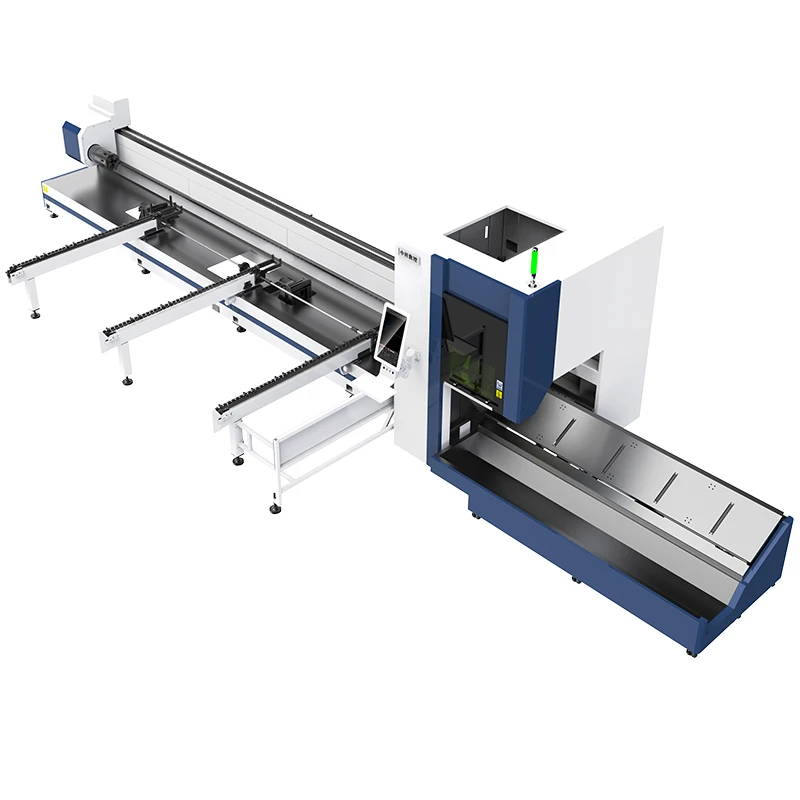

PC6020T Профессиональный круглый и квадратный трубчатый волоконно-лазерный станок для резки
9 298 439,00 ₽ - 27 895 317,00 ₽

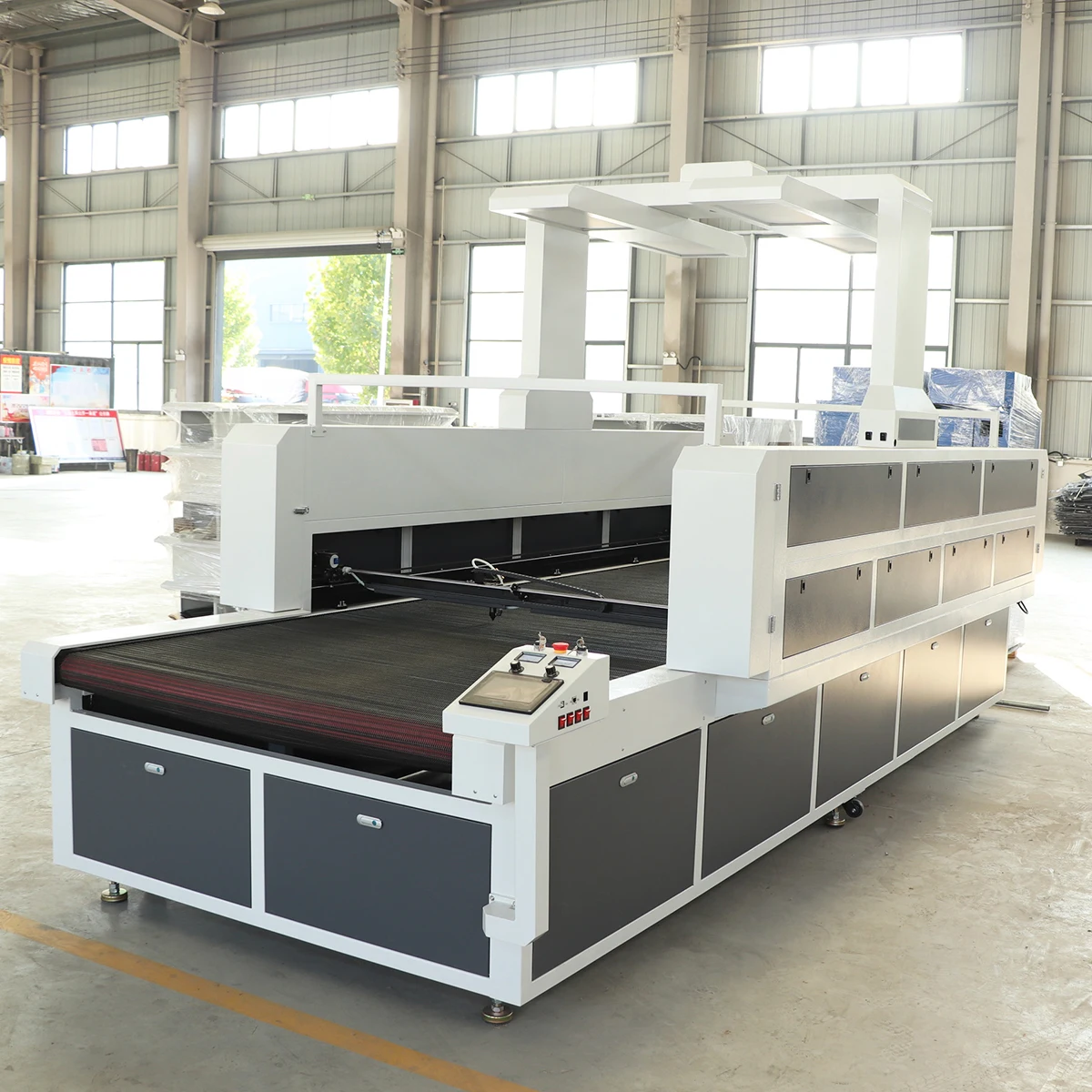

3015 3016 автоматическая машина для резки ткани, электрические Ножничные рулонные шторы, машина для резки ткани, Текстиль
864 207,86 ₽ - 872 959,34 ₽

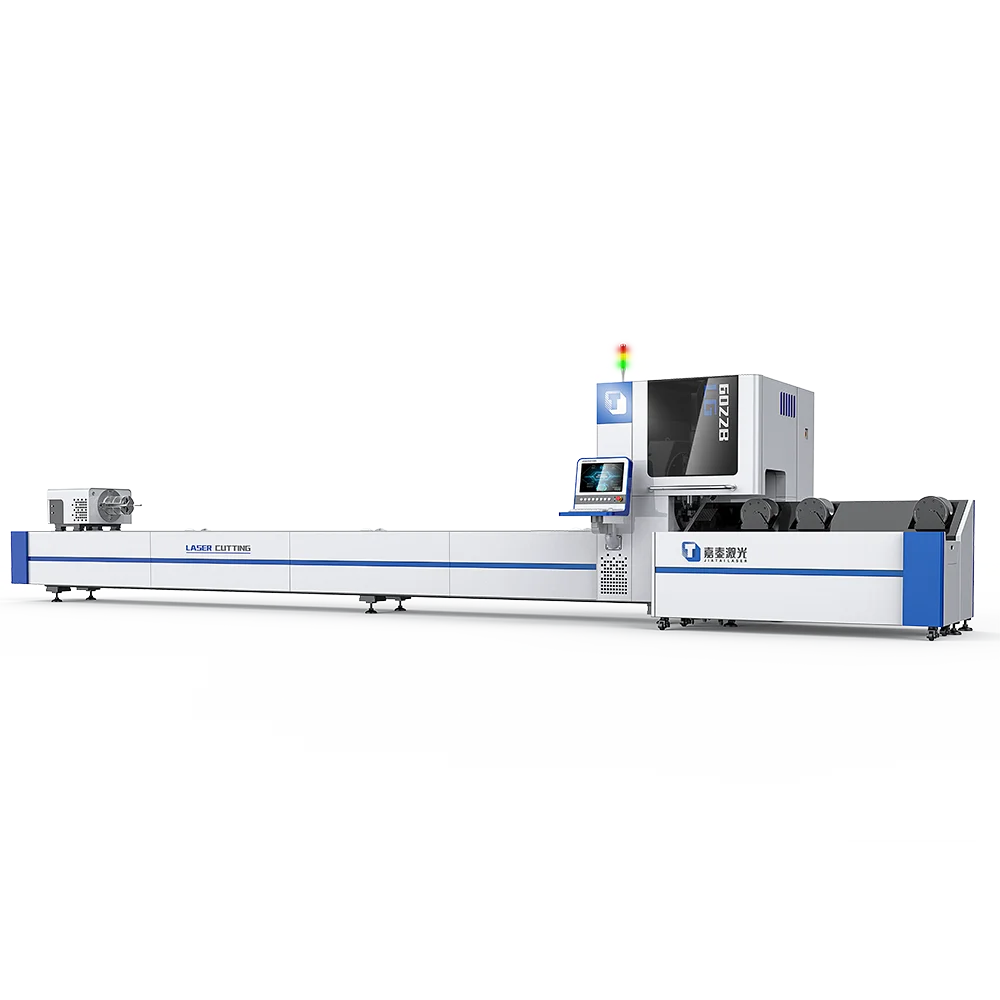

Высокопроизводительная Автоматическая трубка, металлическая трубка, поддерживаемая всеми формами, включая угловую канальную сталь
9 032 066,08 ₽ - 22 822 198,08 ₽
Китайский завод 4000 Вт трубка для лазерной резки с заводскими ценами
Высокое качество трафарет для изготовления трубки волоконный лазерный станок для резки
328 180,20 ₽ - 492 270,30 ₽

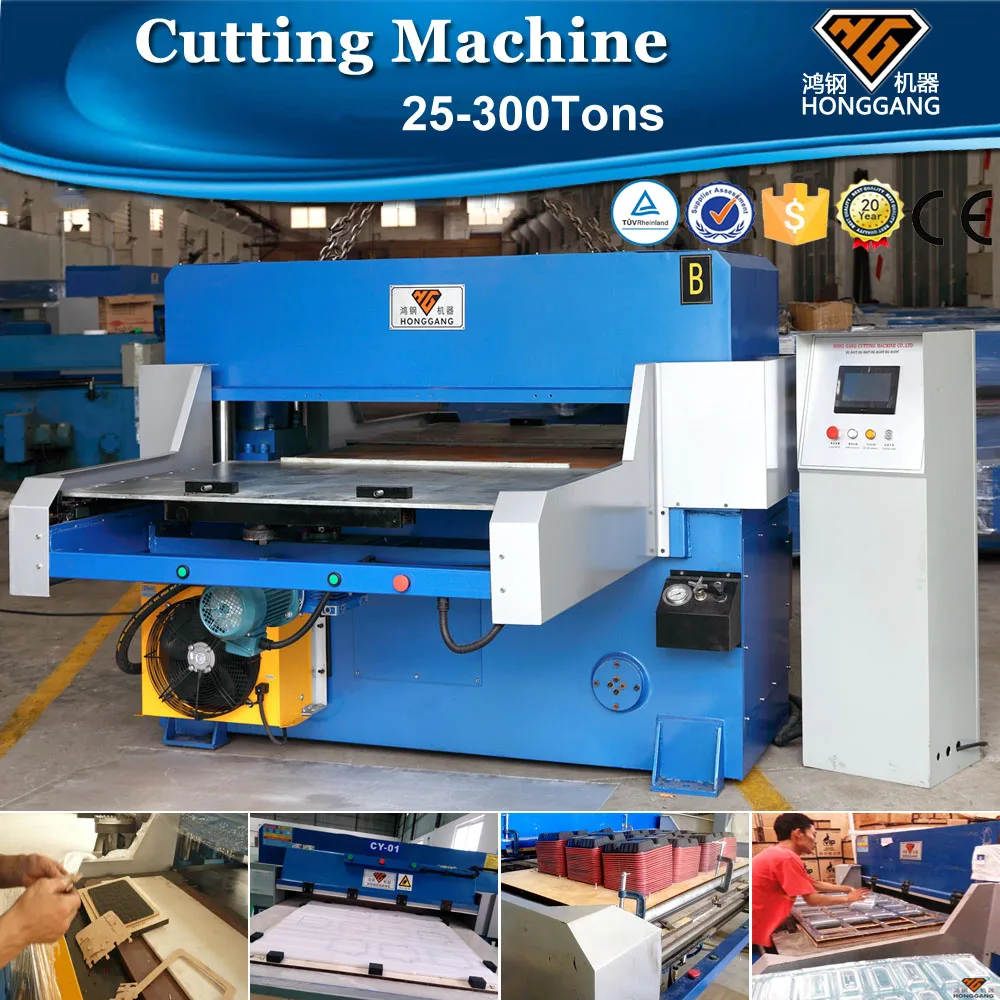

Гидравлический автоматический вакуумный пластика упаковка нажмите резки
