Подъемник 450 кг подъем 14 м/скорость прокатки 40 с не маркировка. Может использоваться для установки и отладки в заводских мастерских
- Категория: >>>
- Поставщик: Shandong Unid Intelligent Technology Co. Ltd.
Сохранить в закладки 1601268973911:
Описание и отзывы
Характеристики
Product Description

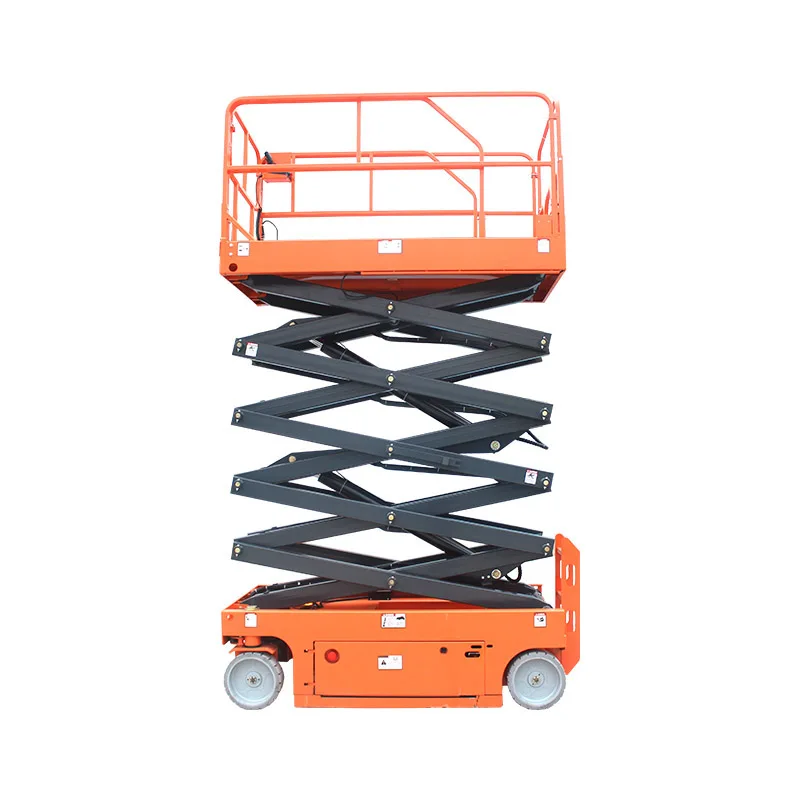

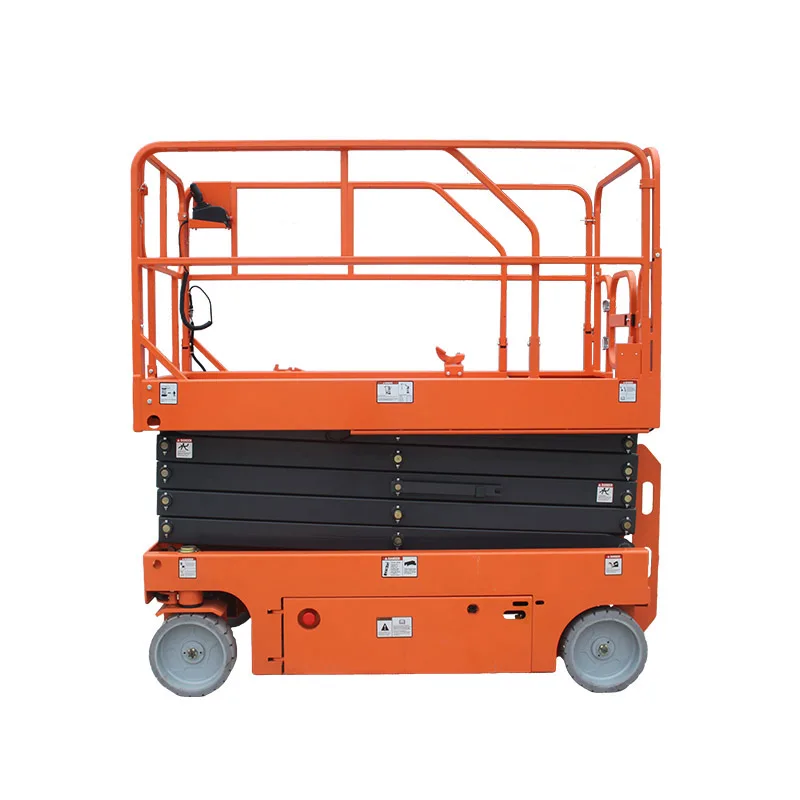

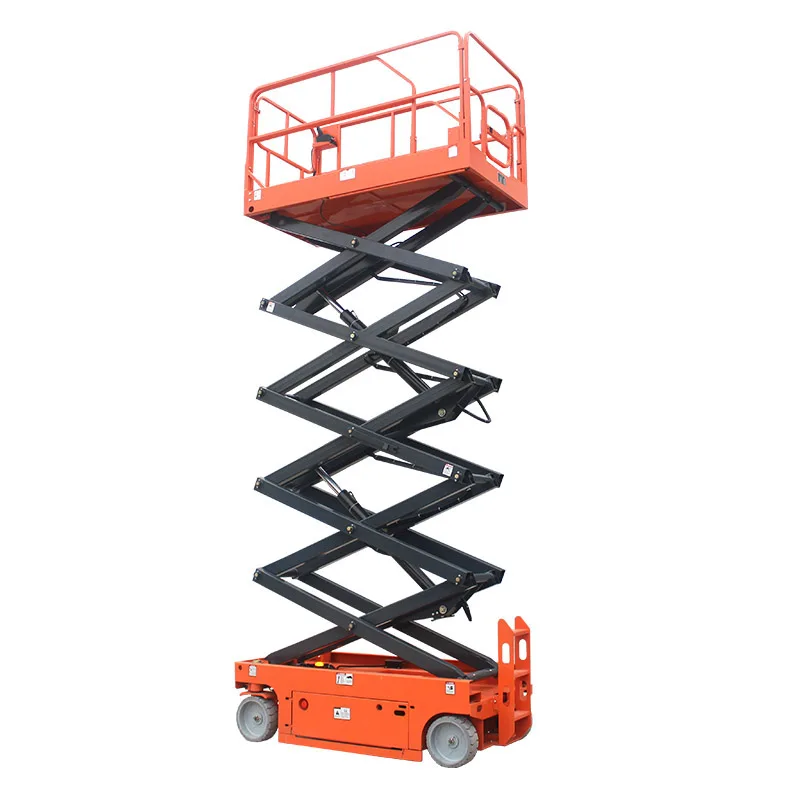

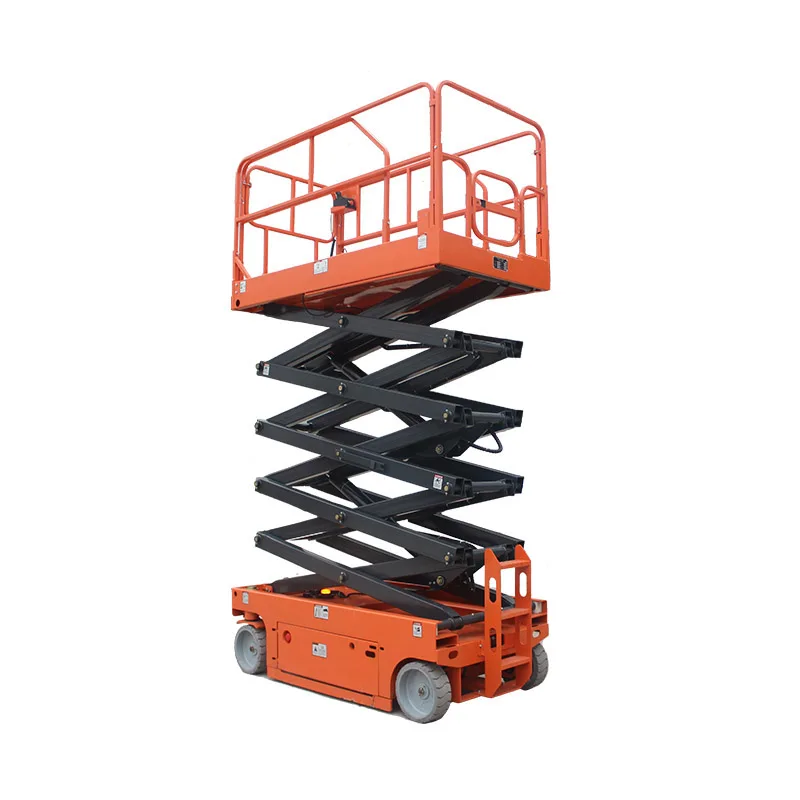

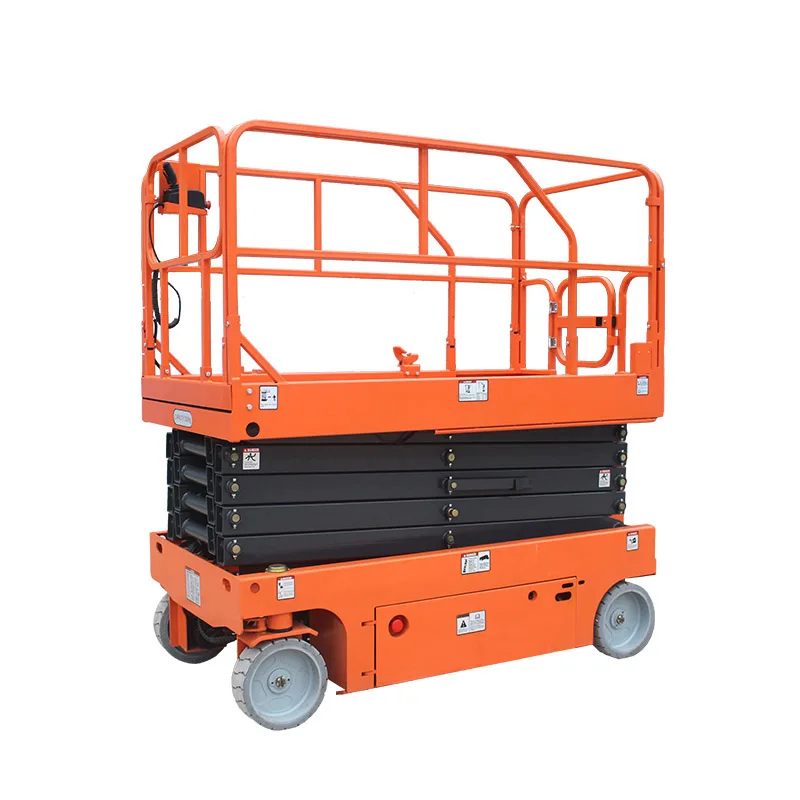

Hydraulic Driven Self Propelled Scissor Lift
Hydraulic scissor lifts is only equipped with a set of hydraulic pump station system to control the movement, lifting and lowering of the machine, it is the most intelligent one of the mobile scissor lift, the product is equipped with a variety of tools.Hydraulic scissor lifts are designed to work in a variety of environments, ensuring safety while increasing efficiency and taking you to the higher levelSelected products
Feature：
1. The product adopts imported intelligent control technology.
2. It adopts DC power supply and can be manually controlled. Automatically movable, with adjustable movement speed.
3. It can climb hills very well.
4. Malfunctions will limit the platform's ascent.
5. The driving motor has an automatic braking function.
6. In the event of a malfunction, the emergency descent will be locked.
7. Faults can be automatically diagnosed, making maintenance very convenient.
8. The main components are all imported famous brands.
2. It adopts DC power supply and can be manually controlled. Automatically movable, with adjustable movement speed.
3. It can climb hills very well.
4. Malfunctions will limit the platform's ascent.
5. The driving motor has an automatic braking function.
6. In the event of a malfunction, the emergency descent will be locked.
7. Faults can be automatically diagnosed, making maintenance very convenient.
8. The main components are all imported famous brands.
Product specifications
Model No. | JCPT08-GS | JCPT10-GS | JCPT12-GS | JCPT14-GS | JCPT16-GS | ||||
Max Platform Height | 6000mm(20ft) | 8000mm(27ft) | 10000mm(33ft) | 11800mm(39ft) | 13800mm(46ft) | ||||
Max Working Height | 8000mm(27ft) | 10000mm(33ft) | 12000mm(40ft) | 13800mm(46ft) | 15800mm(52ft) | ||||
Lifting Capacity | 300kg | 300kg | 300kg | 300kg | 227kg | ||||
Overall Dimension Of The Machine | 2400x1150x2150mm | 2400x1150x2275mm | 2400x1150x2400mm | 2400x1150x2525mm | 2770x1300x2550mm | ||||
Maximum Height Guardrail Folded | 1690mm | 1815mm | 1940mm | 2065mm | 2100mm | ||||
Platform Size | 2270×1150mm | 2640x1150mm | |||||||
Platform Extend Size | 900mm | 900mm | |||||||
Minimum Ground Clearance-Folding | 110mm | 100mm | |||||||
Minimum Ground Clearance-Rising | 20mm | 20mm | |||||||
Wheelbase | 1850mm | 2230mm | |||||||
Minimum Turn Radius-Outer Wheel | 2100mm | 2700mm | |||||||
Power Source | 24V/4.0km | 24V/4.5km | |||||||
Running Speed-Folding | 3.5km/h | 3.5km/h | |||||||
Running Speed-Rising | 0.8km/h | 0.8km/h | |||||||
Rising/Falling Speed | 40/50s | 70/80s | |||||||
Battery | 12V/150Ah*4pcs | ||||||||
Charger | 24V/30A | ||||||||
Motor | 4.5kw | ||||||||
Maximum Climbing Ability | 25% | ||||||||
Working Allowable Angle | 2-3° | ||||||||
Way Of Control | Electro-hydraulic proportion control | ||||||||
Driver | Double front-wheel | ||||||||
Hydraulic Drive | Double rear-wheel | ||||||||
Wheel Size-Stuffed&No Mark | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ381×127mm | ||||
Whole Weight | 1900kg | 2080kg | 2490kg | 2760kg | 3400kg | ||||
Product configuration
Product Usage
Applicable places:
shopping malls, construction sites, factories, warehouses, stations, hotels, airports, gas stations, docks, sports stadiums, elevated pipelines and other high-altitude equipment installation, maintenance, cleaning, etc. It is also used for lifting equipment maintenance, outdoor power facility maintenance, steel frame structure factories, etc.
Company Profile
Company Information
Shandong Unid Intelligent Technology Co., Ltd. is a leading manufacturer of hydraulic lifting equipment and Aerial Work lift Platform with more than 10-years-experience, including Intelligent glazing robot, suction cups vacuum glass lifters, sandwich panels vacuum lifters, metal sheet vacuum lifters and other single-circuit and dual-circuit vacuum lifters.
We always keep ”To make Construction easier，safer and more efficient" in Mind, Serving for customers mainly from Europe, North America, South America and so on.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
We always keep ”To make Construction easier，safer and more efficient" in Mind, Serving for customers mainly from Europe, North America, South America and so on.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
FAQ
Questions | Answers |
1. Are you a factory or trading company? | Yes, we're factory with over 10 years exporting experience. |
2. What's the MOQ? | 1 UNIT |
3. Do you offer OEM&ODM service? | Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc. |
4. What's the quality warranty? | 24 months. Spare parts provided freely within quality warranty. |
5. How can I get the after-sales service? | We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service |
6. What's your QA&QC policy? | 100% Test before shipping. |
