Product Description

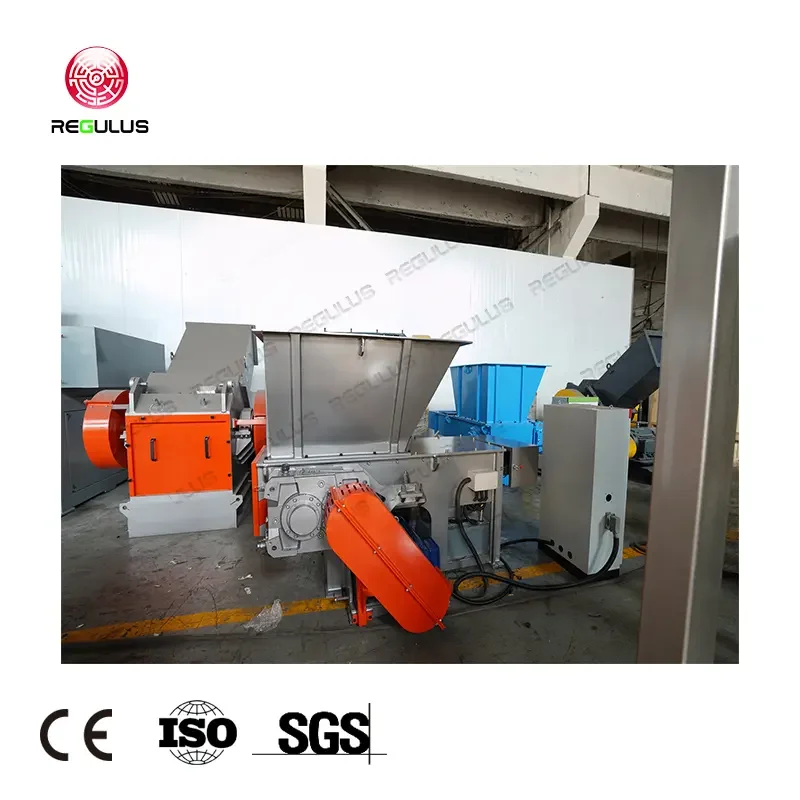

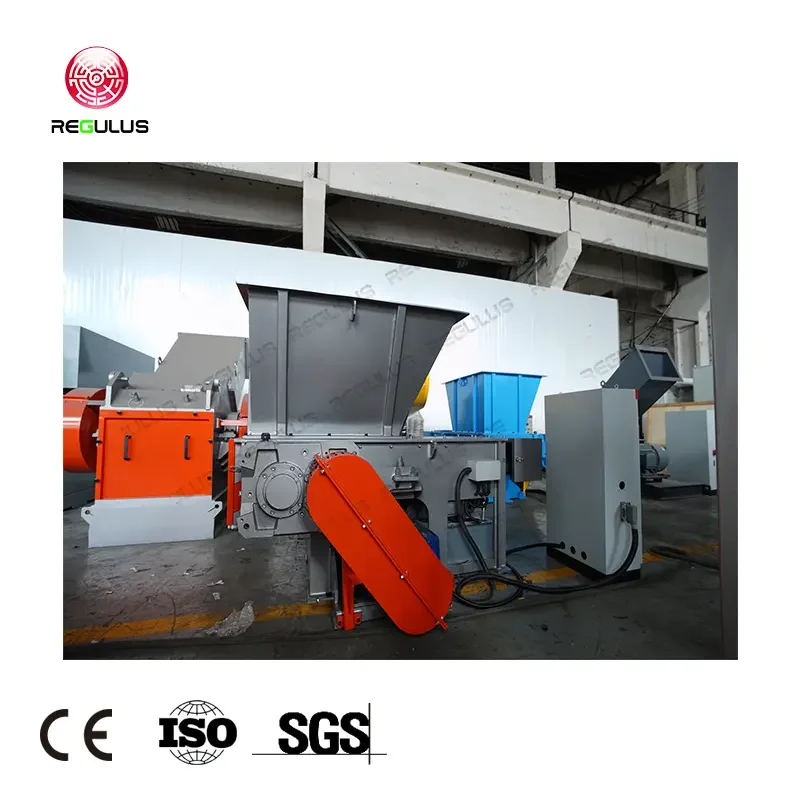

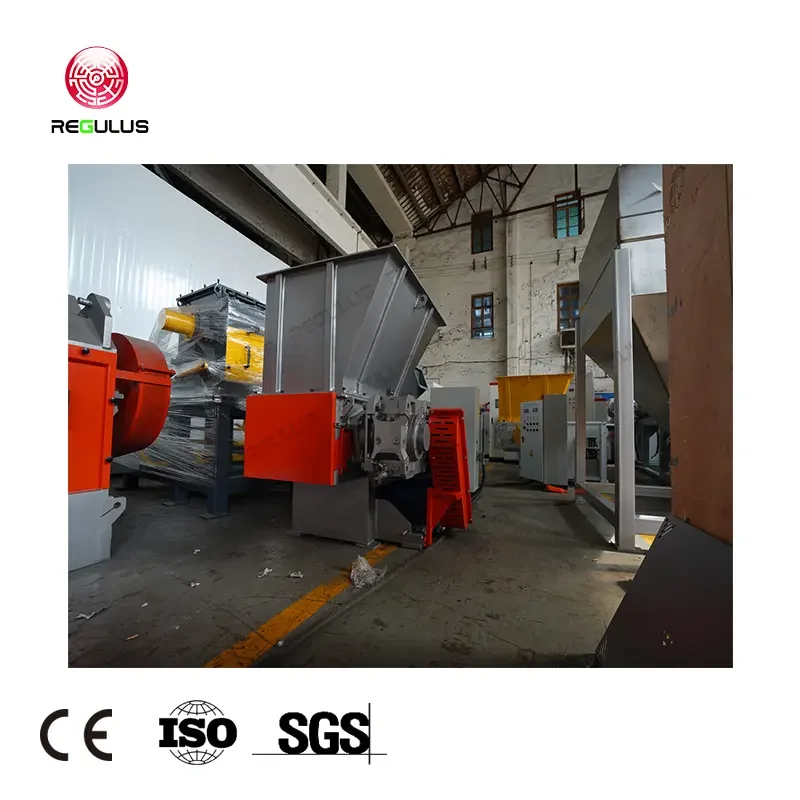

REGULUS series single shaft shredder
REGULUS single-shaft shredder is a model specially developed for recycling companies with large waste plastic disposal capacity.
It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials.
It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials.
Product Application
WT22/40 SERIES SINGLE SHAFT SHREDDER
Single shaft shredder is suitable for shredding:
1.Plastics:plastic films, plastic bags, plastic bottles, lumps,plastic barrels, plastic pipes, plastic plates,and other general plastics;
2.Paper: hardboard paper, books, document paper;
3.Home appliance plastic casing, wood; chemical fiber.
2.Paper: hardboard paper, books, document paper;
3.Home appliance plastic casing, wood; chemical fiber.
MODEL | WT2260 | WT4080 | WT40100 | WT40120 | WT40150 |
Dimension L*W*H(mm) | 1870*1350*1790 | 2750*1750*2000 | 2800*1950*2100 | 2950*2250*2100 | 2950*2750*2200 |
Cutting Chamber A*B(mm) | 850*600 | 1300*800 | 1300*1000 | 1400*1200 | 1400*1400 |
Heifht of discharge port C(mm) | 650 | 850 | 850 | 850 | 850 |
Cylinder Stroke(mm) | 600 | 850 | 850 | 950 | 950 |
Rotor Diameter(mm) | 220 | 400 | 400 | 400 | 400 |
Main shaft Speed(r/min) | 83 | 83 | 83 | 83 | 83 |
Screen Mesh(mm) | 40 | 50 | 60 | 60 | 60 |
Rotor-knives(PCS) | 28 | 40 | 48 | 61 | 78 |
Stator-knives(PCS) | 2 | 2 | 2 | 3 | 4 |
Main motor Power(KW) | 22 | 37-45 | 45-55 | 75 | 75-90 |
Hydraulic Motor Power(KW) | 2.2 | 3 | 3 | 5.5 | 7.5 |
Weight(kg) | 1580 | 3500 | 4000 | 5000 | 6200 |
WTG48 SERIES SINGLE SHAFT SHREDDER
MODEL | WT48100 | WT48120 | WT48150 |
Dimension L*W*H(mm) | 2800*2050*2400 | 2950*2275*2400 | 2950*2650*2400 |
Cutting Chamber A*B(mm) | 1300*1000 | 1400*1200 | 1400*1500 |
Heifht of discharge port C(mm) | 850 | 850 | 850 |
Cylinder Stroke(mm) | 850 | 950 | 950 |
Rotor Diameter(mm) | 480 | 480 | 480 |
Main shaft Speed(r/min) | 74 | 74 | 74 |
Screen Mesh(mm) | 60 | 60 | 60 |
Rotor-knives(PCS) | 48 | 61 | 78 |
Stator-knives(PCS) | 2 | 3 | 4 |
Main motor Power(KW) | 45-55 | 75 | 75-90 |
Hydraulic Motor Power(KW) | 3 | 5.5 | 7.5 |
Weight(kg) | 5000 | 6000 | 7200 |
WTX48 SERIES SWING ARM SINGLE SHAFT SHREDDER
lt is suitable for shredding plastic films of various shapes and sizes,TV casings, tires, plastic sheets,pallets,plastic barrels,paper tubes, lumps,etc. It can be customized according to userrequirements.
MODEL | WTX48120 | WTX48150 | WTX48200 |
Dimension L*W*H(mm) | 2740*3700*2700 | 2740*4180*2700 | 2740*4720*2700 |
Cutting Chamber A*B(mm) | 1600*1200 | 1600*1500 | 1600*2000 |
Heifht of discharge port C(mm) | 650 | 650 | 650 |
Cylinder Stroke(mm) | 550 | 550 | 550 |
Rotor Diameter(mm) | 480 | 480 | 480 |
Main shaft Speed(r/min) | 74 | 74 | 74 |
Screen Mesh(mm) | 60 | 60 | 60 |
Rotor-knives(PCS) | 61 | 78 | 102 |
Stator-knives(PCS) | 3 | 4 | 4 |
Main motor Power(KW) | 90 | 55-55 | 75-75 |
Hydraulic Motor Power(KW) | 5.5 | 7.5 | 7.5 |
Weight(kg) | 6500 | 8500 | 10500 |
WTNX48 SERIES INTERNAL ARM TYPE-SINGLE SHAFT SHREDDER
Suitable for shredding soft plastic materials and thin hard materials or hollow hard plastics of various shapes and sizes, such as films, TV casings, plastic sheets, plastic barrels, paper tubes, etc. It can be customized according to user requirements.
MODEL | WTNX48120 | WTNX48150 | WTNX48200 |
Dimension L*W*H(mm) | 2500*2510*2500 | 2500*4180*2700 | 2500*4720*2700 |
Cutting Chamber A*B(mm) | 1870*1200 | 1870*1500 | 1870*2000 |
Heifht of discharge port C(mm) | 650 | 650 | 650 |
Cylinder Stroke(mm) | 330 | 330 | 330 |
Rotor Diameter(mm) | 480 | 480 | 480 |
Main shaft Speed(r/min) | 74 | 74 | 74 |
Screen Mesh(mm) | 60 | 60 | 60 |
Rotor-knives(PCS) | 61 | 78 | 102 |
Stator-knives(PCS) | 3 | 4 | 4 |
Main motor Power(KW) | 90 | 55-55 | 75-75 |
Hydraulic Motor Power(KW) | 5.5 | 7.5 | 7.5 |
Weight(kg) | 6200 | 8300 | 10000 |
WTP40 SERIES PIPE-SINGLE SHAFT SHREDDER
lt is suitable for shredding plastic pipes of various diameters，paper tube. The machine canbe customized according to user requirements.
MODEL | WTP2260 | WTP4080 | WTP40100 | WTP40120 | WTP40150 |
Dimension L*W*H(mm) | 2275*1350*2100 | 3200*1750*2500 | 3500*1900*2500 | 4150*2250*2500 | 4850*2650*2500 |
Cutting Chamber A*B(mm) | 600*600 | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
Heifht of discharge port C(mm) | 650 | 850 | 850 | 850 | 850 |
Cylinder Stroke(mm) | 600 | 900 | 900 | 1100 | 1300 |
Rotor Diameter(mm) | 220 | 400 | 400 | 400 | 400 |
Main shaft Speed(r/min) | 83 | 83 | 83 | 83 | 83 |
Screen Mesh(mm) | 40 | 50 | 60 | 60 | 60 |
Rotor-knives(PCS) | 28 | 42 | 51 | 63 | 78 |
Stator-knives(PCS) | 2 | 2 | 2 | 3 | 4 |
Main motor Power(KW) | 22 | 37 | 45 | 55 | 75 |
Hydraulic Motor Power(KW) | 2.2 | 3 | 3 | 5.5 | 7.5 |
Weight(kg) | 2280 | 4500 | 5100 | 5800 | 6900 |
WTPW SERIES HORIZONTAL PIPE-SINGLE SHAFT SHREDDER
lt is used to tear large-diameter, thick-walled Plastic pipes. The machine can becustomized according to user requirements.
型号MODEL | WTPW8080 | WTPW120120 | WTPW150150 |
外形尺寸Dimension L*W*H(mm) | 11200*2500*2600 | 11800*2900*2950 | 12400*3100*3250 |
撕碎腔尺寸Cutting Chamber A*B(mm) | 6000*800 | 6000*1200 | 6000*1500 |
出料口高度Heifht of discharge port(mm) | 650 | 650 | 650 |
油缸行程Cylinder Stroke(mm) | 6000 | 6000 | 6000 |
转子直径Rotor Diameter(mm) | 800 | 1200 | 1500 |
主轴转速 Main shaft Speed(r/min) | 36 | 27 | 23 |
动刀Rotor-knives(PCS) | 56 | 105 | 130 |
定刀Stator-knives(PCS) | 2 | 3 | 4 |
主机功率 Main motor Power(KW) | 37×2 | 45X2 | 55X2 |
液压电机功率Hydraulic Motor Power(KW) | 11 | 15 | 18.5 |
Product Details
Ram
Screen
Rotor
Hydraulic Station
Gear Box
Bearing Seat
Company Profile
REGULUS MACHINERY GROUP
Zhangjiagang Regulus Machinery CO.,LTD boasts teams of professional and high-efficient colleagues in technology, management,sales, and service. With our continuous efforts in technology development and product quality control, we have been adhere to the principle of putting customer's benefit at the first place by providing the most competitive technique in plastic industry within the shortest period of time to create a higher value for customer.
Zhangjiagang Regulus Machinery CO.,LTD boasts teams of professional and high-efficient colleagues in technology, management,sales, and service. With our continuous efforts in technology development and product quality control, we have been adhere to the principle of putting customer's benefit at the first place by providing the most competitive technique in plastic industry within the shortest period of time to create a higher value for customer.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME!
REGULUS is professional manufacturer. Weclome you visit our factory. Regulus Machinery with own manufacture and developed & research team. In order to offer high efficiency after-sales service, our engineers are available to your factory for installation, commissioning, technical guidance and personnel training.
Contact us!
REGULUS is professional manufacturer. Weclome you visit our factory. Regulus Machinery with own manufacture and developed & research team. In order to offer high efficiency after-sales service, our engineers are available to your factory for installation, commissioning, technical guidance and personnel training.
Contact us!
Similar Products
Packing & Delivery
Certifications
Service
1.Pre-sale support
REGULUS Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.After-sale service
REGULUS company’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by our technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
REGULUS company holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3.Technical support
REGULUS company provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
REGULUS Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.After-sale service
REGULUS company’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by our technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
REGULUS company holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3.Technical support
REGULUS company provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
