Термостат серии C17AM + PTC, защита от перегрузки, выключатель, ТермоЗащита от перегрузки для насосов
33,49 ₽ - 35,65 ₽
Термостат индивидуальный температурный стиль Сертифицированный TUV сделано во Франке на китайском заводе
- Категория: >>>
- Поставщик: Jpci Controls (foshan Gaoming) Co. Ltd.
Сохранить в закладки 1601268989830:
Описание и отзывы
Характеристики

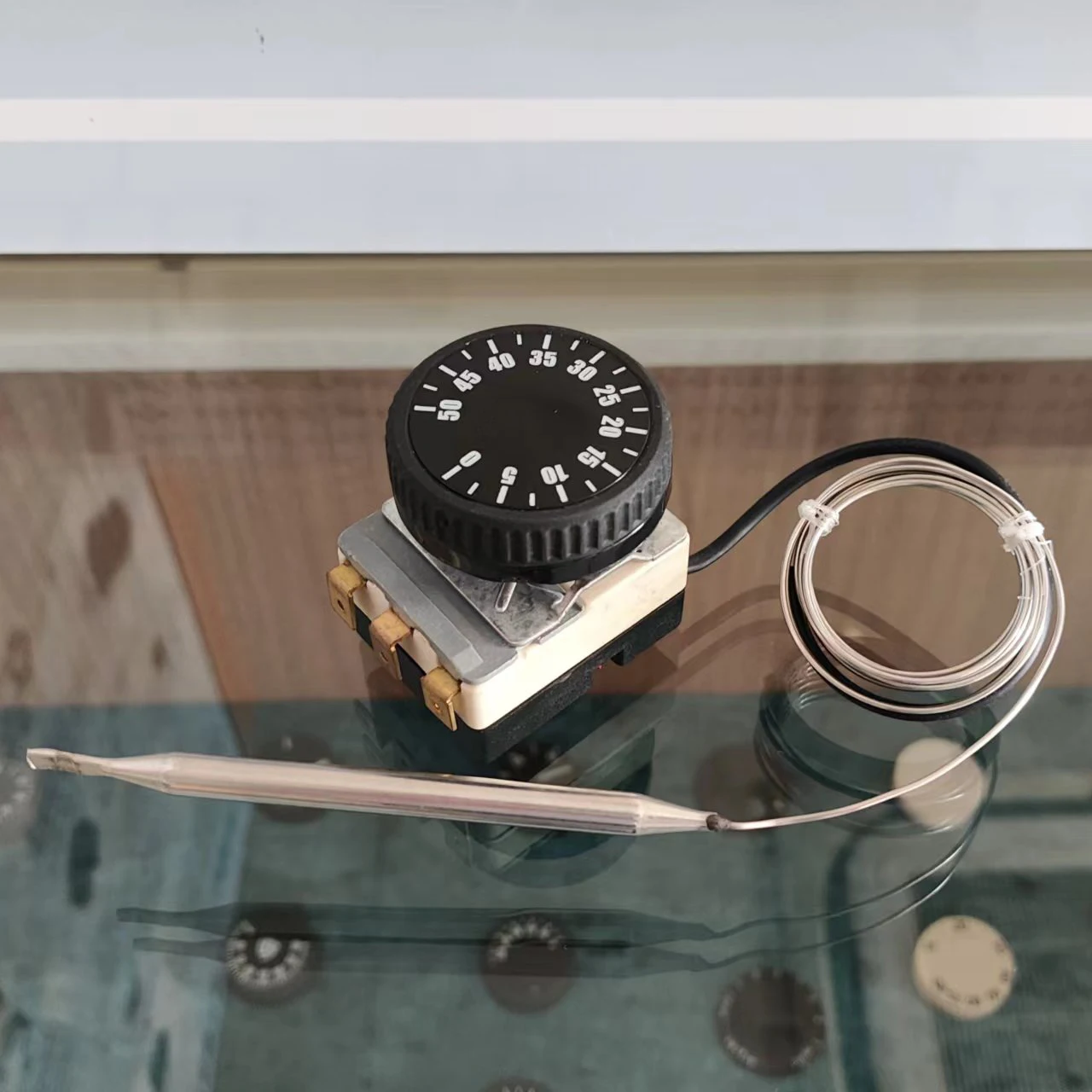

Product parameters for one of the styles
Product Information
Housing dimensions: 43 × 35 × 29mm (without terminals)
Bulb and capillary: stainless steel, with 150mm long PVC sleeve on the capillary. Capillary minimum bending radius is 5mm.
No capillary sleeve for temperature ranges above 400°C (750°F).
Temperature sensing element: oil filled bulb and capillary.
Caution: temperature ranges above 400°C (750°F) are filled with sodium-potassium eutectic. In case of breakage of the bulb or capillary, this liquid may self-ignite at room temperature in the presence of water or moisture.
Terminals: 6.35 × 0.8 quick connect terminals, 90° bended. Straight terminals or terminals with M4 screws also available on request. (MOQ apply). Terminal positions and alignment allow the use of a connector with flat or bended terminals.
Adjustment: dia. 6mm shaft with 4.6mm flat, length 11.5mm. Other lengths, screw driver adjustment or fixed setting available on request.
Mounting: front bracket with 2 × M4 threads, 28mm distance.
Grounding: M4 thread on mounting bracket.
Contact: SPDT
Electrical rating, resistive loads:
- Open on temperature rise contact (C-1)
16A 250V, 50 ~60Hz: >100000 cycles,
20A 250V, 50 ~60Hz: ≥ 50000 cycles,
10A 400V, 50 ~60Hz: ≥ 50000 cycles.
- Close on temperature rise contact (C-2): 6A 250V 50 ~60Hz: >100000 cycles
Electrical rating, inductive loads:
- Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles
- Close on temperature rise contact (C-2): 0.6A 250V 50 ~60Hz: >100000 cycles
Bulb and capillary: stainless steel, with 150mm long PVC sleeve on the capillary. Capillary minimum bending radius is 5mm.
No capillary sleeve for temperature ranges above 400°C (750°F).
Temperature sensing element: oil filled bulb and capillary.
Caution: temperature ranges above 400°C (750°F) are filled with sodium-potassium eutectic. In case of breakage of the bulb or capillary, this liquid may self-ignite at room temperature in the presence of water or moisture.
Terminals: 6.35 × 0.8 quick connect terminals, 90° bended. Straight terminals or terminals with M4 screws also available on request. (MOQ apply). Terminal positions and alignment allow the use of a connector with flat or bended terminals.
Adjustment: dia. 6mm shaft with 4.6mm flat, length 11.5mm. Other lengths, screw driver adjustment or fixed setting available on request.
Mounting: front bracket with 2 × M4 threads, 28mm distance.
Grounding: M4 thread on mounting bracket.
Contact: SPDT
Electrical rating, resistive loads:
- Open on temperature rise contact (C-1)
16A 250V, 50 ~60Hz: >100000 cycles,
20A 250V, 50 ~60Hz: ≥ 50000 cycles,
10A 400V, 50 ~60Hz: ≥ 50000 cycles.
- Close on temperature rise contact (C-2): 6A 250V 50 ~60Hz: >100000 cycles
Electrical rating, inductive loads:
- Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles
- Close on temperature rise contact (C-2): 0.6A 250V 50 ~60Hz: >100000 cycles
Usual knobs and bezels.
°C Printing
0-10°C | -35+35°C | -10+40°C | 4-40°C | 0-60°C |
66MZ0000010502FW | 66MZ006-350352FW | 66MZ006-100402FW | 66MZ0060040402FW | 66MZ0060000602FW |
0-90°C | 30-90°C | 30-110°C | 50-200°C | 50-300°C |
66MZ0060000902FW | 66MZ0060300901FW | 66MZ0060301101FW | 66MZ0060502001FW | 66MZ0060503001FW |
100-400°C | 100-500°C | |||
66MZ0061004007FW | 66MZ0061005007FW |
Product Display

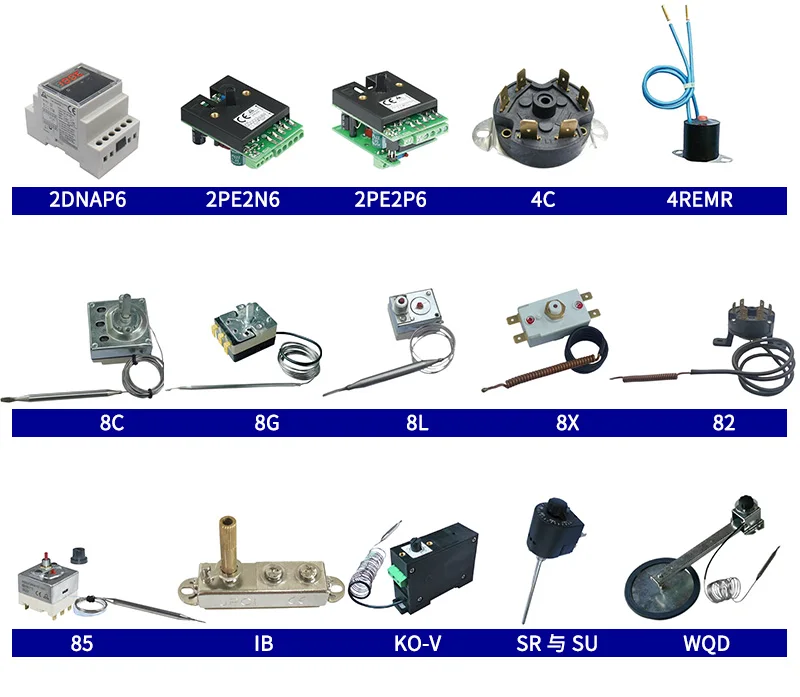

Recommend Products
Exhibitions

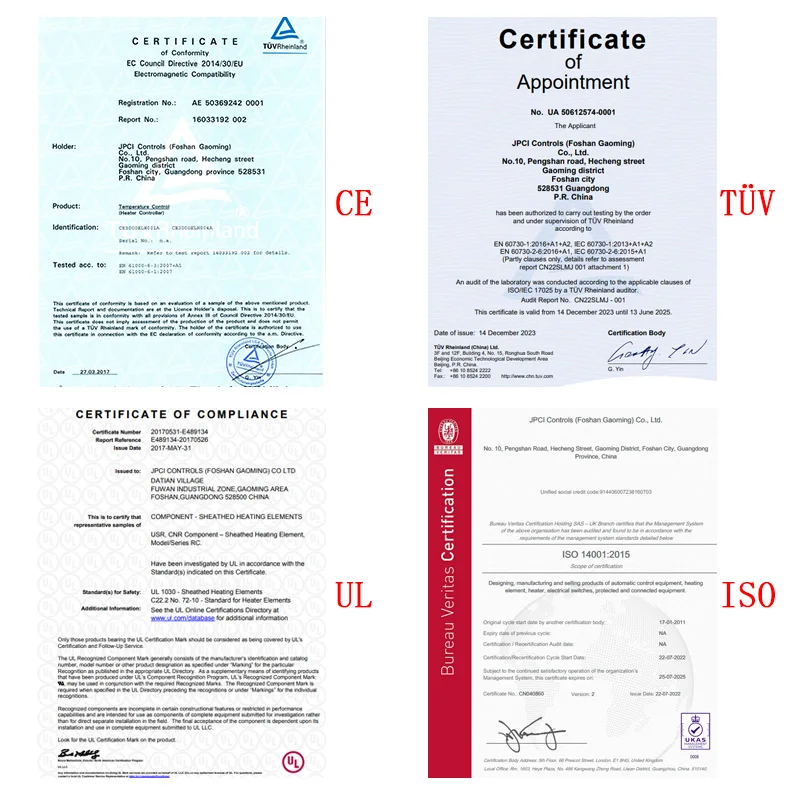

Certifications

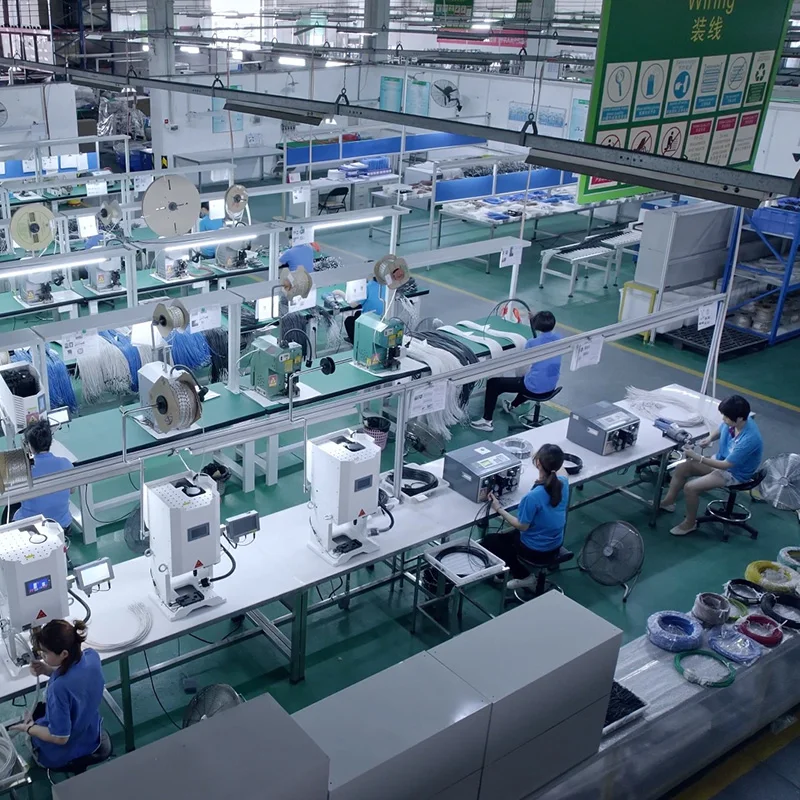

Company Profile
JPCI Controls originated from the French family-owned company founded in 1972, our company was founded in 2000, headquartered in Gaoming District, Foshan City, Guangdong Province, China, which is specialized in the design and production of mechanical thermostats, safety devices and electric heating systems for domestic and industrial use. JPCI owns an internationally renowned brand, ULTIMHEAT, and has a subsidiary in Lyon, France.After more than 50 years of development, JPCI has become a research and development enterprise which is deeply exploring the international market.
JPCI Controls covers an area of 30,000 square meters, has more than 300 employees, including 30 professional R & D and laboratory employees, and produces more than 6 million products per year, with more than 10,000 product models. Our production has achieved full vertical integration to ensure quality control at each stage, our company has more than 1000 sets of testing equipment such as ultraviolet aging testing machine, motor loading machine, hydraulic hi-pot bursting testing machine to strictly monitor product quality.
JPCI Controls has always adhered to the values of innovation, listening, responding and continuous improvement to ensure that products can achieve the best quality. JPCI holds 250 patents and applies for an average of 20 patents per year. Won the national high-tech enterprises and passed the system certification ISO9001, ISO14001, ISO45001; It has a 750㎡ self-built laboratory and has passed the ISO17025 laboratory certification of TUV&UL.
JPCI Controls is driven by innovation, guaranteed by quality, and takes environmental protection as its responsibility，looking forward to working with you to create a better future.
Product packaging
-Contact us-
Brian Chen
Sales Director
JPCI Controls (Foshan Gaoming) Co., Ltd
Add：No. 10 Pengshan Road, Fuwan Industrial Zone, Gaoming Area, Foshan City, Guangdong Province, China.
Web：https://www.ultimheat.cn/en/
Postcode：528523
Phone:86-18924867348
Wechat:008618924867348
Skype:live:.cid.a78d540ae78130dd
